Product type	Incremental rotary encoder
Brand	IFM
Model	RU6009
Category	Rotary encoder
Power supply	5 V TTL or 10...30 V HTL depending on version
Output signals	A, B, index 0, with inverted signals
Short-circuit protection	Protected outputs (5 V TTL to 0 V; HTL to 0 V and L+, max 1 min)
Electrical connection	ifm connector (ifm1000, ifm1013) or 5/13-wire cable
Maximum cable length	100 m (5 V TTL) or 300 m (10...30 V HTL)
Minimum distance to interference sources	20 cm
Mounting	On fixing flange, flexible coupling recommended
Main functions	Measurement of linear and angular displacements, position determination
Maintenance	Avoid shocks to the shaft, do not use tools on the shaft
Safety	Disconnect power before connection, insulate unused wires
Spare parts	Fixing flange E60033 available
General information	Certified (no. U8V 10 08 70596 006), datasheet at www.ifm.com

Frequently Asked Questions - RU6009 IFM

How to connect the IFM RU6009 rotary encoder?

Before connecting, disconnect power to the installation. Connect according to the diagram on the housing or in the manual. Use an ifm1000/ifm1013 connector or a suitable cable. Unused wires must be insulated.

What are the output signals of the RU6009?

The encoder delivers digital pulses on outputs A, B and index 0. Outputs A and B are 90° out of phase to determine direction of rotation. Inverted signals are available for differential inputs.

What is the maximum cable length for this encoder?

The maximum length depends on the version: 100 m for 5 V TTL version and 300 m for 10...30 V HTL version.

How to mount the IFM RU6009 encoder?

Screw the encoder onto a fixing flange (ref. E60033). Connect the shaft via a flexible coupling to compensate for misalignment. Avoid shocks to the shaft.

What is the supply voltage of the RU6009?

Two versions exist: 5 V TTL or 10...30 V HTL. Check the housing label for the version.

What to do in case of short circuit on outputs?

The outputs are protected: in 5 V TTL version, against short circuit to 0 V; in HTL version, against short circuit to 0 V and L+ (max 1 minute). After a short circuit, the device must be checked.

How to use the zero index of the encoder?

The zero index is a single pulse per mechanical revolution. It serves as a reference after a power outage to find the absolute position within one revolution.

What accessories are available for the RU6009?

The fixing flange E60033 is mentioned in the manual. Check www.ifm.com for other accessories such as connection cables.

How to clean the IFM RU6009 encoder?

Do not use abrasive tools on the shaft. Clean the exterior with a soft, dry cloth. Avoid aggressive solvents. Follow mounting instructions to prevent damage.

Where to find the complete datasheet for the RU6009?

The datasheet and other documents are available on the website www.ifm.com. You can also download the manual from notice-facile.com.

USER MANUAL RU6009 IFM

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

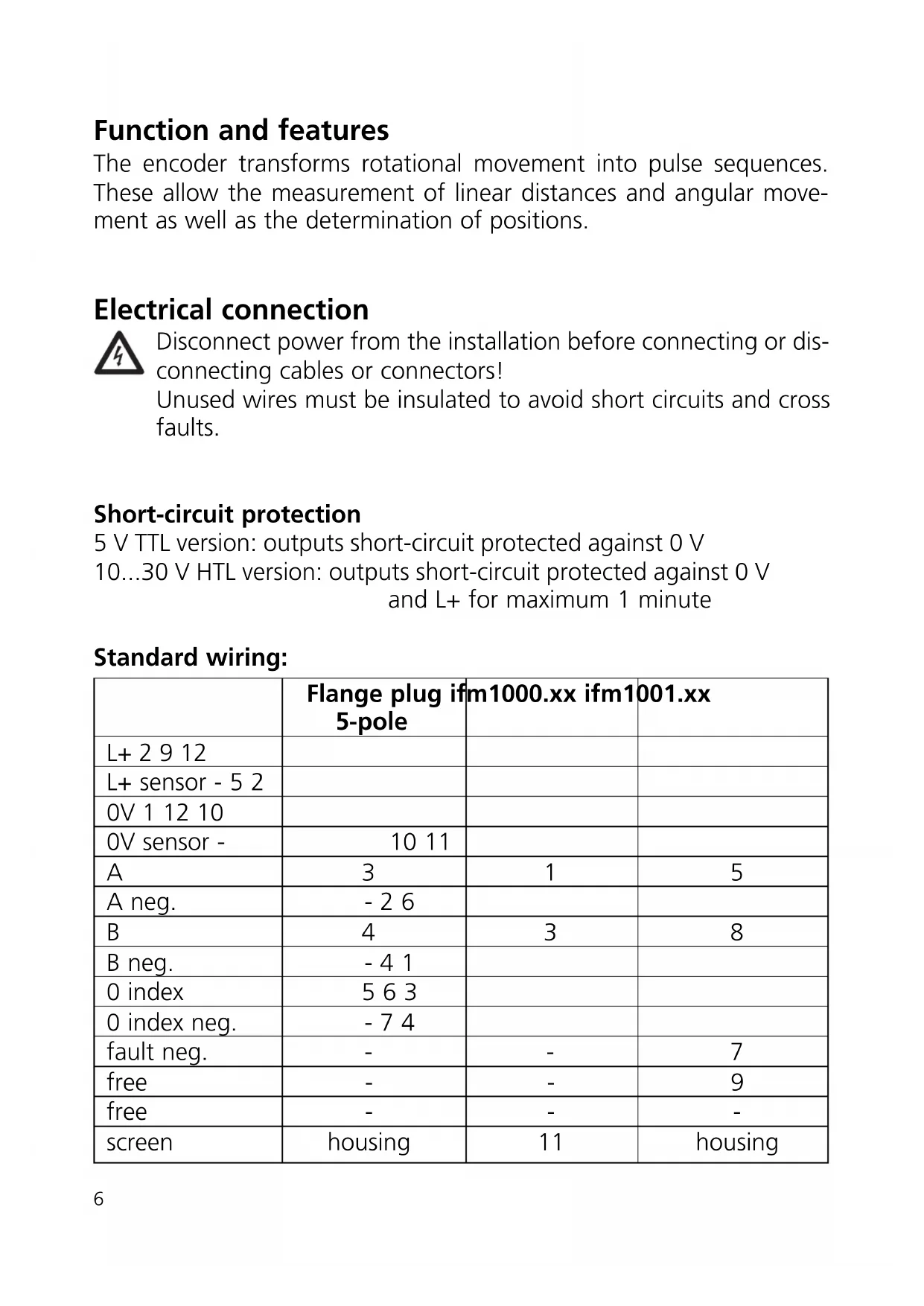

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V

10...30 V HTL version: outputs short-circuit protected against 0 V

and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green
L+ sensor - - blue
0V 6 grey white/green
0V sensor - - white
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20 cm.

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

180° 180° 90°

The encoder provides digital pulse sequences at the output stages.

The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

angle bracket E60033

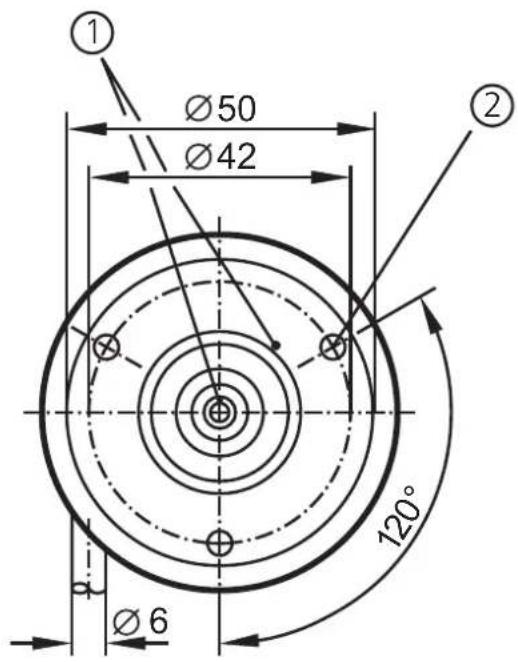

① Ø50 Ø42 ② 120° Ø6

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production 20196

Facility(ies):

Certification Mark:

Type Tested Production monitored TÜV PRODUCT SERVICE NRTL US C

Electronic measuring equipment (encoders)

Product: Electronic measuring equipment (encoders)

Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA

Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.

Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.: 028-71370093-000

Date, 2010-08-18
