USER MANUAL OB5019 IFM
Switching amplifier for fibre optics


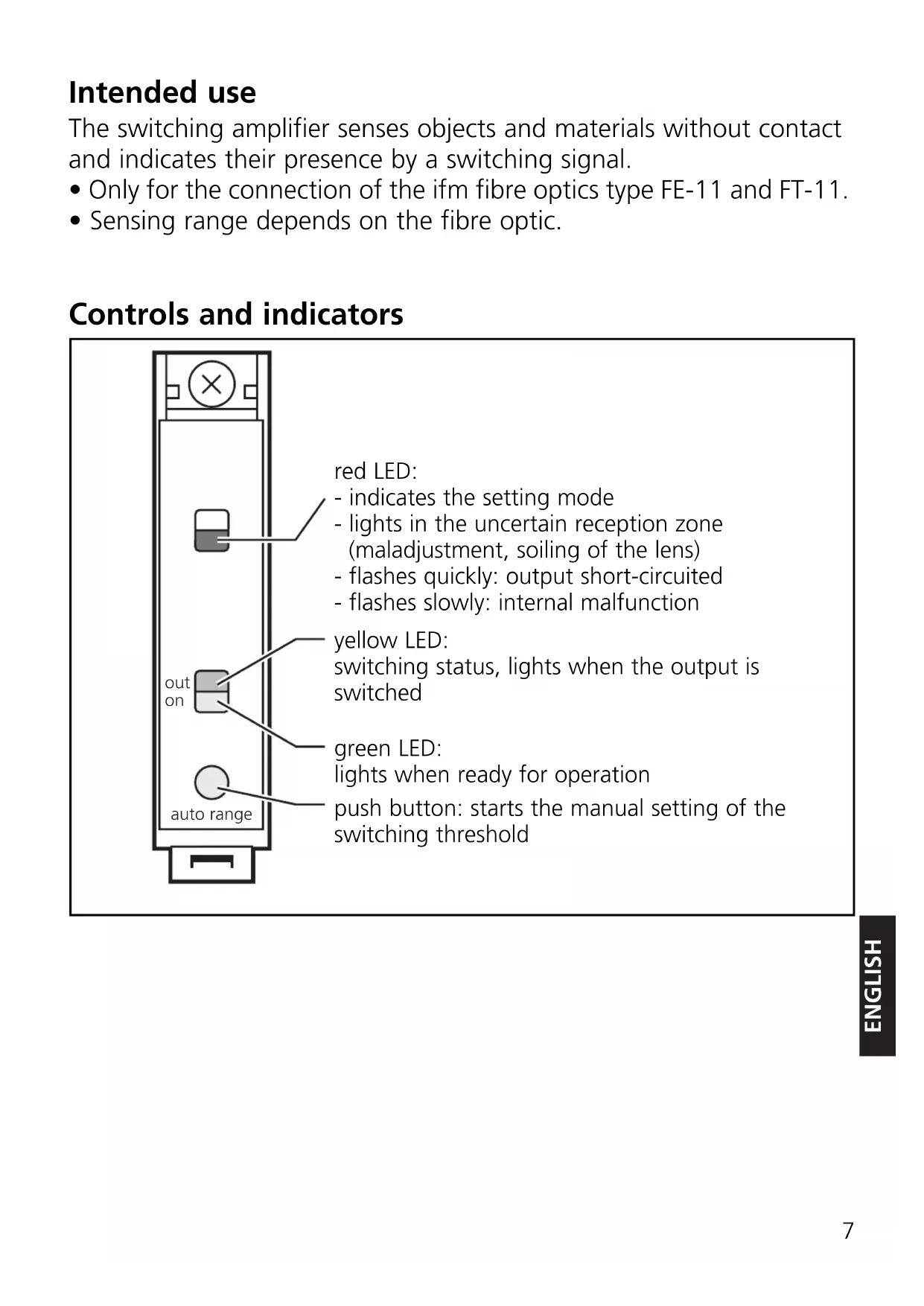

Controls and indicators 7
Mounting 8
Mount the fibre optics 8
Electrical connection 8
Setting of the switching threshold 9, 10
Connection 15
Français
The switching amplifier senses objects and materials without contact and indicates their presence by a switching signal.
- Only for the connection of the ifm fibre optics type FE-11 and FT-11.
- Sensing range depends on the fibre optic.

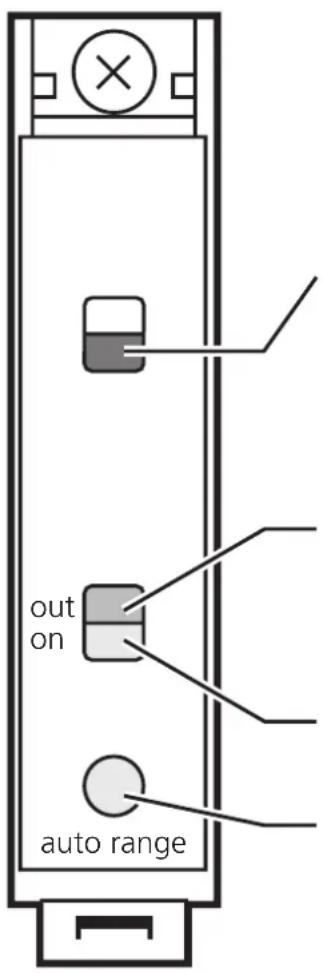

Controls and indicators
- indicates the setting mode
- lights in the uncertain reception zone (maladjustment, soiling of the lens)
- flashes quickly: output short-circuited
- flashes slowly: internal malfunction
yellow LED:
switching status, lights when the output is switched
green LED:
lights when ready for operation
push button: starts the manual setting of the switching threshold
Mounting
Mount the unit on a DIN rail or by means of a mounting fixture.
Mount the fibre optics:

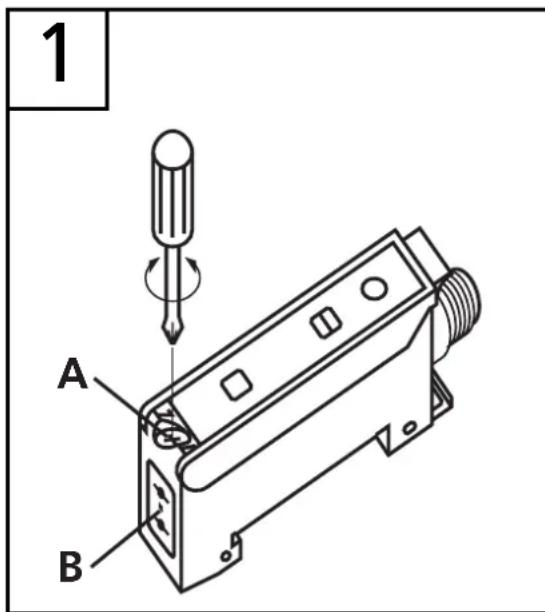

- Loosen the screw A, fig. 1.

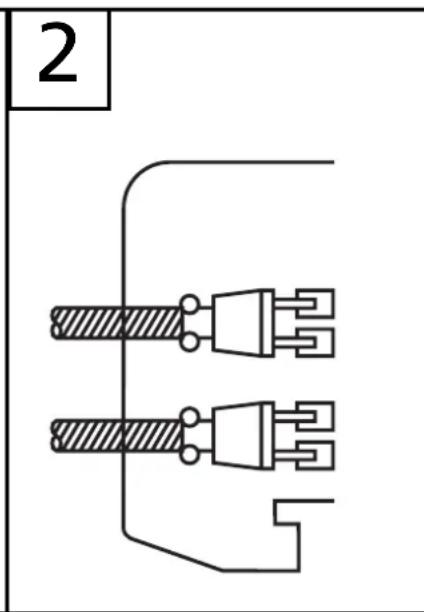

- Place the fibre optics into the sensor holes B until you feel a slight resistance (O ring), fig. 2.

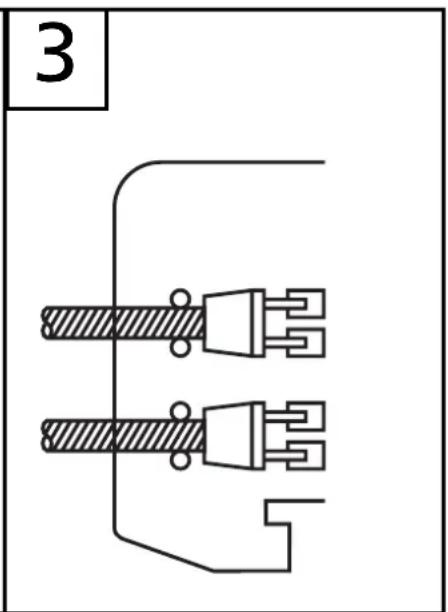

- Push the fibre optics until they come to a stop (optical elements) and hold them, fig. 3.
- Tighten the screw A.
If the fibre optics are not in contact with the optical elements, the sensing range is reduced.
Electrical connection
Isolate the power, then connect the unit as specified (see the last page or the type label).
- Core colours (for sensors with cable connection): BN = brown, BU = blue, BK = black.
- Programming of the output function by wiring (see the page 15 or the type label).
Setting of the switching threshold (1)
- Objects move through the detection area
- Diffuse reflection fibre (FT ...) and through-beam fibre (FE ...)
The unit detects input signals of various intensity in any sequence and calculates the optimum switching threshold.
| 1 | Allow the objects to pass trough the detection area. Press until the red LED flashes. | → |  Yellow and green LEDs flash alternately (= unit is in the programming mode). |
| 2 |  Press once. |  Yellow and green LEDs go out for a short time, then flash again alternately. |
| 3 |  Press once. |  | Yellow and green LEDs go out for a short time, | |
 | then the green LED is on (= unit is in the operating mode). |
If the setting of the switching threshold is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3. The unit then passes into the operating mode with the switching threshold being unchanged.
Setting of the switching threshold (2)
- Stationary objects
- Diffuse reflection fibre (FT ...) and through-beam fibre (FE ...)
The unit detects input signals of various intensity in any sequence and calculates the optimum switching threshold.
| 1 |  Press until the red LED flashes. |  | Yellow and green LEDs flash alternately(= unit is in the programming mode). |
| 2 | Place the object into the detection area.* Press once. |  | Yellow and green LEDs go out for a short time, then flash again alternately. |
| 3 | Remove the object.* Press once. |  | Yellow and green LEDs go out for a short time, | |
 | then the green LED is on (= unit is in the operating mode). |
* You can also proceed in reverse order: first setting without the object, then with the object.
If the setting of the switching threshold is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3. The unit then passes into the operating mode with the switching threshold being unchanged.
Operation
Only open the cover to make adjustments. Close it after the adjustment has been made in order to maintain the protection IP65.
Check whether the unit functions properly.
