Product type	Incremental encoder
Brand	IFM
Model	RU6040
Category	Receiver (encoder)
Dimensions (diameter x length)	Approximately 60 x 50 mm
Weight	Approximately 200 g
Power supply	5 V TTL or 10…30 V HTL
Electrical protection	Outputs protected against short circuits (0 V for TTL, 0 V and L+ for HTL)
Output signals	A, B (phase-shifted by 90°) and zero index (one per revolution)
Maximum cable length	100 m (TTL) / 300 m (HTL)
Electrical connection	IFM 15-pin male connector or 13-wire cable
Mounting	On mounting flange (E60033) with flexible coupling
Main functions	Conversion of rotations into pulses, measurement of linear/angular displacements, position determination
Maintenance and cleaning	Clean with a dry cloth. Avoid shocks to the shaft.
Safety	Disconnect power before connection. Insulate unused wires.
Spare parts and repairability	Accessories available at ifm.com. No user repair.
General information	IFM RU6040 incremental encoder. Manual available for download.

Frequently Asked Questions - RU6040 IFM

What is the power supply voltage of the RU6040?

The encoder is available in two versions: 5 V TTL or 10...30 V HTL. Check the exact model on the label.

How to connect the RU6040 encoder?

Disconnect power before any connection. Use the connection diagram provided on the cover or in the manual. Observe the terminals L+, 0V and outputs A, B, index.

What is the maximum allowed cable length?

For the 5 V TTL version: 100 m. For the 10...30 V HTL version: 300 m. Use shielded cables separated from interference sources (distance > 20 cm).

How to interpret the output signals?

Outputs A and B are digital pulses phase-shifted by 90° to detect the direction of rotation. The zero index is emitted once per mechanical revolution.

Can I use this encoder to measure linear displacements?

Yes, using a measuring wheel or a rack and pinion. Ensure not to exceed the permissible loads on the shaft.

How to mount the RU6040 encoder?

Screw the encoder onto a mounting flange (ref. E60033). Use a flexible coupling to avoid axial stresses. Avoid shocks to the shaft.

What to do if a wire is not used?

Insulate unused wires to avoid short circuits. You can also connect them to the supply voltage if necessary.

Where to find accessories for the RU6040?

Visit www.ifm.com for datasheets and accessories such as cables, connectors, and flanges.

Is the encoder protected against short circuits?

Yes, the outputs are protected against short circuits: on 0 V for the TTL version, on 0 V and L+ for the HTL version (max 1 minute).

Can I repair the encoder myself?

No, no user repair is intended. In case of failure, contact IFM after-sales service or replace the device.

USER MANUAL RU6040 IFM

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting bracket and motor (no text or symbols)

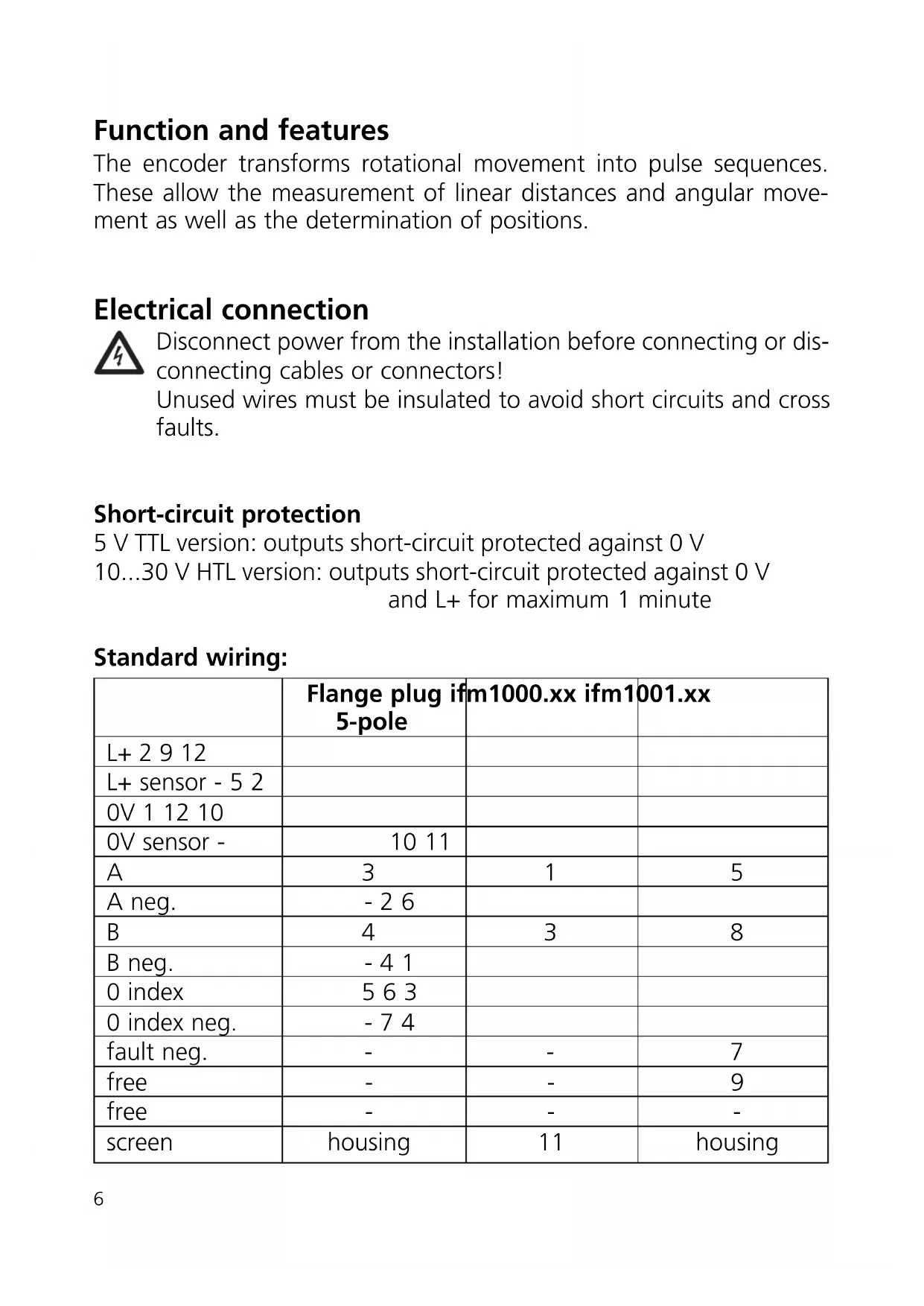

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V

10...30 V HTL version: outputs short-circuit protected against 0 V

and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green
L+ sensor - - blue
0V 6 grey white/green
0V sensor - - white
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20 cm.

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

The encoder provides digital pulse sequences at the output stages.

The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

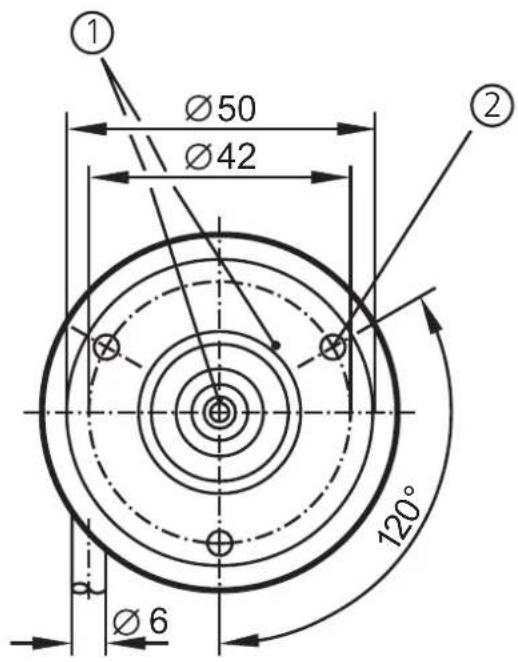

angle bracket E60033

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production 20196

Facility(ies):

Certification Mark:

Electronic measuring equipment (encoders)

Product: Electronic measuring equipment (encoders)

Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA

Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.

Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.: 028-71370093-000

Date, 2010-08-18

Page 1 of 1

TÜV SÜD AMERICA INC. • 10 Centennial Drive • Peabody MA 01960 USA • www.TUVamerica.com

TÜV®
