Product Type	Laser photoelectric barrier (OG photoelectric barrier)
Brand	IFM
Model	OG5112
Category	Security and Access Control System
Power supply	10-30 V DC, galvanically isolated power supply with overload protection
Maximum consumption	Diagnostic output: 10 mA max
Laser class	Class 2 (do not look into the beam axis)
Range (r)	See label on device (not specified in manual)
Main functions	Contactless object detection; switching output (PNP/NPN depending on wiring); diagnostic output; sensitivity programming for static and moving objects; adjustment aid; lock/unlock
Electrical connection	Wires: BN (brown) = L+, BU (blue) = L-, BK (black) = output. Programming of output function by wiring.
LED indicators	Green: device operational; Yellow: switched output; Red: detection error; Yellow+Red flashing: short-circuit or internal error
Programming mode	Press the transmitter adjustment button for 2 seconds; LEDs flash alternately to confirm
Sensitivity adjustment	Can be adjusted with or without object, or for moving objects by allowing at least two objects to pass
Lock/Unlock	Press for 10 seconds: lock (LEDs off) or unlock
Mounting	Mount the receiver with the mounting bracket; aim the transmitter at the receiver; avoid vibrations
Maintenance and cleaning	Clean the lenses with a soft cloth; do not use solvents or aggressive products
Safety	Do not look into the laser beam axis; apply warning labels near the cell; disconnect power before wiring
Operating environment	Indoor; avoid strong vibrations

Frequently Asked Questions - OG5112 IFM

How to correctly align the transmitter and receiver?

Aim the transmitter at the receiver so that the light spot hits the receiver lens. Use the adjustment aid (short press of the adjustment button) to make the spot visible. Mount the cell to prevent displacement due to vibrations.

What to do if the red LED stays on?

The red LED indicates a detection error: misalignment, dirty lenses, or undetected object. Check alignment, clean the lenses, and ensure the object is within the detection area.

How to adjust sensitivity to detect static objects?

Activate programming mode by pressing the adjustment button for 2 s. Then press once with the object in the beam, then once without object. The LEDs confirm the setting. You can reverse the order.

How to adjust sensitivity for moving objects?

Activate programming mode, then let at least two objects pass through the detection area during measurement (approx. 1 s). Press again to confirm.

What is the meaning of the yellow and red LEDs flashing alternately?

Alternate flashing at 2 Hz indicates a short circuit on the output. At 1 Hz, it is an internal error; the output is not switched. Check wiring and power supply.

How to clean the sensor lenses?

Use a soft, dry cloth. Never use solvents or abrasive products that could damage the plastic lenses.

What are the safety precautions regarding the laser?

This sensor uses a class 2 laser. Never look directly into the beam and do not point the beam at others' eyes. Attach the supplied warning labels near the device.

How to lock or unlock the sensor?

Press the adjustment button for 10 s. After 10 s, the LEDs turn off: the sensor is locked. Repeat the operation to unlock.

What is the required supply voltage?

The device requires a DC 10-30 V power supply, galvanically isolated and overload protected. Disconnect power before any connection.

Can I use this sensor to detect transparent objects?

Yes, the sensitivity adjustment allows detection of partially transparent objects. Use programming mode with and without the object to adapt sensitivity.

USER MANUAL OG5112 IFM

Through-beam sensor OG laser

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Warning symbol with sunburst inside triangle (no text or numbers)

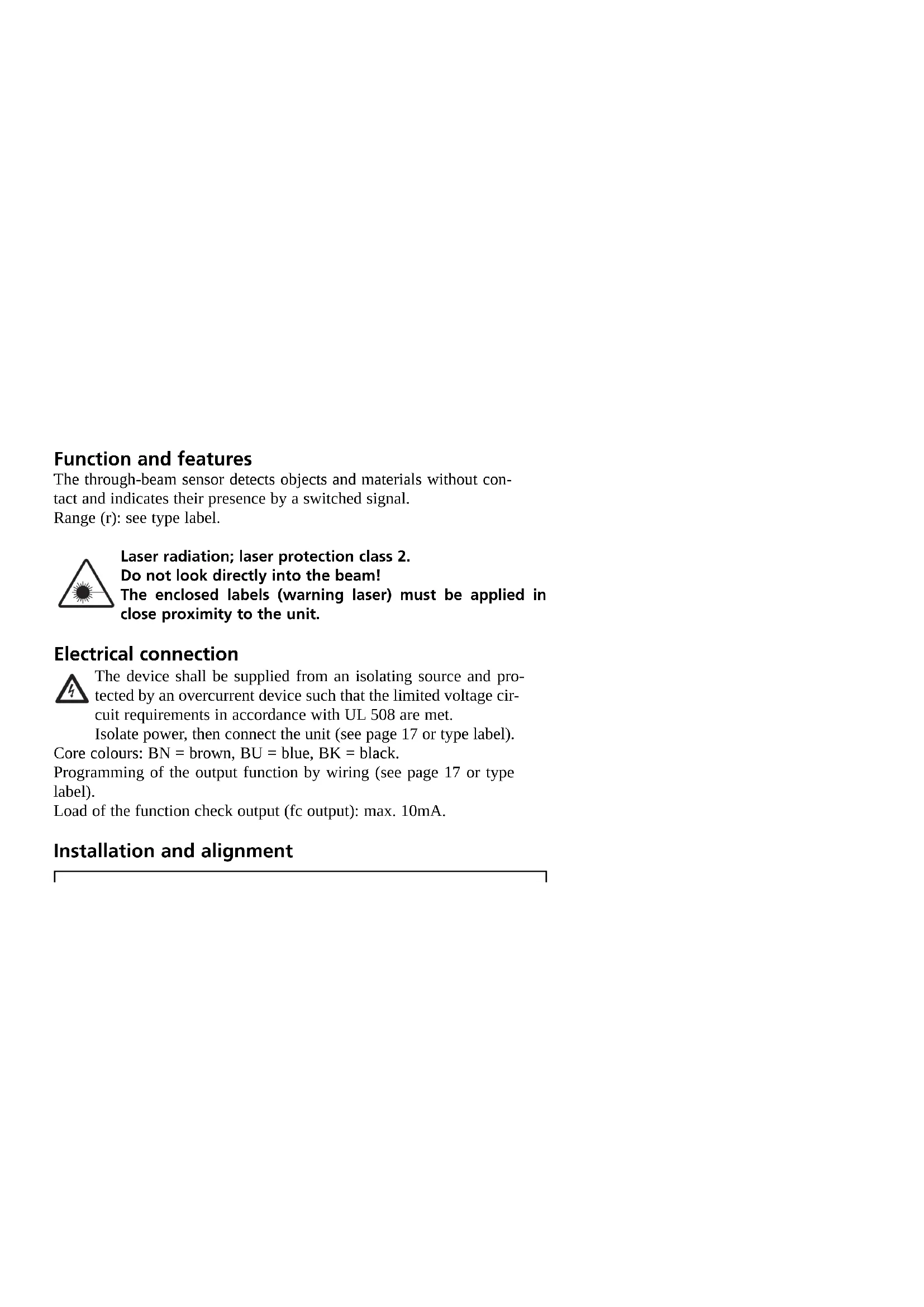

Function and features

The through-beam sensor detects objects and materials without contact and indicates their presence by a switched signal.

Range (r): see type label.

Laser radiation; laser protection class 2.

Do not look directly into the beam!

The enclosed labels (warning laser) must be applied in close proximity to the unit.

Electrical connection

The device shall be supplied from an isolating source and protected by an overcurrent device such that the limited voltage circuit requirements in accordance with UL 508 are met.

Isolate power, then connect the unit (see page 17 or type label).

Core colours: BN = brown, BU = blue, BK = black.

Programming of the output function by wiring (see page 17 or type label).

Load of the function check output (fc output): max. 10mA.

Installation and alignment

Mount the unit so that the mounting position cannot change (in particular avoid high vibrations!). Laser units with a very small light spot diameter are highly focussed; the slightest change in the mounting position will result in misalignment.

Adjustment aid

For the alignment the transmitter incorporates an adjustment aid.

After pressing the setting button on the transmitter the red LED flashes, then the green LED and the yellow LED flash alternately. The intensity of the transmitted light is increased and the light spot is clearly visible. After pressing the button again the green LED is on again and the transmitted light is set again to normal intensity.

If the button is not pressed again, the transmitted light is set to normal intensity after about 15 min.

NB: Commissioning

The through-beam sensor is supplied ready to operate (plug and play) set at the max. sensing range. This is sufficient if the through-beam sensor can operate with maximum excess gain (highest contrast). The following setting procedures should only be necessary in less straightforward applications, for example if partly transparent objects must be detected.

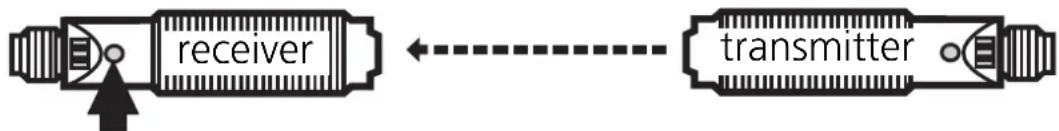

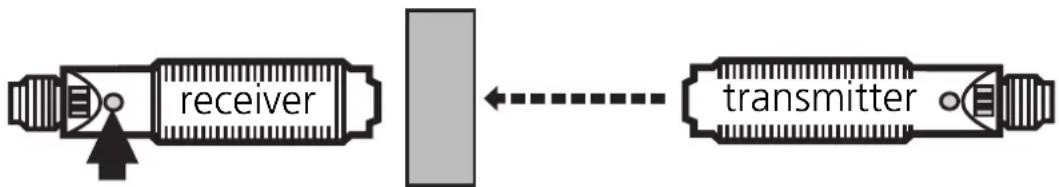

Setting of the sensitivity with stationary objects

1	Activate the programming mode of the unit.Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately.The unit is in the programming mode.
2	Set the sensitivitywithobject.Press once.
	The yellow and green LEDs go out for approx. 1s,then flash again alternately.

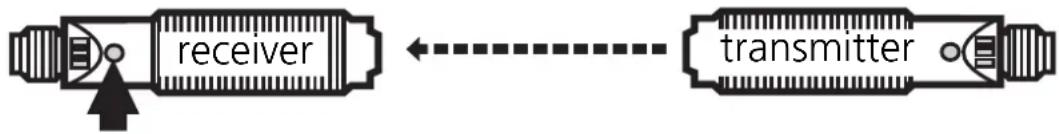

3	Set the sensitivitywithoutobject.Press once.
	The yellow and green LEDs go out for approx. 1s,then the green LED is on.The unit is in the operating mode.

You can also proceed in reverse order: first setting without the object, then with the object.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

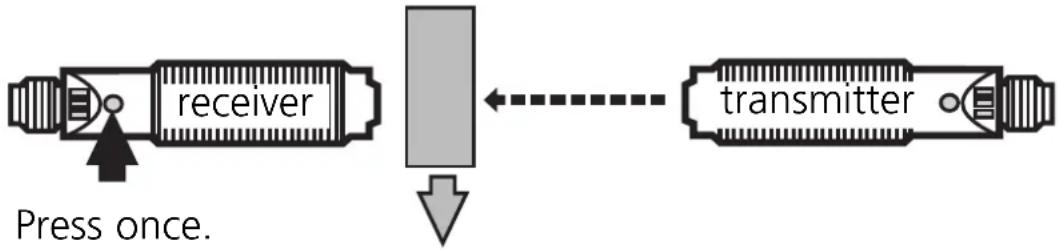

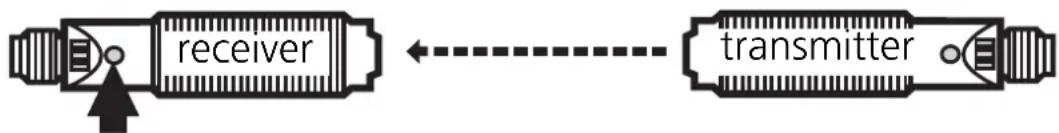

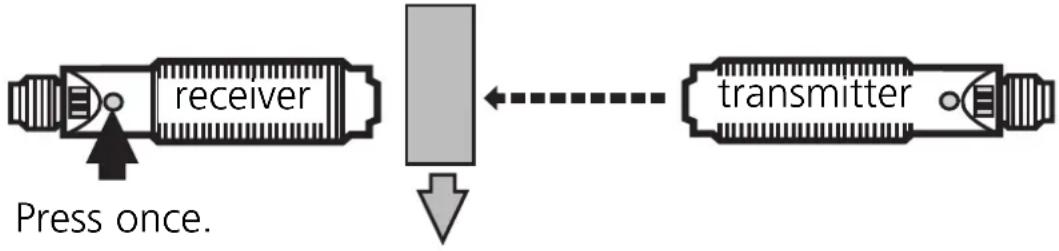

Setting of the sensitivity with moving objects

1	Activate the programming mode of the unit.Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately.The unit is in the programming mode.
2	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens.
	The yellow and green LEDs go out for approx. 1s, then the green LED is on.The unit is in the operating mode.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the maximum sensitivity

• Go into the programming mode (step 1).
• Interrupt the light beam.
• Press the setting button twice (see steps 2 and 3).

Locking

—Press for 10s.

The red LED flashes for a short time, then the yellow and green LEDs flash alternately; after 10s the LEDs go out, the unit is locked.

Unlocking

Press for 10s.

After 10s the LEDs go out, locking is cancelled.

Operation

Check the safe functioning of the diffuse reflection sensor. Display by LEDs and by the function check output.

LED green is lit Unit is ready for operation.
LED yellow is lit Output is switched.
LED red is lit	Error in object detection, e.g. maladjustment, soiling of the lenses.
LEDs yellow + red	Flash alternately, 2 Hz: output short-circuited. Flash alternately, 1 Hz: internal malfunction (output is not switched).

Function check output

(not for sensors with cable connection)

• Switches in the case of incorrect object detection (error in object detection, maladjustment, soiling of the lenses) after approx. 4 s, it switches back approx. 4 s after the object is again correctly detected.
• Immediately switches in the case of a short circuit of the switching output, it switches back approx. 2 s after the fault has been rectified.
• Immediately switches in the case of an internal fault, it is only switched back by turning off the operating voltage and then on again.

Maintenance

Keep the lens of the sensor free from soiling. For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses.

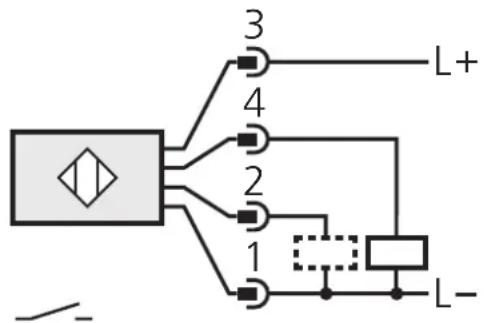

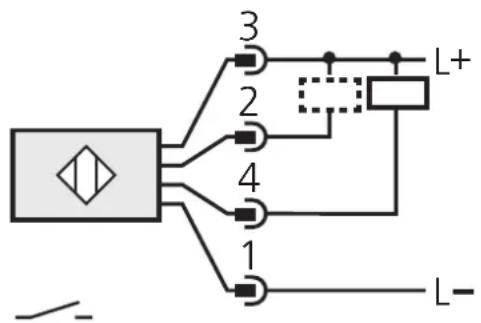

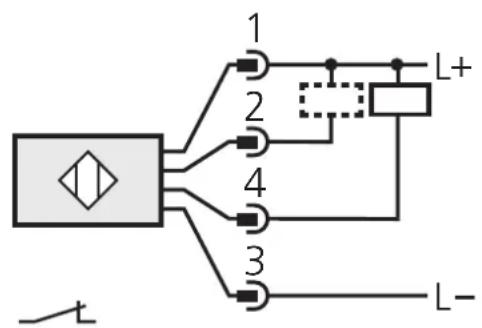

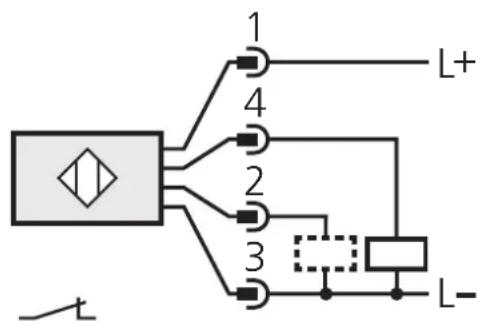

BN L+ BK BU L-

BU L+ BK BN L-

BN BK BU L+ L-

BU BK BN L+ L-

PIN 2 = fc-output
