Product type	Photoelectric sensor (motion detector) IFM OG5117
Main functions	Contactless detection of objects and materials, switching signal, sensitivity adjustment for static or moving objects, diagnostic output
Power supply	10-30 V DC, galvanically isolated power supply with overload protection
Electrical connection	Pins: BN (brown) = +, BU (blue) = -, BK (black) = output; output function programming via wiring
Range	See label on the device
LED indications	Green = device operational; Yellow = output switched; Red = detection error; Yellow+Red flashing = short circuit or internal error
Diagnostic output	10 mA max., switches on error (poor detection, short circuit, internal error)
Sensitivity adjustment	Programming mode by button (press 2s); adjustment with and without object; for moving objects, let at least 2 objects pass
Lock/Unlock	Press 10s to lock; repeat to unlock
Maintenance and cleaning	Clean lenses without solvents or aggressive products
Safety	Disconnect power before connection; use galvanically isolated power supply
Spare parts and repairability	Not specified – contact manufacturer
General information	Instructions available in PDF for free; brand IFM, model OG5117

Frequently Asked Questions - OG5117 IFM

How to connect the OG5117 sensor?

Disconnect the installation. Connect the brown wire (BN) to +, blue (BU) to -, and black (BK) to output. Consult the label for output function programming.

What is the range of the sensor?

The maximum range is indicated on the device label. It depends on the alignment of the emitter and receiver.

How to adjust sensitivity for static objects?

Press the button for 2s to enter programming mode (red LED flashes). Place the object, press once. Remove the object, press once. The green LED lights up to confirm.

How to adjust sensitivity for moving objects?

In programming mode, let at least two objects pass through the detection zone, then press once. Repeat a second time. The green LED indicates the end of adjustment.

What to do if the red LED flashes after adjustment?

This means that adjustment was not possible (object and background signals too close). The detector returns to operating mode without changing the sensitivity.

How to interpret the LEDs?

Flashing green LED: device operational. Yellow LED: output switched. Red LED: detection error (poor adjustment, dirty lenses). Yellow+red alternating: short circuit (2 Hz) or internal error (1 Hz).

What to do in case of short circuit?

The diagnostic output switches immediately. After eliminating the short circuit, the device resets in about 2 seconds.

How to clean the lenses?

Use a soft dry cloth. Never use solvents or abrasive products that could damage the plastic lenses.

How to lock or unlock the cell?

Press the button for 10 seconds. The red LED lights up briefly, then the yellow and green LEDs flash. After 10s, the LEDs go out and the cell is locked. Repeat to unlock.

Does the sensor work in plug and play mode?

Yes, it is delivered pre-set at maximum range. Sensitivity adjustment is only necessary for partially transparent objects or special conditions.

USER MANUAL OG5117 IFM

Functions and features

The through-beam sensor detects objects and materials without contact and indicates their presence by a switched signal.

Range (r): see type label.

Electrical connection

The device shall be supplied from an isolating source and protected by an overcurrent device such that the limited voltage circuit requirements in accordance with UL 508 are met.

Isolate power, then connect the unit (see page 17 or type label). Core colours (for sensors with cable connection): BN = brown, BU = blue, BK = black.

Programming of the output function by wiring (see page 17 or type label). Load of the function check output (fc output): max. 10mA

Installation

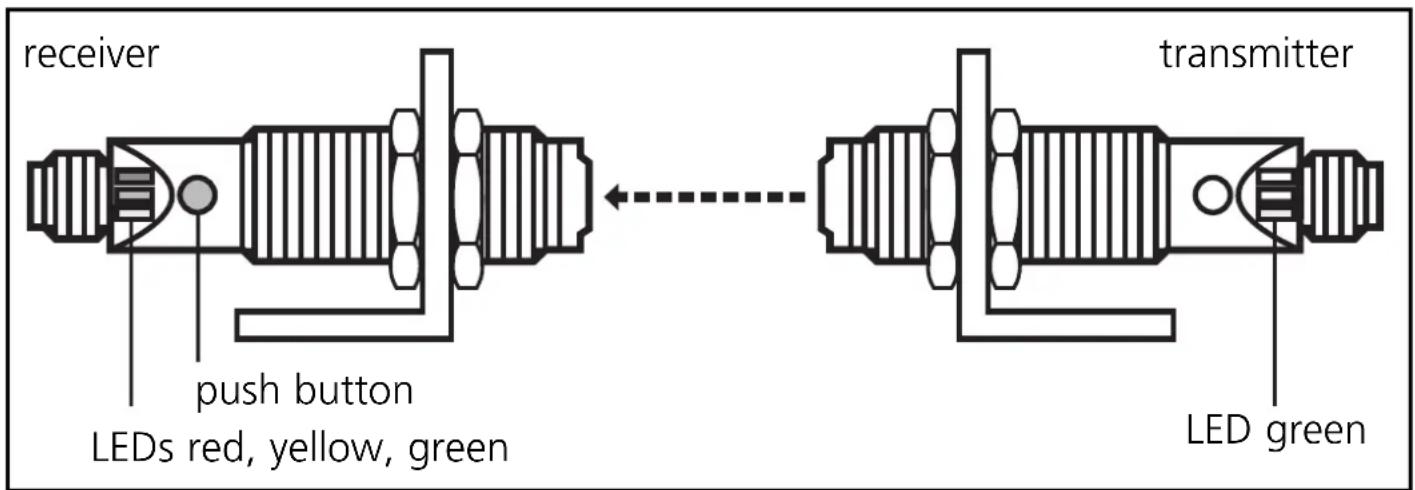

Fix the receiver (type OGE-...) in position.

Align the transmitter (type OGS-...) towards the receiver and tighten in the same way. Maximum range is only possible with precise alignment.

NB: Commissioning

The through-beam sensor is supplied ready to operate (plug and play) set at the max. sensing range. This is sufficient if the through-beam sensor can operate with maximum excess gain (highest contrast). The following setting procedures should only be necessary in less straightforward applications, for example if partly transparent objects must be detected.

Setting of the sensitivity with stationary objects

1	Activate the programming mode of the unit. 接收er transmitter Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

2	Set the sensitivity with object. receiver Press once.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3	Set the sensitivity without object. receiver transmitter Press once.
	The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

You can also proceed in reverse order: first setting without the object, then with the object.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the sensitivity with moving objects

1	Activate the programming mode of the unit. 接收er transmitter Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

2	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once.
	The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the maximum sensitivity

• Go into the programming mode (step 1).
• Interrupt the light beam.
• Press the setting button twice (see steps 2 and 3).

Locking/Unlocking:

Press for 10s.	The red LED lights for a short time, then the yellow and green LEDs flash alternately; after 10s the LEDs go out, the unit is locked.
Press for 10s.	After 10s the LEDs go out, locking is annulled.

Operation

Check the safe functioning of the through-beam sensor. Display by LEDs and by the function-check output.

LED green is lit unit is ready for operation
LED yellow is lit output is switched
LED red is lit	error in object detection, e.g. maladjustment, soiling of the lenses
LEDs yellow + red	flashing alternately, 2 Hz: output short-circuited flashing alternately, 1 Hz: internal malfunction (output is not switched)

Function check output

(not for sensors with cable connection)

• Switches in the case of incorrect object detection (error in object detection, maladjustment, soiling of the lenses) after approx. 4 s, it switches back approx. 4 s after the object is again correctly detected.
• Immediately switches in the case of a short circuit of the switching output, it switches back approx. 2 s after the fault has been rectified.
• Immediately switches in the case of an internal fault, it is only switched back by turning off the operating voltage and then on again.

Maintenance

Keep the lens of the sensor free from soiling. For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses.
