Product type	Electronic pressure sensor
Reference	PF003A (IFM)
Supply voltage	20...30 V DC
Current consumption	< 60 mA
Pressure type	Relative pressure
Measuring range	-1.0...25 bar / -15...363 PSI / -0.1...2.5 MPa
Admissible overpressure	100 bar
Burst pressure	350 bar
Switching outputs	2 PNP/NPN outputs (configurable), current 2 x 250 mA
Analog output	4...20 mA or 0...10 V (output 2 only)
Protection	Short circuit, reverse polarity, overload, IP 67, class III
Ambient temperature	-20...+60 °C
Fluid temperature	-20...+60 °C
Materials in contact	Stainless steel 316L, Al2O3 ceramic, PTFE
Housing	Stainless steel 316L, PBTP, PC, PEI, EPDM/X, FPM
Process connection	G1, adaptable with accessories
Maximum tightening torque	20 Nm
Display	3-digit digital display, rotatable
Programming	Via Mode/Enter and Set buttons, lockable
Filter cleaning	Unscrew the cover, clean carefully
Optional accessories	Process adapters, protective cap E30043

Frequently Asked Questions - PF003A IFM

How to program the switching thresholds SP1 and rP1?

In Run mode, briefly press Mode/Enter to select the parameter (SP1, rP1). Hold Set for more than 5 seconds until the value flashes. Adjust with Set then confirm with Mode/Enter. Wait 15 seconds to return to Run mode.

What does the display 'OL' or 'UL' mean?

'OL' indicates overpressure (above the measuring range). 'UL' indicates underpressure (below). Check the applied pressure and the sensor's measuring range.

How to wire the sensor for PNP output?

Use standard pinout: 1 BN (L+), 2 WH (OUT2), 3 BU (L-), 4 BK (OUT1). For PNP, set parameter P-n to PnP. The outputs switch the positive.

How to set the analog output to 4...20 mA?

Set OU2 to 'I' (current). Adjust ASP for the minimum value (4 mA) and AEP for the maximum value (20 mA). The difference between ASP and AEP must be ≥ 25% of the range.

Why does the output not switch despite the pressure being reached?

Check the parameter OUx (Hno, Hnc, Fno, Fnc) and the thresholds SPx/rPx. Make sure the output is not short-circuited (message SCx) and that the delay dSx/drx is not active.

How to reset the stored max/min values (HILO)?

In Display mode, select HI or LO with Mode/Enter. Hold Set until '----' is displayed. Briefly press Mode/Enter to clear the memory.

What is the recommended tightening torque for the connection?

The maximum tightening torque is 20 Nm. Tighten the sensor with a suitable wrench at the G1 connection. Do not exceed to avoid damaging the seal.

How to clean the pressure compensation filter?

Unscrew the filter cover (B) with pliers with plastic jaws. Clean it carefully without pushing residues towards the vent (A). Screw back on. The sensor is IP67.

What to do in case of a flashing 'SC1' or 'SC2' message?

This indicates a short circuit on output 1 or 2. The output is disabled as long as the fault persists. Check the wiring and the load. After removal, the message disappears.

How to lock the keypad to prevent accidental changes?

In Run mode, simultaneously press both buttons (Mode/Enter and Set) for 10 seconds. The display briefly goes off to confirm. To unlock, repeat the operation.

USER MANUAL PF003A IFM

Electronic pressure sensor

Technical line drawing of a mechanical device with no visible text or symbols

Inhalt

Programmieren / Programming / Programmation

1	1 x 2 x...	Parameter aufrufenSelect parametersSélectionner les paramètres
2	> 5s	Werte einstellen*Set Values*Régler la valeurs*
3	1 x	Werte bestätigenAcknowledgement of valuesConfirmer la valeur

*Wert verringern: Lassen Sie die Anzeige bis zum maximalen Einstellwert laufen. Danach beginnt der Durchlauf wieder beim minimalen Einstellwert.
*Decrease the value: Let the display of the parameter value move to the maximum setting value. Then the cycle starts again at the minimum setting value.
*Réduire la valeur du paramètre: Laisser l'affichage de la valeur du paramètre aller jusqu'à la valeur de réglage maximum. Ensuite le cycle recommence à la valeur de réglage minimum.

Sicherheitshinweise

888 Mode/EnterSet ① ② ③ ④

Technical diagram of a mechanical device with labeled components A, B, and C

Montage des Adapters Schritt 1

Diagram of a mechanical device with a hand gesture pointing to the left side (no text or symbols present)

Schritt 2

1 = BN (braun),
2 = W H ( w e i β),
3 = BU (blau),
4 = BK (schwarz)

Programmieren

Read the product description before installing the unit. Ensure that the product is suitable for your application without any restrictions.

Non-adherence to the operating instructions or technical data can lead to personal injury and/or damage to property.

In all applications check compliance of the product materials (see Technical data) with the media to be measured.

Observe the instructions for the safe use in hazardous areas ( Operating instructions ATEX-3D).

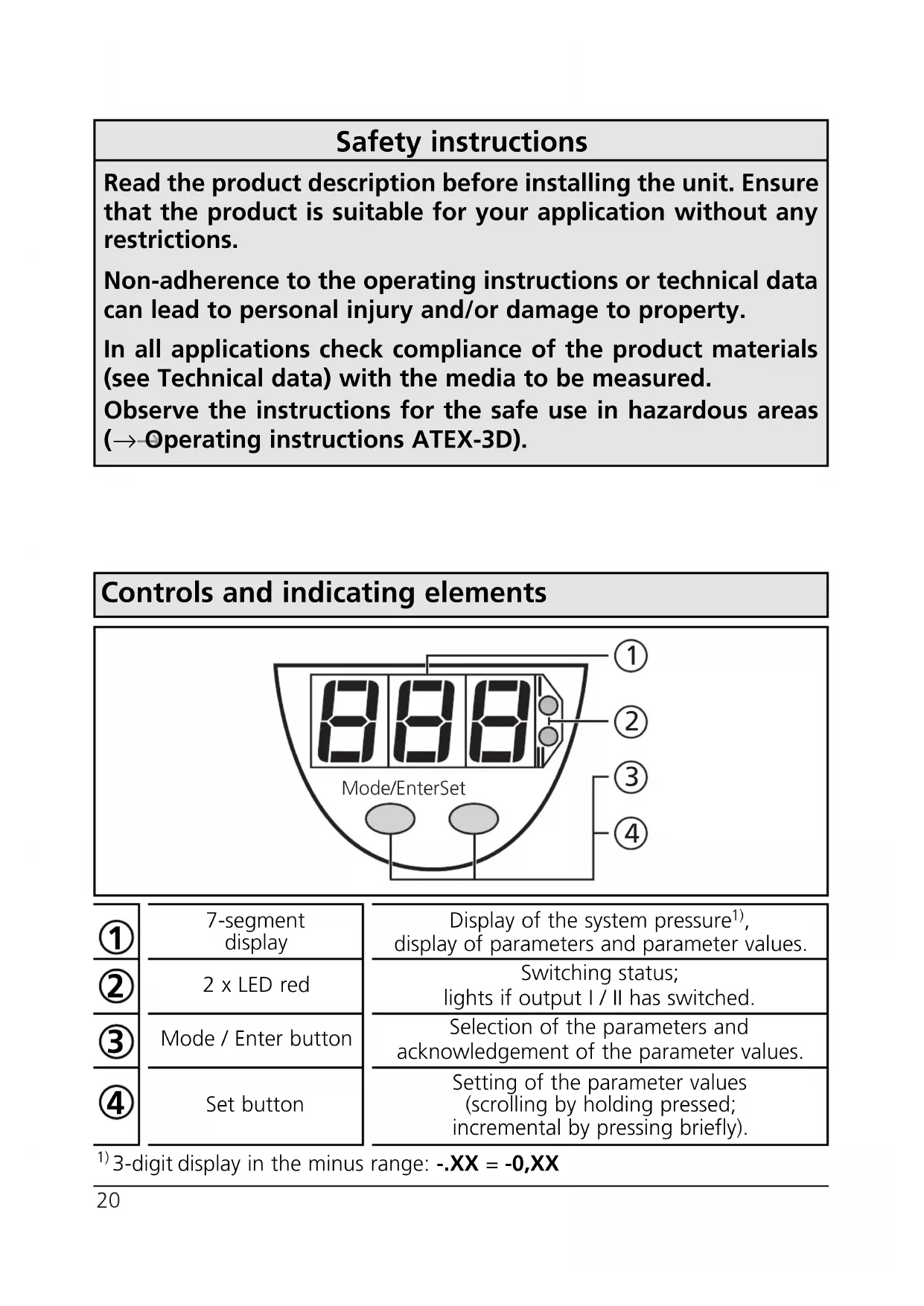

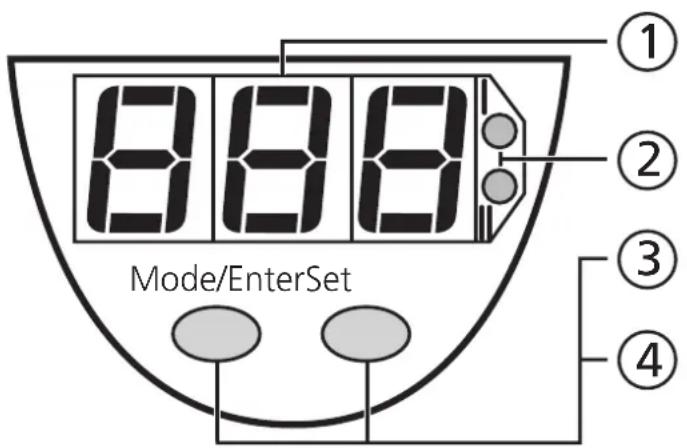

Controls and indicating elements

888 Mode/EnterSet ① ② ③ ④

1	7-segment display	Display of the system pressure1),display of parameters and parameter values.
2	2 x LED red	Switching status;lights if output I / II has switched.
3	Mode / Enter button	Selection of the parameters andacknowledgement of the parameter values.
4	Set button	Setting of the parameter values(scrolling by holding pressed;incremental by pressing briefly).

^1) 3-digit display in the minus range: -.XX = -0,XX

Function and features

• The pressure sensor detects the system pressure,
  • shows the current system pressure on its display,
• and generates 2 output signals according to the set output configuration.

	Output 1 Output 2
Analogue output(only output 2)		I: 4 ... 20 mA
		U: 0 ... 10 V
Switching function(output 1 and output 2;function can be selected foreach output separately)	hysteresis function / N.O. (Hno)
	hysteresis function / N.C. (Hnc)
	window function / N.O. (Fno)
	window function / N.C. (Fnc)
Output polarity (applies to both switching outputs)	p-switching (PnP)
	n-switching (nPn)

Applications

Type of pressure: relative pressure

Order no.		Measuring range	Permissible overl. pressure	Bursting pressure
PF003A	bar	-1.0 ... 25 100 350
	PSI	-15 ... 363 1450 5070
	MPa	-0.1 ... 2.5 10 35
PF008A	mbar	-13 ... 250 10000 (10bar) 30000 (30bar)
	inH2O	-5.0 ... 100 4000	12000
	kPa	-1.3 ... 25.0	1000 (1MPa)	3000 (3MPa)

Avoid static and dynamic overpressure exceeding the given overload pressure.

Even if the bursting pressure is exceeded only for a short time the unit can be destroyed (danger of injuries)!

Operating modes

Run mode

Normal operating mode

At power on the unit is in the Run mode. It carries out its measurement and evaluation functions and provides output signals according to the set parameters.

The display shows the current system pressure (can be deactivated; → page 30). The red LEDs indicate the switching state of the outputs.

Display mode

Indication of parameters and the set parameter values

When the "Mode/Enter" button is pressed briefly, the unit passes to the Display mode which allows parameter values to be read. The internal sensing, processing and output functions of the unit continue as if in Run mode.

• The parameter names are scrolled with each pressing of the "Mode/Enter" button.
• When the "Set" button is pressed briefly, the corresponding parameter value is displayed for 15s. After another 15s the unit returns to the Run mode.

Programming mode

Setting of the parameter values

While viewing a parameter value pressing the "Set" button for more than 5s causes the unit to enter the programming mode. You can alter the parameter value by pressing the "Set" button and confirm the new value by pressing the "Mode/Enter" button. The internal sensing, processing and output functions of the unit continue as if in Run mode with the original parameter values unless a new value is confirmed. The unit returns to the Run mode when no button has been pressed for 15s.

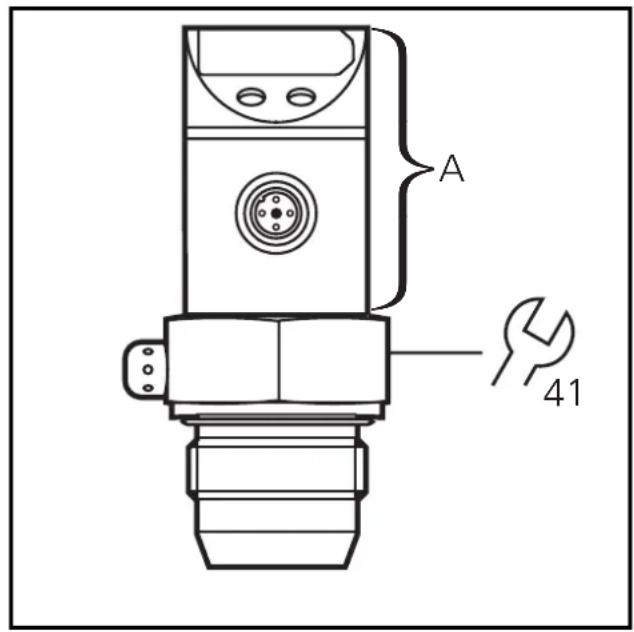

Installation

Before mounting and removing the sensor, make sure that no pressure is applied to the system.

1. Screw the sensor into a G1 process fitting.
2. Tighten the sensor with a spanner.
   Tightening torque: 20 Nm.

The housing (A) is freely rotatable.

A 41

The unit is adaptable for various G1 process fittings (G1 adapters to be ordered separately as accessories).

Welding adapter

Weld the adapter first. Then mount the sensor.

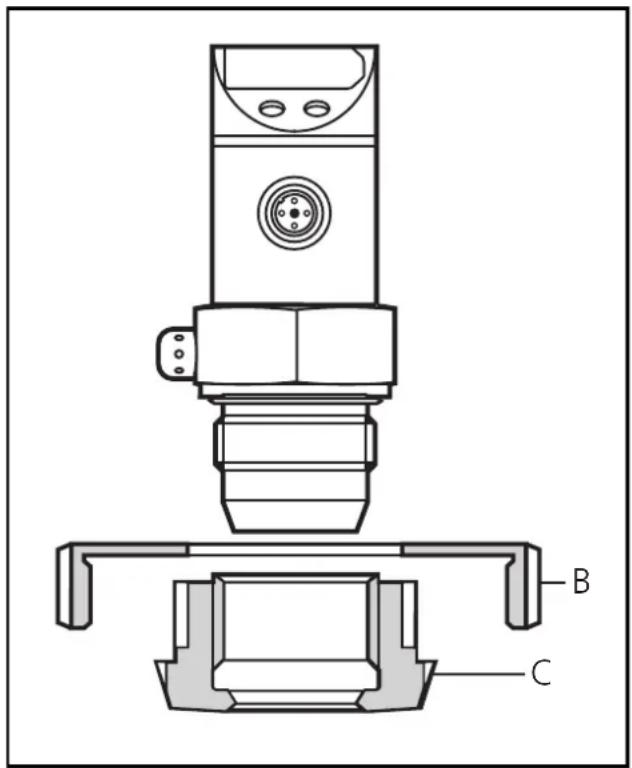

ifm process adapter

Mount adapter (C) to the sensor first, then sensor + adapter to the process connection by means of a nut, a clamping flange or similar (B).

NOTE: A guarantee for a long-term stable sealing of the metal seal is only valid for once-only mounting.

Technical diagram of a mechanical device with labeled components A, B, and C

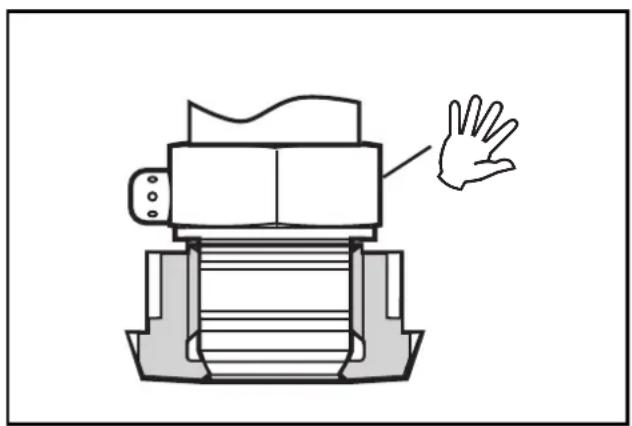

Mounting of the adapter Step 1

Screw the sensor into the adapter.

Diagram of a mechanical device with a hand gesture pointing to the left side (no text or symbols present)

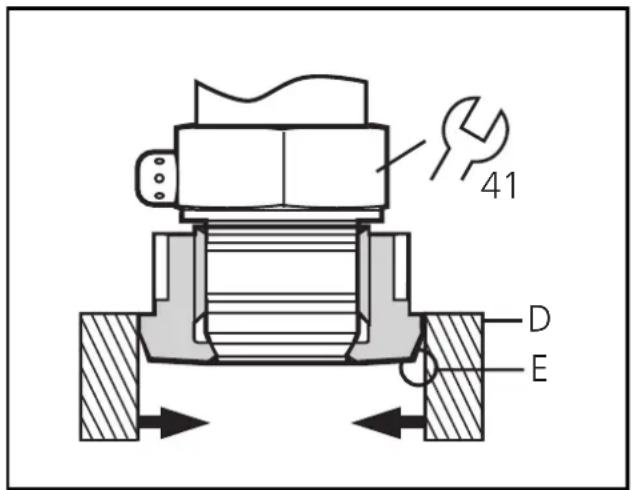

Step 2

Clamp sensor and adapter into a clamping device (D). The sealing chamfers (E) must not be damaged. Tighten the sensor with a spanner.

Tightening torque: 20 Nm.

41 D E

Electrical connection

The unit must be connected by a suitably qualified electrician.

The national and international regulations for the installation of electrical equipment must be observed.

Voltage supply to EN50178, SELV, PELV.

Disconnect power before connecting the unit as follows:

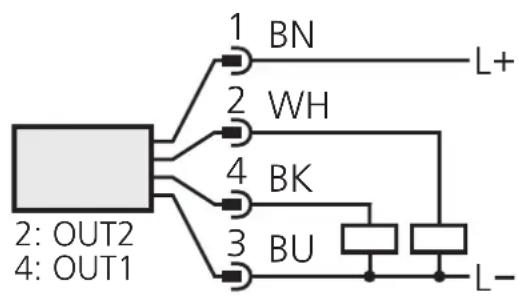

2 x p-switching


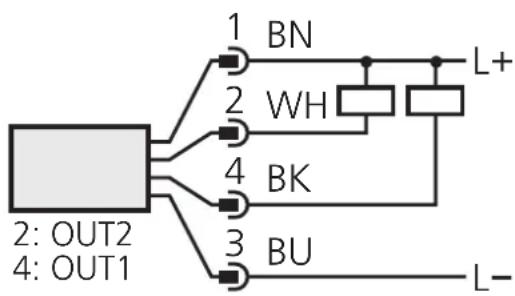

2 x n-switching


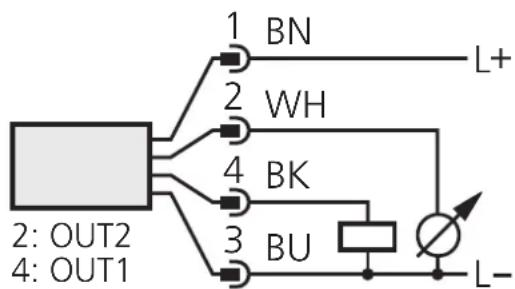

1 x p-switching / 1 x analogue

1 BN 2 WH 3 BK 4 BU L+ L- 2: OUT2 4: OUT1

1 x n-switching / 1 x analogue

1 BN 2 WH 4 BK 3 BU 2: OUT2 4: OUT1 L+ L-

Connector view (sensor)

Core colours of ifm sockets:

1 = BN (brown),
2 = WH (white),
3 = BU (blue),
4 = BK (black).

Programming

1				Press the Mode/Enter button several times until the respective parameter is displayed.
2		[BY3K]		Press the Set button and keep it pressed. The current parameter value flashes for 5s, then the value is increased* (incremental by pressing briefly or scrolling by holding pressed).
3				Press the Mode/Enter button briefly (= acknowledgement). The parameter is displayed again, the set parameter value becomes effective.
4	Change more parameters: Start again with step 1.			Finish programming: Wait for 15s or press the Mode/Enter button until the current measured value is indicated again.

*Decrease the value: Let the display of the parameter value move to the maximum setting value. Then the cycle starts again at the minimum setting value. Select the display unit (Uni) before setting the switch points (SPx, rPx) or the limits for the analogue output signal (ASP, AEP). This avoids rounding errors generated internally during the conversion of the units and enables exact setting of the values.

If no button is pressed for 15s during the setting procedure, the unit returns to the Run mode with unchanged values.

The unit can be electronically locked to prevent unwanted adjustment of the set parameters: Press both pushbuttons for 10s (the unit must be in Run mode). Indication goes out briefly (acknowledgement of locking / unlocking).

Units are delivered from the factory in the unlocked state.

With the unit in the locked state is indicated briefly when you try to change parameter values.

Installation and set-up / operation

After mounting, wiring and setting check whether the unit operates correctly

Faults displayed during operation

OL	Overload (above measuring range of the sensor).
UL	Underload (below measuring range of the sensor).
SC1	Flashing: short circuit in the switching output 1*.
SC2	Flashing: short circuit in the switching output 2*.
SC	Flashing: short circuit in both switching outputs*.

*The output concerned is switched off as long as the short circuit exists.

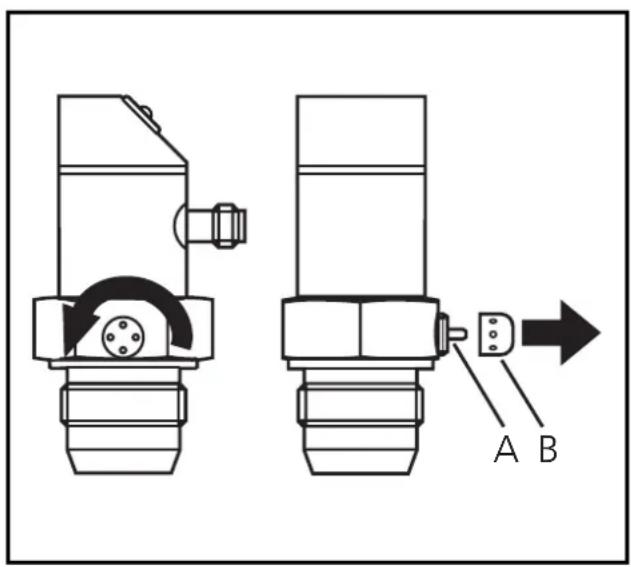

Cleaning of the filter cover

If viscous and residues producing media clog the filter cover of the sensor (and thus reduce the measuring accuracy slightly), you can clean it.

• Unscrew the filter cover (B) (use a pair of pliers with plastic-covered jaws for this). Clean the cover thoroughly.
• The vent (A) should only be cleaned by skilled personnel and with utmost care.

Possible medium residues must not be compressed and pressed into the vent. This could clog the filter system and reduce the measuring accuracy of the sensor.

- Screw the filter cover again tightly.

A B

The sensor is sufficiently protected against harsh ambient conditions (protection IP 67). The protection rating can be increased by a special accessory (order no. E30043).

Technical information / Functioning / Parameters

Adjustable parameters

SP1SP2	Switch-on point 1 / 2Upper limit value at which the output changes its switching status.SP2 is active only if OU2 = Hno, Hnc, Fno or Fnc.
rP1rP2	Switch-off point 1 / 2Lower limit value at which the output changes its switching status.rPx is always lower than SPx. The unit only accepts values which are lower than SPx.Changing the switch-on point also changes the switch-off point (the distance between SPx and rPx remains constant).If the distance is higher than the new switch point, it is automatically reduced (rPx is set to the minimum setting value).rP2 is active only if OU2 = Hno, Hnc, Fno or Fnc.Setting range for SPx / rPx: → page 49.
OU1	Configuration of output 14 switching functions can be set:- Hno = hysteresis / normally open- Hnc = hysteresis / normally closed- Fno = window function / normally open- Fnc = window function / normally closed
OU2	Configuration of output 24 switching functions and 2 analogue signals can be set:- Hno = hysteresis / normally open- Hnc = hysteresis / normally closed- Fno = window function / normally open- Fnc = window function / normally closed- I = analogue output 4 ... 20 mA- U = analogue output 0 ... 10 V
ASP	Analogue start pointMeasured value at which 4mA / 0V is provided.ASP is active only if OU2 = I or U.
AEP	Analogue end pointMeasured value at which 20mA / 10V is provided.Minimum distance between ASP and AEP = 25% (scaling factor 4).AEP is active only if OU2 = I or U.Setting range for ASP / AEP: → page 49.
EF	Enhanced functionsThis menu item contains a submenu with additional parameters.You can access these parameters by pressing the SET button briefly.
HILO	Min-Max memory for system pressureHI: displays the highest measured pressureLO: displays the lowest measured pressureErase the memory:- Press the "Mode/Enter" button until HI or LO is displayed.- Press the "Set" button and keep it pressed until “- - -” is displayed.- Then press the "Mode/Enter" button briefly.
COF	Calibration offsetThe internal measured value (operating value of the sensor) is offset against the real measured value.Setting range: -5 ... +5% of the value of the measuring range (with scaling as factory setting (ASP = 0% and AEP = 100%),in steps of 0.1% of the value of the measuring range.
CAr	Calibration resetResets the calibration set by COF to the value set at the factory.- Press the "Mode/Enter" button until CAR is displayed.- Press the "Set" button and keep it pressed until “- - -” is displayed.- Then press the "Mode/Enter" button briefly.
dS1dS2dr1dr2	Delay time for the switching outputsdSx = switch-on delay; drx = switch-off delayThe output does not immediately change its switching status when the switching condition is met but when the delay time has elapsed. If the switching condition is no longer met when the delay time has elapsed, the switching state of the output does not change.Setting range: 0 / 0.1 ... 50s adjustable in steps 01s (0 = delay time not active),indicated in seconds.dS2 and dr2 are not active, if OU2 = I or U.
P-n	Output polarity2 options can be selected:- PnP = positive switching-nPn = negative switchingThis setting applies to both switching outputs.
dAP	Damping for the switching outputsPressure peaks of short duration or high frequency can be filtered out.dAP-value = response time between pressure change and change of the switching status in seconds (s).Setting range: 0 ... 4s (0 = dAP is not active),in steps of 0.01s.Correlation between switching frequency and dAP: f_max = 12 × dAP
dAA	Damping for the analogue signalPressure peaks of short duration or high frequency can be filtered out.dAA-value = response time between pressure change and change of the switching status in seconds (s).Setting range: 0 (= dAA is not active) / 0.1s / 0.5s / 2s.dAA is active only if OU2 = I or U.
d15	Setting of the display9 options can be selected:d1 = update of the measured value every 50msd2 = update of the measured value every 200msd3 = update of the measured value every 600msThe update interval only refers to the display. It has no effect on the outputs.ph = display of the measured peak value remains for a short time (peak hold).rd1, rd2, rd3, rph = display as d1, d2, d3, Ph; but rotated 180°.OFF = In the Run mode the display of the measured value is deactivated. If one of the buttons is pressed, the current measured value is displayed for 15s. Another press of the Mode/Enter button opens the Display mode. The LEDs remain active even if the display is deactivated.
Uni	Display unitThe measured value and the values for SPx / rPx can be displayed in the following units:bAr (= bar / mbar), PA (= MPA / kPa), PSI, H2O (inH2O).Select the display unit before setting the switch points (SPx, rPx) and the limits for the analogue output signal (ASP, AEP). This avoids rounding errors generated internally during the conversion of the units and enables exact setting of the values.Setting at the factory: Uni = bAr.

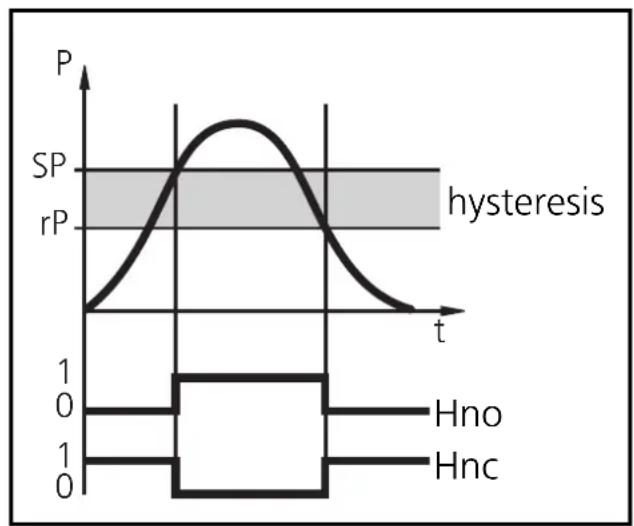

Hysteresis function:

The hysteresis keeps the switching state of the output stable if the system pressure varies about the preset value. With the system pressure rising, the output switches when the switch-on point has been reached (SPx). With the system pressure falling the output does not switch back until the switch-off point (rPx) has been reached.

The hysteresis can be adjusted: First the switch-on point is set, then the switch-off point with the requested distance.

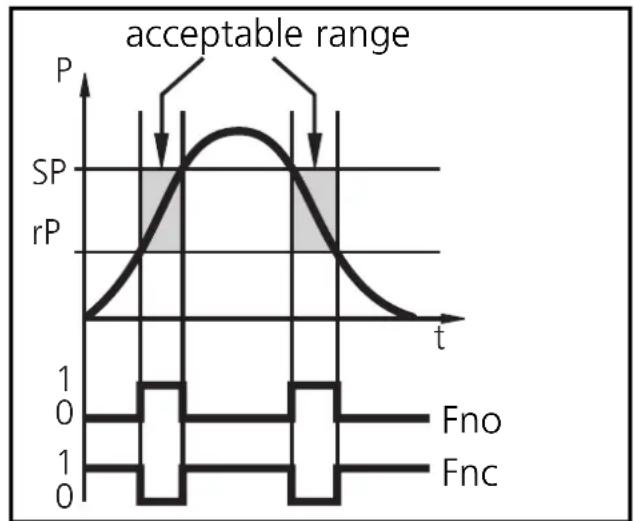

Window function

The window function enables the monitoring of a defined acceptable range. When the system pressure varies between the switch-on point (SPx) and the switch-off point (rPx), the output is switched (window function / NO) or not switched (window function / NC).

The width of the window can be set by means of the difference between SPx and rPx. SPx = upper value, rPx = lower value.

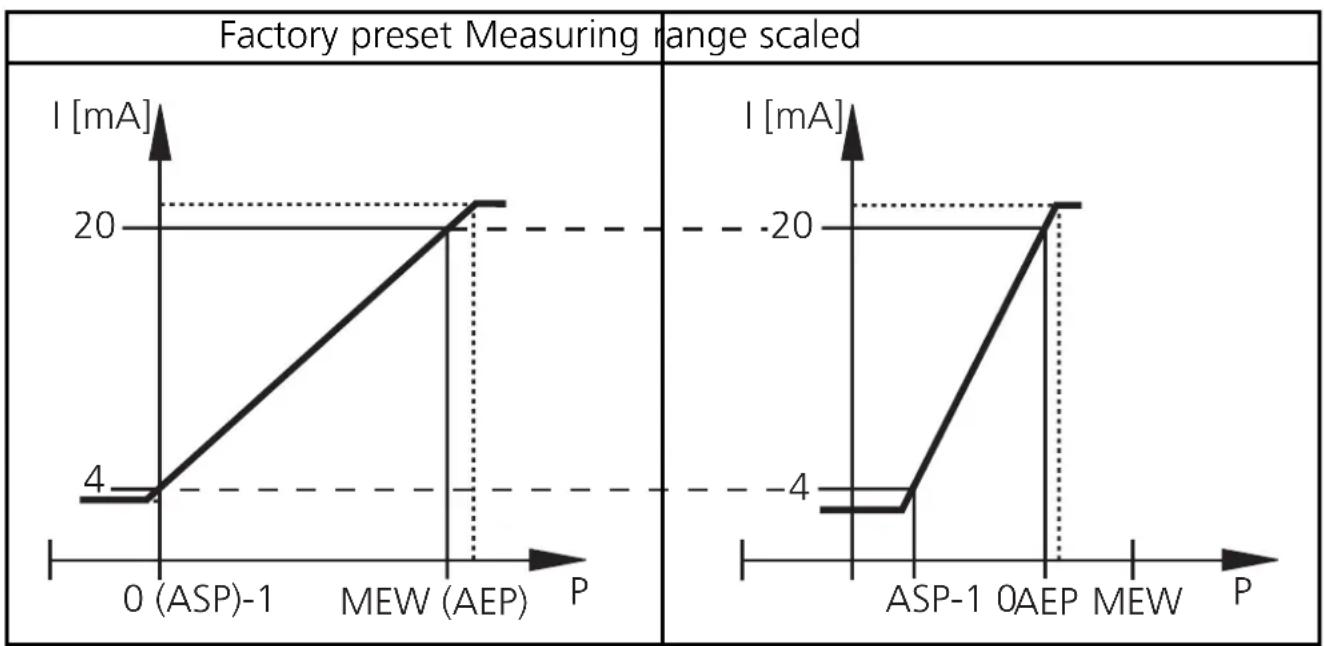

Scaling the measuring range (analogue output)

• With the parameter "Analogue start point" (ASP) the measured value at which the output signal is 4mA or 0V is defined.
• With the parameter "Analogue end point" (AEP) the measured value at which the output signal is 20mA or 10V is defined.
• Minimum distance between ASP and AEP = 25 % of the final value of the measuring range (scaling factor 4

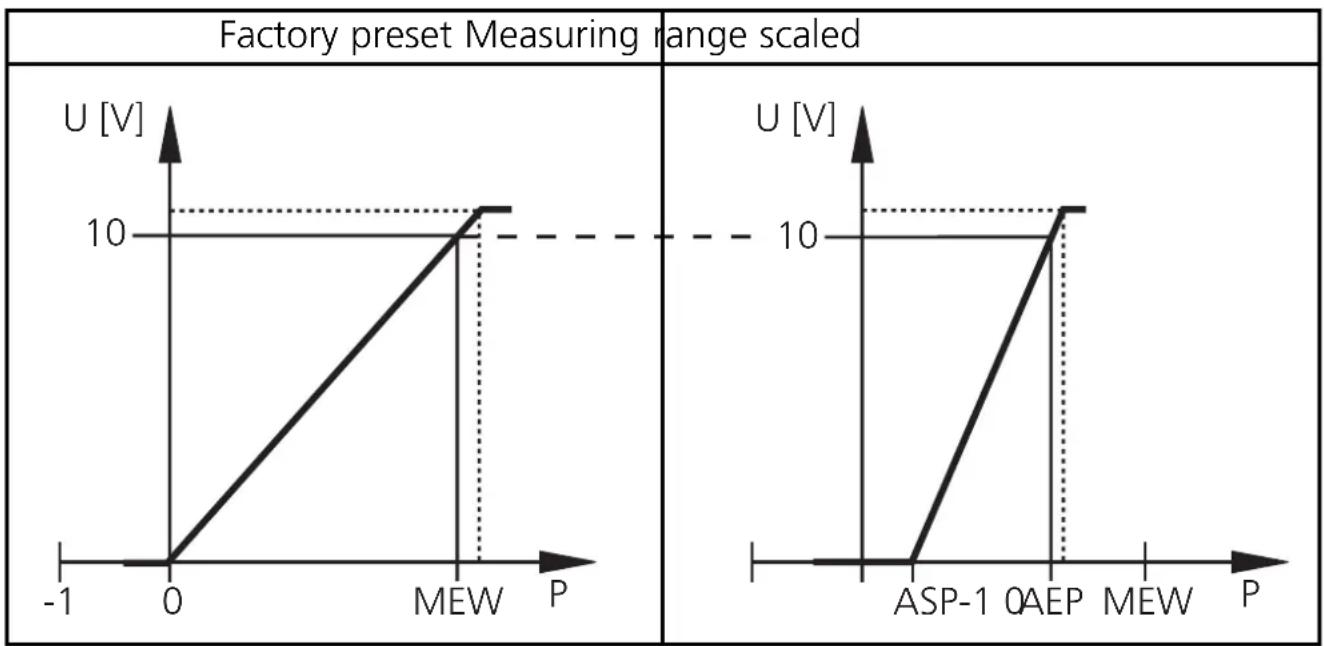

Voltage output 0 ... 10V

MEW = final value of the measuring range

The output signal is between 0 and 10V in the set measuring range.

It is also indicated:

System pressure above the measuring range: output signal > 10V.

Current output 4 ... 20mA

MEW = final value of the measuring range

The output signal is between 4 and 20mA in the set measuring range.

It is also indicated:

• System pressure above the measuring range: output signal > 20mA.
• System pressure below the measuring range: output signal drops to max.
  3.2mA (depending on the scaling).

Technical data

Operating voltage [V] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 ... 30 DC

Current consumption [mA] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 60

Current rating [mA] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 250

Short-circuit protection, reverse polarity protection / overload protection Integrated Watchdog

Voltage drop [V]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2

Power-on delay time [s] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2

Min. response time switching outputs [ms] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Switching frequency [Hz] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 ... 0.125

Analog output (measuring range scalable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ... 20 mA / 0 ... 10 V

Max. load current output [Ω] . . . . . . . . . . . . . . . . . . . (UB - 10) x 50; 700 at UB = 24V

Min. load with voltage output [Ω] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000

Min. response time analog output [ms] . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Accuracy / deviations (in% of the span) ^1)

- Characteristics deviation (linearity, incl. hysteresis and repeatability) ^2) < ± 0.6

- Linearity < ± 0.5

- Hysteresis < ± 0.1

- Repeatability (with temperature fluctuations < 10K). < ± 0.1

- Long-time stability (in% of the span per year) < ± 0.1

- Temperature coefficients (TEMPCO) in the compensated temperature range 0 ... +60°C (in% of the span per 10 K)

- Greatest TEMPCO of the zero point / of the span (PF003A) < ± 0.1/0.2

- Greatest TEMPCO of the zero point / of the span (PF008A) < ± 0.1/0.4

Materials (wetted parts) stainless steel (316S12); ceramics (99.9 % Al2 O3); PTFE

Housing material stainless steel (316S12); Pocan; PC (Macrolon); PEI; EPDM/X (Santoprene); FPM (Viton)

Protection IP 67 / III

Insulation resistance [MΩ] > 100 (500 V DC)

Shock resistance [g] 50 (DIN / IEC 68-2-27, 11ms)

Vibration resistance [g] 20 (DIN / IEC 68-2-6, 10 - 2000 Hz)

Switching cycles min. 100 million

Operating temperature [°C] -20 ... +60

Medium temperature [°C] -20 ... +60

Storage temperature [°C] -40 ... +100

EMC IEC 1000/4/2 ESD: 4 / 8 KV

IEC 1000/4/3 HF radiated: 10 V/m

IEC 1000/4/4 Burst: 2 KV

IEC 1000/4/6 HF conducted: 10 V

1) all indications are referred to a turn down of 1:1
2) limit value setting to DIN 16086

888 Mode/EnterSet ① ② ③ ④

Technical diagram of a mechanical device with labeled components A, B, and C

Diagram of a mechanical device with a hand gesture pointing to the left side (no text or symbols present)

Pas 2

1 = BN (brun),
2 = WH (blanc),
3 = BU (bleu),
4 = BK (noir).

Programmation

1: 7-segment display
2: programming button

1: visualisation digitale
2: bouton poussoir
