USER MANUAL SI0504 IFM

• The HI-Teach is sufficient for the majority of waterbased applicati- ons. Optional: adjustment to minimum flow (LO-Teach).

• Setting of the switch point (for changing the reaction time and excess gain).

• Setting for monitoring and optical indication of excess flow.

• Activate / deactivate the function for remote adjustment.

• Reset to factory settings.

• Installation Mounting → page 24, electrical connection → page 26.

• HI-Teach Apply the operating voltage. After approx. 15s the unit is ready. Allow the medium to flow through the system at the required maximmum flow rate (HI).

• The unit is ready for normal operation. Press the Learn/Set button and keep it pressed. The green LEDs on the right and on the left flash, after 5s the LED bar (green) fills from left to right (release the button as soon as the first LEDs light). The indication goes off briefly. The unit stores the current flow as maximum flow. LO HI LO HI HILO >5...<10

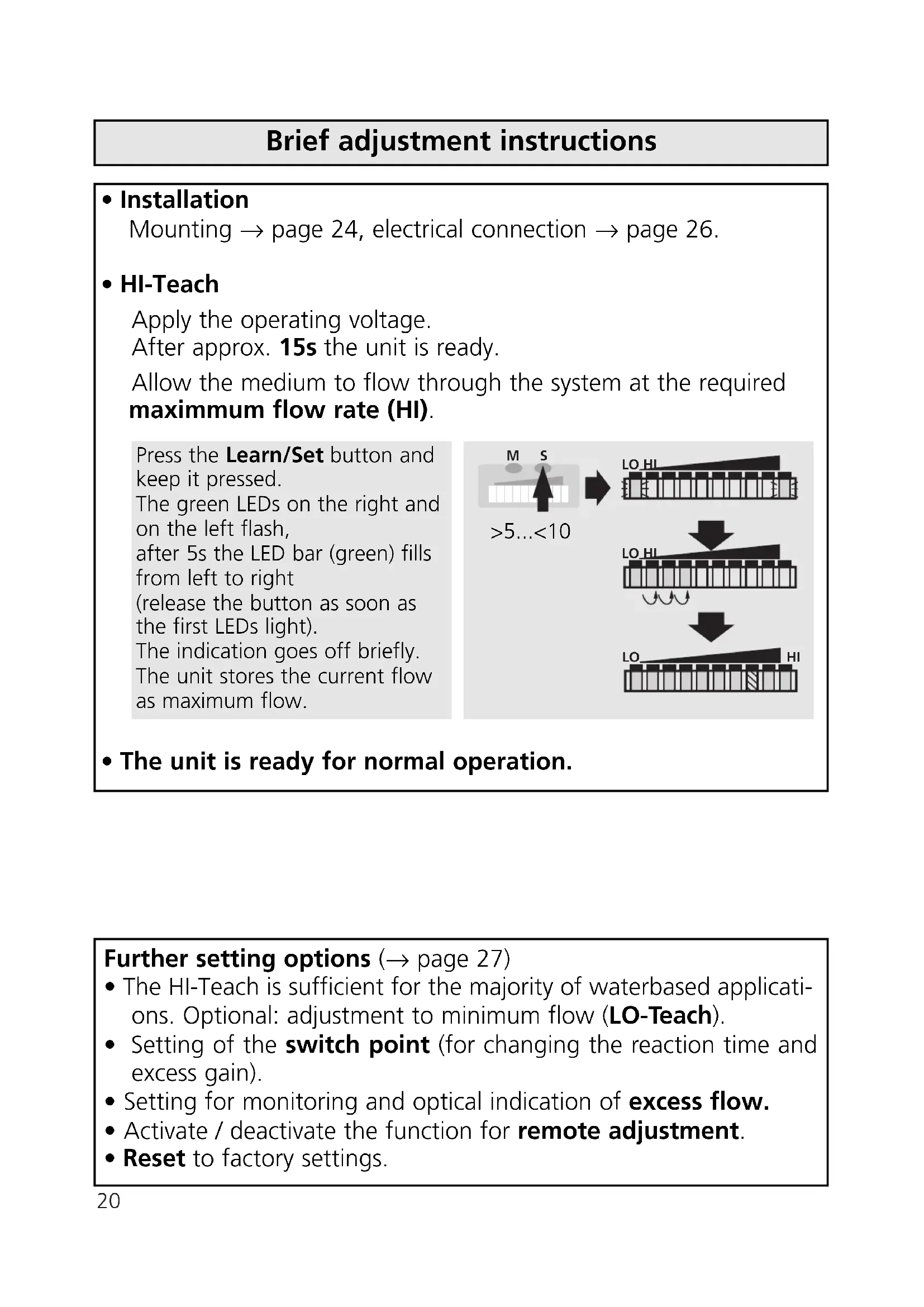

Brief adjustment instructionsENGLISH

LO HI FLOW RATE setting buttons current flow within the display range (LED bar green) Indication of the switch point (SP): LED orange: flow ≥ SP; LED red: flow < SP Function display (Run mode) excess flow (LED 9 flashes) underflow (LED 0 flashes) function display

• selection of the menu items and acknowledgement Learn/Set:

• adjustment to maximum / minimum flow;

• reset to factory settings

• setting of values (scrolling by holding pressed;incremental by pressing briefly) Setting buttons22

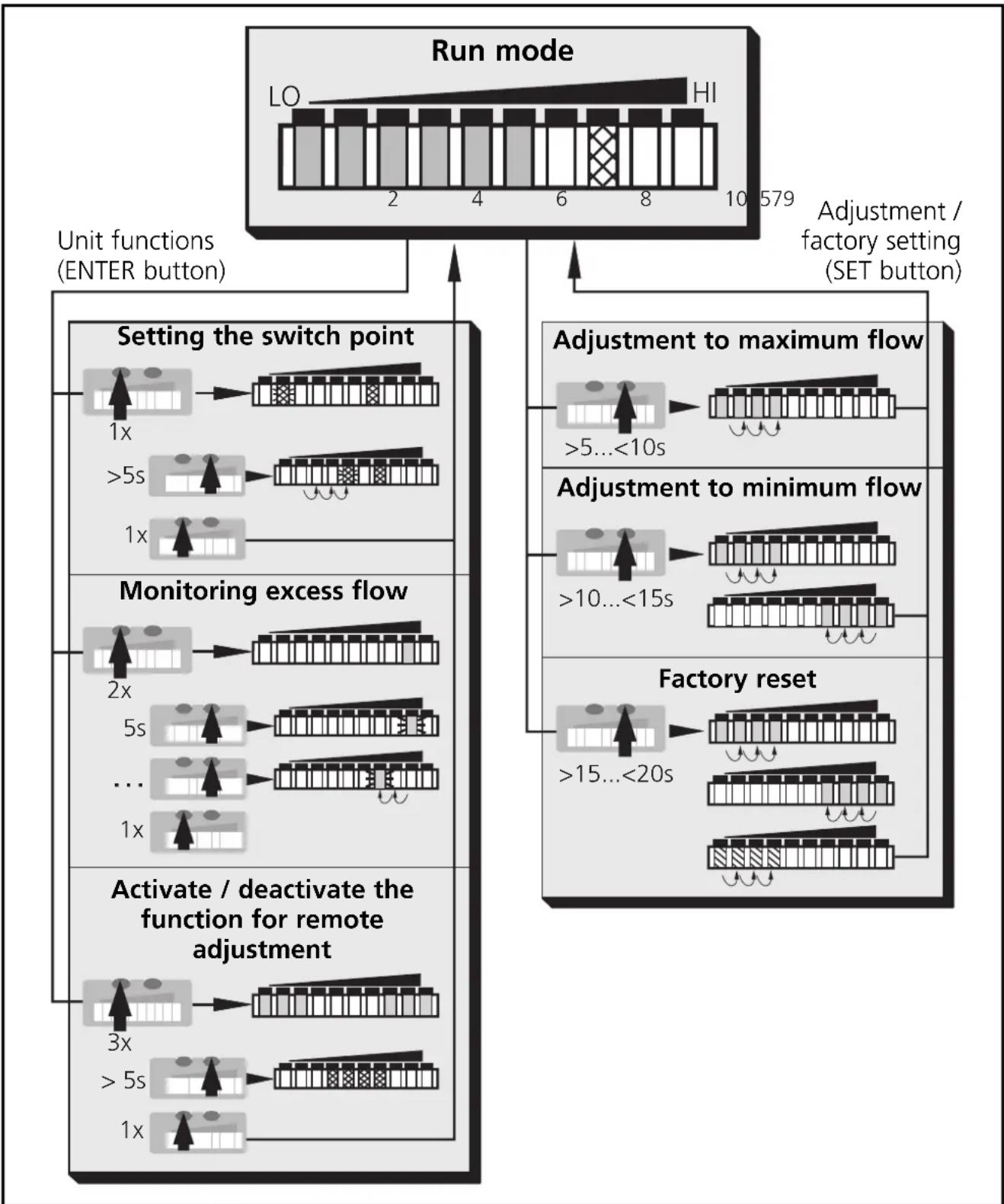

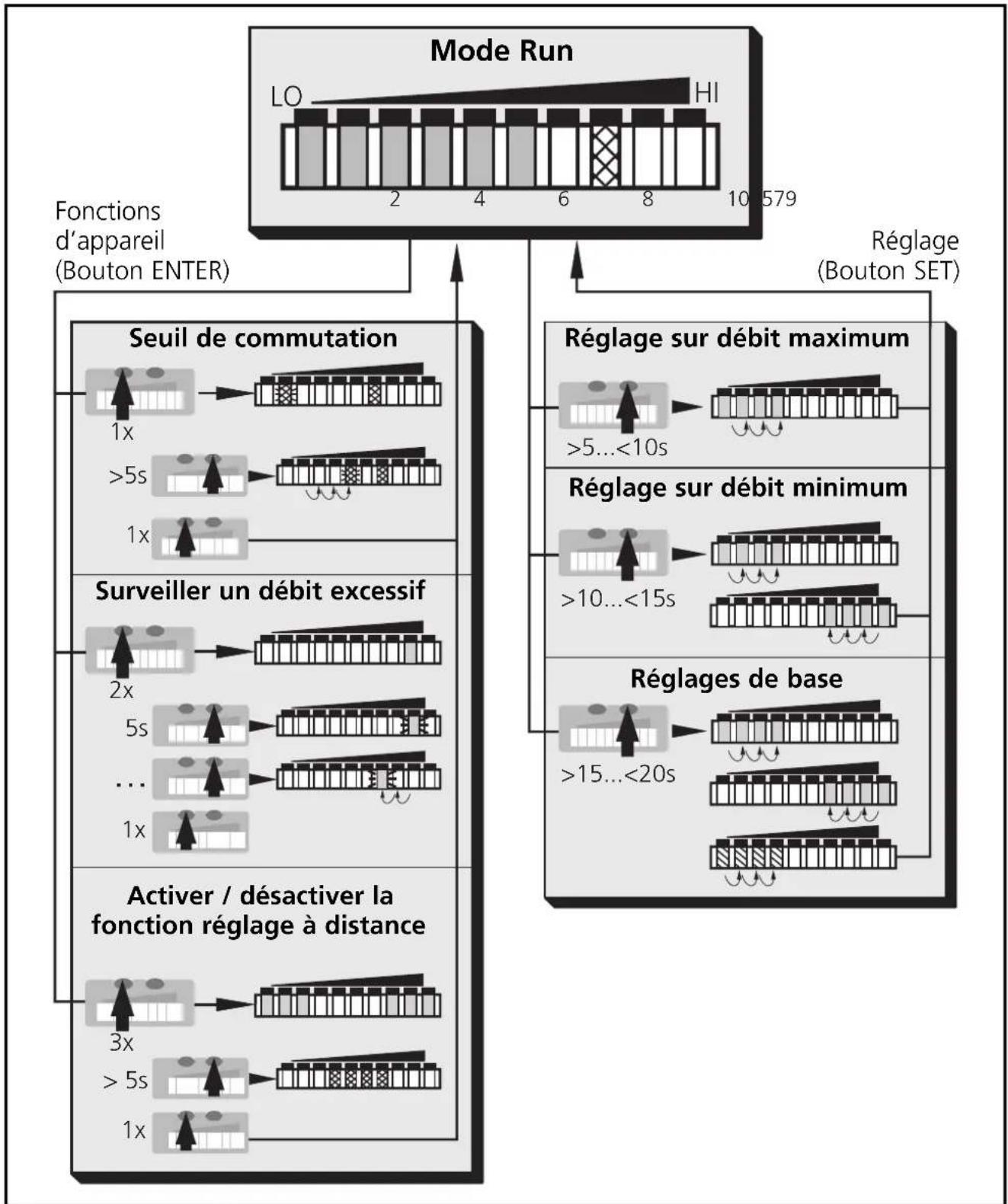

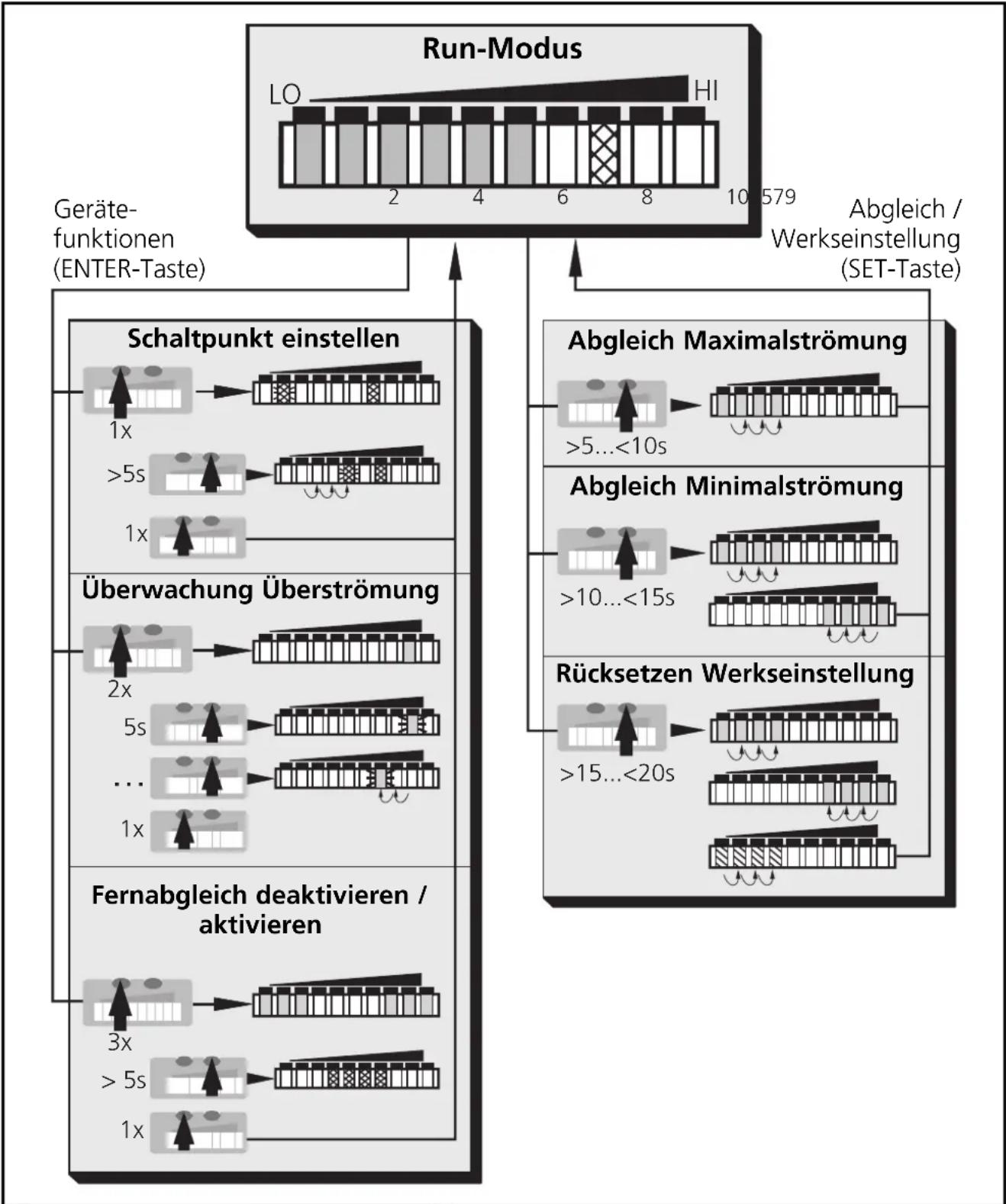

> 5s >5...<10s>10...<15s>15...<20s Adjustment to minimum flow Adjustment to maximum flow Unit functions (ENTER button) Adjustment / factory setting (SET button) Monitoring excess flow Setting the switch point Activate / deactivate the function for remote adjustment Run mode LED = green LED = orange LED = red Menu structure Factory resetThe flow monitor

• detects the flow velocity in liquid and gaseous media

• switches the output according to the programming (N.O./ or N.C./ , programmmable by wiring; → page 26)

• and indicates the relative flow value within the adjustable detection range by means of LEDs: - LED 0 = lower limit of the detection range (maximum value / LO) - LED 9 = upper limit of the detection range (minimum value / HI)

• It is also possible to indicate: - Switching status (LED red: flow below the switch point, LED orange: flow has reached the switch point). - Excess flow: LED 9 flashes if the flow is considerably higher (2 LEDs) than the display range. - Underflow / flow standstill: LED 0 flashes if the flow is lower than the display range. ENGLISH

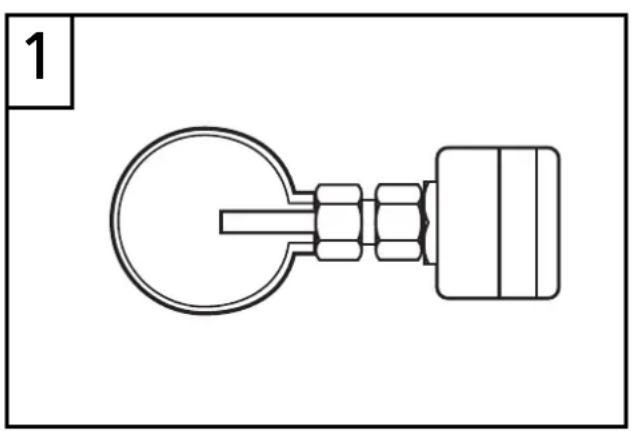

• In the case of horizontal pipes mount the unit from the side, if pos- sible (fig. 1). When the unit is to be mounted at the bottom of the pipe, it should be free from deposits. When the unit is to be mounted at the top of the pipe, it should be completely filled with the medium to be monitored.

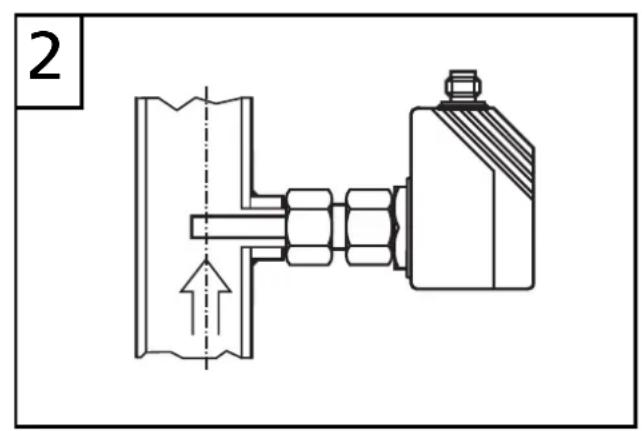

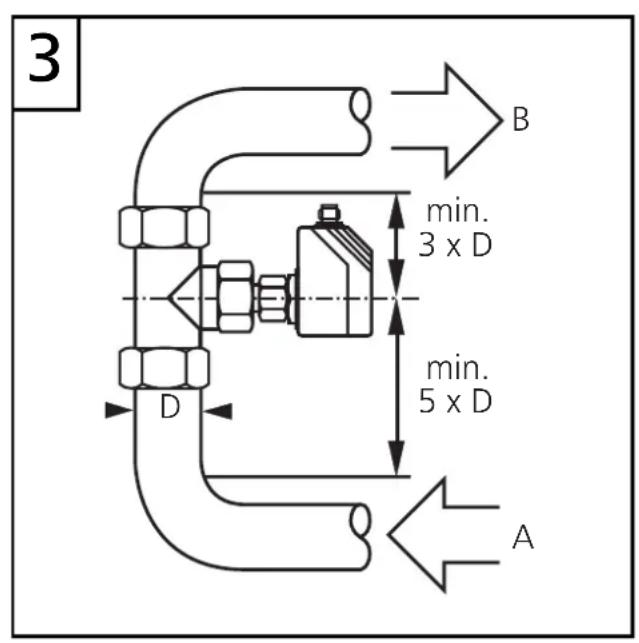

• In the case of vertical pipes mount the unit in a place where the medium flows upwards (fig. 2). To avoid malfunction a minimum distance between the flow mon- itor and bends, valves, changes in cross-section or such like must be observed:

• Min. 5 x pipe diameter upstream (A),

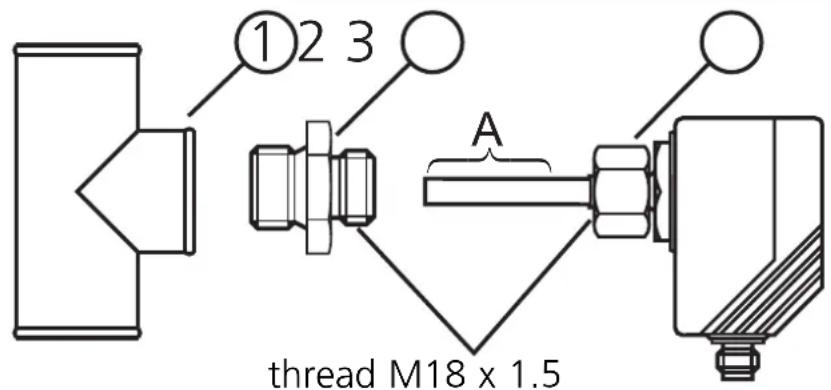

31. Lubricate the nut (3) and all threads with grease to ensure the nut

can be loosened and tightened several times. Note: No grease must be applied to the sensor tip (A).

2. Screw the suitable adapter (2) onto the process fitting (1).

3. Insert the flow monitor into the adapter. While keeping the unit

aligned tighten the nut (3); (max. tightening torque 50Nm). Insertion depth of the sensor: min. 12mm in the pipe. When the adapters are used which are available as accessories, the correct depth is ensured. Note: The sensor tip must not touch the pipe wall. ENGLISH

mounting dimension with M12 adapter mounting dimension with G¼ adapter mounting dimension with G½ adapterThe unit must only be connected by an electrician. The national and international regulations for the installation of electrical equipment must be observed. Voltage supply to EN50178, SELV, PELV. The device shall be supplied from an isolating transformer hav- ing a secondary Listed fuse rated as noted in the following table. Disconnect power before connecting the unit. Wiring ( = N.O. / = N.C.): If the function for remote adjustment is active: Use 4-wire connection cables without a link between pins 2 and 4. With 3-wire sockets with a link between pin 2 and pin 4 switching of the output stage triggers the remote adjustment! Failure indication: In the case of a short circuit the function indication and the red LED row are lit alternately.

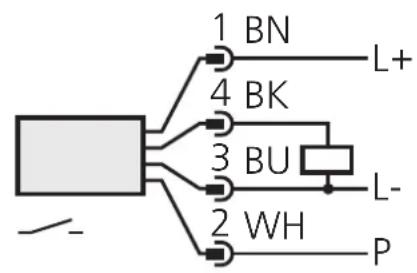

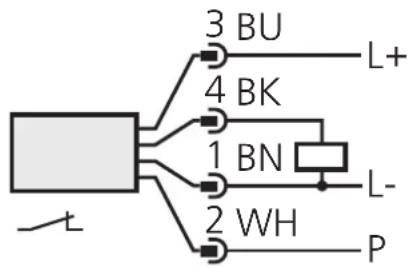

Electrical connection

connector view (sensor) P = programming wire (for remote adjustment) Core colours of ifm sockets: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Overcurrent protection Control-circuit wire size Maximum protective device rating Ampere AWG (mm

• Allow the medium to flow through the system at the required maxi- mum flow rate.

• Press the Learn/Set button for >5...<10s (= adjustment to maxi- mum flow / upper limit of the detection range). Optional: LO-Teach The HI-Teach is sufficient for the majority of waterbased applica- tions. Optional: adjustment to minimum flow.

• Allow the medium to flow through the system at the required mini- mum flow rate or bring flow to a standstill.

• Press the Learn/Set button for >10...<15s (= adjustment to mini- mum flow or flow standstill / lower limit of the detection range).

Remote adjustment via programming wire Apply the operating voltage (+U

) to pin 2 for the respective time.

Setting of the switch point

• Press the Mode/Enter button briefly.

• Press the Learn/Set button for 5s,

• keep the Learn/Set button pressed or press the button several times until the requested switch point is set.

• Press the Mode/Enter button briefly.

Monitoring excess flow

• Press the Mode/Enter button twice.

• Press the Learn/Set button for 5s, release the button when LED flashes.

• Press the Learn/Set button several times to shift the LED for the maximum display value.

• Press the Mode/Enter button briefly. ENGLISH

Programming■■ Activate / deactivate the function for remote adjustment

• Press the Mode/Enter button three times.

• Press the Learn/Set button for 5s,

• keep the Learn/Set button pressed or press the button several times until the requested function is set (function active, when 3 LEDs on the right and 3 LEDs left are lit green; function not active, when the 4 LEDs in the middle are lit in red).

• Press the Mode/Enter button briefly.

Reset to factory settings

• Press the Learn/Set button for >15...<20s.

The following applies to all setting procedures:

• If no button is pressed for 15s during the setting procedure, the unit returns to the operating mode with the parameter values unchanged.

• If adjustment has not been possible, all the red LEDs flash. The unit returns to the operating mode with the parameter values unchanged.

Locking / Unlocking The unit can be electronically locked to prevent unwanted adjustment of the set parameters: Press both setting buttons for 10s (the unit must be in Run mode). Indication goes out briefly (acknowledgement of locking / unlocking). Units are delivered from the factory in the unlocked state. If the unit is locked, it is possible to indicate

• the current switch point (press the Mode/Enter button once),

• the setting of the function “monitoring excess flow” (press the Mode/Enter button two times),

• the setting of the function for remote adjustment (press the Mode/Enter button three times). 28After mounting, wiring and setting check whether the unit operates correctly. At power on, all LEDs light and go off one after the other.* The unit is then ready for operation. *During this time the output is switched according to the programming: ON with the NO function and OFF with the NC function. Failure indication: In the case of a short circuit the function indicati- on and the red LED row are lit alternately. Recommended maintenance Check the sensor tip for build-up from time to time. Clean it with a soft cloth. If necessary, build-up which adheres firmly (e.g. lime) can be removed with a common vinegar cleansing agent. Technical data ENGLISH

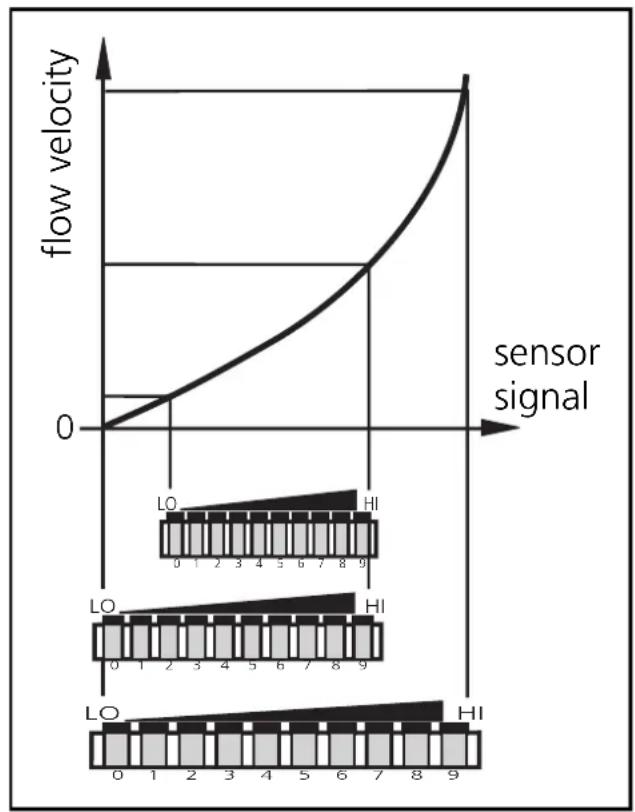

to EN50178, SELV, PELV■■ Setting of the detection range The detection range (window) is determined by:

• Adjustment to the required maximum flow (HI-Teach) = upper limit of the window. This setting is sufficient for the majority of waterbased appli- cations.

• Additionaly: adjustment to the required minimum flow / flow standstill (LO-Teach) = lower limit of the window (optional).

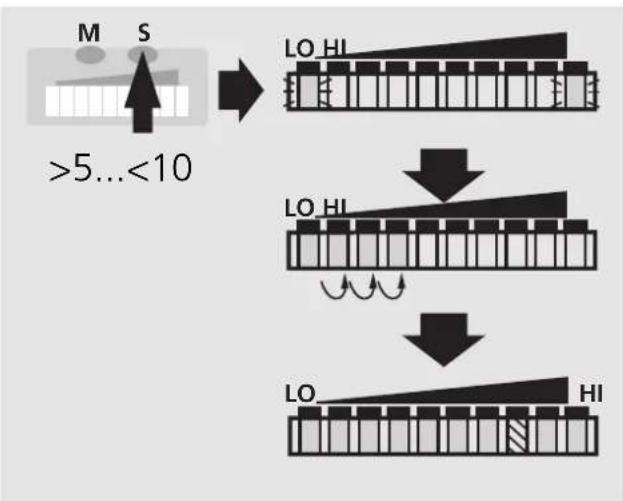

• Adjustment to maximum flow (HI-Teach) The unit detects the current flow and sets this value as the maximum value for the LED display (LED 9).

Press the Learn/Set button and keep it pressed. The green LEDs on the right and on the left flash, after 5s the LED bar (green) fills from left to right (release the button as soon as the first LEDs light). The indication goes off briefly. The unit stores the current flow as maximum flow and passes into the operating mode. LO HI LO HI HILO >5...<10s

Apply the operating voltage. After approx. 15s the unit is ready. Allow the medium to flow through the system at the required maximum flow rate.

S• Adjustment to minimum flow / flow standstill (LO-Teach), optional The unit detects the current flow and sets this value as the minimum display value for the LED display. In normal operation the first green LED (LED 0) flashes when the flow falls below this value (or when it comes to a standstill). NOTE: The LO-Teach operation may only be carried out after the HI- Teach operation.

• Remote adjustment You can also adjust the unit via the programming wire, if the function for remote adjustment is active. Apply the operating voltage (+U

) to pin 2 (P) for the respective time: >5...<10s for HI-Teach; >10...<15s for LO-Teach ENGLISH

If the operating voltage is applied to pin 2 for more than 15s,

• all adjustments are set back to factory setting. If the operating voltage is applied to pin 2 for more than 20s,

• the adjustment does not become effective; the unit passes into the operating mode with unchanged values,

• the unit is locked (the buttons are inactive as long as the operating voltage is applied to pin 2).

Press the Learn/Set button and keep it pressed. The green LEDs on the right and on the left flash, after 5s the LED bar (green) fills from left to right after a further 5s the LED bar (gren) fills from right to left (release the button as soon as the first LEDs on the right light). The indication goes off briefly. The unit stores the current flow as minimum flow and passes into the operating mode. LO HI HILO LO HI >10...<15s

Allow the medium to flow through the system at the required minimum flow rate or bring to a standstill.

S■■ Setting of the switch point The switch point is preset at the factory (LED 7). The setting influ- ences the reaction time of the unit.

• High switch point = fast reaction in the case of flow decrease.

• Low switch point = fast reaction in the case of flow increase.

*Decrease the switch point: Let the flashing and lit LEDs move to the maximum setting value. Then the cycle starts again at the minimum setting value. **Overflow: If the flashing LED and the lit LED exceed the maximum setting value, the cycle starts again at the minimum setting value.

Press the Mode/Enter button briefly. The current switch point is indicated: LED lit: coarse setting, LED flashes: fine setting. Press the Learn/Set button and keep it pressed. After 5s the switch point is increased* (incremental by pressing briefly or scrolling by holding pressed). Indication: The flashing LED moves from left to right. After LED 9 has been reached the cycle starts again at LED 0. The LED which is constantly lit moves on by one position.** LO HI LO HI LO HI 1 x

Press the Mode/Enter button briefly (acknowledgement). The indication goes off briefly. The set switch point becomes effective; the unit passes into the operating mode. HILO

>5s■■ Monitoring excess flow With this function the position of the display window within the detection range can be defined: Shift the LED for the maximum dis- play value to position 8, 7, 6 or 5. In the case of maximum flow all LEDs from 0 up to this LED are lit. The LEDs above the range signal excess flow. If the switch point is above this range, the unit switches in the case of excess flow. Please note: The display value is reset (to LED 9) after each maximum flow rate adjustment (HI-Teach. ENGLISH

Press the Mode/Enter button twice. The current setting is indi- cated (green LED). Press the Learn/Set button for 5s (until LED flashes). LO HI LO HI 2 x

Press the Learn/Set button several times until the requested LED flashes (LED 8, 7, 6 or 5). Each time the button is pressed the LED moves back by one position. When it is lower than LED 5 the cycle starts again at LED 9. LO HI

Press the Mode/Enter button briefly (acknowledgement). The indication goes off briefly. The unit stores the new setting and passes into the run mode.

5s■■ Activate / deactivate the function for remote adjustment If the function is active, the unit can be adjusted by applying voltage to pin 2. Unit supplied: function active. If the function for remote adjustment is active and the operating voltage is applied to pin 2 for more than 20s, the unit is locked (the but- tons are inactive as long as the operating voltage is applied to pin 2). Use 4-wire connection cables without a link between pins 2 and 4. With 3-wire sockets with a link between pin 2 and pin 4 switching of the output stage triggers the remote adjustment!

Function active The 3 LEDs on the right and left are lit in green.* HILO Function not active The 4 LEDs in the middle are lit in red.* LO HI

Press the Mode/Enter button three times. The current setting is indicated. Press the Learn/Set button and keep it pressed, after 5s the function changes. (Each time the Learn/Set button is pressed the function changes again). HILO HILO LO HI 3 x

Press the Mode/Enter button briefly (= acknowledgement). The indication goes off briefly, the unit then passes into the operating mode. HILO

*The LEDs flash if voltage is applied to pin 2.■■ Return to factory setting ENGLISH

Press the Learn/Set button and keep it pressed. The green LEDs on the right and on the left flash, after 5s the LED bar (green) fills from left to right, after a further 5s the LED bar (green) fills from right to left, The indication goes off briefly. All settings are returned to factory setting and the unit passes into the run mode flow. LO HI LO HI HILO LO HI after a further 5s the LED bar (orange) fills from left to right (release the button as soon as the first orange LEDs light). LO HI >15...<20s

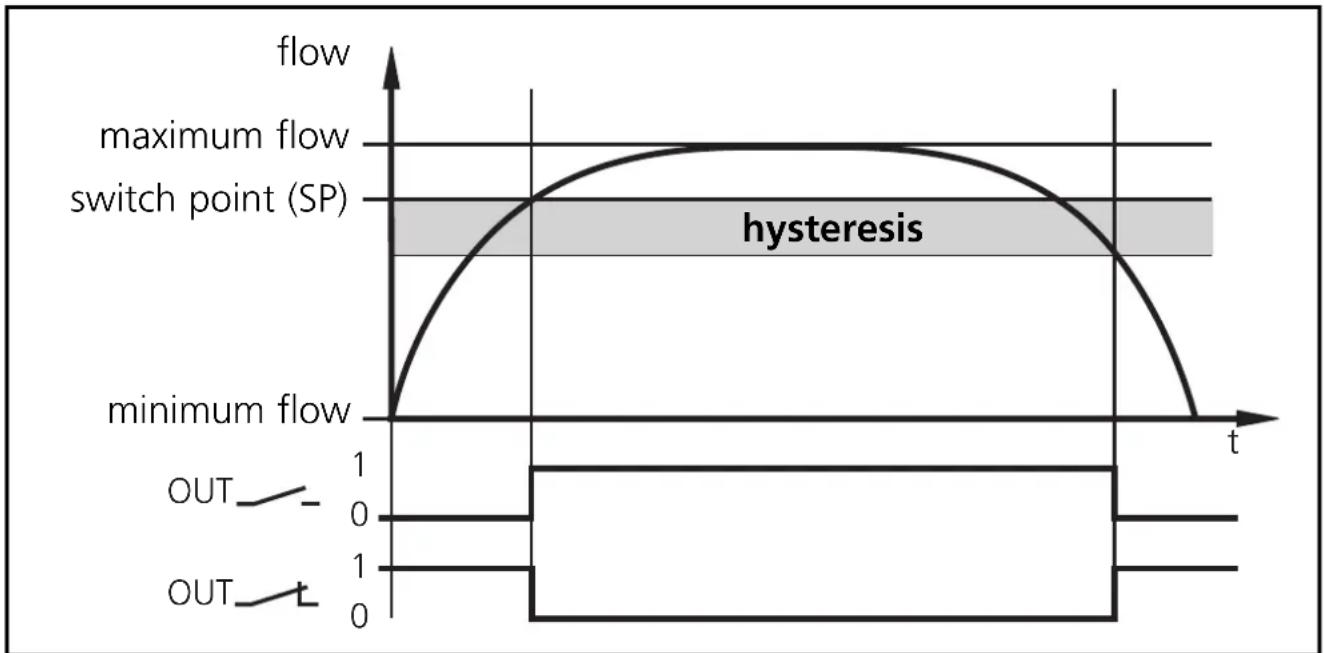

SHysteresis function When the flow rises, the output switches when the switch point (SP) has been reached. When the flow falls again, the output switches back when the value "SP minus hysteresis" has been reached. The hysteresis is considerably influenced by the choice of the operat- ing range on the sensitivity curve of the sensor:

• In the case of adjustment to HI-Flow values in the range 0 ... 60cm/s the hysteresis is 2 - 4cm/s (values apply to water).

• In the case of adjustment to HI-Flow values above 100cm/s the hysteresis increases as the flow rises. The typical response time of the unit is 3 ... 8s. It can be influenced by setting the LO-Teach and the switch point:

• The lower the LO-Teach or the switch point is set, the faster the unit switches on.

• The higher the LO-Teach or switch point is set, the faster the unit switches off.
