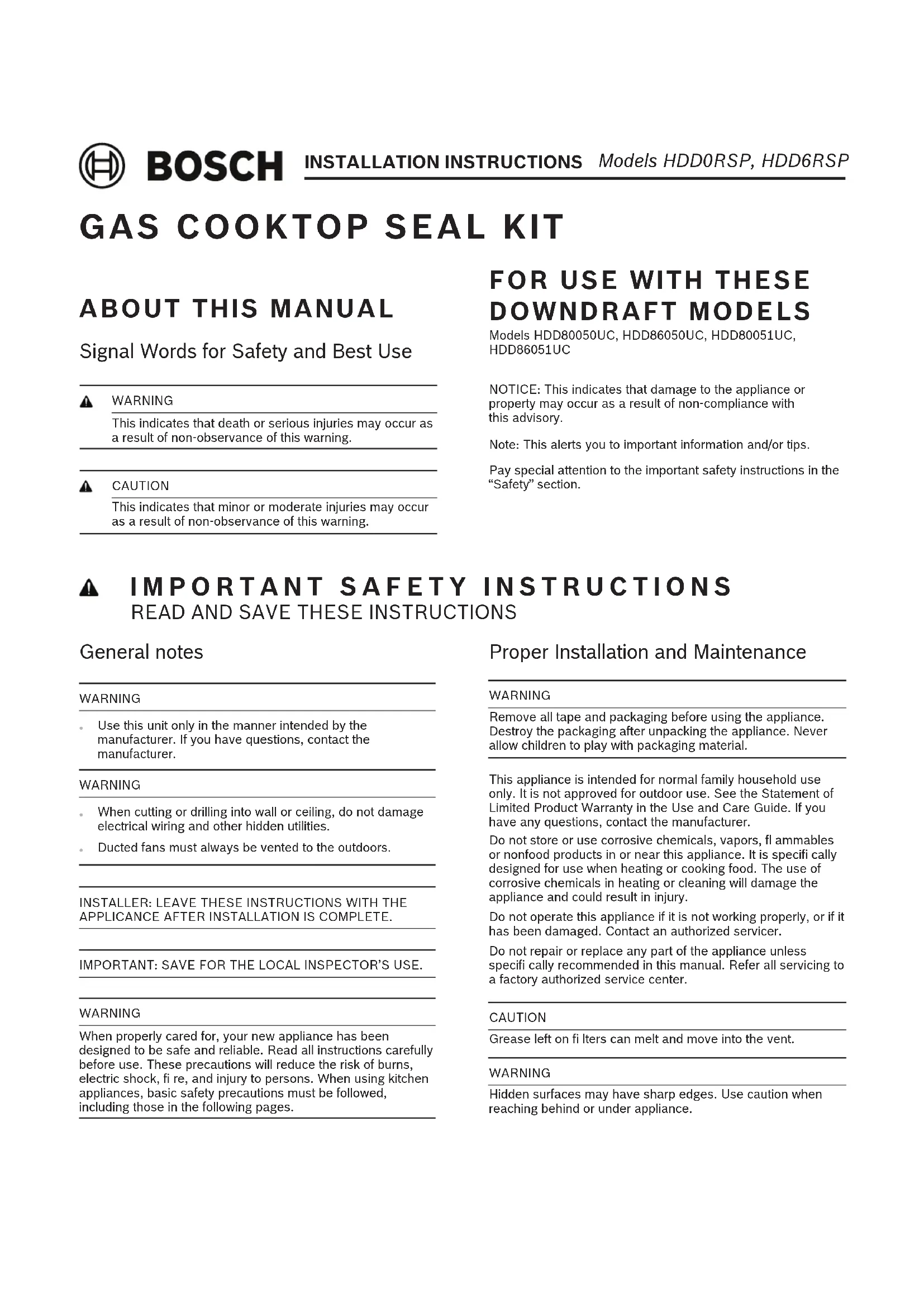

USER MANUAL HDD0RSP BOSCH

Signal Words for Safety and Best Use WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. General notes WARNING

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. WARNING

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors.

INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE

APPLICANCE AFTER INSTALLATION IS COMPLETE. IMPORTANT: SAVE FOR THE LOCAL INSPECTOR’S USE. WARNING When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fi re, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages. Proper Installation and Maintenance WARNING Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material. This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Statement of Limited Product Warranty in the Use and Care Guide. If you have any questions, contact the manufacturer. Do not store or use corrosive chemicals, vapors, fl ammables or nonfood products in or near this appliance. It is specifi cally designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury. Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer. Do not repair or replace any part of the appliance unless specifi cally recommended in this manual. Refer all servicing to a factory authorized service center. CAUTION Grease left on fi lters can melt and move into the vent. WARNING Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips. Pay special attention to the important safety instructions in the “Safety” section.

DOWNDRAFT MODELS Models HDD80050UC, HDD86050UC, HDD80051UC, HDD86051UC2 Fire Safety WARNING Use this appliance only for its intended use as described in this manual. Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches fi re, drop and roll immediately to extinguish fl ames. Have an appropriate fi re extinguisher available, nearby, highly visible and easily accessible near the appliance. Smother fl ames from food fi res other than grease fi res with baking soda. Never use water on cooking fi res. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fi tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the fl ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b. NEVER PICK UP A FLAMING PAN – You may be burned. c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d. Use an extinguisher ONLY if: - You know you have a Class ABC extinguisher, and you already know how to operate it. - The fi re is small and contained in the area where it started. - The fi re department is being called. - You can fi ght the fi re with your back to an exit.

Based on “Kitchen Fire Safety Tips” published by NFPPA. Whenever possible, do not operate the ventilation system during a cooktop fi re. However, do not reach through fi re to turn it off. WARNING

Hot oil and fat catch fi re fast. Never leave hot oil and fat unsupervised. Never extinguish a fi re with water. Switch off the cooking position. Suffocate fl ames carefully with a lid, a fi re blanket or similar. WARNING

Grease deposits in the grease fi lter can ignite. Clean the grease fi lter at least every two months or as frequently as necessary. Never operate the appliance without the grease fi lter. WARNING

Grease deposits in the grease fi lter can catch fi re. Never work with a naked fl ame near the appliance (e.g. fl ambéing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no fl ying sparks. WARNING

The accessible parts get hot during operation. Never touch hot parts. Keep children away. CAUTION It is recommended to wear gloves and long sleeves to protect hands and forearms from abrasion and potential scratches during the installation process.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS3

Child Safety When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualifi ed persons. Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance. This can damage the appliance or cause injury. WARNING Be sure the entire appliance (including the grease fi lters and light bulbs, if applicable) has cooled and grease has solidifi ed before attempting to clean any part of the appliance. Do not use steam cleaners to clean the appliance. State of California Proposition 65 Warnings WARNING This product may contain a chemical know to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California: STATE OF CALIFORNIA PROPOSITION 65 WARNING: WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov Protecting The Environment Unpack the appliance and dispose of the packaging in line with environmental requirements. NOTICE Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Condensation can lead to corrosion damage. Risk of damage due to moisture entering into the electronic circuitry. Never clean operator controls with a wet cloth. Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grain direction only. Do not use any stainless steel cleaners for operator controls. Never use strong or abrasive cleaning agents, since they can cause surface damage. Risk of damage from condensation back fl ow. Install exhaust vent at a slight downward slope away from the appliance (1° slope).

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS4

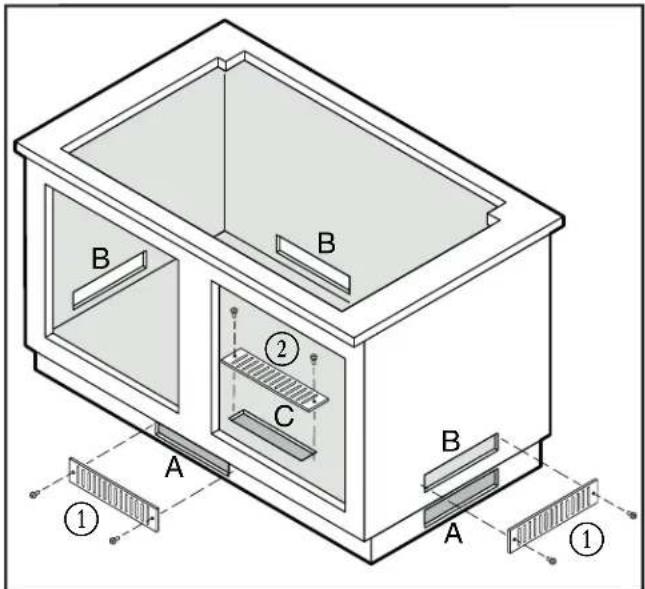

INSTALLATION INSTRUCTIONS B Cut one 18¼” x 2½” (464 mm x 64 mm) OPENING (A)* in the cabinet toe kick. -- or -- Cut one 18¼” x 2½” (464 mm x 64 mm) OPENING (B) in the cabinet side or back. Mount one of the two metal grilles over this opening, using two screws provided.

If you chose to cut an opening in the toe kick - you must cut another 18¼” x 2½” (464 mm x 64 mm) OPENING (C)* in the cabinet fl oor. Mount the second metal grille over this opening.

• IMPORTANT NOTE When using toe kick opening (A) with opening (C) in cabinet fl oor: Air must be able to fl ow freely between these two openings - and not restricted by cabinet structure or any other obstruction.

DClean housing surface (B) with Isopropyl Alcohol or Rubbing Alcohol. Remove TAPE STRIPS to reveal adhesive side of tape from the back side of TRIM BRACKET (A). ECenter trim bracket left-to-right at TOP OF DOWNDRAFT HOUSING (B). Stick trim bracket to downdraft housing so that FLANGES (C) and (D) are fl ush with each other. FCut TRIM SEAL (E) to length: No shorter than downdraft countertop cutout opening and no longer than cooktop width. G Remove tape backing from TRIM SEAL (E). Center trim seal left-to-right and stick trim seal across both FLANGES (C) and (D).

4 - No. 8 x 7/8” screws5

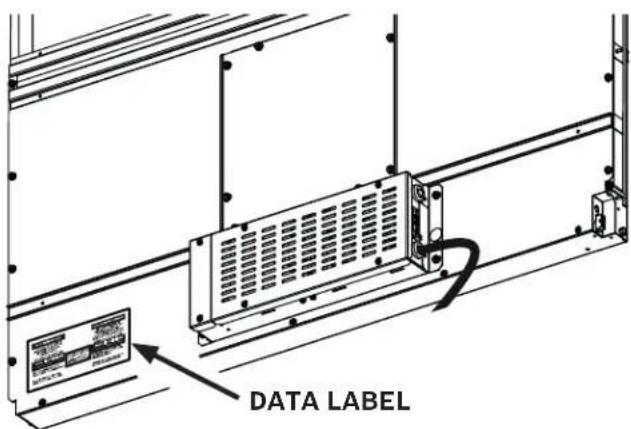

Before Calling Service See the Use and Care Manual for troubleshooting information. Refer to the “Statement of Limited Product Warranty”. To reach a service representative, see the contact information at the front of the manual. Please be prepared with the information printed on your product data label when calling. Data Label The data label shows the model and serial number. Refer to the data label on the appliance when requesting service. The data label can be found on the front / lower / left of the downdraft housing. To avoid having to search for each piece of information when calling, you can enter the four items needed in the spaces below. Model No. Serial No. Date of Purchase Customer Service No. Keep your invoice or escrow papers for warranty validation if service is needed. Service We realize that you have made a considerable investment in your kitchen. We are dedicated to supporting you and your appliance so that you have many years of creative cooking. Please don’t hesitate to contact our Customer Support Department if you have any questions of in the unlikely event that you Bosch

appliance needs service. Our service team is ready to assist you. USA 800-944-2904 www.bosch-home.com/us/support Canada 800-944-2904 www.bosch-home.ca/en/support Parts and Accessories Parts, fi lters, descalers, stainless steel cleaners and more can be purshased in the Bosch

eShop or by phone. USA www.bosch-home.com/us/store Canada Marcone 800-482-6022 or Reliable Parts 800-941-9217 DATA LABEL BOSCH
