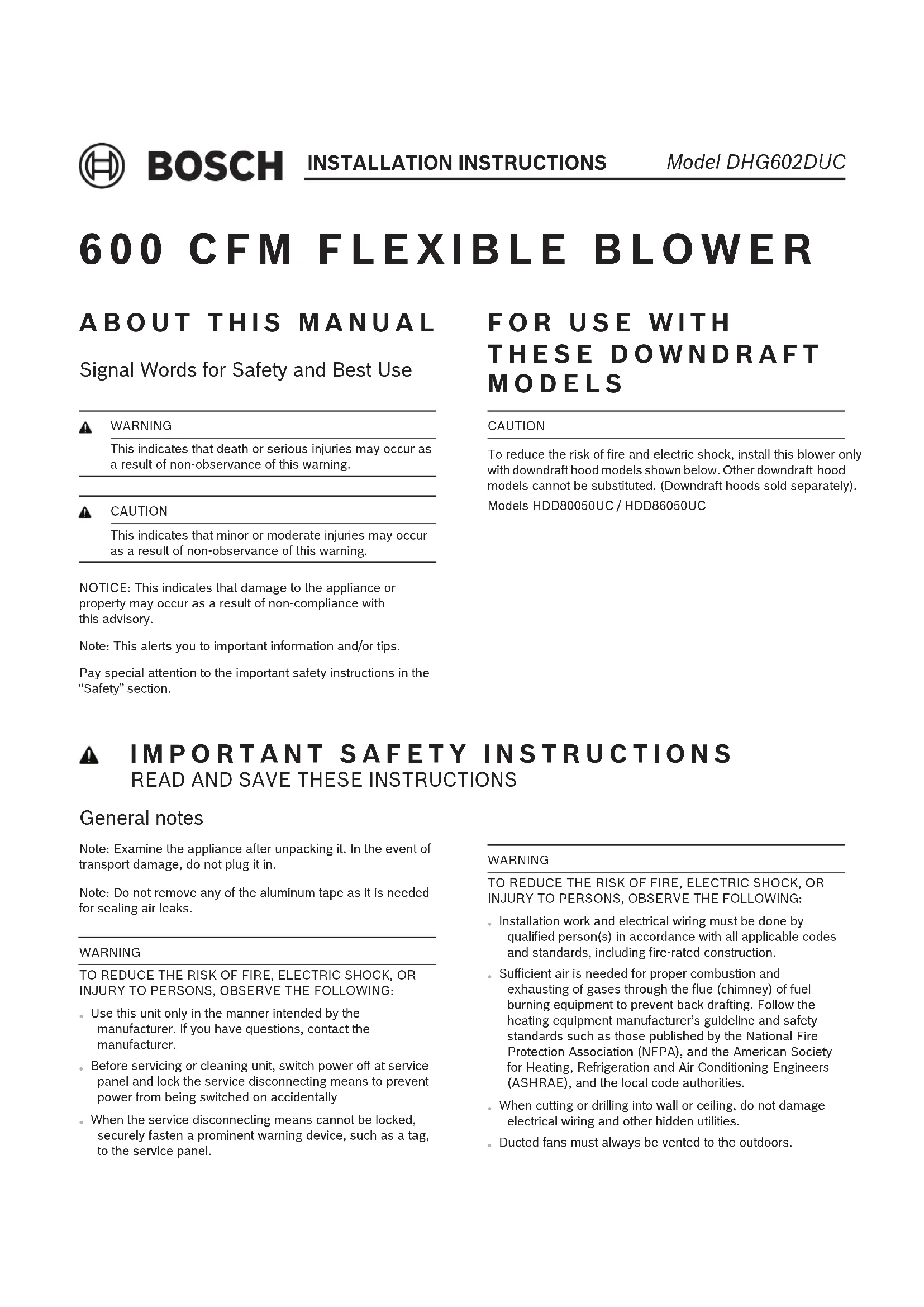

USER MANUAL DHG602DUC BOSCH

600 CFM FLEXIBLE BLOWER

Signal Words for Safety and Best Use WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips. Pay special attention to the important safety instructions in the “Safety” section.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

General notes Note: Examine the appliance after unpacking it. In the event of transport damage, do not plug it in. Note: Do not remove any of the aluminum tape as it is needed for sealing air leaks. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally

When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Installation work and electrical wiring must be done by qualied person(s) in accordance with all applicable codes and standards, including re-rated construction.

Sufcient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors. CAUTION To reduce the risk of re and electric shock, install this blower only with downdraft hood models shown below. Other downdraft hood models cannot be substituted. (Downdraft hoods sold separately). Models HDD80050UC / HDD86050UC

APPLICANCE AFTER INSTALLATION IS COMPLETE. IMPORTANT: SAVE FOR THE LOCAL INSPECTOR’S USE. WARNING When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, re, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages. Proper Installation and Maintenance WARNING Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material. INSTALLER: Show the owner the location of the circuit breaker or fuse. Mark it for easy reference. This appliance must be properly installed and grounded by a qualied technician. Connect only to properly grounded outlet. Refer to Installation Instructions for details. This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Warranty in the Use and Care Guide. If you have any questions, contact the manufacturer. Do not store or use corrosive chemicals, vapors, ammables or nonfood products in or near this appliance. It is specically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury. Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer. Do not repair or replace any part of the appliance unless specically recommended in this manual. Refer all servicing to a factory authorized service center. CAUTION Grease left on lters can melt and move into the vent. WARNING Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance. WARNING Tie long hair so that it does not hang loose, and do not wear loose tting clothing or hanging garments, such as ties, scarves, jewelry or dangling sleeves. WARNING When the hood is operated in exhaust-air mode simultaneously with a different appliance which also makes use of the same chimney (such as gas, oil or coal-red heaters, continuous-ow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the appliance for combustion. This can be achieved if combustion air can ow through non- lockable openings, e.g. in doors, windows and via the air-intake/ exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. WARNING Avoid carbon monoxide poisoning – Provide adequate air intake so combustion gases are not drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as cooktops and ovens. WARNING To avoid electrical shock hazard, before installing, switch power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS3

Fire Safety WARNING Use this appliance only for its intended use as described in this manual. Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches re, drop and roll immediately to extinguish ames. Have an appropriate re extinguisher available, nearby, highly visible and easily accessible near the appliance. Smother ames from food res other than grease res with baking soda. Never use water on cooking res. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b. NEVER PICK UP A FLAMING PAN – You may be burned. c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d. Use an extinguisher ONLY if: - You know you have a Class ABC extinguisher, and you already know how to operate it. - The re is small and contained in the area where it started. - The re department is being called. - You can ght the re with your back to an exit.

Based on “Kitchen Fire Safety Tips” published by NFPA. Whenever possible, do not operate the ventilation system during a cooktop re. However, do not reach through re to turn it off. Seal the connection points of the ducts appropriately. - Ductwork must vent outside, not in attic spaces for example, unless the available ’Non-duct Recirculation Kit’ is used. WARNING

When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch re. Only operate the gas burners with cookware on them. WARNING

Hot oil and fat catch re fast. Never leave hot oil and fat unsupervised. Never extinguish a re with water. Switch off the cooking position. Suffocate ames carefully with a lid, a re blanket or similar. WARNING

Grease deposits in the grease lter can ignite. Clean the grease lter at least every two months or as frequently as necessary. Never operate the appliance without the grease lter. WARNING

Grease deposits in the grease lter can catch re. Never work with a naked ame near the appliance (e.g. ambéing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no ying sparks. WARNING

The accessible parts get hot during operation. Never touch hot parts. Keep children away. CAUTION It is recommended to wear gloves and long sleeves to protect hands and forearms from abrasion and potential scratches during the installation process.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS4

Child Safety When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualied persons. Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance. This can damage the appliance or cause injury. WARNING Be sure the entire appliance (including the grease lters and light bulbs, if applicable) has cooled and grease has solidied before attempting to clean any part of the appliance. Do not use steam cleaners to clean the appliance. State of California Proposition 65 Warnings WARNING This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Protecting The Environment Unpack the appliance and dispose of the packaging in line with environmental requirements. NOTICE Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Condensation can lead to corrosion damage. Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth. Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grain direction only. Do not use any stainless steel cleaners for operator controls. Never use strong or abrasive cleaning agents, since they can cause surface damage. Risk of damage from condensation back ow. Install exhaust vent at a slight downward slope away from the appliance (1° slope).

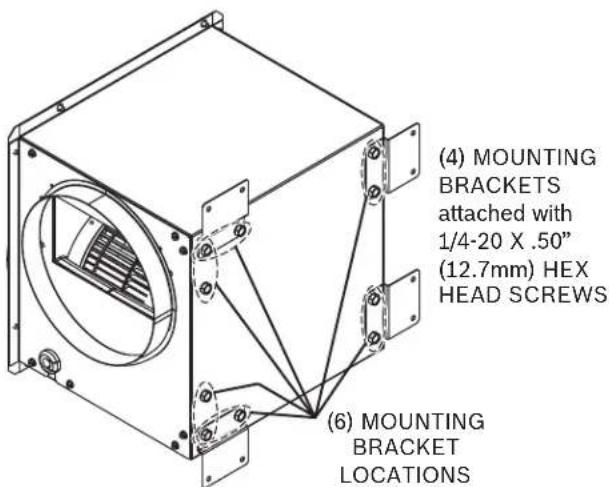

screws and attach 4 MOUNTING BRACKETS to the Flexible Blower - using 4 of the 6 POSSIBLE BRACKET MOUNTING LOCATIONS.

4. Mount Flexible Blower to back of cabinet, oor joist, or

adequate framework (constructed by installer) with appropriate MOUNTING SCREWS (not included).

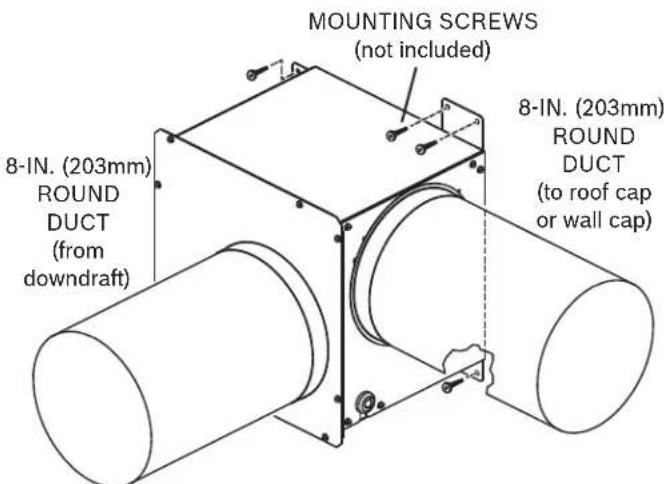

5. Connect 8” (203mm) ROUND DUCT from Downdraft housing

to Flexible Blower inlet and from Flexible Blower outlet to roof or wall cap. For best performance: Choose the ducting option which allows the shortest length of ductwork and a minimum number of elbows and transitions. Check location of oor joists, wall studs, electrical wiring or plumbing for possible interference.

6. Use strain relief bushing (provided) to attach Flexible Blower

wiring to wiring box on Downdraft’s electrical panel and make wiring connections. (See Downdraft manual for instructions.) (6) MOUNTING BRACKET LOCATIONS 8-IN. (203mm) ROUND DUCT (to roof cap or wall cap) 8-IN. (203mm) ROUND DUCT (from downdraft) MOUNTING SCREWS (not included) (4) MOUNTING BRACKETS attached with 1/4-20 X .50” (12.7mm) HEX HEAD SCREWS PLAN THE INSTALLATION If you choose to mount the Flexible Blower directly to the Down- draft housing: Remove the inlet cover (taped in place for shipping) and discard inlet cover. Refer to installation instructions in the Downdraft manual. If you choose to mount the Flexible Blower in an inline location, (such as the cabinet back, cabinet side, or oor joists) - follow the instructions below. INSTALL FLEXIBLE

LOCATION NOTE: THE FLEXIBLE BLOWER MUST BE INSTALLED WITHIN 4-FEET (1219mm) OF THE DOWNDRAFT’S ELECTRICAL PANEL. The Electrical Panel can be mounted directly to the Downdraft housing - or mounted in a remote location (always within 4-feet of the Flexible Blower).

1. Position inlet cover over blower wheel. Securely attach the

inlet cover to the blower with 8 screws and 8 nuts from parts bag. Note that inlet cover is taped to blower for shipping. This tape may be removed.

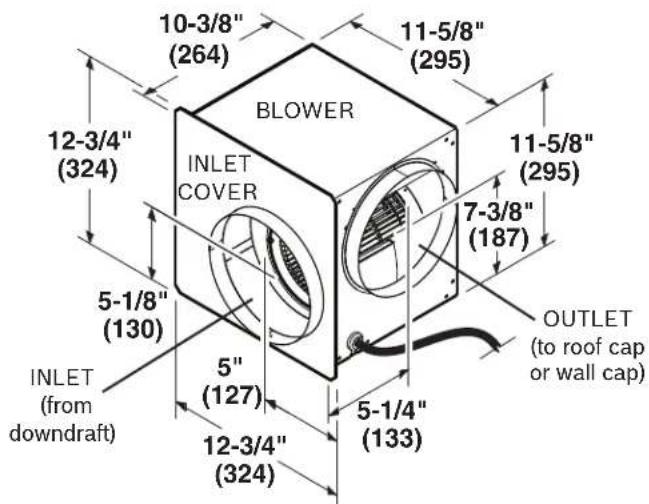

2. Determine how the 8” (203mm) round INLET and OUTLET

ductwork will connect to the Flexible Blower. Refer to instal- lation instructions in the Downdraft manual. INLET (from downdraft) OUTLET (to roof cap or wall cap) PARTS SUPPLIED These parts are included with your Flexible Blower:

2 - blower mounting legs*

1 - Parts Bag containing:

(4) wood screws #10 x .50” (12.7mm)* (4) blower mount brackets (1) strain relief bushing (8) screws #10 x .38” (9.7mm) (8) nuts #10

• For use when mounting Flexible Blower directly to Downdraft housing. (See Downdraft instruction manual.) BLOWER INLET COVER6 Our customer service department is there for you if your appliance requires repair. When calling, please give the Product Number and the Serial Number so that we can better assist you. The identication plate listing the numbers can be found inside of the appliance (remove metal grease lter to nd it). So that you don’t have to search for them when needed, you can enter your appliance information and the customer service number here. Product No. Serial No. CUSTOMER SERVICE Customer Service No. Please note that a visit from an authorized servicer in the event of incorrect operation is not free of charge, even during the warranty period. To book a service visit and product advice in the US: Call 800 944 2904 (toll-free).7 What this Warranty Covers & Who it Applies to The limited warranty provided by BSH Home Appliances Corporations (“BSH“) in this Statement of Limited Product Warranty applies only to the Bosch appliance (“Product“) sold to you, the rst using purchaser, provided that the Product was purchased:
