USER MANUAL CM85B.009A Haeger

Espresso Machine / Máquina de Café Expresso Cafetera Expreso / Machine à Expresso Instructions Manual Manual de utilizador Manual de usuario Mode d’emploi Expresso Itália * CM-85B.009A RoHSGB Instructions for use 1 Dear customer Thank you for having chosen a HÆGER product. The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance. We assume that the user is familiar with the common procedures of handling household appliances. Before using the appliance for the first time please read carefully and thoroughly through these operating instructions and the safety advice, completely familiarising yourself with the appliance. Retain these instructions for future reference and pass them on to whoever might acquire the appliance at a future date. Intended use The coffee maker is intended exclusively for brewing coffee. This coffee maker is intended exclusively for use in private households. Pay heed to all of the information in this operating manual, especially the safety instructions. All other uses are deemed to be improper and may result in property damage or even in personal injury. We shall not accept liability for damages caused due to improper use of the appliance. General Safety Instructions Please read this manual since it contains important information on the safety, use and maintenance of your appliance. Keep it in a safe place for future reference. After removing the packaging, make sure the appliance is undamaged. If in doubt, do not use, please contact an authorized service centre.

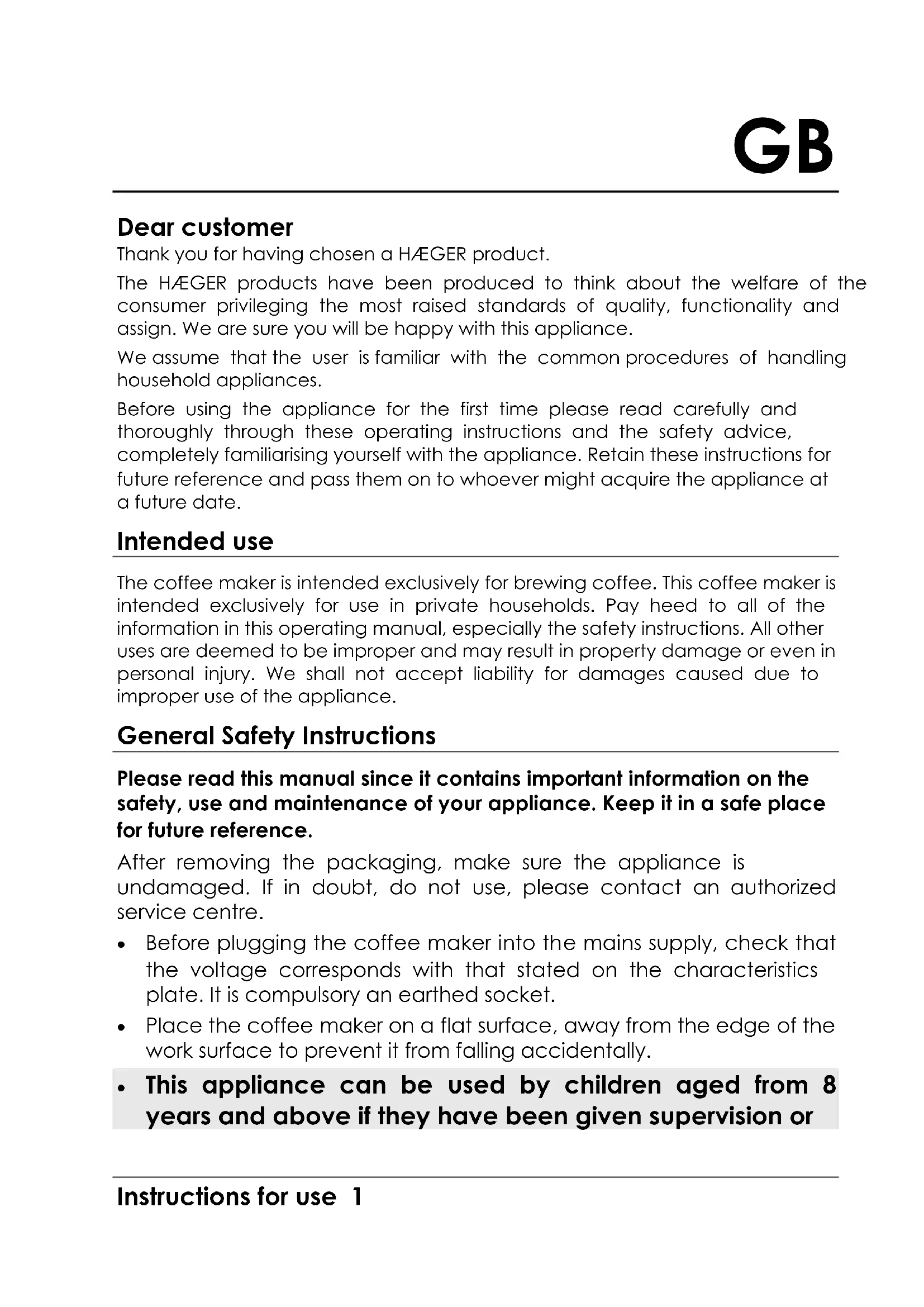

• Before plugging the coffee maker into the mains supply, check that the voltage corresponds with that stated on the characteristics plate. It is compulsory an earthed socket.

• Place the coffee maker on a flat surface, away from the edge of the work surface to prevent it from falling accidentally.

• This appliance can be used by children aged from 8 years and above if they have been given supervision orEnglish 2 Instructions for use instructions concerning the safe use of the appliance understand the hazards involved.

• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not operate the appliance with the cable still coiled.

• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Leave it to cool down before putting it away or removing pieces and before cleaning the appliance.

• Do not use outdoors. This appliance is only to be used for household purposes and only for the purpose it is made for.

• This appliance is intended to be used in household and similar applications as: – staff kitchen areas in shops, offices and other working environments, – farm houses, – by clients in hotels, motels and other residential type environments, – bed and breakfast type environments.

• To switch the coffee maker off, put the ON/OFF switch to “0” position and unplug the appliance.

• Do not let the cable hang over the edge of the table or worktop, nor let it meet into contact with hot surfaces.

• Do not switch the appliance on if the cable or the plug is damaged or if it can be detected that the appliance is not working correctly.English Instructions for use 3

WARNING: Risk of fire or electric shock!

• To reduce the risk of fire or electric shock, never remove any of the covers. There are no user serviceable parts on the inside.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid hazard.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

WARNING: Risk of burns!

• Be careful; do not get burned by the steam which is evaporating from the coffee filter.

• Some parts of appliance are hot when operated, so do not touch with hand directly. Use the handles or Knobs. Overview of the components

14. Stainless steel filter

15. Measuring spoon and tamper

16. Metal funnel (filter holder)English

4 Instructions for use Before the First Use

• It is recommended to rinse the coffee maker before the first use. The coffee maker should also be rinsed after a longer period without use. Refer to the instruction in the “Cleaning and maintenance” chapter.

• Use the appliance as if it were about to make an espresso coffee but without any coffee, to flush through all of the internal parts of the coffee maker.

• There may be noise and no water come out when pump the water at the first time, it is normal, you should turn the steam regulator to the opening position to release the air in the appliance. After about 20s, the noise will disappear, and the water will come out.

• You cannot brew espresso if you have not flushed the machine at first; the flushing cycle causes the boiler to fill with water. If you have not used the machine for a few days, you must flush it with fresh water before you use it again. Preparation of Espresso Coffee To make a cup of good hot Espresso coffee, we recommend you preheat the appliance before making coffee, including the filter holder, filter and cup, so that the coffee flavour cannot be influenced by the cold parts.

1. Make sure that all buttons are in the “OFF” position and that the steam

control knob is closed by turning it clockwise.

2. Open the tank cover and pour water into it, the water level should not

exceed the “MAX” mark in the tank. Then close the water tank cover. NOTE: The appliance is supplied with a detachable tank for easy cleaning, you can fill the tank with water firstly, and then put the tank into the appliance.

3. Plug in to a power source and turn the device on by pressing the ON/OFF

switch. The coffee maker will start to pre-heat and the blue LED will blink.

4. Choose the right filter (for two cups or for pod) and put it into the filter

5. When coffee maker is ready, the LED will stop blinking and shine

6. Hold the filter holder below the boiler outlet and turn it to clockwise. Make

sure the handle of the filter holder aligns with groove in the appliance, then move it to the right from the “INSERT” position to “LOCK” position.

7. Place a cup on removable shelf and press the button “coffee switch” and

wait for a few seconds, then press “coffee switch” again to close the flow of the water. Pour out the hot water in the cup of preheating process.

8. Fit the suitable coffee filter into the filter holder. Use the pod cup filter or theEnglish

Instructions for use 5 large 2 cup filter for two cups of espresso. Fill the filter using the measuring spoon. Clean away any coffee that may remain around the edge of the filter holder. The coffee powder could not exceed the max level in the filter after being pressed.

9. Place the filter holder into its housing. Turn the filter holder round to the right

until you notice it is stopped. Do not force it.

10. Place cups under the outlets of the filter holder.

11. Press “coffee switch” and wait for the right amount of coffee to pour into the

cups then press “coffee switch” again. WARNING Do not leave the coffee maker unattended during making the coffee, as you need operate manually sometimes!

12. After finishing making the coffee, you can take out the filter holder, lock the

filter by filter lock bar and pour out the coffee residue.

13. Let them cool down completely, then rinse under running water.

IMPORTANT NOTICE You cannot start to make espresso until the ready light glows because it means the water temperature is not enough. To avoid water leakages from the rim of filter holder and to ensure optimum performance, it is necessary to clear any ground coffee from around the boiler outlet. Take care as the area may be hot. Frothing milk It is advised to froth the milk after the coffee had been prepared as milk frothing mode requires a higher temperature. After milk frothing it is necessary to wait a minimum of 5 minutes to allow the device to cool down slightly. If the temperature of brewing is too high, the coffee can be scalded which will cause the coffee to have a burned and bitter taste and aroma. Before frothing ensure the volume of the milk is adequate in the cup. Milk can double in volume after frothing, so care should be taken when deciding the volume of milk. Use a heat-resistant cup for milk frothing. The cup can get very hot during frothing.

1. Turn on the milk frothing mode by pressing steam switch. The LED control light

will start to blink. When the light starts to shine continuously the device is ready to generate steam.

2. Rinse the steam tube by turning the steam knob anti-clockwise. Steam and

some water will come from the steam wand. Turn off the steam by turning the steam knob to the right in clockwise.

3. Immerse the steam tube into the cup with cold milk and turn the steam knob

to the left in anti-clockwise.English 6 Instructions for use

4. To end the milk frothing process turns the steam knob clockwise. Take out

the steam tube from the cup with milk. Never take the steam tube out of the cup if the steam knob is not turned off. Hot steam may cause injuries and scalds.

5. After milk frothing it is advised to put the steam tube into a cup with clean

cold water and rinse the system. After the steam tube is immersed in the cup with water turn the steam knob anti-clockwise. After few seconds, turn off the steam flow by turning steam knob clockwise.

6. Turn off the milk frothing mode by press the steam switch.

• In choosing the size of jug, it is recommended the diameter is not less than 70±5mm, and bear in mind that the milk increases in volume by 2 times, make sure the height of jug is enough.

• Never turn the steam control button rapidly, as the steam will accumulate rapidly in short time which may increase the potential of the risk of explosion.

• During operation, if the blue indicator is extinguished, you should turn the steam control left wise. Press coffee switch and pump water, and then wait for until the blue light is illuminated permanently and turn the steam control knob in anti-clockwise, the steam will come out again.

• Clean steam outlet with wet sponge immediately after steam stops generating, but care not to hurt! Preparation of Cappuccino You get a cup of cappuccino when you top up a cup of espresso with frothing milk.

1. Prepare espresso first with container big enough according to the part

“Make Espresso Coffee”; make sure that the steam control knob is turned off at right.

2. Froth the milk as instructed on “Frothing milk”.

3. Pour the frothed milk into the espresso prepared; now the cappuccino is

ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder. Clean and Maintenance Rinse the coffee maker’s water system

1. Turn device on by pressing the ON/OFF switch. Coffee maker will start to pre-

heat, LED will blink.

2. When coffee maker is ready, the LED will stop blinking and turns on.

3. Place the filter holder in the mounting point to rinse the water system ofEnglish

Instructions for use 7 coffee maker. Press the button “coffee switch” and wait for a few seconds, then press “coffee switch” again to close flow of the water. Regular cleaning after each use

• Before cleaning, always remove the mains plug and wait until the device has cooled down.

• Do not immerse the device in water. Otherwise this might result in an electric shock or fire.

• Do not clean with alcohol or solvent cleaner.

1. Clean the housing of coffee maker with moisture-proof sponge often and

clean water tank, drip tray and removable shelf regularly under warm running water.

2. Detach the filter holder through turn it anticlockwise, get rid of coffee

residue inside, then you can clean it with a cleaner, but at last you must rinse the parts with clear water.

3. Clean all the attachments and dry thoroughly.

Cleaning mineral deposits To make sure your coffee maker operating efficiently, you should clean away the mineral deposits left every 2-3 months. To do this:

1. Fill the tank with water and descaler to the MAX level (the scale of water

and descaler is 4:1); the detail refers to the instruction of descaler. Please use “household descaler”. You can use also the citric acid instead of the descaler (the relation is three parts of water and one part of citric acid).

2. Operate the appliance for two cycles following the steps for making

espresso and frothing milk and rinse the device with the water /descaler mixture.

3. Following this, and to flush out any traces of descaler or citric acid, operate

the coffee maker for a further two cycles but with water only. Technical Data Model: ............................................ CM-85B.009A Power supply: ................................. 220 -240V~, 50Hz Power consumption: ..................... 850W Filling quantity: ............................... 1.6 Litre Protection class: ............................ I Net weight: ..................................... approx. 3 kgEnglish 8 Instructions for use CE Conformity This product has been designed, manufactured and marked in compliance with: - The safety objectives of Low Voltage Directive 2014/35/EU, - The protection requirements of EMC Directive 2014/30/EU, - Directive RoHS (EU) 2015/863, This appliance is intended to come into contact with food and is designed in accordance with EC Regulation1935/2004. The electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system. The CE mark attests this product with all relevant directives. Disposal – Environment policy Packing The packaging material is entirely recyclable and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous. Disposal This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. This symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.English Instructions for use 9 Warranty Declaration Insofar as claims filed for elimination of deficiencies (applicable laws) are being processed, these shall be handled via the contractual partners. In addition, the distributor provides the following manufacturer’s warranty:

1. For this device, the distributor grants a warranty period of 24 months (*), figured

from the date of purchase from the dealer; this must be verified by the original receipt, or other similar documents, in accordance with pertinent, existing guidelines.

2. Warranty claims shall be filed via a dealer.

3. The voluntary warranty covers the rectification of any damage or deficiency that

occurs during the warranty period and which is demonstrably due to material or production faults.

4. Not included in this voluntary warranty are damage and deficiencies resulting

from incorrect connection, from improper handling, from non-observance of the programming instructions or instructions for use, or from force majeure. The voluntary warranty does not cover installation and programming work performed by the dealer. No claim can be made for installation or programming work to be performed free of charge by the dealer. The voluntary warranty does not cover deficiencies which have a negligible effect on the value or usability of the device. Further costs, such as for installation, transport and travel expenses are expressly excluded from the warranty.

5. It is at the discretion of the distributor to replace the device with an identical one

instead of performing repairs. Further claims for damage are not permissible. Any data stored in the device will be lost after repair work or replacement of the device.

6. The voluntary warranty is nullified if changes are made to the product, or when

the product is operated in a country for which it was not developed nor produced.

7. Fulfilment of the voluntary warranty presupposes that the device has been

packed complete and protected against breaking and impacts (if possible, in the original packaging) and shipped with the warranty certificate from the dealer.

8. If testing reveals that there are no grounds for warranty claims, or that the

product does not exhibit any deficiencies, the costs for repair work and testing shall be borne by the user. The distributor processing the claim arising from the voluntary warranty is authorized to charge these costs to the user.

9. Services arising from the voluntary warranty affect neither an extension of the

warranty period, nor do they mark the beginning of a new term for the voluntary warranty.

10. Warranty claims according to applicable law filed by the end customer shall
