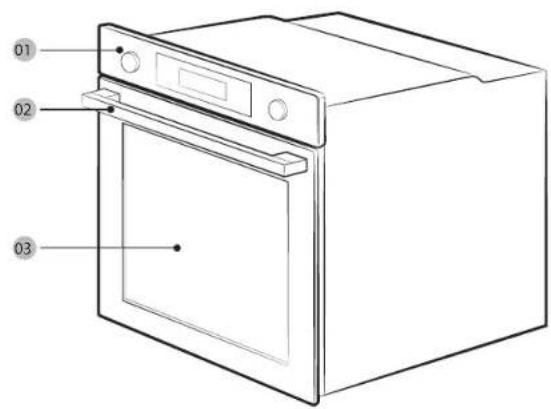

Horno (mm)

A 560 G 503
B 166 H 481
C 383 I 21
D 45 J 549
E 596 K 579
F 595 L 559

A B C D E

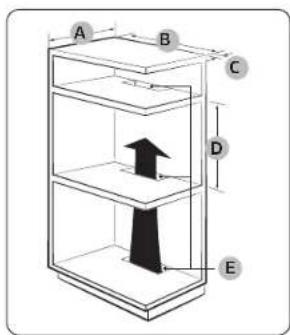

Armario empotrado (mm)

A Min. 550

B Min. 560

C Min. 50

D Min. 590 - Máx. 600

E Min. 460 x Min. 50

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Montaje del horno

Diagram showing a circular object with a shaded region and labeled point A, surrounded by diagonal lines (no text or symbols beyond label)

Technical diagram showing a mechanical assembly with labeled component B and a curved arrow indicating motion or direction.

Technical line drawing of a structural frame with an inset showing a mechanical clamp or bracket (no text or symbols)

Pure technical line drawing of a door or cabinet component without any text, numbers, or symbols

Line drawing of a hand inserting a small object into a device (no text or symbols)

1. Presione completamente la palanca del tirador.

Diagram of a door handle with an arrow indicating direction (no text or symbols)

1. Tire de la palanca.

Technical line drawing of a rectangular device with internal layers, no text or symbols present

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a rectangular panel or tray with internal compartments, no text or symbols present

Illustration of a hand using a tool to clean or store wood, with a prohibition symbol (no text or labels)

PRECAUCIÓN

Diagram showing a hand holding a device with a magnified view of its screen, labeled 'A', indicating a measurement or testing setup.

Line drawing of a hand using a tool to apply paint on wires (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a two-tiered storage cabinet or rack unit (no text or symbols)

2:00 p.m. 3:00 p.m. 4:00 p.m. 5:00 p.m. 6:00 p.m.

Caso 2

Hora actual:

2:00 p.m. 3:00 p.m. 4:00 p.m. 5:00 p.m. 6:00 p.m.

PRECAUCIÓN

Simple line drawing of a room with a central table and two shelves (no text or symbols)

Line drawing of a room with a central shelf and symmetrical doors (no text or symbols)

Diagram showing two labeled components with a cross mark and circle, possibly indicating a measurement or selection point.

Illustration of a rectangular object wrapped in plastic wrap, resembling a meat or bread item (no text or symbols)

Simple line drawing of a cabinet or storage unit with shelves, no text or symbols present

Illustration of a hand pouring liquid into a tray inside a microwave oven (no text or symbols)

Simple line drawing of a two-tiered storage unit with mountain-like deposits (no text or symbols)

Line drawing of a minimalist room layout with bookshelves and a central table (no text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Hand cleaning a tiled room with a cloth (no text or symbols visible)

Illustration of a hand cleaning a surface with a cloth (no text or symbols)

Diagram showing a mechanical device inside a container with an arrow indicating rotation (no text or symbols present)

Diagram of an oven with a door and drawer, showing airflow direction (no text or symbols)

Diagram showing a car seatbelt mechanism with an arrow indicating rotation (no text or labels)

Technical line drawing of a mechanical component with an inset close-up showing a hand holding a tool (no text or symbols present)

Technical diagram of a mechanical assembly with a ruler and a flat plate (no text or symbols)

3D diagram of a rectangular frame with a labeled section '02' and directional arrow, no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Simple line drawing of a cylindrical object with a protruding rod (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram of a door frame with a labeled component '01' (no text or symbols beyond label)

01 Colector de agua

Technical line drawing of a mechanical component with an inset showing a bracket detail (no text or symbols)

Diagram of a ladder-like structure with an arrow indicating rotation, enclosed in a rectangular frame (no text or symbols)

Illustration of a hand holding a tool inside a circular frame (no text or symbols)

Simple line drawing of a hand holding a device inside a container (no text or symbols)

QR code image containing encoded data, no visible human-readable text
