Canvas 25F - Monitor NZXT - Free user manual and instructions

Brand	NZXT
Model	Canvas 25F
Category	Gaming monitor
Panel size	25 inches
Aspect ratio	16:9
Maximum resolution	1920 x 1080 pixels (Full HD)
Typical brightness	400 cd/m²
Response time	1 ms (GTG)
Refresh rate	240 Hz
Display technologies	AMD FreeSync Premium, HDR400, anti-flicker, blue light filter
Video connectivity	2 x HDMI 2.0, 1 x DisplayPort 1.2, 1 x USB-C (DisplayPort Alt)
USB connectivity	2 x USB 3.0 Type A, 1 x USB 3.0 Type B
Audio output	3.5 mm headphone jack
Ergonomic adjustments	Tilt -5° to +20°, swivel -20° to +20°, height 0-120 mm
VESA compatibility	100 x 100 mm (M4 x 15 mm screws)
Dimensions with stand (W x H x D)	558.1 x 509.3 x 219.7 mm
Dimensions without stand	558.1 x 332.2 x 68.4 mm
Net weight (panel only)	3.43 kg
Net weight (stand only)	2.6 kg
Power supply	External adapter 19V / 3.42 A (100-240 V AC)
Power consumption standby	0.5 W
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Care and cleaning	Unplug before cleaning; use a soft non-lint cloth; avoid chemicals
Safety	Do not expose to moisture; use on a stable surface; do not cover vents
Warranty and support	Contact [e-mail]; spare parts at support.nzxt.com

Frequently Asked Questions - Canvas 25F NZXT

How to adjust the screen brightness?

Press the directional joystick to open the OSD menu. Navigate to Image > Brightness and adjust from 0 to 100%.

How to enable FreeSync adaptive sync?

Go to OSD menu: System settings > FreeSync and set to Active. Make sure to use a DisplayPort cable for G-Sync compatibility.

What to do if the screen remains black but the LED indicator is on?

Check that the computer is not in sleep mode. Ensure the video cable is properly connected. Try changing the input source in the OSD menu (Input source). Restart the monitor.

How to change the refresh rate in Windows?

Right-click on the desktop > Display settings > Advanced display > select the monitor and choose 240 Hz from the list.

How to clean the screen without damaging it?

Unplug the monitor. Use a slightly damp soft non-lint cloth. Never use chemicals or abrasive cleaners.

Can I mount the monitor on a VESA arm?

Yes, the monitor is compatible with VESA 100 x 100 mm mounts. Use M4 x 15 mm screws.

How to reset the monitor to factory settings?

Go to OSD menu: System settings > Reset all and confirm. Language will not be changed.

What cables are included with the monitor?

The monitor comes with a power cable, power adapter, DisplayPort cable, and USB Type B to Type A cable.

How to adjust the monitor height?

Hold the monitor by the base and apply vertical pressure to raise or lower it. Adjustment range is 0 to 120 mm.

What to do if the image flickers or shows a wave effect?

Adjust sharpness in OSD menu (Image > Sharpness). Try changing Response time or enable MPRT. Enable FreeSync if necessary.

USER MANUAL Canvas 25F NZXT

Line drawing of a computer monitor with a stand and a cylindrical base (no text or symbols)

CANVAS 25F

MONITEUR GAMING 25" FHD (1 920 X 1 080) 240 HZ

TABLE DES MATIERES

VERSION 1.0

1. PRÉFACE 02

2. CONFIGURATION DE L'AFFICHAGE À L'ÉCRAN (OSD OU ON-SCREEN DISPLAY) DU MONITEUR 25

3. DÉMARRAGE....05

4. CONFIGURATION DU LOGICIEL CAM 30

5. INSTALLATION 12

6. ANNEXE A-1

1. PRÉFACE

CANVAS 25F

Empty white rectangle with a thin border and the word 'NEXT' at the bottom (no other text or symbols)

D. Câble HDMI

x1

Technical line drawing of a mechanical component with a cylindrical shaft and connector (no text or symbols)

F. USB C / DP Alt

x1

Technical diagram showing assembly steps of a device with labeled components and a magnified inset view.

3.1 INSTALLATION DU SUPPORT DU MONITEUR

CANVAS 25F

ÉTAPE 3

Technical illustration of a mechanical assembly with a component and a magnified view (no text or symbols)

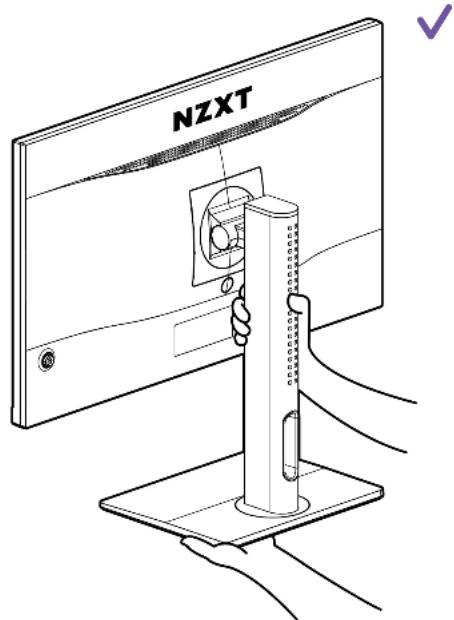

3.1 INSTALLATION DU SUPPORT DU MONITEUR

CANVAS 25F

ÉTAPE 4

NZXT NZXT

NZXT

3.2 AJUSTEMENT DE L'ORIENTATION DU MONITEUR

CANVAS 25F

NZXT DP OR HDMI

3.3 RACCORDEMENT DU MONITEUR AU PC

CANVAS 25F

ÉTAPE 3

Cable Management CLIP

3.5 DÉVERROUILLAGE RAPIDE DU SUPPORT DU MONITEUR

CANVAS 25F

Download and install NZXT CAM from nzxt.com/camapp.

Descargue e instale NZXT CAM en nzxt.com/camapp.

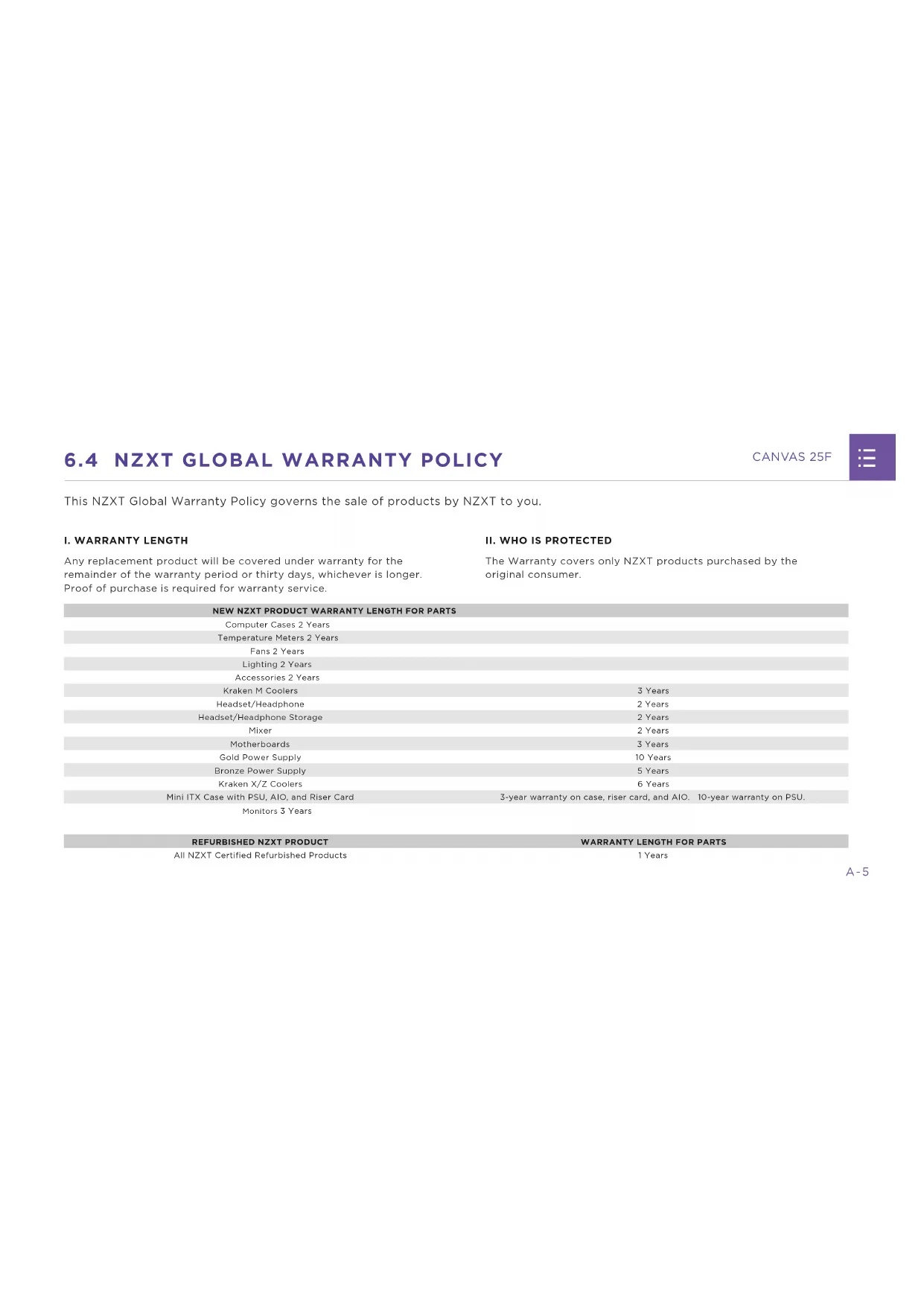

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS

Computer Cases 2 Years

Temperature Meters 2 Years

Fans 2 Years

Lighting 2 Years

Accessories 2 Years

Kraken M Coolers

Headset/Headphone

Headset/Headphone Storage

Mixer

Motherboards

Gold Power Supply

Bronze Power Supply

Kraken X/Z Coolers

Mini ITX Case with PSU, AIO, and Riser Card

Monitors 3 Years

3-year warranty on case, riser card, and AIO. 10-year warranty on PSU.

REFURBISHED NZXT PRODUCT

All NZXT Certified Refurbished Products

WARRANTY LENGTH FOR PARTS

1 Years

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
  • normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

V. LIMITATIONS OF IMPLIED WARRANTYEST

Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

  Up to 30 days: if your goods are faulty, then you can get an immediate refund.
  Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
  Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

• If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
• The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA

NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany [phone] / [e-mail] / NZXT.com

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
Подробную информацию об условиях гарантийного обслуживания см. на веб-сайте nzxt.com/warranty и support.nzxt.com.
제품 보증 범위와 서비스 정보를 확인하시러면 nzxt.com/warranty 또는 support.nzxt.com을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.com と nzxt.com/warranty にアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online. NZXT Website: NZXT.com

SOPORTE Y SERVICIO

DÉCLARATION DE CONFORMITÉ FCC

DÉCLARATION CANADIAN DEPARTMENT OF COMMUNICATIONS

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

TAIWAN

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

CALIFORNIA, USA

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate

CAUTION

- There is a risk of explosion, if battery is incorrectly replaced. Replace with the same or equivalent type recommended by the manufacturer.

6.8 WEEE (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT) STATEMENT

CANVAS 25F

ENGLISH

To protect the global environment and as an environmentalist, NZXT must remind you that...

Under the European ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, effective February 14, 2014, products of "electrical and electronic equipment" cannot be discarded as municipal wastes, and manufacturers of covered electronics must take back such products at the end of their useful life. NZXT will comply with the product take back requirements at the end-of-life of NZXT products that are sold within the EU. You can return these products to local collection points.

ESPAÑOL
