USER MANUAL Grande AIR AllSeason 390 M DOMETIC

Two identical grayscale camping tent designs with arched windows and vertical supports, shown from different angles (no text or symbols)

Ace AIR, Club AIR, Grande AIR, Leggera AIR, Rally AIR, Rally AIR D/A

EN

Awning tent

Operating manual....10

DE

Vorzelt

© 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

ACE AIR PRO 400

• Width: 400 cm
• Depth: 325 cm
• Weight: 28 kg
  • Min weight: 21.9 kg

4000 3250 1340

ACE AIR PRO 500

• Width: 500 cm
• Depth: 325 cm
  • Weight: 30.7 / 8 kg
  • Min weight: 23.9 kg

5000 3250 1670

CLUB AIR ALL-SEASON 330 CLUB AIR ALL-SEASON 390

• Width: 330 cm
  • Depth: 275 cm
  • Weight: 27.8 / 8.74 kg
  • Min weight: 22.14 kg

• Width: 390 cm
• Depth: 275 cm
  • Weight: 29.4 / 9.44 kg
  • Min weight: 24.38 kg

3900 2750

CLUB AIR PRO 330CLUB AIR PRO 260

• Width: 260 cm
• Depth: 275 cm
• Weight: 26.5 kg
  • Min weight: 16.7 kg

• Width: 330 cm
  • Depth: 275 cm
• Weight: 27 kg
• Min weight: 18.5 kg

CLUB AIR PRO 440CLUB AIR PRO 390

• Width: 390 cm
• Depth: 275 cm
  • Weight: 28.7 kg
  • Min weight: 19.4 kg

3900 2750

• Width: 440 cm
• Depth: 275 cm
  • Weight: 25.4 / 7.35 kg
  • Min weight: 20.66 kg

4400 2750

GRANDE AIR ALL-SEASON 390 GRANDE AIR PRO 390

• Width: 390 cm
• Depth: 300 cm
  • Weight: 28.1 / 9.8 kg
  • Min weight: 26.8 kg

3900 3000

• Width: 390 cm
• Depth: 300 cm
  • Weight: 21.4/7.16 kg
  • Min weight: 17.66 kg

3900 3000

2

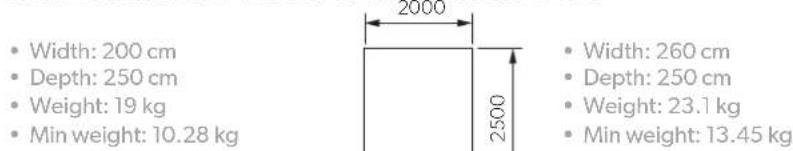

RALLY AIR PRO 200 RALLY AIR PRO 260

Width: 200 cm Depth: 250 cm Weight: 19 kg Min weight: 10.28 kg 2000 2500 Width: 260 cm Depth: 250 cm Weight: 23.1 kg Min weight: 13.45 kg

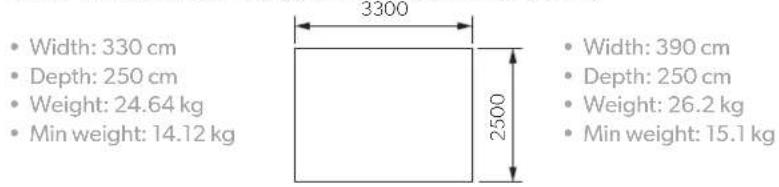

RALLY AIR PRO 330 RALLY AIR PRO 390

Width: 330 cm Depth: 250 cm Weight: 24.64 kg Min weight: 14.12 kg 3300 2500 Width: 390 cm Depth: 250 cm Weight: 26.2 kg Min weight: 15.1 kg

3900 2500

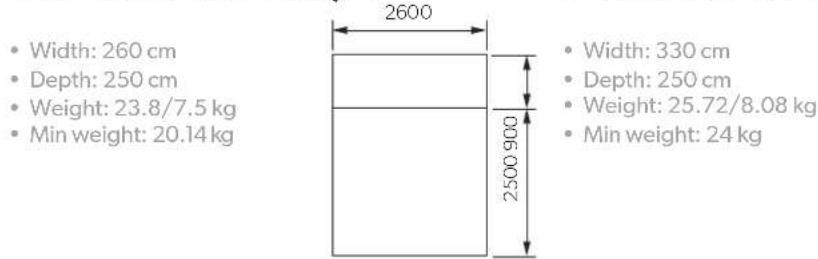

RALLY AIR PRO 260 D/A

Width: 260 cm Depth: 250 cm Weight: 23.8/7.5 kg Min weight: 20.14 kg 2600 2500 900 Width: 330 cm Depth: 250 cm Weight: 25.72/8.08 kg Min weight: 24 kg

RALLY AIR PRO 330 D/A

3300 2500 900

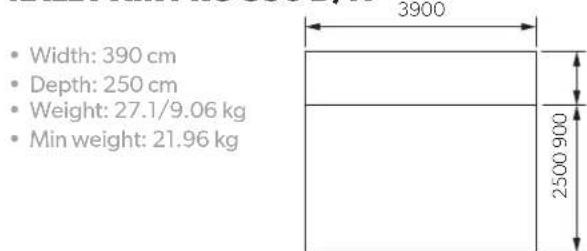

RALLY AIR PRO 390 D/A

Width: 390 cm Depth: 250 cm Weight: 27.1/9.06 kg Min weight: 21.96 kg 3900 2500 900

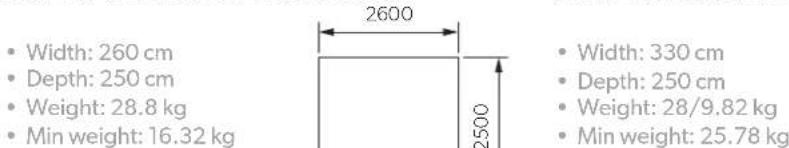

RALLY AIR AII-SEASON 260

Width: 260 cm Depth: 250 cm Weight: 28.8 kg Min weight: 16.32 kg 2600 2500 Width: 330 cm Depth: 250 cm Weight: 28/9.82 kg Min weight: 25.78 kg

RALLY AIR ALL-SEASON 330 D/A

3300 2500 900

LEGGERA AIR 220

- Width: 220 cm

- Depth: 240 cm

• Weight: 9.85 kg

• Min weight: 7.85 kg

2200 2400

LEGGERA AIR 260

- Width: 260 cm

- Depth: 240 cm

• Weight: 10.5 kg

- Min weight: 8.09 kg

2600 2400

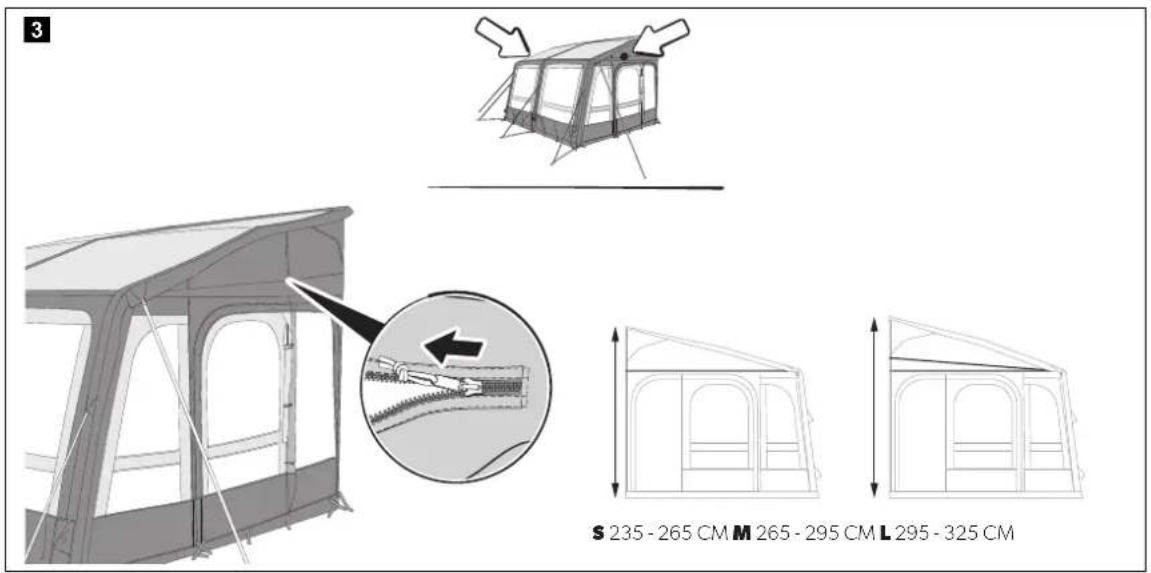

3 S 235 - 265 CM M 265 - 295 CM L 295 - 325 CM

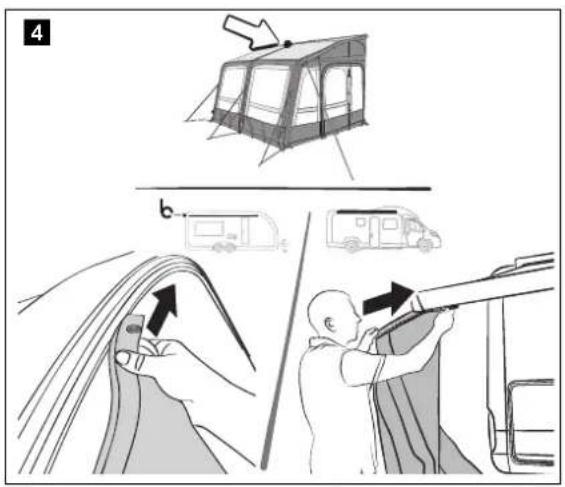

Illustration showing a person using a lift to lift a vehicle, with instructions for lifting the lift and adding arrows.

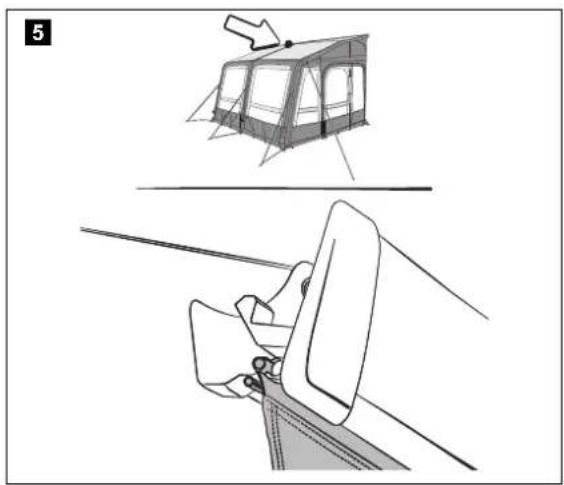

Diagram showing a cabin interior and its side view, with no visible text or symbols

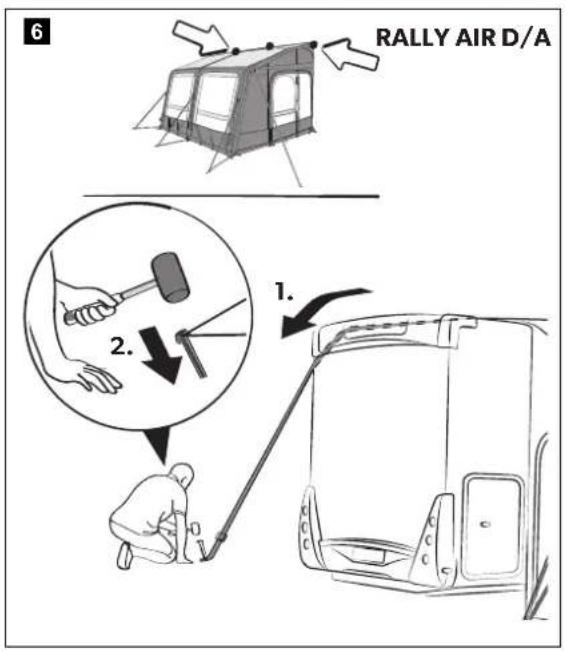

RALLY AIR D/A 1. 2.

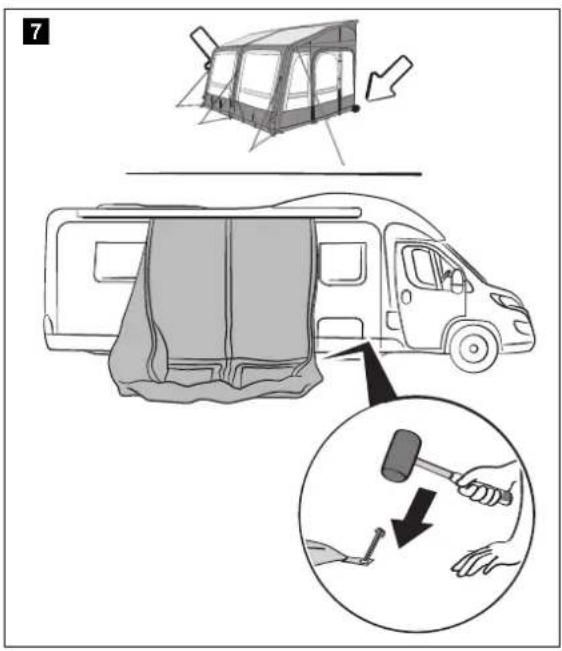

Diagram illustrating a vehicle repair procedure with labeled steps and a magnified view of the process.

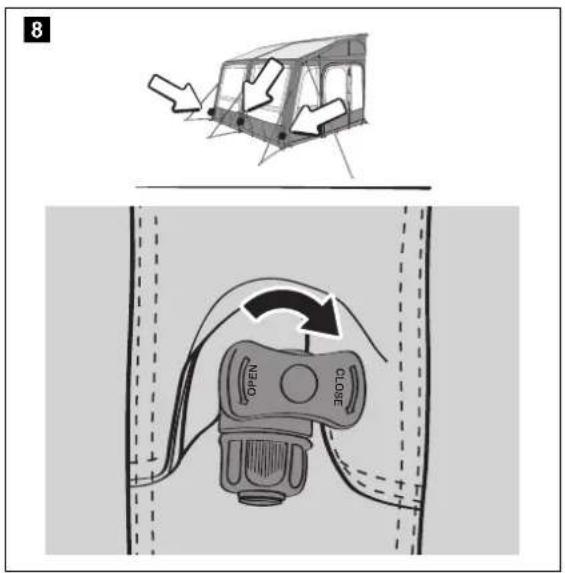

8 NEAIO CLOSE

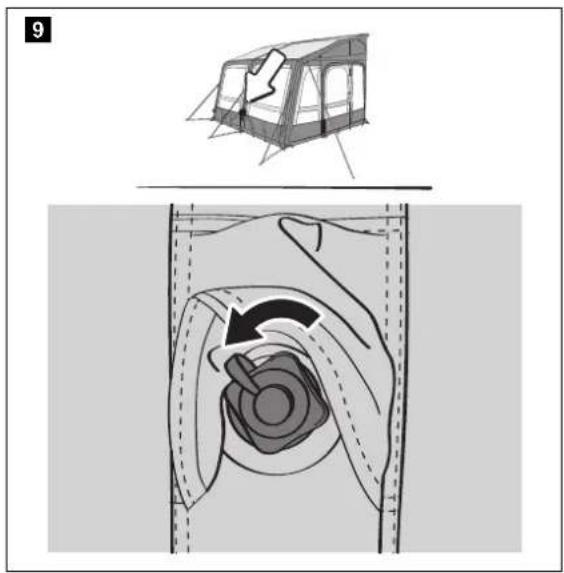

9

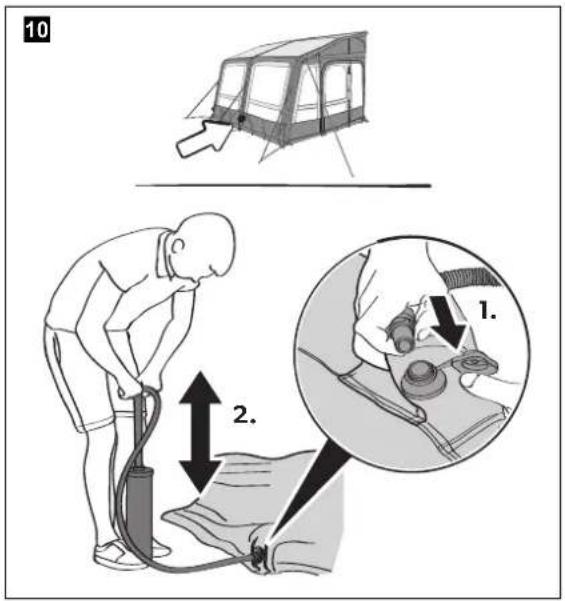

10 1. 2.

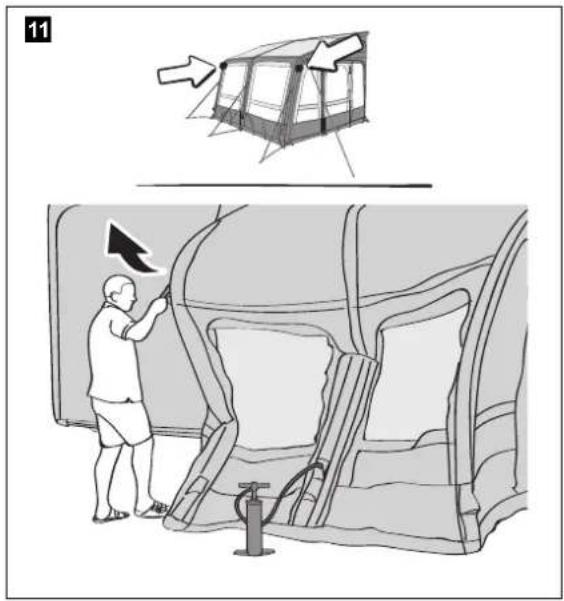

11

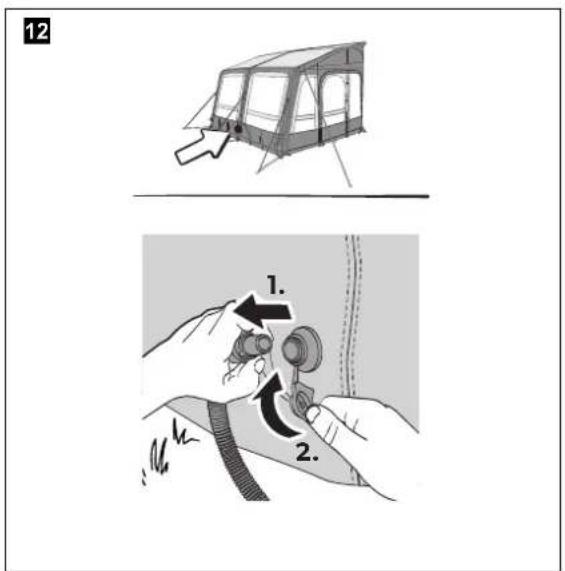

12 1. 2.

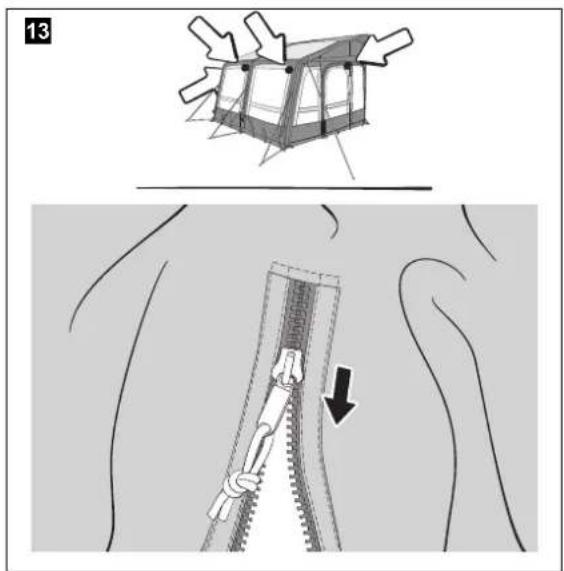

13

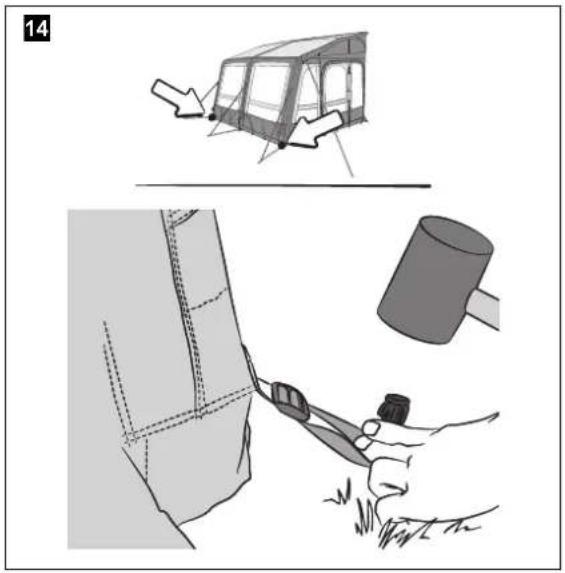

Illustration showing a vehicle climbing a slope with a hammer striking it, and a hand holding a tool near grass (no text or symbols)

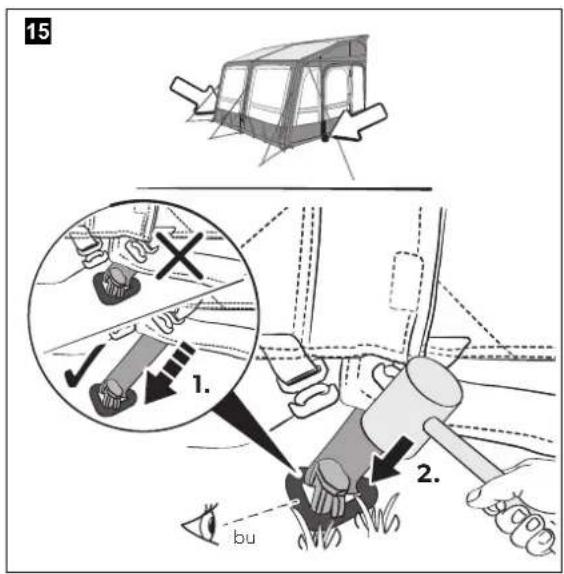

15 1. 2. bu

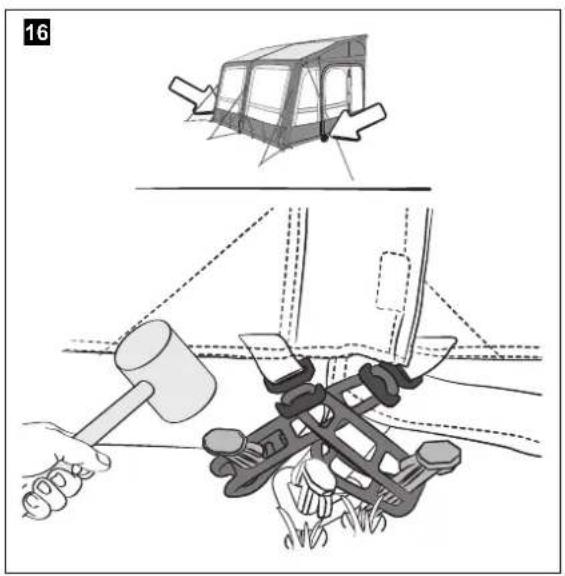

16

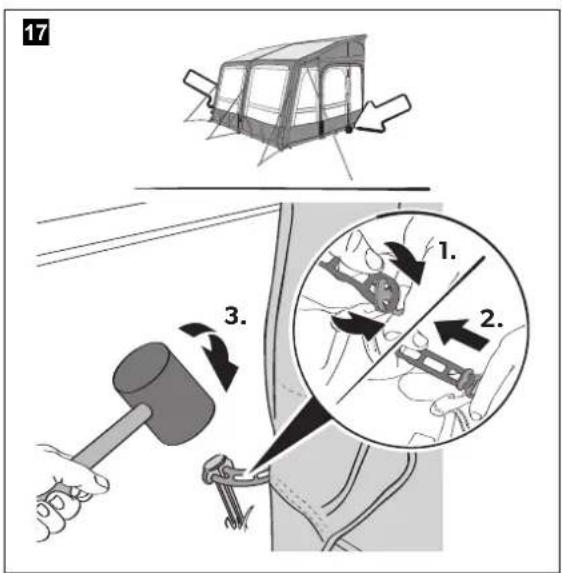

17 3. 1. 2.

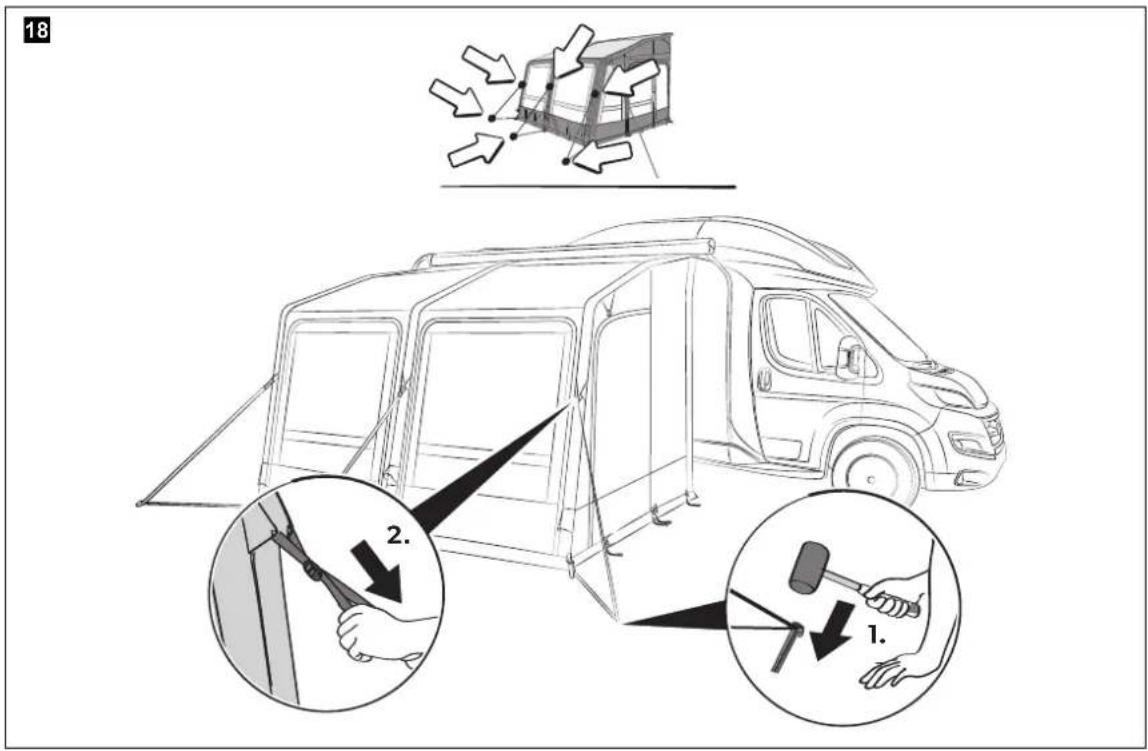

18 2. 1.

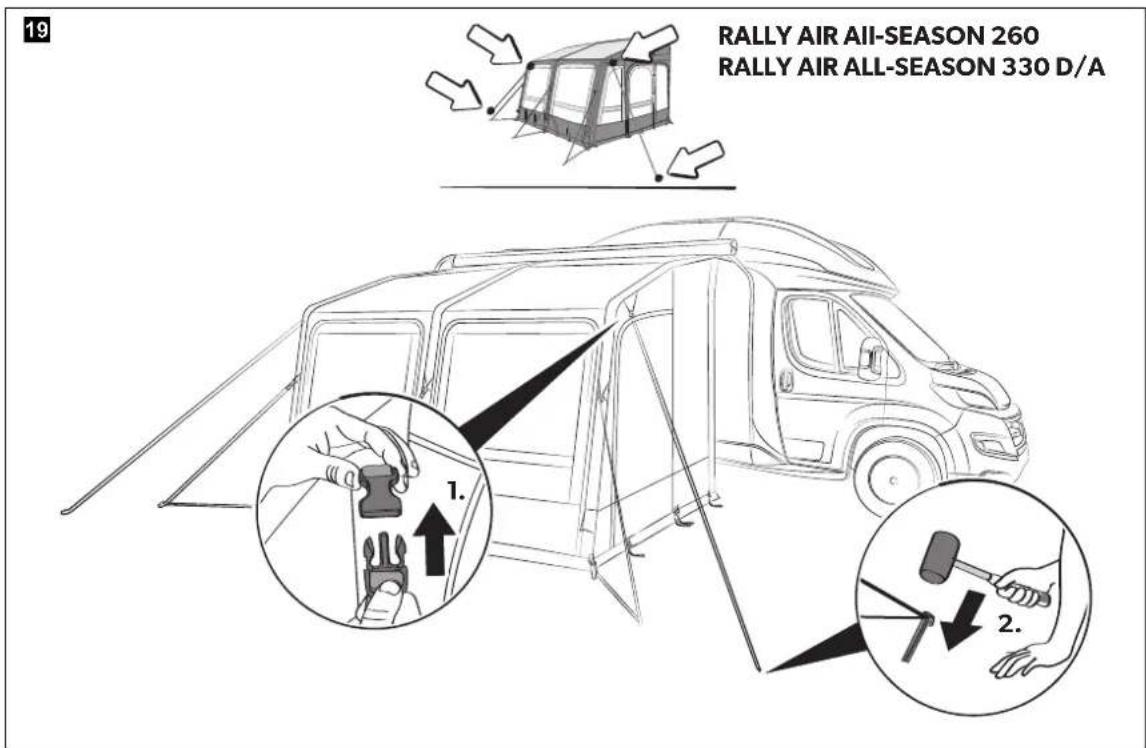

19 RALLY AIR AII-SEASON 260 RALLY AIR ALL-SEASON 330 D/A 1. 2.

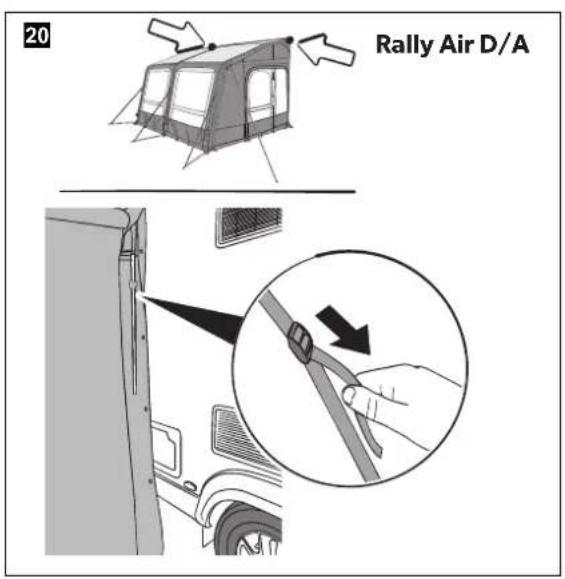

20 Rally Air D/A

Technical diagram illustrating a welding or cutting process with labeled components and directional arrows indicating movement.

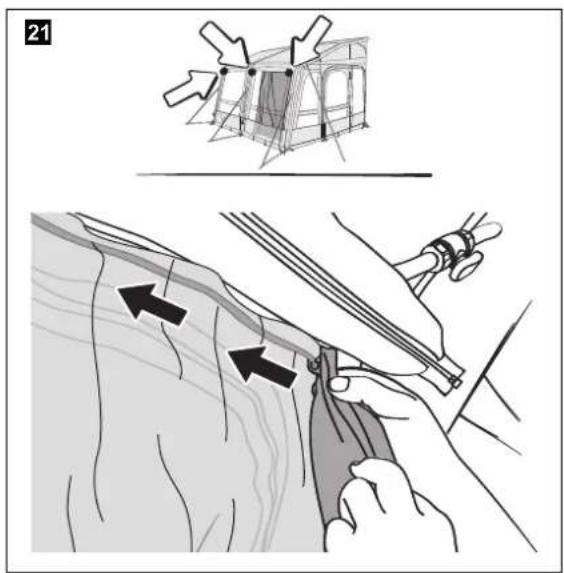

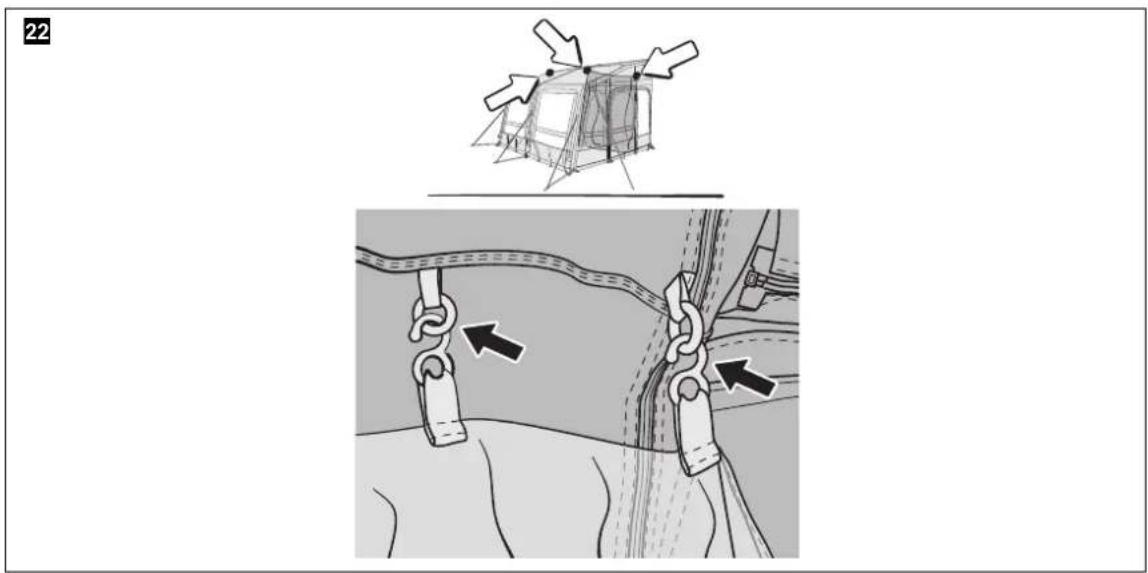

22

23

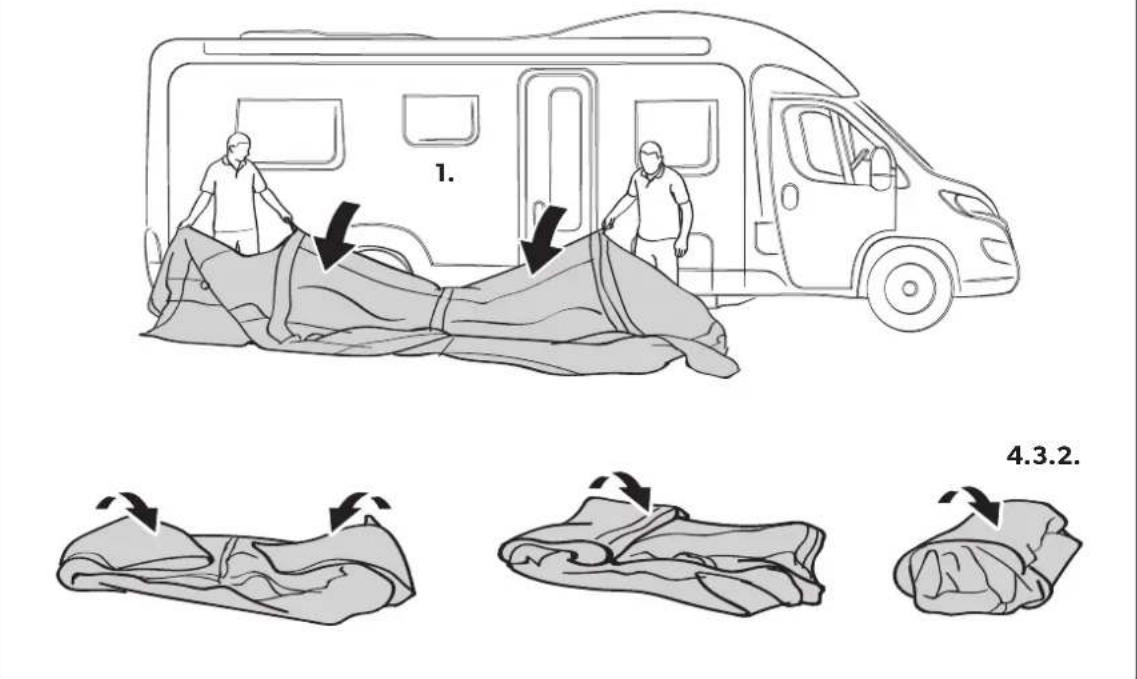

1. 4.3.2.

24

Diagram illustrating a 10-step installation of a cable harness using a dock, showing steps from lifting to cleaning and pouring.

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com, dometic.com.

Find the "How To Set Up Your Motorhome Static Awning" video on

https://www.youtube.com/watch?v=o_tlndt5k0Q

Find the "How To Set Up Your Motorhome Drive-away Awning" video on

https://www.youtube.com/watch?v=jZ00sLWLQQM

Find the "How To Set Up Your Caravan Awning" video on

https://www.youtube.com/watch?v=hokC_gmD0lQ

Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

Safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury.

Hazard of carbon monoxide poisoning

- Never use a fuel-burning appliance such as barbecues or gas heaters inside the awning tent. The burning process produces carbon monoxide which accumulates inside the awning tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury.

Fire hazard

• Make sure you know the fire precaution arrangements on the site.
• Do not cook inside the awning tent or use open flames.
• Make sure ventilation openings are open all the time to avoid suffocation.

Beware of suffocation

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Do not allow children to play around the awning tent and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Keep passage ways clear.

Scope of delivery

Ace AIR

Component Quantity

Awning tent 1

Additional air pole (only Ace AIR PRO500) 1

Heavy duty pegs and ladders pack 1

Storm straps (only All-Season) 2

Curtain pack 1

Hand pump 1

Transportation bag 1

Club AIR, Grande AIR, Rally AIR

Component Quantity

Awning tent 1

Heavy duty pegs and ladders pack 1

Storm straps (only All-Season) 2

Curtain pack 1

Hand pump 1

Transportation bag 1

Leggera AIR

Component Quantity

Awning tent 1

Heavy duty pegs and ladders pack 1

Hand pump 1

Transportation bag 1

Rally AIR D/A

Component Quantity

Awning tent 1

Heavy duty pegs and ladders pack 1

Storm straps (only All-Season) 2

Throw-over strap pack 1

Curtain pack 1

Hand pump 1

Transportation bag 1

Intended use

This awning tent is suitable for:

• motorhomes and caravans
• light to moderate weather
- touring

This awning tent is not suitable for:

• very strong winds or snowfall
- seasonal pitch* or commercial use
* All-Season models have been designed for use on seasonal pitches.

This awning tent is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the awning tent. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Using the awning tent

CAUTION! Risk of injury and material damage

Never open the zipper on the protective sleeve while an air pole is inflated. This will result in the air pole bursting.

NOTE

When attaching to fixed awning rails, the optional Club/Ace/Grande extensions and sun-wings can be used. When attaching to cassette awning rails, it is recommended to not use the optional Club/Ace/Grande extension.

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Choosing a site

Choose a flat site that is protected from wind:

1. If necessary, use a windbreak.
2. Choose a shaded site to avoid UV degradation of the fabric.
3. Avoid pitching under trees as falling branches, resin, etc. can damage the product.
4. Clear the site of sharp stones and debris to avoid damaging the groundsheet.
5. Set up the product with the doors facing away from the wind.

Setting up the awning tent

CAUTION! Risk of injury and material damage

• Do not use any type of compressor designed to inflate car tires.
• Only inflate the air poles into the green zone of the pressure gauge of the supplied hand pump (9 psi/0.62 bar).

NOTICE! Material damage

• Do not open or close the zippers by force.
• If a wind-out awning is used to attach the awning tent, support the wind-out awning while working to avoid putting too much stress on it. After attaching the awning tent, rewind the wind-out awning fully back into its housing.

NOTE

• The awning tent comes with heavy duty pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer.
• Drive the pegs at a 45^ angle away from the awning tent into the ground.
• Peg the guy lines in line with the seam it starts from.

Keep the following tips in mind while setting up the awning tent:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of awning tent.
• Get help. The set-up is easier with more people.
• After standing the awning tent upright, check the corner pegs and repeg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.
• Peg the guy lines so that the awning tent is under tension without distorting the shape.
• If available, attach the storm straps.
• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust.

Set up the awning tent as follows:

1. To protect the awning tent from dirt and damage, lay down a ground-sheet or footprint before unpacking.
2. Unpack the awning tent.
3. Separate and identify the different components.
4. Proceed as shown to set up the awning tent (fig. 3, page 5 to fig. 22, page 8).

Only Ace AIR PRO500:

1. Inflate the additional air pole.
2. Fix the inflated air pole into place in the middle back roof panel using the velcro fasteners.

Dismantling the awning tent

NOTICE! Material damage

Do not use force when dismantling the awning tent. Otherwise you might damage any material.

1. Remove any dirt on the outside.
2. Close all window blinds or remove curtains.
3. Close all doors and openings.
4. If installed, push the canopy pole out of the sleeve, do not pull.
5. Remove all lines and straps.
6. Remove all pegs between the corner pegs.

7. Open the valves on each pole.

8. Wait until most of the air has been expelled.

9. Remove the four corner pegs.
10. Fold/roll the awning tent towards the valves to expel more air.
11. When deflated, roll the awning tent to fit into the carry bag.
12. Ensure that all parts are clean before packing them into the carry bag.
13. If the awning tent is wet or damp, dry fully as soon as possible.

Cleaning and maintenance

NOTICE! Material damage

• Do not use sharp or hard objects or cleaning agents for cleaning.
• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.

• Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

• If necessary, clean the product with clean water and a soft brush.

• Apply impregnation against water and UV radiation before each trip.

Storing the awning tent

NOTE

• Fully set up the awning tent for cleaning.

• Choose a sunny day for cleaning to ensure the material will dry thoroughly.

• Clean the awning tent.

• Air fully and ensure the awning tent is totally dry before packing away.
• Store in a well ventilated dry place.

Troubleshooting

NOTE

• During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.
• A fully equipped spare parts kit should include:
  -waterproofer
• repair tape and repair solution
  – silicone spray for the zippers
• spare pegs

Problem Solution

Awning tent only inflates with difficulties	▶ Check that the valve is fully screwed into the air pole. ▶ Check if the inflation tube is twisted at the valve. This may be indicated by noise. Untwist the inflation tube. ▶ Check that the hand pump is working.
Part of the awning tent does not inflate	▶ Check that all isolation valves that connect the air poles are open.
Part of the awning tent does not deflate	▶ Check that all isolation valves that connect the air poles are open.
Air poles are kinked	▶ Add more air (9 psi/0.62 bar).
Air leak	▶ Check that the valve is fully screwed into the air pole and the ring seal is in place. ▶ Check that the cap of the valve is done up tightly. ▶ Check for punctures, see chapter “Repairing a puncture in the air pole” on page 12.

Problem Solution

Water leak	▶ Check for leaky seams, damaged tapings and moist areas.▶ If you cannot find any leaks, see chapter "Condensation" on page 12.▶ If you find any leaks, apply seam sealant.
Rip in the fabric	▶ Use repair tape to seal the fabric.▶ Have repairs carried out by an authorized specialist.

Condensation

All awning tents suffer from internal condensation if one or more of the following conditions apply:

• high air humidity
  • high ground moisture
• a drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

▶ Increase ventilation by opening doors and/or windows.
▶ Install a waterproof groundsheet.

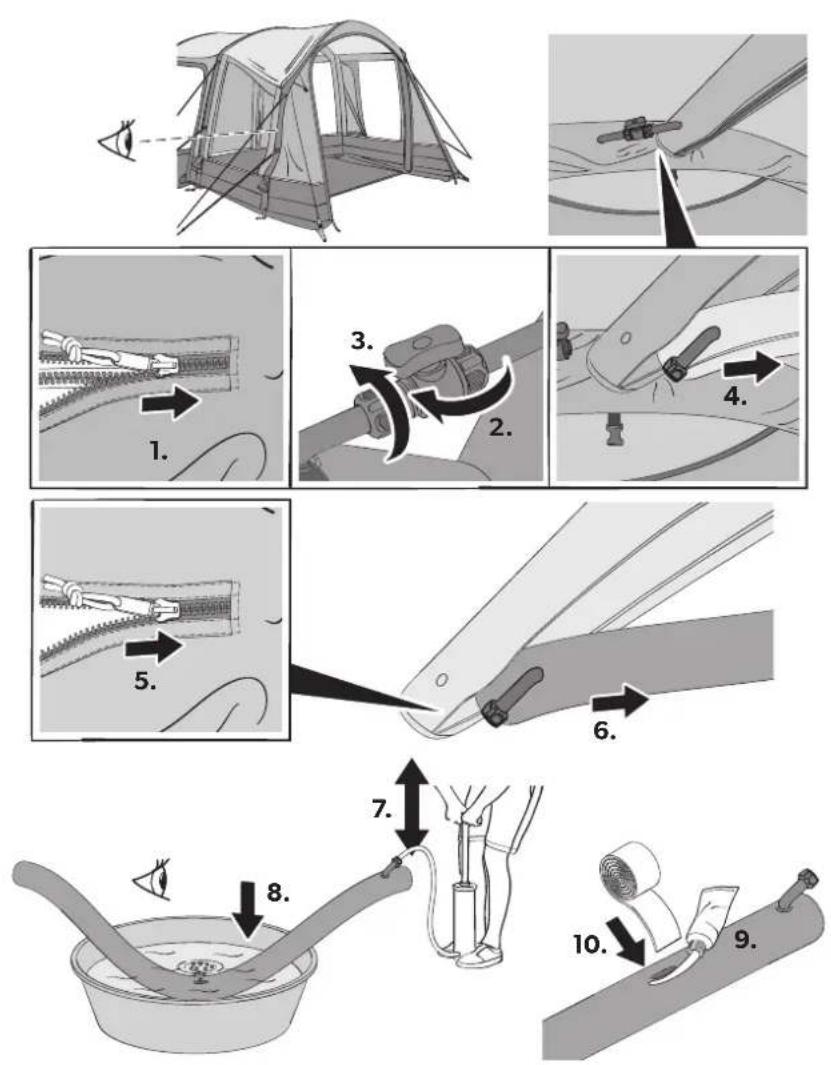

Repairing a puncture in the air pole

If the air pole loses air, proceed as follows:

1. Unzip the outer sleeve holding the air pole.
2. If installed, close isolation valves.
3. Remove the air pole.
4. Deflate the air pole.
5. Unzip the protective sleeve to expose the inflatable tube.
6. Blow some air into the inflatable tube.
7. Submerge the tube in water.
8. Locate the puncture.
9. Use repair tape and repair solution to seal the hole.
10. Zip the inflatable tube back into the protective sleeve.
11. Zip the air pole back into the outer sleeve.

Disposal

Place the packaging material in the appropriate recycling waste bins, wherever possible.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

Warranty

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see dometic.com/dealer) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent* or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.

* All-Season models have been designed for use on seasonal pitches.

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

Komponente Anzahl

https://www.youtube.com/watch?v=jZ00sLWLQQM

Club AIR, Grande AIR, Rally AIR

Composant Quantité

https://www.youtube.com/watch?v=jZ00sLWLQQM

Consulte el video "How To Set Up Your Caravan Awning" en

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Risco de asfixia

Club AIR, Grande AIR, Rally AIR

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

Componente Quantità

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

Onderdeel Aantal

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

Komponent Antal

Fortelt 1

Kraftige pløkke og pakke med stigebånd 1

Stormbånd (kun All-Season) 2

Gardinpakke 1

Håndpumpe 1

Transportpose 1

Leggera AIR

Komponent Antal

Fortelt 1

Kraftige pløkke og pakke med stigebånd 1

Håndpumpe 1

Transportpose 1

Rally AIR D/A

Komponent Antal

Fortelt 1

Kraftige pløkke og pakke med stigebånd 1

Stormbånd (kun All-Season) 2

Pakke med bånd til overkastning 1

Gardinpakke 1

Håndpumpe 1

Transportpose 1

Korrekt brug

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

Komponent Mängd

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Symbolforklaring

FARE!

Club AIR, Grande AIR, Rally AIR

Komponent Antall

Fortelt 1

Kraftige plugger og stigepakke 1

Stormstropper (kun All-Seasons) 2

Gardinpakke 1

Håndpumpe 1

Transportveske 1

Leggera AIR

Komponent Antall

Fortelt 1

Kraftige plugger og stigepakke 1

Håndpumpe 1

Transportveske 1

Rally AIR D/A

Komponent Antall

Fortelt 1

Kraftige plugger og stigepakke 1

Stormstropper (kun All-Seasons) 2

Overkaststroppakke 1

Gardinpakke 1

Håndpumpe 1

Transportveske 1

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Опасность удушья

Club AIR, Grande AIR, Rally AIR

Club AIR, Grande AIR, Rally AIR

https://www.youtube.com/watch?v=jZ00sLWLQQM

https://www.youtube.com/watch?v=hokC_gmD0lQ

Nebezpečenstvo udusenia

Club AIR, Grande AIR, Rally AIR

Dielec Počet

Prístrešok 1

https://www.youtube.com/watch?v=jZ00sLWLQQM

Video „How To Set Up Your Caravan Awning“ (Jak si postavit predstan pro karavan) najdete na adrese

https://www.youtube.com/watch?v=hokC_gmD0lQ

Vysvětlení symbolů

NEBEZPEČÍ!

Club AIR, Grande AIR, Rally AIR

https://www.youtube.com/watch?v=jZ00sLWLQQM

Tekintse meg a „How To Set Up Your Caravan Awning“ videót:

https://www.youtube.com/watch?v=hokC_gmD0lQ

Club AIR, Grande AIR, Rally AIR

dometic.com/sales-offices
