Product type	PCIe Wireless network card
Brand	TP-Link
Model	Archer TXE72E
Wi-Fi standard	Wi-Fi 6 (802.11ax) dual band 2.4 GHz and 5 GHz
Maximum speed	Up to 2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
Interface	PCI Express X1
Bluetooth	Bluetooth 5.2
Antennas	2 external detachable antennas
Wireless security	WPA3, WPA2, WPA
Supported operating systems	Windows 10/11 (64-bit)
Dimensions (card)	120 x 80 x 20 mm
Weight (card)	50 g
Power supply	Via the PCIe slot
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH (non-condensing)
Package contents	Adapter, 2 antennas, USB cable, driver CD, low-profile bracket, quick installation guide
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Keep away from water and fire. Do not disassemble, repair or modify.
Spare parts and repairability	Antennas and USB cable replaceable. Card not user serviceable.
Warranty	See TP-Link website for terms.

Frequently Asked Questions - Archer TXE72E TP-LINK

How to install the TP-Link Archer TXE72E adapter?

Turn off your PC, unplug the power, open the case. Insert the card into a PCIe X1 slot, connect the USB cable to an F_USB header, attach the antennas, close the case. Turn on the PC and install the drivers from the CD or the TP-Link website.

Is the adapter compatible with Windows 10?

Yes, it is compatible with Windows 10 and Windows 11 (64-bit). Download the latest drivers from the TP-Link website if needed.

How to connect the adapter to a Wi-Fi network?

After driver installation, click on the network icon in the taskbar, select your Wi-Fi network, click Connect and enter the password.

How to pair a Bluetooth device?

Make sure Bluetooth is turned on. Right-click on the Bluetooth icon in the taskbar, select Add a Bluetooth device, choose your device and follow the instructions.

What to do if Bluetooth does not work after installation?

Check that the Bluetooth drivers are installed. Go to Device Manager, disable any existing Bluetooth adapter (built-in or third-party) and restart. Make sure Bluetooth is enabled in Windows settings.

Can I use this card on a pre-assembled computer?

Yes, provided it has a free PCIe X1 slot and an F_USB header on the motherboard. Check the compatibility of your case.

What is the maximum speed of this card?

The card offers up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, depending on network conditions.

How to update the drivers?

Download the latest drivers from the TP-Link website: https://www.tp-link.com/fr/support/download/ . Run the installation file and follow the instructions.

Does the adapter support Wi-Fi 6E?

No, this model is a dual-band Wi-Fi 6 adapter (2.4 GHz and 5 GHz). It does not support the 6 GHz band.

What to do if the card is not detected?

Check that the card is properly inserted into the PCIe slot and that the USB cable is connected to the F_USB header. Try another PCIe slot if possible. Update the drivers or contact TP-Link support.

USER MANUAL Archer TXE72E TP-LINK

Quick Installation Guide

WLAN Bluetooth PCI Express Adapter

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/

© 2023 TP-Link 7106510488 REV1.2.0

Images may differ from actual products.

CONTENTS

01 / Deutsch
04 / English
07 / Español
10 / Ελληνικά
13 / Français
16 / Italiano
19 / Português
22 / Suomi
25 / Nederlands
28 / Svenska
31 / Norsk
34 / Dansk

Bevor Sie anfangen:

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Deutsch

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the internal structure.

Diagram of a computer setup with an attached power outlet and an inset showing USB connector (no text or symbols present)

Line drawing of a server rack with an attached cable (no text or symbols)

3 Treiber installieren

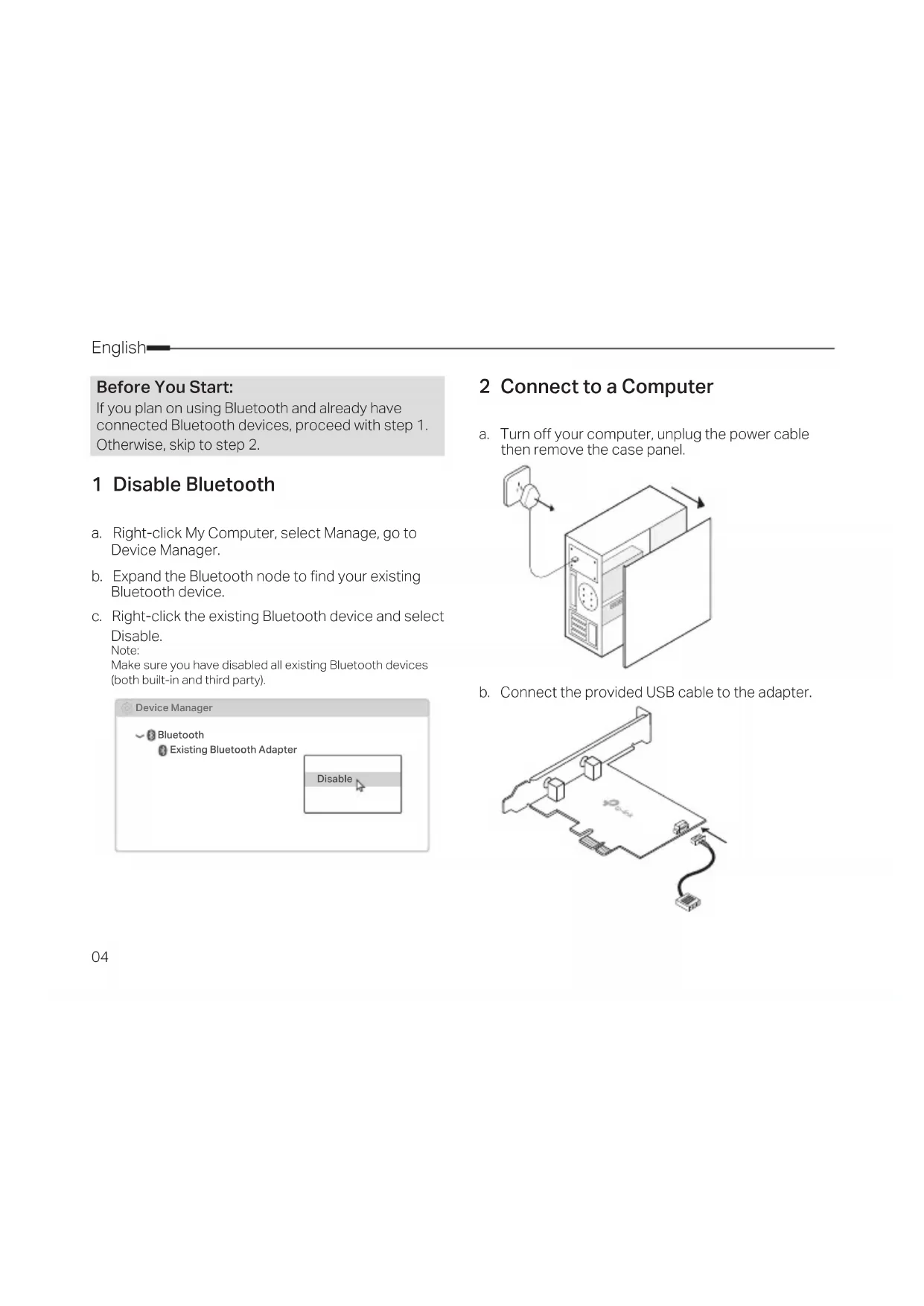

If you plan on using Bluetooth and already have connected Bluetooth devices, proceed with step 1. Otherwise, skip to step 2.

1 Disable Bluetooth

a. Right-click My Computer, select Manage, go to Device Manager.
b. Expand the Bluetooth node to find your existing Bluetooth device.
c. Right-click the existing Bluetooth device and select Disable.
Note:
Make sure you have disabled all existing Bluetooth devices (both built-in and third party).

Device Manager Bluetooth Existing Bluetooth Adapter Disable

2 Connect to a Computer

a. Turn off your computer, unplug the power cable then remove the case panel.

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

b. Connect the provided USB cable to the adapter.

Diagram of a computer RAM card with connectors and an Ethernet cable (no text or symbols)

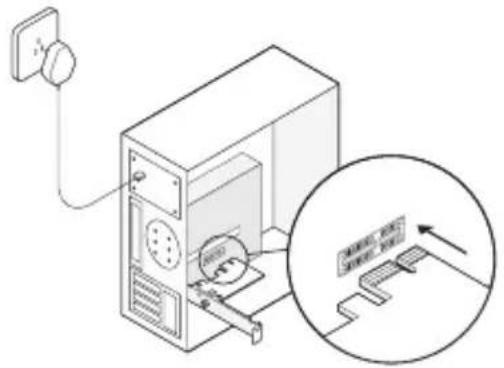

c. Locate an available PCIE X1 slot and carefully insert the adapter.

Note:

If the bracket is not suitable for your computer, detach it from the adapter's board and replace it with the low-profile bracket.

Diagram showing a computer setup with a monitor, cable, and an attached power outlet, alongside a magnified view of the device's internal structure.

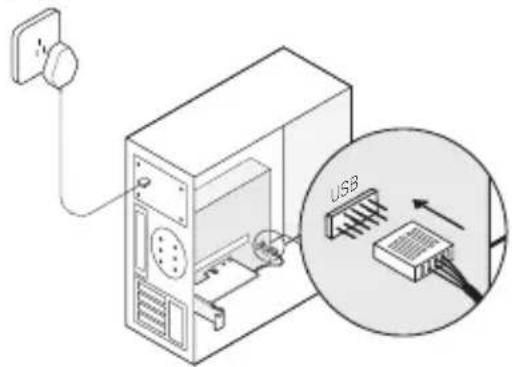

d. Locate an available F_USB connector and carefully plug the USB cable into it.

Diagram showing USB connection to a server rack with an attached cable, including a magnified view of the device's internal structure.

e. Connect the antenna(s) to the adapter. Note:

To maximize performance, make sure the path between the antenna(s) and your router is clear.

f. Replace the case panel, plug in the power cable and turn on your computer.

Line drawing of a desktop computer case with an attached power outlet (no text or symbols)

3 Install Drivers

a. Insert the CD and run the Autorun.exe. Note:

You can also check the new release and download the driver at https://www.tp-link.com/support/download/

b. Install the Wi-Fi and Bluetooth drivers.

- Wi-Fi: Click and follow the onscreen instructions to complete the Wi-Fi installation.

- Bluetooth: Click and follow the onscreen instructions to complete the Bluetooth installation.

English

4 Join a Wireless Network

a. Click the network icon (or) on the taskbar.
b. Select your Wi-Fi network, click Connect, and enter the password when prompted.

5 Pair With Bluetooth Devices

a. Right click the Bluetooth) icon on the taskbar. If it's not displayed, turn on Bluetooth in your PC settings first.

b. Select Add a Bluetooth Device or Add a Device to scan for available devices.
c. Select your Bluetooth device from the list and follow the onscreen instructions to complete pairing.

Note:

Make sure your device's Bluetooth is enabled and discoverable.

Antes de empezar:

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Español

Diagram of a desktop computer setup with an attached power outlet and a magnified inset showing a device with a scroll (no text or symbols present)

Diagram of a computer setup with an attached power outlet and an inset showing USB cable connection (no text or symbols present)

e. Conecte la antena o antenas al adaptador.

Nota:

Line drawing of a desktop computer tower with an attached power outlet (no text or symbols)

3 Instalar los drivers

Isometric line drawing of a desktop computer tower with an outlet cable and power outlet (no text or symbols)

Pure technical diagram of a computer hardware component with no text, numbers, or symbols

Diagram of a computer setup with an attached power outlet and a magnified inset showing internal components (no text or symbols)

Diagram showing a server rack connected to an AC input via a power outlet, with an inset close-up of USB cable connection.

Line drawing of a server unit with an attached power outlet (no text or symbols)

Isometric line drawing of a desktop computer tower with an attached power outlet (no text or symbols)

Diagram of a computer motherboard with connectors and an AC input cable (no text or symbols)

Français

Diagram showing a desktop computer setup with an attached monitor and a magnified view of the device's screen interface.

Diagram showing USB connection to a server rack with labeled USB port and cable routing

Line drawing of a server rack with an attached cable (no text or symbols)

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a cable, no text or symbols present

Diagram of a desktop computer setup with an attached power outlet and a magnified inset showing a device mounted on a table (no text or symbols present)

Diagram showing USB connection to a server rack with an attached cable, including a magnified inset highlighting the USB connector.

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

https://www.tp-link.com/it/support/download/

Isometric line drawing of a desktop computer tower with an attached power outlet (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Português

Illustration of a desktop computer tower with an attached cable and a magnified inset showing a device (no text or symbols present)

Diagram of a computer setup with an USB connector and connected components (no text or symbols)

e. Conecte a(s) antena(s) ao adaptador.

Nota:

Line drawing of a server cabinet with an attached power outlet (no text or symbols)

3 Instalar os Drivers

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Technical line drawing of a computer motherboard with connectors and a cable (no text or symbols)

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the device's internal structure.

Diagram of a server rack connected to an external power outlet, with an inset showing USB cable connection (no text or symbols present)

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

3 Asenna ajurit

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a cable, no text or symbols present

Nederlands

Diagram showing a computer tower connected to a wall-mounted device, with an inset magnified view highlighting the device's internal structure.

Diagram of a computer setup with an attached power outlet and an inset showing USB cable connection (no text or symbols present)

Line drawing of a desktop computer case with an attached power outlet (no text or symbols)

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Isometric line drawing of a computer motherboard with connectors and a cable (no text or symbols)

Illustration of a desktop computer with an attached cable and a magnified inset showing a close-up of the device (no text or symbols present)

Diagram showing a device setup with an attached power outlet and an USB cable connector, illustrating the connection mechanism.

e. Anslut antennen/antennerna till adaptern.

OBS:

Line drawing of a desktop computer case with an attached power outlet (no text or symbols)

3 Installera drivrutinerna

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Norsk

Diagram of a desktop computer setup with an attached power outlet and a magnified inset showing a device with a scroll (no text or symbols present)

Diagram showing a computer setup with an attached power outlet and an inset image of USB cable connection.

Line drawing of a server cabinet with an attached cable (no text or symbols)

3 Installer drivere

Isometric line drawing of a desktop computer tower with an attached cable and directional arrow (no text or symbols)

b. Forbind USB-kablet til adapteren.

Diagram of a computer motherboard with connectors and a USB cable (no text or symbols)

Diagram showing a desktop computer setup with an attached power outlet and a magnified view of the device's internal structure.

Diagram showing a device setup with an USB connector and a magnified view of its internal structure.

e. Forbind antennen til adapteren.

Bemaerk!

Line drawing of a desktop computer tower with an attached cable (no text or symbols)

3 Installer drivere

EU declaration of conformity

English

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Deutsch

https://www.tp-link.com/en/support/ce/.

Français

- Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Deutsch

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,

REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

besøk https://www.tp-link.com/en/support

DENNE GARANTIEN GIR DEG SPESIFISERTE, RETTSLIGE RETTIGHETER, OG I TILLEGG KAN DU HA ANDRE RETTIGHETER SOM VARIERER MED JURISDIKSJON (ETTER LAND).

I DEN UTSTREKNING DET ER TILLATT I HENHOLD TIL LOKAL LOV ER DENNE GARANTIEN OG L∅SNINGENE SOM HER ER FREMSATT ESKKLUSIVE OG ERSTATTER ALLE ANDRE GARANTIER, L∅SNINGER OG BETINGELSER.
