| Product type | Flying insect killer (pest control) |
| Brand | MO-EL |
| Model | DragonFly 505740 (ref. 7216) |
| Usage | Indoor use only |
| Power supply | 220-240 V ~ 50/60 Hz |
| Total power consumption | 22 W |
| Discharge voltage | 2500 V |
| UV-A lamps | 2 x 8 W |
| Lamp life | 3000 hours |
| Coverage | 6 to 8 meters |
| Recommended suspension height | 1.5 to 2 meters above the ground |
| Recommended location | Darkest area of the room, away from windows and resting areas |
| Dimensions (L x W x H) | 36.5 x 14 x 28 cm |
| Insulation class | Class I (grounding required) |
| Housing material | Not specified in the manual |
| Grid type | Live metal grid |
| Insect collector | Removable drawer to be emptied regularly |
| Operation | Attraction by UV-A lamp and electrocution on high-voltage grid |
| Maintenance | Clean the lamp and grids at each emptying; annual cleaning by an authorized center |
| Lamp replacement | Every 3000 hours or by an authorized center |
| Safety precautions | Do not use in presence of gas or flammable substances; do not touch with wet hands |
| Certifications | Compliant with EU Directive 2002/96/EC (WEEE) |
| Country of origin | Not specified in the manual |
| Warranty | Not specified in the manual |
Frequently Asked Questions - DragonFly 505740 MO-EL
User questions about DragonFly 505740 MO-EL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pest control in PDF format for free! Find your manual DragonFly 505740 - MO-EL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DragonFly 505740 by MO-EL.
USER MANUAL DragonFly 505740 MO-EL


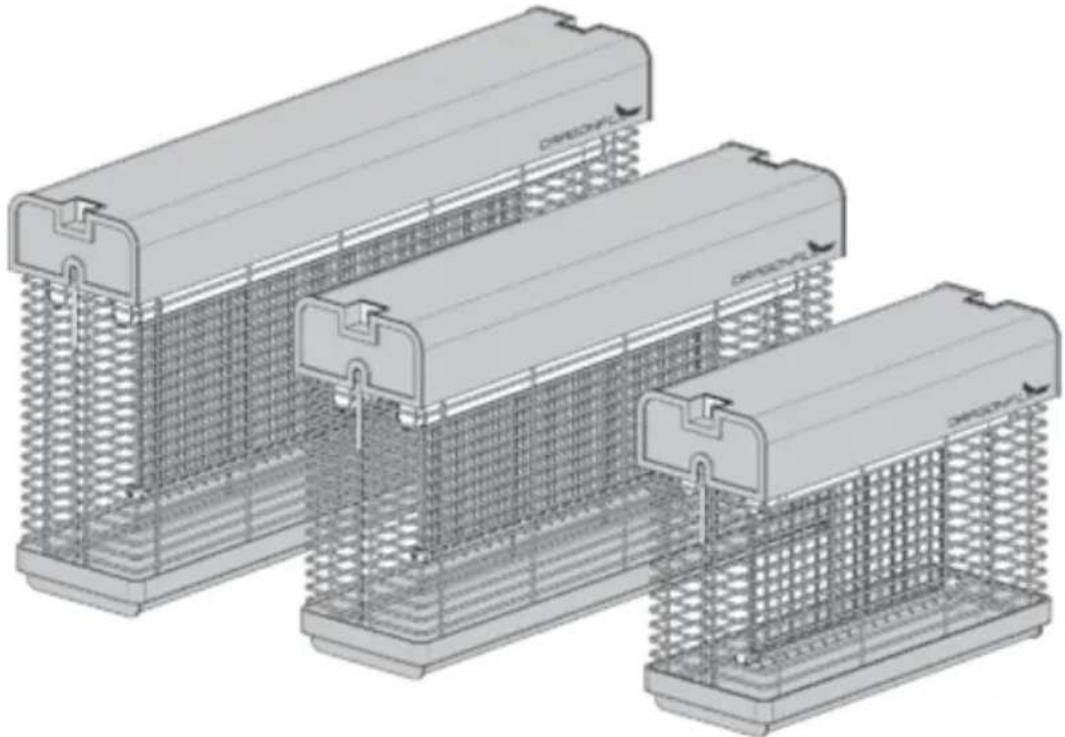

Technical illustration of three identical cage-like animal cages with mesh grids, no text or symbols present.*505.740 *505.720 *505.716
Discharging electroinsecticides

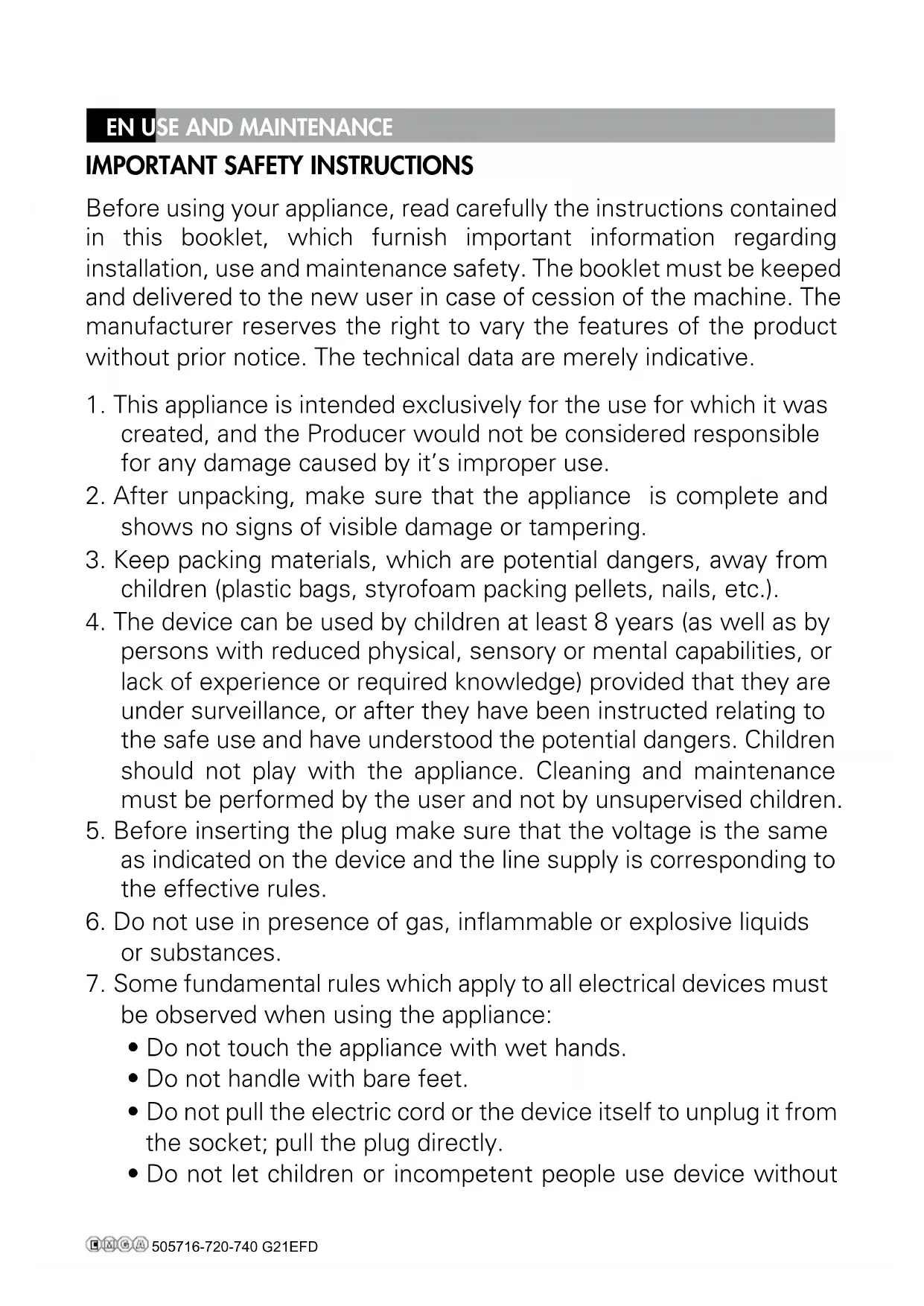

USE AND MAINTENANCE
EMPLOI ET ENTRETIEN
Do not use in the presence of gas or explosive or inflammable substances.
All models are built in compliance with C.E.I. standards.
IMPORTANT SAFETY INSTRUCTIONS
Before using your appliance, read carefully the instructions contained in this booklet, which furnish important information regarding installation, use and maintenance safety. The booklet must be kept and delivered to the new user in case of cession of the machine. The manufacturer reserves the right to vary the features of the product without prior notice. The technical data are merely indicative.
- This appliance is intended exclusively for the use for which it was created, and the Producer would not be considered responsible for any damage caused by it's improper use.
- After unpacking, make sure that the appliance is complete and shows no signs of visible damage or tampering.
- Keep packing materials, which are potential dangers, away from children (plastic bags, styrofoam packing pellets, nails, etc.).
- The device can be used by children at least 8 years (as well as by persons with reduced physical, sensory or mental capabilities, or lack of experience or required knowledge) provided that they are under surveillance, or after they have been instructed relating to the safe use and have understood the potential dangers. Children should not play with the appliance. Cleaning and maintenance must be performed by the user and not by unsupervised children.
- Before inserting the plug make sure that the voltage is the same as indicated on the device and the line supply is corresponding to the effective rules.
- Do not use in presence of gas, inflammable or explosive liquids or substances.
- Some fundamental rules which apply to all electrical devices must be observed when using the appliance:
- Do not touch the appliance with wet hands.
- Do not handle with bare feet.
- Do not pull the electric cord or the device itself to unplug it from the socket; pull the plug directly.
- Do not let children or incompetent people use device without
supervision.
- Avoid damage to the power supply cord.
-
Avoid improper use of extension cords.
-
Do not bring modifications to the product that compromise the safety.
- Keep connections dry.
- Never plunge the appliance in water.
- Disconnect the appliance from the supply line, if you don't use it for a long time.
- Always unplug the appliance before doing any maintenance operation.
- The insect destroyers are intended for indoor use only, they must not be used in hay-lofts, barns or similar environments.
- If the power supply cord is damaged avoid to use it. Let the Manufacturer, or the After Sale Service, or some similar qualified person replace it, in order to avoid any risk.
- In case of malfunction or fault, call an Authorized After Sale Service, and request original spare parts.
The appliance is indoor use only.
The energy supply must be done through a properly grounded socket.
MAINTENANCE
Periodically verify the integrity of the appliance. If defects are found, do not use it; call an Authorized After Sale Service. In case of damage, the electric cords must be replaced only at an authorized technical assistance center, because of the need for special tools.
Before attempting any maintenance operation, be sure that the appliance is unplugged from any electrical source.
The Company declines any responsibility for accidents or malfunctions caused by a lack of a reasonable maintenance.
Empty and clean out electrocuted insects from the insect collector drawer every 2 or 3 days or more often if the insects reach the rim. If
electrocuted insects falling directly to the ground isn't bothersome, the drawer can be eliminated completely.
For maximum efficiency, replace the lamps only with the type indicated on the device every 3.000 working hours. Apply to an authorized Technical Assistance Center for replacement of the lamps.
Each time the insect container drawer is emptied, cleaning of the lamp and grids is suggested. A careful cleaning must be done at an authorized Assistance Center at least once a year or more frequently if the appliance works within a dirty or polluted environment.
SUGGESTIONS FOR PROPER POSITIONING
To achieve maximum performance it is advisable to hang the insect destroyer 1.5 - 2 meters from the ground. Place the insect destroyer at some distance from people, in the darkest area, considering its range of action. For use in bedrooms, turn on insect destroyer at dusk, keeping shutters or blinds closed. Turn on the insect destroyer as early as spring, as soon as the first troublesome insects appear.
TECHNICAL FEATURES
| 7216 7220 7228 | |||
| Power supply: | 220-240 V ~ 50-60 Hz | ||
| Total consumption: | 22 W 45 W 36 W | ||
| Discharging power: | 2500 V 2500 V 2500 V | ||
| UV-A lamps: | 2 x 8 W 2 x 20 W 2 x 15 W | ||
| Lamp life: | 3000 hours 3000 hours 3000 hours | ||
| Range of action: | 6 ÷ 8 m 12 ÷ 15 m 12 ÷ 14 m | ||
| Insulation class: | I | I | I |
| Dimensions: | 36.5x14x28 cm | 68.6x14x31.5 cm | 52x14x31.5 cm |
INSTRUCTIONS IMPORTANTES POUR LA SÉCURITÉ
This product conforms to EU Directive 2002/96/EC.
This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement.
It is the user's responsibility to dispose of this appliance through the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal.
Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance.
For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance.
Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.
