Air Force Serenity RH9153 - Vacuum Cleaner ROWENTA - Free user manual and instructions

Brand	Rowenta
Model	Air Force Serenity RH9153
Product type	Cordless vacuum cleaner
Battery type	Lithium-Ion (or Nickel-Metal Hydride depending on version)
Charger included	Yes, specific model (do not use other charger)
Charge indicator	Blinking light indicator
Battery life	Variable depending on usage mode (TURBO/BOOST or Min)
Motor filter	Washable foam filter (do not wash in dishwasher)
Dust bin capacity	Not specified in the manual (estimate: approx 0.5 L)
Included accessories	Rotating power brush, tube, hose, crevice tool
Power levels	Min (carpets/rugs) and TURBO/BOOST (heavy dirt)
Weight	Not specified in the manual (estimate: approx 2.5 kg)
Dimensions	Not specified in the manual
Usage	Household and domestic use only
Minimum user age (Europe)	8 years with supervision
Maintenance	Empty and clean the dust bin, clean foam filter regularly
Brush cleaning	Clean regularly to avoid blockage
Battery replacement	By an authorized service center only
Repairs	Only by specialists using original parts
Safety instructions	Do not vacuum liquids, hot substances or very fine dust
Thermal protection	Automatic shut-off in case of overheating
End-of-life disposal	Take to an authorized recycling center

Frequently Asked Questions - Air Force Serenity RH9153 ROWENTA

How to charge the vacuum cleaner?

To charge, place the vacuum cleaner on its charging base and connect the provided charger to a wall outlet. The light indicates charging. Do not use other chargers.

What to do if the vacuum stops during use?

Check if the appliance is overheating (safety shut-off). Let it cool down for at least 1 hour. Then restart. If the problem persists, refer to the troubleshooting section.

How to clean the foam filter?

Remove the foam filter from the dust bin and wash it with clean water. Let it dry completely before putting it back. Do not wash in a dishwasher.

What to do in case of abnormal noise from the power brush?

The brush or hose may be blocked. Stop the vacuum cleaner, clean the rotating brush and the duct. If the brush is worn, contact an authorized service center.

The vacuum is not sucking well, what to do?

Check that the dust bin is not full, the filter is not saturated, and the tube or hose are not blocked. Clean or replace if necessary.

How to replace the battery?

The battery should only be replaced by a professional repairer at an authorized service center. Do not attempt to remove it yourself.

Can I use the vacuum on liquids?

No, never vacuum wet surfaces, water, or liquids. This could damage the appliance and pose a danger.

The vacuum is making a whistling sound, what to do?

A whistling sound often indicates a partial blockage. Check the tube, hose, and suction head for any blockages. Clean them.

How to maintain the appliance after use?

Empty the dust bin, clean the filter regularly, and check that the rotating brush is clean. Store the vacuum in a dry place.

What accessories can I use?

Only use guaranteed original Rowenta accessories. Using non-compliant accessories may void the warranty.

USER MANUAL Air Force Serenity RH9153 ROWENTA

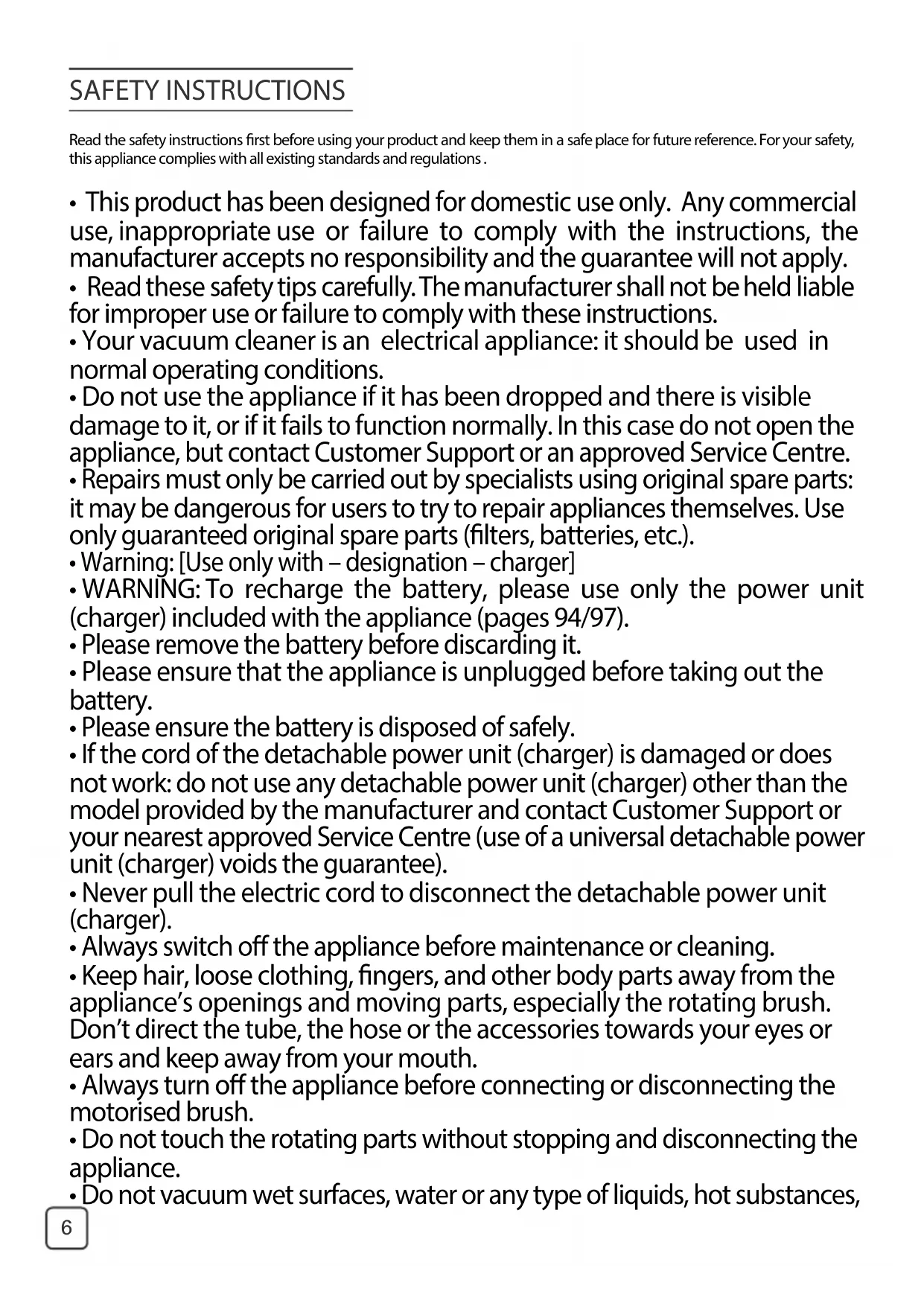

Read the safety instructions first before using your product and keep them in a safe place for future reference. For your safety, this appliance complies with all existing standards and regulations.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Read these safety tips carefully. The manufacturer shall not be held liable for improper use or failure to comply with these instructions.
• Your vacuum cleaner is an electrical appliance: it should be used in normal operating conditions.
• Do not use the appliance if it has been dropped and there is visible damage to it, or if it fails to function normally. In this case do not open the appliance, but contact Customer Support or an approved Service Centre.
  • Repairs must only be carried out by specialists using original spare parts: it may be dangerous for users to try to repair appliances themselves. Use only guaranteed original spare parts (filters, batteries, etc.).
• Warning: [Use only with – designation – charger]
• WARNING: To recharge the battery, please use only the power unit (charger) included with the appliance (pages 94/97).
• Please remove the battery before discarding it.
• Please ensure that the appliance is unplugged before taking out the battery.
• Please ensure the battery is disposed of safely.
• If the cord of the detachable power unit (charger) is damaged or does not work: do not use any detachable power unit (charger) other than the model provided by the manufacturer and contact Customer Support or your nearest approved Service Centre (use of a universal detachable power unit (charger) voids the guarantee).
• Never pull the electric cord to disconnect the detachable power unit (charger).
  • Always switch off the appliance before maintenance or cleaning.
• Keep hair, loose clothing, fingers, and other body parts away from the appliance's openings and moving parts, especially the rotating brush. Don't direct the tube, the hose or the accessories towards your eyes or ears and keep away from your mouth.
  • Always turn off the appliance before connecting or disconnecting the motorised brush.
• Do not touch the rotating parts without stopping and disconnecting the appliance.
• Do not vacuum wet surfaces, water or any type of liquids, hot substances,

super smooth substances (plaster, cement, ashes, etc.), large sharp items of debris (glass), hazardous products (solvents, abrasives, etc.), aggressive products (acids, cleaning products, etc.), inflammable and explosive products (oil or alcohol based).

- Never immerse the appliance in water or any other liquid; do not spill water on the appliance and do not store it outside.

- For product start-up, charging, cleaning and maintenance, please refer to the user guide.

- For countries subject to EU regulations (marking): This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or who lack experience and knowledge if they have been given supervision or instruction concerning safe use and understand the hazards involved. Children should not be allowed to play with the appliance. Children should not clean or perform maintenance on the appliance unless they are supervised by a responsible adult. Keep the appliance and its charger out of the reach of children under 8 years old.

- For other countries not subject to EU regulations: This appliance is not designed for use by people (including children) with reduced physical, sensory or mental capabilities or by people with no prior knowledge or experience, unless they have had supervision or previous instructions relating to the use of the appliance, from a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

PLEASE READ BEFORE USE

- Ensure that the voltage indicated on the rating plate of your vacuum cleaner's charger is the same as your power supply voltage. Any connection error could cause irreversible damage to the product and invalidate the guarantee.

- The vacuum cleaner should always be put back on charge after use to ensure that it is always available with a fully charged battery and with optimal dust pick up performances.

• However, it is best to unplug it in the event of prolonged absence (holidays, etc), in which case, there may be a decrease in autonomy because of self-discharging.

- Do not vacuum large items that may clog and damage the air inlet.

Depending on model :

- Do not use the power-brush on deep pile carpet, animal hair or fringes.

- Switch to „Min“ to vacuum thick or delicate carpets and rugs and fragile surfaces. Note: check regularly that the nozzle wheels are clean.

- Switch to „TURBO/BOOST“ for optimum dust removal performance on all types of very dirty floors. Note: If the appliance sticks to the surface too much, switch back to „Min“.

- Do not use your vacuum without a motor protection filter.

- Do not wash the dust collector components or the motor protection filter in a dishwasher.

BATTERY SAFETY INSTRUCTIONS

- This unit contains batteries (Nickel Metal Hydride or Lithium Ion) which for safety reasons are only accessible by a professional repairer. When the battery is no longer able to hold the charge, the battery pack (Nickel Metal

Hydride or Lithium Ion) should be removed. To replace the batteries, contact your nearest Approved Service Centre. Do not replace a block of rechargeable batteries with non-rechargeable batteries. To change the batteries, please contact an Approved Services Centre.

- The batteries are designed for indoor use only. Never immerse them in water. The batteries must be handled with care. Do not put batteries in your mouth. Do not let batteries touch other metal objects (rings, nails, screws, etc). You must take care not to create short circuits in the batteries by inserting metal objects at their ends. If a short circuit occurs, the battery temperature may rise dangerously and can cause serious burns or even catch fire. If the batteries leak, do not rub your eyes or any mucous membranes. Wash your hands and rinse your eyes with clean water. If the discomfort persists, consult your doctor.

- WARNING - The battery used in this appliance may present risk of fire or chemical burn if used incorrectly. It should not be disassembled, short-circuited or stored at < 0^ and >45^ or incinerated. Keep out of the reach of children. Do not disassemble it or throw it in fire.

ENVIRONMENT

In accordance with existing regulation, any end-of-life appliances must be taken to an approved Service Centre which will take responsibility for managing their disposal.

Think of the environment!

① Your appliance contains many materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

PROBLEMS WITH YOUR APPLIANCE?

Depending on model :

PROBLEMS POSSIBLE CAUSES SOLUTIONS
The charger becomes hot.		This is perfectly normal. The vacuum cleaner can remain permanently connected to the charger without any risk.
The charger is connected but your appliance is not charging.	The charger is not properly connected to the appliance or is faulty.	Check that the charger is properly connected or contact an Approved Services Centre to change the charger.

Your appliance stops during operation and the light/s flash very quickly.		Your appliance may be overheating.	Stop the appliance and leave cool for at least 1 hour.
The appliance has stopped after the charge light flashed.		The appliance has lost its charge.	Recharge the vacuum cleaner.
The power-brush is not working properly or makes a noise.		The rotating brush or hose are obstructed.	Stop the vacuum and clean the parts.
		The brush is worn.	Contact an Approved Service Centre to change the brush.
		The belt is worn.	Contact an Approved Service Centre to change the belt.
The power-brush stops during use of the vacuum cleaner.		The heat safety device has come on.	Stop the vacuum cleaner. Check that nothing is obstructing the rotation of the brush; if there is an obstruction, remove it and clean the power-brush, then turn on the vacuum cleaner.
Your vacuum cleaner suction is not working properly or is making a whistling noise.		The tube or hose is partially blocked.	Unblock them the tube/hose.
		The dust collector is full. Empty	it and clean it.
		The dust collector is not properly fitted.	Re-position it correctly.
		The suction head is dirty.	Remove the power-brush and clean it.
		The foam motor protection filter is full.	Clean it.
When charging the vacuum cleaner, the light(s) flash very quickly.		The correct charger is not being used or the charger is faulty.	Talk to an Approved Service Centre to change the charger.

The appliance is not working	The appliance has lost its charge	Check that the appliance is fitted correctly onto its docking station.
		Check that the cord of the docking station or the charger is plugged in, and that the socket is operating correctly.
	The batteries may be discharged Recharge the appliance
The appliance loses suction power	The accessory may be blocked Stop the appliance and empty it
The appliance makes an abnormal noise	The dust or dust/water container may be full.	Empty it and clean it
In case of abnormal operation The motor may be overheating.		Turn off the appliance to correct the problem (e.g. blockages in the vacuum inlet or accessory)
If dust or debris that have been vacuumed falls out onto the floor or if liquid runs out	check that the dust or dust/water container may be full.	Empty it and clean it

Please keep this user manual.

- Warning: [Use only with – designation – charger]

Four different types of mechanical devices with no visible text or symbols

Four different types of mechanical devices, shown in line drawings without any text or symbols.

- Warning: [Use only with – designation – charger]

Four different types of mechanical tools or devices, shown in line drawings without any text or symbols.

- Warning: [Use only with – designation – charger]

Four different types of hair blisters shown in line drawings (no text or labels visible)

MÁTE PROBLÉMY S PŘÍSTROJEM ?

- Podle modelu :

- Warning: [Use only with – designation – charger]

- Warning: [Use only with – designation – charger]

- Warning: [Use only with – designation – charger]

Four different types of mechanical devices, possibly pumps or gauges, shown in line drawings without any text or symbols.

- Warning: [Use only with – designation – charger]

- Warning: [Use only with – designation – charger]

- OPOZORILO : Za polnjenje baterije uporabite izključno snemljivo enoto za napajanje (podstavek za polnjenje), priloženo aparatu (strani 94/97).

- Baterijo morate odstraniti iz aparata, preden jo odvržete.

- Warning: [Use only with – designation – charger]

- UPOZORENJE: Za punjenje baterije koristite isključivo odvojivu jedinicu za napajanje (punjač) koju ste dobili s uređajem (stranice 94/97).

SIGURNOSNE UPUTE KOJE SE ODNOSE NA BATERIJU

• Ovaj uređaj sadrži baterije (nikal-metal-hidrid ili litij-ionske) koje su iz sigurnosnih razloga dostupne samo profesionalnom serviseru. Kada baterija više ne može održavati naboj, potrebno je zamijeniti blok baterija (nikal-metal-hidridnih ili litij-ionskih). Za zamjenu baterija obratite se najbližem servisnom centru.
• Pažljivo rukujte baterijama. Ne stavljajte baterije u usta. Nemojte umetati metalne predmete na krajeve baterija kako ne biste prouzročili kratki spoj. U slučaju nastanka kratkog spoja, postoji opasnost od pretjerane temperature baterije i ozbiljnih opekotina, pa i požara. U slučaju curenja baterija, nemojte dodirivati oči ili

- Warning: [Use only with – designation – charger]

- OPREZ: Da biste napunili baterije, koristite samo posebnu jedinicu za napajanje (punjač) koja je isporučena s aparatom (strane 94/97).

- Baterija se mora ukloniti iz aparata prije zbrinjavanja.

Four different types of mechanical tools or assemblies, shown in line drawings without any text or symbols.

Aparat prestaje raditi i lampice počinju vrlo brzo treperiti.	Aparat se možda pregrijava.	Isključite aparat i pustite da se hladi minimalno 1 sat.
Aparat se zaustavlja nakon što je lampica za punjenje treperila.	Aparat je prazan. Aparat treba	ponovo napuniti.
Električna četka ne radi pravilno ili se iz nje čuje sumnjivi zvuk.	Blokirana je okretna četka ili njena osovina.	Isključite aparat i očistite ih.
	Četka je istrošena.	Posjetite ovlašteni Servisni centar i pobrinite se da se četka zamijeni.
	Kaiš je istrošen.	Posjetite ovlašteni Servisni centar i pobrinite se da se zamijeni kaiš.
Električna četka prestaje raditi dok usisavate.	Aktivirana je funkcija toplotne zaštite.	Isključite usisivač. Provjerite da li ima predmeta koji blokiraju okretanje četke. U tom slučaju uklonite predmet i očistite električnu četku, a zatim možete nastaviti upotrebljavati usisivač.
Vaš aparat slabo usisava, stvara buku ili pišti.	Cijev ili crijevo su djelomično začepljeni. Očtčepite ih.
	Spremnik prašine je pun. Ispraznite ga i očistite.
	Spremnik za prašinu nije pravilno namještena.	Namjestite ga pravilno.
	Usisna glava je prljava. Skinite električnu četku i očistite je.
	Zaštitni filter motora od pjenaste gume je zasićen.	Očistite ga.
Lampice za punjenje počnu istovremeno i ubrzano treperiti kada uključite punjač.	To znači da ne upotrebljavate odgovarajući punjač ili je punjač koji koristite neispravan.	Posjetite ovlašteni Servisni centar i zamijenite punjač.

Aparat ne radi	Aparat nema napajanje	Provjerite je li aparat pravilno postavljen na svoju bazu za napajanje.
		Provjerite da li su kabal ili baza za punjenje uključeni u struju, te da li je utičnica u funkciji.
	Baterije mogu biti istrošene Napunite aparat
Aparat gubi moć usisa Nastavak	može biti blokiran Zaustavite aparat i ispraznite ga
Aparat proizvodi čudne zvukove	Spremnik za prašinu ili prašinu/vodu možebiti pun.	Zaustavite aparat i očistite ga
U slučaju abnormalnog rada Motor	može biti pregrijan	Isključite aparat i riješite problem (npr. blokada cijevi ili nastavaka)
Usisana prašina ili nečistoća izlaze iz aparata ili ukoliko curi tečnost	Provjerite da li su spremnik za prašinu ili prašinu/vodu puni.	Zaustavite aparat i očistite ga

Hvala što ćete čuvati ovaj priručnik.

- Warning: [Use only with – designation – charger]

- PAŽNJA: Za punjenje baterije koristite samo demontažnu jedinicu za punjenje (punjač) koja se isporučuje sa aparatom (strane 94/97).

- Baterija se mora ukloniti iz aparata pre odlaganja na otpad.

PROBLEM S VAŠIM APARATOM?

- Warning: [Use only with – designation – charger]
