USER MANUAL IFS 10K4 Kern

Further language versions you will find online under www.kern-sohn.com/manuals

Main Board Connector (ISP Connector) DB9 Connector RS232 Output RXD Pin 2 Pin 2 TXD Pin 3 Pin 3 GND Pin 5 Pin 5 VCC Pin 4 Pin 4 Main Board Connector (J-alarm Connector) DB9 Connector Alarm Light Relay Connection

KERN KFS-TM Version 2.1 2023-12 Operating and installation instructions Display unit

7.6.1 Determination of the average piece weight by weighing ................................................. 24

13.2 Manual transmission of the average item weight from reference balance EWJ to bulk

scale IFS ..............................................................................................................................71

13.3 Automatic or manual transmission of the average item weight from reference balance

EWJ to bulk scales IFS .........................................................................................................73

13.4 Connection of the counting system to signal lamp CFS-A03 (optional) .....................74

2. Display “average item weight“

6. Tare and zero set key

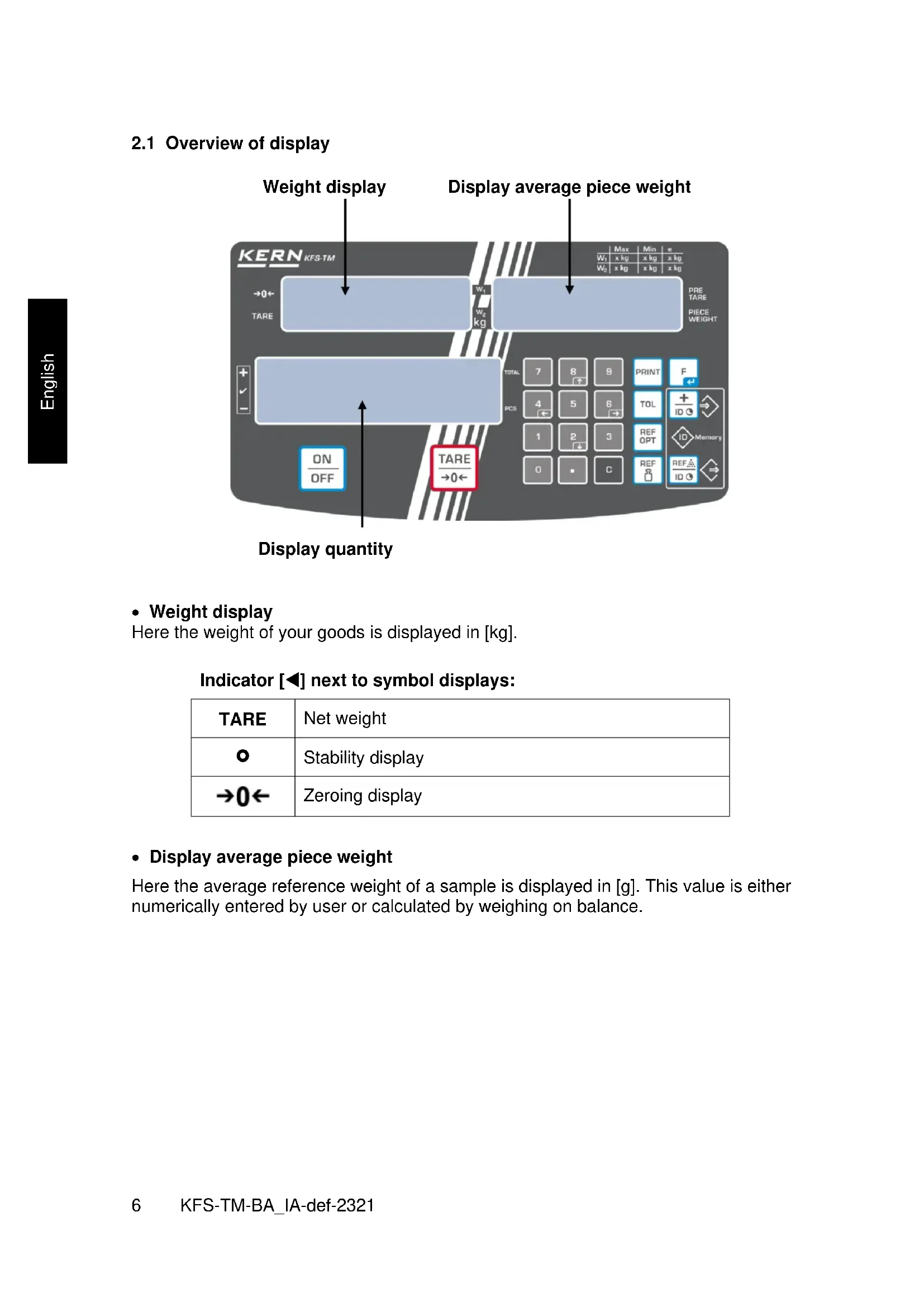

• Weight display Here the weight of your goods is displayed in [kg]. Indicator [] next to symbol displays: TARE Net weight

• Display average piece weight Here the average reference weight of a sample is displayed in [g]. This value is either numerically entered by user or calculated by weighing on balance.KFS-TM-BA_IA-def-2321 7 English

• Display quantity Here the current piece quantity (PCS = pieces) or in totalizing mode the sum of the placed parts is displayed, see chapter 7.7. Indicator [] next to symbol displays: TOTAL Total number of pieces

Target quantity of items within tolerance limits

• Power supply via line adapter

• Status display battery (optional) BUSY

• Saving / calculating weighing data LIGHT

For entering of item weight by weighing see chap. 7.6.1 This value is saved to the weighing balance memory

Set / call limits for tolerance control

Addition in sum memory Exit menu, return to weighing mode Call up total

Calculate weighing data via interface

Arrow keys for navigating around menu and for setting a decimal place in numeric entries.KFS-TM-BA_IA-def-2321 9 English

1 x briefly Confirm by pressing key 1 x longer Saving was successful 2 x briefly Invalid entry 3 x briefly Missing entry continuous Tolerance control depending on menu setting ”F1 Co“, see chap. 8 3 Basic Information (General)

3.1 Utilisation in accordance with specification.

The display unit acquired by you is used in combination with a weighing plate and serves to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic weighing system”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached the weighing value can be read.

• Our balances are non-automatic balances and not provided for use in dynamic weighing processes. However, the balances can also be used for dynamic weighing processes after verifying their individual operative range, and here especially the accuracy requirements of the application.

• Do not leave permanent load on the weighing plate. This may damage the measuring system.

• Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this.

• Never operate the balance in explosive environment. The serial version is not explosion protected.

• The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance.

• The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.10 KFS-TM-BA_IA-def-2321 English

Warranty claims shall be voided in case

• Our conditions in the operation manual are ignored

• The appliance is used outside the described uses

• The appliance is modified or opened

• Mechanical damage or damage by media, liquids, natural wear and tear

• The appliance is improperly set up or incorrectly electrically connected

• The measuring system is overloaded

3.4 Monitoring of Test Resources

In the framework of quality assurance the measuring-related properties of the bal-ance and, if applicable, the testing weight, must be checked regularly. The respon-sible user must define a suitable interval as well as type and scope of this test. In-formation is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited calibration laboratory test weights and balances may be calibrat-ed (return to the national standard) fast and at moderate cost. 4 Basic Safety Precautions

4.1 Pay attention to the instructions in the Operation Manual

Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.

4.2 Personnel training

The appliance may only be operated and maintained by trained personnel.KFS-TM-BA_IA-def-2321 11 English 5 Transport and storage

5.1 Testing upon acceptance

When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.

Keep all parts of the original packaging for a possibly required return. Only use original packaging for returning. Prior to dispatch disconnect all cables and remove loose/mobile parts. Reattach possibly supplied transport securing devices. Secure all parts such as the wind screen, the weighing plate, power supply unit etc. against shifting and damage. 6 Unpacking and placing

6.1 Installation Site, Location of Use

The display units are designed in a way that reliable weighing results are achieved in common conditions of use. Precise and fast work is achieved by selecting the right place for your display unit and your weighing plate. On the installation site observe the following:

• Place the balance on a firm, level surface.

• Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or in the direct sunlight.

• Protect the balance against direct draughts due to open windows and doors.

• Avoid jarring during weighing.

• Protect the balance against high humidity, vapours and dust.

• Do not expose the device to extreme dampness for longer periods of time. Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature.

• Avoid static charge of goods to be weighed or weighing container.

• Do not operate in areas with hazard of explosive material or in potentially explosive atmospheres due to materials such as gasses, steams, mists or dusts.

• Keep away chemicals (such as liquids or gasses), which could attack and damage the balance inside or from outside.

• In the event of the occurrence of electromagnetic fields, static charges (e.g., when weighing / counting plastic parts) and unstable power supply, large display deviations (incorrect weighing results, as well as damage to the scale) are possible. Change location or remove source of interference.12 KFS-TM-BA_IA-def-2321 English

6.2 Scope of delivery / standard accessories:

Carefully remove the display unit from packaging, remove plastic cover and place it in the designated work area. Mount the display unit in a way that facilitates operation and where it is easy to see. To be used with table leg and wall fixture Wall fixture

Push table leg in guide rail [11] up to end stop [12], see chap. 2.KFS-TM-BA_IA-def-2321 13 English Using with tripod (optional)

(Example of illustration)

6.4 Mains connection

Select a country-specific power plug and insert it in the mains adapter.

Check, whether the voltage acceptance on the scales is set correctly. Do not connect the scales to the power mains unless the information on the scales (sticker) matches the local mains voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN.

Important: ➢ Before starting your weighing balance, check the mains cable for damage. ➢ Ensure that the power unit does not come into contact with liquids. ➢ Ensure access to mains plug at all times.

As the acceleration value due to gravity is not the same at every location on earth, each display unit with connected weighing plate must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the weighing system has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the display unit periodically in weighing operation.

• Provide adjustment weight.

• The required adjustment weight depends on the capacity of the weighing system. Carry out adjustment as near as possible to the scale’s maximum weight. Info about test weights can be found on the Internet at: http://www.kern-sohn.com

• Observe stable environmental conditions. Stabilisation requires a certain warm-up time.KFS-TM-BA_IA-def-2321 15 English Call up menu: Switch-on balance and during the selftest press . Ensure that there are no objects on the weighing pan. Reset to zero if necessary by pressing . Go to weighing mode and press and hold for approx. 5-6 seconds until FUNC followed by F0 iSn appears. Release button. Press repeatedly until F2 dm is displayed.

On verified weighing systems press the adjustment switch! Press and select the set weighing scales type by . = Single-range balance = Dual range balance = Multi-interval balance Acknowledge with .

Press repeatedly until „CAL“ will be displayed.16 KFS-TM-BA_IA-def-2321 English Acknowledge by and select desired setting with . = Linearization = Adjustment

How to carry out adjustment: Confirm menu setting nonLin with .

Ensure that there are no objects on the weighing pan. LoAd will be displayed after standstill control has been carried out. Put the required adjustment weight carefully in the centre of the weighing pan. After successful adjustment, the weighing scales will carry out a selftest. During this selftest remove the adjustment weight and the weighing scales will automatically return to weighing mode. An adjusting error or incorrect adjusting weight will be indicated by the error message; repeat adjustment procedure.KFS-TM-BA_IA-def-2321 17 English

Linearity shows the greatest deviation of a weight display on the scale to the value of the respective test weight according to plus and minus over the entire weighing range. If linearity deviation is discovered during a monitoring of test resources, you can improve this by means of linearization.

• Carrying out linearization is restricted to specialist staff possessing well acquainted with the workings of weighing scales.

• The test weights to be used must be adapted to the weighing scale’s specifications; see chapter “monitoring of test resources”.

• Observe stable environmental conditions. Stabilisation requires a certain warm-up time.

• Do not remove the adjustment weight during linearization in step LOAD 1 to LOAD 4, merely increase it instead. Conversely do not remove the adjustment weight during step LOAD 4 to LOAD 1, merely increase it instead.

• After successful linearisation you will have to carry out calibration; see chapter “testing instruments control”.

Ensure that there are no objects on the weighing plate.

“LoAd 1” will be displayed after standstill control has been carried out. Put the first adjustment weight approx. 1/4 Max (see table 1) carefully in the centre of the weighing pan. “LoAd 2” will be displayed after standstill control has been carried out. Put the second adjustment weight approx. 2/4 max (see table 1) carefully in the centre of the weighing pan. “LoAd 3” will be displayed after standstill control has been carried out. Put the third adjustment weight approx. 3/4 max (see table 1) carefully in the centre of the weighing pan. “LoAd 4” will be displayed after standstill control has been carried out. Put the forth adjustment weight approx. 4/4 max (see table 1) carefully in the centre of the weighing pan. After successful standstill control the balance carries out a selftest, then it automatically returns to weighing mode.

• An adjusting error or incorrect adjusting weight will be indicated by the error message; repeat adjustment procedure.KFS-TM-BA_IA-def-2321 19 English

General: According to EU directive 2014/31/EU balances must be officially verified if they are used as follows (legally controlled area):

• For commercial transactions if the price of goods is determined by weighing.

• For the production of medicines in pharmacies as well as for analyses in the medical and pharmaceutical laboratory.

• For official purposes

• For manufacturing final packages In cases of doubt, please contact your local trade in standard. Balances in the legally controlled area (-> verified balances) must keep the error limits in the verification validity period – normally they are the double of the verification error limits. When this verification validity period expires, a re-verification must be carried out. Should be necessary an adjustment of the balance to keep the verification error limits to satisfy the reverification requirements, this is not deemed a warranty case. Verification notes: An EU Qualification Approval is in existence for verified weighing systems. If a balance is used where obligation to verify exists as described above, it must be verified and re-verified at regular intervals. Reverification is carried out according to the relevant national statutory regulations. The validity for verification of balances in Germany is e.g. 2 years. The legal regulation of the country where the balance is used must be observed!

Verification of the weighing system is invalid without the "seals". The seal marks attached on balances with type approval point out that the balance may only be opened and serviced by trained and authorised special- ist staff. If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a re-verification will be necessary.20 KFS-TM-BA_IA-def-2321 English Notes on verified weighing systems In verified weighing systems the access to menu items F1, F2, F3 of the configuration menu will be blocked. To cancel the access block, go to menu item F3 APP of the configuration menu (See chap. 12.4) and change the setting to „on”. Position of seals and adjusting switch:

1. Self-destroying seal mark

2. Adjustment switch

3. Cover of adjustment switch

Press , the appliance will carry out a self-test. As soon as the weight display appears, the instrument will be ready to weigh.

Press , the display will disappear.

Resetting to zero corrects the influence of light soiling on the weighing plate. Resetting range ± 2 % max. To unload the weighing system Press , the zero display as well as the indicator [] next to a will appear.

Place goods to be weighed on balance. Wait for stability display []. Read weighing result.

Overload warning Overloading exceeding the stated maximum load (max) of the device, minus a possibly existing tare load, must be strictly avoided. This could damage the instrument. Exceeding maximum loads is indicated by the display of “O-err“, and an audio sound. Unload weighing system or reduce preload.22 KFS-TM-BA_IA-def-2321 English

7.5 Weighing with tare

Deposit weighing vessel. After successful standstill control press the button. Zero display and the indicator [] next to TARE appear. The weight of the container is now internally saved. Weigh the material, the net weight will be indicated. After removing the weighing container, the weight of the weighing container appears as negative display. The tare procedure can be repeated as many times as necessary, for example with initial weighing of several components for a mix (add-on weighing). The limit is reached when the total weighing range capacity is full. To delete the tare value, remove load from weighing plate and press .

There is also the possibility to enter a known tare value via the numeric keypad. Enter the tare value and acknowledge by .

During piece counting parts can either be counted into a container or out of a container. To count a greater number of parts the average weight per part has to be determined with a small quantity (reference quantity). The larger the reference quantity, the higher the counting exactness. High reference must be selected for small parts or parts with considerably different sizes.

• The average piece weight can only be determined by stable weighing values.

• If weighing values are under zero, the piece counter display shows a negative number of items.

• The message LIGHT appearing on the display indicates that load falls below minimum weight value.

• Delete incorrect entries by pressing .

• The accuracy of an average item weight can be improved at any time during additional counting processes. For this purpose add additional items and press . After the reference optimization sounds a signal tone. As the additional pieces increase the base for the calculation, the reference also becomes more exact.24 KFS-TM-BA_IA-def-2321 English

7.6.1 Determination of the average piece weight by weighing

Set reference Reset balance to zero or tare the empty weighing container if necessary. Place on the weighing plate a known number (e.g. 10 items) of individual pieces as a reference. Wait for the stability display, than enter the number of individual items via the numeric keypad. Acknowledge with .

The balance determines the average piece weight. Count the items Tare if necessary, place weighing good and read off the number of items. Delete reference Press , the average unit weight will be deleted.KFS-TM-BA_IA-def-2321 25 English

7.6.2 Numeric input of the average piece weight

Set reference Enter established item weight by pressing numeric keys and confirm by pressing

Count the items Tare if necessary, place weighing good and read off the number of items.

Delete reference Press , the average unit weight will be deleted.26 KFS-TM-BA_IA-def-2321 English

Adding-up during weight display: Weight display: Currently placed weight Item weight display: Selected item weight Item quantity display: Currently placed quantity of items

Currently placed weight Selected item weight

Currently placed quantity of items

Adding-up during item display: Press , the display changes to item display.

Currently placed quantity of items Preview: currently placed quantity of items + current total number of items

With this function the individual weighing values are added into the summation memory by pressing and edited, when an optional printer is connected.

Calculate the average item weight (see chap. 7.6.1) or enter it manually (see chap. 7.6.2). Place weighing goods A. Currently placed weight Selected item weight

Currently placed quantity of items Wait for stability display, then press . The displayed value (e.g. 50 pieces) will be added to the summation memory and printed if an optional printer is connected.

Remove the weighed good. More weighed goods can only be added when the display ≤ zero.28 KFS-TM-BA_IA-def-2321 English Place goods to be weighed B.

Wait for stability display, then press . The displayed value (e.g. 20 pieces) will be added to the summation memory and printed if an optional printer is connected.

The total weight, the number of weighings as well as the total number of pieces will shortly appear (Indicator [] next to TOTAL). Afterwards the display will change to the currently placed unit quantity (indicator [] next to PCS)

Add more weighed goods as described before. Please note that the weighing system must be unloaded between the individual weighing procedures. This process may be repeated 99 times or till such time as the capacity of the weighing system has been exhausted.KFS-TM-BA_IA-def-2321 29 English Display and output sum „Total“: Unload the weighing pan and press , the total weight, the number of weighings, followed by the total number of pieces will be shown for 2 sec and printed if an optional printer is connected.

Indicator: Total weight Number weighing processes

Delete weighing data: Press to display the total weight, the number of weighing procedures and the total quantity for 2 sec. During this display press .KFS-TM-BA_IA-def-2321 31 English

7.7.2 Automatic adding-up

With this function the individual weighing values are automatically added into the summation memory when the balance is unloaded and edited, when an optional printer is connected.

Add up: Calculate the average item weight (see chap. 7.6.1) or enter it manually (see chap. 7.6.2). Place weighing goods A. After the standstill control sounds a signal tone, the weighing value will be added into the summation memory. Remove the weighed good. When an optional printer is connected, data will be edited.

More weighed goods can only be added when the display ≤ zero. Place goods to be weighed B. After the standstill control sounds a signal tone, the weighing value will be added into the summation memory. Remove the weighed good. The total weight, the number of weighings as well as the total number of pieces will shortly appear (Indicator [] next to TOTAL). When an optional printer is connected, data will be edited.32 KFS-TM-BA_IA-def-2321 English Add more weighed goods as described before. Please note that the weighing system must be unloaded between the individual weighing procedures. This process may be repeated 99 times or till such time as the capacity of the weighing system has been exhausted.

Display and output sum „Total“: Unload the weighing pan and press , the total weight, the number of weighings, followed by the total number of pieces will be shown for 2 sec and printed if an optional printer is connected.

Delete weighing data: Press to display the total weight, the number of weighing procedures and the total quantity for 2 sec. During this display press .KFS-TM-BA_IA-def-2321 33 English

The weighing scales allow weighing goods according to a target quantity or target weight within specified tolerances. With this function one can also check if the weighing good is within a defined tolerance range. Reaching target quantity is indicated by an audio sound (if enabled in menu) and a visual signal (Tolerance margin ) displayed. For menu settings, see chapter 8: Target quantity / target weight with tolerances 2 limits For menu setting, „F3 Pn ” see chap. 8 Accurate target quantity / accurate target weight without tolerance 1 limit For menu setting, „F3 Pn ” see chap. 8

Audio signal: The audio sound depends on the settings made in menu block “F4 bU“, see chap. 8. Options: 14 bu0 Acoustic signal turned off 14 bu 1 Audio signal will ring out when load is within tolerance range. 14 bu 2 Audio signal will ring out when load is beyond tolerance range.

Optical signal: The triangular tolerance marker [ ] in the display of the display shows whether the goods to be weighed are within the two tolerance limits.

Target quantity / target weight within tolerance range

After connecting the CFS-A03 signal lamp (optional), tolerance ranges will be displayed as follows: The signal lamp flashes:

Press to display the lower limit for target weight including current setting. Press to display the upper limit for target weight including current setting.

Press to display the lower limit for target quantity including current setting. Press to display the upper limit for target quantity including current setting.

If required, delete the current setting by pressing . Use the numeric keys to enter the quantity for the lower limit (such as 70 units) and confirm by pressing .

The upper limit will be displayed with the current setting. Delete with if necessary. Use the numeric keys to enter the quantity for the upper limit (such as 80 units) and confirm by pressing .KFS-TM-BA_IA-def-2321 37 English Start tolerance check Specify unit weight, see chap. 7.6.1 or 7.6.2 Place load and wait until tolerance margin [] appears. With the help of the tolerance indicator check if the weighed goods are under, inside or over the default tolerance. Depending on the setting in the menu an additional audio signal may be sounded. Target quantity below tolerance:

Target quantity within tolerance:

Set limit values Press to display the lower limit including current setting.

Delete with if necessary.

Use the numeric keys to enter the weight for the lower limit value (such as 3 kg) and confirm by pressing .

The upper limit for the target weight including current setting will be displayed. Delete with if necessary.KFS-TM-BA_IA-def-2321 39 English Use the numeric keys to enter the upper limit (such as 4 kg) and confirm by .40 KFS-TM-BA_IA-def-2321 English Start tolerance check Place load and wait until tolerance margin [] appears. With the help of the tolerance indicator check if the weighed goods are under, inside or over the default tolerance. Depending on the setting in the menu an additional audio signal may be sounded. Target weight below tolerance:

Target weight within tolerance:

Target weight exceeds tolerance:KFS-TM-BA_IA-def-2321 41 English

7.9 Storage function with ID

An ID between 00-99 can be allocated to the function Pre-Tare, as well as to the reference weight. Only possible in non verifiable environment! In the configuration menu (see chap. 12.5) Menu point F3 APP to „OFF“

7.9.1 Allocate an ID to Pre-Tare function:

Use the numeric keypad to enter the Pre-Tare value, acknowledge by . Press for a long time, „00“ is displayed Enter the ID number (00-99) with the numeric keypad and acknowledge by

7.9.2 Allocate an ID to a certain reference weight

Enter the reference weight via the numeric keypad and acknowledge by Press for a long time, in the display appears „00“. Enter ID (00 – 99) via the numeric keypad and save with .

Retrieve the stored reference weight:

• Press repeatedly until „00“ is displayed. Enter the stored ID via the numeric keypad and acknowledge by . The stored reference weight is displayed.

• Press repeatedly until „00“ is displayed. Enter the required ID via the numeric keypad and acknowledge by . The respective function or the respective reference weight is Retrieved.42 KFS-TM-BA_IA-def-2321 English

7.9.3 Allocate an ID to the function tolerance weighing

Set limit values Press to display the lower limit including current setting.

If required, delete the current setting by pressing . Use the numeric keys to enter the quantity for the lower limit (such as 70 units) and confirm by pressing .

The upper limit will be displayed with the current setting. Delete with if necessary. Use the numeric keys to enter the quantity for the upper limit (such as 80 units) and confirm by pressing .

Press for a long time, in the display appears „00“. Enter ID (00 – 99) via the numeric keypad and save with .44 KFS-TM-BA_IA-def-2321 English

• Press repeatedly until „00“ is displayed. Enter the respective ID via the numeric keypad and acknowledge by .

7.10 Setting date and time for screen saver

The balance offers the possibility to display the date (2 different display types) and the time. These settings can be used as a screen saver, when it has been enabled in the menu (F13/F14 ti – SLP on). The balance enables the screen saver automatically, i.e. 10 minutes after having been used for the last time. Example display overview screen saver: Year Day Month

• In weighing mode keep pressed until „F0 SEL“ appears

A numeric value is displayed flashing, using numeric keypad enter the year. The first both digits „20“ cannot be changed. In the right place, enter first the decade and then the year: e.g. „1“ and after that „5“ results in the year 2015.

„00.00“ (example) is displayed flashing; now enter here subsequently day and month, starting with the left decimal place. Example: 08.04. Enter the values in the sequence 0-8-0-4 (example) Confirm by , „Set dA“ is displayed Year, month and day now are set Setting time: Use to select „Set ti“, here the clock time is set

the previously set clock time is displayed flashing. Use the numeric keypad to enter the clock time, in the sequence: Example: 12:48 o’clock: enter 1-2-4-8 subsequently Press , now the clock time has been set.

Press (several times) to return into weighing mode.

7.11 Overload counter (starting from 1.00x version)

The balance can save up to 30 overload weighing results. The overload must be > 105% of the Max value.

7.11.1 Browsing through saved values:

Press and hold button in the weighing mode, the following message will be displayed:

(example) A saved overload value will be displayed:

7.11.1 Deleting saved values:

Deleting individual values: Press button during the self-test to delete the saved value. The number of saved overload values will be displayed for a while:

(example) Press and hold button, the following message will be displayed:

This means the value has been deleted.

Deleting all saved values: Press button during the self-test to delete all the saved values. The number of saved overload values will be displayed for a while:

(example) Press and hold button, the following messages will be displayed:

This means all the saved values have been deleted.50 KFS-TM-BA_IA-def-2321 English 8 Function menu Navigation in the menu: Call up menu In weighing mode keep pressed until FSEt appears. Release button. The first menu item F0. SEL is displayed.

Select menu items With help of , the individual menu items can be selected one after the other.

and so onKFS-TM-BA_IA-def-2321 51 English Change settings Confirm selected menu item with and the current setting will be shown. Change setting in selected menu item by pressing .

Confirm setting Confirm required setting with and the appliance returns to the menu. Return to weighing mode Press to return to weighing mode .52 KFS-TM-BA_IA-def-2321 English

8.1 Overview not verifiable weighing systems

(in the configuration menu select the menu item F3 APP Setting „off“) Menu item Available settings F0 SEL Enable tolerance check 1 SEL0 Tolerance control disabled 1 SEL1 Tolerance control for weighing 1 SEL2* Tolerance control for counting F1 Co Display conditions of the tolerance marker 11 Co0 Tolerance marker is always displayed, even if standstill control is not yet displayed. 11 Co 1* Tolerance marker is only displayed in connection with standstill control. F2 Li Tolerance range 12 Li 0 Tolerance marker is only displayed above zero range. 12 Li 1* Tolerance marker is displayed for the whole range. F3 Pn Number of limiting points 13 Pn 0

Auto-Tare enabled off Auto-Tare not enabled F7 AP Automatic shutdown for battery operation 3 Ap0* AUTO OFF function disabled 3 Ap1 Instrument will be switched off after 3 minutes of inactivity of display unit or weighing bridge.KFS-TM-BA_IA-def-2321 53 English F8 UA RS-232 mode 4 UA0 Output via RS232C interface disabled 4 UA1* Continuous data output 4 UA2 Continuous data output of stable weighing values 4 UA3 One output for stable weighing value. No output for stable weighing values. Renewed output after stabilization. 4 UA4 For remote commands, see chap. 9.2. Issue after pressing the PRINT ´button 4 UA5

Standard printer setting, output after pressing the PRINT button id on/off Printout memory on/off dt on/off Printout date on/off G on/off Printout gross weight on/off n on/off Printout net weight on/off C on/off Printout total on/off PCS on(off) Printout parts counting on/off UW on/off Printout weighing unit on/off t on/off Tara value printout 4 UA6 Select TP-UP Printer or LP-50 Printer 4 UA7 KCP on/off F9 bl. Baud rate 41 bl 0 1200 bps 41 bl1 2400 bps 41 bl 2 4800 bps 41 bl 3 9600 bps F10 PA Parity 42 Pr0* No parity bit 42 Pr1 Odd parity 42 Pr2 Even parity F11 50 Sd0 on* Autom. printout enabled on zero display Sd0 of Autom. printout disabled on zero display F12 AC 5 AC 0 For automatic totalizing see chap. 7.7.2 With this function the individual weighing values are automatically added into the summation memory when the balance is unloaded and edited, when an optional printer is connected. 5 AC 1* Manual totalizing, see chap. 7.7.1 With this function the individual weighing values are added into the summation memory by pressing and edited, when an optional printer is connected. F13 bk Display background illumination 5 bkL0 Background illumination off 5 bkL1 Automatic background illumination on when weighing pate is loaded or key pressed. 5 bkL2 Continuous background lighting54 KFS-TM-BA_IA-def-2321 English F14 ti Date and clock time/ screen saver SLP on Screen saver ON Setting date and clock time D m y dd mm yyyy (TT MM JJJJ) SEt YE - year SEt dA – month and day Set ti - clock time Y m d yyyy mm dd (JJJJ MM TT) SEt YE - year SEt dA – month and day Set ti - clock time SLP off Screen saver OFF F15 tA Restricted taring range

Press , the current setting will be displayed. Use the navigation buttons to select the desired setting, the active decimal place is flashing. Confirm input by . SAmPLE Counting system

Counting system settings rS232 Connection to reference balance EWJ SCALE Counting only at the IFS

Factory settings are marked by *.KFS-TM-BA_IA-def-2321 55 English

8.2 Overview verifiable weighing systems

F4 bU Audio signal 14 bu0* Audio sound during tolerance control disabled 14 bu1 Audio sound when load is within tolerance limits 14 bu2 Audio sound when load is beyond tolerance limits F5 Ao Automatic zero point correction (zero tracking) 2 Ao0 Automatic zero tracking off 2 Ao1 Automatic limiting point correction on, 0.5 d 2 Ao2* Automatic limiting point correction on, 1 d 2 Ao3 Automatic limiting point correction on, 2 d 2 Ao4 Automatic limiting point correction on, 4 d F6 AP Automatic shutdown for battery operation 3 Ap0* AUTO OFF function disabled 3 Ap1 Instrument will be switched off after 3 minutes of inactivity of display unit or weighing bridge. F7 UA RS-232 mode 4 UA0 Output via RS232C interface disabled 4 UA1* Continuous data output 4 UA2 Continuous data output of stable weighing values 4 UA3 One output for stable weighing value. No output for stable weighing values. Renewed output after stabilization. 4 UA4 For remote commands, see chap. 9.2. Issue after pressing the PRINT ´button 4 UA5

Standard printer setting, output after pressing the PRINT button id on/off Printout memory on/off dt on/off Printout date on/off G on/off Printout gross weight on/off n on/off Printout net weight on/off C on/off Printout total on/off PCS on(off) Printout parts counting on/off UW on/off Printout weighing unit on/off t on/off Tara value printout 4 UA6 Select TP-UP Printer or LP-50 Printer 4 UA7 KCP on/off56 KFS-TM-BA_IA-def-2321 English F8 bl. Baud rate 41 bl 0 1200 bps 41 bl1 2400 bps 41 bl 2 4800 bps 41 bl 3 9600 bps F9 PA Parity 42 Pr0* No parity bit 42 Pr1 Odd parity 42 Pr2 Even parity F10 S0 Sd0 on* Autom. printout enabled on zero display Sd0 of Autom. printout disabled on zero display F11 AC 5 AC 0 For automatic totalizing see chap. 7.7.2 With this function the individual weighing values are automatically added into the summation memory when the balance is unloaded and edited, when an optional printer is connected. 5 AC 1* Manual totalizing, see chap. 7.7.1 With this function the individual weighing values are added into the summation memory by pressing and edited, when an optional printer is connected. F12 bk Display background illumination 5 bkL0 Background illumination off 5 bkL1 Automatic background illumination on when weighing pate is loaded or key pressed. 5 bkL2 Continuous background lighting F13 ti Date and clock time/ screen saver SLP on Screen saver ON Setting date and clock time D m y dd mm yyyy (TT MM JJJJ) SEt YE - year SEt dA – month and day Set ti - clock time Y m d yyyy mm dd (JJJJ MM TT) SEt YE - year SEt dA – month and day Set ti - clock time SLP off Screen saver OFF F14 tA Restricted taring range

Press , the current setting is displayed. Use the navigation buttons to select the desired setting, the active decimal place is flashing. Confirm input by . SAmPLE Counting system

Counting system settings rS232 Connection to reference balance EWJ SCALE Counting only at the IFS

Factory settings are marked by *.KFS-TM-BA_IA-def-2321 57 English 9 RS 232C interface You can print weighing data automatically via the RS 232C interface or manually by pressing via the interface according to the setting in the menu. This data exchange is asynchronous using ASCII - Code. The following conditions must be met to provide successful communication between the weighing system and the printer.

• Use a suitable cable to connect the display unit to the interface of the printer. Faultless operation requires an adequate KERN interface cable.

• Communication parameters (baud rate, bits and parity) of display unit and printer must match.

Signal lamp CFS-A03:

Main Board Connector (ISP Connector) DB9 Connector RS232 Output RXD Pin 2 Pin 2 TXD Pin 3 Pin 3 GND Pin 5 Pin 5 VCC Pin 4 Pin 4 Main Board Connector (J-alarm Connector) DB9 Connector Alarm Light Relay Connection

KCP is a standardized set of interface orders for KERN balances, which allows many parameters and device functions to be called up and controlled. KERN devices that have KCP can use it to connect easily to computers, industrial control systems and other digital systems. A detailed description you will find in the „KERN Communications Protocol“ manual, available in the download area on our KERN homepage (www.kern-sohn.com). To activate KCP please observe the menu overview of your balance’s operating instructions. KCP is based on simple ASCII orders and replies. Every interaction consists of an order, possibly with arguments separated by spaces and finished by <CR>< LF>. The KCP orders supported by your balance may be queried emitting the order „I0“ followed by CR LF. Extract of the mostly used KCP orders: Command Function

Stable weighing value for the weight is sent via the RS232 interface

Weighing value for the weight (stable or unstable) is sent via the RS232 interface

No data are sent, the balance carries out the tare function.

No data are sent, the zero-display appears.

Print when is pressed:

Print when is pressed: In the adding up process

Before any maintenance, cleaning and repair work disconnect the appliance from the operating voltage.

Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Take care that the device is not penetrated by fluids and polish it with a dry soft cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner. Spilled weighing goods must be removed immediately.

10.2 Servicing, maintenance

The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.

Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.62 KFS-TM-BA_IA-def-2321 English 11 Error messages, troubleshooting guide In case of an error in the program process, briefly turn off the appliance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause

The displayed weight does not glow.

• The display unit is not switched on.

• Mains power supply interrupted (mains cable defective).

• Power supply interrupted.

• (Rechargeable) batteries are inserted incorrectly or empty

• No (rechargeable) batteries inserted.

The displayed weight is permanently changing

• Draught/air movement

• Table/floor vibrations

• Weighing pan has contact with other objects.

• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible)

The weighing result is obviously incorrect

• The display of the balance is not at zero

• Adjustment is no longer correct.

• The weighing pan is not level

• Great fluctuations in temperature.

• Warm-up time was ignored.

• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible)

• Weighing range exceeded u-Err

• Transport safety device has not been removed

Should other error messages occur, switch device off and then on again. If the error message remains inform manufacturer.KFS-TM-BA_IA-def-2321 63 English 12 Installing display unit / weighing bridge

Installation / configuration of the weighing system must be carried out by a well acquainted specialist with the workings of weighing balances.

12.2 Weighing system design

The display unit is suitable for connection to any analogue platform in compliance with the required specifications. The following data must be established before selecting a weighing cell:

• Weighing balance capacity This usually corresponds to the heaviest load to be weighed.

• Preload This corresponds to the total weight of all parts that are to be placed on the weighing cell such as upper part of platform, weighing pan etc.

• Total zero setting range This is composed of the start-up zero setting range (± 2%) and the zero setting range available to the user via the ZERO-key (2%). The total zero setting range equals therefore 4 % of the scale’s capacity. The addition of weighing scales capacity, preload and the total zero setting range give the required capacity for the weighing cell. To avoid overloading of the weighing cell, include an additional safety margin.

• Smallest desired display division64 KFS-TM-BA_IA-def-2321 English

12.3 Connecting a platform

Disconnect the display unit from the power supply. Weld the individual wires of the load cell cable to the printed circuit board. Please see diagram below for plug allocation.KFS-TM-BA_IA-def-2321 65 English

12.4 Configuring display devices

Navigation in the menu: Call up menu Switch-on balance and during the selftest press .

To call the firm menu item , press and hold for approx. 5-6 seconds until Func followed by F0 iSn appears. Release button.

Select menu items With help of , the individual menu items can be selected one after the other.

and so on66 KFS-TM-BA_IA-def-2321 English Change settings Confirm selected menu item such as F2 dm by pressing and the current setting will be displayed. Change setting in selected menu item by pressing .

Confirm setting Confirm required setting with and the appliance returns to the menu. Reject setting Press , the unit will return to the menu Return to weighing mode Back to weighing mode press several times.KFS-TM-BA_IA-def-2321 67 English

Single-range balance Confirm by pressing , then the following menu items can be selected by . dESC Position decimal point available selection 0, 0.0, 0.00, 0.000, 0.0000, 0.00000 inC inC 1 Readability selectable 1, 2, 5, 10, 20, 50 inC 2 inC 5 inC 10 inC 20 inC 50 CAP Balance capacity (max) Adjust weighing system after configuration. CAL nonLin Adjustment, see chap. 6.5 LinEAr For linearisation see chapter 6.668 KFS-TM-BA_IA-def-2321 English

Dual range balance Confirm with , then the following menu items can be selected by . dESC Position decimal point available selection 0, 0.0, 0.00, 0.000, 0.0000,

inC div 1 inC 1 Readability for

inC 2 inC 5 inC 10 inC 20 inC 50 div 2 inC 1 Readability for

CAP CAP 1 Balance capacity (Max) 1st weighing range CAP 2 Balance capacity (Max) 2nd weighing range Adjust weighing system after configuration.

Multi-interval balance Confirm by , after that the following menu items are available.

inC 2 inC 5 inC 10 inC 20 inC 50 div 2 inC 1 Readability for

inC 2 inC 5 inC 10 inC 20 inC 50 CAP CAP 1 Balance capacity (Max) 1st weighing range CAP 2 Balance capacity (Max) 2nd weighing range Adjust weighing system after configuration. CAL nonLin Adjustment, see chap. 6.5 LinEAr For linearisation see chapter 6.6 F3 APP Press adjustment switch

In verified weighing systems the access to the configuration menu is locked. off Access to configuration menu enabled (systems not appropriate for verification)

In verifiable setting the menu items F 1 Grv and F2 dm are locked.70 KFS-TM-BA_IA-def-2321 English

13 Using as counting system

• Connector for RS-232 interface of EWJ scale

2 (connector with a thick conductor)

• Connector for IFS scale

• Connector for RS-232 interface of EWJ scale

• Connector for CFS-A03 signal light

2 (connector with a thick conductor)

• Connector for IFS scale

It is possible to use the signal light and the printer at the same time.KFS-TM-BA_IA-def-2321 71 English

13.2 Manual transmission of the average item weight from reference balance

EWJ to bulk scale IFS Make in the menu the following settings: Switch on weighing scales and press and hold the MODE key during the self- test until F1 Unt appears on the screen. Press MODE key repeatedly until F3 Com in the display appears. Confirm with 0 key, RS 232 will appear Press again the 0-key, P Send will be shown Press again the 0-key, mAnUAL or AUto* will be shown Press again the 0-key, b 9600 will be shown, confirm with 0-key F3 Com will be displayed, press the PRINT/ESC-key to return into weighing mode

• mAnUAL: Transfer of the weight of a single piece to IFS scale after the PRINT button is pressed.

• AUto: Weight of a single part is transferred to IFS scale automatically.

Define the average item weight: Place the known item weight on the weighing plate of the EWJ Press the PCS-key, the item number entered as last will be displayed, e.g. SP 10. Select the corresponding item number with MODE, e.g. SP 100, confirm with the O-key, ------- will be shortly displayed, followed by the set item number, e.g. 200.

• It is impossible to optimise the reference weight when the weight of a single part is determined using EWJ scale.

• The reference weight can be optimised solely when the weight of a single part is determined using IFS scale.72 KFS-TM-BA_IA-def-2321 English

Transmit the average item weight to the bulk scales IFS: Switch-on IFS with ON/OFF, press the F-key in weighing mode, the menu will be invoked Press the 2 key repeatedly until SAmPLE is displayed Confirm with the F-key, rS232 or SCALE* will be displayed Press again the F-key, SAmPLE will be displayed again Use +/ID - key to return into the weighing mode Place the weighing good on the platform of the IFS, the weight will be displayed Press PRINT/ESC of the EWJ, the average item weight will be transmitted to the IFS The corresponding item number is automatically calculated and displayed.

• rS232: Use as a counting system

• SCALE: Use only as an IFS platform scaleKFS-TM-BA_IA-def-2321 73 English

13.3 Automatic or manual transmission of the average item weight from

reference balance EWJ to bulk scales IFS Make in the menu the following settings: Switch on weighing scales and press and hold the MODE key during the self- test until F1 Unt appears on the screen. Press MODE key repeatedly until F3 Com in the display appears. Confirm with 0 key, RS 232 will appear Press again the 0-key, P Send will be shown Mit (??) press 0-key, select Auto or mAnUAL* and acknowledge with 0-key b 9600 will be displayed; acknowledge with 0-key y with PRINT/ESC return into weighing mode

• mAnUAL: Transfer of the weight of a single piece to IFS scale after the PRINT button is pressed.

• AUto: Weight of a single part is transferred to IFS scale automatically.

Define the average item weight: Place the known item weight on the weighing plate of the EWJ Press the PCS-key, the item number entered as last will be displayed, e.g. SP 10. Select the corresponding item number with MODE, e.g. SP 100, confirm with the 0-key, ------- will be shortly displayed, followed by the set item number, e.g. 200.

Transmit the average item weight to the bulk scales IFS: Switch-on IFS with ON/OFF, press the F-key in weighing mode, the menu will be invoked Press the 8 key until SAmPLE is displayed Confirm with the F-key, rS232 will be displayed Press again the F-key, SAmPLE will be displayed again Use +/- - key to return into the weighing mode Place the weighing good on the platform of the IFS, the weight will be displayed The average item weight will be automatically transmitted to the IFS The corresponding item number is automatically calculated and displayed.74 KFS-TM-BA_IA-def-2321 English

13.4 Connection of the counting system to signal lamp CFS-A03 (optional)

14 Declaration of Conformity

To view the current EC/EU Declaration of Conformity go to:

The scope of delivery for verified weighing balances (= conformity- rated weighing balances) includes a Declaration of Conformity.KFS-TM-BA_IA-def-2321 1 Français

Main Board Connector (ISP Connector) DB9 Connector RS232 Output RXD Pin 2 Pin 2 TXD Pin 3 Pin 3 GND Pin 5 Pin 5 VCC Pin 4 Pin 4 Main Board Connector (J-alarm Connector) DB9 Connector Alarm Light Relay Connection

• Courant d´air/circulation d´air
