USER MANUAL MODUS 600RT MK II (Nikon) Hähnel

Line drawing of a MODUS 600RT camera module (no text or symbols on the device body)

Wireless Speedlight for Nikon

Foreword

Thank you for purchasing the hähnel Modus 600RT.

GB

The Modus 600RT is a Speedlight for Nikon DSLR (Nikon FX/DX format) series cameras (Except D1 and D100 series) and is compatible with the i-TTL Auto flash system. Older generation i-TTL/TTL Autoflash system and (Type-B camera) will work also with some features not available.

• Before starting to shoot, be sure to read this manual
• When reading this manual also refer to the camera's Instruction Manual

Conventions & assumptions

• The manual is based on the assumption that all devices including camera are turned on
  • Reference page numbers are indicated by (page **)
• The caution symbol indicates a warning to prevent shooting problems
  • The Note symbol gives supplemental information

1 Introduction

• Safety precaution - Warnings & Cautions 6
• Nomenclature

• Body 8
• Control Panel 9
• LCD Panel in five modes 11
• Viper TTL Transmitter 12

2 Getting started

• Wireless Kit - Whats in the box 14
• Wiress Pro Kit - Whats in the box 14
• Battery and charger 14
• Attaching to camera 17
  • Power Management 17
• Flash Mode - i-TTL Autoflash

• FEC (Flash Exposure Compensation) 18
• FEB (Flash Exposure Bracketing) 19
• FV Lock (Flash Value Lock) 19
• HSS (High Speed Sync) 19
- 2nd Curtain Sync 20

- Flash Mode - Manual Flash 20

• Flash output power range 21
  • Optical O1 Secondary unit setting 21
  • Optical O2 Secondary unit setting 21

- Flash Mode - RPT: Stroboscopic Flash 21

• Calculating the shutter speed 22
• Number of flashes / flash frequency = shutter speed 22

3 Wireless Flash Photography: (2.4GHz) Control

• Master/Slave wireless flash lighting 24
• Wireless multiple flash shooting 25
• Wireless settings

• Master unit Setting 26
- Slave unit Setting 26
• Master unit flash ON/OFF 26
- Setting the group mode: TTL / M / off 26

• DCM (Digital channel matching) 27

• Master - Viper TTL or Modus 600RT 27
- Slave - Modus 600RT 27
- Modus 600RT Reset 28

• i-TTL - Fully automatic wireless flash shooting 28

• Using Automatic wireless flash with multiple slave units 30

• Aдвanced setting with fully automatic wireless flash 30
• Multiple master unit 31

• M: Wireless Flash Shooting with Manual Flash 31
• RPT: Wireless Flash Shooting with repeating flash stroboscopic 31

- M/A/B/C: Wireless flash shooting with different flash modes for each goup 32

4 Wireless Flash Photography: Optical Transmission

• Wireless settings 34
  • Master unit setting 35
• Slave unit setting 35
  • Master unit flash ON/OFF 35

• Setting the optical communication channel 35

• i-TTL - Fully automatic wireless flash shooting 36
  • M: Wireless Flash Shooting with Manual Flash 36
  • RPT: Wireless Flash Shooting with Multi Flash 36

5 Wireless Flash Photography: (2.4GHz) using Viper TTL Transmitter

• Wirelesssetting 38
  • DCM (Digital Channel Matching) 38
  • Viper TTL group Mode Setting 38
  • Group Power Control setting for Manual and TTL FEC 38
• Multi Mode 39
• Sync Modes 39

6 Other Applications

• SyncTriggering 40
  • Auto Focus Asist Beam 40
• Bounce Flash 40
• Catchlight Panel 41
• Zoom – Setting the Flash Coverage and using Wide Panel 41
  • C.Fn – Setting Custom Functions 42
  • Protection Functions 43
  • Technical Data 45
• Troubleshooting 46
• Firmware Upgrade 47
• Maintenance 47

⚠️Warnings:

Failure to observe the instructions below may result in loss of life or serious bodily injury. To prevent fire, excessive heat, chemical leakage, explosions, and electrical shock, follow the safeguards below:

• Do not insert any foreign metallic objects into the electrical contacts of the product, accessories, connecting cables, etc
• Do not use any batteries, power sources, or accessories not specified in the instruction Manual. Do not use any deformed or modified batteries, or the product if it is damaged
• Do not short-circuit, disassemble, or modify the product or batteries. Do not apply heat or solder to the batteries. Do not store batteries with metal objects. Do not expose the batteries to fire or water. Do not subject the batteries to strong impact or continuous mechanical shock
• Do not place batteries in microwave, cooker or high-pressure container
• Do not use the product in locations where there is flammable gas
• Do not fire the flash at anyone driving a car or other vehicle
• Do not disassemble or modify the equipment. High-voltage internal parts may cause electrical shock. If you drop the equipment and the casing breaks open to expose the internal parts, do not touch the exposed parts. There is a possibility of an electrical shock
• Do not store the product in dusty or humid places or location with lots of oil smoke. Do not store battery in charger
• Keep the batteries and other accessories out of the reach of children and infants
• Do not drop product or battery in fire or water

• Do not expose product or battery to excessive temperature (below 0°C or above 40°C) or strong direct sunlight

• Battery temperature while on charge or in use should never increase above 60^ C/ 140^ F. If higher temperature occurs, stop using and stop charging immediately

• Do not use paint thinner, benzene, or other organic solvents to clean the product

GB

Caution:

• Failure to observe the instructions below may result in serious bodily injury or damage to property
• When the product is not in use for a prolonged period, make sure to remove the batteries before storing
• When disposing of a battery, insulate the electrical contacts with tape. Contact with other metallic objects or batteries may cause a fire or an explosion. Dispose of battery in accordance with the appropriate regulations
• Do not store or leave product or battery in trunk or on dashboard of a vehicle or in direct sunlight or with a high interior temperature as overheating can result in burns if touched leaking, fire or explosion
• Do not fire the flash with the flash head (light-emitting unit) in contact with a human body or any object doing so may result in the risk of burns and fire
• Do not fire the flash near the eyes. Keep the flash unit at least 1m (3.3 feet) away from face. It may hurt or damage the eyes. Using bounce flash to reduce light intensity is also recommended

B

Nomenclature

01 02 03 04 05 06 07 08 09 MEQUS

10 11 12

Nomenclature - Body

1. Catchlight Panel
2. Built-in Wide Panel
3. Flash Head
4. Optical Control Sensor
5. Focus Assist Beam
6. Slave Flash Ready Indicators 12. Quick Lock
7. USB Port
8. Hotshoe

9. Quick Lock

10. Sync Cord Jack

11. Dot-matrix LCD Panel
12. Battery Compartment

Nomenclature - Control Panel 13 14 15 16 MODE 8 ON OFF Z 19 20 21 22 17

1. Function Button 2
2. Function Button 1
3. Mode Selection Button / Lock button
4. <⚡> Test Button / Flash Ready Indicator

5. Set Button

6. Function Button 3

7. Function Button 4
8. Wireless Mode/Master/Slave
9. ON/OFF Power Switch
10. Select Dial

Nomenclature - LCD Panel

i-TTL Zoom 35mm 07 + 12 08 0.7m = 9.0m F4.0 09 Zm/C.Fn + 11

(1) I-TTL Autoflash

01.ITTL: i-TTL autoflash
02.A Automatic

M : Manual

03.Zoom: zoom display
04. Focus Distance
05. : High-speed sync
06. Battery level indicator
07. Flash exposure compensation

1. Flashexposure
   compensation amount
2. Aperture
3. Distance indicator scale
4. Effective flash range
5. Beep on/off (C. Fn 7)

• The display will only show the settings currently applied.

• The functions displayed above function buttons 1 to 4, such as SYNC and ± change according to settings' status.
• When a button or dial is operated, the LCD panel illuminated.

(2) Manual Flash

O1: Standard Optical. 02: Preflash Optical

M Zoom 50mm #H01 1/64 -0.3 EV 0.5 1 2 4 9 18m Zm/C.Fn #+ 01/02 SYNC

M : Manual flash Manual flash output power

(3) Multi: RPT repeating flash mode

Flash power Number of flashes RPT Zoom 50mm δ = 6Hz 1/32 0.5 1 2 4 9 18m Zm/C.Fn #+/- TIMES Hz Flash

MULTI : RPT repeating Stroboscopic flash
Flash frequency

(4) Radio Control Shooting/Optical Control Shooting

(a) Master Unit - Flash Mode

15 16 Zoom 50nm M TTL 0.0eV A M 1/120 B --- - MASTER C --- - Zm/C.Fn Gr

1. Radio control wireless shooting : Optical control wireless shooting

2. Flash mode : ,

3. Master unit flash ON :Master unit flash OFF :Master unit bounce ON

4. MASTER

5. Master Group: Mode
6. A.B/C Group: Mode

(b) Slave Unit

i-TTL M Zoom 50mm CH 1 SLAVE A Zm/C.Fn Gr CH Channel no. Optical only Slave mode Group A/B/C...

GB

LCD Panel in Five Modes

(1) Attached to the Camera

i-TTL Zoom 35 am +1 0.7m - 9.6m F4.0 Zm/C.Fn # +/<

(2) 2.4GHz Radio Control: As a Master Unit

Zoom 50 M TTL 9.0kV A M 1/120+6.3 B .... ... MASTER Zm/C.Fn Gr

(3) 2.4GHz Radio Control: As a Slave Unit Group A

-TTL Zoom 50mm SLAVE Zm/C.Fn Gr

(4) Optical Control: As a Master Unit

Zoom 50mm M TTL 0.0kV A M 1/120 CH1 B = = = MASTER C = - - 211/C.Pn CH Gr

(5) Optical Control: As a Slave Unit

i-TTL Zoom 50mm CH1 SLAVE A Zm/C.Fn Gr CH

Nomenclature - Viper TTL Transmitter

08 AB C 09 07 06 01 02 05 04 03

(A) Group A
(B) Group B
(C) Group C
(1) ON/OFF - switch
(2) SEL - select button
(3) Adjust Dial - To adjust settings

(4) Lock Wheel
(5) LCD Screen
(6) Power / Status LED
(7) Hot shoe
(8) Test - button
(9) Micro USB - firmware update

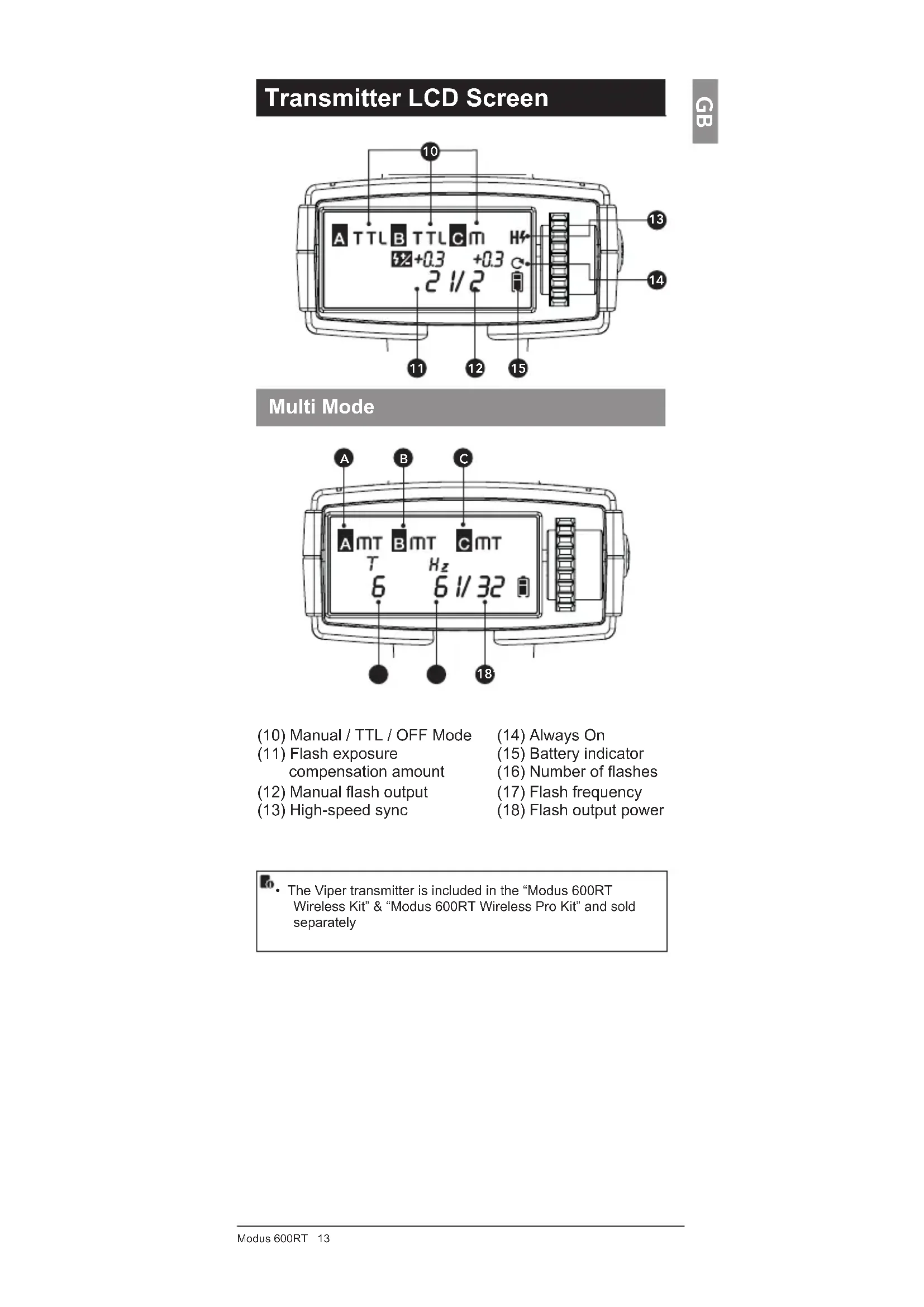

Transmitter LCD Screen

GB

A TTL B TTL C m +0.3 +0.3 .2 1/2 10 13 14 11 12 15

Multi Mode

A B C A mT B mT C mT T Hz 6 6 1/32 18

(10) Manual / TTL / OFF Mode
(11) Flash exposure compensation amount
(12) Manual flash output
(13) High-speed sync

(14) Always On
(15) Battery indicator
(16) Number of flashes
(17) Flash frequency
(18) Flash output power

• The Viper transmitter is included in the "Modus 600RT Wireless Kit" & "Modus 600RT Wireless Pro Kit" and sold separately

2

Getting Started

What's in the Modus 600RT?

1. Modus 600RT

Speedlight

1. Li-ion Battery Pack

2. Battery Charger

3. Micro USB Cable

4. Mini Stand

5. Protection Case

6. Instruction Manual

What's in the Modus 600RT Wireless Kit?

1. Modus 600RT

Speedlight

1. Viper TTL Transmitter

2. Li-ion Battery Pack

3. Battery Charger

4. Micro USB Cable

5. Mini Stand

6. Protection Case

7. Instruction Manual

8. 2 x AA Batteries

What's in the Modus 600RT Pro Kit?

1. 2 x Modus 600RT

Speedlight

1. Viper TTL Transmitter

2. 2 x Extreme Li-ion

Battery Pack

1. Battery Charger

2. Micro USB Cable

3. 2 x Mini Stand

4. 2 x Protection Case

5. Instruction Manual

6. 2 x AA Batteries

Battery and Charger

• The HLX-MD1 battery must be charged before use.
• Use the supplied MD1 MKII charger to charge the battery.
• Remove battery from charger when charging is finished and disconnect charger from mains

A fully charged battery will offer approx 500 flashes at full power and even more when power level is reduced. The composition and construction of the MD1 battery pack offers very reliable and fast refresh time for the speedlight.

How to store the battery

When not in use remove battery from the charger or the speedlight and store battery in a cool and dry place. Exposing the battery to higher temperature can shorten the lifetime of the battery. Store the battery almost empty (one bar in the battery level indicator) when not used for a long period of time. For optimum battery life use battery

regularly and if not used for more than 6 months charge the battery fully and use it with the Modus 600RT until the battery level is down to 1 bar again before storage.

Battery Lifetime

The lifetime of a recharable battery is limited. The capacity will drop progressively with use and age of battery pack. Replace the battery pack when the flash cycle time becomes longer or the number of flashes reduces noticeably. The battery lifetime can vary substantially depending on storage, operation conditions and exposure to unsuitable environmental conditions

Caution

• Do not short circuit the battery
• Do not drop battery into water or fire
• Do not drop or dismantle or subject the batteries to strong impact or continuous mechanical shock
• Stop using the battery if the battery has any signs of damage or bulging to housing and dispose of battery in accordance with the appropriate local regulations

How to charge the battery

The HLX-MD1 battery must be charged before use. Use the supplied MD1 MKII charger to charge the battery. Connect the MD1 MKII charger to a USB adapter (min 5V 2 Amp) with the supplied Micro USB Cable. To start the charge insert the HLX-MD1 battery into the MD1 MKII charger and the green LED bars will illuminate, indicating that the battery is charging. 4 green LED's on indicates full charge. Remove the battery from charger when fully charged.

Fitting and Removing the Battery

Technical line drawing of a mechanical device with directional arrows indicating motion or movement (no text or symbols)

1. To fit the battery, push the battery compartment cover downward and open it.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

1. According to the triangle sign on the battery pack, insert it into the compartment until a white clip locks the battery with a click sound.

Technical line drawing of a mechanical assembly with gears and a directional arrow (no text or symbols)

1. To remove the battery, tap the white clip and the battery pack will pop out. Then close the compartment.

Battery Level Indication

Make sure the battery pack is securely fitted in the flash. Check the battery level indication on the LCD panel to see the remaining battery level.

Low Battery Warning

i-TTL Zoom 35mm

Battery Level Indication	Meaning
3 bars	Full
2 bars	Middle
1 bar	Low
No bars	Lower battery, please recharge it
Blinking	The battery level is going to be used out immediately.Note: Please recharge the battery as soon as possible (within 10 days). Then, the battery can be used or stored as detailed in the “How to store the battery” section.

Attaching to Camera

GB

Technical diagram showing camera component assembly with labeled parts a, b, and c

1. Attach the Speedlight to the camera.

Slip the flash's mounting foot into the camera's hotshoe all the way.

1. Secure the Speedlight Push the release button to rotate the lock ring on the mounting foot until it locks in position to the right.

3. Detach the Speedlight:

a) Push the release button.
b) Rotate the lock ring to the left until it is loosened.
c) Slide the speedlight off the camera hotshoe

Power Management

Use ON/OFF Power Switch to power the flash unit on or off. Turn off if it will not be used for an extended period of time. Setting as a master flash, it will turn the power off automatically after a certain period (approx. 90 seconds) of idle use. Pressing the camera shutter halfway or pressing any flash button will wake up the flash unit. Setting as a slave flash, it will enter sleep mode after a certain period (adjustable, 60 minutes by default) of idle use. Pressing any flash button will wake it up.

C.Fn Disabling Auto Power Off function is recommended when the flash is used off camera. (C.Fn-APO)

C.Fn Slave Auto Power Off Timer is set to 60 minutes by default. Another option "30 minutes" is available. (C.Fn-Sv APOT, Page 42)

Flash Mode - i-TTL Autoflash

This flash has three flash modes: i-TTL, Manual (M), and RPT (Stroboscopic). In i-TTL mode, the camera and the flash will work together to calculate the correct exposure for the subject and the background. In this mode, multiple TTL functions are available: FEC, FEB, FEL, HSS, second curtain sync, modeling flash. These can be controlled with the Modus 600RT or with the camera's menu screen.

i-TTL → M → RPT i-TTL M 200m 50nm MODE θ SET OFF

* Press < MODE > Mode Selection Button and three flash modes will display on the LCD panel one by one with each pressing.

I-TTL Mode

Press Mode Selection Button to enter i-TTL mode. The LCD panel will display i-TTL.

• Press the camera release button halfway to focus. The aperture and effective flash range will be displayed in the LCD panel.
• When the shutter button is fully pressed, the flash will fire a preflash which the camera will use to calculate the correct flash output power the instant before the photo is taken.

FEC: Flash Exposure Compensation

With FEC function, you can adjust the calculated level from -3 to +3 in 1/3 stops. It is useful in situations where minor adjusting of the TTL system is needed based on the lighting environment.

0.5 1 2 3 4 5 18m Zn/C-Fr 3.2% MODE 0 ON OFF CCCN

Setting FEC:

1. Press Function Button

2 < ☐ >. The icon < ☐ > and flash exposure compensation amount will be highlighted on the LCD panel.

i-TTL Zoom 50mm 32 + 0.7 0.5 1 2 4 9 18m Zm/C.Fm %

1. Set the flash exposure compensation amount.

2. Turn the Select Dial to set the amount.

3. "0.3" means 1/3 step, "0.7" means 2/3 step.

4. To cancel the flash exposure compensation, set the amount to “+0”.

5. Press < SET > button again to confirm the setting.

Zn/CFn MODE θ SET ON OFF Zn

FEB: Flash Exposure Bracketing

The Flash Exposure Bracketing can be set from your camera. Please refer to the Camera instruction manual for further details

FV Lock: Flash Value Lock

The Flash Value Lock can be enabled from the camera. Please refer to the Camera instruction manual for further details

High-Speed Sync

High Speed Sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is convenient when you want to use aperture priority for fill-flash portraits. To enable high speed sync in the Nikon camera menu, set the flash sync speed to 1/320's (Auto FP) or 1/250's (Auto FP). Refer to camera manual for more info.

i-TTL Zoom 50mm 2m/C.Fn +/- 18m

1. Press the camera shutter button halfway and the icon < 3H> will be displayed. If camera (Auto FP) is enabled. HSS is now turned on

If you set a shutter speed as 1/320s (Auto FP) or 1/250s (Auto FP) in the Nikon camera setting, < img> will be displayed in the flash screen regardless of actual shutter speed selected
- With high-speed sync, the faster the shutter speed, the shorter the effective range
- To return to normal flash, set the camera flash sync speed to other option other than Auto FP. Then the icon <#> will no longer be shown when half pressing the camera shutter button
- Multi- RPT mode cannot be set in high-speed sync mode
• Over-temperature protection may be activated after 15 consecutive high-speed flashes

Second-Curtain Sync

The Second curtain sync (Rear curtain sync) can be enabled from the camera. Please refer to camera instruction manual for further details.

Ro. When rear curtain sync is enabled it will not be displayed on the modus 600RT speedlight. See LCD on camera.

Flash Mode - Manual Flash

The flash output is adjustable from 1/1 full power to 1/128th power in 1/3rd stop increments. To obtain a correct flash exposure, use a hand-held flash meter to determine the required flash output.

0.5 1 2 4 9 18m Zn/C.Fn 3 Hz 0/02 SYNC MODE B ON OFF m Zoom 50mm 1/128 0.5 1 2 4 9 18m Zm/C.Fn 3 Hz 01/02 SYNC

1. Press button so that is displayed

2mA/CFn 1½ 0V/02 SYNC MODE 6 ON OFF SET

1. Turn the Select Dial to choose a desired flash output amount

2. Press < SET > button again to confirm the setting

Flash Output Power Range

The following table makes it easier to see how the stop changes in terms of f/stop when you increase or decrease the flash output.

For example, when you decrease the flash output: 1/2, 1/2-0.3, or 1/2-0.7, or increase the flash output: 1/2, 1/2+0.3, 1/2+0.7, 1/1.

Figures displayed when reducing flash output level→

1/1 1/1-0.3 1/2-0.3 ----1/1-0.7 1/2-0.7 1/2 1/4 1/2+0.7 1/4+0.7 ----1/2+0.3 1/4+0.3 ← ←

←Figures displayed when increasing flash output level

Optical O1 Secondary Unit Setting

In M manual flash mode, press button so that this flash can function as an optical O1 secondary flash using its optical sensor. With this function, the flash will fire synchronously when a second main flash fires. This is the same effect as using a radio trigger to fire the flash off camera. This helps create multiple lighting effects.

Optical O2 Secondary Unit Setting

In M manual flash mode, press button so that this flash can function as an optical O2 secondary flash using its optical sensor. With this function, the flash will fire synchronously when a second main flash fires as in O1 but it will ignore the metering pre-flash and fire only in response to the exposure flash from the main unit.

O1 and O2 optic triggering is only available in M manual flash mode.

Flash Mode: RPT (Stroboscopic Flash)

With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture multiple images of a moving subject in a single photograph.

You can set the firing frequency (number of flashes per sec.expressed as Hz), the number of flashes, and the flash output power.

0.5 1 2 4 9 18 n Zn/C.Fn # ½ TIMES Hz MODE 0 ON OFF Z

1. Press button so that is displayed

2. Turn the Select Dial to choose a desired flash output power

RPT Zoom 50mm 10 - 5Hz 1/64 0.5 1 2 4 9 18m Zm/CFn # % TIMES Hz

Zn/C.Fn + + TIMES Hz MODE θ SET ON OFF Z

1. Set the flash frequency and number of flashes

2. Press < Times > button

3. Turn the Select Dial to set the number of flashes
4. Press the < Hz >
5. Turn the Select Dial to choose a desired flash firing frequency
   • After you finish the setting, press button and all the settings will be displayed.

Calculating the Shutter Speed

During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below to calculate the shutter speed and set it on the camera.

Number of Flashes / Flash Frequency = Shutter Speed

For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2 seconds.

• To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in succession
- After 10 times, allow the speedlight to rest for at least 15 minutes. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens, allow at least 15 minutes' rest for the speedlight
- Stroboscopic flash is most effective with a highly reflective subject against a dark background
• Using a tripod and a remote control is recommended.
- A flash output of 1/1 and 1/2 cannot be set for stroboscopic flash
- Stroboscopic flash can be used with "buLb"
- If the number of flashes is displayed as “--”, the firing will continue until the shutter closes or the battery is exhausted. The number of flashes will be limited as shown by the following table.

Maximum Stroboscopic Flashes:

Flash output\Hz	1	2	3	4	5	6-7	8-9
1/4	7	6	5	4	4	3	3
1/8	14	14	12	10	8	6	5
1/16	30	30	30	20	20	20	10
1/32	60	60	60	50	50	40	30
1/64	90	90	90	80	80	70	60
1/128	100	100	100	100	100	90	80

Flash output Hz	10	11	12-14	15-19	20-50	60-199
1/4	2	2	2	2	2	2
1/8	4	4	4	4	4	4
1/16	8	8	8	8	8	8
1/32	20	20	20	18	16	12
1/64	50	40	40	35	30	20
1/128	70	70	60	50	40	40

If the number of flashes is displayed as "--", the maximum number of flashes will be as shown in the following table regardless of the flash frequency.

Flash Output	1/4	1/8	1/16	1/32	1/64	1/128
Number of Flashes	2	4	8	12	20	40

Wireless Flash Photography: (2.4GHz) Control

Master/Slave wireless flash lighting

When the camera's shooting mode is set to a fully automatic mode or an Image Zone mode, the operations in this chapter are not available. Set the camera's shooting mode to P/Tv/Av/M/B (Creative Zone Mode).

- The "Modus 600RT" attached to the Camera Hot shoe is called the "Master" unit. A second "Modus 600RT" which is wirelessly controlled is called the "Slave" unit - You can also wirelessly control the Modus 600RT as a "Slave" unit using a "Viper TTL" transmitter as a "Master" unit attached to the camera hotshoe

Using (Master/Slave) with wireless 2.4GHz control function allows you to easily perform shooting with advanced wireless multiple flash lighting in the same way as i-TTL autoflash photography. The system is designed so that the setting's of the "Master" attached to the camera are automatically applied to the wireless slave speedlights. Therefore you do not need to operate or adjust the slaves during shooting

Positioning and Operation Range (Example of wireless flash shooting)

- Master/Slave wireless flash lighting

SLAVE MASTER 2.4GHz wireless control with up to 100m range

The "Master" attached to the camera can be a "Modus 600RT" or "Viper TTL transmitter"
- Use the supplied mini stand to hold the Slave unit in upright position
- Before shooting perform a test falsh and test shooting
- The transmission distance may vary depending on the position of the slave speedlight, environment and weather conditions

Wireless multiple flash shooting

You can divide the slave units into one, two or three groups and perform i-TTL autoflash. In addition, you can set and shoot with a different flash mode for each firing group, for up to 3 groups, plus master.

• Auto Shooting with Two Slave Groups

• Auto Shooting with Three Slave Groups

A B M C

Wireless shooting using radio transmission has advantages over wireless shooting using optical control, such as being less affected by obstacles, and not having to point the slave unit's wireless sensor toward the master unit. The main functional differences are as follows:

Function	Radio Control Optical Control
Distance	100m	15m
Channel	DCM	1~4
A/B/C Power	OFF, 1/128~1/1	1/128~1/1
Interference	Hard	Easy
Group	A/B/C	A/B/C

Wireless Settings

You can switch between normal flash and wireless flash. For normal flash shooting, be sure to set the wireless setting to OFF

Master Unit Setting

TTL 200n 50nm M TTL A M H MAST ON OFF/RESET

Press < Z button so that < (☐) > and < MASTER > are displayed on the LCD panel.

Slave Unit Setting

TTL Zoom 50nm SLAVE ON OFF

Press < Z > button so that < (☐) > and < SLAVE > are displayed on the LCD panel

Master Unit Flash ON/OFF

You can switch ON or OFF the "Master" unit flash that is controlling the wireless "Slave" units. When Master flash is ON, it will flash as group M

8g R TTL A M B C Zoom 50nm R TTL A N B e

1. Press Function Button 4 < Gr > and one Group M/A/B or C will be highlighted

Zoom 50mm M A B MODE On MASTER Zn MODE ON

1. Press Function Button 4 < Gr > again until < M > is highlighted

2. Press Function Button 3 < MODE > until < M > is <--->. The master speedlight is now OFF

Setting the group mode - TTL / M / OFF

From the "Master" Modus Speedlight each Group M (master speedlight) / A / B / C "mode" setting can be adjusted individually.

Zoom 150mm M TTL 8.8+EV A M 1/128+0.3 B --- MASTER C --- Zn/C.Fn Gr

Zoom 50mm M TTL 8.8+ev A M 1/128+0.3 B --- MASTER C --- Zm/C.Fn % MODE Gr

1. Press Function Button

$$ 4 < \mathrm{Gr} > $$

- Keep pressing Button 4

$$ \begin{array}{l} < \boxed {\text {Gr}} > \text {until} < \boxed {\text {A}} \ > \text {is highlighted} \end{array} $$

1. Press Function Button

$$ \begin{array}{l} 3 < \text { MODE } > \text { and } \ \text { select the desired Mode } \ \text { i - TTL < TTL> / Manual } \ \text { < M> / Off < - - > } \end{array} $$

GB

Setting the DCM (Digital Channel Matching)

Initially the Modus 600RT wireless 2.4GHz is set to a general "open channel" and can be used as it is. To avoid interference with other wireless flash systems we recommend to DCM (digital channel match) your Modus 600RT speedlight's and Viper TTL.

Master – Viper TTL or Modus 600RT

C0 d n9 OK

1. If you have a Viper TTL, start the DCM matching with the Viper TTL

- Turn the Viper TTL transmitter whilst holding down the button and release button after 2 seconds

• The Viper LCD will show < Co di ng>

MASTER

1. If you are not using a Viper TTL and only wish to DCM several Modus 600RT, then use any Modus 600RT as the Master unit

- Press whilst turning the power to the Modus 600RT

- A green LCD on the Modus600RTwillshow

Slave - Modus 600RT

MODE ON OFF Z

1. Press whilst turing power to the slave Modus 600RT

SLAVE OK

1. A red LCD will show "Slave OK". This slave Modus 600 RT is now DCM matched

2. DCM match the same way, any additional slave Modus 600RT while the Master is still on

Once all slave units are DCM matched, reboot all master and slave's by turning OFF/ON

• Once all devices are DCM matched they will memorize the unique ID even it power is removed. Therefore you only need to DCM your set once
• If you add more speedlights or Viper TTL units to your range then you need to carry out the DCM matching for all your units again

Modus 600 RT - Reset

RESET MODE 0 SET ON OFF Z

- To reset the Modus 600RT to factory default settings press function buttons 3 & 4 at the same time and hold until the LCD shows < RESET > release the buttons

- When the Modus 600RT is reset the DCM is also reset back to open channel and the previous DCM is lost

i-TTL Fully Automatic Wireless Flash Shooting

Basic Automatic Wireless Flash shooting with a Single Slave Unit

Zoom 50mm M TTL 8.8+EV A M 1/128 B --- C --- MASTER Zm/C.Fn Gr

1. Master Unit Setting

2. Attach a Modus 600RT to the camera and set it as the master unit (Page 26)

3. The Viper TTL Transmitter can also be used as a master unit to control the wireless slave Modus 600RT (Page 38)

i-TTL Zoom 50mm SLAVE A Zm/C.Fn Gr

2. Slave Unit setting

- Set the slave Modus 600RT to < SLAVE > setting (Page 26)

3. Position of camera and speedlight

- Position the camera with the master unit attached and the Modus slave within radio range

4. Set the Group A flash mode to

- Check that group is set to . If not press button until is displayed

- Check that the slave unit is set automatically to by the master unit

MODE ON OFF

5 Check Master/Slave units are ready

- Check master speedlight, ready indicator is lighting and that the slave flash ready indicators are blinking

MODE 0 BETY ON OFF Z

6 Check the Master slave speedlight operation

- Press the master unit's <⚡> test button

- The slave speedlight will flash. If it does not fire, check the position or distance of slave from master

- You are now ready to take a photo with the wireless flash lighting

Using Automatic Wireless Flash with Multiple Slave Units

Illustration of a person sitting on a bed with three cameras above, viewed from below (no text or symbols)

When stronger flash output or more convenient lighting operation is needed, increase the number of slave speedlight's. To add slave units, use the same steps as setting "automatic wireless flash with a single slave unit" (Page 28). Any slave speedlight can be set as group (A/B/C).

When the number of slave units is increased or the master flash firing is set to ON, automatic control is performed to fire all flashes at the correct flash output to ensure that the total flash output results in the standard exposure.

• If the slave unit's auto power off takes effect, press the master unit's test flash button to turn on the slave unit. Note that the test flash cannot be performed while the camera's metering timer, etc. is operating
• The slave units auto power off setting can be changed (C.Fn-Sv / APOT page 42)
• In the C.Fn settings you can enable a beeper to sound when a Modus 600RT is recharged and ready to fire again

Advanced setting with fully automatic wireless flash

With the wireless system the following functions set on the master unit will automatically be adjusted on the slave unit. For this reason you do not need to operate the slave unit (s) and can operate it from the master in the same way as normal flash photography.

• Flash Exposure Compensation < ± > (Page 18)
• Flash Exposure Bracketing < FEB > (Page 19)
  • FV Lock: Flash Value Lock (Page 19)
  • High-Speed Sync < 5H > (Page 19)
  • Manual Flash (Page 20)
  • RPT: Stroboscopic Flash (Page 21)

- Second Curtain Sync - is only enabled when using the Viper TTL Transmitter

Multiple Master Unit

You can use two or more cameras with master flash units on each to change camera shooting while keeping the same lighting setup (slave units) in wireless flash photography.

M: Wireless Flash Shooting with Manual Flash

This describes wireless using manual flash. You can shoot with a different flash output setting for each slave unit (firing group). Set all parameters on the master unit.

2A/C/Fn MODE 0r 30 mm 1/4 +0.9 M 1/128+0.9 B M 1/42 +0.9 C M 1/16 +0.9 MASTER

Zoom 50mm M TTL 0.0EV A M 1/128 B --- C --- MASTER Zn/C.Fn # % MODE Gr

1. Setting the manual flash mode to

- Press Function Button 4 < Gr > to choose the group

- Then press Function Button 3 < MODE > to set the mode

1. Setting manual flash output power

- Press Function Button 2 < ± >. Turn the Select Dial to adjust the flash output of the group

- Press button to confirm

1. Setting individual group flash output power

2. Each group M (Master speedlight) / A / B / C can be set individually to different power level

- Set any group to <--> to turn of the power of this group

RPT: Wireless shooting with Multi repeating flash stroboscopic

(RPT) Zoom 50mm 18 - 5 ON/CFm MODE ON OFF BET OFF MEN

1. Setting stroboscopic flash

- On the Master Speedlight press button until is displayed

- Turn the Select Dial to adjust the flash output power. Press button to confirm

RPT Zoom 50mm 19 - 5 Hz 4/64 M ON A ON H OFF C OFF Zm/CJFn Gr MENU1

2. Turning ON/OFF group M (master speedlight) / A / B / C

- Press Function Button 3 < Gr >. Then turn the Select Dial to set the group ON/OFF

- Press Function Button 3 < Gr > again to select the next group. Press button to confirm

RPT Zoom 50 mm 1/32 6 - 6Hz ON A ON OFF C OFF Zm/C.Fn TIMES Hz MENU2

3. Setting the stroboscopic flash parameters

- Press Function Button 4 < MENU1 >. This will display < MENU2 > which enables selecting of power < ± >, number flashes < Times > and frequency < Hz > - Press < ± > or < Times > or < Hz > to adjust the relevant setting

M/A/B/C: Wireless flash shooting with different flash modes for each goup

You can shoot with different flash modes set for each firing group (M/A/B/C). The flash modes that can be set are i-TTL auto flash / manual / OFF. When the flash mode is in i-TTL exposure is controlled to result in standard exposure for the main subject as a single group. This function is for advanced user who are very knowledgeable and experienced in lighting.

SLAVE A SLAVE B MASTER SLAVE C

Zoom 50mm M TTL 8.8+EV A M 1/128+0.3 B --- - MASTER C --- - Zm/C.Fn Gr

1. Set master Unit

- Press the button and set the flash mode to See Page 26

GB

i-TTL Zoom 50mm CH1 SLAVE A Zm/CFn Gr Cl

2. Set the firing group of the slave units

• Operate and set the slave units one by one
- Press Function Button
< Gr > to assign the speedlight to group , or . See

Zoom 50mm M TTL A M B --- C --- 8.8+EV 1/128+0.3 MASTER Zm/C.Fn % MODE Gr

3. Set the flash modes

- Set the flash mode of each firing group by the operation of the master speedlight. See Page 27

Gr Zoom 50mm MASTER A TTL +0.7eV B M √64 +0.3 C ---- Zm/C/Fm MODE #+

4. Set the flash output and flash exposure compensation amount

• While a firing group is selected, press Function Button 3 <
• Turn the Select Dial to set the flash function corresponding to flash mode, and press Button to confirm
• When using the mode, set the flash output power
• When using the mode, set the flash exposure compensation amount as required
• Repeat step 4 to set the flash function of all groups
• Press Function Button 4 to return to the shooting-ready state

This product is compatible with Nikon Creative Lighting System (CLS). It can function as either optic wireless master or slave flash. As a master unit, it can control Nikon Speedlight's e.g. SB-900, and SB-910 via wireless. As a slave unit, it can be controlled by wireless signals of Nikon Speedlight's e.g. SB-910 and pop-up flash commanders of Nikon cameras e.g. D7100/D7000/D800

• You can set up one, two or three slave groups for i-TTL II autoflash shooting. With i-TTL II autoflash, you can easily create various lighting effects.
• Any flash settings (of flash exposure compensation, high-speed sync, FE lock, FEB, manual flash, Multi flash) on the master unit will be automatically sent to the slave units. So the only thing you need to do is to set the master unit to i-TTL mode without any operation for the slave units at all during the shooting.
• This flash can work in i-TTL autoflash, M manual flash, and Multi stroboscopic flash modes when set as a master unit.

Positioning and Operation Range

15m(49.2ft) SLAVE Indoors Outdoors MASTER 80° 10m(32.8ft) 8m(26.2ft) 12m(39.4ft)

• Even with multiple slave units, the master unit can control all of them via wireless.
• In this user manual, "master unit" refers to the speedlight attached to the camera and "slave unit" will be controlled by the master unit.

Wireless Settings

You can switch between normal flash and wireless flash.

For normal flash shooting, be sure to set the wireless setting to OFF

Master Unit Setting

i-TTL Zoom 50mp M TTL 1r 12° A M B MATERIAL SCT

Press < > button so that < > and < MASTER > are displayed on the LCD panel.

Slave Unit Setting

TTL Zoom 50mm SLAVE ON OFF

Press < Z > button so that < Z > and < SLAVE > are displayed on the LCD panel.

Master Unit Flash ON/OFF

You can switch ON or OFF the "Master" unit flash that is controlling the wireless "Slave" units. When Master flash is ON, it will flash as group A.

For more detailed information on this feature see description under 2.4GHz Radio control (Page 26)

Even if the master unit flash firing is disabled, it still fires a preflash to transmit wireless signals

Setting the optical Communication Channel

The Modus 600RT has four optical communication channels. The master and the speedlights must be set to the same channel.

Master

• Press function button 3 < CH > and use the select dial to set the required channel
• Press button to lock selection

Slave

• Press function button 4 < CH > and use the select dial to set the required channel
• The channel must be set the same as the master speedlight

i-TTL Fully Automatic Wireless Flash Shooting

Using Automatic Wireless Flash with a Single Slave Unit

⚠️. For more detailed information on this feature see description under 2.4GHz Radio control (Page 28)
- The Viper TTL transmitter cannot be used for optical control
- All Master / Slave speedlights must be set to the same Optical channel - Optical range is much shorter than radio range

M: Wireless flash shooting with manual flash

For more detailed information on this feature see description under 2.4GHz Radio control (Page 31)

RPT: Wireless shooting with Multi repeating flash stroboscopic

For more detailed information on this feature see description under 2.4GHz Radio control (Page 31)

Wireless Flash Photography:

(2.4GHz) using

Viper TTL Transmitter

Wireless Settings

DCM (Digital Channel Matching)

1. DCM (Digital Channel Matching). Carry out the DCM matching, see page 27
2. Set the Modus 600RT to 2.4GHz as Slave Unit - Group A, see page 27
3. Press Viper 08 button to confirm that Modus Speedlight is triggered wirelessly

Viper TTL group Mode Setting

Press buttons A or B or C to change the MODE setting of each group to , manual & OFF.

Take a test photograph now and the Viper transmitter will send a wireless signal to each Modus 600RT and to each 3rd Party Speedlight connected to a Viper TTL receiver. The Speedlight will then be set automatically to the same Viper TTL selected group mode setting.

F0

• The Viper LCD 05 will show the setting of each group
- A group is turned OFF if the LCD is not showing the group
- A group is in Manual mode when is displayed next to the group
- A group is in TTL mode when is displayed next to the group
• Each group A, B or C is set independently and it is possible to use simultaneously different setting for each group (e.g. Group A may be in , Group B in and Group C turned OFF)

Group Power Control setting for Manual and TTL FEC

From the Viper TTL transmitter you can adjust the power level and the FEC of each group.

1. Press 02 select button and all three icons , and will flash.
2. Press one button A or B or C to select which group you want to adjust the power. Now only the selected group icon will flash
3. Use the adjust dial to set the power output in mode and FEC in TTL mode
4. Press the button to lock your selection

Multi Mode

- Press and hold the button to select the Multi mode icon. Use the button, Group Buttons and adjust dial to set the number of flashes, flash frequency and power output. Press the button again to lock selection

• For more detail on operation of the viper TTL visit www.hahnel.ie

Sync Modes

• Press and hold the < Group B > button to select the High Speed sync < 📋 > icon will switch on
• Press and hold the < Group B > button again to go back to normal sync

⚠ Ensure that high speed sync is also enabled in the camera by setting the flash sync speed to 1/320's (Auto FP) or 1/250's (Auto FP). Refer to camera manual for more info

6

Other

Applications

Sync Triggering

- The Sync Cord Jack is a 2.5mm plug. Insert a trigger plug here and the flash will be fired synchronously with the camera shutter.

• To avoid overheating and deteriorating the flash head, do not fire the modeling flash for more than 10 consecutive times. If you fire the modeling flash 10 consecutive times, allow at least 10 minutes' break for the camera flash.
• The modeling flash cannot be fired with the EOS 300 and Type-B cameras.

Auto Focus Assist Beam

In poorly-lit or low-contrast shooting environments, the built-in auto focus assist beam will automatically switch on to make it easier to autofocus. The beam will light up only when autofocus is difficult and will switch off as soon as the autofocus is set.

If you want to turn off the auto focus assist beam, set "AF" to "OFF" on the C.Fn settings.

- If you find the auto focus assist beam does not light up, this is because the camera has got a correct autofocus.

Position	Effective Range
Center	0.6~10m / 2.0~32.8 feet
Periphery	0.6~5m / 2.0~16.4 feet

Bounce Flash

By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can soften shadows behind the subject for a more natural-looking shot. This is called bounce flash. To set the bounce direction, hold the flash head and turn it to the required angle.

-7-90° 360°

If the wall or ceiling is too far away, the bounced flash might be too weak and result in underexposure.

- The wall or ceiling should be a plain, white color for high reflectance. If the bounce surface is not white, a color cast may appear in the picture.

Catchlight Panel

GB

With the catchlight panel, you can create a catchlight in the subject's eyes to add life to the facial expression.

Illustration of a mesh heat sink with a red arrow indicating upward motion (no text or symbols)

1. Point the flash head upward by 90°
2. Pull out the wide panel. The catchlight panel will come out at the same time

Diagram of a device with a lid and a mesh cover, showing a red downward arrow (no text or symbols)

1. Push the wide panel back in

- Push in only the wide panel

• Follow the same procedures as for bounce flash

ZOOM: Setting the Flash Coverage and Using the Wide Panel

The flash coverage can be set automatically or manually. It can be set to match the lens focal length from 20 mm to 200mm. Also, with the built-in wide panel, the flash coverage can be expanded for 14mm wide-angle lenses.

MODE ON OFF TITLE A Room

In Manual Zoom mode, press the button.

• Turn the Select Dial to change the flash coverage
• If < A> is displayed, the flash coverage will be set automatically

• If you set the flash coverage manually, make sure it covers the lens focal length so that the picture will not have a dark periphery.

Using the Wide Panel

Technical line drawing of a mechanical component with a meshed panel (no text or symbols)

Pull out the wide panel and place it over the flash head as shown. The flash coverage will then be extended to 14 mm.

• The catchlight panel will come out at the same time. Push the catchlight panel back in.
- The button will not work.

C.Fn: Setting Custom Functions

The following table lists the available and unavailable custom functions of this flash.

C Fn Custom Functions
Custom Function Signs	Function	Setting No.	Settings & Description	Custom Functions No.
m/ft	Distance indicator	m	m	C.Fn-00
		ft	feet
APO	Auto power off	ON	ON	C.Fn-01
		OFF	OFF
AF	AF-assist beam	ON	ON	C.Fn-08
		OFF	OFF
Sv APOT	Slave auto power off timer	60min	60min	C.Fn-10
		30min	30min
BEEP	Beeper	ON	ON	C.Fn-20
		OFF	OFF
LIGHT	Backlighting time	12sec	Off in 12 sec.	C.Fn-22
		OFF	Always off
		ON	Always lighting
LCD	LCD contrast ratio	0~9	10 levels

1. Software Version

Press Backlight/Custom Setting Button for 2 seconds or longer until C.Fn menu is displayed. The "Ver x.x" in the topright corner refers to the software version.

2. Select the Custom Function No

- Turn the Select Dial to select the Custom Function number

3. Change the Setting

- Press button and the Setting No. blinks.

- Turn the Select Dial to set the desired option. Pressing button will confirm the settings.

• After you set the Custom Function and press function button 4, the camera will be ready to shoot.

4. C.Fn Default

In the C.Fn menu, a long press of the "Clear" button for 2 seconds until "OK" is displayed on the panel, which means the values in C.Fn are reset to their default options

Protection Functions

GB

1. Over-Temperature Protection

• To avoid overheating and deteriorating the flash head, do not fire more than 30 continuous flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow a rest time of at least 10 minutes
• If you fire more than 30 continuous flashes and then fire more flashes in short intervals, the inner over-temperature protection function may be activated and make the recycling time over 10 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will then return to normal

- When the over-temperature protection is active,

Number of flashes that will activate over-temperature protection:

Power Output level	Number of Flashes
1/1	30
1/2 +0.7	40
1/2 +0.3	50
1/2	60
1/4(+0.3,+07)	100
1/8(+0.3,+07)	200
1/16(+0.3,+07)	300
1/32(+0.3,+07)	500
1/64(+0.3,+07)	1000
1/128(+0.3,+07)

Number of flashes that will activate over-temperature protection in high-speed sync triggering mode:

Power Output Times
1/1	15
1/2(+0.3,+07)	20
1/4(+0.3,+07)	30
1/8(+0.3,+07)
1/16(+0.3,+07)	40
1/32(+0.3,+07)
1/64(+0.3,+07)	50
1/128(+0.3,+07)

2. Other Protections

The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference:

Prompts on LCD Panel	Meaning
E1	A failure occurs on the recycling system so that the flash cannot firePlease restart the flash unit. If the problem still exists, please send this product to a maintenance center
E2	The system gets excessive heat.Please allow a rest time of 10 minutes
E3	The voltage on two outlets of the flash tube is too high. Please send this product to a maintenance center
E9	There are some errors occurred during the upgrading process. Please use the correct firmware upgrade method

Technical Data

Model Modus 600RT
Compatible Cameras		Nikon DSLR cameras (i-TTL auto flash)
Guide No.(1/1 output@ 200mm)		60 (m ISO 100)190 (feet ISO 100)
Flash Coverage		20 to 200mm (14mm with wide panel)• Auto zoom (Flash coverage set automatically to match the lens focal length and image size)• Manual zoom• Swinging/titting flash head (bounce flash): O to 360' horizontally and -7' to 90' vertically
FlashDuration		1/300 to 1/20000 seconds
Exposure control system		i-TTL autoflash and manual flash
Flash exposure compensation (FEC)		Manual. FEB: ±3 stops in 1/3 stop increments(Manual FEC and FEB can be combined.)
Sync mode		High-speed sync (up to 1/8000 seconds),first-curtain sync, and second-curtain sync
Multi flash		Provided (up to 100 times, 199Hz)
• Wireless Flash
Wireless flash function		Master, Slave, Off
Controllable Optical slave groups 2.4GHz		M/ A / B/ CM/ A / B/ C
Transmission range(approx.)	Optical	Indoors: 12 to 15 m / 39.4 to 49.2 ft.Outdoors: 8 to 10 m / 26.2 to 32.8 ft.Master unit reception angle: ±40' horizontally,±30' vertically
	2.4GHz	Up to 100m
Channels	Optical	4 (1, 2, 3, and 4)
	2.4GHz	Digital Channel Matching
Slave-ready indicator		Two red indicators blink
Modeling flash		Fired with camera's depth-of-field preview button
• Auto Focus Assist Beam
Effective range (approx.)		Center: 0.6-10m / 2.0-32.8 feetPeriphery: 0.6-5m / 2.0-16.4 feet
• Power Supply
Power source		10.8V/2040mAh Li-ion battery
Recycle time		1.5 seconds. RED LED indicator will light up when the flash is ready
Full power flashes		Approx. 500
Power saving		Power off automatically after approx. 90 seconds of idle operation. (60 minutes if set as slave)
• Sync Triggering Mode		Hotshoe, 2.5mm sync line, Wireless control
• Color Temperature		5600±200k
• Dimensions
W x H xD		64*76*190 mm
Weight without battery		430g
Weight with battery		540g

B

Troubleshooting

If there is a problem, refer to this Troubleshooting Guide. The Camera Flash does not fire.

• The camera flash is not attached securely to the camera.
• Attach the camera's mounting foot securely to the camera.
• The electrical contacts of the Camera Flash and camera are dirty.
  • →Clean the contacts.
• <> or <_H> is not displayed in the view finder of camera.
• Wait until the flash is fully recycled and the flash ready indicator lights up.
• →If the flash ready indicator lights up, but < ↗> or < ↘ is not displayed in the view finder, check whether this flash unit is securely attached to the camera hotshoe.
• →If the flash ready indicator does not light up after a long wait, check whether the battery power is enough. If the battery power is low, will appear and blink on the LCD panel. Please replace the battery immediately.

The power turns off by itself.

• After 90 seconds of idle operation, auto power off took effect if the flash is set as master.
• Press the shutter button halfway or press any flash button to wake up.
• After 60 minutes (or 30 minutes) of idle operation, the flash unit will enter sleep mode if it is set as slave.
• Press any flash button to wake up.

•

Auto zoom does not work

• The camera flash is not attached securely to the camera.
• Attach the camera flash's mounting foot to the camera.

The flash exposure is underexposed or overexposed.

• There was a highly reflective object (e.g. glass window) in the picture.
  • →Use FE lock (FEL).
• You used high-speed sync.
• With high-speed sync, the effective flash range will be shorter. Make sure the subject is within the effective flash range displayed.
• You used Manual Flash mode.
• Set the flash mode to I-TTL or modify the flash output.

Photos have dark corners or only parts of the target subject are illuminated.

- The focal length of lens exceeds the flash coverage.

- → Check the flash coverage you set. This flash unit has the flash coverage between 20 and 200mm, which fits medium-format cameras. Pull the wide panel out to extend the flash coverage.

GB

Firmware Upgrade

This flash supports firmware upgrade through the USB port. Update information will be released on our official website.

- USB connection cable is not included in this product. The USB port is a standard Micro USB socket. Common USB connection cable is suitable.

Compatible Camera Models

• For up to date compatibility of all camera models check www.hahnel.ie

Maintenance

• Shut down the device immediately should abnormal operation be detected
• Avoid sudden impacts and the product should be cleaned regularly
• It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary
• Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories
• This product, except consumables e.g. flash tube, is supported with a one-year warranty
• Unauthorized service will void the warranty
• If the product has malfunctioned or has been damaged by water do not use until it is repaired by a professional
• Changes made to the specifications or designs may not be reflected in this manual

This Product complies with the EU Radio Equipment Directive 2014/53/EU. For compliance data visit www.hahnel.ie

MODUS 60ORT MKII

Line drawing of a Modus GOORT camera module (no text or symbols on the device body)

Speedlight sans fil de Nikon

FR

Avant-propos

15 16 Zoom 50nm M TTL 0.0EV A M 1/120 B --- MASTER C --- Zm/C.Fn Gr

i-TTL Zoom 35 min +1 0.7m - 9.8m F4.0 Zm/C.Fn # +/<

Zoom 50mm M TTL 0.0kV A M 1/120 CH 1 B = = = MASTER C = - - Zlly/C.Fn CH Gr

Three-panel diagram showing a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Technical diagram showing camera component assembly with labeled parts a, b, and c

i-TTL → M → RPT i-TTL M Zoom 50 mm MODE θ SET OFF

i-TTL Zoom 50mm Zm/C.Fn %+

Zoom 150mm M TTL 8.8+EV A M 1/128+0.3 B --- MASTER C --- Zn/C.Fn Gr

Zoom 50mm M TTL 8.8+ev A M 1/128+0.3 B --- MASTER C --- Zm/C.Fn % MODE Gr

Zoom 50mm M TTL 8.0+EV A M 1/128 B --- C --- MASTER Zm/C.Fn Gr

1. Master Unit Setting

NODC SET ON OFF

Diagram of a device control panel with Chinese labels and a red indicator symbol

Illustration of a person standing on a bed with three camera sensors, no text or symbols present

Zoom 50mm M TTL 9.8EV A M 1/128 B --- MASTER C --- Zn/C.Fn % MODE Gr

(RPT Zoom 50mm 18 - 5 Zn/DFn A ON OFF MODE SET ON OFF MBN

RPT Zoom 50mm 19 - 5 Hz 4/64 M ON A ON H OFF C OFF Zm/CJFn Gr MENU1

Zoom 50mm M TTL 8.8+EV A M 1/128+0.3 B --- - MASTER C --- - Zm/C.Fn Gr

i-TTL Zoom 50 min CH1 SLAVE A Zm/CFn Gr Cl

Zoom 50mm M TTL A M B --- C --- 8.8+EV 1/128+0.3 MASTER Zm/C.Fn % +/- MODE Gr

Gr Zoom 50mm MASTER A TTL +0.7eV B M √64 +0.3 C ---- 2m/CFm MODE %+

i-TTL Zoom 50mp M TTL 1/12" A M B MATERIAL SET

Illustration of a mesh device with a red upward arrow indicating motion (no text or symbols)

Diagram of a device with a lid and a mesh cover, showing a red downward arrow (no text or symbols)

MODE BUY ON TITL A Room

Technical line drawing of a mechanical component with a meshed internal structure (no text or symbols)

Model Modus 600RT
Compatible Cameras		Nikon DSLR cameras (i-TTL auto flash)
Guide No.(1/1 output@ 200mm)		60 (m ISO 100)190 (feet ISO 100)
Flash Coverage		20 to 200mm (14mm with wide panel)• Auto zoom (Flash coverage set automatically to match the lens focal length and image size)• Manual zoom• Swinging/titting flash head (bounce flash): O to 360' horizontally and -7' to 90' vertically
FlashDuration		1/300 to 1/20000 seconds
Exposure control system		i-TTL autoflash and manual flash
Flash exposure compensation (FEC)		Manual. FEB: ±3 stops in 1/3 stop increments(Manual FEC and FEB can be combined.)
Sync mode		High-speed sync (up to 1/8000 seconds),first-curtain sync, and second-curtain sync
Multi flash		Provided (up to 100 times, 199Hz)
• Wireless Flash
Wireless flash function		Master, Slave, Off
Controllable Optical slave groups 2.4GHz		M/ A / B/ CM/ A / B/ C
Transmission range(approx.)	Optical	Indoors: 12 to 15 m / 39.4 to 49.2 ft.Outdoors: 8 to 10 m / 26.2 to 32.8 ft.Master unit reception angle: ±40' horizontally,±30' vertically
	2.4GHz	Up to 100m
Channels	Optical	4 (1, 2, 3, and 4)
	2.4GHz	Digital Channel Matching
Slave-ready indicator		Two red indicators blink
Modeling flash		Fired with camera's depth-of-field preview button
• Auto Focus Assist Beam
Effective range (approx.)		Center: 0.6-10m / 2.0-32.8 feetPeriphery: 0.6-5m / 2.0-16.4 feet
• Power Supply
Power source		10.8V/2040mAh Li-ion battery
Recycle time		1.5 seconds. RED LED indicator will light up when the flash is ready
Full power flashes		Approx. 500
Power saving		Power off automatically after approx. 90 seconds of idle operation. (60 minutes if set as slave)
• Sync Triggering Mode		Hotshoe, 2.5mm sync line, Wireless control
• Color Temperature		5600±200k
• Dimensions
W x H xD		64*76*190 mm
Weight without battery		430g
Weight with battery		540g

[Unreadable]

Dépannage

QR code image with red square highlights, likely for digital scanning and linking to online content

DE

FR

SP

IT

PT

IL

PL

CZ

SE

Scan QR code for more info & other languages

All brands, trademarks and registered trademarks are the property of their respective holders. Copyright © hähnel industries Ltd, Ireland.

www.hähnel.ie

π

DE

MODUS 60ORT MKII

DE

Line drawing of a MODUS COORT camera module (no text or symbols on the device body)

i-TTL Zoom 35mm 07 + 12 08 0.7m = 9.0m F4.0 09 Zm/C.Fn + 11

(1) TTL Autoflash

15 16 Zoom 50nm M TTL 0.0kV A M 1/120 B --- - MASTER C --- - Zm/C.Fn Gr

1. Kabellose

Zoom 50mm M TTL 9.8EV A M 1/120 CH1 B MASTER C Zm/C.Fn CH Gr

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a black arrow indicating a specific section (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical component assembly with labeled parts a, b, and c

i-TTL → M → RPT i-TTL M Zoom 50mm MODE θ SET OFF

i-TTL Zoom 50min Zm/C.Fn %

2n/C.Fm 1+2 0V/02 6YNG MODE θ SET ON OFF Z

TTL→装开 接开→装开 接开→装开 M 2000 50mp M TTL A M H ON OFF MASTER

Zoom 50mm M TTL 8.8+EV A M 1/128+0.3 B --- C --- MASTER Zn/C.Fn Gr

Zoom 50mm M TTL 8.8+ev A M 1/128+0.3 B --- MASTER C --- Zm/C.Fn % MODE Gr

Zoom 50mm M TTL 8.8+EV A M 1/128 B --- MASTER C --- Zm/C.Fn Gr

NODC ON OFF OFF

Diagram of a device control panel with labeled buttons and a red indicator light pointing to the left panel.

Illustration of a person sitting on a bed under a curved roof, with two camera holders and a person standing nearby (no text or symbols)

DE

Zoom 50mm M TTL 9.0EV A M 1/128 B --- C --- MASTER Zn/C.Fn % MODE Gr

(RPT Zoom 50mm 18 - 5 Zn/DFn A ON OFF MODE SET ON OFF MBN

Zoom 50mm M TTL 8.8+EV A M 1/128+0.3 B --- - MASTER C --- - Zn/C.Fn Gr

i-TTL Zoom 50 mm CH1 SLAVE A Zn/C.Fn Gr CH

Zoom 50mm M TTL A M B --- C --- MASTER Zm/C.Fn # +/ MODE Gr

Gr Zoom 50mm MASTER A TTL +0.7eV B M √64 +0.3 C ---- 2m/CFm MODE %+

INNEN 15m(49.2ft) SLAVE IM FREIEN 10m(32.8ft) MASTER 80° 8m(26.2ft) 12m(39.4ft)

i-TTL Zoom 50mp M TTL 1/12" A M B M SCT Z + - + -

Illustration of a mesh fan or filter device with a red arrow pointing to it, no text or symbols present.

Diagram of a device with a red arrow pointing to a component, no text or symbols present

MODE & ON A A100mm S

Technical line drawing of a mechanical component with a meshed panel (no text or symbols)

Model Modus 600RT
Compatible Cameras		Nikon DSLR cameras (i-TTL auto flash)
Guide No.(1/1 output@ 200mm)		60 (m ISO 100)190 (feet ISO 100)
Flash Coverage		20 to 200mm (14mm with wide panel)• Auto zoom (Flash coverage set automatically to match the lens focal length and image size)• Manual zoom• Swinging/titting flash head (bounce flash): O to 360' horizontally and -7' to 90' vertically
FlashDuration		1/300 to 1/20000 seconds
Exposure control system		i-TTL autoflash and manual flash
Flash exposure compensation (FEC)		Manual. FEB: ±3 stops in 1/3 stop increments(Manual FEC and FEB can be combined.)
Sync mode		High-speed sync (up to 1/8000 seconds),first-curtain sync, and second-curtain sync
Multi flash		Provided (up to 100 times, 199Hz)
• Wireless Flash
Wireless flash function		Master, Slave, Off
Controllable Optical slave groups 2.4GHz		M/ A / B/ CM/ A / B/ C
Transmission range(approx.)	Optical	Indoors: 12 to 15 m / 39.4 to 49.2 ft.Outdoors: 8 to 10 m / 26.2 to 32.8 ft.Master unit reception angle: ±40' horizontally,±30' vertically
	2.4GHz	Up to 100m
Channels	Optical	4 (1, 2, 3, and 4)
	2.4GHz	Digital Channel Matching
Slave-ready indicator		Two red indicators blink
Modeling flash		Fired with camera's depth-of-field preview button
• Auto Focus Assist Beam
Effective range (approx.)		Center: 0.6-10m / 2.0-32.8 feetPeriphery: 0.6-5m / 2.0-16.4 feet
• Power Supply
Power source		10.8V/2040mAh Li-ion battery
Recycle time		1.5 seconds. RED LED indicator will light up when the flash is ready
Full power flashes		Approx. 500
Power saving		Power off automatically after approx. 90 seconds of idle operation. (60 minutes if set as slave)
• Sync Triggering Mode		Hotshoe, 2.5mm sync line, Wireless control
• Color Temperature		5600±200k
• Dimensions
W x H xD		64*76*190 mm
Weight without battery		430g
Weight with battery		540g

Fehlersuche

QR code image with red square highlights, likely for digital scanning and linking to online content

DE

FR

SP

IT

PT

IL

PL

CZ

SE

Scan QR code for more info & other languages

All brands, trademarks and registered trademarks are the property of their respective holders. Copyright © hähnel industries Ltd, Ireland.

www.hähnel.ie
