USER MANUAL IAN 382877 Livarno Lux
GBIE
BOOKCASE WITH FOLD-OUT DESK SHORT MANUAL
FRBE
ÉTAGÈRE MURALE AVEC TABLETTE RABATTABLE
GUIDE DE DÉMARRAGE RAPIDE
CZ
NÁSTĚNNÝ REGÁL S VÝKLOPNOU ODKLÁDACÍ PLOCHOU
STRUČNÝ NÁVOD
SK
NÁSTENNÝ REGÁL S VÝKLOPNOU ODKLADACOU PLOCHOU
KRÁTKY NAVOD
DK
VÄGHYLDE MED UDKLAPPELIG HYLDE
KORT VEJLEDNING
HU
FALI POLC LEHAJTHATÓ LERAKÓVAL
GYORS ÚTMUTATÓ
DEATCH
WANDREGAL MIT KLAPPBARER ABLAGE KURZANLEITUNG
NLBE
GB/IE Bookcase with Fold-Out Desk
Short manual
11
BOOKCASE WITH FOLD-OUT DESK
Short manual
This document is an abridged print version of the complete operating instructions. With this QR code, you can directly reach the Lidl Service website (www.lidl-service.com) and can open your operating instructions be entering the article number (IAN) 382877_2110
WARNING! Observe the complete operating instructions and the safety instructions to avoid personal injury and damage to property. The Quick Start Guide is part of this product. Familiarise yourself with all of the operating Short manual information before using the product. Keep the Quick Start Guide in a safe place and hand over all documents when passing the product on to third parties.
Hereinafter, the bookcase with Fold-Out Desk will be referred to as product.
This symbol indicates that the product should be lifted by a minimum of two people.
Safety Intend
The product is not intended for commercial use. Different use or a modification to the product are not deemed as intended use and may lead to risks, such as injuries and damage. The distributor assumes no liability for damage that results from improper use.
The product is exclusively suitable for interior use.
Scope of delivery (Fig. A)
Tx Cover plate ①
1x Base plate ②
1x Side part left ③
1x Side part right ④
1x Centre part ⑤
1x Horizontal part
2x Shelf ⑦
4x Insert shelf ⑧
1x Pinboard 9
1x Chalkboard ⑩
GB/IE GB/IE
1x Table plate ⑪
1x Rear wall ⑫
13x Connecting bolt A
13x Cam screw Ⓗ
26x Wooden dowel©
1x Wood screw 4 x 40 mm (D)
24x Wood screw 4 x 16 mm ^E
4x Hinge F
1x Folding hinge Ⓖ
1x Folding hinge (H)
4x Threaded screw 6 x 40 mm ①
4x Travelling nut ①
2x Mounting bracket Ⓚ
2x Wood screw 4 x 14 mm Ⓛ
16x Pin Ⓜ
4x Wall plug ∅ 8 mm Ⓝ
4x Wood screw 5 x 50 mm
1x Allen key 4 mm Ⓟ
1x Closing plate Ⓠ
1x Hook lock Ⓡ
12x Wood screw 3 x 12 mm⑤
1x Assembly instructions (not shown)
Technical specifications
Type: Bookcase with Fold-Out Desk
IAN: 382877_2110
Tradix Item No.: 382877-21-A
Dimensions (folded as memo board)
approx. 50 x 80 x 18.5 cm (W x H x D)
Dimensions (unfolded)
approx. 50 x 153 x 93 cm (W x H x D)
Table: approx. 46.5 x 76.5 x 76 cm [W x H x D]
Total load max. 20 kg
- Shelf: max. 5 kg each
- Table: max. 10 kg
Material: MDF, cork
Production date: 01/2022
Warranty: 3 years
Safety information
WARNING!
Risk of injury and suffocation!
If children play with the product or the packaging, they may injure themselves or suffocate!
- Do not let children play with the product or the packaging.
- Supervise children who are close to the product.
- Keep the product and the packaging out of the reach of children.
WARNING!
Risk of injury!
Not suitable for children under the age of 8! There is a risk of injury!
- Children from the age of 8, as well as people with impaired physical, sensory or mental capabilities or with a lack of experience and knowledge, must be supervised when using the product and/or be instructed regarding the safe use of the product and understand the resulting dangers.
Children are not allowed to play with the product.
Maintenance and/or cleaning of the product is not allowed to be performed by children.
WARNING!
Risk of injury!
A defective product is not allowed to be used! There is a risk of injury!
Do not use the product in the case of malfunctions, damage or defects.
- Significant danger can occur for the user in the case of improper repairs.
- If you find a defect in the product, have the product checked and repaired if necessary before putting it back into operation.
Assembly
-
Remove all packaging materials.
-
Check whether all parts are available and undamaged.
If this is not the case, notify the specified service address.
For assembly, you will need a Phillips screwdriver (not included in the scope of supply) and an Allen key ① (included in the scope of supply).

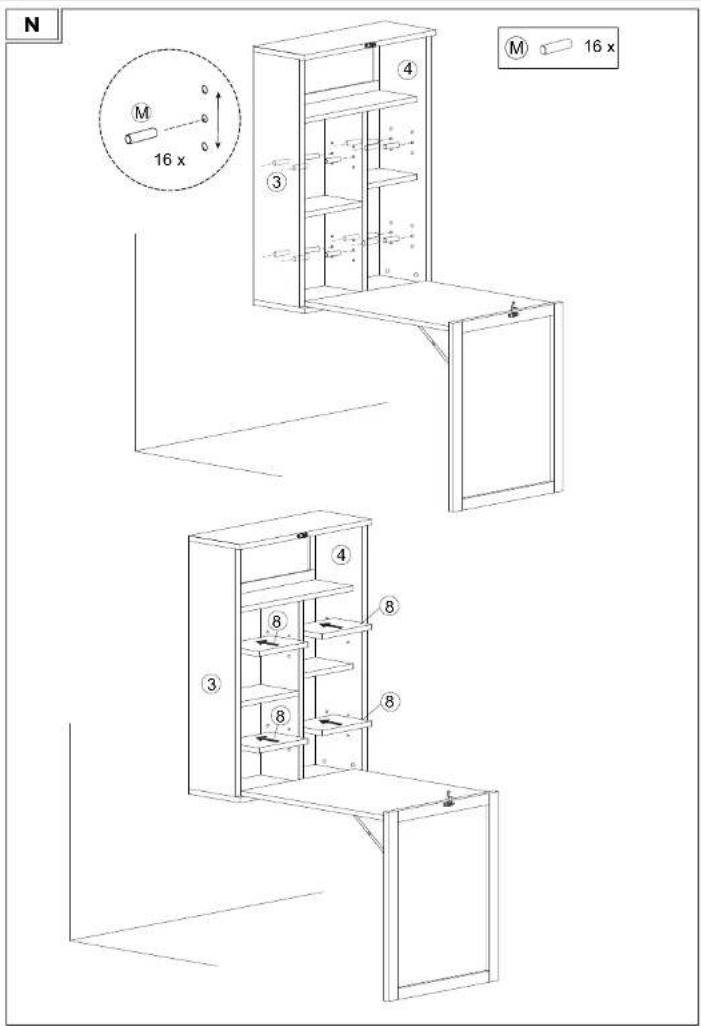

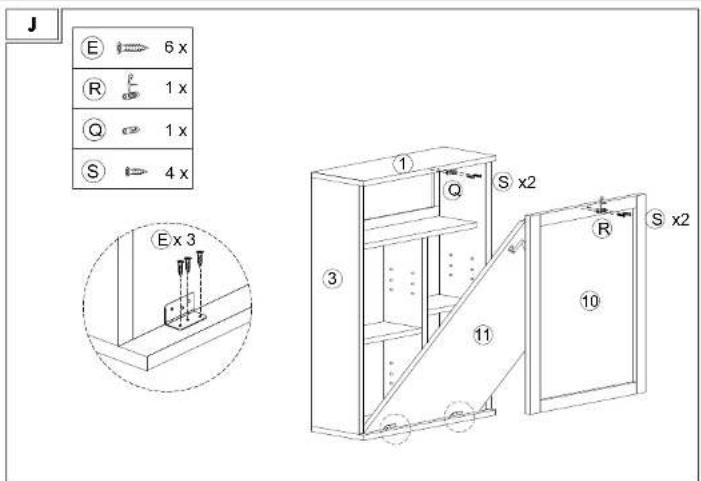

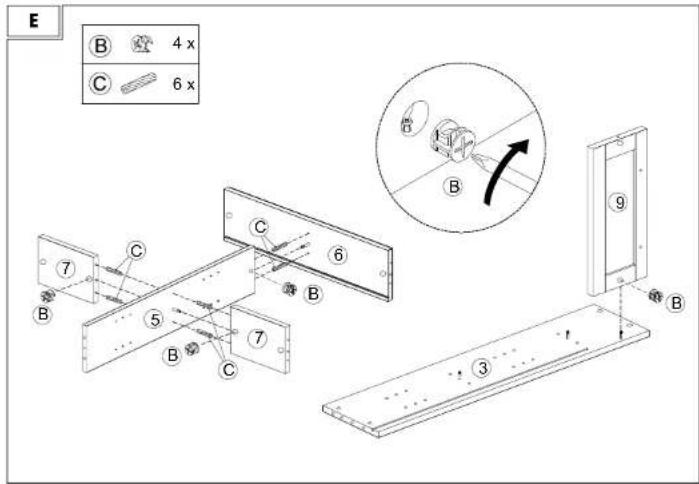

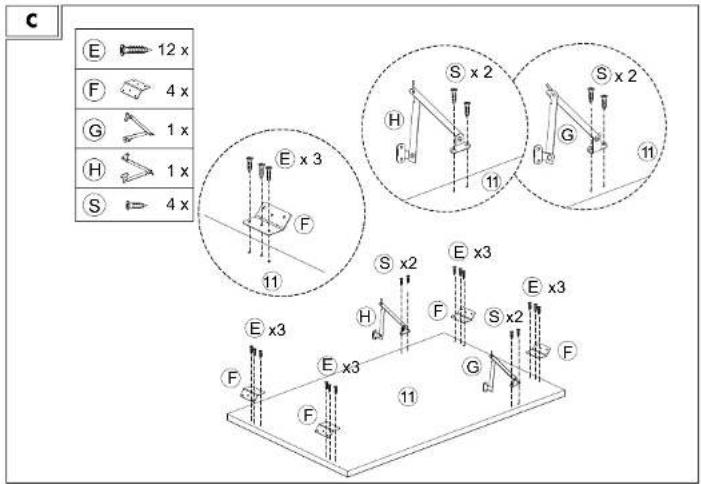

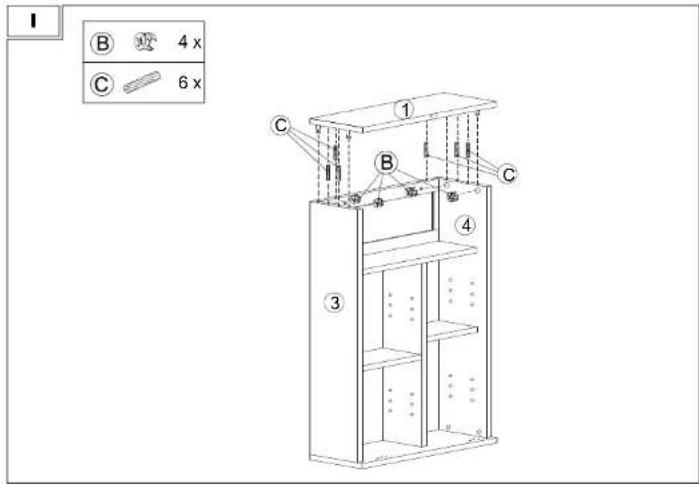

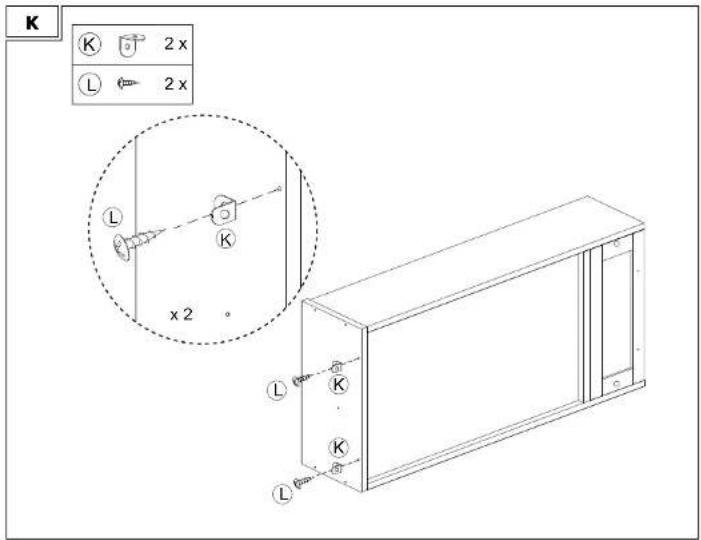

Mount the product as shown in Fig. B to Fig. K and in Fig. N.
- Place a blanket underneath for assembly to protect sensitive floors.
Attaching the product to the wall
To attach the product to the wall, you will need a drill, a Phillips screwdriver, a pencil, a measuring tape and a spirit level. These tools are not included in the scope of supply!

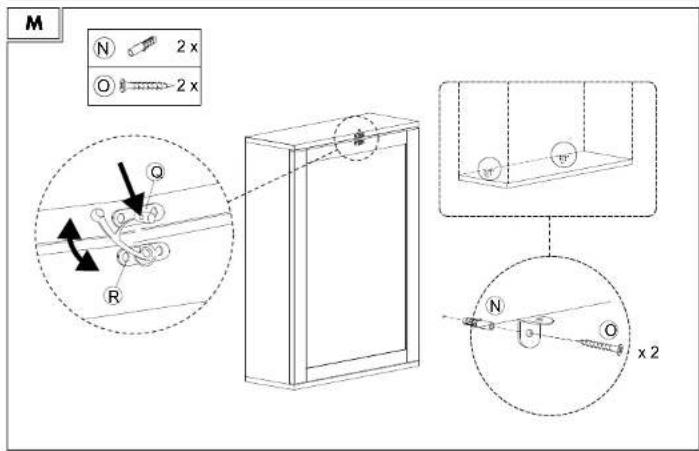

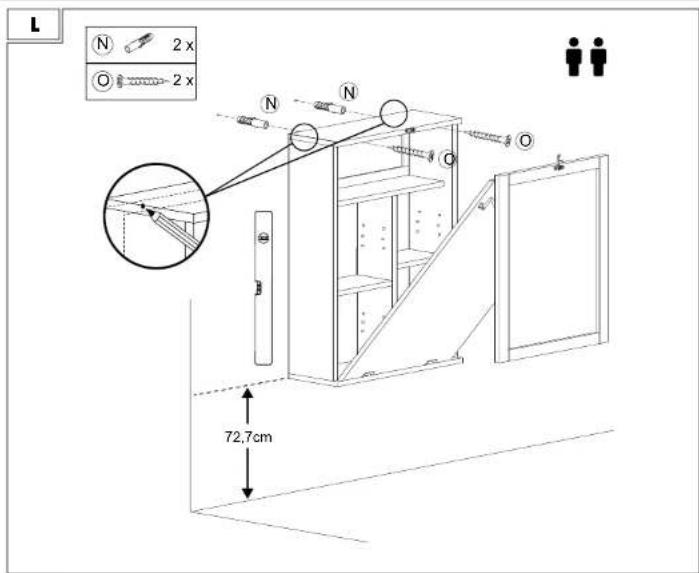

Attach the product to the wall as shown in Fig. L and M.
Be sure to ask a second person to help you attach the product to the wall.
Use the spirit level to align the product correctly and the pencil to mark the drill holes.
NOTE!
Note the correct mounting height of 72.7 cm (from the room floor to the bottom edge of the product), see Fig. L.
A deviation from the mounting height affects the correct opening of the table.
NOTE!
- Before mounting the product, check that the load-bearing capacity of the wall is suitable for mounting the product.
- The supplied mounting material is not suitable for all wall materials.
- If you are not sure whether the supplied fixing material is suitable for the existing conditions, ask your specialist dealer for suitable fixing material.
WARNING!
Fatal danger!
Do not drill a hole in the wall without checking the intended position for electrical, gas or water lines first!
There is a risk of fatal injuries!
- Damage to electrical, gas or water lines can cause dangerous situations! Use appropriate detectors to determine whether hidden lines are situated in the work area.

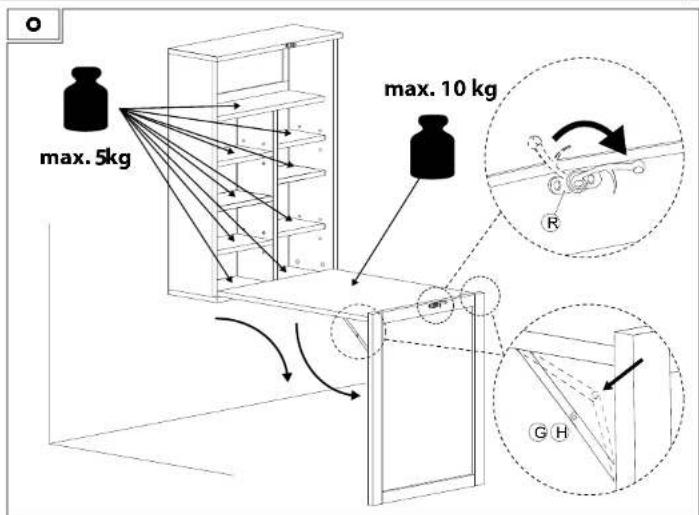

Fold out table
-
Open the hook lock Ⓡ, see Fig. M.
-
Unfold the chalkboard ⑩ with the table ⑪.
-
Place the edge of the chalkboard ⑩ on the floor.
-
Push the folding hinges(G)/H through, see Fig. O, so that they engage.
NOTE!
Risk of injury!
- Turn the hook lock Ⓡ so that the hook does not protrude over the table⑪, see Fig. O.
- Watch your fingers when opening and closing the chalkboard ^⑩ with the table ^⑪ . You could pinch them and injure yourself.
NOTE!
Placing the chalkboard ⑩ on the floor can scratch
sensitive floors. In this case, place a protective blanket, rug or something else under the edge of the chalkboard ⑩. It is not possible to apply a protective fleece to the edge of the chalkboard ⑩, otherwise the product will not close properly.
Fold in table
- Press the folding hinges Ⓖ/H slightly upwards so that the blocking is released.
- Fold the chalkboard ⑩ upwards.
- Close the hook lock Ⓡ.
CAUTION!
Risk of injury!
There is a risk of injury from tumbling or falling.
The product is not a climbing aid.
Never stand or sit on the product.
CAUTION!
Risk of damage to property!
The product is not allowed to be overloaded.
- Load the product only up to the max. weight specification of 20 kg. For the max. load per shelf or table see Fig. O or in the technical data.
NOTE!
Protect storage surfaces from moisture or humidity.
Cleaning and care instructions
NOTE!
Danger of material damage!
- only clean with a damp cloth - only use a mild detergent
- do not use any strong detergents and/or chemicals
- do not use sharp-edged tools such as spatulas or similar, they can damage the surface
Cleaning the cork surface
- only clean with a feather duster or a damp, lint-free cloth
Cleaning the chalkboard
- only clean with a damp cloth
GB/IE
DE/AT/CH
Disposal
Disposal of the packaging
The packaging and operating instructions are made of 100% environmentally friendly materials, which you may dispose of at local recycling centres.
Disposal of the product
The product may not be disposed of with normal household waste. For information on disposal options for the product, please contact your local council/municipality or your Lidl shop.
WANDREGAL MIT KLAPPBARER ABLAGE
Kurzanleitung
ca. 50 × 153 × 93 cm (B × H × T)
Ablage: ca. 46,5 x 76,5 x 76 cm (B x H x T)
- Ablage: max. 10 kg
Material: MDF, Kork
1x. charrière repliable ©
TX chamiere reflable
Tx charnière repliable Ⓗ
4x chevilles, ∅ 8 mm (N)
4x vis en bois 5 x 50 mm
4x 15 cm bolts 5 x 50 min
Tx double hexagonale 4 mm
ca. 50 × 80 × 18,5 cm (L × A × P)
Misure [aperto]:
ca. 50 × 153 × 93 cm (L × A × P)
pribl. 50 x 80 x 18.5 cm (S x V x G)
Dimenzije (izylečeno):
pribl. 50 x 153 x 93 cm (Š x V x G)
Polica: pribl. 46,5 x 76,5 x 76 cm (5 x V x G)
DE-64625 Bensheim/Germany
Service address / Serviceadresse / Adresse du service / Serviceadressen / Adresa serwisu / Adres servisu / Adresa servisu / Dirección de servicio / Serviceadressen / Indirizzo Servizio as- sistenza / Szervizcím / Naslov servisa:
TRADIX SERVICE-CENTER c/o Teknihall Elektronik GmbH Assar-Gabrielsson-Str. 11-13 DE-63128 Dietzenbach/GERMANY
