GRP1060B - Grill plate GEORGE FOREMAN - Free user manual and instructions

Product type	Electric grill (grill plate)
Brand	George Foreman
Model	GRP1060B
Power supply	120 V, 60 Hz (polarized plug, grounded)
Plate coating	Non-stick
Removable plates	Yes, two removable plates (upper and lower)
Cover	Adjustable hinge cover
Indicator lights	Power and preheat indicator lights
Drip tray	Yes, removable drip tray
Use	Household use only
Plate cleaning	Dishwasher or warm soapy water; do not use abrasives
Cover cleaning	Damp sponge and soft dry cloth
Safety	Polarized plug, grounded (Canada), hot surfaces, do not immerse
User-replaceable parts	Upper and lower plates, drip tray
Repairability	Repair by authorized service center only
Warranty	3 years (defects in workmanship or material)
Customer service (USA/Canada)	1-800-947-3745
Accessories/Parts	1-800-738-0245
Manufacturing	China

Frequently Asked Questions - GRP1060B GEORGE FOREMAN

How to attach the grill plates?

Ensure the appliance is cool. Insert the tabs at the bottom of the plate into the slots near the hinge, then push until the release tabs snap into place. Repeat for the lower plate.

How to preheat the grill?

Close the lid, plug in the appliance, and wait approximately 4 minutes 30 seconds. The green preheat indicator light turns on when the temperature is reached.

What utensils can I use on the grill?

Use silicone, heat-resistant plastic, or wooden utensils to avoid scratching the non-stick coating. Avoid metal utensils.

Can I put the plates in the dishwasher?

Yes, the removable plates can be washed in the dishwasher. You can also hand wash them with warm soapy water. Dry them completely before reattaching.

What if the power cord is damaged?

Contact warranty service at 1-800-947-3745. Do not use the appliance or attempt to repair the cord yourself.

Can I use the appliance outdoors?

No, this appliance is designed for indoor household use only. Do not use it outdoors.

What is the warranty period?

The warranty is 3 years from the original purchase date, covering defects in workmanship or material (with proof of purchase).

How to clean the grill lid?

Wipe the lid with a warm damp sponge, then dry it with a soft dry cloth. Never immerse the appliance in water.

Why is there smoke during first use?

This is normal. Operate the appliance empty for 15 minutes to burn off residual manufacturing oils. Ensure good ventilation.

Can I use aerosol non-stick sprays?

No, chemicals can accumulate on the plates and reduce their effectiveness. It is not recommended to use spray non-stick products.

USER MANUAL GRP1060B GEORGE FOREMAN

Black rectangular food processor with 'BROSET FOMITAN' branding on top (no other text or symbols visible)

Exterior view of a black GEORGE FOREMAN device (no text or symbols on body)

USE AND CARE MANUAL

MANUAL DE USO Y CUIDADO

GUIDE D'UTILISATION ET D'ENTRETIEN

GRP1060, GRP3060

GRP460BXC

We want you to have a 5-star experience!

Should you have any questions or concerns about your new product, please call our Customer Service Line at 1-800-947-3745 (U.S. and Canada). Please do not return to the store.

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

IMPORTANT SAFEGUARDS.

When using electrical appliances, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call the appropriate toll-free number on the front of this manual.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, remove plug from wall outlet.
• Be sure removable plates are assembled and fastened properly (see ATTACHING THE PLATES).
• Do not use this appliance for other than intended use.
• The appliance is only to be operated in the closed position.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (USA/MEXICO)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

GROUNDED PLUG (CANADA)

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2) Extension cords are available and may be used if care is exercised in their use.
3) If an extension cord is used:
a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;
b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
c) The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

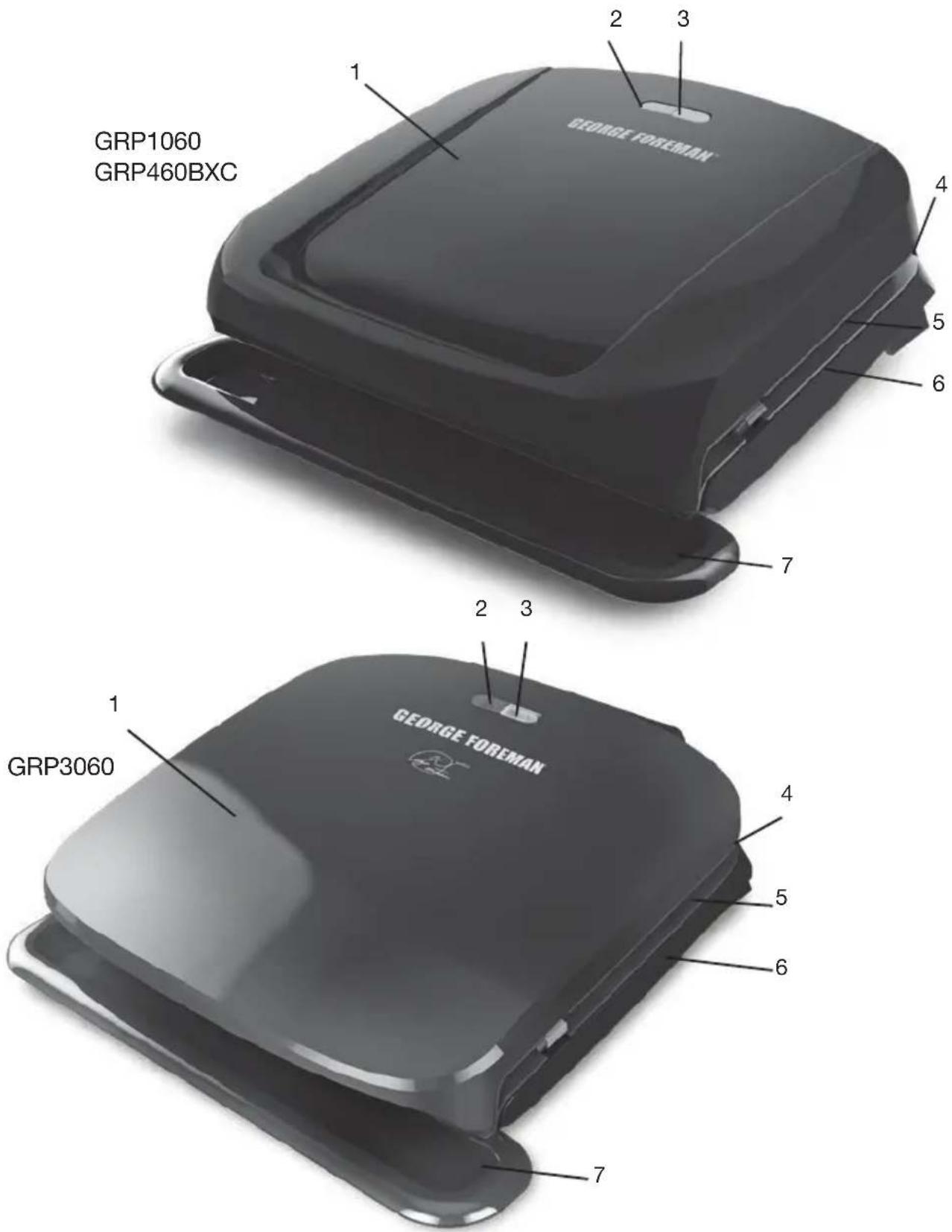

GETTING TO KNOW YOUR GRILL

1. Lid

2. Power indicator light

3. Preheat indicator light

4. Adjustable cooking hinge

†5. Removable nonstick grill plate (top)

(Part # GRP1060-01)-black color

(Part # GRP1060-04)-copper color

†6. Removable nonstick grill plate (bottom)

(Part # GRP1060-02)-black color

(Part # GRP1060-05)-copper color

†7. Drip tray (Part # GRP1060-03)

Note: † indicates consumer replaceable/

removable parts

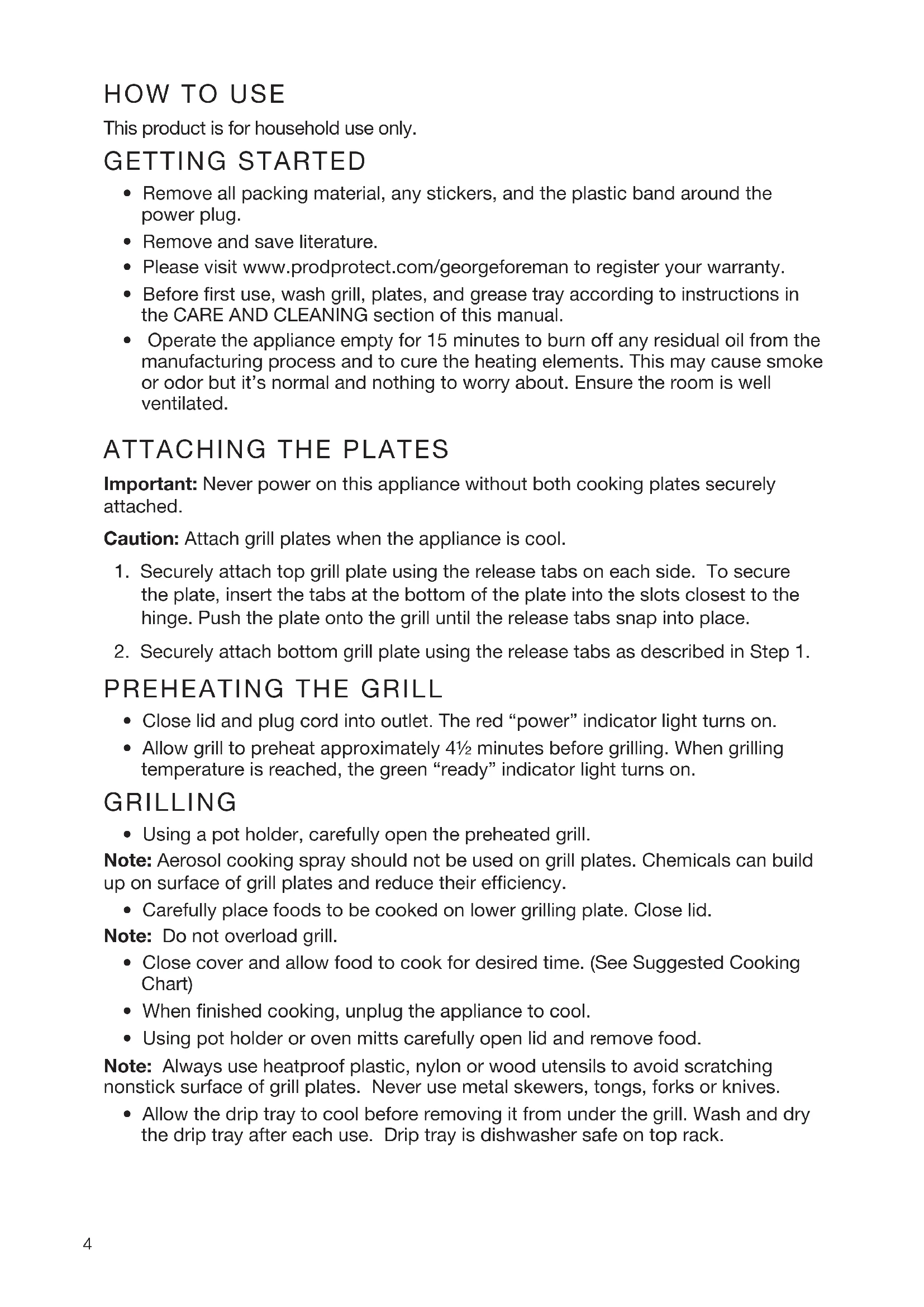

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please visit www.prodprotect.com/georgeforeman to register your warranty.
• Before first use, wash grill, plates, and grease tray according to instructions in the CARE AND CLEANING section of this manual.
• Operate the appliance empty for 15 minutes to burn off any residual oil from the manufacturing process and to cure the heating elements. This may cause smoke or odor but it's normal and nothing to worry about. Ensure the room is well ventilated.

ATTACHING THE PLATES

Important: Never power on this appliance without both cooking plates securely attached.

Caution: Attach grill plates when the appliance is cool.

1. Securely attach top grill plate using the release tabs on each side. To secure the plate, insert the tabs at the bottom of the plate into the slots closest to the hinge. Push the plate onto the grill until the release tabs snap into place.

2. Securely attach bottom grill plate using the release tabs as described in Step 1.

PREHEATING THE GRILL

• Close lid and plug cord into outlet. The red “power” indicator light turns on.
• Allow grill to preheat approximately 4½ minutes before grilling. When grilling temperature is reached, the green “ready” indicator light turns on.

GRILLING

- Using a pot holder, carefully open the preheated grill.

Note: Aerosol cooking spray should not be used on grill plates. Chemicals can build up on surface of grill plates and reduce their efficiency.

- Carefully place foods to be cooked on lower grilling plate. Close lid.

Note: Do not overload grill.

• Close cover and allow food to cook for desired time. (See Suggested Cooking Chart)
• When finished cooking, unplug the appliance to cool.
• Using pot holder or oven mitts carefully open lid and remove food.

Note: Always use heatproof plastic, nylon or wood utensils to avoid scratching nonstick surface of grill plates. Never use metal skewers, tongs, forks or knives.

- Allow the drip tray to cool before removing it from under the grill. Wash and dry the drip tray after each use. Drip tray is dishwasher safe on top rack.

USING ADJUSTABLE COOKING HEIGHT

This grill has a unique hinge that allows the grill cover to adjust to the thickness of food. For even browning and cooking, when grilling more than one sandwich or piece of meat, it is important that the thickness of each be about the same.

Suggested Cooking Chart
	Rare	Medium	We
63 °C (145 °F) 71 °C (160 °F) 76 °C (170 °F)
Salmon Steak 6 oz 4 min.
Burgers 4 oz 4 - 5 min. 5 - 7 min. 6 - 8 min.
Chicken Breast 6 oz		9	min.
Steak 7 oz	4 - 6 min.	5 - 7 min.	6 - 8 min.

CARE AND CLEANING

Caution: To avoid accidental burns, allow your grill to cool completely.

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Empty the drip tray, clean with warm water and dish soap. Wipe dry.
2. To remove the plates, press the release tabs on both sides of the plates and remove from the grill. The plates can be washed in the dishwasher or by hand with hot water and dish soap; always dry plates thoroughly before reattaching.
3. Wipe outside of unit with a warm, wet sponge. Dry with soft, dry cloth.
4. DO NOT use steel wool, scouring pads or abrasive cleaners on any part of the grill.
5. DO NOT immerse in water or any other liquid.
6. Make sure to hold the lid open by hand while cleaning to prevent accidental closing and injury.
7. Any servicing requiring disassembly other than the above cleaning must be performed by a qualified service personnel.

WARRANTY AND CUSTOMER SERVICE INFORMATION

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/georgeforeman.

Three-Year Limited Warranty

(Applies only in the United States and Canada)

What does my warranty cover?

- Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

How long is the warranty period?

- Your warranty extends three years from the date of original purchase with proof of purchase.

What support does my warranty provide?

- Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get support?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/georgeforeman, or call toll-free 1-800-947-3745, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

How does state law affect my warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

What does my warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

Are there additional warranty exclusions?

- This warranty shall not be valid where it is contrary to U.S. and other applicable laws, or where the warranty would be prohibited under any economic sanctions, export control laws, embargos, or other restrictive trade measures enforced by the United States or other applicable jurisdictions. This includes, without limitation, any warranty claims implicating parties from, or otherwise located in, Cuba, Iran, North Korea, Syria and the disputed Crimea region.

C.A.B.A. - Argentina

Chile

Carrera 17 No. 89-40

Bogotá, Colombia

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

LRM ELECTRONICA

Managua - Sinsa Altamira 1.5

kilómetros al norte

Nicaragua

Tel. [phone]

Panamá

Supermarcas

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

Household Products Chile Commercial Ltda

We want you to have a 5-star experience!

Should you have any questions or concerns about your new product, please call our Customer Service Line at 1-800-947-3745 (U.S. and Canada). Please do not return to the store.

Register your product at www.prodprotect.com/georgeforeman

® Registered Trademark and ™Trademark of Spectrum Brands, Inc.
