GR340FB - Grill plate GEORGE FOREMAN - Free user manual and instructions

Product Type	Electric Griddle Plate
Brand	George Foreman
Model	GR340FB
Power Supply	120 V~, 60 Hz
Plate Material	Non-stick Coating
Main Functions	Inclined grilling with fat drainage
Indicator Lights	Power indicator and preheat indicator (green)
Drip Tray	Removable, dishwasher safe (ref. GR340-01)
Recommended Minimum Internal Temperature	Beef: 160 °F, Poultry: 165 °F, Fish: 145 °F
Indicative Cooking Times	Hamburgers: 4-6 min, Chicken breast: 5-8 min, Steak: 2-8 min depending on doneness
Cleaning	Wipe plates with a damp sponge; tray dishwasher safe
Safety	Do not immerse, hot surfaces, short cord, tamper-proof screw
Plug Type	Polarized (USA/Mexico) or 3-prong grounded (Canada)
Warranty	3-year limited (USA and Canada)
Available Spare Parts	Drip tray (GR340-01), after-sales service at 1-800-738-0245
Included Accessories	Drip tray
Country of Manufacture	Indonesia
Intended Use	Household only

Frequently Asked Questions - GR340FB GEORGE FOREMAN

How to preheat the George Foreman GR340FB grill?

Insert the drip tray under the front, close the lid, plug in the grill. Preheat for 3 minutes. The green indicator lights up when temperature is reached.

Can I use metal utensils on the non-stick plates?

No, use only plastic, nylon, or wood utensils to avoid scratching the non-stick coating.

Is the drip tray dishwasher safe?

Yes, the drip tray (ref. GR340-01) can be washed in the top rack of the dishwasher.

What to do if the power cord is damaged?

Contact warranty service at 1-800-947-3745. Do not use the appliance with a damaged cord.

Can I use cooking spray on the plates?

Avoid cooking sprays: chemicals can build up and reduce the effectiveness of the non-stick coating.

What is the warranty on the GR340FB grill?

3-year limited warranty (USA and Canada) covering defects in workmanship or material. Keep your proof of purchase.

Can I immerse the grill in water for cleaning?

No, never immerse the grill or cord in water or any other liquid. Wipe the plates with a damp sponge.

How do I know when the grill is hot enough?

The green preheat indicator lights up when the grill has reached the optimal cooking temperature.

What types of food can I cook on this grill?

Hamburgers, chicken breast, hot dogs, salmon, steaks, vegetables. Refer to the cooking chart in the manual for times and temperatures.

Does the grill work with an external timer?

Yes, the appliance is designed to work with an external timer or remote control, but follow safety instructions.

USER MANUAL GR340FB GEORGE FOREMAN

Exterior view of a black GEORGE FOREMAN printer with open lid (no text or symbols on device)

4 serving GRILL & PANINI porciones PARRILLA Y PANINI portions GRIL ET PANINI

USE AND CARE MANUAL MANUAL DE USO Y CUIDADO GUIDE D'UTILISATION ET D'ENTRETIEN

GR340 SERIES SERIE GR340 SÉRIE GR340

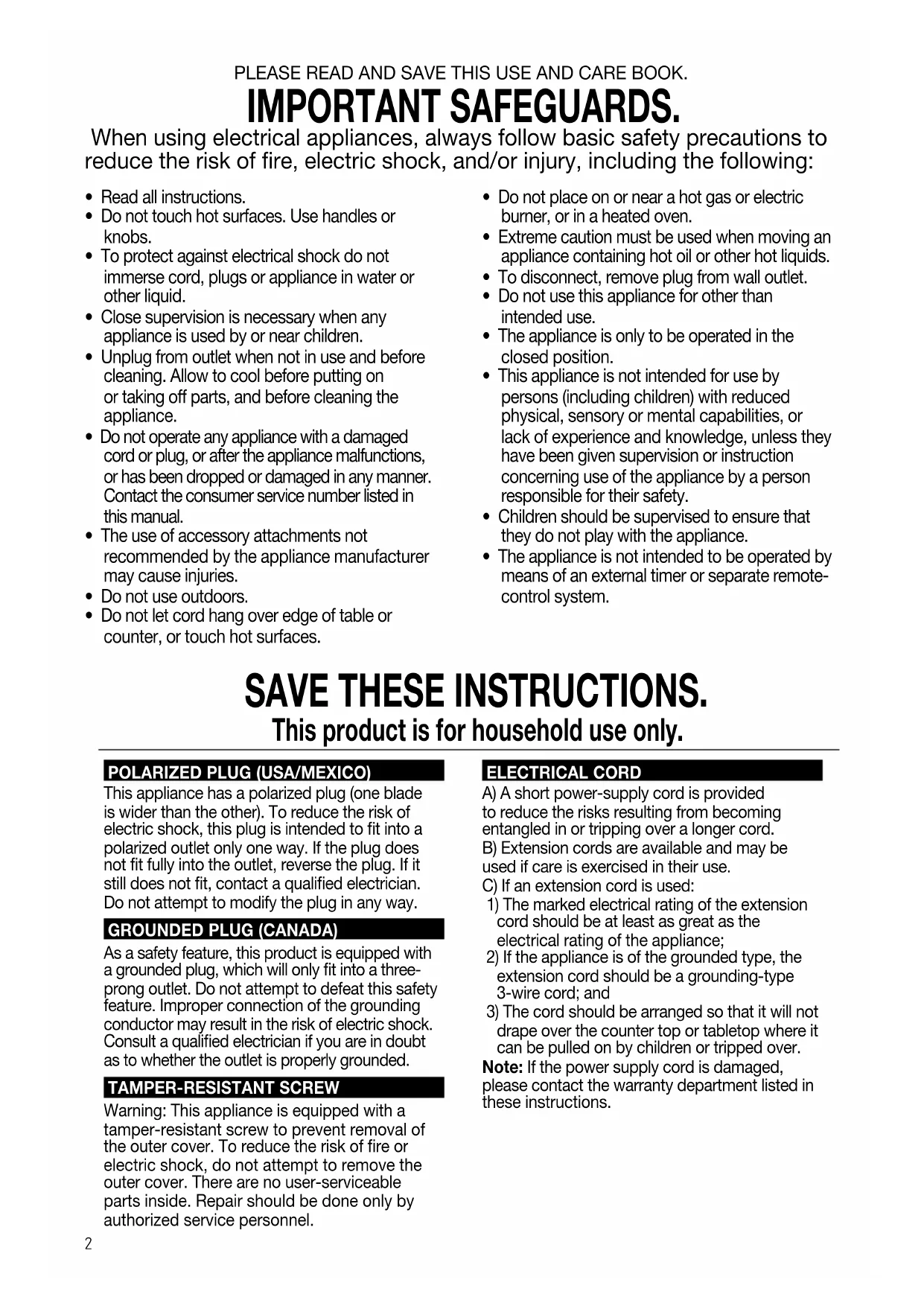

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

IMPORTANT SAFEGUARDS.

When using electrical appliances, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any manner. Contact the consumer service number listed in this manual.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, remove plug from wall outlet.
• Do not use this appliance for other than intended use.
• The appliance is only to be operated in the closed position.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (USA/MEXICO)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

GROUNDED PLUG (CANADA)

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

A) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
B) Extension cords are available and may be used if care is exercised in their use.
C) If an extension cord is used:
1) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
3) The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, please contact the warranty department listed in these instructions.

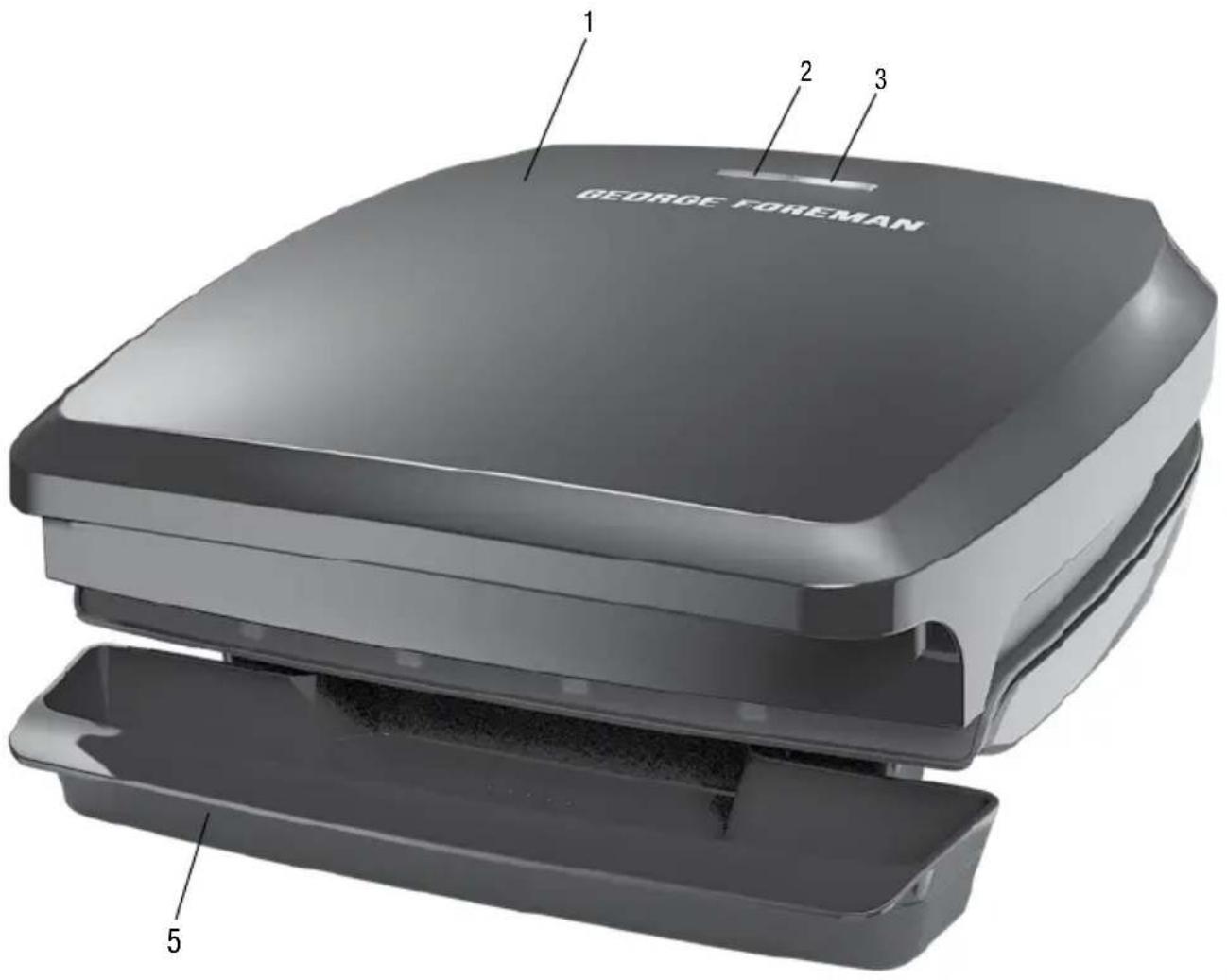

GETTING TO KNOW YOUR GRILL

1. Lid

2. Power indicator light

3. Preheat indicator light

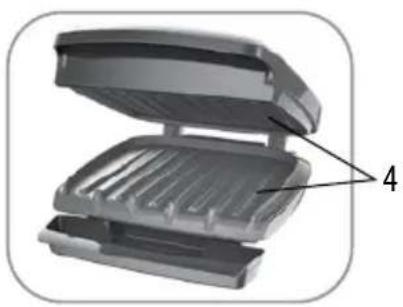

4. Grill plates

† 5. Drip tray (Part # GR340-01)

Note: indicates consumer replaceable/removable parts

3D rendering of a flat-screen flat-screen device with an open lid and labeled part '4' (no text or symbols on the device itself)

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please go to www.prodprotect.com/georgeforeman to register your warranty.

PREHEATING THE GRILL

• Slide drip tray under front of grill.
• Close lid and plug cord into outlet.
• Allow grill to preheat 3 minutes before grilling. When desired temperature is reached, the green "ready" indicator light turns on.

GRILLING

• Using a pot holder, carefully open the lid.

Note: Aerosol cooking spray should not be used on nonstick surface. Chemicals that allow spray to come out of a can build up on surface of grill plates and reduce their efficiency.

- Carefully place foods to be cooked on lower grilling plate. Close lid.

Note: Do not overload grill.

- Close cover and allow food to cook for desired time. (See cooking chart.)

Note: Always use heatproof plastic, nylon or wood utensils to avoid scratching nonstick surface of grill plates. Never use metal skewers, tongs, forks or knives.

• When finished cooking, unplug the appliance.
• Allow the drip tray to cool before removing it from under the grill. Wash and dry the drip tray after each use. It can also be washed in the upper rack of the dishwasher.

SUGGESTED COOKING CHART

The cooking times and temperatures in the below chart are meant to be used as a guideline only. Cooking time will depend upon the food thickness and cut being used. Use a meat thermometer to test for doneness by inserting the thermometer into the thickest portion of the meat. For reasons of personal preference, you may choose to cook food to a higher temperature.

FOOD/GRILL POSITION	COOK TIME MINIMUM FOOD TEMP		TIPS/COMMENTS
Burgers(5 oz. 1⁄2 inch thick)Tilted grill position	4–6 min. Beef 160°F Poultry 165°F		Ground beef with an 80% lean/ 20% fat is best for a juicy burger.
Boneless, skinless Chicken Breast (6 oz.) 1⁄2-inch thickTilted grill position	5–8 min. 165°F Cut or pound chicken to an even thickness for more even grilling.
Hot DogsLevel grill position	2–4 min. 150°F Place hot dogs		diagonally across grill plates to create grill marks.
Salmon Steaks or FilletsLevel grill position	3–5 min. 145°F Salmon will be opaque in color and easily flake when done.
Lean, boneless steak (NY Strip, Sirloin, Tenderloin)Tilted grill position	2–4 min.4–6 min.6–8 min.	Medium rare(130–140°F)Medium(140–150°F)Medium well(155–160°F)	Based on 3⁄4-inch thickness. For a juicier steak, let rest 2–3 min. before serving.
VegetablesLevel grill position	3–6 min. To desired doneness		Brush or toss with a little oil before grilling to keep veggies from drying out. The oil also helps keep seasonings on the vegetables.

CARE AND CLEANING

Caution: To avoid accidental burns, allow your grill to cool completely before cleaning.

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Empty the drip tray and clean with warm, soapy water or wash in upper rack of dishwasher. Wipe dry.
2. Wipe outside of unit with a warm, wet sponge. Dry with soft, dry cloth.
3. Clean grill plates using warm, soapy water.
4. DO NOT use steel wool, scouring pads or abrasive cleaners on any part of the grill.
5. DO NOT immerse in water or any other liquid.
6. Make sure to hold the lid open while cleaning to prevent accidental closing and injury.
7. Any servicing requiring disassembly other than the above cleaning must be performed by a qualified service personnel.

RECIPES

BUFFALO TURKEY BURGERS

Prep Time: 10 Min | Total Time: 15 Min

Servings: 4

Ingredients

1 lb. ground turkey
14 cup bread crumbs
3-4 green onions, thinly sliced
14 cup buffalo wing sauce
2 Tbsp. crumbled blue cheese
4 hamburger buns

Directions

1. Slide the drip tray under the front of the grill.
2. Plug in the George Foreman ^® grill and allow it to preheat. When the green light turns on, the grill is preheated.
3. In a large bowl, combine ground turkey, bread crumbs, onions, buffalo wing sauce and crumbled blue cheese; mix well.
4. Shape turkey mixture into 4 patties about 3 12 -inches in diameter.
5. Grill burgers 4-6 min or until internal temperature reaches a minimum of 170°F.
6. Serve on hamburger buns.

Tip: For slider size burgers, shape turkey mixture into 8 (2 oz.) balls. Flatten slightly and grill 4-5 minutes or until 170°F. Serve on small sandwich buns.

SPICY BLACK BEAN BURGER

Prep Time: 10 minutes | Total Time: 14-15 minutes

Serving Size: 4

Ingredients

1 can (15 oz.) black beans, drained and mashed

1 tsp. hot sauce

12 tsp. cayenne pepper

1 egg

14 cup dry breadcrumbs

14 cup onion, chopped

14 red bell pepper, diced

14 cup carrots, shredded

Hamburger buns

Guacamole dip

Lettuce

1 tomato, sliced

1 red onion, sliced

Directions

1. Slide the drip tray under the front of the grill.
2. Plug in the George Foreman ^® grill and allow it to preheat. When the green light turns on, the grill is preheated.
3. In a medium bowl, combine drained and mashed black beans, hot sauce, cayenne pepper and egg.
4. Add in breadcrumbs, chopped onion, diced red bell pepper and shredded carrots; mix well. Shape mixture into 4 patties.
5. Grill bean burgers 4-5 minutes or until hot.
6. Spread guacamole onto top halves of toasted buns. Fill buns with burgers, lettuce, tomato and red onion slices.

WARRANTY AND CUSTOMER SERVICE INFORMATION

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/georgeforeman.

Three-Year Limited Warranty

(Applies only in the United States and Canada)

What does my warranty cover?

- Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

How long is the warranty period?

- Your warranty extends three years from the date of original purchase with proof of purchase.

What support does my warranty provide?

- Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get support?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/georgeforeman, or call toll-free 1-800-947-3745, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

How does state law affect my warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

What does my warranty not cover?

• Damage from commercial use
- Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

Are there additional warranty exclusions?

- This warranty shall not be valid where it is contrary to U.S. and other applicable laws, or where the warranty would be prohibited under any economic sanctions, export control laws, embargos, or other restrictive trade measures enforced by the United States or other applicable jurisdictions. This includes, without limitation, any warranty claims implicating parties from, or otherwise located in, Cuba, Iran, North Korea, Syria and the disputed Crimea region.

POR FAVOR LEA ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

3D illustration of a grater with open lid and internal compartments, labeled with number 4 (no text or symbols on the diagram itself)

COMO USAR

3D diagram of a sandwich grater with open lid and internal compartments, labeled with number 4 (no text or symbols on the diagram itself)

C.A.B.A. - Argentina

Chile

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

LRM ELECTRONICA

Managua - Sinsa Altamira 1.5

kilómetros al norte

Nicaragua

Tel. [phone]

Panamá

Supermarcas

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

Household Products Chile Commercial Ltda

Register your product at www.prodprotect.com/georgeforeman

® Registered Trademark of Spectrum Brands, Inc.

© 2019 Spectrum Brands, Inc.

Middleton, WI 53562
