IAN 378847 - Musical instrument Playtive - Free user manual and instructions

Brand	Playtive
Model	IAN 378847
Product type	Electronic xylophone for children
Recommended age	From 1 year
Power supply	3 AAA batteries (1.5 V LR03)
Main functions	4 modes: Music, Xylophone, Crazy Sound/Piano, Melody; light-up keys; volume control (2 levels)
Battery type	LR03 (AAA) non-rechargeable
Cleaning	Dry cloth; do not use harsh cleaning products
Safety	Do not use near ears; keep batteries out of reach of children; adult supervision required
Warranty	3 years (excluding batteries and normal wear)
Package contents	1 xylophone, 3 batteries, 1 instruction manual
Material	Plastic
Dimensions	Approximately 30 x 20 x 5 cm
Weight	Approximately 400 g

Frequently Asked Questions - IAN 378847 Playtive

How to replace the batteries of the Playtive IAN 378847 xylophone?

Unscrew the battery compartment cover on the bottom of the device using a screwdriver, insert 3 new AAA batteries respecting polarity, then close and screw back. Be careful not to lose the screw.

How to turn the device on and off?

The switch on the side allows you to turn on (middle position for low volume, top for high) and turn off (bottom position).

What are the different game modes?

Four modes: Music (automatic notes/melodies), Xylophone (xylophone sounds), Crazy Sound/Piano (funny sounds or piano), Melody (pre-recorded melodies). The slider allows you to choose between Crazy Sound and Piano.

How to clean the xylophone?

Wipe with a dry cloth. Do not use harsh cleaning products.

What are the important safety precautions?

Do not use near ears (hearing risk). Always supervise children. Remove used batteries. Do not use rechargeable batteries. Keep batteries out of reach of children.

What to do in case of battery ingestion?

Consult a doctor immediately. Batteries can be fatal if swallowed.

What is the warranty for this product?

3-year warranty from the date of purchase, covering material and manufacturing defects. Batteries and normal wear are excluded.

How to adjust the volume?

The switch allows two volume levels: slide to the center for low, to the top for high. Slide to the bottom to turn off.

Can I use rechargeable batteries?

No, the instructions advise against using rechargeable batteries. Use only non-rechargeable LR03 (AAA) batteries.

How to dispose of the product at the end of its life?

Do not dispose of with household waste. Deposit at an appropriate collection point. Used batteries must be recycled separately.

USER MANUAL IAN 378847 Playtive

PDF ONLINE www.lidl-service.com

3D rendered image of a traditional-style game controller with numbered buttons and musical notes (no text or symbols)

XYLOPHON

DE AT CH

XYLOPHON

Gebrauchsanweisung

IT CH

XILOFONO

Istruzioni d'uso

FR CH

XYLOPHONE

Instructions for use

CE

IAN 378847_2101

DE AT CH

FR IT GB

A 1 1a 1b 1c 2

B 1e 1f 1d 1 1g 1h 1i 1i

2011/65/UE - Directive RoHS

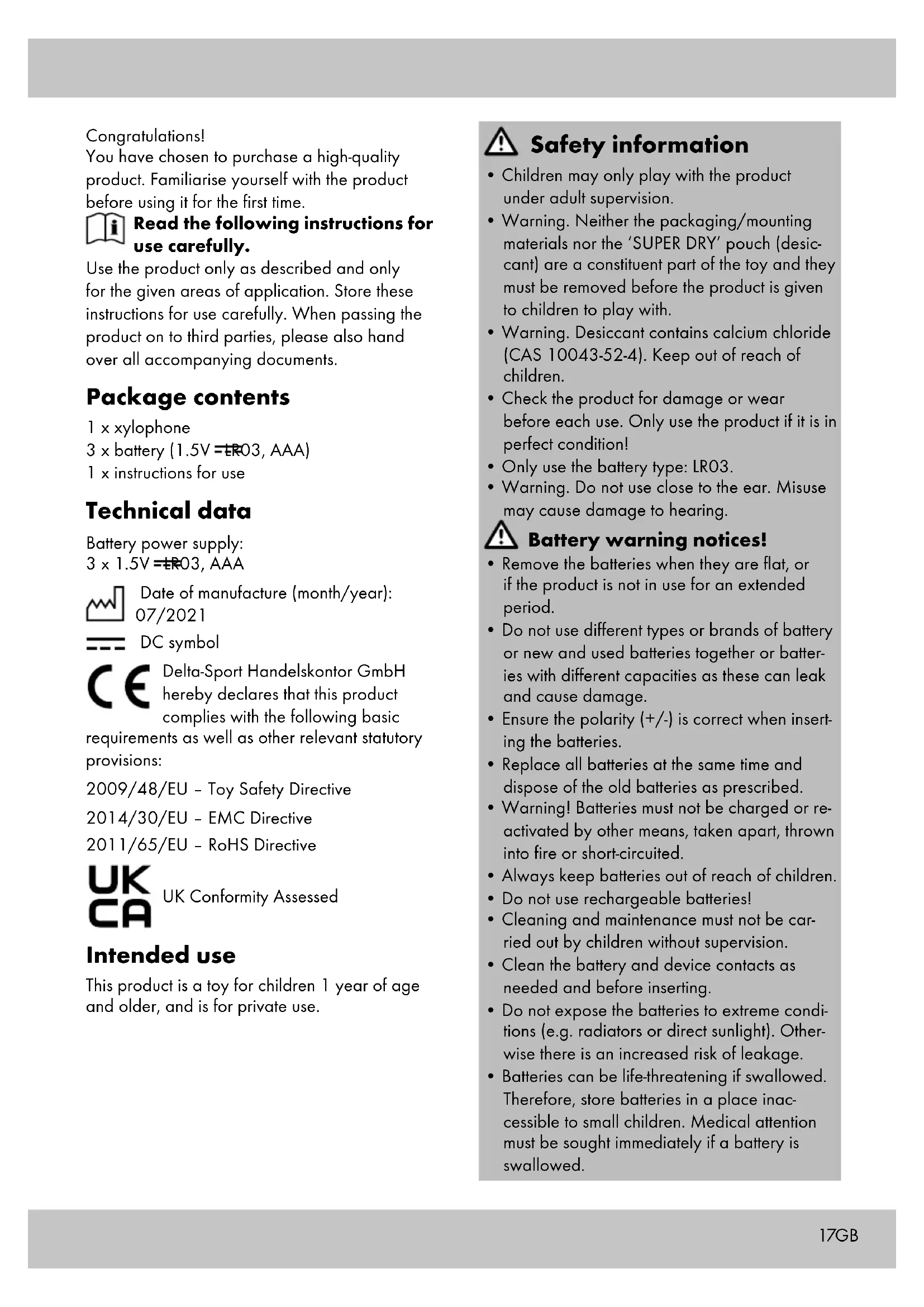

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x xylophone
3 x battery (1.5V=ER03, AAA)
1 x instructions for use

Technical data

Battery power supply:

Date of manufacture (month/year):

07/2021

DC symbol

Delta-Sport Handelskontor GmbH hereby declares that this product complies with the following basic

requirements as well as other relevant statutory provisions:

2009/48/EU - Toy Safety Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

UK Conformity Assessed

Intended use

This product is a toy for children 1 year of age and older, and is for private use.

Safety information

• Children may only play with the product under adult supervision.
- Warning. Neither the packaging/mounting materials nor the 'SUPER DRY' pouch (desiccant) are a constituent part of the toy and they must be removed before the product is given to children to play with.
- Warning. Desiccant contains calcium chloride (CAS 10043-52-4). Keep out of reach of children.
- Check the product for damage or wear before each use. Only use the product if it is in perfect condition!
- Only use the battery type: LR03.
- Warning. Do not use close to the ear. Misuse may cause damage to hearing.

Battery warning notices!

• Remove the batteries when they are flat, or if the product is not in use for an extended period.
• Do not use different types or brands of battery or new and used batteries together or batteries with different capacities as these can leak and cause damage.
• Ensure the polarity (+/-) is correct when inserting the batteries.
• Replace all batteries at the same time and dispose of the old batteries as prescribed.
• Warning! Batteries must not be charged or re-activated by other means, taken apart, thrown into fire or short-circuited.
  • Always keep batteries out of reach of children.
• Do not use rechargeable batteries!
• Cleaning and maintenance must not be carried out by children without supervision.
• Clean the battery and device contacts as needed and before inserting.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leakage.
• Batteries can be life-threatening if swallowed. Therefore, store batteries in a place inaccessible to small children. Medical attention must be sought immediately if a battery is swallowed.

Danger!

• Handle damaged or leaking batteries with extreme caution and dispose of them properly as soon as possible. Wear gloves when doing so.
• If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets in your eye, rinse it with water and seek medical attention immediately!
• The connection terminals must not be short-circuited.

Inserting the batteries (Fig. A) WARNING! Observe the following instructions to avoid mechanical and electrical damage.

Before using the product for the first time, insert the batteries (2) included with the product.

1. Using a suitable screwdriver (not included in the package contents), unscrew the screw (1a) on the battery compartment cover (1b) on the underside of the product (1).

Note: make sure that the screw is kept away from children and does not get lost.
2. Remove the battery compartment cover and carefully insert the batteries into the battery compartment (1c). The batteries must be inserted fully into the battery compartment.
Note: check the plus/minus poles of the batteries and insert them correctly.
3. Screw the battery compartment cover firmly back onto the underside of the product.

Replacing the batteries

When the batteries (2) are flat, replace them. Follow the instructions in the section 'Inserting the batteries'. Before inserting new batteries, remove the old batteries from the battery compartment (1c).

Turning the product on and off (Fig. B)

Use the sliding switch (1g) to turn the product on and off, and to adjust the volume. The product has two volume levels:

• Slide the switch to the centre to turn the product on and set the volume to 'quiet'.
• Slide the switch up to set the volume to 'loud'.
• Slide the switch down to turn the product off.

Use

You can use the product to produce notes, melodies and crazy sounds. Use the following buttons to select the type of sound that is played:

'Music' button

'Crazy sound'/'Piano' button

'Melody' button

'Xylophone' button

'Music' button

1. Turn the product on with the sliding switch (1g) and slide it to the desired volume.
2. Press the 'Music' button (1d) and various notes/melodies play in succession, and the white keys (1j) light up in alternating patterns.
   Note: various sounds are generated depending on whether you set the sliding switch (1i) to 'Piano' or 'Crazy sound' (1i) before pressing the 'Music' button.
3. If you press a key while the various notes are playing, the sounds being played are interrupted and you can press the keys manually.

'Xylophone' button

1. Press the 'Xylophone' button (1e) and a xylophone sound plays once to confirm your action.
2. Press any keys (1j) and another xylophone note will play; the respective key lights up when it is pressed.

'Crazy sound'/'Piano' button

1. Turn the product on with the switch (1g) and slide it to the desired volume.
2. Press the 'Crazy sound'/'Piano' button (1f) and a note will play briefly.
3. Press any keys. Each time you press a key, another crazy sound or piano note will play and the key will briefly light up in colour.

'Melody' button

1. Turn the product on with the switch (1g) and slide it to the desired volume.
2. Press the 'Melody' button (1h) and piano and xylophone melodies play in succession. At the same time, the white keys (1j) light up.
3. The number of melodies is determined by the slider (1i):
4. Slider on 'Crazy sound': crazy sound and xylophone melodies
5. Slider on 'Piano': piano and xylophone melodies
6. The keys light up if you press them during the melody.

Setting key sounds

You can assign piano notes or crazy sounds to the keys (1i) by adjusting the slider (1i). To do so, set the slider (1i) to the 'Piano' or 'Crazy sound' symbol.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries and at room temperature. Wipe clean with a dry cloth only.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty disposal facility. Find out about collection sites and their hours of operation from your local authority. Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided.

Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household. They may contain toxic heavy metals and object to hazardous waste treatment.

The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 378847_2101

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

07/2021
