Product type	Air fryer
Brand	Wilfa
Model	Crispier 5.5 AF2B550
Capacity	5.5 liters
Power	1800 W
Voltage	220-240 V ~ 50/60 Hz
Temperature range	80 to 200 °C
Timer	1 to 90 minutes (manual mode); up to 24 h for dehydration
Preset programs	13 (steak, chicken, fish, shrimp, bacon, toast, fries, root vegetables, dehydration, defrost, preheat, keep warm, preset)
Special functions	Preheat, "Shake basket" reminder, delayed start up to 24 h
Basket material	Non-stick coating
Tank material	Non-stick coating
Cleaning	Basket and tank washable with warm soapy water; do not use abrasive objects
Warranty	5 years
Usage	Household use only
Safety	Automatic shut-off at end of cooking; overheating protection; do not immerse
Included accessories	Tank, basket
Dimensions (L x W x H)	Approx. 35 x 30 x 35 cm (estimate)
Weight	Approx. 5 kg (estimate)

Frequently Asked Questions - Crispier 5.5 AF2B550 WILFA

How to preheat the Crispier 5.5 air fryer?

Select a preset program, then press the Preheat button. You can adjust the desired temperature with the +/- buttons. Press Start to begin preheating. When the temperature is reached, the appliance emits 5 beeps and displays "Add Food".

What to do if food is not cooked evenly?

Make sure not to overfill the basket. Shake or turn the food halfway through cooking when the "Shake basket" reminder sounds. This ensures even cooking.

Can I use oil in the air fryer?

Yes, but in very small quantities. Brush or spray a little oil on the food before or halfway through cooking for a crispier result. Never pour oil into the tank.

How to clean the appliance?

Unplug the appliance and let it cool down. Clean the basket and tank with warm soapy water and a non-abrasive sponge. Wipe the exterior with a damp cloth. Do not use sharp objects or steel wool.

The air fryer emits white smoke, is this normal?

Yes, it's normal if you are cooking fatty foods. Oil can drip into the tank and produce white smoke. This does not affect the appliance or the result.

Can I put the basket and tank in the dishwasher?

The manual does not recommend the dishwasher. It is better to wash them by hand with a soft sponge to preserve the non-stick coating.

What to do if the appliance does not start?

Check that the power cord is properly plugged in and that the tank and basket are correctly inserted into the main unit. If the problem persists, contact customer service.

How to adjust temperature and time manually?

Press the TEM TIME button to switch between temperature and time. Use the +/- buttons to adjust. Then press Start/Pause to start cooking.

How long to cook frozen fries?

Use the Fries preset program (temperature 200 °C, time 18 minutes). Shake the basket halfway through for even results. Adjust according to your recipe.

Why is the "Shake basket" reminder not working?

The reminder only activates if the cooking time is more than 3 minutes. In manual mode, it sounds halfway through; in preset mode, at 2/3 of the time. If the time is too short, the reminder does not trigger.

USER MANUAL Crispier 5.5 AF2B550 WILFA

Black Kuwait air fryer with digital display and control buttons (no visible text or symbols)

CRISPIER 5.5L

AIRFRYER AF2B-550

EN . Instruction manual

NO . Bruksanvisning

SE . Bruksanvisning

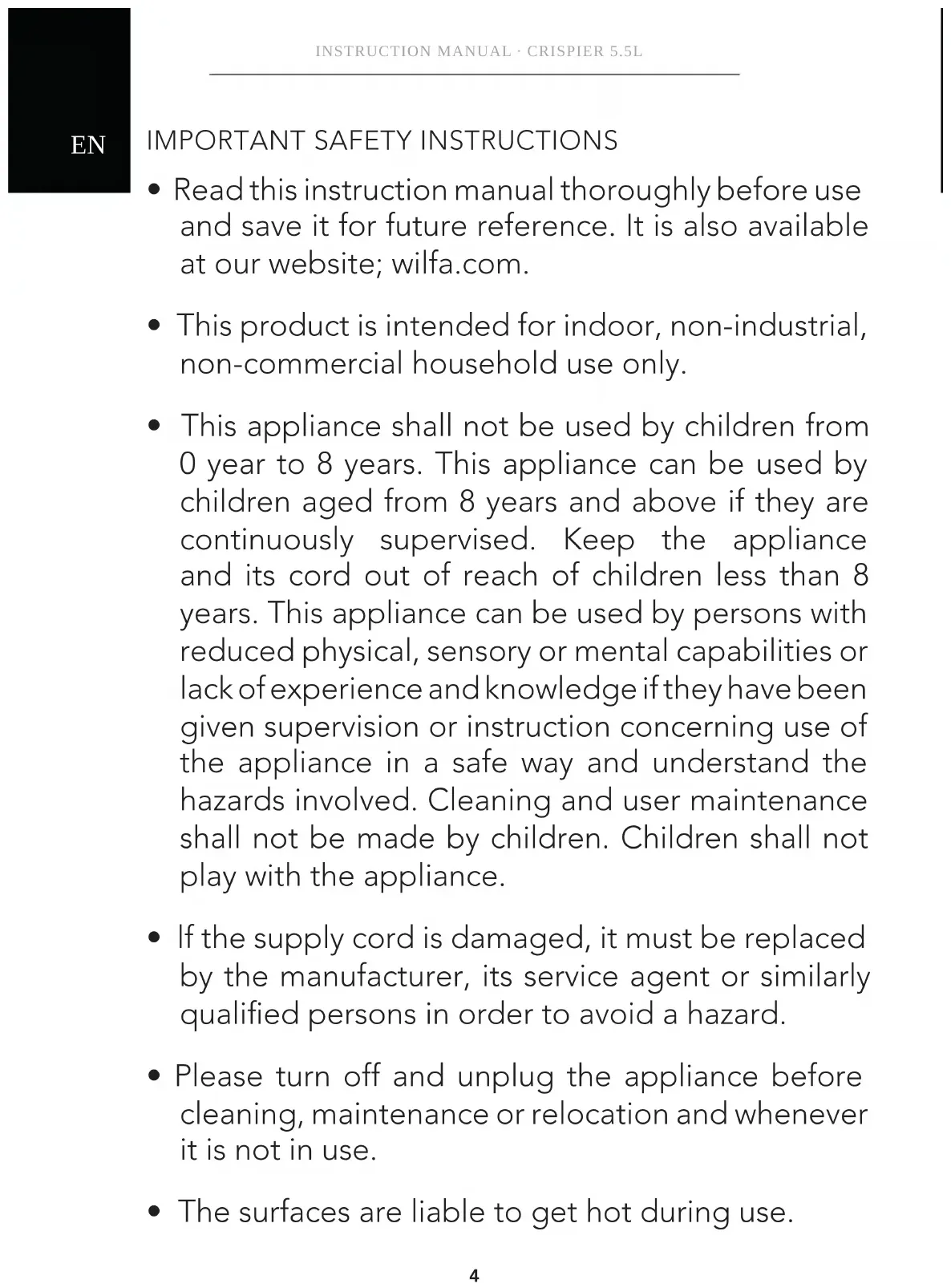

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This product is intended for indoor, non-industrial, non-commercial household use only.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. Keep the appliance and its cord out of reach of children less than 8 years. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children. Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use.
• The surfaces are liable to get hot during use.

• After being used for a long time, the corresponding heating zone of the induction hot plate is still hot. Never touch the ceramic surface to avoid burning.

- Do not immerse any part of the appliance in water or other liquid.

- Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse under the tap.

- Do not let any water or other liquid enter the appliance to prevent electric shock.

- Do not cover the air inlet and the air outlet openings while the appliance is operating.

- Never touch the inside of the appliance while it is operating.

- Keep the main cord away from hot surfaces.

- Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation.

- Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

- Please pay attention to scald where there is a high temperature symbol.

EN

SAFETY PRECAUTIONS FOR YOUR AIRFRYER

• Always put the ingredients to be fried in the basket, to prevent it from coming in contact with the heating elements.
• Do not fill the pan with oil as this may cause a fire hazard.
• During airfrying, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

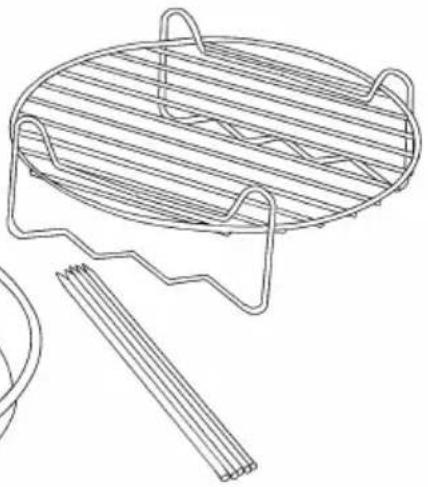

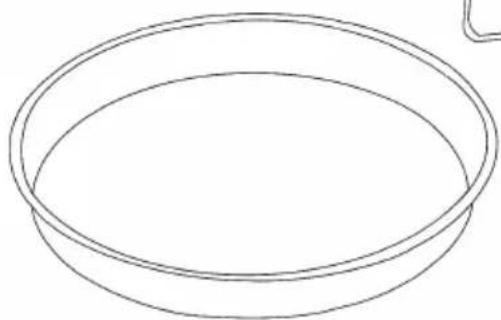

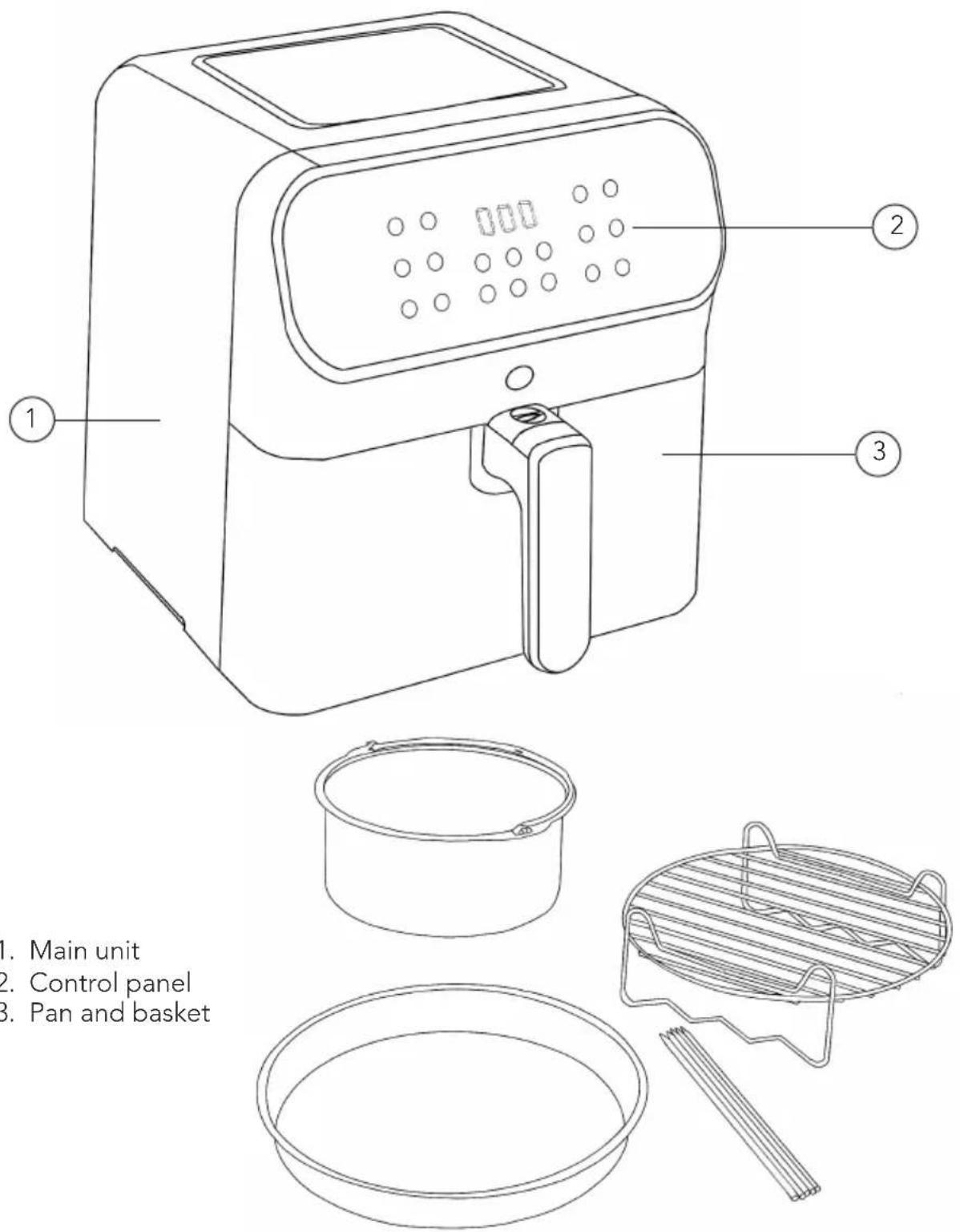

PRODUCT OVERVIEW

EN

1. Main unit 2. Control panel 3. Pan and basket

1. Main unit
2. Control panel
3. Pan and basket

Simple line drawing of a cylindrical container with a handle (no text or symbols)

Simple line drawing of a bowl or container with no text, numbers, or symbols

Line drawing of a metal grater with three handles and two sticks, no text or symbols present

EN

BEFORE FIRST USE

1. Remove all packaging materials, stickers, and labels.
2. Clean the basket and pan with hot water, soap, and a non-abrasive sponge.
3. Wipe the inside and outside with a clean cloth.
4. Place the appliance on a flat and even surface.

NOTE: There is no need to fill the pan with oil or fat because the appliance works on hot air.

HOW TO USE

1. Plug in the unit, press ON/OFF button to start.
2. To select a pre-set program, just press the corresponding button and press start/pause to start the program. To pre heat the airfryer, press the button of your chosen preset before pressing preheat.
3. To manually adjust the temperature and time press ☑ to switch between temperature and time, and use the +/- buttons to adjust.
4. Press the start/pause ⏻ button to start or stop cooking.
5. Unplug the unit after use.

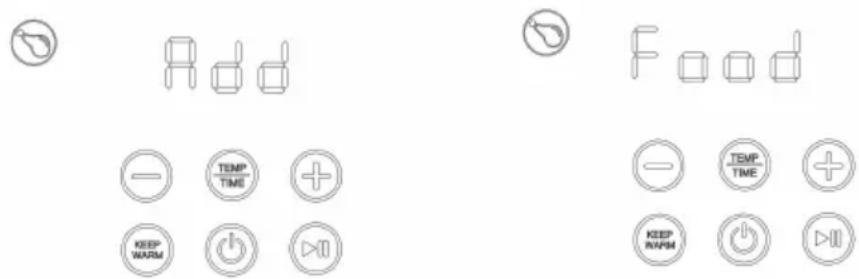

PREHEAT FUNCTION

Select and press your preferred function and press the preheat button. Select your wanted temperature by pressing +/- buttons, and press start. When the wanted temperature has been reached, the reminder will alert you with 5 beeps, and "Add" "Food" shows on the display.

Remark: Preheat function need to go with another menu function.

Add Food TEMP TIME + KEEP WARM POWER POWER TEMP TIME + KEEP WARM POWER POWER

WORKING MODE

After selecting a preset or preferred time and degree, press start button to get started. When the cooking operation is finished, the airfryer alert you with 5 beeps. The display shows "done", and the unit will go into sleep mode if you don't take any more actions.

60 TEMP TIME KEEP WARM POWER

SHAKE REMINDER

The shake reminder will alert you with 5 beeps, and "turn" "Food" will blink on the display. The alert will stop when you take the pan out.

The shake reminder is programmed to alert halfway through the cooking when set on manual, and 2/3 of the total cooking time of the presets.

When the cooking time is less than 3 minutes, the alert will not go off.

PRE-SET FUNCTION

With the pre-set function you can set a delayed start. After choosing a function, you can press the pre-set button ⏻ → Ⓗ and set a delayed start up to 24 hours, use the +/- buttons to adjust to your preferred time.

Remark: You need to select a function before pressing the pre-set button.

REFERENCE GUIDE

Results may vary, you can adjust temperature and time for your own recipe.

Function Temperature (°C) Time (Min)

Preset			temp.	Adjust temp. range	Pre time	Adjust time range
1		Steak	180	80-200 15 1-90
2		Chicken	180	80-200 20 1-90
3		Fish	200	100-200 10 1-90
4		Shrimp	160	100-180 12 1-90
5		Bacon	180	80-200 10 1-90
6		Toast	180	100-200 8 1-90
7		Fries	200	100-200 18 1-90
8		Root vegetables	200	100-200 10 1-90
9		Dehydrate	70	30-80 4 h 1-24 h
10		Defrost	80	80-200 6 1-90
11		Preheat	180	130-200 5		Can not adjust
12		Keep warm	120	100-150 5 1-90
13		Pre-set	Preset setting	Preset setting	Preset setting	5 min-24 h

14

Decreasetemp/time

15

Increase temp/time

16

Switch between temp and time

17

On/off

18

Start/pause

EN

CLEANING

• Please clean the airfryer to prevent leftover food/food residue from being burned.
• After using, please clean the frying basket and pan in time to avoid the damage of the coating due to erosion of food residue or oil.
• Wipe the outside of the airfryer with a moist cloth
• Clean the pan and basket with hot water, soap and a non-abrasive sponge. You can remove any remaining food debris by using degreasing liquid soap. Tip: If there is food debris stuck to the basket or bottom of the pan, soak the pan in hot water and soap for about 10 minutes.
• Clean the inside of the appliance with hot water and a non-abrasive sponge. NOTE: Be sure not to get too much water inside the appliance, you are just wiping it down to get rid of any food debris and grease.
• Clean the heating element with a cleaning brush to remove any food debris.
• Do not use hard and sharp items (such as steel wool, sharp tools etc) to clean the basket and pan.

TIPS AND TRICKS

• Use your airfryer to reheat your leftovers, It will make them as crispy as they were fresh.
• Brush or spray some oil on the ingredients before or halfway through airfrying for an even crispier result. Spray or brush any dry flour spots that still appear halfway through airfrying.
• Small ingredients often require slightly shorter cooking time, and larger ingredients often require slightly longer cooking time.

TROUBLESHOOTING

Problem Possible reasons Solutions

The fryer does not start	The airfryer is not plugged in.	Plug in the power cord.
	The pan and basket is not fully inserted.	Make sure the pan and basket is correctly assembled and inserted in the main unit.
The ingredients are not cooked properly	The basket is too full.	Use smaller batches of ingredients in the basket to fry them evenly
	The temperature is too low	Increase the temperature
The ingredients are fried unevenly	You did not flip or shake the ingredients halfway	Ingredients that lie across each other need to be shaken or turned halfway through.
The food is not crispy	The airfryer did not preheat	Preheat airfryer 3-5 minutes.
	The type of ingredients is meant for frying in oil	Try to brush or spray oil onto the ingredients before airfrying.
White smoke is coming out of the fryer	You are preparing greasy ingredients.	With greasy food, oil can leak into the pan. Oil makes the makes the white smoke, but it will not affect the appliance or the end result.

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220-240V \~ 50/60Hz, 1800W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

18 VIKTIGE SIKKERHETSINSTRUKSJONER
20 FORHOLDSREGLER VED BRUK AV AIRFRYER
21 PRODUKTOVERSIKT
22 F∅R F∅RSTE GANGS BRUK
22 BRUK
24 REFERANSEVEILEDNING
26 RENGJ∅RING
26 TIPS OG TRIKS
27 FEILS∅KING
28 GARANTI
29 PRODUKTSPESIFIKASJONER
29 SUPPORT OG RESERVEDELER
29 GJENVINNING

NO

VIKTIGE SIKKERHETSINSTRUKSJONER

60 TEMP TIME KEEP WARM POWER

NO

RISTEPÅMINNELSE

Ristepåminnelsen varsler deg med fem lydsignaler, og «Turn» «Food» (Snu mat) blinker på displayet. Ristepåminnelsen forsvinner när du tar ut pannen.

Line drawing of a digital air fryer with labeled parts 1, 2, and 3

SE

Simple line drawing of a cylindrical container with a handle (no text or symbols)

Simple line drawing of a bowl or container with no text, numbers, or symbols

Line drawing of a bamboo mat with three handles and two sticks, no text or symbols present

Add Food TEMP TIME + KEEP WARM POWER POWER TEMP TIME + KEEP WARM POWER POWER

DRIFTLÄGE

Line drawing of a digital air fryer with labeled parts including control panel, display screen, and handle.

DK

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Line drawing of a simple electric stove with a coiled wire and two insulated sticks (no text or symbols)

Simple line drawing of a bowl with a curved handle (no text or symbols)

F∅R IBRUGTAGNING

Add Food TEMP TIME + KEEP WARM POWER POWER TEMP TIME + KEEP WARM POWER POWER

ARBEJDSINDSTILLIING

60 TEMP TIME KEEP WARM POWER

RYSTEPÅMINDELSE

Rystepåmindelsen advarer dig med 5 bip, og "turn" "Food" (vend fødevarer) blinker på displayet. Rystepåmindelsen stopper, når du tager panden ud.

Line drawing of a digital air fryer with labeled parts including control panel, display screen, and handle.

Fl

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Simple line drawing of a bowl with no text or symbols

Line drawing of a metal grate with three handles and two sticks, no text or symbols present

ENNEN ENSIMMÄISTÄ KÄYTTÖKERTAA

Add Food TEMP TIME + KEEP WARM POWER POWER TEMP TIME + KEEP WARM POWER POWER

KÄYTTÖTILA

60 TEMP TIME KEEP WARM POWER

RAVISTUSMUISTUTUS

Line drawing of a digital air fryer with labeled parts 1, 2, and 3

DE

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Line drawing of a bamboo mat with ribbed wire and coiled sticks (no text or symbols)

Simple line drawing of a bowl with no text or symbols

60 - - TEMP TIME + KEEP WARM + 100

SCHÜTTELERINNERUNG

97 PROBLEEMOPLOSSING

98 GARANTIE

99 PRODUCTSPECIFICATIES

99 ONDERSTEUNING EN RESERVEONDERDELEN

99 RECYCLING

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Technical line drawing of a microwave oven with labeled parts 1, 2, and 3

NL

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Line drawing of a metal grate with three handles and two coiled sticks (no text or symbols)

Simple line drawing of a bowl or container with no text, numbers, or symbols

Add Food TEMP TIME + TEMP TIME + KEEP WARM POWER POWER KEEP WARM POWER POWER

WERKMODUS

60 - - TEMP TIME + KEEP WARM + 0

SCHUDHERINNERING

Line drawing of a digital air fryer with labeled parts 1, 2, and 3

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Line drawing of a metal grater with ribbed sides and a coiled rod, no text or symbols present

Simple line drawing of a bowl with no text or symbols

PL

PRZED PIERWSZYM UŻYCIEM

Add Food TEMP TIME + KEEP WARM POWER +/-

TRYB PRACY

Add Food TEMP TIME + KEEP WARM POWER POWER TEMP TIME + KEEP WARM POWER POWER

MODE DE FONCTIONNEMENT

60 TEMP TIME KEEP WARM POWER

CARACTÉRISTIQUES DU PRODUIT

Line drawing of a digital air fryer with labeled parts 1, 2, and 3

Simple line drawing of a cylindrical container with a lid (no text or symbols)

Line drawing of a simple electric stove with a coiled iron stand and a flat top frame (no text or symbols)

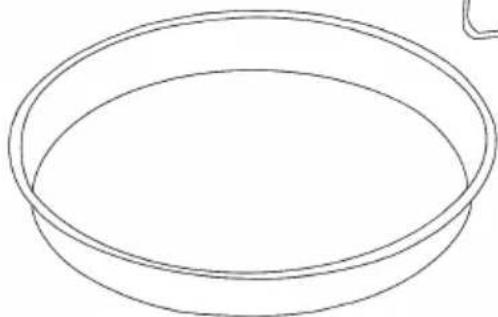

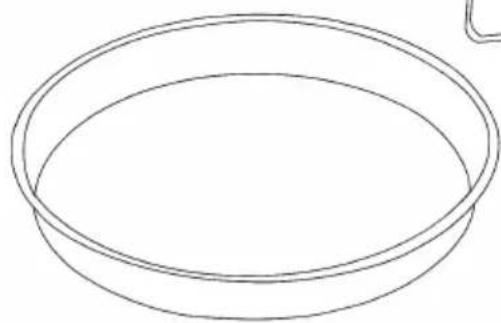

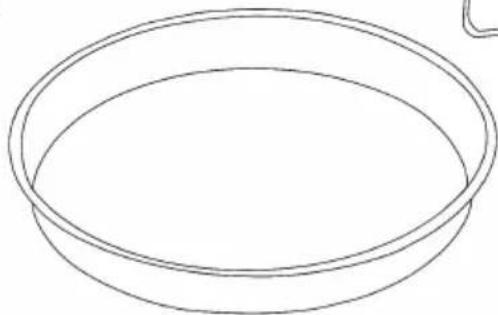

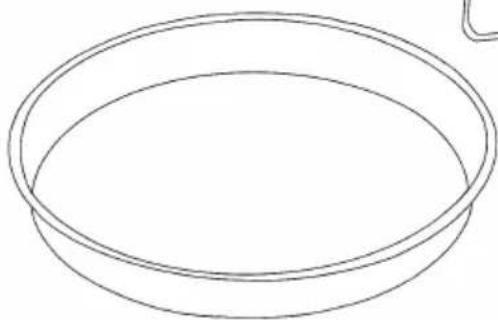

Simple line drawing of a bowl or container with no text, numbers, or symbols

IT

PRIMA DEL PRIMO UTILIZZO

60 TMP TIME + KEEP WARM +/-

Line drawing of a digital air fryer with labeled parts including control panel, display screen, and handle.

1. Unidad principal
2. Panel de control
3. Recipiente y cesta

Simple line drawing of a cylindrical container with a lid (no text or symbols)

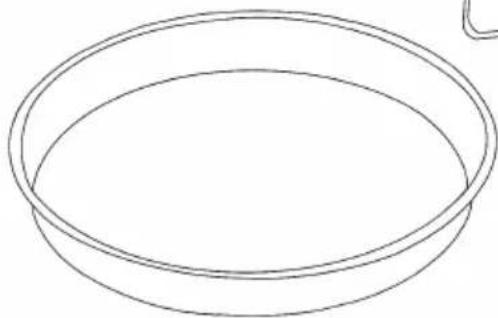

Simple line drawing of a bowl (no text or symbols)

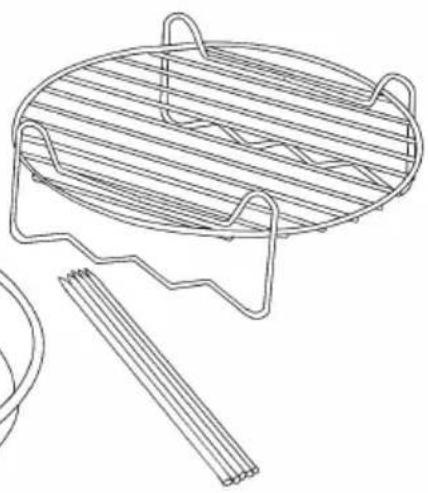

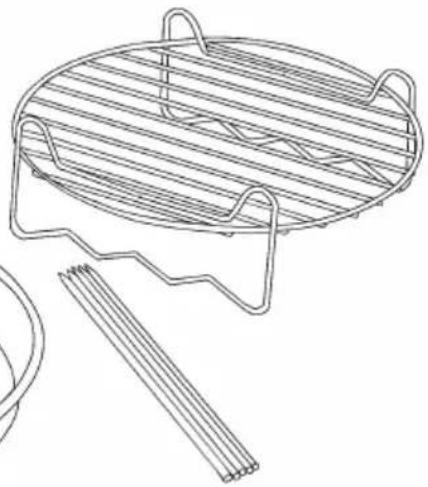

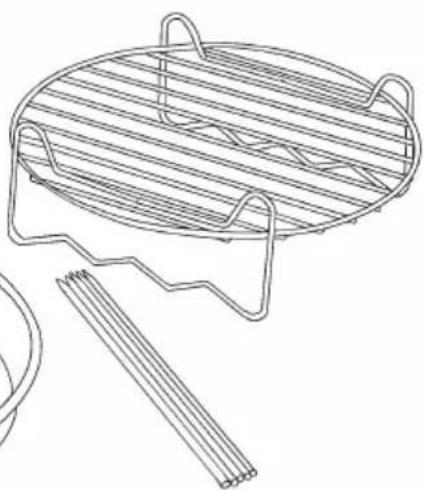

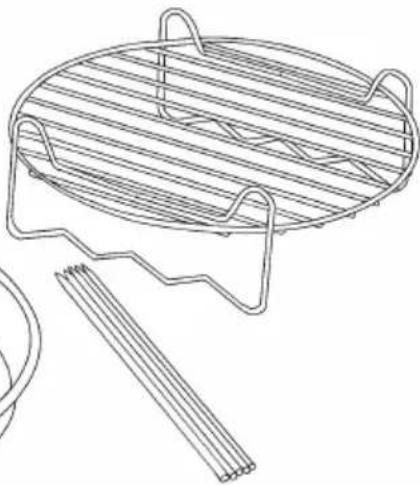

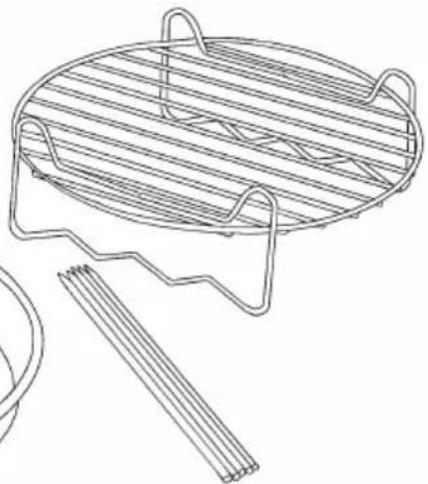

Line drawing of a metal grate with three handles and two sticks, no text or symbols present

Add Food TEMP TIME + KEEP WARM POWER +I TEMP TIME + KEEP WARM POWER +I

60 - - TEMP TIME + KEEP WARM + 0

RECORDATORIO DE REMOVER

FSC www.fsc.org 100% From well- managed forests FSC® C000000

AF2B-550_20_01
