Product Type	Electric Blower Vacuum
Brand	Sun Joe
Model	SBJ807E
Motor	13 A, 120 V ~ 60 Hz
No-Load Speed	12,800 rpm
Max. Airflow	29.3 m³/min
Air Flow Speed	64 km/h
Suction Opening	20 x 14 cm
Handle Length	45 cm
Shredding Ratio	16:1
Air Intake Height	Low: 3.6 cm / High: 5.6 cm
Front Wheel Diameter	10 cm
Rear Wheel Diameter	18 cm
Net Weight	6.4 kg
Collection Bag Capacity	40 L (optional accessory)
Double Insulation	Yes
Intended Use	Household use only
Max. Extension Cord Length	30 m
Warranty	2 years
Included Accessories	Collection bag, wheels, manual

Frequently Asked Questions - SBJ807E Sun Joe

How to start the Sun Joe SBJ807E vacuum?

To start, press the safety push button while squeezing the on/off trigger. Release the push button once the machine is running.

How to stop the vacuum?

Simply release the on/off trigger. The moving parts will continue to rotate for a few seconds after stopping.

What types of debris can the vacuum suck up?

It is designed for dry and light debris: grass, leaves, small twigs, acorns. Do not vacuum metal, stones, glass, wet debris, or burning objects.

How to clean or unclog the air intake?

Stop the machine and unplug it. Remove the collection bag, turn the machine over, and carefully remove the obstruction with protective gloves. Allow 3 minutes to cool before restarting.

When should the collection bag be emptied?

Empty the bag after each use to maintain good suction. Open both zippers and shake it out. Clean the bag once a year with a water jet.

What safety precautions are essential?

Always wear safety goggles and ear protectors. Keep children and pets away. Do not use in rain or on wet ground. Unplug before any maintenance.

How to assemble the front wheels?

Insert the wheel axle into the hole on the side of the suction chute, then turn the wheel hub clockwise until it locks. Adjust the intake height by choosing the appropriate hole.

Why doesn't the machine start?

Check that the collection bag is properly attached, the handle fully raised, the machine flat on its four wheels, and that the circuit breaker hasn't tripped. If overheating, let it cool down.

How to store the vacuum?

Unplug the extension cord. Store the machine and extension cord in a dry, cool, locked place, out of reach of children and pets.

What accessories are available?

You can purchase a replacement collection bag (model SBJ807E-BAG) and a 15 m extension cord (model PJEXT50-B) at sunjoe.com.

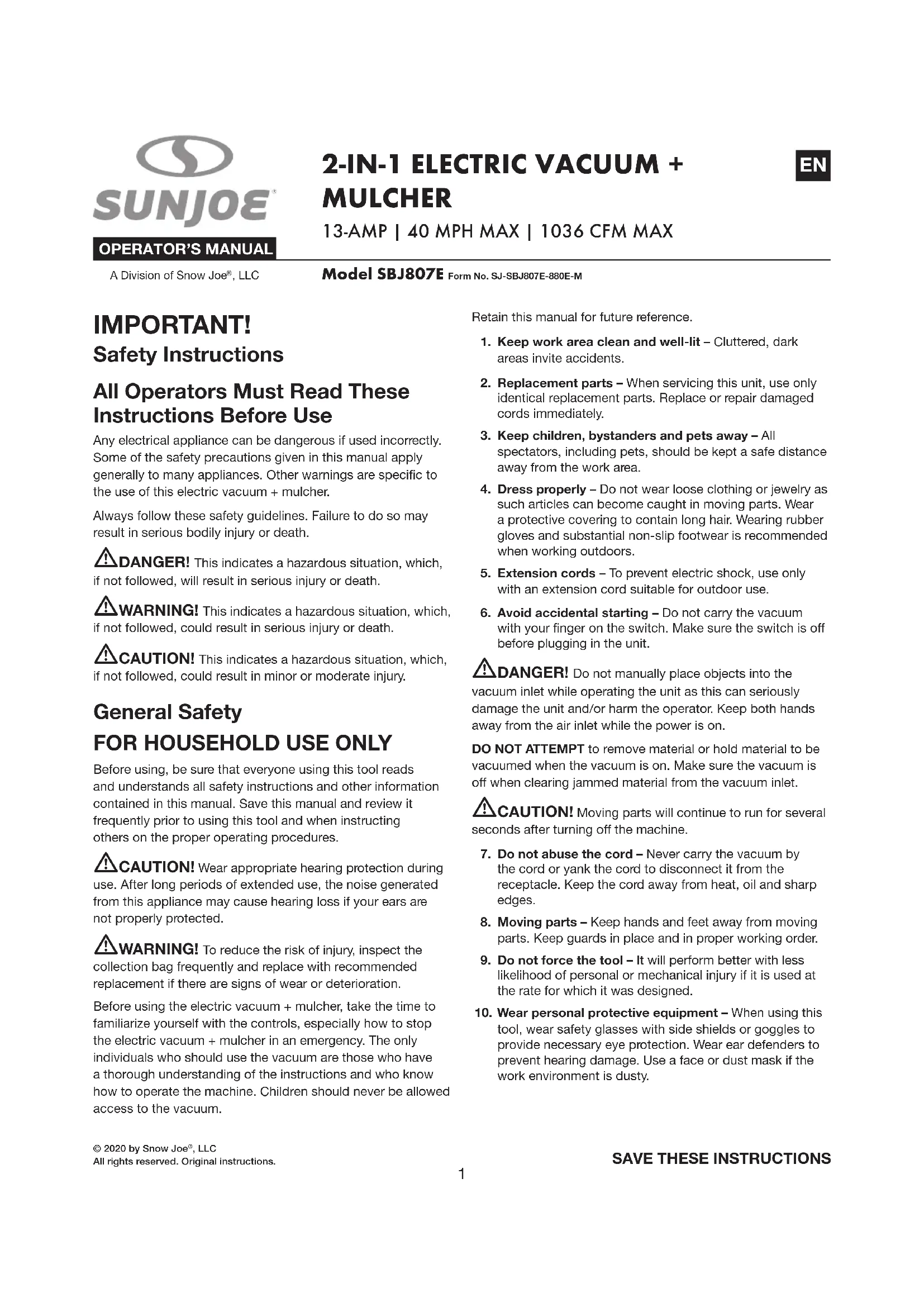

USER MANUAL SBJ807E Sun Joe

A Division of Snow Joe ^® , LLC

Model SBJ807E Form No. SJ-SBJ807E-880E-M

IMPORTANT! Safety Instructions

All Operators Must Read These Instructions Before Use

Any electrical appliance can be dangerous if used incorrectly. Some of the safety precautions given in this manual apply generally to many appliances. Other warnings are specific to the use of this electric vacuum + mulcher.

Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

⚠️DANGER! This indicates a hazardous situation, which, if not followed, will result in serious injury or death.

WARNING! This indicates a hazardous situation, which, if not followed, could result in serious injury or death.

CAUTION! This indicates a hazardous situation, which, if not followed, could result in minor or moderate injury.

General Safety FOR HOUSEHOLD USE ONLY

Before using, be sure that everyone using this tool reads and understands all safety instructions and other information contained in this manual. Save this manual and review it frequently prior to using this tool and when instructing others on the proper operating procedures.

⚠️CAUTION! Wear appropriate hearing protection during use. After long periods of extended use, the noise generated from this appliance may cause hearing loss if your ears are not properly protected.

WARNING! To reduce the risk of injury, inspect the collection bag frequently and replace with recommended replacement if there are signs of wear or deterioration.

Before using the electric vacuum + mulcher, take the time to familiarize yourself with the controls, especially how to stop the electric vacuum + mulcher in an emergency. The only individuals who should use the vacuum are those who have a thorough understanding of the instructions and who know how to operate the machine. Children should never be allowed access to the vacuum.

Retain this manual for future reference.

1. Keep work area clean and well-lit – Cluttered, dark areas invite accidents.
2. Replacement parts – When servicing this unit, use only identical replacement parts. Replace or repair damaged cords immediately.
3. Keep children, bystanders and pets away – All spectators, including pets, should be kept a safe distance away from the work area.
4. Dress properly – Do not wear loose clothing or jewelry as such articles can become caught in moving parts. Wear a protective covering to contain long hair. Wearing rubber gloves and substantial non-slip footwear is recommended when working outdoors.
5. Extension cords – To prevent electric shock, use only with an extension cord suitable for outdoor use.
6. Avoid accidental starting – Do not carry the vacuum with your finger on the switch. Make sure the switch is off before plugging in the unit.

⚠️DANGER! Do not manually place objects into the vacuum inlet while operating the unit as this can seriously damage the unit and/or harm the operator. Keep both hands away from the air inlet while the power is on.

DO NOT ATTEMPT to remove material or hold material to be vacuumed when the vacuum is on. Make sure the vacuum is off when clearing jammed material from the vacuum inlet.

CAUTION! Moving parts will continue to run for several seconds after turning off the machine.

1. Do not abuse the cord – Never carry the vacuum by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges.
2. Moving parts – Keep hands and feet away from moving parts. Keep guards in place and in proper working order.

3. Do not force the tool – It will perform better with less likelihood of personal or mechanical injury if it is used at the rate for which it was designed.

4. Wear personal protective equipment – When using this tool, wear safety glasses with side shields or goggles to provide necessary eye protection. Wear ear defenders to prevent hearing damage. Use a face or dust mask if the work environment is dusty.

5. Disconnect the tool – Disconnect the vacuum from the power supply when it is not in use, before servicing it, when changing accessories and when performing any other maintenance task.

6. Store idle tool indoors – When not in use, the vacuum should be stored indoors in a dry and locked-up place out of the reach of children.
7. Maintain the vacuum with care – Keep the air inlet/outlet and the fan area clear and clean for optimal performance and to reduce the risk of injury. Inspect the extension cord periodically and immediately replace it if damaged. Keep the handles dry, clean and free from oil and grease. Follow the additional recommendations described in the maintenance section of this manual.
8. Use the right tool – Do not use the tool for any job except that for which it is intended.
9. Avoid dangerous environments – Do not use the vacuum in rain, damp or wet locations. Do not operate the vacuum in gaseous or explosive atmospheres or use the vacuum to pick up flammable or combustible liquids. Motors in these tools normally spark, and the sparks might ignite fumes.
10. Stay alert – Watch what you are doing. Use common sense. Do not operate the vacuum when you are tired or under the influence of drugs, alcohol or other medication.
11. Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

Personal Safety

• Keep firm footing and maintain good balance at all times. Do not overreach. Overreaching can result in loss of balance.
• Turn off all controls before unplugging the tool.
• Do not use the tool if the power switch does not turn it ON or OFF. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
• Do not use the tool with a damaged plug. If the tool is not working as it should or has been dropped, damaged, left outdoors or dropped into water, return it to an authorized Snow Joe® + Sun Joe® dealer or contact the Snow Joe® + Sun Joe® customer service department at 1-866-SNOWJOE (1-866-766-9563).
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without the collection bag in place.
• Carefully inspect your appliance prior to use and follow all label and marking instructions.

• Always unplug this appliance before connecting or disconnecting the collection bag.
- Do not use for wet material.
- During operation, make sure that the vacuum inlet is properly grounded.
- Never let children operate the unit.
- Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
- Do not put any object into the tool's openings. Do not use the tool with any opening blocked; keep openings free of dust, lint, hair or any other object that may reduce air flow.
- Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire or string which can be thrown or become entangled in the machine.
- Service on the product must be performed by qualified repair personnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.
- This vacuum is intended for residential use only. Commercial use of this product is prohibited and will void the manufacturer's warranty.
- Never douse or squirt the unit with water or any other liquid. Clean the unit after each use as described in the cleaning and storage section.
- Prevent cords, plastic bags, or similar items from getting sucked in, as these might wrap around the impeller fan, which may cause an overload or blocking of the motor. In such a case, switch the vacuum off. Do not leave the vacuum switched on with the motor overloaded or stalled.
- Always operate the machine in an upright position. Do not operate it tilted to one side or even upside-down.

Electrical Safety

1. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the vacuum. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
2. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.

Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

WARNING

Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:

• Do not allow any part of the electric vacuum + mulcher to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
• Use only a UL-, CSA-, or ETL-rated extension cord for outdoor, all-weather use, such as the Snow Joe® + Sun Joe® SJTW-A 14-gauge 50-foot extension cord with lighted end (Model PJEXT50-B). Visit sunjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563).
• Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

EXTENSION CORD CHART

Extension Cord Length	Up to 50 ft (15 m)	+50 ft - 100 ft (+15 m - 30 m)
Wire Gauge (A.W.G.):	14 12

1. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized, UL-listed (CSA certified in Canada) extension cord recommended for outdoor use. The appliance plug will fit into a polarized extension cord only one way.

If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle or extension cord plug in any way.

1. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.

Table 1. Method of Securing Extension Cord

Cord set Appliance cord

(A) Tie cord as shown

Simple line drawing of a resistor connected in series with a loop (no text or symbols)

(B) Connect plug and receptacle

1. Do not abuse the cord. Never pull the vacuum by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges.

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe ^® + Sun Joe ^® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol □square within a square may also be marked on the appliance.

BLE-INSULATED: GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS.

This electric vacuum + mulcher is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this vacuum only as described in this manual.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	READ THE OPERATOR'S MANUAL(S) - Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate.		Keep bystanders and children a safe distance away.
	SAFETY ALERT - Indicates a precaution, a warning or a danger.		WARNING! Do not expose the unit to rain or wet conditions.
	Beware of flying objects and debris.		Wear hearing protection.Wear eye protection.Wear breathing protection.
	The rotating part will continuously run for several seconds after you turn off the machine.		Immediately remove the plug from the mains if the power cable is damaged, frayed or entangled.Always keep the power cable away from heat, oil and sharp edges.
	DANGER! Rotating blades pose a serious risk of injury. Keep hands and feet away from openings while the machine is running.		WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories or conducting any other maintenance task.
	DOUBLE INSULATION - When servicing, use only identical replacement parts.

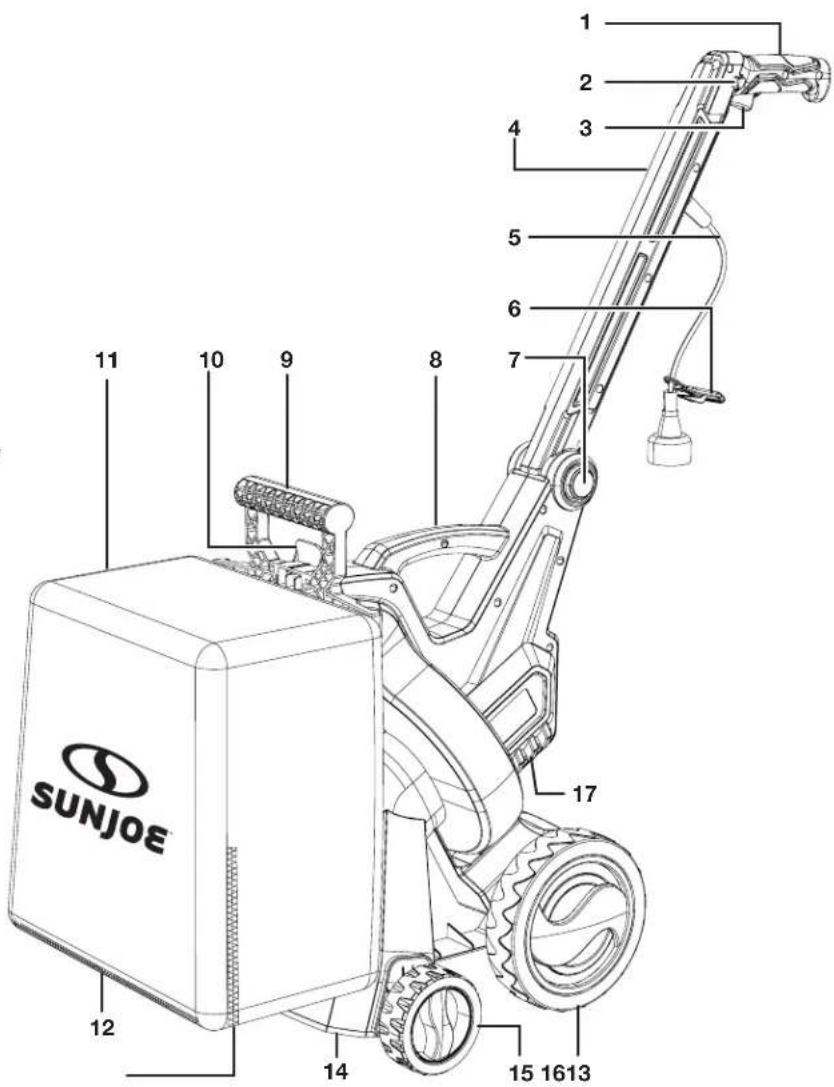

Know Your Electric Vacuum + Mulcher

Read the owner's manual and safety instructions carefully before operating the electric vacuum + mulcher. Compare the illustration below to the electric vacuum + mulcher in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Handle grip
2. Safety lock button
3. On/Off switch
4. Pivoting handle
5. Appliance cord
6. Extension cord restraint hook
7. Handle pivoting button
8. Auxiliary handle
9. Collection bag handle
10. Collection bag releasing tab
11. Collection bag
12. Collection bag dust pouch zipper
13. Collection bag leaf pouch zipper
14. Vacuum chute/air inlet
15. Front wheels (2)
16. Rear wheels (2)
17. Ventilation slots

1 2 3 4 5 6 7 8 9 10 11 12 14 15 1613 17 SUNJOE

Technical Data

Motor 13 A

Rated Voltage 120V \~ 60 Hz

No Load Speed 12800 rpm

Vacuum Air Flow Max 1036 CFM (29.3 m³/min)

Air Speed Max 40 MPH (64 km/h)

Debris Intake 7.9 in. x 5.5 in. (20 cm x 14 cm)

Handle Length 17.7 in. (45 cm)

Collection Bag Capacity 10.6 gallons (40 l)

Mulching Ratio 16:1

Air Inlet Height .... Low: 1.4 in. (3.6 cm) High: 2.2 in. (5.6 cm)

Front Wheel Size 4 in. (10 cm)

Rear Wheel Size 7 in. (18 cm)

Net Weight 14 lbs (6.4 kg)

Unpacking

Carton Contents

• Electric vacuum + mulcher
- Front wheels (2)
- Front wheel hubs (2)
• Collection bag with supporting frame
- Manual with registration card

1. Carefully remove the electric vacuum + mulcher and check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use the vacuum. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

⚠ WARNING! To avoid serious personal injury, read and understand all safety instructions provided.

⚠ WARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

WARNING! Before performing any maintenance, make sure the tool is unplugged from the power supply. Failure to heed this warning could result in serious personal injury.

WARNING! To prevent serious personal injury, make sure the switch is not squeezed, the unit is unplugged and the impeller has come to a complete stop before attaching or removing the collection bag.

1. Assemble the front wheel with the wheel hub as shown below. Insert the shaft of the wheel hub into one of the holes located on the side of the vacuum chute, and rotate the wheel hub clockwise until it cannot be rotated anymore (Fig. 1).

NOTE: Adjust the vacuum to obtain the optimal air inlet height by aligning the wheel shaft to the hole at the corresponding height.

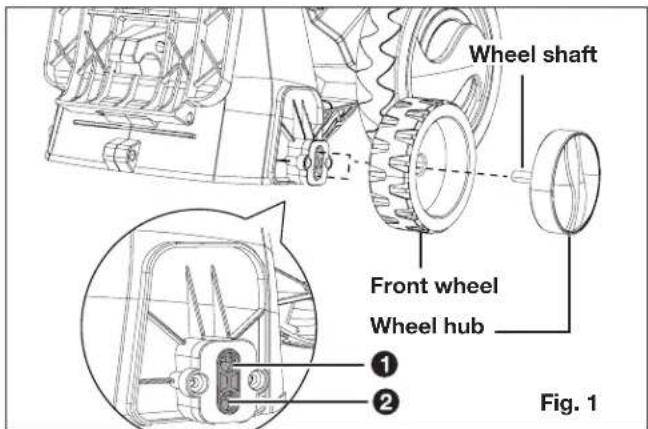

Wheel shaft Front wheel Wheel hub ① ② Fig. 1

1. Repeat the above assembly step for the other wheel, make sure both wheels are set to the same height.

2-Position Height Adjustment:

1) Low: 1.4 in. (3.6 cm)

2) High: 2.2 in. (5.6 cm)

NOTE: Choose the air inlet height according to the terrain that the vacuum will be working on. To work on flat surface, lower the air inlet height. To work on lawn or uneven surface, increase the air inlet height.

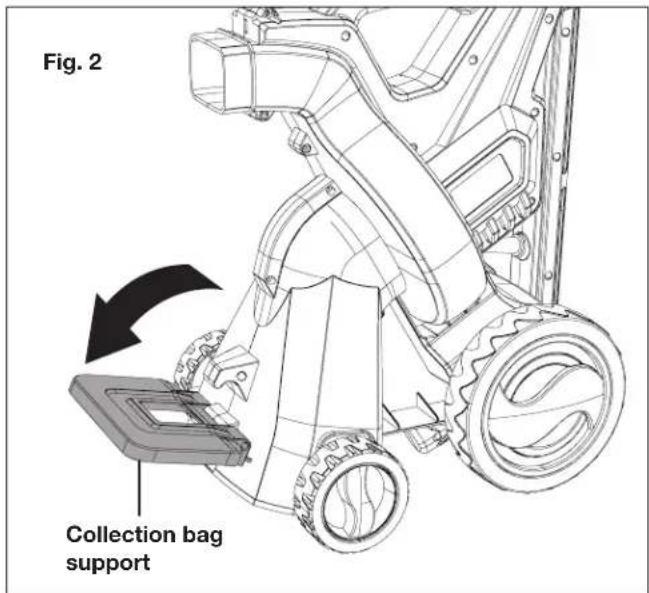

1. Flip down the collection bag support located on the bottom of the chute (Fig. 2).

Fig. 2 Collection bag support

1. To attach the collection bag, first place the bottom of the collection bag on the collection bag support and insert the tab on the chute into the hole on the bottom of the collection bag, then align and insert the air outlet into the hole on the top of the bag. Press firmly until it clicks and locks securely into place (Fig. 3).

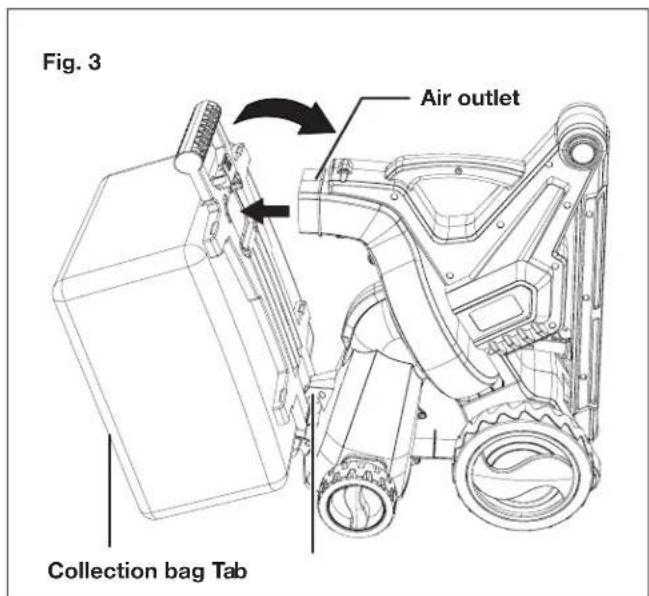

Fig. 3 Air outlet Collection bag Tab

NOTE: The collection bag must be attached any time the unit is being operated. The unit cannot start if the collection bag is not attached properly.

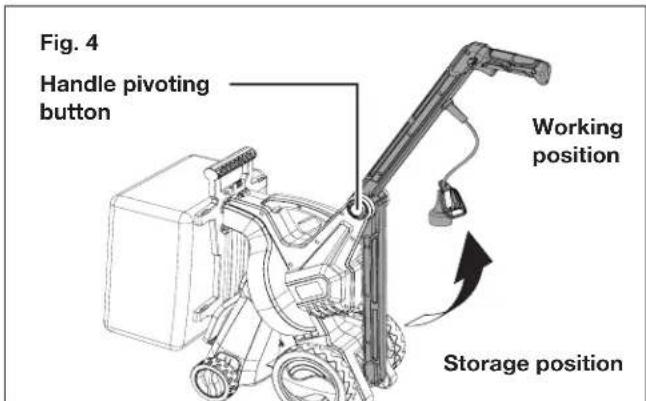

1. Press on the handle pivoting button and rotate the handle at the same time, until the handle is fully extended and clicks into the working position (Fig. 4).

Fig. 4 Handle pivoting button Working position Storage position

⚠️DANGER! To avoid personal injury, the handle must be fully extended in working position during operation.

Operation

Starting + Stopping

Do not switch on the vacuum until it has been completely assembled. Before switching on the unit, always check the appliance cord and the extension cord for signs of damage. Use only intact cords.

⚠ WARNING! Damaged cords pose a severe risk of injury. Replace damaged cords immediately.

WARNING! Before switching on the vacuum, make sure that it is not in contact with any foreign objects. Keep your hands and feet a safe distance away from the bottom opening. Failure to comply with these warnings can result in severe personal injury.

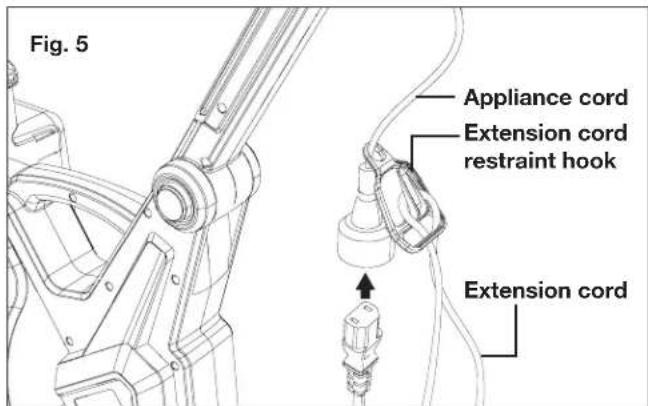

1. Push a loop of the extension cord through the slot on the extension cord restraint hook from the opposite side and loop it around the extension cord restraint hook. Connect the appliance cord and the extension cord (Fig. 5).

Fig. 5 Appliance cord Extension cord restraint hook Extension cord

1. To start the unit, press the safety lock button, meanwhile squeeze the On/Off switch. Once the machine powers on, release the safety lock button and proceed with operation (Fig. 6).

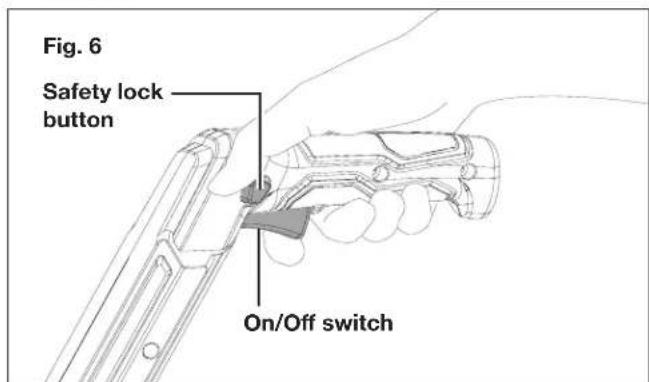

Fig. 6 Safety lock button On/Off switch

1. To stop the unit, release the On/Off switch (Fig. 6).

Operating Tips

This electric vacuum + mulcher is designed to clean hard surfaces as paved paths, courtyards and terraces. It is only suitable for vacuuming dry, light materials such as grass, leaves, small twigs and acorns. The vacuuming of heavy materials such as metal, stones, branches, broken glass, and wet leaves is expressly excluded.

WARNING! Use the electric vacuum + mulcher only in daylight or good artificial light.

- Wear personal protective equipment during your work session. This includes boots, safety glasses/goggles, ear defenders, long pants and a long-sleeve shirt.

• Make sure the collection bag is properly installed and zipped closed.
• To reduce the risk of hearing loss associated with sound level(s), hearing protection is required.
• Before starting, make sure the handle is securely set into working position.
• Always direct the extension cord backwards, away from the unit.

- Operate power equipment only at reasonable hours—not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday.

- Be extremely careful when working on slopes.

• Always move forward by walking. Never run.

- To reduce noise levels, limit the number of pieces of power equipment used at any one time.

- Clean up after using vacuums and other lawn equipment. Dispose of debris appropriately.

⚠ WARNING! To avoid serious personal injury, wear ear defenders, goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations.

Basic Vacuum/Mulcher Procedure

- Make sure the vacuum is stable and all 4 wheels are in contact with the ground.

NOTE: The unit will not start if any of the rear wheels are not touching the ground.

• Always stand behind the unit. Do not turn on the unit when people are kneeling or sitting next to it.
- With a firm hold on the handle grip, move the unit slowly and steadily to place the air inlet over the debris to be vacuumed. The debris will flow into the bag. Items such as small leaves and twigs will be mulched as they pass through the impeller. For longer bag life and increased performance, empty the bag frequently.

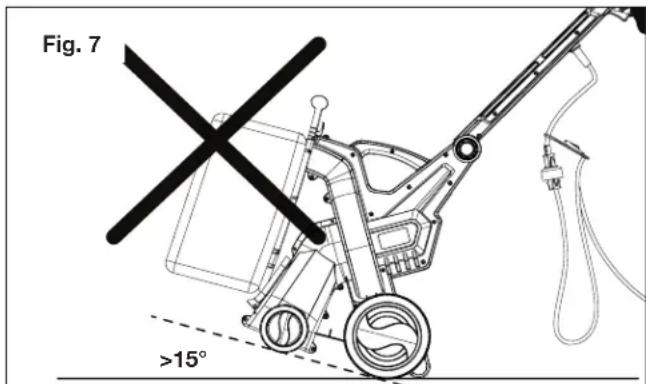

- During operation, do not press down on the handle grip to tilt the front of the vacuum. If tilted more than 15 degrees, the machine will shut off and won't operate (Fig. 7).

Fig. 7 >15°

• During operation, keep the ventilation slots unblocked. Blocked ventilation slots will cause the machine to overheat.

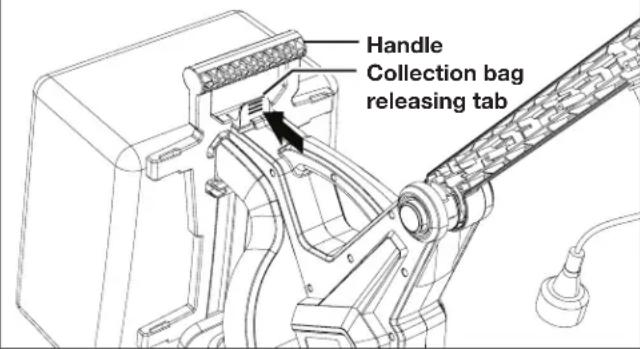

• When the bag is full, the suction power of the tool will decrease. Release the On/Off switch and unplug the unit from the power supply. Push the releasing tab and pull the bag off the unit by the handle at the same time to release the collection bag (Fig. 8).

Fig. 8

Handle Collection bag releasing tab

- To empty the bag, hold the plastic handle and unzip both zippers of the bag. Shake out any debris and leaves.

NOTE: This unit is equipped with dust filtration capability which separates the accumulated mulch from the fine dust. For optimal performance, it is recommended to empty both compartments every time after using.

⚠ WARNING! To prevent serious personal injury, make sure the switch is not squeezed, the unit is unplugged and the impeller has come to a complete stop before attaching or removing the collection bag.

Maintenance

To order genuine replacement parts or accessories for the Sun Joe® SBJ807E electric vacuum + mulcher, please visit sunjoe.com or contact the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! Disconnect the extension cord before performing any maintenance task.

If the extension cord is plugged into the appliance, someone could accidentally turn on the unit while you are performing maintenance on it, which could result in serious personal injury.

Clearing The Blocked Inlet/Outlet

During the vacuuming process, certain objects such as cloth, rope or large diameter sticks may obstruct and block the air inlet/outlet. A thermal protection device, which is built into the vacuum, will cut off the electricity to the motor to prevent damage from overheating. When this happens, follow the instructions below to clean the blocked air inlet/outlet.

⚠ WARNING! To avoid serious personal injury, be sure the unit is OFF and unplugged before clearing the air inlet.

⚠ WARNING! To avoid serious personal injury, always wear gloves to protect yourself from any sharp objects.

1. Release the On/Off switch and wait until the unit comes to a complete stop.
2. Unplug the unit.
3. Remove the collection bag.
4. Turn the machine sideways to expose the air inlet. Wearing protective gloves, carefully reach and remove the material blocking the chute from the air inlet. Inspect to ensure no damage has occurred.
5. Reinstall the collection bag. Wait 3 minutes for the motor to cool.
6. Plug the unit back into the power supply and start the unit. The vacuum will resume normal function.

Cleaning the Unit

⚠ WARNING! To avoid serious personal injury, always turn the unit off and unplug it before cleaning or servicing.

Use a small brush to clean the outside of the unit. Do not use strong detergents, household cleaners that contain aromatic oils (e.g. pine and lemon) or harsh solvents such as kerosene as these substances can damage the plastic housing or the handle. Wipe off any moisture with a soft, dry cloth.

1. Empty the bag after each use to avoid deterioration and obstructing air flow, which will reduce the performance of the mulcher.
2. Wear eye protection and a dust mask. Clean the bag as needed. Turn the bag inside out after initial emptying and vigorously shake out dust and debris.
3. Wash the bag once a year, or more often if needed. Follow the steps below:
   i. Remove the bag.

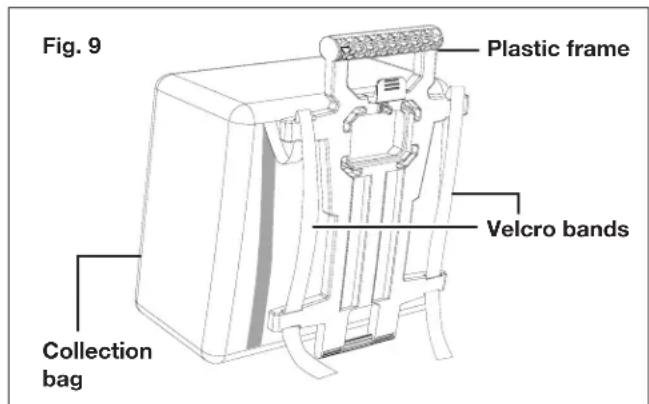

   ii. Unclip the 2 Velcro bands used to secure the bag on the supporting frame, and release the string that is used to fix the bag on the upper slot of the frame. Remove the collection bag from the frame (Fig. 9).

Fig. 9 Plastic frame Velcro bands Collection bag

iii. Turn the bag inside out.

iv. Hang it up.

v. Hose it down thoroughly.

vi. Leave it hanging to dry.

vii. Turn the bag right-side out and reinstall.

Storage

1. Examine the electric vacuum + mulcher thoroughly for worn, loose or damaged parts. Should you need to repair or replace a part, contact an authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
2. Examine the extension cord thoroughly for signs of excess wear or damage. If it is worn or damaged, replace it immediately.
3. Disconnect the extension cord from the vacuum before storing.
4. Store the cord with the vacuum indoors in a clean, dry and locked location out of the reach of children and animals.

NOTE: Devices for retaining extension cords are commercially available should you wish to purchase one.

Service and Support

If your Sun Joe® SBJ807E electric vacuum + mulcher requires service or maintenance, please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model and Serial Numbers

When contacting the company, reordering parts or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: S B J 8 0 7 E Model #: Serial #:

Troubleshooting

⚠ WARNING! Always unplug the power cord before performing any adjustments, maintenance or repairs to your electric vacuum + mulcher.

Problem	Possible Cause	Solution
Unit will not vacuum	1. Bag full.2. Blocked air inlet/outlet.3. Blocked impeller.4. Dirty bag.5. Torn bag.6. Bag unzipped.7. Unit unplugged.	1. Empty the bag.2. Clear the blockage.3. Clear the blockage.4. Clean the bag.5. Replace the bag.6. Zip up the bag.7. Plug into an outlet or an extension cord.
Unit will not start	1. Unit is unplugged.2. On/Off switch is not squeezed properly.3. Defective On/Off switch.4. House circuit may have tripped.5. The collection bag is not attached properly.6. The handle is not fully extended.7. Unit is tilted.8. Unit is overheated.	1. Check cord to make sure it is plugged into an electrical outlet.2. Press the safety lock button, and squeeze the ON/Off switch.3. Call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).4. Check wall circuit breaker panel and reset if necessary.5. Attach the collection bag securely.6. Extend the handle until it clicks into position.7. Place the unit stably on the ground, with all 4 wheels touching the ground.8. Unplug the unit, clear any blockage, and let it cool down for a while.

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric vacuum + mulcher. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your electric vacuum + mulcher. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

		ModelAccessor
1	10.6 gallons (40 l) collection bag SBJ807E-BAG
2	Snow Joe® + Sun Joe® SJTW-A 14-gauge 50-foot extension cord with lighted end	PJEXT50-B

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563)

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

Una división de Snow Joe®, LLC Modelo SBJ807E Forma N° SJ-SBJ807E-880S-M

©2020 Snow Joe ^® , LLC

Simple line drawing of a resistor connected in series with two leads (no text or symbols)

Technical line drawing of a helicopter with no visible text or symbols

Simple line drawing of a resistor with a terminal block, no text or symbols present

Technical line drawing of a helicopter with no visible text or symbols
