Product type	Cordless stick vacuum
Brand	THOMSON
Model	THVC213BR
Dimensions (L x W x H)	240 x 220 x 1100 mm
Net weight	2.5 kg
Power supply	Lithium-ion battery 22.2 V 2200 mAh
Maximum motor power	120 W
Dust bin capacity	0.6 L
Speed levels	3
Charging time	4 to 5 hours maximum
Battery type	Detachable lithium-ion
Charger input voltage	100-240 V~ 50/60 Hz
Charger output voltage	DC 26.5 V 500 mA
Included accessories	Motorized brush, flat crevice tool, 2-in-1 brush, magnetic wall charging dock, metal tube
Filters	Washable main filter and HEPA filter
Usage	Household use only
Maintenance	Monthly cleaning of the dust bin and filters, semi-annual cleaning of the post-motor filter
Disposal	WEEE compliant, recyclable battery
Warranty	Standard conditions, excluding wear parts and abnormal use
Compliance	CE (directives 2014/35/EU and 2014/30/EU)

Frequently Asked Questions - THVC213BR THOMSON

How to charge the THVC213BR vacuum?

Plug the adapter into the charging port on the device, then into an electrical outlet. Full charge takes about 4 to 5 hours. The indicators flash during charging and become solid once the battery is full.

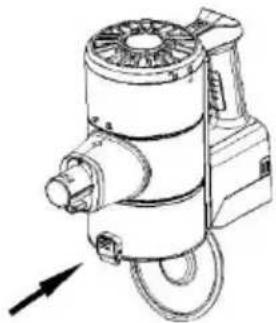

How to empty the dust bin?

Press the dust emptying unlock button on the bin to empty it after each use. Close the lid once empty.

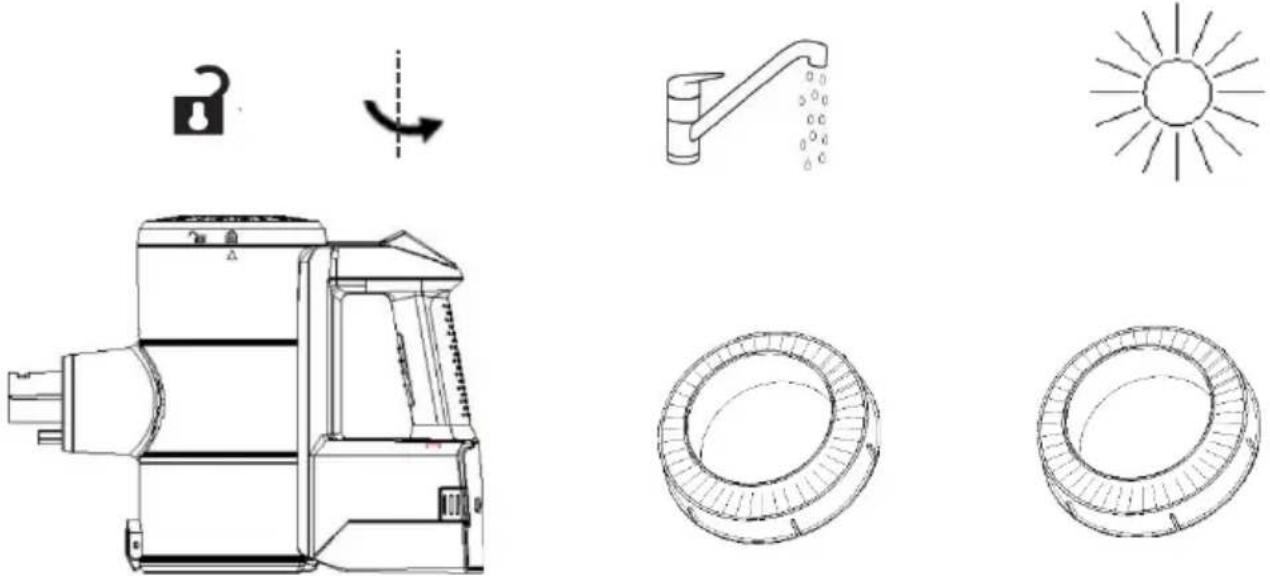

How to clean the filters?

Remove the dust bin, then the main filter and HEPA filter. Wash them under running water and let them dry completely before reassembling. Clean the filters every month to maintain performance.

What to do if the motorized brush does not spin?

Turn off the device and unplug it. Check that the brush is not blocked by hair or debris. Clean the brush roller and ensure it is properly locked. Recharge the device if necessary.

Can the vacuum suck up water or liquids?

No, this vacuum is designed only for dry cleaning. Never vacuum liquids, as this could damage the device and pose a risk of electric shock.

What accessories are included with the vacuum?

The vacuum comes with a motorized brush, a flat crevice tool, a 2-in-1 brush, a metal tube, and a magnetic wall charging dock.

How to install the wall charging dock?

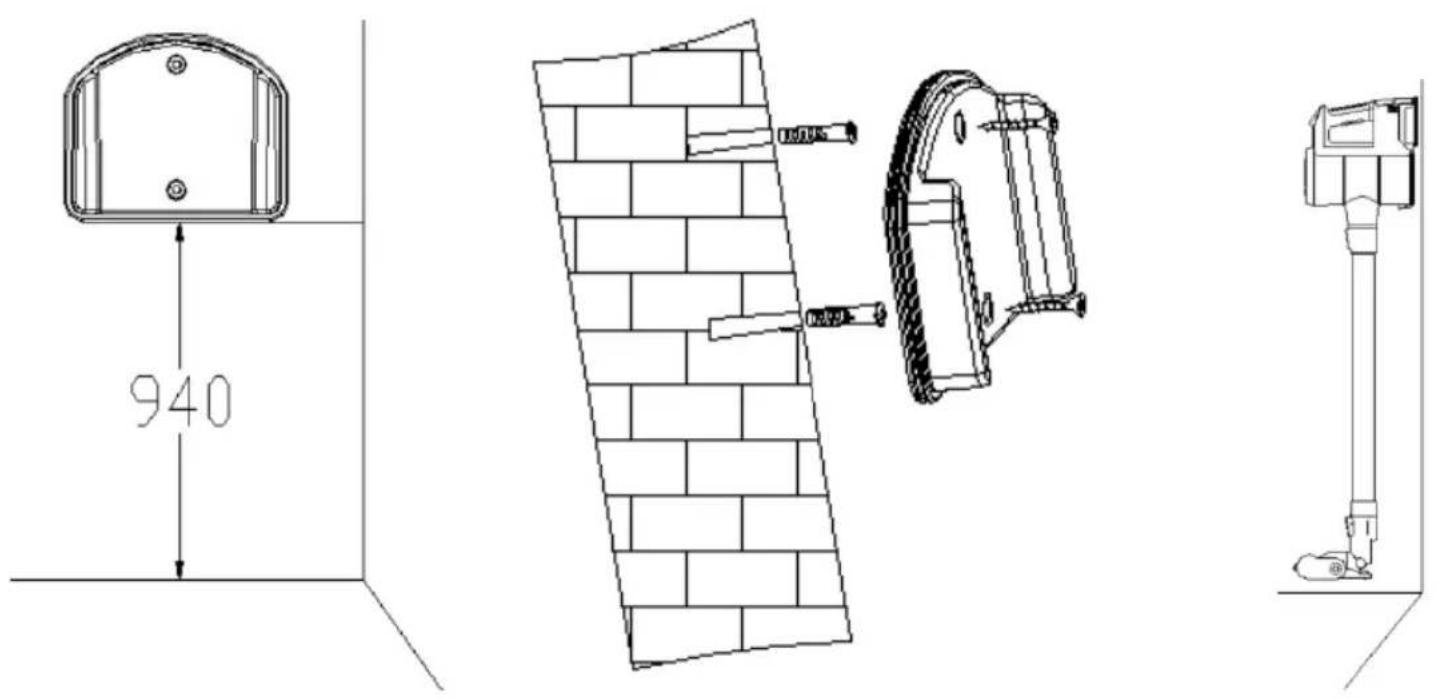

Attach the magnetic wall charging dock at 940 mm from the floor using the provided screws. Place the vacuum on the floor and hold it against the dock to charge.

Is the vacuum safe for children?

The device can be used by children over 8 years old under supervision. Children must not play with the device or perform cleaning without supervision. Store the vacuum out of reach of young children.

What to do in case of loss of suction?

Check if the dust bin is full, if the filters are clogged, or if an accessory is blocked. Empty the bin, clean the filters, and remove any blockage in the tube or brush.

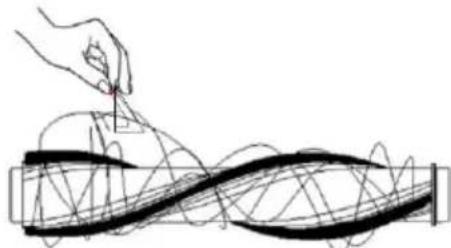

How to clean the motorized brush?

Unlock the roller attachment using a coin or by hand, remove hair and debris, then wash the roller under running water. Dry it completely before reassembling by locking the attachment.

USER MANUAL THVC213BR THOMSON

Black and silver compact vacuum cleaner with extended handle and ventilation slots (no visible text or symbols)

Technical diagram of a device with numbered components and labeled parts, including a zoomed-in view of the internal structure.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a robotic arm with directional arrow indicating movement, showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical device with rotation arrows (no text or symbols)

Technical line drawing of a mechanical device with rotation arrows and component labels (no readable text or symbols)

Three technical line drawings of a mechanical component with internal cavities and mounting holes (no text or symbols)

Charge, 1/3 chargé :

Technical line drawing of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Charge, 2/3 chargé :

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Basse puissance :

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical joint or connector assembly (no text or symbols)

Fonctionnement

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a hand mixer device showing internal components and assembly (no text or labels)

Line drawings of a faucet and two mechanical components with water droplets, showing assembly or repair (no text or symbols)

Line drawings of a sun, a cylindrical device with a bulb, and a mechanical component (no text or symbols)

Remarque :

Technical line drawing of a circular mechanical component with internal arrows (no text or symbols)

Technical line drawing of a circular mechanical component with internal gear-like structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a circular mechanical component with radial grooves (no text or symbols)

Technical line drawing of a circular mechanical component with radial grooves (no text or symbols)

Hand holding a small object over a coiled cable or wire, with no visible text or symbols

Illustration of a faucet and a twisted rope with circular holes (no text or symbols)

Simple line drawing of a sun and a twisted rope (no text or symbols)

Line drawing of a handheld device with directional arrows indicating motion, next to a hand holding a cylindrical object (no text or symbols)

FR-24

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

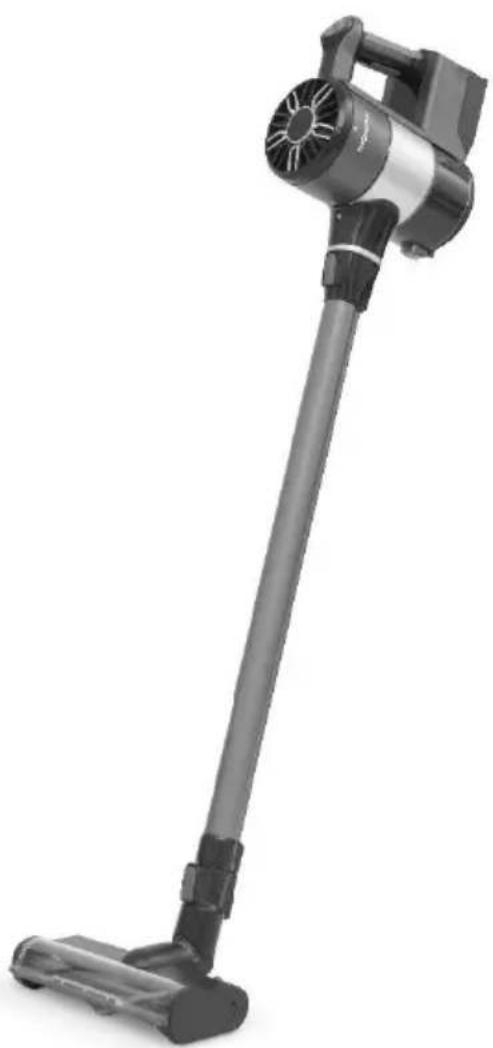

Stick vacuum cleaner

THVC213BR

User manual

Black and silver compact vacuum cleaner with extended handle and propeller (no visible text or symbols)

IMPORTANT WARNINGS AND SAFETY ADVICE

We encourage you to read this user guide carefully and completely before installing and using your device.

- It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit.

- In this user guide, the following symbols are used:

	Important information about your personal safety and how to avoid damage to the device
	General information and advice
	Risk of electric shock

Use and Precautions:

• Do not use the device until the accessories are properly adjusted.
• Do not use the appliance for sucking water or other liquid.
• Do not use this device if the on/off setting does not work.
• Do not force the working capacity of the unit.
• Unplug the appliance from the electrical system if you are not using it and before cleaning.
• This device is intended solely for household use and not professional or industrial.
• This device may be used by children 8 years of age or older,

and those with reduced physical, sensory or mental capacity or lack of experience or knowledge, if they are properly supervised or.

• If instructions for the safe use of the device have been given to them and the risks involved have been apprehended.
• Children should not carry out the cleaning and maintenance operations of the appliance unless under the supervision of an adult.
• This device is not a toy. Children should be supervised to ensure they do not play with the device.
• Leave the unit out of reach of children and/or disabled.

• Check this device the air vents are not blocked by dust, dirt or any other object.

• Do not aspire to areas containing metal objects such as nails and (or) screws.

• Never pick incandescent or sharp objects (cigarette butts, ashes, nails ...)
• Do not open the battery in any case.
• Storing the battery in a location where the temperature does not exceed 40 °C.
• Recharge battery with the charger supplied by the manufacturer only.
• To Re-Charge the device, use the supplied adapter only.

Specifications of the adapter: Input current:

100-240 V \~ 50/60 Hz

Output Current: 500mA DC 26.5V

- A charger that is suitable for a

certain type of batteries may cause explosion or fire when used with other batteries.

• Use the device only with supplied battery. Misuse other kind of batteries may cause a risk of explosion or fire.
• All improper use or not in accordance with instructions will void the warranty and product liability.
• Only use Li-ion batteries supplied.
• Warning: the plug must be removed from the socket-outlet before cleaning or maintenance the appliance.
• Please dispose the battery in your local recycle center.
• The battery must be removed from the appliance before it is scrapped;
• The appliance must be

disconnected from the supply mains when removing the battery.

- The supply cord of charger cannot be replaced. If the cord is damaged the charger should be scrapped.

⚠ Tips and safety measures

Carefully read these instructions before operating the appliance, and keep it for future reference. Non observation and application of these instructions may cause an accident.

Electrical safety:

• Before connecting the battery charger to the main unit, check that the voltage on the rating label matches the device.
• The outlet of the machine must coincide with the base of the socket. Never modify the socket. Do not use an outlet adapter.
• Please use the appliance only with the power adapter, which will be supplied with the appliance.
• Connect the device only to very

low voltage, as indicated on the device.

- Do not expose the device to rain or in a humid environment. The water entering the device increases the risk of electric shock.

- If any part of the appliance casing breaks, immediately disconnect the appliance from the mains, to avoid possible electric shock.

- Do not use the appliance if it has dropped, if it shows visible signs of damage or if there is a leak.

- Do not force the electrical connection cable. Never use the power cord to lift, carry or disconnect the battery charger.

- Check the condition of the power supply cable. Damaged or tangled cables increase the risk of electric shock.

- Do not touch the connection plug with wet hands.

Personal safety:

- Avoid contact with the battery fluid. In case of accidental contact with the eyes, wash them and consult a doctor. Battery fluid can cause rashes or burns.

- The unit contains accessories with pivoting parts. Hanging clothes, jewelry / pendants or long hair can be caught by moving parts. Dress appropriately for the activity. Do not wear loose clothing or any pendant. Keep hair, clothing and gloves away from moving parts.

Installation

Make sure you have removed all packaging material from the product.

IMPORTANT

IT IS STRICTLY FORBIDDEN TO REPLACE YOU EVEN THE POWER CABLE. IF IT IS DAMAGED IT MUST BE REPLACED BY THE AFTER-SALES YOUR DEALER STORE, THE MANUFACTURER, ITS CUSTOMER SERVICE PERSON OR SIMILAR QUALIFICATION TO AVOID A HAZARD.

IF THE APPLIANCE IS DROPPED, PLEASE ASK PROFESSIONAL QUALIFIED PERSON TO CHECK BEFORE USING IT AGAIN. INTERNAL DAMAGE MAY CAUSE ACCIDENTS.

FOR ANY PROBLEM OR REPAIR, PLEASE CONTACT THE CUSTOMER SERVICE STORE, YOUR DEALER, THE MANUFACTURER, ITS CUSTOMER SERVICE PERSON OR SIMILAR QUALIFICATION TO AVOID A HAZARD.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the User's Guide.

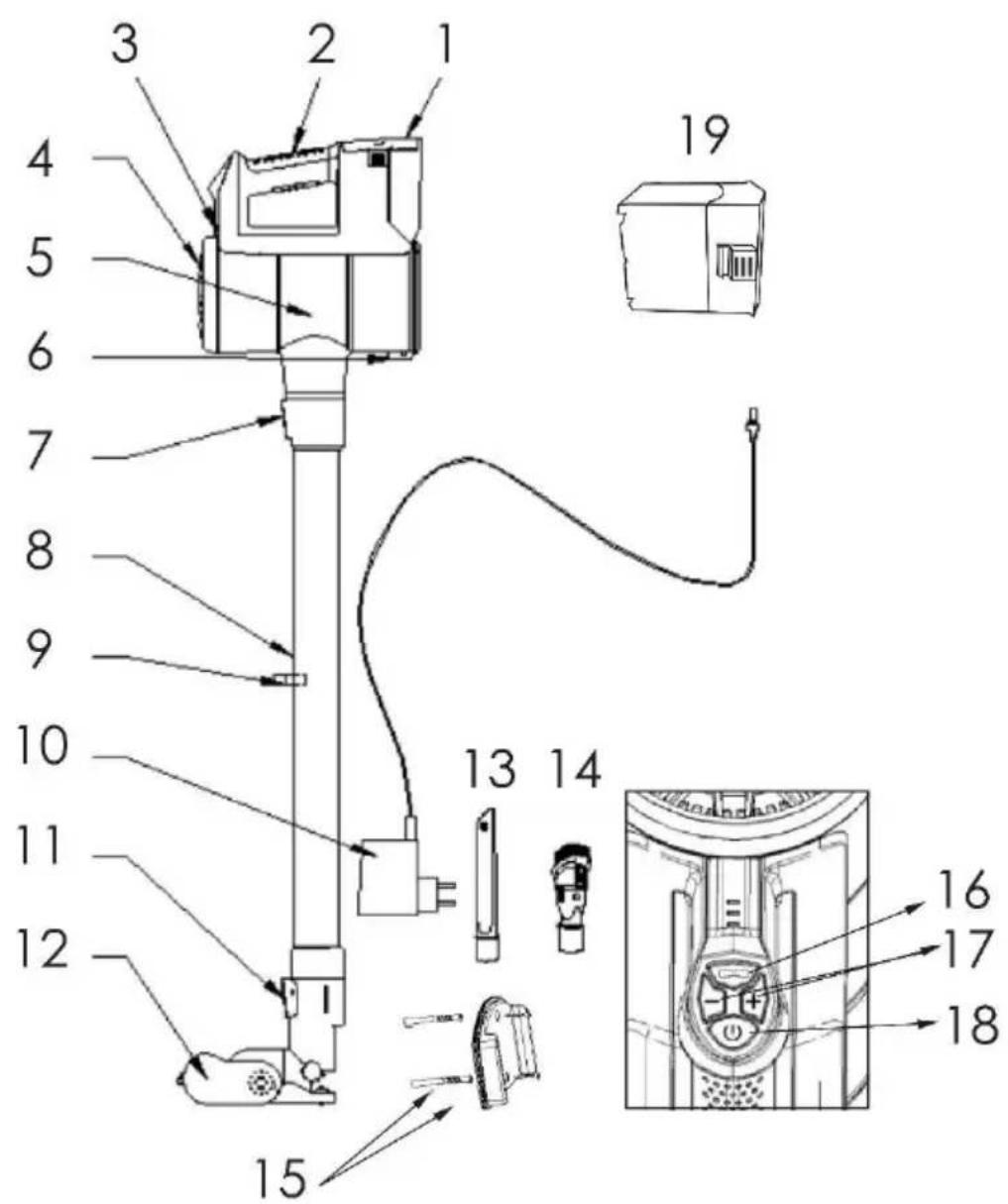

Technical diagram of a device with numbered components and labeled parts, including a 19-pin box and internal wiring.

1. Detachable battery pack
2. Ergonomic handle
3. Indicator lights
4. Outlet filter cover
5. Dust tank
6. Dust tank release button
7. Metal tube release button
8. Metal tube
9. Accessory support

10. Adapter

11. Motorized floor brush release button

12. Electro brush with multi-surfaces
13. Crevice tool
14. 2 in 1 brush tool
15. Magnetic wall charging base with fixing screws
16. Floor brush switch(on/off)
17. Adjust power level
18. On/Off switch
19. Battery

INSTRUCTIONS TO INSTALLATION

Metal Tube

Technical line drawings of two mechanical components, showing assembly and disassembly (no text or symbols)

1) Insert the metal tube to the main body until a click sound is heard.
2) Press the metal tube release button and remove the tube.

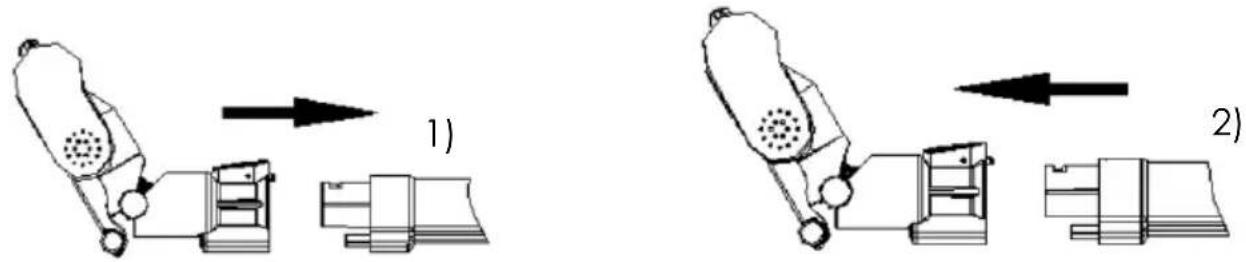

▶ Floor Brush Installation

1) Insert the motorized brush on the end of the tube until a click is heard.

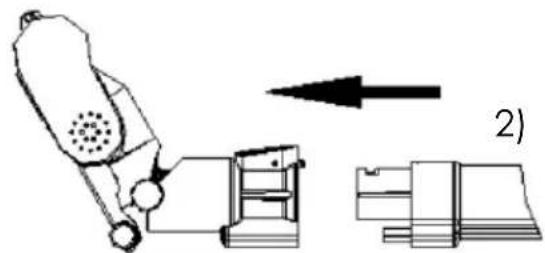

2) Press the motorized floor brush release button to remove the motorized floor brush.

Note: The floor brush, crevice nozzle, and 2 in 1 brush can be directly connected to the main body or tube.

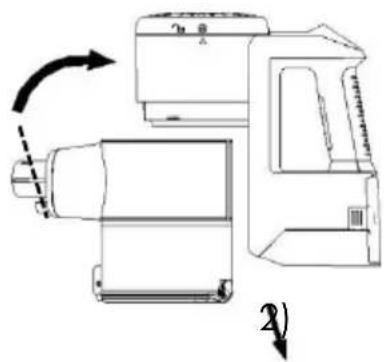

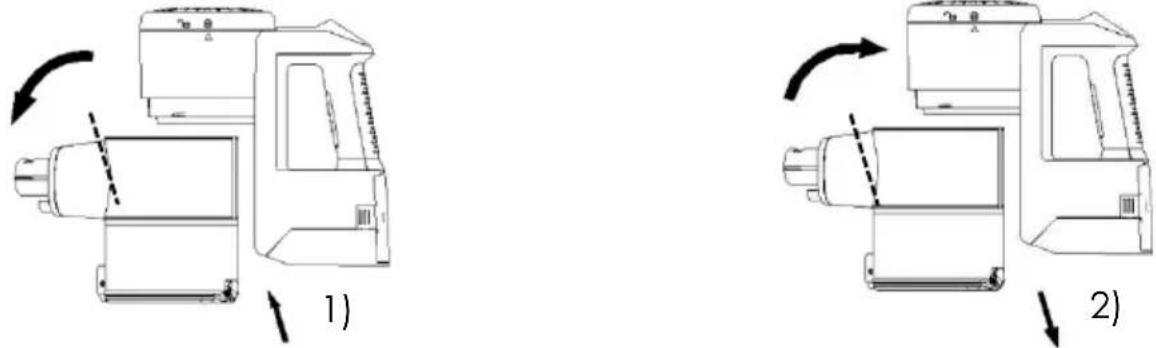

Installation of the dust container

Technical line drawings of a mechanical device with two views (1 and 2), showing internal components and directional arrows indicating motion or assembly (no text or symbols present)

1) Put the dust cup to the main body and twist counter-clockwise until it clicks.
2) Hold the opening part connected to the tube and twist clockwise to remove it.

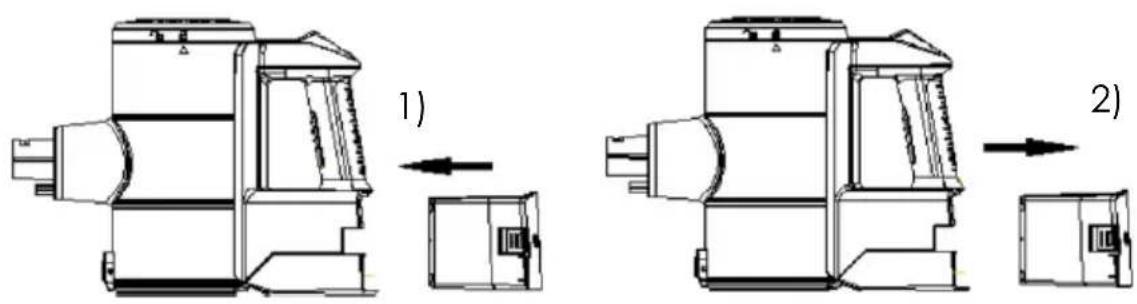

▶ Battery Installation

1) 2)

1) Install the battery into the bottom of the main body until it clicks.

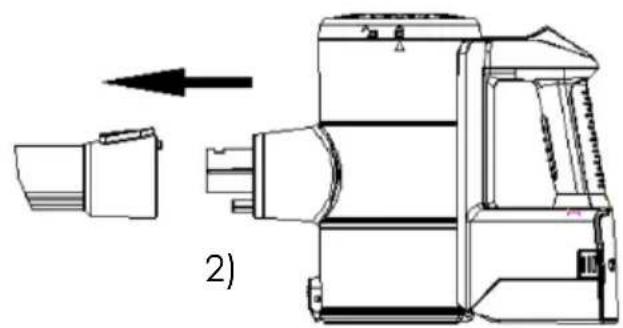

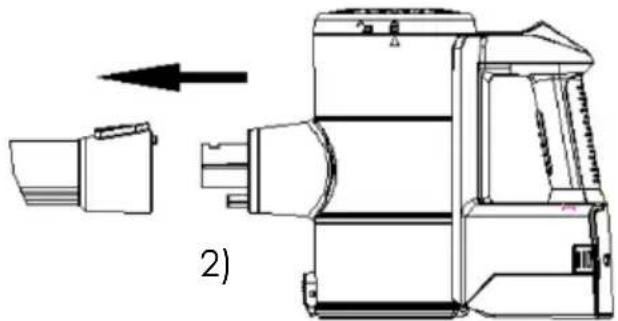

2) Press the battery release button and pull it out.

BEFORE FIRST USE

UNPACKING THE APPLIANCE AND DISPOSING OF THE EMBALLAGIC ELEMENTS

√ Remove all packing material around the appliance and the protective elements inside the appliance compartments.

• Carton board and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.
• Materials bearing the symbol △ are recyclable:

PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene

This means that they can be recycled by depositing them into appropriate collection containers.

- Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste.

PRODUCT OPERATION

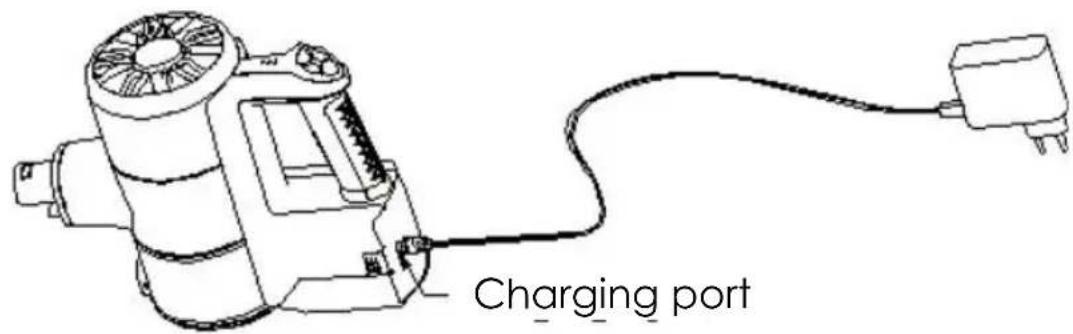

Charging

Charging port

Plug adapter into charging port and then plug the other side of the adapter into the power outlet.

Note:

√ Charge the battery before the first use.
√ It is better to charge the battery fully in the first 3 times.
√ Do not charge the battery for extended periods, as this may damage the battery.

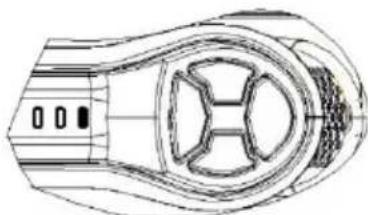

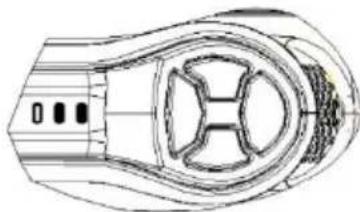

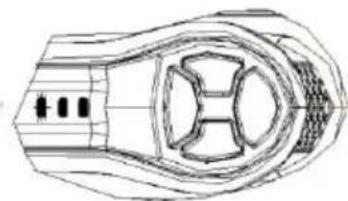

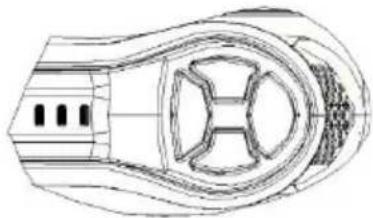

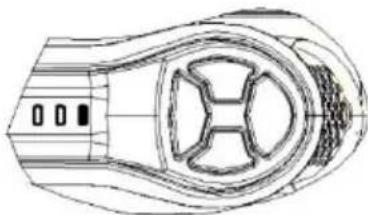

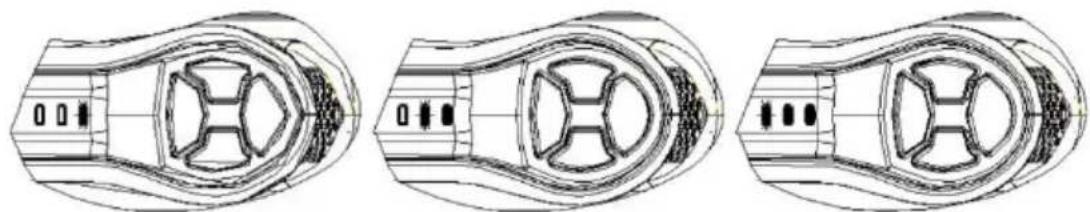

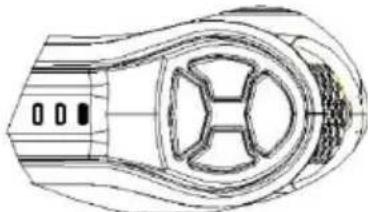

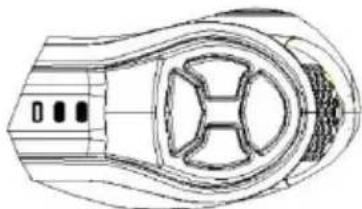

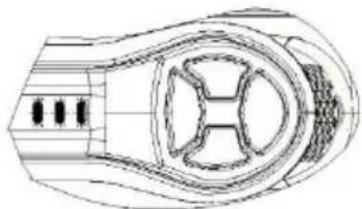

Indicator Lights

(A) During charging

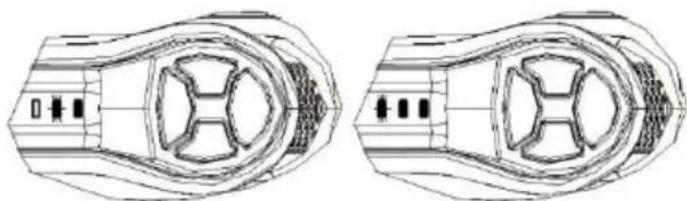

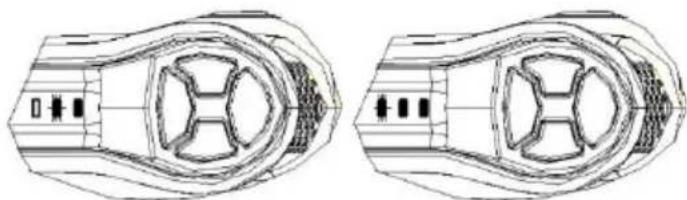

Charging from low: lights flashing in turn:

Technical line drawings of three views of a mechanical component with no visible text or symbols

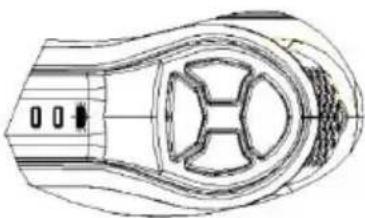

Charging, 1/3 charged:

Technical line drawing of a symmetrical mechanical component with four central slots and four outer cavities (no text or symbols)

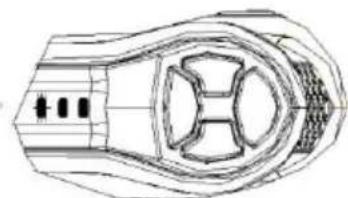

Charging, 2/3 charged:

Technical line drawing of a mechanical component with no visible text or symbols

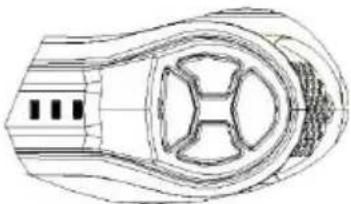

Fully charged:

Technical line drawing of a mechanical component with no visible text or symbols

Fault: lights flashing at the same time. please contact us:

Technical line drawing of a mechanical component with no visible text or symbols

(B) During use

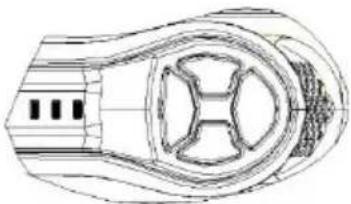

Full power:

Technical line drawing of a mechanical component with no visible text or symbols

Medium power:

Technical line drawing of a mechanical component with no visible text or symbols

Low power:

Technical line drawing of a mechanical component with no visible text or symbols

Out of power, please charge:

Technical line drawing of a mechanical component with symmetrical features and no visible text or symbols

Cleaning Accessories

• Motorized floor brush: Suitable for rugs and hard floors. Turn it on/off by pressing the floor brush switch.
• Long crevice tool: for cleaning the trash in the corners, gaps, baseboard edges, and other hard-to-reach places.
• 2 in 1 brush tool: Use the brush to clean upholstered surfaces, keyboards, lamps, curtain, blinds, vents, etc. Perfect for cleaning hair and dust inserted on the fabric. Use the crevice portion to do the ordinary cleaning task. To switch between brush and crevice portion, press the button on the accessory and slide brush up or down.

Technical line drawing of a mechanical joint or connector assembly (no text or symbols)

Start to Work

1. Select the appropriate accessory to use according to different cleaning task.
2. Press the ON/OFF switch, the machine will start to work. Press it again to stop.
3. Press the '+' or '-' button to adjust 3 suction power levels.

Emptying

√ Press the dust empty release button to empty the dust when clean task is finished.
√ Close the cover of dust cup when it is empty.

Technical line drawing of a mechanical device with no visible text or symbols

Magnetic wall charging base with fixing screws

940

1. Keep the bottom line of MAGNETIC wall mount holder 940mm to the floor, screw it.
2. Stand the unit on the floor, keep it in the magnetic wall mount holder.

Dust Container and Filters Cleaning

Note: Clean the dust container and filters monthly to maintain the performance.

1. Twist clockwise the dust container and then pull it out.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

1. Lift out the filter mask and remove. Then separate the HEPA filter from the filter mask by twisting count clockwise and pulling out.

Line drawing of a hand-painted manual shaver with no text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

1. Clean the dust cup and filters under running water.

Line drawing of a faucet with liquid drops falling (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

1. COMPLETELY dry the filters before reassembling.

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Note:

Technical line drawing of a circular mechanical component with internal rotation arrows (no text or symbols)

Clockwise to lock

Technical line drawing of a circular mechanical component with internal gear-like structure (no text or symbols)

Counter-clockwise to unlock

Post-Motor Filter Cleaning

Note: Clean the post-motor filter every 6 months.

Technical line drawings of a portable device, water tap, and two circular components with sun rays (no text or symbols)

1. Turn the filter cover counterclockwise to remove it.
2. Lift out post-motor HEPA filter.
3. Shake to remove dust. Wash the filter under running cold water.
4. Completely dry the filter before reassembling.

Floor Brush Cleaning

1. Use a coin press down by hand to turn the fastener counter-clockwise to unlock.

Diagram of a handheld device with directional arrows indicating motion or movement (no text or symbols)

1. Remove the hair and debris around the brush roller by fingers or knife.

Hand holding a small object over a wavy, coiled cable or pipe (no text or symbols visible)

1. Wash the brush roller under running water.

Two technical illustrations: a faucet with liquid spray and a twisted screw (no text or symbols)

1. COMPLETELY dry the brush roller before assembling.

Simple line drawing of a sun with radiating lines (no text or symbols)

1. To reassemble, install the brush roller inside the original place. Use a coin or press down to twist the fastener to lock.

Technical line drawing of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

TROUBLESHOOTING

If you encounter a problem with your device or if you suspect the device is not working properly, you can make a few simple checks before calling a technician.

Problem	Solution
No power	Before using the appliance, check that it is fully charged, empty the dust container and clean the filter.
Loss of aspiration	Check to see if the openings are clogged. Unplug and clean if necessary.Make sure the filter is correctly installed. Empty the dust container and clean the filter.
The motorized brush does not turn	Unplug the unit, check for clogged hair or dirt. If necessary, remove the rotating shaft from the power brush by unlocking the latch, clean and reposition the shaft by performing the reverse procedure.Make sure that the axle has been properly inserted into the power brush and the latch is in the locked position.The device may need to be recharged.Connect the device to the charger. The battery indicator will turn GREEN when charging is complete.
The battery indicator lights red while in use	The motorized brush is blocked. Turn off the vacuum and remove any object blocking the brush.

For any other problems occurring in your device: contact Customer Service.

CAUTION: The power brush contains electrical connections, do not immerse in water for cleaning.

TECHNICAL CHARACTERISTICS

• Power supply: Rechargeable battery
• Motor max. power: 120W
• Battery: Li-ion DC 22.2V 2200mAh
• Charging time: 4-5 hours Max
• Capacity of the dust bin: 0.6 L
• Speed levels: 3 speeds
• Product Dimensions: 240 x 220 x 1100mm
• Net weight: 2.5kg

DISPOSAL

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

If that logo appears on the device, this means that it must be discarded in accordance with Directive 2012/19 / EU on electrical and electronic equipment (WEEE). All hazardous substances in electrical and electronic equipment can have deleterious effects on the environment and human health during treatment. Therefore, at the end of its useful life, this product should not be disposed of with unsorted municipal waste. As a consumer

Ultimately, your role is essential for reuse, recycling or any other form of value creation for this device. There are several systems of collection and recovery implemented by your local authority (recycling center) and distributors. You have an obligation to use those systems.

EXCLUSION OF WARRANTIES

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) Deterioration of the surface due to the normal wear and tear;
(2) Defects or damage due to contact with liquid and corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, alteration, removal or unauthorized repair;
(4) Improper maintenance, improper use about the product or connection to improper voltage;
(5) Any use of accessories not supplied or approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP

This product is imported by SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON

Black and silver compact vacuum cleaner with propeller handle (no visible text or symbols)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a robotic arm and mechanical device with directional arrow, no text or symbols present

Diagram of a robotic arm interacting with a mechanical device, showing directional movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with rotation arrows and component labels (no readable text or symbols)

Three technical line drawings of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Technical line drawing of a symmetrical mechanical component with four circular features (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Totalmente cargada:

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

(B) Durante el uso

Potencia máxima:

Technical line drawing of a mechanical component with no visible text or symbols

Potencia media:

Technical line drawing of a mechanical component with no visible text or symbols

Potencia baja:

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical joint or connector (no text or symbols present)

Comenzar a Limpiar

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a hand pump assembly (no text or symbols)

Technical line drawing of a mechanical component with top and side views (no text or symbols)

Simple line drawing of a faucet with liquid droplets falling (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Technical line drawing of a mechanical component with three views (front, side, and side), showing internal parts and a curved arrow indicating motion (no text or symbols)

Nota:

Technical line drawing of a mechanical component with concentric circular features and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and directional arrows (no text or symbols)

Limpieza del Filtro Post-Motor

Diagram of a spray gun with a lever and nozzle, showing motion direction (no text or symbols)

Hand holding a small object over a coiled cable or wire, with no visible text or symbols

ES-24

Illustration of a faucet with liquid droplets and a twisted rope (no text or symbols)

Simple line drawings of a sun and a twisted rope (no text or symbols)

Line drawing of a handheld device with directional arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)
