Product Type	Stick Vacuum Cleaner
Brand	Thomson
Model	THVC93120R
Dimensions (L x W x H)	240 x 220 x 1100 mm
Net Weight	2.5 kg
Power Supply	Rechargeable Li-ion battery 22.2 V 2200 mAh
Charger	Power adapter model RKGSDC2650500 (input 100-240 V, output 26.5 V 0.5 A)
Charging Time	4 to 5 hours
Maximum Motor Power	120 W
Dust Bin Capacity	0.6 L
Number of Speed Levels	3 speeds
Main Brush Type	Motorized brush (on/off)
Included Accessories	Crevice tool, 2-in-1 brush, magnetic wall mount
Filtration System	Washable main filter + HEPA filter + sponge post-motor filter
Filter Maintenance	Clean dust bin and filters monthly; post-motor filter every 6 months
Usage	Household use only; suitable for low/medium pile carpets and hard floors
Safety	Do not use on wet dust; keep away from fragile objects; do not immerse brush
Warranty	Does not cover normal wear, damage from liquids or unauthorized repairs
Environmental Information	Complies with WEEE and RoHS directives; removable battery for recycling

Frequently Asked Questions - THVC93120R THOMSON

How long does it take to fully charge the Thomson THVC93120R vacuum cleaner?

A full charge takes about 4 to 5 hours. It is recommended to fully charge the battery for the first three uses.

What is the battery life?

Battery life depends on the power level used. With a 2200 mAh Li-ion battery, it varies from 20 to 40 minutes depending on the selected speed.

How do I clean the vacuum filters?

Clean the dust bin and filters every month. Remove the main filter and HEPA filter, wash them under running water and let them dry completely before reassembling. The post-motor filter should be cleaned every 6 months.

What if the motorized brush stops spinning?

Turn off the device and check if hair or debris is blocking the roller. Unlock the attachment, clean the roller, and reassemble by locking it properly. Ensure the battery is sufficiently charged.

Can I use the vacuum on wet floors or liquids?

No, the vacuum is designed for dry cleaning only. Never vacuum wet, greasy dust or liquids, as this could damage the device.

How do I install the magnetic wall mount?

Stick the removable sticker at 940 mm from the floor on a clean surface. Attach the magnetic mount to the sticker. Place the device in the mount for storage.

Is the battery removable?

Yes, the battery is detachable. Press the release button located at the bottom of the main body to remove it. Use only the provided charger.

What if the red light flashes during use?

A red light indicates that the motorized brush is blocked. Turn off the vacuum and remove objects blocking the brush. If the problem persists, contact customer service.

Can I replace the HEPA filter myself?

Yes, the HEPA filter is accessible after removing the dust bin. Turn it counterclockwise to detach it from the main filter. Wash it with water and dry it completely before replacing it.

How do I dispose of the vacuum at the end of its life?

Do not dispose of the device with household waste. In accordance with the WEEE directive, take it to an approved recycling center. The battery must be removed and recycled separately.

USER MANUAL THVC93120R THOMSON

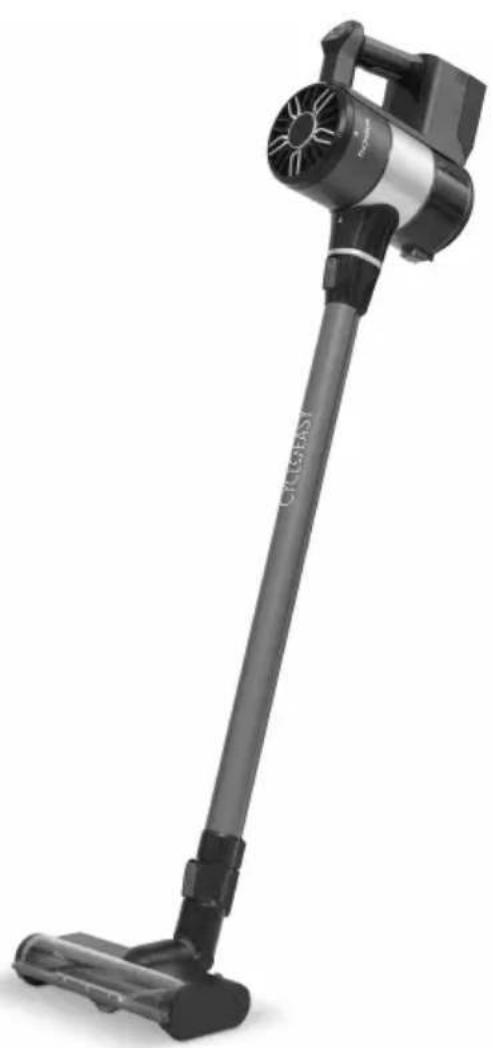

Black and silver compact vacuum cleaner with visible fan and handle (no text or symbols)

Technical diagram of a device with numbered components and labeled parts, including a zoomed-in view of the internal structure.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a robotic device with an arrow indicating motion, showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with rotation arrows and component labels (no readable text or symbols)

Three technical line drawings of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Charge, 1/3 chargé :

Technical line drawing of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Charge, 2/3 chargé :

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Basse puissance :

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical joint or connector assembly (no text or symbols)

Fonctionnement

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a vertical mechanical device with a base and mounting bracket (no text or symbols)

FR-16

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a manual pump assembly (no text or symbols)

Technical line drawing of a faucet and its internal components, showing fluid flow and assembly (no text or symbols)

Diagram showing a sun icon, a cylindrical device with a knob, and a mechanical component with an arrow indicating rotation (no text or symbols)

Remarque :

Hand drawing a twisted rope or cable with a handle, no text or symbols present

Simple line drawing of a sun with radiating lines (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

DÉPANNAGE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Stick vacuum cleaner

THVC93120R

User manual

Black and silver compact vacuum cleaner with visible fan and handle (no text or symbols)

IMPORTANT WARNINGS PLEASE READ THE SAFETY INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Safety instructions:

• The battery must be removed safely.

- Do not use near stairs or on the balconies. This machine does not have a no avoidance sensors.

- This unit can be used by children from 8 years old and people with physical, sensory or mental skills or lack of experience and knowledge provided they have been placed under supervision or have received instructions for using the machine safely and that they understand the dangers. Children should not play with the appliance. The cleaning and maintenance by the user should not be made by children without

supervision.

- This device is intended for domestic use only.

- This unit is suitable for low to medium felt back carpets. It is not suitable for uneven floors or mixed carpets.

- Remove side brush at the under-carpet cleaning to protect the side brush.

- If the adapter's power cord is damaged, the adapter must be discarded.

- Recharge / battery / s only with the charger supplied by the manufacturer

- Use the device with the battery (s) specifically created (s) for this purpose. The use of any (s) other (s) battery (s) could cause an explosion or fire

- Please use an adapter to use this product only.

- Do not use on wet or greasy dust.

- Before use, keep fragile items

(glass, light, etc.) and other objects that could entangle the brushes (long hair, plastic bags, rope, wire, etc.).

- Do not sit on the machine and do not put heavy things on it.

- WARNING: Make sure the unit can function freely in the room (it is not blocked by an obstacle, it cannot fall over) and that there is no obstacle on which the device may tip and create a risk of danger (such as lighted candles or a vase filled with water).

- Regularly clean the machine.

• Empty the dust container.

- Load the machine without using it for three months.

- Recharge only in the situation of a low power alarm or when the power is turned off. Use it after fully charged.

- The battery must be removed from the apparatus prior to its disposal; the device must be

disconnected from the mains when removing the battery;

- Do not dispose of batteries with household waste. Eliminate them in accordance with local regulations.

- Recharge the battery / the robot only with the adapter provided with the device.

- The cable of this adapter external flexible cannot be replaced; in case of damage to the cord, it is necessary to put the adapter discarded and replaced by an adapter of the same model.

- The appliance must be disconnected from the supply mains when removing the battery.

- This appliance contains battery that are non-replaceable.

- WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

- WARNING: the plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

- WARNING: Risk of entrapment hazard. Keep loose clothing, hair, finger, etc. away from the motorized brushes and nozzles.

Pure electrical circuit symbol for a logic gate (no text or labels)

Detachable supply unit

IMPORTANT

It is forbidden to replace the power cable by yourself if damage.

If the device is dropped, please ask a qualified person to check it before using it again. Internal damage could cause accidents.

For any kind of problems or repairs, please contact the customer service of the local distributor, manufacturer or a qualified person to avoid danger.

Disposal and environmental responsibility

In order to be environmentally friendly, we encourage you to have your device correctly. You can contact your local authorities or recycling centers for more information.

Technical diagram of a device with numbered components and labeled parts, including a zoomed-in view of the internal structure.

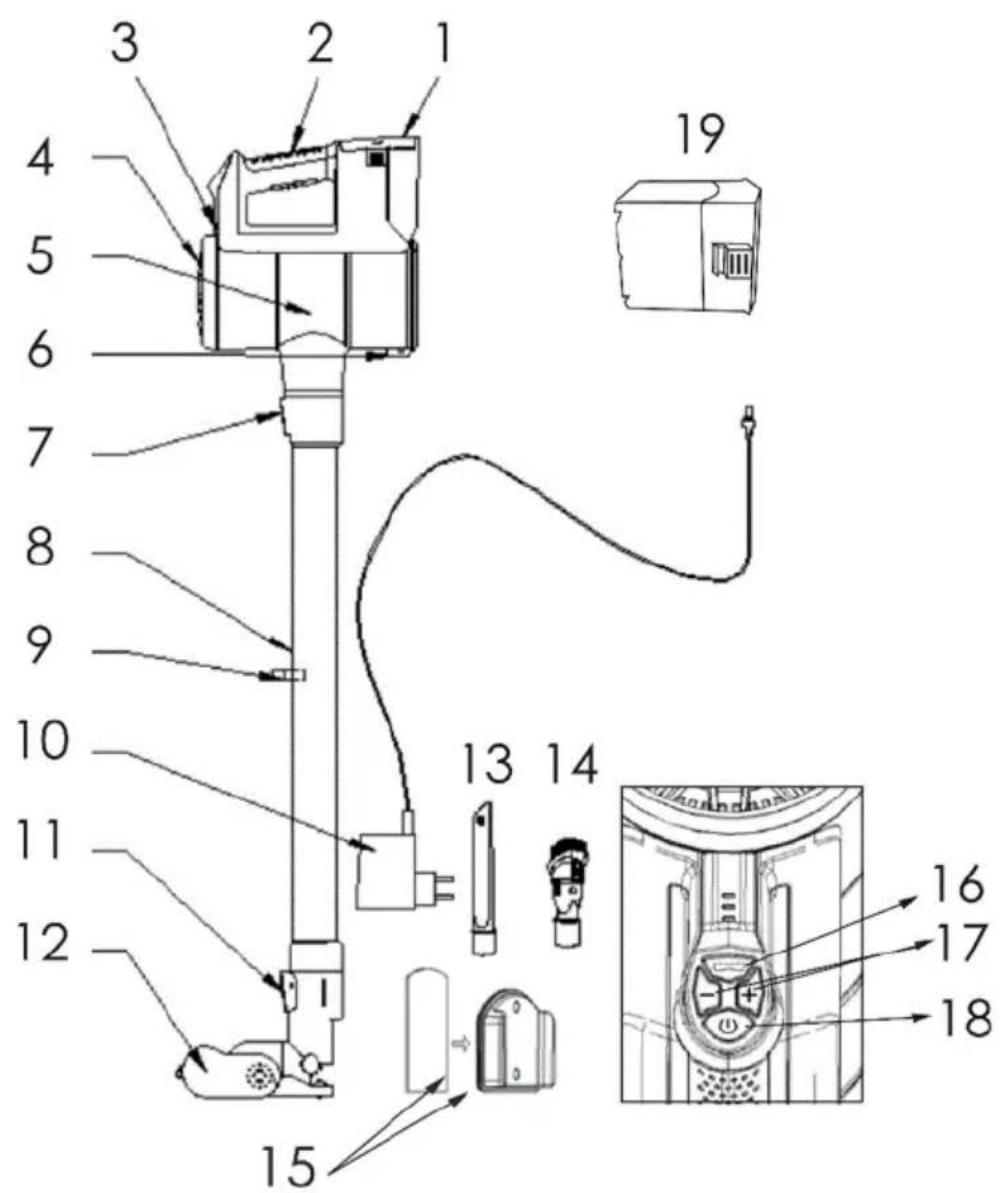

1. Detachable battery pack
2. Ergonomic handle
3. Indicator lights
4. Outlet filter cover
5. Dust tank
6. Dust tank release button
7. Metal tube release button
8. Metal tube
9. Accessory support

10. Adapter

11. Motorized floor brush release button

12. Electro brush with multi-surfaces
13. Crevice tool
14. 2 in 1 brush tool
15. Wall mount with removable sticker
16. Floor brush switch(on/off)
17. Adjust power level
18. On/Off switch
19. Battery

INSTRUCTIONS TO INSTALLATION

Metal Tube

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

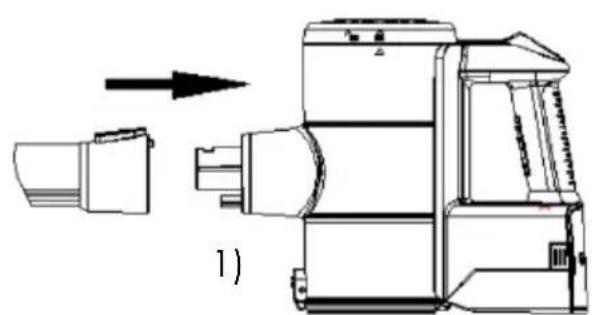

1) Insert the metal tube to the main body until a click sound is heard.

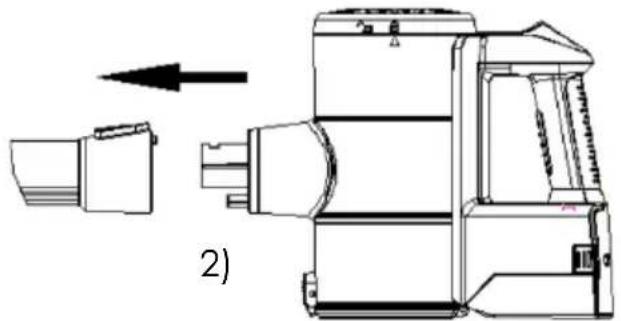

2) Press the metal tube release button and remove the tube.

Floor Brush Installation

Diagram of a robotic arm interacting with a device, showing motion direction (no text or symbols)

Diagram of a robotic arm interacting with a device, showing motion direction (no text or symbols)

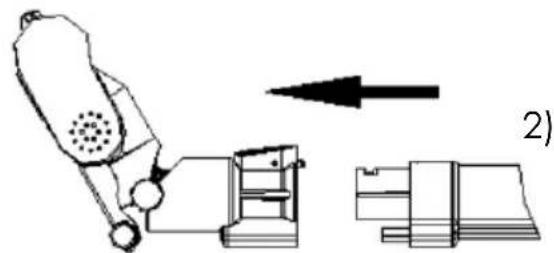

1) Insert the motorized brush on the end of the tube until a click is heard.
2) Press the motorized floor brush release button to remove the motorized floor brush.

Note: The floor brush, crevice nozzle, and 2 in 1 brush can be directly connected to the main body or tube.

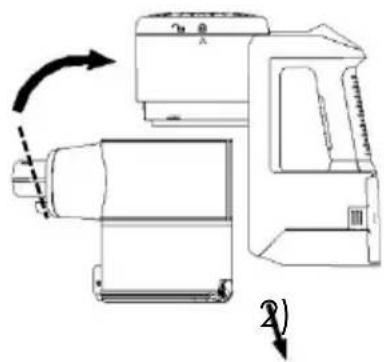

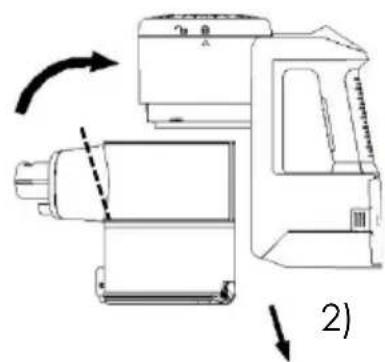

Installation of the dust container

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

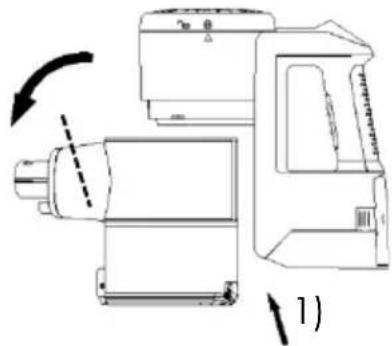

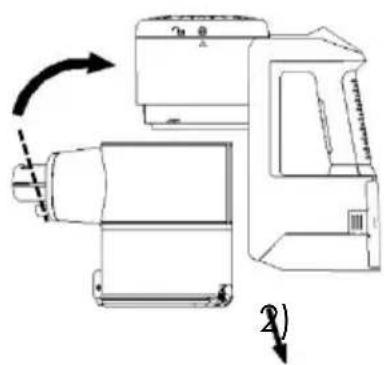

1) Put the dust cup to the main body and twist counterclockwise until it clicks.
2) Hold the opening part connected to the tube and twist clockwise to remove it.

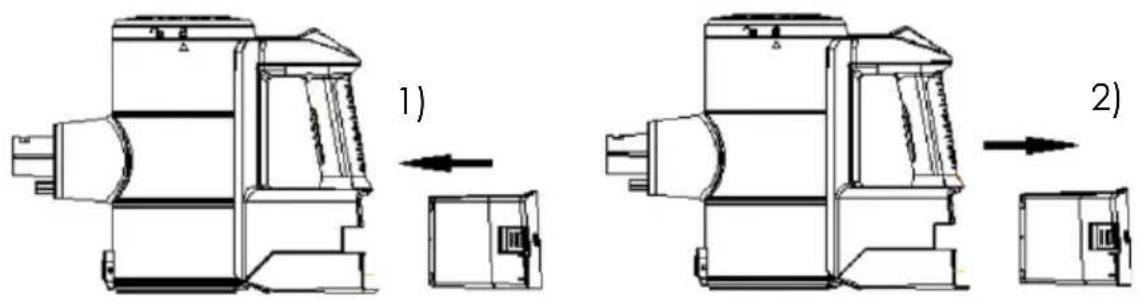

Battery Installation

1) 2)

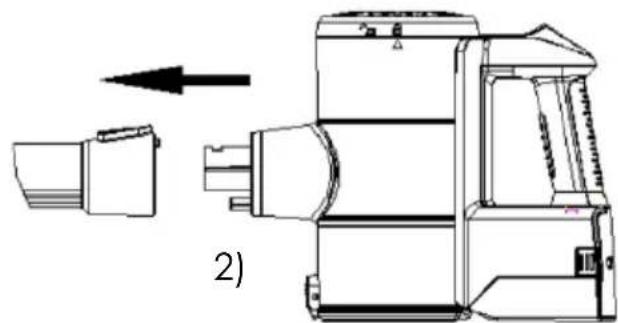

1) Install the battery into the bottom of the main body until it clicks.
2) Press the battery release button and pull it out.

BEFORE FIRST USE

Unpacking the appliance and disposing of the emballagic elements

√ Remove all packing material around the appliance and the protective elements inside the appliance compartments.

• Carton board and sheets of paper are recyclable. They must be thrown in the collection bins provided for this purpose.
• Materials bearing the symbol △ are recyclable:

PE <= polyethylene; > PS <= polystyrene; > PP <= polypropylene

This means that they can be recycled by depositing them into appropriate collection containers.

- Other packaging elements (adhesive, fasteners, etc.) must be disposed of with household waste.

PRODUCT OPERATION

Charging

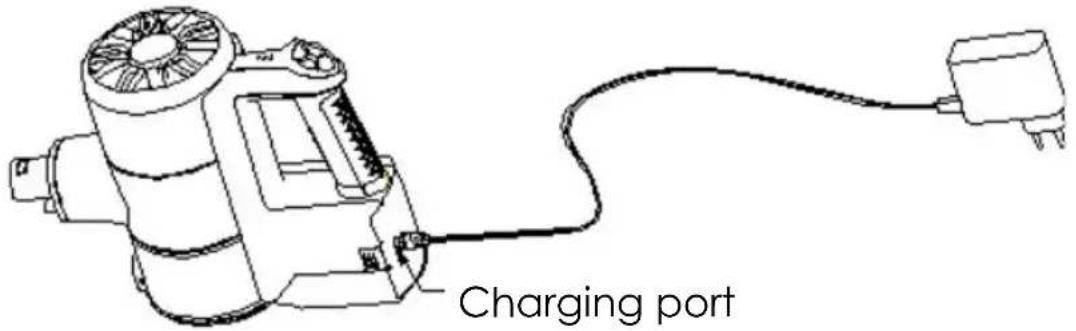

Charging port

Plug adapter into charging port and then plug the other side of the adapter into the power outlet.

Note:

√ Charge the battery before the first use.
√ It is better to charge the battery fully in the first 3 times.
√ Do not charge the battery for extended periods, as this may damage the battery.

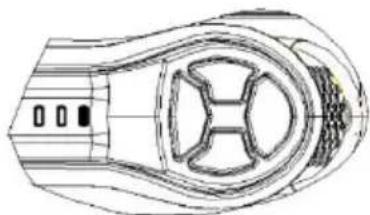

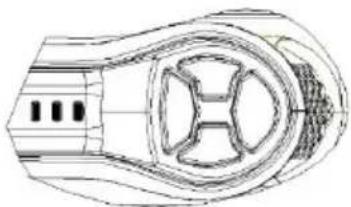

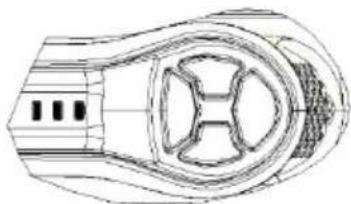

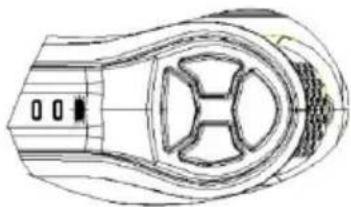

Indicator Lights

(A) During charging

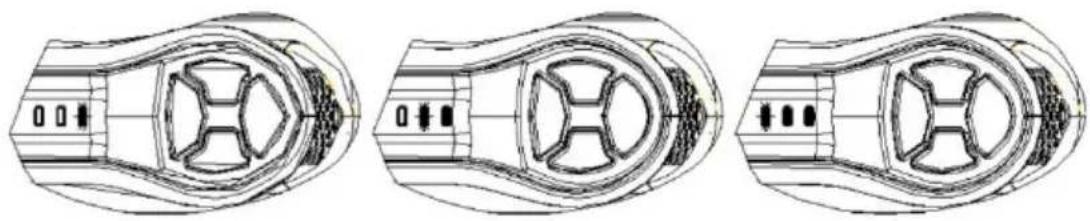

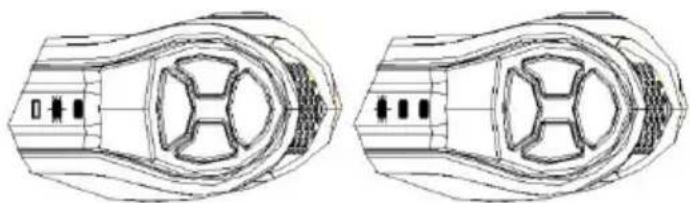

Charging from low: lights flashing in turn:

Three technical line drawings of a mechanical component with internal cavities and mounting holes (no text or symbols)

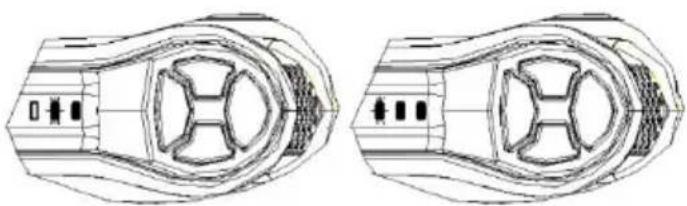

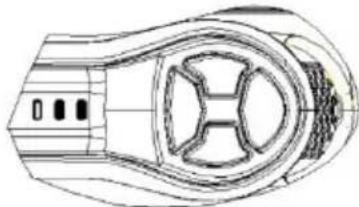

Charging, 1/3 charged:

Technical line drawing of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

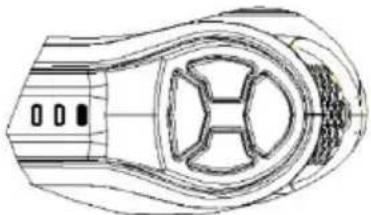

Charging, 2/3 charged:

Technical line drawing of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

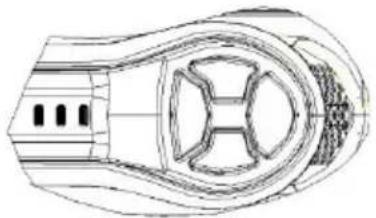

Fully charged:

Technical line drawing of a mechanical component with no visible text or symbols

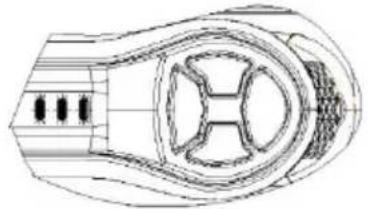

Fault: lights flashing at the same time. please contact us:

Technical line drawing of a mechanical component with no visible text or symbols

(B) During use

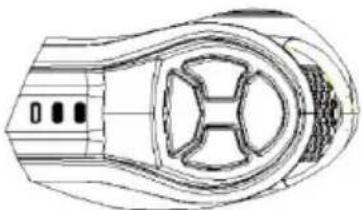

Full power:

Technical line drawing of a mechanical component with no visible text or symbols

Medium power:

Top-down line drawing of a car wheel and dashboard (no text or symbols)

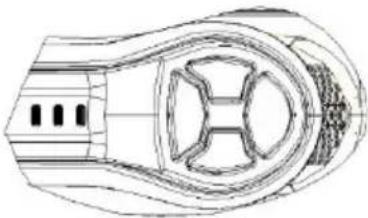

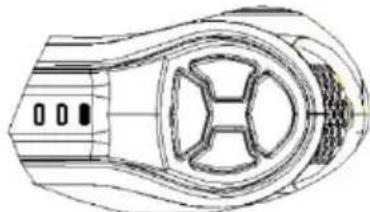

Low power:

Technical line drawing of a mechanical component with no visible text or symbols

Out of power, please charge:

Technical line drawing of a mechanical component with no visible text or symbols

INSTRUCTIONS TO USE

Cleaning Accessories

• Motorized floor brush: Suitable for rugs and hard floors. Turn it on/off by pressing the floor brush switch.

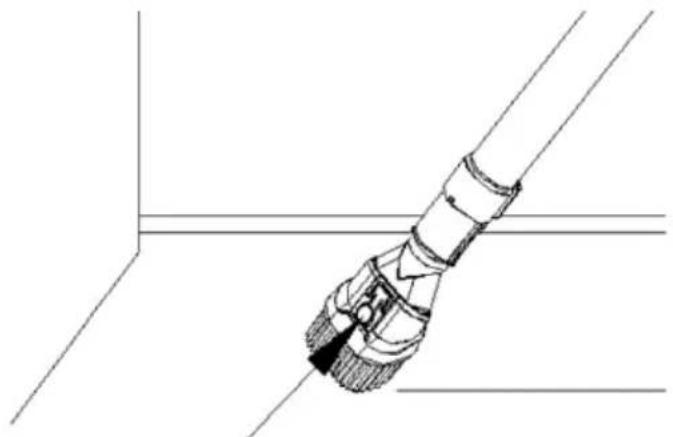

• Long crevice tool: for cleaning the trash in the corners, gaps, baseboard edges, and other hard-to-reach places.
• 2 in 1 brush tool: Use the brush to clean upholstered surfaces, keyboards, lamps, curtain, blinds, vents, etc. Perfect for cleaning hair and dust inserted on the fabric. Use the crevice portion to do the ordinary cleaning task. To switch between brush and crevice portion, press the button on the accessory and slide brush up or down.

Technical line drawing of a mechanical joint or connector (no text or symbols present)

Start to Work

1. Select the appropriate accessory to use according to different cleaning task.
2. Press the ON/OFF switch, the machine will start to work. Press it again to stop.
3. Press the '+' or '-' button to adjust 3 suction power levels.

Emptying

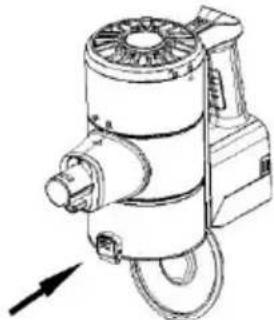

√ Press the dust empty release button to empty the dust when clean task is finished.
√ Close the cover of dust cup when it is empty.

Technical line drawing of a mechanical device with no visible text or symbols

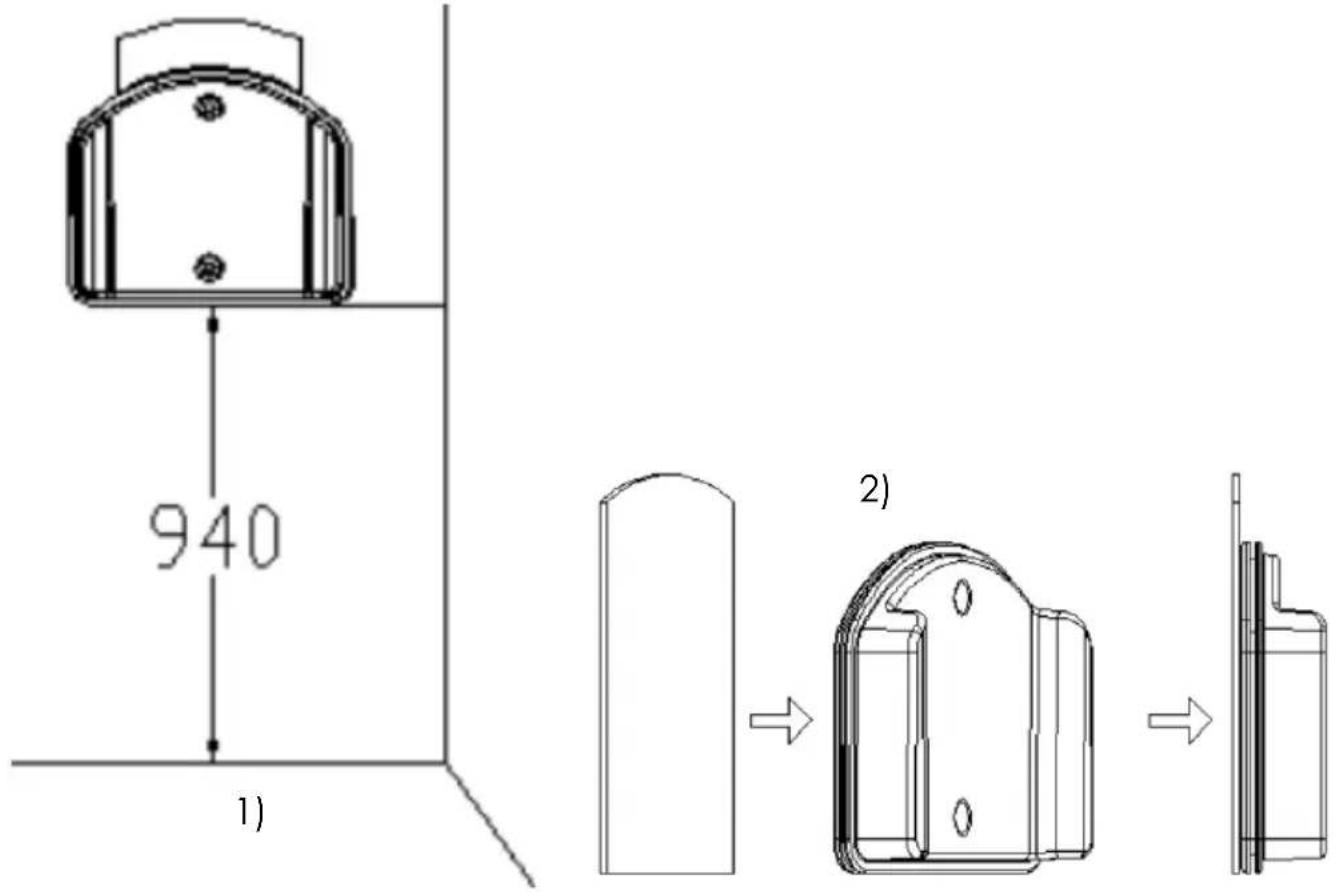

Magnetic wall mount: no need to screw the bracket to the wall!

1) Keep the bottom line of removable sticker 940mm to the floor, stick it to wooden, ceramics surfaces, etc. (removable gel sticker is washable)
2) Stick the magnetic holder to the gel sticker.
3) Stand the unit on the floor, keep it in the magnetic holder.

Technical line drawing of a vertical mechanical device with a base and mounting bracket (no text or symbols)

EN-14

CLEANING AND MAINTENANCE

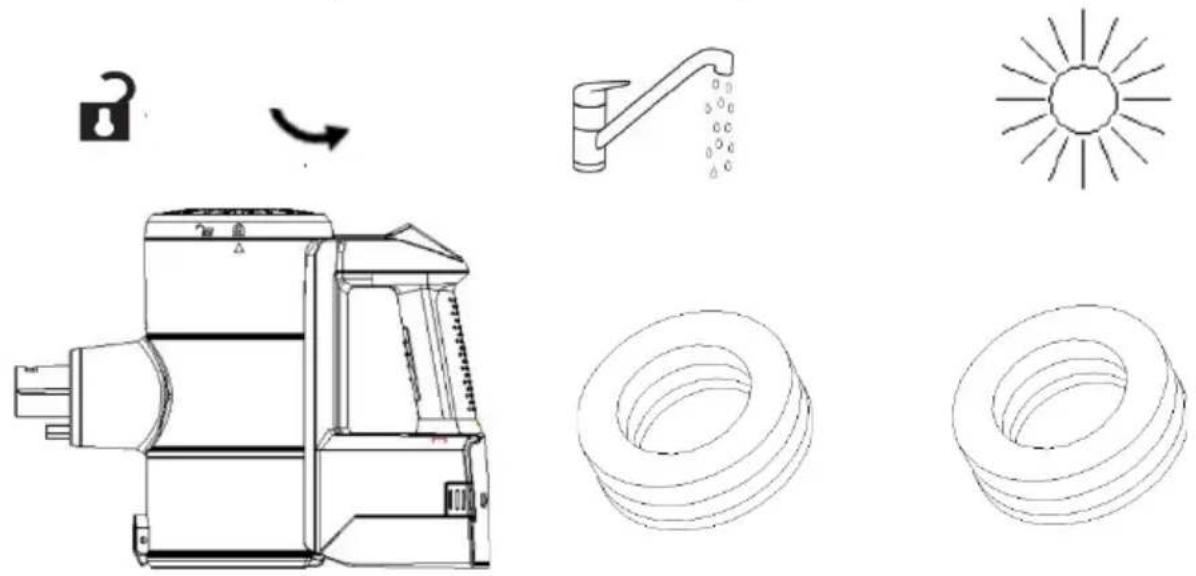

Dust Container and Filters Cleaning

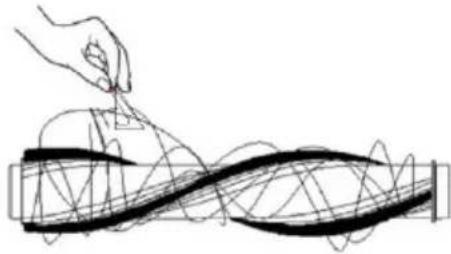

Note: Clean the dust container and filters monthly to maintain the performance.

1. Twist clockwise the dust container and then pull it out.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

1. Lift out the filter mask and remove. Then separate the HEPA filter from the filter mask by twisting count clockwise and pulling out.

Diagram of a hand pump assembly with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

1. Clean the dust cup and filters under running water.

Line drawing of a faucet with liquid droplets falling (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

1. COMPLETELY dry the filters before reassembling.

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Note:

Cross-sectional diagram of a mechanical component with concentric rings and internal flow arrows (no text or symbols)

Clockwise to lock

Technical line drawing of a circular mechanical component with internal gear-like structure (no text or symbols)

Counter-clockwise to unlock

Post-Motor Filter Cleaning

Note: Clean the post-motor filter every 6 months.

Technical line drawings of a mechanical device, water drop, and three 3D views of a ring component (no text or symbols)

1. Turn the filter cover counterclockwise to remove it.
2. Lift out post-motor sponge filter.
3. Shake to remove dust. Wash the filter under running cold water.
4. Completely dry the filter before reassembling.

Floor Brush Cleaning

1. Use a coin press down by hand to turn the fastener counter-clockwise to unlock.

Diagram of a spray gun with a lever mechanism, showing motion and assembly (no text or symbols)

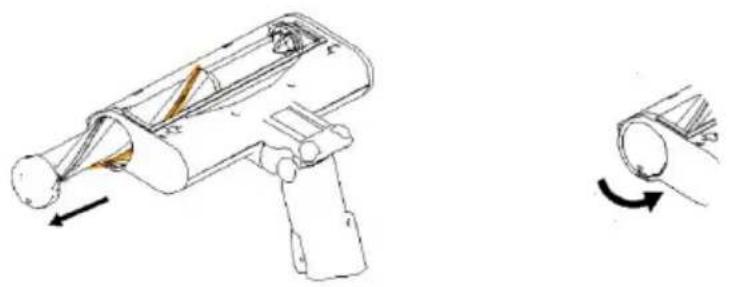

1. Remove the hair and debris around the brush roller by fingers or knife.

Hand holding a pen over a wavy object with intersecting lines (no text or symbols)

1. Wash the brush roller under running water.

Illustration of a faucet with water droplets and a coiled cable (no text or symbols)

1. COMPLETELY dry the brush roller before assembling.

Simple line drawing of a sun and a twisted rope (no text or symbols)

1. To reassemble, install the brush roller inside the original place. Use a coin or press down to twist the fastener to lock.

Technical line drawing of a handheld device with directional arrows indicating motion (no text or symbols)

TROUBLESHOOTING

If you encounter a problem with your device or if you suspect the device is not working properly, you can make a few simple checks before calling a technician.

Problem Solution
No power	Before using the appliance, check that it is fully charged, empty the dust container and clean the filter.
Loss of aspiration	Check to see if the openings are clogged.Unplug and clean if necessary.Make sure the filter is correctly installed.Empty the dust container and clean the filter.
The motorized brush does not turn	Unplug the unit, check for clogged hair or dirt. If necessary, remove the rotating shaft from the power brush by unlocking the latch, clean and reposition the shaft by performing the reverse procedure.Make sure that the axle has been properly inserted into the power brush and the latch is in the locked position.The device may need to be recharged.Connect the device to the charger. The battery indicator will turn GREEN when charging is complete.
The battery indicator lights red while in use	The motorized brush is blocked. Turn off the vacuum and remove any object blocking the brush.

For any other problems occurring in your device: contact Customer Service.

CAUTION: The power brush contains electrical connections, do not immerse in water for cleaning.

TECHNICAL CHARACTERISTICS

• Power supply: Rechargeable battery
• Motor max. power: 120W
• Battery: Li-ion DC 22.2V 2200mAh
• Charging time: 4-5 hours Max
• Capacity of the dust bin: 0.6 L
• Speed levels: 3 speeds
• Product Dimensions: 240 x 220 x 1100mm
• Net weight: 2.5kg

DISPOSAL

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

If that logo appears on the device, this means that it must be discarded in accordance with Directive 2012/19 / EU on electrical and electronic equipment (WEEE). All hazardous substances in electrical and electronic equipment can have deleterious effects on the environment and human health during treatment. Therefore, at the end of its useful life, this product should not be disposed of with unsorted municipal waste. As a consumer

Ultimately, your role is essential for reuse, recycling or any other form of value creation for this device. There are several systems of collection and recovery implemented by your local authority (recycling center) and distributors. You have an obligation to use those systems.

2. In the end of battery life:

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or numbers present)

This appliance contains battery that are non-replaceable.

Used batteries must be supported by a selective collection system in order to be recycled thus reducing the impact on the environment.

When the battery reaches its end of life, you must place it in an appropriate selective collection system that will handle its destruction and / or recycling.

• If the battery acid has leaked, avoid contact with skin, eyes and mucous membranes! The liquid that leaks from the battery can cause rashes. If acid still had to contact with skin, immediately flush the affected areas with clean water and consult a doctor immediately.
• The batteries must be installed with the correct polarity +/-
• Do not recharge non-rechargeable batteries because of the risk of explosion.

IMPORTANT:

Under no circumstances should you throw the device or battery on a public road

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) Deterioration of the surface due to the normal wear and tear;
(2) Defects or damage due to contact with liquid and corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, alteration, removal or unauthorized repair;
(4) Improper maintenance, improper use about the product or connection to improper voltage;
(5) Any use of accessories not supplied or approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by

This product is imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

Information for external power supplies for Commission Regulation 2019/1782/EU

	Value	Unit
Model identification	RKGSDC2650500
Manufacturer's name or trade mark	Changzhou Taiyu Electric Co., Ltd.
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	26.5	V
Output current	0.5	A
Output power	13.3	W
Average active efficiency	86.72	%
Efficiency at low load (10 %)	76.14	%
No-load power consumption	≤0,1	W

THOMSON

Black and silver compact vacuum cleaner with visible fan and handle (no text or symbols)

Technical diagram of a device with numbered components and exploded view, likely for assembly or maintenance instructions.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Diagram of a robotic arm interacting with a device, showing motion and assembly (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotation arrows indicating motion (no text or symbols)

Three technical line drawings of a mechanical component with internal cavities and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Totalmente cargada:

Technical line drawing of a mechanical component with symmetrical features and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

(B) Durante el uso

Potencia máxima:

Technical line drawing of a mechanical component with no visible text or symbols

Potencia media:

Technical line drawing of a mechanical component with no visible text or symbols

Potencia baja:

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical joint or connector (no text or symbols)

Comenzar a Limpiar

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a vertical mechanical device with a base and mounting base (no text or symbols)

ES-15

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand-painted manual shaver with no text or symbols

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a faucet with showerhead spraying water (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Nota:

Cross-sectional diagram of a mechanical component with concentric rings and internal flow arrows (no text or labels)

Technical line drawing of a circular mechanical component with internal gear and mounting bracket (no text or symbols)

Limpieza del Filtro Post-Motor

Diagram of a firearm being opened into a cylindrical container, showing mechanical components and motion direction (no text or labels)

Hand holding a pen over a wavy object with intersecting lines (no text or symbols)

Technical illustration of a faucet and a helical screw (no text or symbols)

1. Seque el rodillo del cepillo POR COMPLETO antes deinstalarlo.

Simple line drawings of a sun and a twisted rope (no text or symbols)

Technical line drawing of a firearm with internal components and a close-up view showing the handle (no text or symbols)

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)
