Product type	Built-in refrigerator
Brand	Küppersbusch
Model	FKU1500.0i
Dimensions (H x W x D)	815 x 596 x 550 mm
Total volume	133 L
Energy efficiency class	A++
Annual energy consumption	91 kWh
Supply voltage	230-240 V
Frequency	50 Hz
Climate class	SN-N-ST (10 °C to 38 °C)
Acoustic emissions	36 dB(A)
Lighting type	LED (bulb E14)
Defrost	Automatic (refrigerator)
Shelves	Removable, glass
Door bins	Height adjustable
Vegetable drawer	Yes
Integrable	Yes
Interior maintenance	Warm water and mild detergent
Condenser cleaning	Brush, accessible at rear
Spare parts	Original parts only
Repairability	By qualified professional

Frequently Asked Questions - FKU1500.0i Küppersbusch

How to adjust the refrigerator temperature?

Turn the thermostat to the minimum position for less cold, or to the maximum position for more cold. An intermediate setting is usually the most recommended. The internal temperature depends on several factors such as ambient temperature, frequency of door opening and quantity of stored food.

What to do if the appliance does not cool?

First check that the appliance is on and the power plug is properly inserted. Ensure that the power outlet is live. If the problem persists, contact a qualified electrician or the authorized after-sales service.

How to clean the interior of the refrigerator?

Before any cleaning, unplug the appliance. Use a soft damp cloth with warm water and a mild detergent. Never use abrasive products, scouring pads, solvents or metal objects. Rinse and dry thoroughly.

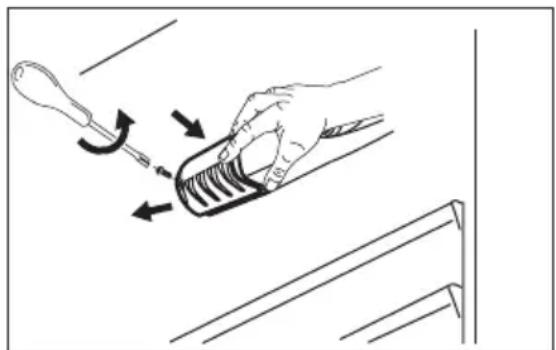

How to change the light bulb?

Unplug the appliance. Remove the diffuser screw using a screwdriver, then detach the diffuser by pulling it. Replace the bulb with an LED bulb of identical characteristics (E14 base, maximum indicated power). Reassemble the diffuser and tighten the screw. Plug the appliance back in.

Why is there water in the refrigerator?

This may be due to a clogged defrost water drain hole. Clean it with the special stick provided. Make sure the food is not touching the back wall. Check that the drain hose is properly connected to the evaporation tray.

The appliance makes noise, is that normal?

Yes, some noises are normal: a slight gurgling of the refrigerant, a humming from the compressor, a cracking due to thermal expansion and a clicking from the thermostat. If the appliance is unsteady, check that it is level.

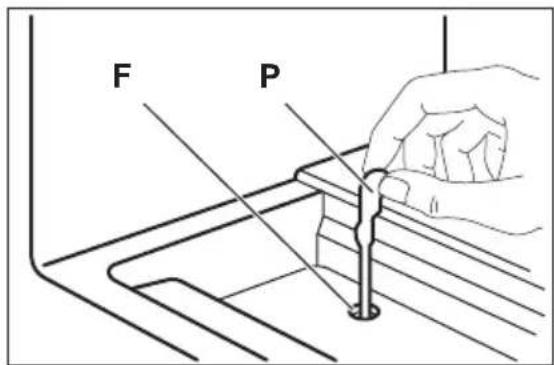

How to defrost the refrigerator?

The defrosting is automatic in the refrigerator compartment: the frost melts when the compressor stops. The water flows to a container at the back and evaporates. Regularly clean the drain hole with the special stick to prevent overflows.

Which foods should not be placed in the refrigerator?

Do not place bananas, potatoes, onions and garlic unpacked in the refrigerator. Avoid putting hot foods or boiling liquids. Store fruits and vegetables in the special drawer after cleaning them.

How to save energy with this refrigerator?

Avoid opening the door too often and do not leave it open unnecessarily. Place the appliance away from heat sources (radiator, stove, direct sunlight). Ensure sufficient air circulation at the back. Let food cool down before storing it.

What to do in case of prolonged power outage?

If you cannot unplug and empty the appliance, regularly check its proper operation to prevent food from spoiling. In case of prolonged non-use, unplug the appliance, remove all food, clean it and leave the door open to prevent odors.

USER MANUAL FKU1500.0i Küppersbusch

Please read the users and installation instructions carefully before installation of the appliance and before starting to use it.

Technical line drawing of a mechanical component with two curved parts and directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a structural component with no text, numbers, or symbols

Technical diagram showing a door opening with labeled components A, B, and C, illustrating assembly or installation steps.

Illustration of a hand using a dropper to apply a tool to a component, with arrows indicating motion (no text or symbols)

Safety information 14 Safety instructions 15 Installation 17 Operation 18 Daily use 18

Hints and tips 19 Care and cleaning 20 Troubleshooting 21 Technical data 23

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

General Safety

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments - By clients in hotels, motels, bed and breakfast and other residential type environments

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not use water spray and steam to clean the appliance.

- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not use the appliance before installing it in the built-in structure due to safety manner.

• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Make sure the air can circulate around the appliance.

• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
• Do not install the appliance close to radiators or cookers, ovens or hobs.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too cold.

- When you move the appliance, lift it by the front edge to avoid scratching the floor.

Electrical connection

WARNING! Risk of fire and electric shock.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not use multi- plug adapters and extension cables.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electric shock or fire.

The appliance contains flammable sobutane (R600a), a natural gas with level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

Internal lighting

WARNING! Risk of electric shock.

- The type of lamp used for this appliance is for household appliances only. Do not use it for house lighting.

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.

• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

INSTALLATION

WARNING! Refer to Safety chapters.

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Positioning

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
  • The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

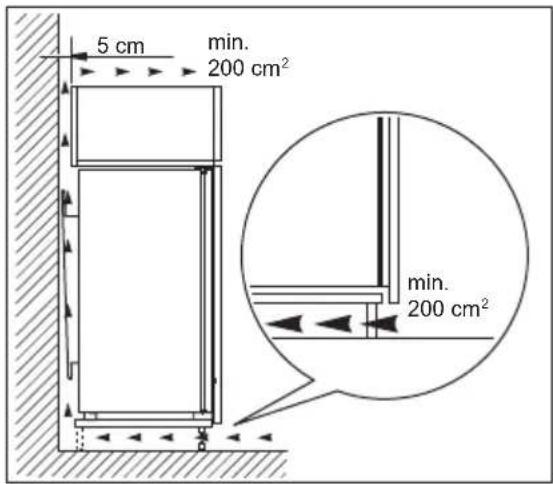

Ventilation requirements

The airflow behind the appliance must be sufficient.

5 cm min. 200 cm² min. 200 cm²

CAUTION! Refer to the assembly instructions for the installation.

OPERATION

Switching on

1. Insert the plug into the wall socket.
2. Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the temperature regulator to the "O" position.

Temperature regulation

The temperature is regulated automatically.

1. Turn the Temperature regulator toward lower settings to obtain the minimum coldness.
2. Turn the Temperature regulator toward higher settings to obtain the maximum coldness.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature,
• how often the door is opened,
• the quantity of food stored,
• the location of the appliance.

CAUTION! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

DAILY USE

WARNING! Refer to Safety chapters.

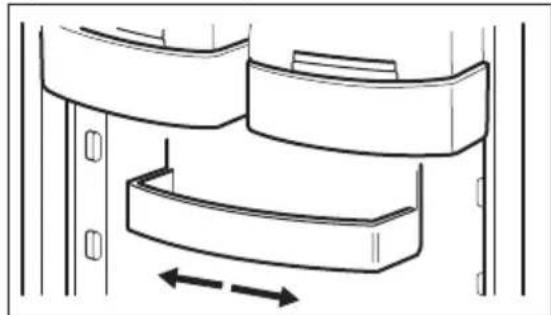

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf up until it comes free.

2. Reposition as required.

Technical line drawing of a mechanical component with two curved brackets and directional arrows indicating movement (no text or symbols)

This model is equipped with a variable storage box which can be moved sideways.

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
  • A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

- Do not open the door frequently or leave it open longer than absolutely necessary.

Hints for fresh food refrigeration

- Do not store warm food or evaporating liquids in the refrigerator.

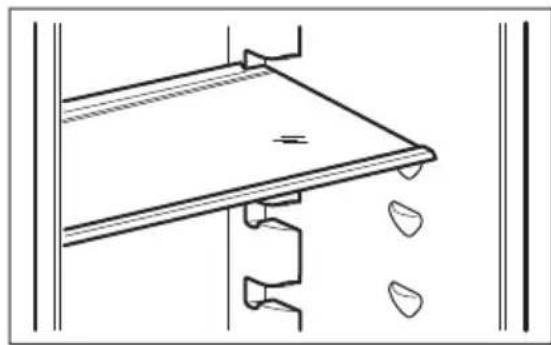

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Technical line drawing of a mechanical assembly with no visible text or symbols

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

• Cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely around it.

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
  • Cooked foods, cold dishes: cover and place on any shelf.
• Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.
• Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
• Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the appliance.

CAUTION! Do not damage the cooling system.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.

2. Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush.

This will improve the performance of the appliance and save electricity consumption.

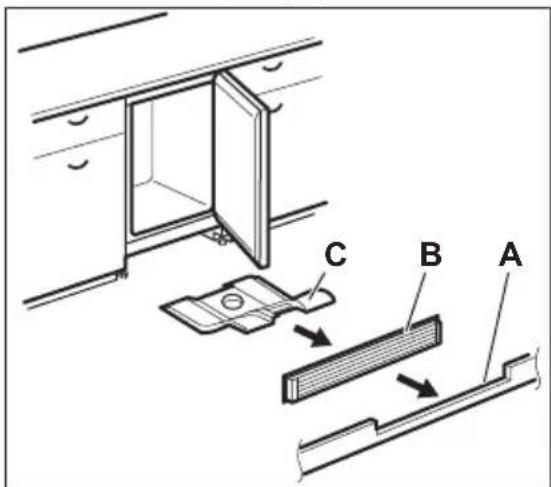

Cleaning the air channels

1. Remove the plinth (A), then the ventilation grid (B).

Technical diagram showing a door opening with labeled components A, B, and C, illustrating assembly or installation steps.

1. Clean the ventilation grid.
2. Carefully pull the air deflector out (C), checking that there is no water left from the defrosting.
3. Clean the lower part of the appliance with a vacuum cleaner.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole (F) situated under the salad drawers to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided (P), which you will find already inserted into the drain hole.

F P

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

TROUBLESHOOTING

1. Disconnect the appliance from electricity supply.

2. Remove all food.

3. Clean the appliance and all accessories.

4. Leave the door/doors open to prevent unpleasant smells.

CAUTION! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.	mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.	Check if the appliance stands stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
	The lamp is defective. Refer to "Replacing the lamp".
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation" chapter.
Many food products to be frozen were put in at the same time.	frozen were put in at the same time.	Wait a few hours and then check the temperature again.
Problem Possible cause Solution
The room temperature is too high.		Refer to climate class chart on the rating plate.
Food products placed in the appliance were too warm.		Allow food products to cool to room temperature before storing.
	The door is not closed correctly.	Refer to "Closing the door".
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost melts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
	Food products prevent that water flows into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
The door is not closed correctly.		Refer to "Closing the door".
The food products' temperature is too high.		Let the food products temperature decrease to room temperature before storage.
Many food products are stored at the same time.		Store less food products at the same time.
The door has been opened often.		Open the door only if necessary.
	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
There is too much condensed water on the rear wall of the refrigerator.	Door was opened too frequently.	Open the door only when necessary.
	Door was not closed completely.	Make sure the door is closed completely.
Problem Possible cause Solution
	Stored food was not wrapped.	Wrap food in suitable packaging before storing it in the appliance.
Door does not open easily. You attempted to re-open the door immediately after closing.		Wait a few seconds between closing and re-opening of the door.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

Replacing the lamp

The appliance is equipped with a long-life LED interior light.

It is strongly recommended to use original spare parts only.

Use LED bulbs (E14 base) only. The maximum power is shown on the lamp unit.

CAUTION! Disconnect the plug from the mains socket.

1. Using a screwdriver, remove the screw from the lamp cover.
2. Detach the lamp cover in the direction of the arrows.

Illustration of a hand using a screwdriver to adjust a screwdriver on a metal bracket (no text or symbols)

TECHNICAL DATA

Product information sheet

Trade Mark Küppersbusch

1. Replace the lamp with the one that has identical characteristics and is specifically designed for household appliances.
2. Reassemble the lamp cover.
3. Tighten the screw to the lamp cover.
4. Connect the plug to the mains socket.
5. Open the door. Make sure that the light switches on.

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to assembly instructions.
3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

Model FKU1500.0i	PNC933024081
Category 1. Refrigerator with one or more	fresh-food storage compartments
Energy efficiency class A++
Energy consumption in kWh per year, based on standard test results for 24 hours. The actual energy consumption will depend on how the appliance is used and where it is located	91
Storage volume in litres, Fridge 133
Storage volume in litres, Star -
Storage volume in litres, Cellar zone -
Storage volume in litres, Wine -
Storage volume in litres, Total 133
Storage volume in litres, Freezer -
Storage volume in litres, Chiller -
Storage volume in litres, Other compartments -
Star rating of freezer compartment with highest storage volume (I)	None
Design temperature of other compartments > 14 °C (°C), if any	-
Frost free (Y/N), Fridge
Frost free (Y/N), Freezer -
Power cut safe in h -
Freezing capacity in kg/24h -
Climate class SN-N-ST
Lowest ambient temperature at which this appliance is intended to be used, in °C	10
Highest ambient temperature at which this appliance is intended to be used, in °C	38
Acoustical noise emissions dB(A) re1 pW 36
Built in appliance Y/N	Yes
This appliance is intended to be used exclusively for the storage of wine Y/N	No

Additional technical data

Dimensions of the recess
Height 815 mm
Width 596 mm
Depth 550 mm

Voltage 230 - 240 V
Frequency 50 Hz

The technical information is situated in the rating plate, on the external or internal side of the appliance and on the energy label.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📁 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

Technical line drawing of a mechanical component with two curved parts and directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical diagram showing a door opening with labeled components A, B, and C, illustrating assembly or installation steps.

Illustration of a hand using a screwdriver to adjust a screwdriver on a metal bracket (no text or symbols)

Technical line drawing of a mechanical component with two curved parts and directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a structural component with no text or symbols

Technical diagram showing a door opening with labeled components A, B, and C, illustrating assembly or installation steps.

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols)
