USER MANUAL PCDR 3098 ProfiCare

Reiniging WAARSCHUWING:

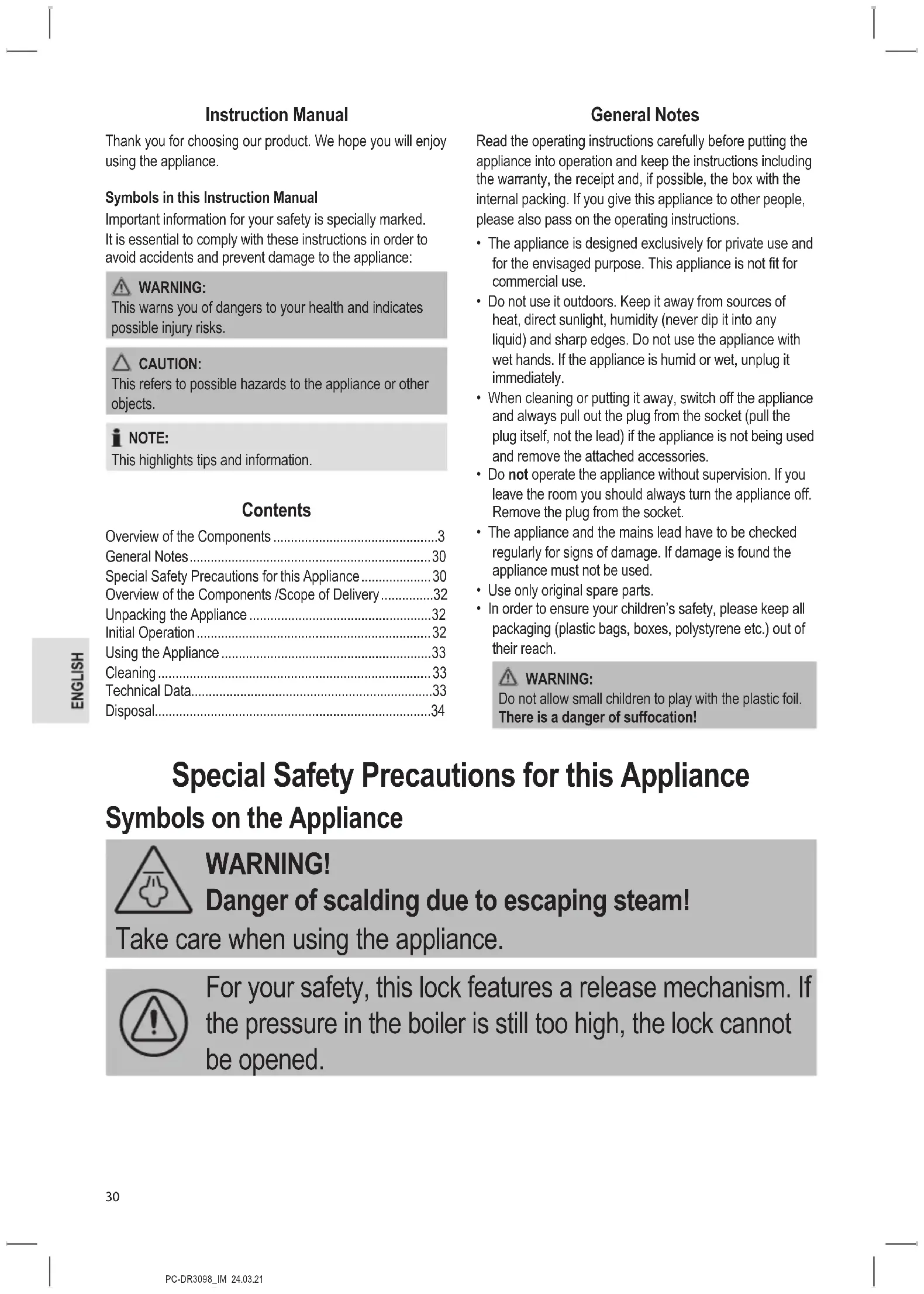

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

• This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. NOTE: This highlights tips and information. Contents Overview of the Components p. 3
• General Notes p. 30
• Special Safety Precautions for this Appliance p. 30
• Overview of the Components /Scope of Delivery p. 32
• Unpacking the Appliance p. 32
• Initial Operation p. 32
• Using the Appliance p. 33
• Cleaning p. 33
• Technical Data p. 33
• Disposal General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions. p. 34

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the plastic foil. There is a danger of suffocation! Special Safety Precautions for this Appliance Symbols on the Appliance WARNING! Danger of scalding due to escaping steam! Take care when using the appliance. For your safety, this lock features a release mechanism. If the pressure in the boiler is still too high, the lock cannot be opened.PC-DR3098_IM 24.03.21

WARNING: Danger of burns!

Do not touch the hot surfaces. If you would like to change the ac- cessories, please wait until the appliance has cooled down.

• The appliance must not be used if it has fallen down, shows obvi- ous signs of damage or is leaking.

• The appliance must not be left unattended when connected to the mains.

• Keep the appliance out of reach of children when switched on or cooling down.

• Children shall not play with the appliance.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowl- edge if they have been given supervision or instruction con- cerning use of the appliance in a safe way and understand the hazards involved.

• Never point the steam jet at persons or animals!

• The steam jet must not be pointed at electric appliances and equipment containing electric components (e. g. interior of ovens).

• The lling hole must not be opened during use.

• Always disconnect the mains plug after use and before lling in water. Refer to the instructions in chapter “Fill in Water”.

• Do not overll! Do not exceed the maximum lling level for the water!

• Only operate the appliance with water in the tank.

• Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be re- placed by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.PC-DR3098_IM 24.03.21

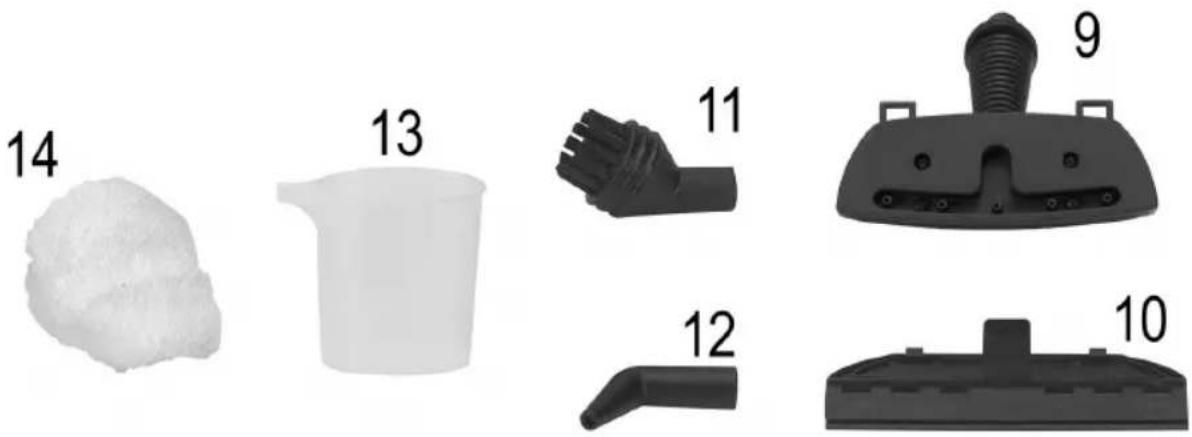

CAUTION: This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”. Overview of the Components / Scope of Delivery 1 Hose 2 Connecting tip 3 Lid / Filling hole 4 Steam button with lock 5 Handle 6 Boiler / Water tank 7 Heating control lamp 8 Nozzle adapter 9 Universal cleaning attachment 10 Window cleaning attachment 11 Circular brush) 12 Angled nozzle 13 Measuring cup 14 Fleece cloth Not Shown Funnel Unpacking the Appliance

• Remove the main appliance and accessories from the box.

• Also remove any packaging materials that may be present.

• Check the scope of delivery. Initial Operation Fill in Water NOTE:

• The maximum lling capacity is approx. 250 ml. Use the measuring cup provided.

• Recommendation: Use distilled water to prevent calcication. CAUTION: Do not use battery water, water from tumble dryers or wa- ter with additives such as cleaning agents, alcohol, fabric softener or other chemicals. They could cause hazards or damage to the appliance.

WARNING: Risk of injury!

1. Disconnect the mains plug from the wall socket.

WARNING: Risk of injury!

2. The appliance can be opened only when the pressure

has been relieved. Unlock the lock by pushing it to ON and holding it there. Then press down the steam button.

3. If the appliance is still warm, wait approx. 5 minutes

until removing the lid.

4. Unscrew the lid anticlockwise to remove it.

5. Pour any remaining water from the boiler in order to

6. Use the funnel to ll the boiler with a maximum of ap-

prox. 250 ml of water.

7. Attach the lid again by turning it clockwise.

Installation of Accessories NOTE: Observe the arrow markings on both the appliance and accessories.

1. Insert the locking catches of the hose as far as they will

go into the connecting tip of the appliance. Secure the hose by turning it clockwise.

2. Insert the locking catches of one of the attachments as

far as they will go into the connecting tip of the hose. Secure the attachment by turning it clockwise.

• You may also connect the attachments directly to the appliance. Connect as described above.

• Attach the angled nozzle or the circular brush on top of the nozzle adapter, if required.

• In order to clean sensitive surfaces, attach the eece cloth to the cleaning attachment.

• In order to use the window cleaning attachment, hook it into the cleaning attachment (without the eece cloth). Electrical Connection

1. Before inserting the plug into the socket. Make sure that

the mains voltage to be used matches that of the appli- ance You can nd this information on the nameplate.

2. Connect the appliance to a duly installed protective

WARNING: Risk of scalding!

Keep the appliance straight. Tilting the appliance by more than 45 ° can cause hot water to leak from the appliance. CAUTION: Before you begin cleaning you should test the materials to be cleaned as to their suitability for cleaning with steam. Do not hold the steam nozzle for too long and too close in one position.

• When the plug is connected to a wall socket, the water in the boiler starts heating up. The heating control lamp lights up.

• Pressure starts building up in the boiler after approx. 3 – 4 minutes. When the appliance is ready for use, the control lamp turns off.

• Unlock the lock by pushing it to ON and holding it there. Then press down the steam button to generate pressure. NOTE: Using the appliance with the maximum water amount and in continuous operation will allow for steam generation of up to 10 minutes. Filling the Water Tank during Operation No steam will be discharged if the water tank is empty. The water has to be lled up as follows:

1. Remove the mains plug from the socket!

2. Fill fresh water into the tank as described in the chapter

“Fill in Water” (steps 1 – 7).

3. Connect the mains plug to the wall socket to continue

operation. When you have nished using the Appliance

1. Remove the mains plug from the socket!

2. Let the appliance cool down completely.

3. Empty the water tank.

• Always remove the mains plug before cleaning the appliance.

• Wait until the appliance has cooled down.

• Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or re. CAUTION:

• Before the appliance is put away or cleaned it must have completely cooled down.

• Clean the appliance and accessories with a slightly damp cloth.

• The eece cloth can be machine-washed at 60 °C. Do not dry in a tumble dryer.

• Regularly remove lime deposit from the boiler in order to ensure a long service life for the appliance. When doing so, use clean water without any additives. Technical Data Model:.................................................................PC-DR 3098 Power supply:.....................................220 – 240 V~, 50 / 60 Hz Power consumption: .......................................... 900 – 1050 W Protection class: .................................................................... Max. steam capacity: ............................................... 25 g / min Tank capacity: ................................................. approx. 250 ml Net weight: ....................................................... approx. 1.4 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibilityPC-DR3098_IM 24.03.21

and low voltage directives, and is manufactured according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be dis- posed of can be obtained from your local authority.PC-DR3098_IM 24.03.21
