USER MANUAL Torre 86955 UNOLD

This symbol indicates potential hazards that may result in injury or damage to the appliance. Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household

1. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have

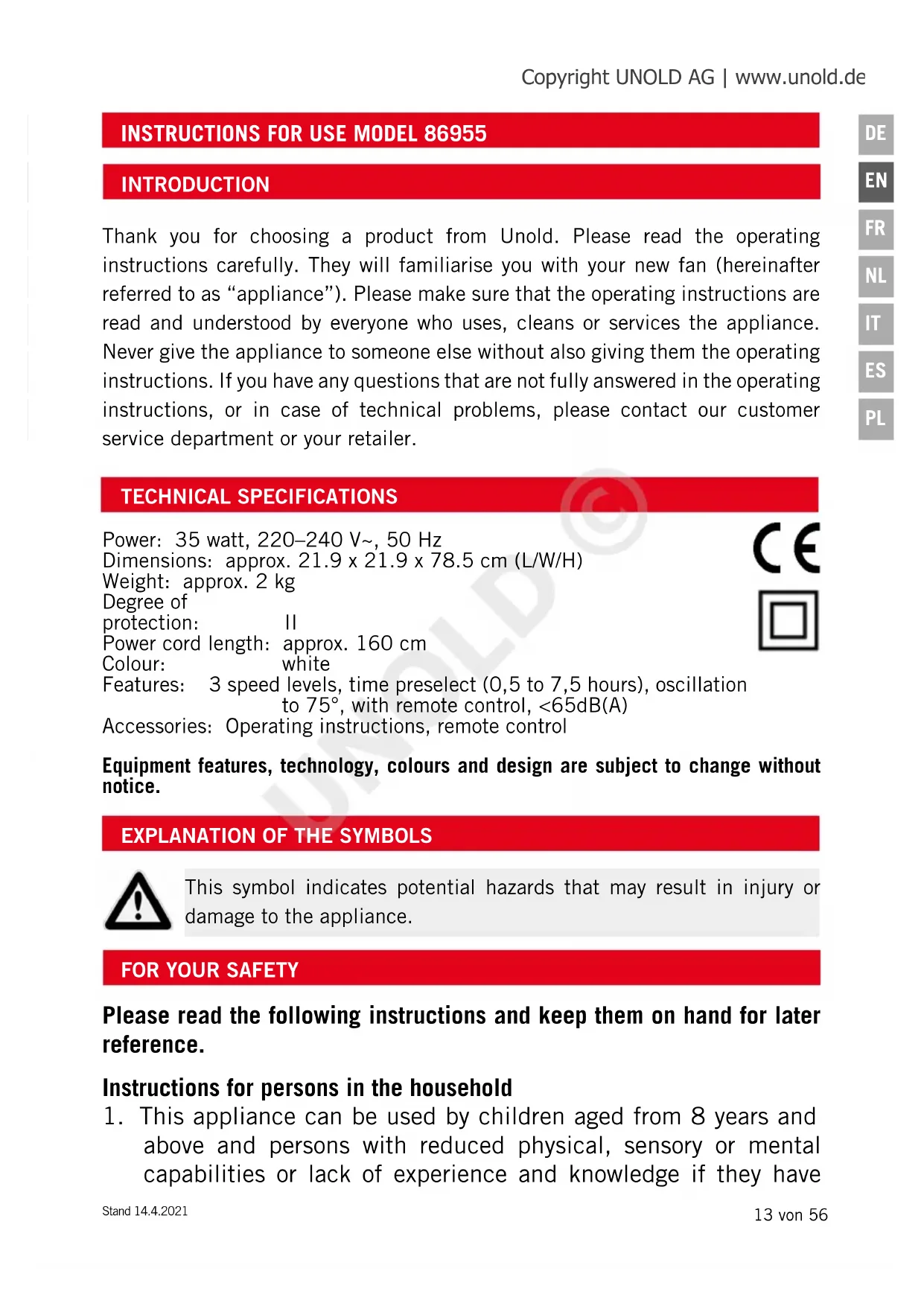

Power: 35 watt, 220–240 V~, 50 Hz Dimensions: approx. 21.9 x 21.9 x 78.5 cm (L/W/H) Weight: approx. 2 kg Degree of protection: II Power cord length: approx. 160 cm Colour: white Features: 3 speed levels, time preselect (0,5 to 7,5 hours), oscillation to 75°, with remote control, <65dB(A) Accessories: Operating instructions, remote control Equipment features, technology, colours and design are subject to change without notice. INTRODUCTION Thank you for choosing a product from Unold. Please read the operating instructions carefully. They will familiarise you with your new fan (hereinafter referred to as “appliance”). Please make sure that the operating instructions are read and understood by everyone who uses, cleans or services the appliance. Never give the appliance to someone else without also giving them the operating instructions. If you have any questions that are not fully answered in the operating instructions, or in case of technical problems, please contact our customer service department or your retailer. Copyright UNOLD AG | www.unold.de UNOLD ©14 von 56 Stand 14.4.2021

been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed by

children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of

children under 8 years. Safety instructions for set-up and operation of the appliance

5. Only switch the appliance on when it has been properly assem

Ensure that there is sufficient space where the appliance is located. A minimum distance of 50 cm must be maintained between the appliance and other objects.

7. Do not use the appliance in rooms that are extremely dusty or in

the vicinity of flammable substances.

8. Only connect the appliance to an AC power supply with voltage

corresponding to the voltage specified on the rating plate.

9. This appliance must not be operated with an external timer or a

remote control system (included remote control is not affected).

10. Never immerse the appliance or the power cord in water or other

liquids - life-threatening danger!

11. Do not open the motor housing under any circumstances, there

is danger of electric shock!

12. The appliance is intended for household use only, or for similar

areas of use, such as in kitchenettes in businesses, offices or other workplaces, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.

13. Ensure that the power cord is laid out in such a manner that

there is no possibility of stumbling over it.

14. To avoid damage to the cord, never wrap the power cord around

15. To avoid damage to the cord, always unplug the mains plug from

the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.

16. Ensure that the electrical outlet used is easily accessible, in

17. To avoid damage to the power cord, ensure that it is not pinched

or pulled over corners.

18. If possible, do not use an extension cord. If you must use an

extension cord, completely unwind the extension cord and com

ply with the power limits of the respective extension cord.

20. The appliance must never be used in wet/wet and cold or damp

rooms - danger of electric shock!

21. Keep the appliance out of direct sunlight.

22. Never stick objects such as fingers, needles, pins, etc. through

the openings into the interior of the appliance – danger of injury!

23. Check the appliance, the plug and the power cord regularly for

wear or damage. If there is damage, please send the appliance for inspection and repair to our customer service organization. Unauthorised repairs can result in serious hazards for the user and void the guarantee.

24. If the power cord is damaged, it must only be repaired by the

manufacturer, the manufacturer’s customer service organization, or some other person with the appropriate technical qualifications to avoid hazards.

25. To avoid damage, do not use the appliance with accessories from

other manufacturers or of other brands.

26. Unplug the mains plug from the electrical outlet after use and

before cleaning. Never leave the appliance unattended when the mains plug is plugged in. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. Never stick objects such as fingers, needles, pins, etc. through the openings into the interior of the appliance – danger of in- jury! Only operate the appliance on a level, stable substrate, so that it does not tip over

1. Remove all packaging material and transport locking devices. Keep

packaging material such as plastic bags or polystyrene out of the reach of small children – danger of suffocation!

2. Check whether all required parts listed in this manual have been shipped

with your appliance.

3. Remove the three screws from the base of the appliance (Fig. 1).

4. Start by joining the two sections of the base until they lock into place (see

Fig. 2). While doing so, make sure to feed the power cord through the opening in the middle of the two sections!

5. Connect the base to the underside of the appliance and connect all parts

using the included screws (Fig. 3).

6. Fix the power cord in place inside the recess on the underside of the base.

7. Check if all parts have been installed and fastened properly.

1. Carefully open the cover of the battery compartment.

2. Insert the batteries. Pay attention to the correct polarity while doing so. For

guidance, follow the corresponding marking inside the battery compartment.

5. When setting up the appliance with the remote control, make sure to point

the remote at the fan while adjusting the settings.

6. The labels on the remote control are identical to those found on the buttons

7. To avoid damage, make sure not to drop the remote control from a great

ON/OFF (Power) For switching the appliance on and off Speed For selecting the three different speed levels Timer For selecting the time after which the appliance will switch off automatically; adjustable between 0.5 and

1. Make sure that the appliance is set up in a secure and stable manner on a

suitable and level surface.

2. Place the plug in a power socket.

3. Press the “POWER” button once to switch the appliance on.

4. Press and the „Speed“ button until the appliance is operates at the desired

speed. The corresponding setting is indicated by the matching indicator: Low speed: Low Medium speed: Med High speed: High Swivel function/oscillation

5. Press the “OSC” button to switch on oscillation. Another press of the button

will arrest the appliance at the current position, but the fan will keep running. Timer

6. You can use the “TIMER” button to select the desired operating time of the

appliance. You can adjust the time between 0.5 and 7.5 hours in incre- ments of 30 minutes (e.g. 0.5 hours, 1 hour, 1.5 hours, etc.). Press and hold the “Timer” button until the indicator of the time you selected comes on. After this time has elapsed, the appliance will switch off automatically. If you do not set a specific time, the appliance will run continuously. Power off

7. Press the “POWER” button again or press the “POWER” button on the

remote control to switch the appliance off. Disconnect the plug from the power socket if you no longer use the appliance. OPERATION Copyright UNOLD AG | www.unold.de UNOLD ©Stand 14.4.2021 19 von 56

Switch off the appliance, by pressing the “Power” button, and unplug it from the electrical outlet. Never immerse the appliance in water. The motor or electrical components of the appliance must not get wet.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot

cleaning agents or disinfectants.

2. Wipe off the housing and grille of the fan with a slightly damp cloth.

3. Store the fan in a dry, safe place so that it is protected from dust, impact,

GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic prod- ucts. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. Do not dispose of used batteries as household waste. Dispose of this product via your appli- ance dealer or take it to the municipal collection point. The instruction booklet is also available for download: www.unold.de Copyright UNOLD AG | www.unold.de UNOLD ©20 von 56 Stand 14.4.2021
