This symbol indicates potential hazards that may result in injury or damage to the appliance. Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household

1. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed by

children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of

children under 8 years.

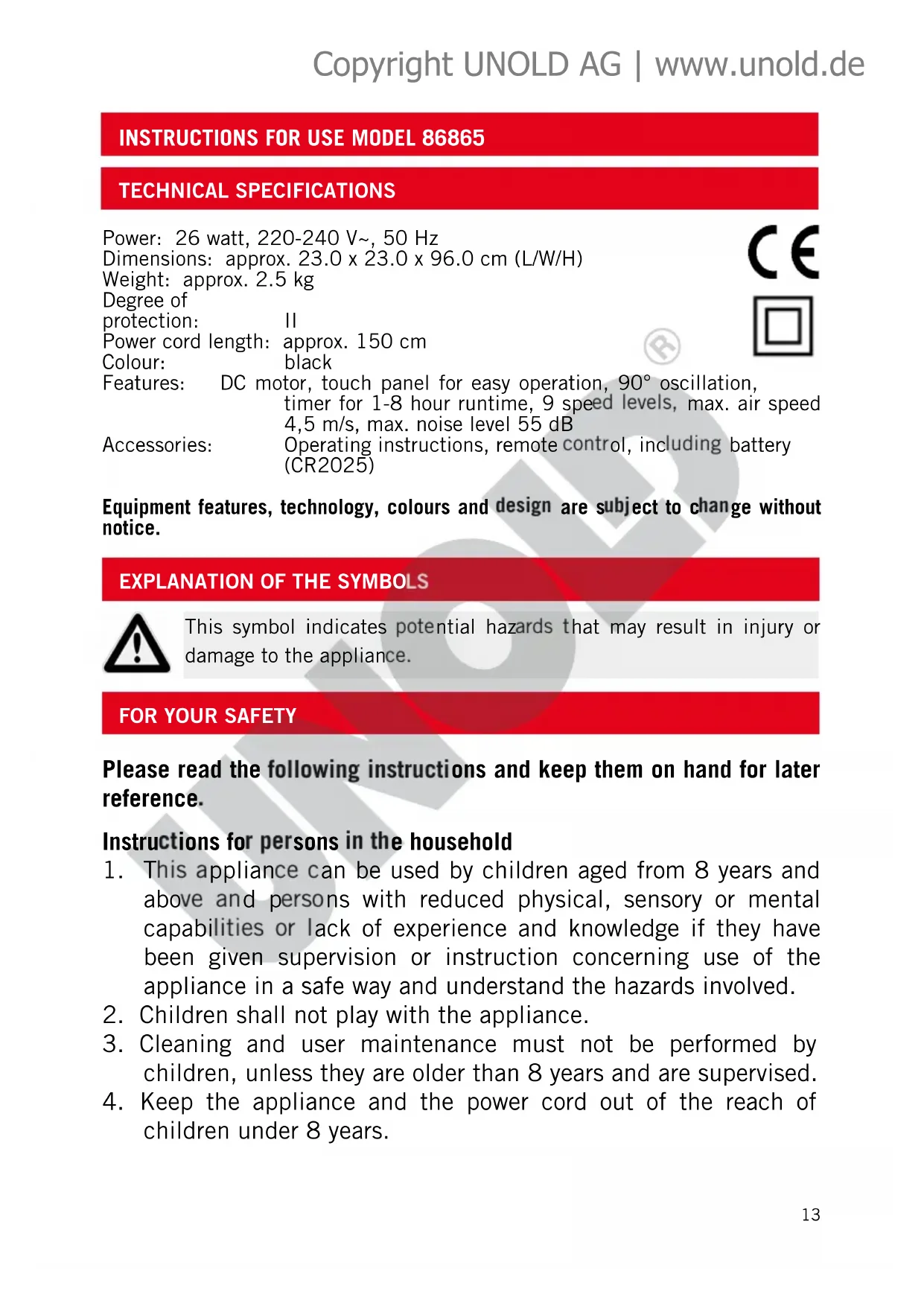

Power: 26 watt, 220-240 V~, 50 Hz Dimensions: approx. 23.0 x 23.0 x 96.0 cm (L/W/H) Weight: approx. 2.5 kg Degree of protection: II Power cord length: approx. 150 cm Colour: black Features: DC motor, touch panel for easy operation, 90° oscillation, timer for 1-8 hour runtime, 9 speed levels, max. air speed 4,5 m/s, max. noise level 55 dB Accessories: Operating instructions, remote control, including battery (CR2025) Equipment features, technology, colours and design are subject to change without notice. Copyright UNOLD AG | www.unold.de14 Safety instructions for set-up and operation of the appliance

5. Only switch the appliance on when it has been properly assem-

Ensure that there is sufficient space where the appliance is located. A minimum distance of 50 cm must be maintained between the appliance and other objects.

7. Do not use the appliance in rooms that are extremely dusty or in

the vicinity of flammable substances.

8. Only connect the appliance to an AC power supply with voltage

corresponding to the voltage specified on the rating plate.

9. This appliance must not be operated with an external timer or a

remote control system (included remote control is not affected).

10. Never immerse the appliance or the power cord in water or other

liquids - life-threatening danger!

11. Do not open the motor housing under any circumstances, there

is danger of electric shock!

12. The appliance is intended for household use only, or for similar

areas of use, such as in kitchenettes in businesses, offices or other workplaces, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.

13. Ensure that the power cord is laid out in such a manner that

there is no possibility of stumbling over it.

14. To avoid damage to the cord, never wrap the power cord around

15. To avoid damage to the cord, always unplug the mains plug from

the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.

16. Ensure that the electrical outlet used is easily accessible, in

order to unplug the appliance in an emergency.

17. To avoid damage to the power cord, ensure that it is not pinched

or pulled over corners.

18. If possible, do not use an extension cord. If you must use an

extension cord, completely unwind the extension cord and com

ply with the power limits of the respective extension cord.

20. The appliance must never be used in wet/wet and cold or damp

rooms - danger of electric shock! Copyright UNOLD AG | www.unold.de15

21. Keep the appliance out of direct sunlight.

22. Never stick objects such as fingers, needles, pins, etc. through

the openings into the interior of the appliance – danger of injury!

23. Check the appliance, the plug and the power cord regularly for

wear or damage. If there is damage, please send the appliance for inspection and repair to our customer service organization. Unauthorised repairs can result in serious hazards for the user and void the guarantee.

24. If the power cord is damaged, it must only be repaired by the

manufacturer, the manufacturer’s customer service organiza

tion, or some other person with the appropriate technical quali- fications to avoid hazards.

To avoid damage, do not use the appliance with accessories from other manufacturers or of other brands.

26. Unplug the mains plug from the electrical outlet after use and

before cleaning. Never leave the appliance unattended when the mains plug is plugged in. Never stick objects such as fingers, needles, pins, etc. through the openings into the interior of the appliance – danger of in- jury! Only operate the appliance on a level, stable substrate, so that it does not tip over

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. Copyright UNOLD AG | www.unold.de16

Oszillation/Swing For switching the swing function/oscillation On and Off

+ and - buttons To adjust the nine different speed levels

Zeitvorwahl/Timer For selecting the time, after which the appliance will automatically switch off, adjustable between 1 and 8 hours Only adjustable via the remote control.

Sleep mode For selecting Sleep mode. The appliance works with gentle gusts (gentle breeze) Only adjustable via the remote control.

ON/OFF For switching the appliance On and Off

1. To remove the upper part of the fan, gently turn it to

the right. Carefully lift the top off the pedestal.

2. To replace the upper part, put it on the base and turn

to the left until the upper part clicks into place. ASSEMBLY Copyright UNOLD AG | www.unold.de17

1. Ensure that the appliance is standing on a suitable, level substrate, and has

been set up so that it is safe and stable.

2. Plug the appliance into an electrical outlet.

4. The appliance starts. In the basic setting the appliance runs at low speed

5. Now press repeatedly on the display until the desired speed is reached. The

speed is indicated through the appropriate number in the display. The set- ting can be selected in 9 levels; level 1 offers the lowest speed and level 9 offers the maximum speed. To set the speed via the remote control, on the remote control press the + and - buttons until the appliance is operating at the desired speed.

6. Note: The display will turn off after a while. As soon as you make an entry

again, the display switches on again. OPERATION

REMOTE CONTROL/BATTERY REPLACEMENT

1. Carefully pull the cover of the battery compartment out of the remote control

2. Insert the battery into the intended holder.

3. If you want to insert a different battery, ensure that you use a CR2025 but-

4. Carefully slide the cover back into the remote control unit.

5. If you adjust the appliance with the remote control unit, ensure that you

always hold it in the direction of the fan while you are making the settings.

6. The designations on the remote control unit are identical to the designations

of the buttons on the appliance.

7. To avoid damage, never allow the remote control unit to fall from a signifi-

8. The appliance works with gentle gusts (light breeze), which feel like natural

10. The appliance operates at high speed, „H“ appears in the display. To exit

on the swing function. If you press on the display again the appliance stops at the current position, however the fan keeps running. Timer

12. Via the „Timer“ button on the remote control you can select the desired

runtime of the appliance. This is possible in the range from 1 to 8 hours in 60 minute increments. Press the „Timer“ button repeatedly until the desired runtime lights up. After this time elapses the appliance switches off automatically. If you do not make a time setting, the appliance will run continuously. The set time will not be saved when you unplug the appliance from the mains supply. Switching off

13. Press the display or the „ON/OFF“ button for two seconds to switch off the

appliance. Unplug the mains plug from the electrical outlet, when you are no longer using the appliance. Switch off the appliance, by pressing the “ON/OFF” button, and unplug it from the electrical outlet. Never immerse the appliance in water. The motor or electrical components of the appliance must not get wet.

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic prod- ucts. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. Do not dispose of used batteries as household waste. Dispose of this product via your appliance dealer or take it to the municipal collection point. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de

1. Never use any abrasive scouring agents, steel wool, metal objects, hot

cleaning agents or disinfectants.

2. Wipe off the housing and grille of the fan with a slightly damp cloth.

3. Store the fan in a dry, safe place so that it is protected from dust, impact,
