Product type	Forest mesh visor with anti-noise helmet
Brand	Silverline
Model	140878
Headband material	ABS
Padding	PVC foam
Average weight	169 g
Standards	EN352-1:2002, EN 1731:2006
Overall attenuation index (SNR)	Given in the manual (e.g., 28 dB per chart)
Protection	Noise and debris projections (forestry)
Use	Electric garden tools (chainsaw, brush cutter, etc.)
Assembly	Assembly of headband, noise-cancelling cups, and mesh visor
Adjustment	Cup height, headband size, rear knob
Maintenance	Cleaning with warm soapy water, disinfection every 3 months
Storage	Clean and dry environment
Warranty	Lifetime warranty (registration within 30 days)
Manufacturer	Toolstream Ltd. (United Kingdom)
Notified body	PZTGmbH (no. 2754)
Spare parts	Cups, headband, visor (available via manufacturer)

Frequently Asked Questions - 140878 SILVERLINE

How to assemble the mesh visor and anti-noise helmet Silverline 140878?

Assemble by following the steps: insert the headband into the slots of the noise-cancelling cups, then position the visor onto the 3 pins and rotate the pins 180° to lock. Refer to the manual for pictures. Check the fastening before use.

How to adjust the helmet size for a comfortable fit?

Adjust the cup height in the headband slots, then adjust the top of the headband before putting on the helmet. Finally, use the rear knob to tighten or loosen the strap. Do not force at the end of travel.

What types of noise and projections does this product protect against?

The noise-cancelling helmet attenuates sounds according to EN352-1 with an SNR indicated in the chart. The visor protects against high-speed particles (low energy impact), suitable for chainsaw or brush cutter debris. It does not protect against liquids, molten metal, or radiation.

How to clean and maintain the visor and helmet?

Clean with warm water and mild soap, then dry with a soft cloth. Do not use solvents, alcohol, or abrasive products. Disinfect every 3 months. Store in a clean, dry place.

When should the helmet or visor be replaced?

Replace immediately if the helmet or visor is damaged (cracks, perforations, deformation). Damaged equipment reduces protection. The pads wear over time; inspect frequently.

Does this visor protect against chemical splashes or UV?

No. The instructions specify that this mesh visor does not protect against liquid splashes (including molten metal), hot solids, electrical hazards, infrared or ultraviolet. It is designed only for mechanical projections.

Is the helmet compatible with other Silverline visors?

The 140878 model comes with a specific visor. For other accessories, contact Silverline support. The headband and cups are standard, but the 3-pin attachment may be specific. Use only original parts.

Can I use this product with safety glasses?

Yes, the noise-cancelling helmet can be worn with glasses if they do not interfere with the fit. Ensure no gap reduces sound attenuation. The visor is placed over them.

Where to find the declaration of conformity and technical support?

The declaration of conformity is available on www.silverlinetools.fr. For technical questions, contact the manufacturer Toolstream Ltd. by phone at ([phone] or via the website.

What to do in case of skin reaction due to materials?

Some people may be allergic to materials in contact with the skin. If a reaction occurs, evacuate the area, remove the equipment, and consult a doctor. Clean the equipment before reuse.

USER MANUAL 140878 SILVERLINE

Front view of a full-face shield with protective mesh and headband (no text or symbols visible)

A C

Close-up of a mechanical component with bidirectional arrows indicating rotation or movement (no text or symbols visible)

B

Close-up of a hand holding a medical or laboratory equipment device with no visible text or symbols

Black and white photo of a person aiming a rifle with scope (no visible text or symbols)

D

Close-up of a hand holding a cable with a small object inserted, showing motion direction (no text or symbols visible)

E

Close-up of a hand holding a black mechanical component with a metallic tool (no visible text or symbols)

F

Close-up of a black electronic device with a circular lens on its surface (no visible text or symbols)

G

Close-up of a computer monitor with a scroll wheel and scroll wheel, showing a white scroll wheel (no text or symbols visible)

H

Close-up of a metallic surface with a circular hole and an arrow indicating rotation (no text or symbols)

|

Exterior view of a transparent shield with exposed mechanical components (no text or symbols)

J

Close-up of a black mechanical component with evenly spaced holes and textured surface (no visible text or symbols)

K

Close-up of a black star-shaped object with directional arrows indicating rotation or movement (no text or symbols)

L

Side profile of a person wearing a medical or surgical device with head-mounted lenses (no visible text or symbols)

M

Side profile of a person wearing a VR headset and visor device (no text or symbols visible)

English ......04

Français ......08

Deutsch .....12

Español ......16

Italiano ......20

Nederlands ......24

Polski ......28

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection. Wear eye protection. Wear breathing protection. Wear head protection.

Wear hand protection.

Read instruction manual.

Caution!

Conforms to relevant legislation and safety standards.

2754

Notified body number

Specification

Headband material: ABS

Cushion material: PVC foam

Mean weight of ear muffs: 169g

Standard: EN352-1:2002, EN 1731:2006

For Declaration of Conformity please visit www.silverlinetools.com

PPE Regulation 2016/425/EU

Safety Guidelines

Forestry Hat

For your own protection please read and thoroughly understand all safety instructions before use. Keep these instructions with the product for future reference. Ensure all people who use this product are fully acquainted with these safety instructions. The visor and ear defenders are for adult use only and do not provide unlimited face and ear protection.

WARNING: The visor and ear protectors are designed for your personal safety and must be worn

for the duration of the exposure to hazards.

Please ensure that visor and ear defenders are appropriate for intended use. Inspect before use to ensure products are in good condition and are not damaged in any way. Assemble all parts prior to fitting. Visor and ear defenders may be used in combination or individually. This equipment should be fitted, adjusted and maintained in accordance with these instructions.

WARNING: If the recommendations given in these instructions are not adhered to, the section afforded by this equipment will be severely impaired

The ear defenders are meant for ear protection but are not unbreakable. This mesh visor is meant for face protection against moderate impact hazards but is not unbreakable. Never alter or modify the ear defenders and visor. A damaged ear defender reduces protection and should be replaced immediately. Ear muffs, and in particular cushions, may deteriorate with use and should be examined at frequent intervals for cracking and leakage for example. The fitting of hygiene covers to the cushions may affect the acoustic performance of the ear muffs.

It is the responsibility of the user to acquaint themselves with the hazards to be encountered and select the correct level of ear protection for use in the hazardous area. A damaged visor reduces both protection and vision and should be replaced immediately. This visor does not have any filtering action and does not protect against molten metal splash, hot solids or electrical hazards.

The materials which come into contact with skin may cause allergic reactions to susceptible individuals. If a reaction occurs, leave the area and remove the visor and seek medical advice.

This product may be adversely affected by certain chemical substances. Further information should be sought from the manufacturer.

WARNING: Failure to follow these instructions and warnings on the use of this item during all es of exposure can reduce its effectiveness and could result in illness or disability.

WARNING: The mesh eye and face protector does not protect against liquid splash (including molten metal), hot solids, electrical hazards, infrared and ultra violet radiation. This mesh visor does not have any filtering action.

Attenuation Values

The single number rating (SNR) gives an end attenuation value across the whole frequency range. If you need specific attenuation for a frequency range, see the chart below. A general attenuation figure is given below the chart for low, medium and high frequencies.

Result Limit
Frequency (Hz)	Sound attenuation (dB)	Standard deviation (dB)	APV (dB)
63
125 13.7 3.9 9.8 5
250 14.2 3.3 10.9 8
500 21.7 3.4 18.3 10
1000 31.3 4.7 26.6 12
2000 34.8 3.6 31.2 12
4000 29.5 3.9 25.6 12
8000 30.1 5.2 24.9 12

SNR - value = 24dB
H - value = 28dB
M - value =	21dB
L - value =	14dB

Intended Use

Provides protection when using electric, battery and petrol garden power tools, including chainsaws, strimmers, hedge cutters and lawn mowers that create high noise levels and may throw dust and debris towards the face of the operator.

Assembly and Fitting

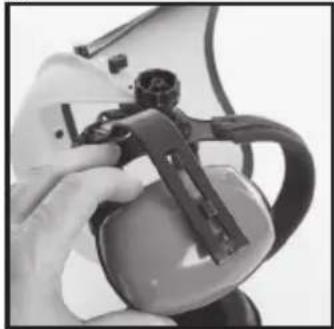

1. Position the ear cups halfway on the headband slot (Image A) and turn the cups so the connector is in line with the slot (Image B) then pull off the headband
2. Locate the two slots for the headband (Image C) and carefully insert the headband (Image D)
3. Position the angled part of the headband so it is in the slots (Image E)
4. Refit the ear defender cups to the headband by positioning halfway in the headband slot and turning
5. Fit the mesh visor over the pins (Image F) then turn the pins at the far side of the visor 180° (Image G) and the centre pin to the top (Image H). Check it is secure and correctly positioned (Image I)

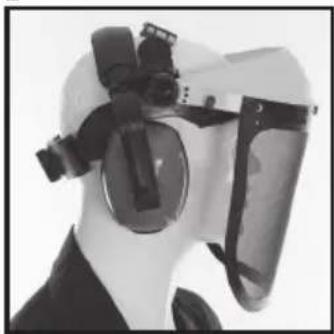

6. The forestry hat is now assembled (Images L & M) but adjustments must be made to ensure a good fit

7. The height of the ear defender cups can be adjusted in the headband slots for maximum sound attenuation and comfort

8. Adjustments to the top of the head strap are made prior to wearing (Image J). Correctly adjusted there should be no gap between the strap and the top of the head
9. The strap adjuster that sits on the rear of the head can be adjusted while fitted to the head (Image K). Turning clockwise will reduce the length of the strap and anti-clockwise will increase it. Do not force the knob when it has reached its minimum or maximum strap length

WARNING: These ear muffs are of 'medium size range'. Ear muffs complying with EN352-1 are of 'medium size range' or 'small size range' or 'large size range'. 'Medium size range' ear muffs will fit the majority of wearers. 'Small size range' or 'large size range' ear-muffs are designed to fit wearers for whom 'medium size range' ear muffs are not suitable.

Markings

Symbol on mesh eye and face protection Explanation
BBS	Manufacturer
EN Number of standard which product fulfils
F Protection against high speed particles in low energy impacts
CE CE certification

WARNING: Mesh oculars and visors marked 'S' should not be used when there is a foreseeable risk of any hard or sharp flying particles.

BBS - Manufacturer (all parts)

Ear Muffs

• B001 or B006 - Manufacturer's model number
• CE - Complies with relevant Personal Protective Equipment Directive
• EN352, ANS1 Z87.1 Complies with this standard

Mesh Visor

• B925 - Manufacturer's model number
- CE - Complies with relevant Personal Protective Equipment Directive
• EN1731 - Complies with this standard

Head Gear

• B916 or B900 - Manufacturer's model number
• CE - Complies with relevant Personal Protective Equipment Directive
• EN352, EN1731, ANS1 Z87.1 - Complies with these standards

Storage and Maintenance

When not in use, the Forestry Hat must be stored in a clean and dry environment. Any part which comes into contact with the wearer should be disinfected with agents not known to be harmful to the user. Clean with warm soapy water and dry with soft cloth. Do not clean with abrasive materials, organic solvents or alcohol. Ear defenders should be disinfected every 3 months.

Contact

Legal Manufacturer: Toolstream Ltd

For technical or repair service advice, please contact the helpline on ([phone]

Web: silverlinetools.com/en-GB/Support

Address:

Toolstream Ltd.

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Notified body:

PZTGmbH

This Silverline product comes with a forever guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the forever guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
