Product Type	Cordless Hand Vacuum
Brand	Auto Joe
Model	AJV1000
Net Weight	0.63 kg
Power Source	Lithium-ion battery 8.4 V DC, 2.0 Ah
Motor Power	60 W
Max Suction	4 kPa
Max Suction Power	6 air-watts
Max Airflow	0.4 m³/min
Dust Cup Capacity	100 ml
Max Runtime	12 minutes
Max Charge Time	4 hours
Battery Type	Built-in lithium-ion, non-removable
Filter	Washable HEPA
Charge Indicator	LED indicators (30%, 60%, 100%)
Overheat Protection	Yes (auto shut-off)
Deep Discharge Protection	Yes
USB Charging	Yes (cable included)
Included Accessories	2-in-1 crevice tool/brush, USB charging cable
Usage	Indoor only, dry vacuuming
Warranty	2 years (residential use)
Customer Service	1-866-SNOWJOE (1-866-766-9563)

Frequently Asked Questions - AJV1000 Auto Joe

How do I charge the Auto Joe AJV1000 vacuum?

Plug the included USB cable into a USB charger or USB port (computer). Connect the other end to the charging port on the vacuum. The maximum charging time is 4 hours. During charging, the LED indicators show the charge level.

What is the runtime of the vacuum?

The maximum runtime is 12 minutes with a fully charged battery. Runtime may vary depending on usage and suction power.

How do I empty the dust cup?

Make sure the vacuum is off. Turn the dust cup clockwise, then pull to remove it. Remove the HEPA filter, empty debris, replace the filter, then put the cup back by turning it counterclockwise until it locks.

How do I clean the HEPA filter?

Gently tap or brush the filter to remove dust. If necessary, rinse it with clean water. Allow it to air dry completely for 24 hours before reinstalling. Never use the vacuum without a filter.

Can I use the vacuum to pick up liquids?

No, this vacuum is designed for dry vacuuming only. Never vacuum liquids, as this could damage the appliance and pose a risk of electric shock.

What if suction power decreases?

Check if the dust cup is full (empty it if necessary). Clean the HEPA filter if it is clogged. If the battery is low, recharge it.

The vacuum does not start, what should I do?

Make sure the battery is charged (recharge it). If the overheat protection has activated, let the vacuum cool down. If the power button is damaged, contact customer service.

How do I use the 2-in-1 crevice tool/brush accessory?

Insert the accessory into the vacuum nozzle by pressing firmly. Use the sliding button to switch from brush (for fabrics) to crevice tool (for hard-to-reach areas). To remove, simply pull.

How do I store the vacuum?

After use, make sure the vacuum is off. Replace the suction nozzle. Store the appliance indoors, in a cool, dry place, out of reach of children and pets.

What is the warranty on the Auto Joe AJV1000 vacuum?

The limited warranty is 2 years for ordinary residential use from the date of purchase. It covers defects in materials and workmanship. Product registration is recommended but not required.

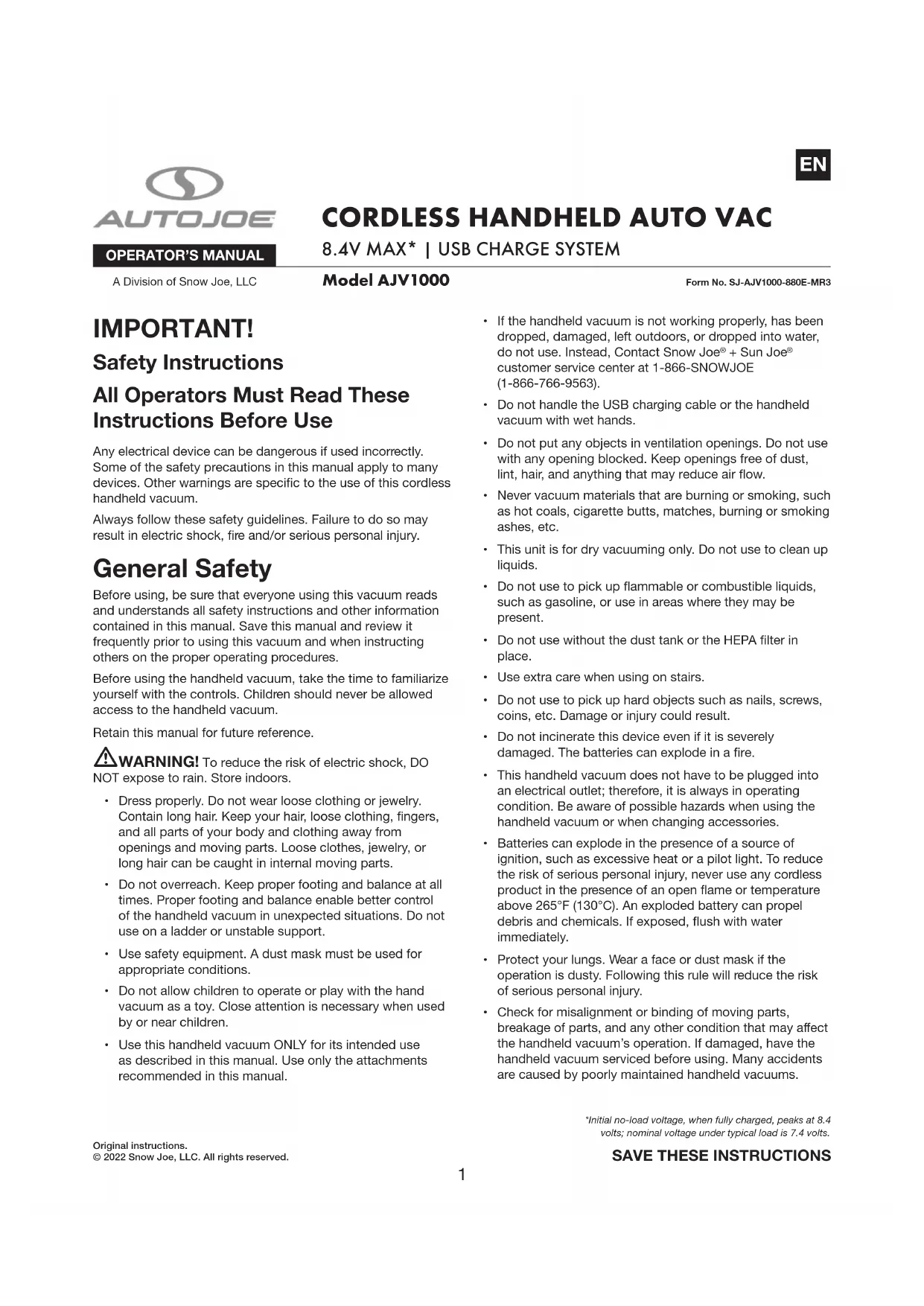

USER MANUAL AJV1000 Auto Joe

Form No. SJ-AJV1000-880E-MR3

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

Any electrical device can be dangerous if used incorrectly. Some of the safety precautions in this manual apply to many devices. Other warnings are specific to the use of this cordless handheld vacuum.

Always follow these safety guidelines. Failure to do so may result in electric shock, fire and/or serious personal injury.

General Safety

Before using, be sure that everyone using this vacuum reads and understands all safety instructions and other information contained in this manual. Save this manual and review it frequently prior to using this vacuum and when instructing others on the proper operating procedures.

Before using the handheld vacuum, take the time to familiarize yourself with the controls. Children should never be allowed access to the handheld vacuum.

Retain this manual for future reference.

WARNING! To reduce the risk of electric shock, DO

NOT expose to rain. Store indoors.

• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, loose clothing, fingers, and all parts of your body and clothing away from openings and moving parts. Loose clothes, jewelry, or long hair can be caught in internal moving parts.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the handheld vacuum in unexpected situations. Do not use on a ladder or unstable support.
• Use safety equipment. A dust mask must be used for appropriate conditions.
• Do not allow children to operate or play with the hand vacuum as a toy. Close attention is necessary when used by or near children.

• Use this handheld vacuum ONLY for its intended use as described in this manual. Use only the attachments recommended in this manual.

• If the handheld vacuum is not working properly, has been dropped, damaged, left outdoors, or dropped into water, do not use. Instead, Contact Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

• Do not handle the USB charging cable or the handheld vacuum with wet hands.
• Do not put any objects in ventilation openings. Do not use with any opening blocked. Keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Never vacuum materials that are burning or smoking, such as hot coals, cigarette butts, matches, burning or smoking ashes, etc.
• This unit is for dry vacuuming only. Do not use to clean up liquids.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without the dust tank or the HEPA filter in place.
• Use extra care when using on stairs.
• Do not use to pick up hard objects such as nails, screws, coins, etc. Damage or injury could result.
• Do not incinerate this device even if it is severely damaged. The batteries can explode in a fire.
• This handheld vacuum does not have to be plugged into an electrical outlet; therefore, it is always in operating condition. Be aware of possible hazards when using the handheld vacuum or when changing accessories.
• Batteries can explode in the presence of a source of ignition, such as excessive heat or a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of an open flame or temperature above 265°F (130°C). An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
• Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.

• Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the handheld vacuum's operation. If damaged, have the handheld vacuum serviced before using. Many accidents are caused by poorly maintained handheld vacuums.

• Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one handheld vacuum may create a risk of injury when used on another handheld vacuum.

• Do not let gasoline, oils, petroleum-based products, etc. come in contact with plastic parts. They contain chemicals that can damage, weaken, or destroy plastic.
• This product contains no serviceable parts. Never attempt to remove or replace any parts other than those specified in this manual.
• Do not run the handheld vacuum unattended.
• Keep children and animals at a safe distance when using this device.
• Do not use this vacuum with a torn filter or without the filter installed. Replace a damaged filter promptly.
• Do not use or store near hazardous materials.

Battery Safety Warnings

This manual contains important safety and operating instructions for the internal battery in your vacuum.

• Before using, always check the cable and plug. Thoroughly read all instructions and cautionary markings on the manual and the cordless handheld vacuum.

⚠ WARNING! If the cordless handheld vacuum is cracked or damaged, do not insert the charging cable into the device or plug the device into the mains outlet. There is a danger of electric shock or electrocution.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a device that has been damaged or modified. Damaged or modified devices may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not modify or attempt to repair the device except as indicated in the instructions for use and care.
• Make sure the USB cable is located in a safe place so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• An extension cord should not be used unless absolutely necessary. Using an improper extension cord poses a risk of fire, electric shock or electrocution.
• Do not disassemble the device. Incorrect reassembly may pose a serious risk of electric shock or fire. If the battery is damaged, contact an authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.

• To reduce the risk of electric shock, unplug the device before cleaning the unit.

• Do not store or use the device in locations where the temperature may reach or exceed 104^ (40°C). Dangerous storing locations include outdoor sheds or metal buildings in the summer.

• The integrated battery is not fully charged out of the box. Read the safety instructions and then follow the charging notes and procedures.
• Do not charge the device beyond the temperature range of 50^ (10°C) to 104^ (40°C).
• Do not burn the device even if it is seriously damaged or completely worn out. The battery can explode in a fire.

Service

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. If your device requires service, contact an authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE
  (1-866-766-9563). Only identical replacement parts should be utilized for repairs. This will ensure that the safety of the vacuum is maintained.
• If the USB cable is damaged, it must be immediately replaced to avoid a hazard. Contact the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the device before attempting to assemble and operate.

Symbols Descriptions Symbols Descriptions
	To reduce the risk of injury, user must read the instruction manual.		Safety alert. Exercise caution.
	Indoor use only. Only charge indoors.		To reduce the risk of electric shock, do not use outdoors or in damp or wet environments. Do not expose to rain. Store indoors in a dry place.

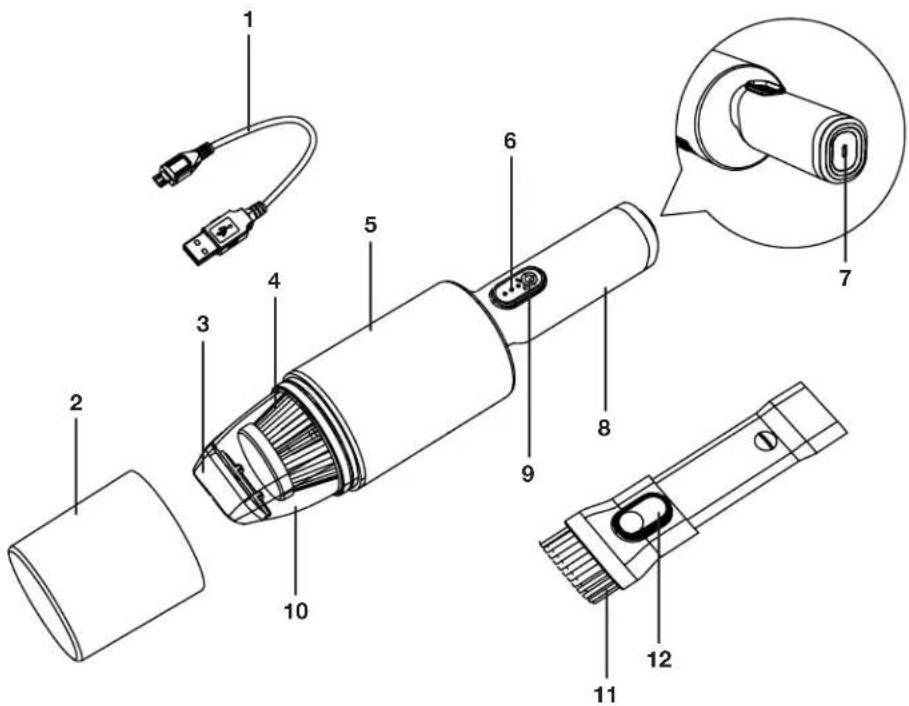

Know Your Cordless Handheld Auto Vac

Read the owner's manual and safety rules carefully before operating the handheld auto vac. Compare the illustration below to the unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. USB charging cable
2. Vacuum cap
3. Vacuum nozzle
4. HEPA filter
5. Motor housing
6. Charge level indicator
7. USB charging socket
8. Handle
9. On/Off button
10. Dust tank
11. 2-in-1 nozzle + brush attachment
12. Nozzle + brush button

Technical Data

Motor....60 W

Vacuum Pressure Max 4 kPa

Suction Power Max 6 AW

Air Flow Max 14.1 CFM (0.4 m³/min)

Dust Tank Capacity 3.4 fl oz (100 ml)

Battery Voltage ^* 8.4V DC

Battery Capacity 2.0 Ah

Battery Runtime Max 12 min

Battery Type ....Lithium-ion

Net Weight 1.4 lbs (0.6 kg)

Unpacking

Carton Contents

• Cordless handheld auto vac
• 2-in-1 nozzle + brush attachment
- USB charging cable
- Manual with registration card

1. Carefully remove the handheld vacuum and check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Instead, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new handheld vacuum. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Before Using

Charging Procedure

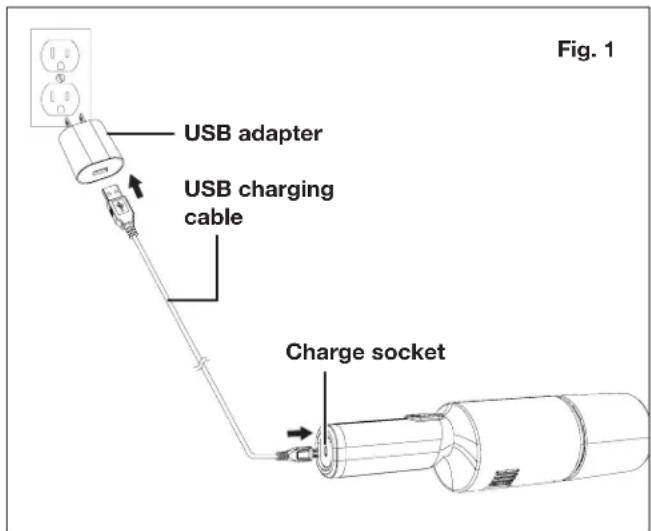

1. Plug a USB charger or adapter to an appropriate AC power outlet.
2. Connect the adapter to the handheld vacuum using the included USB charging cable (Fig. 1).

NOTE: The vacuum can also be charged using the USB ports on other devices (e.g. computers).

NOTE: The lithium-ion battery is protected against deep discharging. When the battery is empty, a protective circuit will automatically switch OFF the equipment. The vacuum will no longer work.

1. Charge the battery for up to 4 hours, then use it. Recharge for up to 4 hours again before resuming operation.

NOTE: During the charging procedure, the handle and the housing of the device will feel slightly warm to the touch. This is normal.

NOTE: Do not use the device while charging.

⚠ WARNING! Continued and excessive overuse of the on/off button can permanently damage the lithium-ion battery.

1. When no further use is planned for an extended period of time, disconnect the USB charging cable from the device.

Battery Charge Level Indicator

The device has charge level indicators, which will illuminate and indicate the charge level when the unit is being used, and when the unit is charging.

LEDs Color Charge Level
○○○	White Fully charged
●○○	White Moderate charge
●●○	White Low charge
●●○	Red No charge

Operation

This cordless handheld auto vac is designed to clean hard surfaces. It is only suitable for vacuuming dry, light materials. Do not vacuum heavy materials or liquids. Any unintended use may result in a malfunction.

Starting/Stopping the Vacuum

1. Before operation, remove the vacuum cap from the vacuum.

2. Make sure the filter is installed and the dust tank is securely attached.

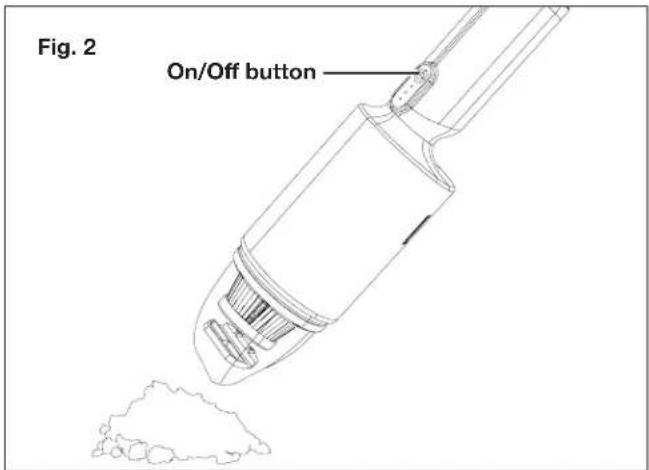

3. Press the on/off button to turn on the vacuum. Keep the nozzle approximately 0.4 inch (1 cm) over the material to be vacuumed (Fig. 2).

1. After use, turn off the vacuum by pressing the on/off button (Fig. 2). Replace the vacuum cap before storing.

Empty the Dust Tank

It's recommended to empty the dust tank after use.

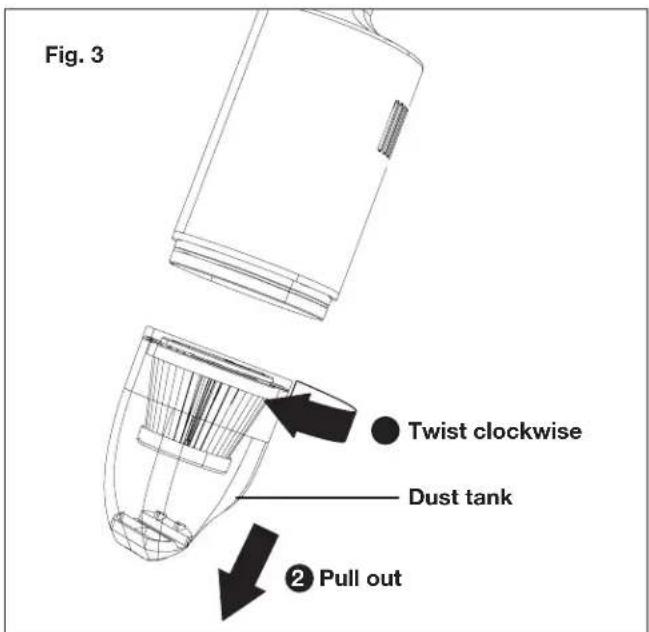

1. Remove the dust tank by twisting it clockwise, and pull it out from the vacuum (Fig. 3).

NOTE: Point the vacuum nozzle toward the ground to avoid dust spilling out when disconnecting the dust tank from the vacuum.

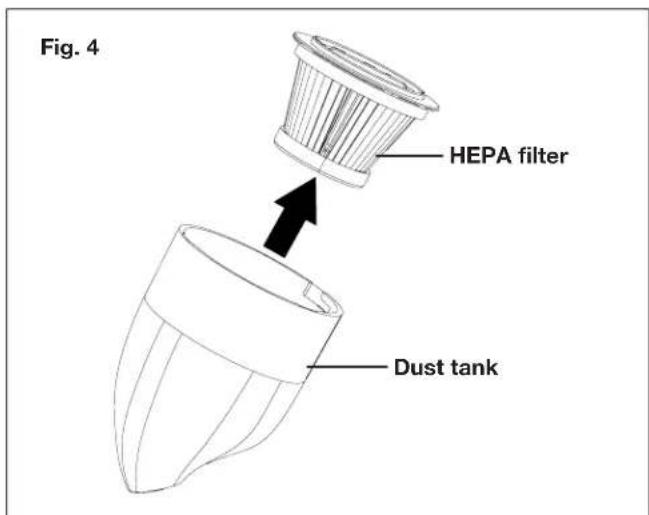

1. Remove the HEPA filter from the dust tank (Fig. 4).

1. Discard the dust and debris from the dust tank in accordance with local laws and regulations.

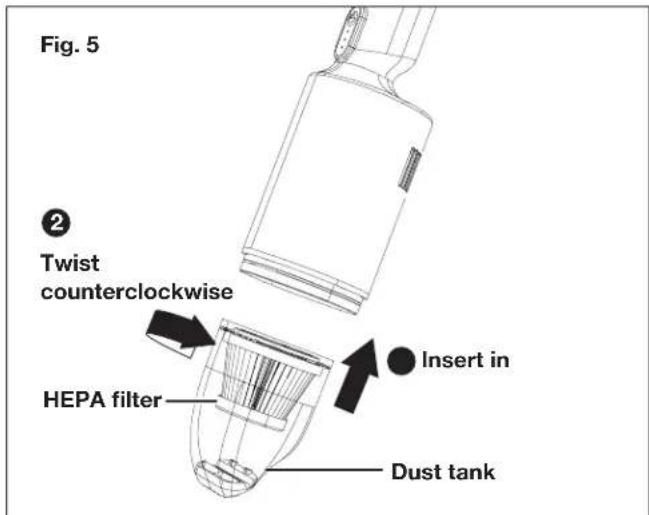

2. After emptying, reinsert the HEPA filter into the dust tank, and reattach the dust tank to the vacuum. Push in and turn the dust tank counterclockwise until it locks in place (Fig. 5)

Use the 2-in-1 Nozzle + Brush attachment

The included 2-in-1 nozzle + brush attachment is suitable for cleaning small areas and collecting fine dust. To use the nozzle + brush attachment, follow the instructions below.

1. Turn off the vacuum.

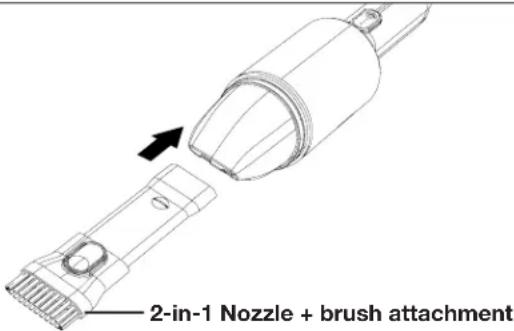

2. Insert the 2-in-1 nozzle + brush attachment into the vacuum nozzle and press firmly to attach (Fig. 6).

Fig. 6

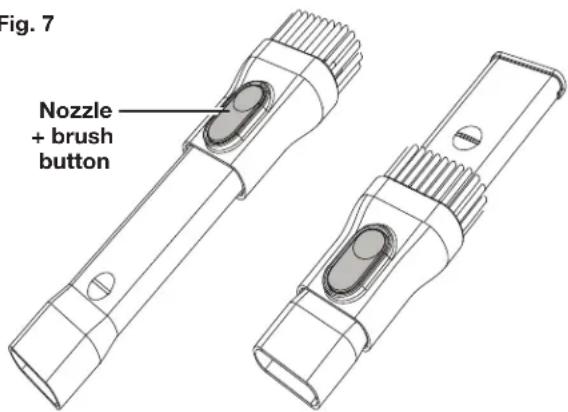

1. To switch the attachment from a brush to a nozzle, use the nozzle + brush button to slide the brush down to reveal the nozzle underneath, and vice versa (Fig. 7).

NOTE: Use the nozzle for hard-to-reach areas and the brush for surfaces like upholstery.

Fig. 7

1. Simply pull the attachment out of the vacuum nozzle to remove it.

Operating Tips

⚠ WARNING! Never remove the dust tank without first switching off the vacuum.

• Use the cordless handheld auto vac only in daylight or good artificial light.
• Make sure the dust tank and the HEPA filter are properly installed and secured when using the vacuum.
• This unit is intended for indoor use only. Do not use this unit outdoors.
• Be extremely careful when working on slopes and stairs.
• Always hold the unit by the handle when the vacuum is on.
• The cordless handheld vacuum is equipped with overheating protection. If the temperature is too high, the circuit will cut off and the vacuum will stop working. If this happens, DO NOT press the on/off button. Allow the vacuum to cool down before resuming vacuuming.

- Clean or change the filter if the suction performance deteriorates.

Maintenance + Storage

To order genuine replacement parts or accessories for the Auto Joe™ AJV1000 Cordless Handheld Auto Vac, please visit sunjoe.com or contact the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Cleaning The Dust Tank

Remove and empty the dust tank. Wash with water and allow it to dry completely before reinstalling onto the vacuum.

Cleaning The Filter

This filter is suitable for dry material only. Handle the filter carefully while removing it for cleaning. Check the filter for tears or holes. If the filter is damaged, replace it immediately.

1. Clean the filter by gently tapping or brushing dust off.
2. If needed, rinse the filter with clean water. Allow the filter to air dry for 24 hours before reinstalling it into the vacuum.

⚠ WARNING! The HEPA filter must be installed before vacuuming.

IMPORTANT: Only use original replacement filters specified for this vacuum.

You can purchase replacement filters (AJV1000-FLT-4PK) and other genuine replacement parts by visiting us online at sunjoe.com or calling our toll-free customer service helpline at 1-866-SNOWJOE (1-866-766-9563). The use of filters that do not meet the original equipment specifications may compromise the performance of the vacuum.

Store the handheld vacuum with the vacuum cap on indoors in a clean and dry place out of the reach of children and animals.

Service + Support

If your Auto Joe ^™ AJV1000 Cordless Handheld Auto Vac requires service or maintenance, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product:

Troubleshooting

• Turn off the device before carrying out any maintenance or when checking that all parts are in proper working order.
  • To avoid unnecessary hassle, consult the following table before contacting customer service with any mechanical issues.

Problems Possible Cause Possible Solution
Device refuses to start	Battery power is lowOverheating protection has been triggeredOn/Off button is damaged	Charge the batteryWait until the unit has cooled down before resuming workContact the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
Vacuum loses suction	Dust tank is fullHEPA filter is cloggedBattery power is low	Empty the dust tankClean the HEPA filterCharge the battery
Motor housing becomes hot	The unit has been on continuously for too longDust tank is fullHEPA filter is clogged	Wait until the unit has cooled down before resuming workEmpty the dust tankClean the HEPA filter

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe ^® + Sun Joe ^® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this cordless handheld vacuum. Contact Snow Joe ^® + Sun Joe ^® if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless handheld vacuum. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Accessories Item Model
1	AJV1000 handheld auto vacHEPA filter (4-Pack)	AJV1000-FLT-4PK
2	AJV1000 handheld auto vac 2-in-1nozzle + brush attachment	AJV1000-BRUSH
3	AJV1000 handheld auto vacUSB charging cable	AJV1000-USBCHARGER
4	AJV1000 handheld auto vac dust tank AJV1000-DUSTCUP

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

¡IMPORTANTE!
