Brand	Silverline
Model	456932
Product type	Pneumatic sheet metal saw (reciprocating saw)
Power supply	Compressed air
Maximum working pressure	6.3 bar
Air consumption	113 L/min (4 cfm)
Air inlet	¼" BSP (two quick couplings supplied)
No-load speed	10,000 rpm
Maximum cutting capacity	1.5 mm (16 gauge)
Stroke length	10 mm
Weight	0.67 kg
Sound pressure level	78 dB(A)
Sound power level	89 dB(A)
Vibration emissions	23 m/s²
Minimum hose diameter	9.5 mm (3/8")
Main functions	Cutting metal sheets, automotive bodywork
Accessories supplied	2 spare blades, 2 blade guides, 2 hex keys, 2 quick couplings
Maintenance and cleaning	Daily lubrication with pneumatic oil; clean with soft brush or dry cloth
Safety	Mandatory: hearing protection, safety glasses, respiratory mask, gloves, hard hat
Spare parts and repairability	Spare blades available (ref. 633549); repair by Silverline authorized center
Warranty	3 years (registration within 30 days at silverlinetools.com)

Frequently Asked Questions - 456932 SILVERLINE

What air pressure should I use for the Silverline 456932 pneumatic saw?

The maximum working pressure is 6.3 bar. Never exceed this pressure. Use a compressor with a regulator to adjust the pressure as needed.

How to install a blade on the saw?

Disconnect the air supply. Loosen the screw on the clamping device cover (8), then the clamping screws (7). Insert the blade (6) with teeth facing the cover, tighten the screws, close the cover and check the fixing by pulling firmly.

What oil to use for lubrication?

Use pneumatic tool oil only. Never use motor oil. Pour a tablespoon of oil into the air inlet daily or install an in-line lubricator.

How to adjust cutting speed?

Speed is adjusted by varying air pressure (without exceeding 6.3 bar) and via the variable speed trigger (10). Press gently to start, then increase trigger pressure for more speed.

What to do if the tool runs slowly or seems seized?

Check air pressure (adjust to 6.3 bar). If it persists, pour oil into the air inlet. For a blockage, operate in short bursts. If rusted, tap lightly with a rubber mallet or rotate manually.

How to clean and maintain the pneumatic saw?

Disconnect the air supply. Clean with a soft brush or dry cloth. For daily maintenance, lubricate with pneumatic oil. Install a filter/water separator to prevent corrosion.

Where to find spare parts for the Silverline 456932?

Spare blades (pack of 5, ref. 633549) and other parts are available from your Silverline dealer or at www.toolsparesonline.com.

How to register the 3-year warranty?

Register your product at silverlinetools.com within 30 days of purchase. Enter your personal and product details. You will receive a PDF certificate to keep with your invoice.

What safety protections are necessary when using?

Mandatory wear: hearing protection (noise level up to 89 dB(A)), safety glasses, respiratory mask, gloves and hard hat for overhead work. Check the safety catch before each use.

What to do in case of air leak on the saw?

Check all connections: tighten them or use PTFE tape (not supplied) on threads. If the leak persists, replace the defective part. Purge residual air after each use.

USER MANUAL 456932 SILVERLINE

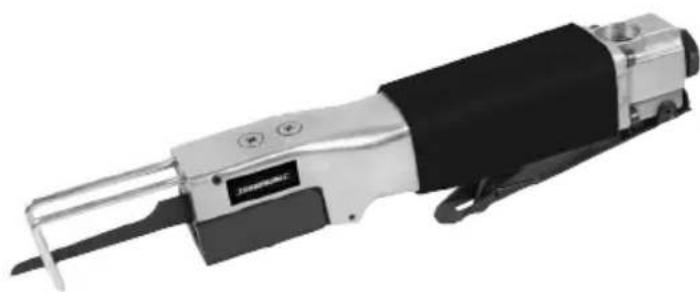

Exterior view of a silver wire torch (no text or symbols visible on body)

1 2 4 5 6 3 7 8 10 9

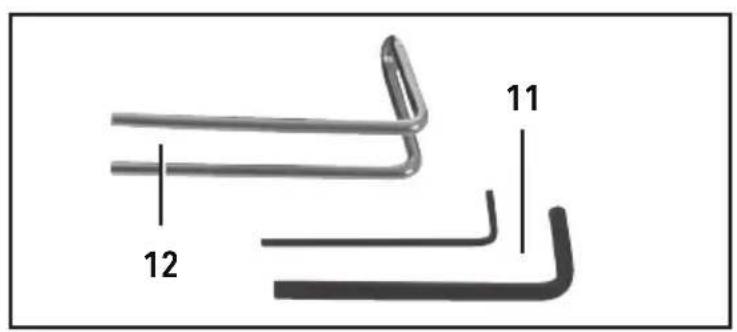

Two elongated, dark gray mechanical blades or strips with a labeled dimension '13' (no other text or symbols)

12 11

English ......04

Français ......10

Deutsch......16

Español......22

Italiano ......28

Nederlands ......34

Polski ......40

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Wear hand protection.

Read instruction manual.

DO NOT use with compressed gas cylinders!

Conforms to relevant legislation and safety standards

Environmental Protection

Air tools should not be disposed of with household waste. They contain traces of oil and other lubricants. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Technical Abbreviations Key

n0 No load speed
n Rated speed
psi Pounds per square inch
∅	Diameter
/min or min ^-1	Operations per minute
BSP British Standard Pipe (thread)
dB(A) Decibel sound level (A weighted)

Maximum operating pressure 6.3bar (90psi)

Air consumption....113L/min (4cfm)

Air inlet 1/4" BSP, supplied with two male airline quick connectors (EN-6 'UK' and EQ-4 'European types')

Minimum hose diameter 09.5mm (3/8")

No load speed....10,000min ^1

Cutting capacity 1.5mm (16 Gauge)

Stroke ;length....10mm

Weight 0.67kg

Sound and vibration information:

Level of sound pressure according to Machinery Directive 2006/42/EC:

Sound pressure L = 78dB(A)

Sound power L_A=89dB(A)

Uncertainty K=3dB

The sound intensity level for the operator may exceed 85dB(A)

and sound protection measures are necessary.

Vibration total values (triax vector sum) according to Machinery directive 2006/42/EC:

Vibration emission value. a = 23.0m/s ^2

Uncertainty K = 1.5m/s ^2

As part of our ongoing product development, specifications of

Silverline products may alter without notice.

General Safety

• For multiple hazards, read and understand the safety instructions before installing, operating, repairing, maintaining, changing accessories on, or working near this tool. Failure to do so can result in serious bodily injury
• Only qualified and trained operators should install, adjust, or use this tool
• Do not modify this tool. Modifications can reduce the effectiveness of safety measures and increase the risks to the operator
• Do not discard the safety instructions; give them to the operator
• Do not use this tool if it has been damaged
• Tools shall be inspected periodically to verify that the ratings and markings required by this part of ISO 11148 are legibly marked on the tool. The employer/user should contact the manufacturer to obtain replacement marking labels when necessary

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Projectile Hazards

- Choking, scalping and/or lacerations can occur if loose clothing, personal jewellery, neck wear, hair or gloves are not kept away from the tool and its accessories

Entanglement Hazards

- Choking, scalping and/or lacerations can occur if loose clothing, personal jewellery, neck wear, hair or gloves are not kept away from the tool and its accessories

Operating Hazards

• Use of the tool can expose the operator's hands to hazards, including cuts, abrasions and heat
• Wear suitable gloves to protect hands
• Operators and maintenance personnel should be physically able to handle the bulk, weight and power of the tool
• Hold the tool correctly; be ready to counteract normal or sudden movements and have both hands available
• Maintain a balanced body position and secure footing
• Release the start-and-stop device in the case of an interruption of the energy supply
• Use only lubricants recommended by the manufacturer
• Personal protective safety glasses should be used; suitable gloves and protective clothing are recommended
• Avoid direct contact with moving parts in order to prevent pinching or cutting of hands or other body parts.
• Wear suitable gloves to protect hands
• There is a risk of electrostatic discharge if used on plastic and other non-conductive materials
  • Potentially explosive atmospheres can be caused by dust and fumes resulting from sawing
  • Always use dust extraction or suppression systems which are suitable for the material being processed

Repetitive Motions Hazards

• When using this tool to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body
• While using this tool, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balance pastures. The operator should change posture during extended tasks; this can help avoid discomfort and fatigue
• If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should inform the employer and consult a qualified health professional

Accessory Hazards

• Disconnect the tool from the energy supply before fitting or changing the inserted tool or accessory
• Avoid direct contact with the inserted tool during and after use, as it can be hot or sharp
• Use only sizes and types of accessories and consumables that are recommended by the manufacturer of this tool; do not use other types or sizes of accessories or consumables

Workplace Hazards

• Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by use of the tool and also of trip hazards caused by the air line or hydraulic hose
• This tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power
• Ensure that there are no electrical cables, gas pipes, etc., which can cause a hazard if damaged by use of the tool

Dust and Fume Hazards

• Dust and fumes generated when using this tool can cause ill health (for example cancer, birth defects, asthma and/or dermatitis); risk assessment and implementation of appropriate controls for these hazards are essential
• Risk assessment should include dust created by the use of the tool and the potential for disturbing existing dust
• Operate and maintain this tool as recommended in these instructions, to minimise dust or lume emissions
• Direct the exhaust so as to minimise disturbance of dust in a dust-filled environment
• Where dust or fumes are created, the priority should be to control them at the point of emission
• All integral features or accessories for the collection, extraction or suppression of airborne dust or fumes should be correctly used and maintained in accordance with the manufacturer's instructions
• Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in dust or fumes
• Use respiratory protection in accordance with employer's instructions and as required by occupational health and safety regulations

Noise Hazards

• Exposure to high noise levels can cause permanent, disabling hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in the ears). Therefore, risk assessment and implementation of appropriate controls for these hazards are essential
• Appropriate controls to reduce the risk can include actions such as damping materials to prevent workpieces from 'ringing'
• Use hearing protection in accordance with employer's instructions and as required by occupational health and safety regulations
• Operate and maintain this tool as recommended in the instruction handbook, to prevent an unnecessary increase in the noise level
• Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in noise
• If the tool has a silencer, always ensure it is in place and in good working order when the tool is being operated

Vibration Hazards

This information shall draw attention to vibration hazards that have not been eliminated by design and construction and remain as residual vibration risks. It shall enable employers to identify the circumstances in which the operator is likely to be at risk from vibration exposure If the vibration-emission value obtained using ISO 28927-3 does not adequately represent the vibration emission in the intended uses (and foreseeable misuses) of the machine, additional information and/or warnings shall be supplied to enable the risks arising from vibration to be assessed and managed.

• Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms
• Wear warm clothing when working in cold conditions and keep your hands warm and dry
• If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, stop using the sander or polisher, inform your employer and consult a physician
• Operate and maintain the machine as recommended in the instruction handbook, to prevent an unnecessary increase in vibration levels
• Hold the tool with a light but safe grip, taking account of the required hand reaction forces, because the risk from vibration is generally greater when the grip force is higher

Specific Safety

Additional Safety Instructions for Pneumatic Power Tools

Air under pressure can cause severe injury:

• Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs
• Never direct air at yourself or anyone else
• Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings
• Whenever universal twist couplings (claw couplings) are used, lock pins should be installed and whipcheck safety cables should be used to safeguard against possible hose-to-tool or hose-to-hose connection failure
• Do not exceed the maximum air pressure stated on the tool
• Never carry an air tool by the hose

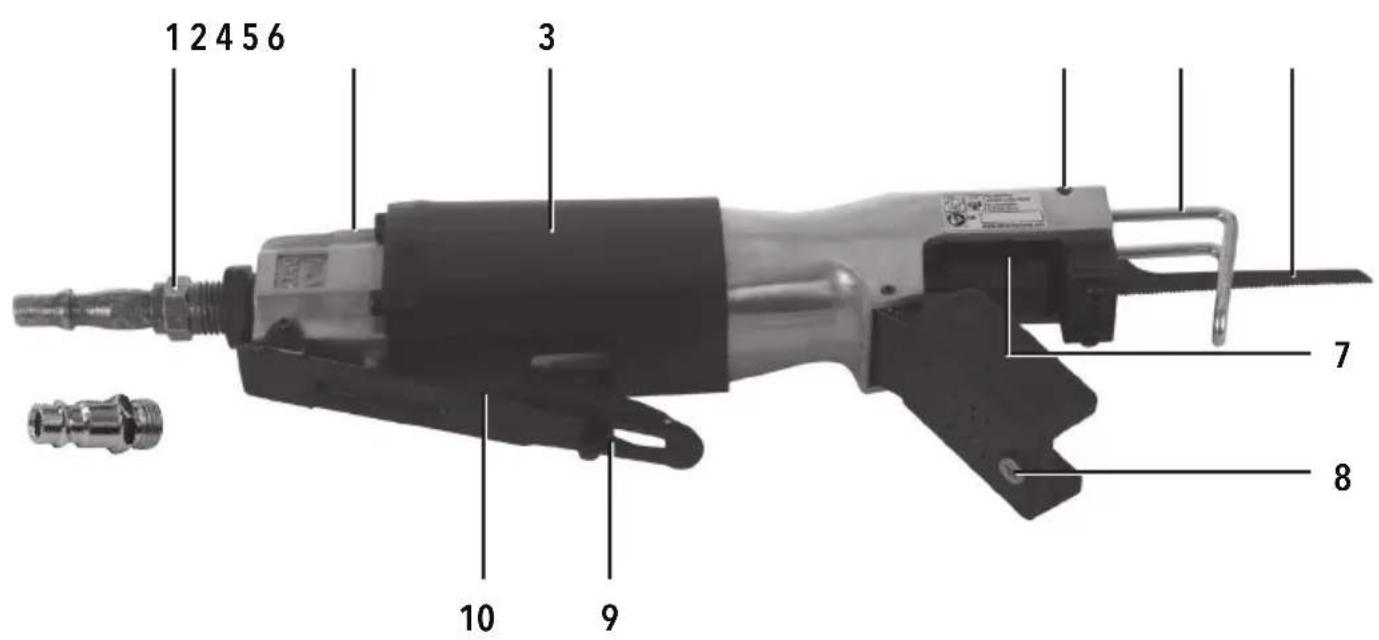

Product Familiarisation

1 Quick Connector

2 Pressure Limiter

3 Handle

4 Blade Guide Screws (x 2)

5 Blade Guide

6 Blade

7 Blade Clamp Screws (x 2)

8 Blade Clamp Cover Screw

9 Safety Catch

10 Speed Control Trigger

11 Flex Keys (x 2)

12 Spare Blade Guide

13 Spare Blades (x 2)

Intended Use

Reciprocal saw, powered by compressed air from a compressor, for sawing thin sheet metal commonly used in vehicles.

Unpacking Your Tool

• Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

Fitting the quick connector

Note: This tool is supplied with two different male airline quick connectors:

EQ-4 – commonly used in Europe

EN-6 - mainly used in the UK

EQ-4

Europe

• Please choose the connector that is compatible with the airline system you are using, and install as outlined below:
• Apply some PTFE tape (not included) to the screw threads of the Quick Connector (1). This will help to maintain an air tight seal
  Note: Apply PTFE tape tightly and in a clockwise direction, so it does not come off when the thread is screwed into the tool.
• Remove the protective plug from the air inlet
• Using a spanner (not included) screw the quick connector into the air inlet located at the base of the handle
• Connect to airline, pressurise carefully and carry out a leak check (e.g. by spraying small amounts of soapy water on to the outside of the connectors)
  • Air lines fitted with matching female quick connectors will now be a push fit to the tool

Fitting a blade

WARNING: Disconnect your tool from the air supply before carrying out any blade replacement, adjustment or maintenance.

1. Use the Hex Keys (11) provided to unscrew the Blade Clamp Cover Screw (8) to access the blade clamp
2. Unscrew the Blade Clamp Screws (7) by about half a turn each
3. Insert the Blade (6) into the clamp, making sure it passes the blade clamp screws fully
4. Check that the teeth of the blade are facing towards the blade clamp cover
5. Check that the blade is secure by pulling on it firmly
6. Tighten the blade clamp screws, close the cover and tighten the cover screw

Adjusting the guide

1. Loosen the Blade Guide Screws (4)
2. Slide the Blade Guide (5) in or out as required
3. Tighten the blade guide screws

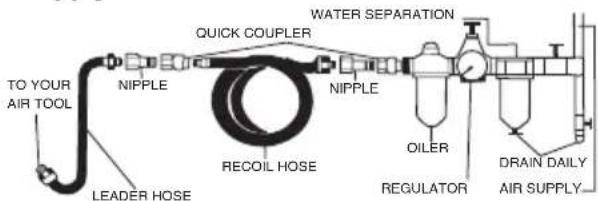

Air supply connection

• This tool should be connected to a clean, dry air supply with inline oiler and water separator

• Do not allow supply pressure to exceed the maximum stated (see 'Specifications')

• Ensure that water is drained from air system daily

• Ensure that all parts of the system (hoses, couplers, etc.) are correctly rated for the air pressure to be used
• The maximum tool speed/power can be adjusted by reducing/increasing the air supply pressure within the range specified in 'Specifications'
• The Pressure Limiter (2) can be adjusted with a screwdriver to limit the maximum reciprocating speed when the Speed Control Trigger (10) is fully depressed
• Whilst working with the tool, speed adjustments can be made via the speed control trigger

Setting tool power

Operation

WARNING: This tool will be dangerous if there is insufficient air pressure and the reciprocating action unexpectedly slows or stops while operating.

WARNING: This tool will create sharp edges and swarf material during use and the operating temperature of the blade and workpiece may be too hot to touch.

WARNING: Do not operate this tool if the Safety Catch (9) is not operating correctly.

1. Hold the tool by its Handle (3) so that the teeth of the Blade (6) are facing away from you
2. The Speed Control Trigger (10) should sit under your fingers
3. Your thumb should wrap around the body/handle and your fingers should sit on the speed control with the Safety Catch (9) between middle and index finger
4. WITHOUT applying any pressure to the speed control slide the safety catch towards the blade

5. You will feel the speed control trigger move in towards the body/handle slightly as the safety catch releases

6. GENTLY squeeze the speed control in towards the handle

7. The blade will reciprocate. Squeeze the speed control further to increase the speed; release to decrease the speed

8. Before starting to cut, make sure the Blade Guide (5) is firmly held against the workpiece

9. When you have finished cutting, release the speed control and allow the safety catch to engage

Note: DO NOT allow the saw to run in 'idle rotation' for an extended period of time. This will shorten its life.

WARNING: Be aware that air tools may hold residual pressure after use. Always bleed air pressure from the tool after shutting off air supply.

Accessories

- Accessories, including spare blades (product code 633549 - pack of 5), for this tool are available from your Silverline stockist. Spare parts can be obtained from your Silverline dealer or www. toolsparesonline.com

Maintenance

WARNING: Always disconnect from the air supply and depressurise before cleaning or carrying out any maintenance.

Cleaning

- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth

IMPORTANT: There is very little that can go wrong with your air tool and it should be noted that when an air tool fails to work it is generally because the internal workings have corroded due to dirty, wet air and failure to follow the instructions given below.

Daily maintenance procedure: Disconnect from the air supply, pour the equivalent of a tablespoon of oil into the air intake. Operate the machine at low speed to thoroughly lubricate all internal workings.

• If the machine is in constant use or used for long periods at a time, a combined filter/lubricator must be fitted. There must be an air filter fitted at all times
• Use air tool oil. DO NOT UNDER ANY CIRCUMSTANCES USE NORMAL ENGINE OIL
• Failure to comply with the operating and maintenance instructions may invalidate the guarantee

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Disposal

As with other power tools, air tools should not be disposed of with household waste

• Air tools may contain traces of tool oil and other lubricants and so must be recycled accordingly

- Contact your local waste disposal authority for information on the correct way to dispose of power tools

- Air tools may contain traces of tool oil and other lubricants and so must be recycled accordingly - Contact your local waste disposal authority for information on the correct way to dispose of power tools

Troubleshooting

Problem Possible cause Solution
Tool operating slowly	Pressure incorrect Set the correct air pressure according to the specification
	Dirt within the mechanism Pour oil into air inlet as per maintenance instructions
	Air blockage Operate tool in short bursts to clear blockage
	Air leak	Check all fittings and hose for air leaks and correct issue by re-tightening, using PTFE tape or replacing
	Blockage in gauze mesh filter Remove Quick	Connector (1) and clean mesh filter
Tool seized	Dirt or rust in mechanism Try ‘Tool operating slowly’ solutions
	Dirt or rust in mechanism Tap tool gently with a soft mallet
	Dirt or rust in mechanism Free mechanism by rotating drive manually when disconnected from air line
Tool will not stop after trigger is fully released	Throttle valve O-ring or valve seat damaged Have the tool repaired at an authorised Silverline service centre
If the above troubleshooting solutions fail, contact your dealer or an authorised Silverline service centre.

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that

This declaration has been issued under the sole responsibility of the manufacturer.

The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 456932

Description: Air Body Saw

Conforms to the following directives and standards:

• Machinery Directive 2006/42/EC

• EN11148-12:20

The technical documentation is kept by: Silverline Tools

Date: 25/06/13

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address:

Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Technical line drawing of a threaded pipe fitting (no text or symbols)

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Trilling a : 23,0 m/s?

Technical line drawing of a threaded pipe fitting (no text or symbols on the diagram itself)

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Technical line drawing of a threaded pipe fitting (no text or symbols)

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

Powerbox International Limited, Company No. 06897059. Registered address: Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Exterior view of a precision tool with black and metallic body (no visible text or symbols)

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
