| Product type | Egg cooker |
| Brand | Maxxmee |
| Model | 02088 (DS81R) |
| Power supply voltage | 220-240 V ~ 50/60 Hz |
| Power | 250 W |
| Protection class | I |
| Capacity | Up to 7 eggs (estimated) |
| Material | Plastic and metal |
| Functions | Cooking hard-boiled, soft-boiled, and boiled eggs |
| Audible signal | Yes, at end of cooking |
| Automatic shut-off | Yes |
| Dry-run protection | Yes |
| Integrated egg piercer | Yes, under the measuring cup |
| Lid | Removable |
| Egg holder | Removable |
| Measuring cup | With markings for different doneness |
| Maintenance | Clean with a damp cloth; dishwasher-safe parts |
| Descaling | Required regularly with a commercial descaler |
| Cable length | Approximately 80 cm (estimated) |
| Weight | Approximately 0.5 kg (estimated) |
| Dimensions (L x W x H) | Approximately 20 x 15 x 18 cm (estimated) |
| Use | Household use only |
| Spare parts | Available via after-sales service |
| Warranty | Legal warranty (excluding misuse) |
Frequently Asked Questions - 02088 Maxxmee
User questions about 02088 Maxxmee
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Egg cooker in PDF format for free! Find your manual 02088 - Maxxmee and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 02088 by Maxxmee.

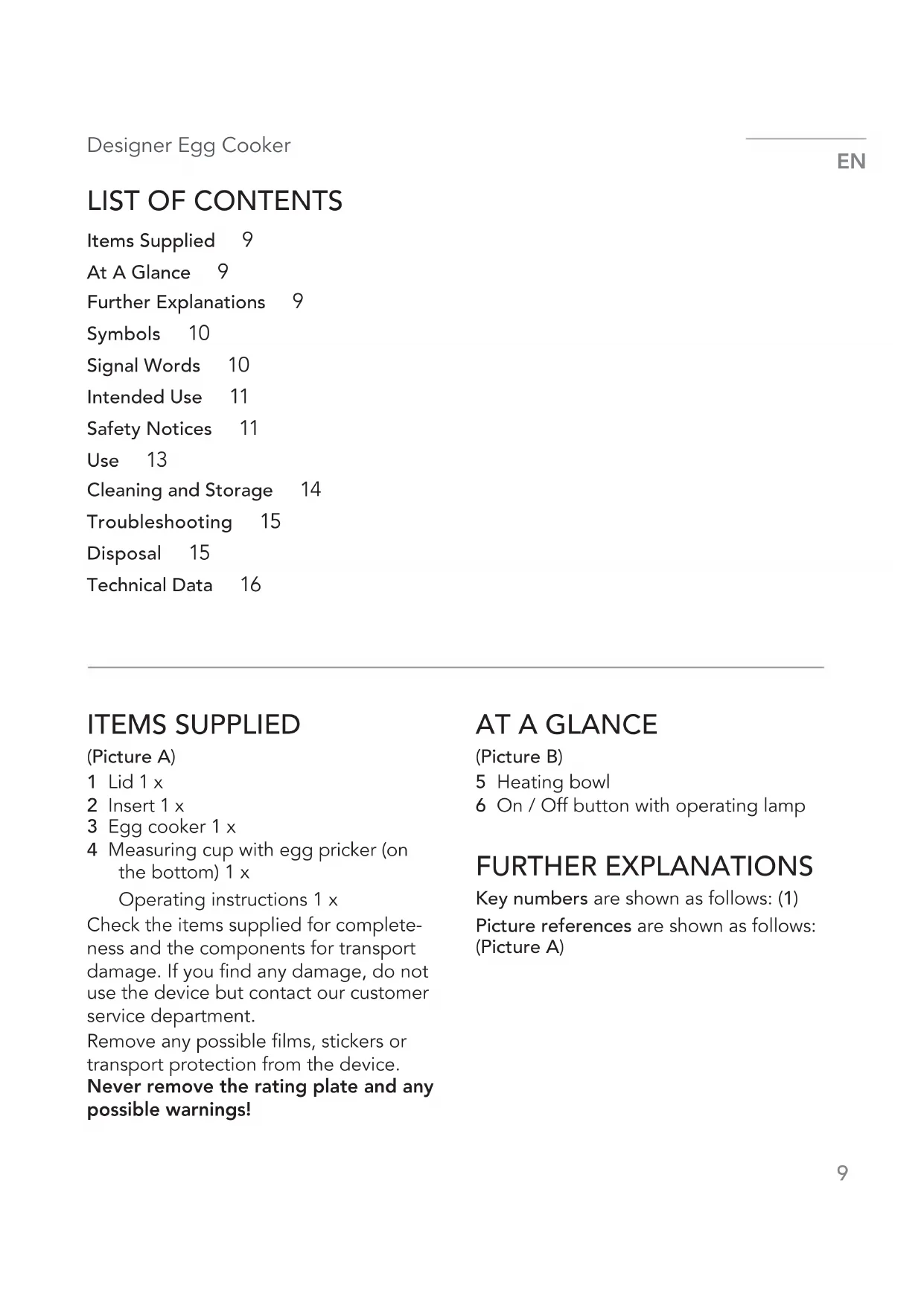

USER MANUAL 02088 Maxxmee
Further Explanations 9
Symbols 10
Signal Words 10
Intended Use 11
Safety Notices 11
Use 13
Cleaning and Storage 14
Troubleshooting 15
Disposal 15
Technical Data 16
ITEMS SUPPLIED
(Picture A)
1 Lid 1 x
2 Insert 1 x
3 Egg cooker 1 x
4 Measuring cup with egg pricker (on the bottom) 1 x
Operating instructions 1 x
Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.
Remove any possible films, stickers or transport protection from the device.
Never remove the rating plate and any possible warnings!
AT A GLANCE
(Picture B)
5 Heating bowl
6 On / Off button with operating lamp
FURTHER EXPLANATIONS
Key numbers are shown as follows: (1)
Picture references are shown as follows: (Picture A)
Dear Customer,
We are delighted that you have chosen the MAXXMEE designer egg cooker. You can now easily enjoy perfectly cooked breakfast eggs, without using a stove (hob)! Just use the measuring cup to pour in the right amount of water, insert the eggs and switch on! There is even an egg pricker integrated in the measuring cup to prevent any burst eggs. Once the eggs are done, you will hear a beep. The compact device is easy to store away and takes up hardly any space even in small kitchens or when camping.
If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice
We hope you have a lot of fun with your MAXXMEE designer egg cooker.
Information About the Operating Instructions
Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.
SYMBOLS
Caution: hot surfaces!
Supplementary information
Read the operating instructions before use!
Alternating current
Suitable for use with food.
SIGNAL WORDS
Signal words indicate hazards if the associated notices are not followed.
DANGER – high risk, results in serious injury or death
WARNING – medium risk, may result in serious injury or death
CAUTION – low risk, may result in minor or moderate injury
NOTICE – may result in risk of damage to material
INTENDED USE
■ This device is intended to be used to boil eggs.
■ The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
■ Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.
■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.
SAFETY NOTICES
WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.
This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.
CAUTION: hot surfaces!
The device gets very hot during and shortly after use. Only ever touch the handle and the On / Off button while the device is in operation. Allow the device to cool down completely before it is cleaned.
EN
■ The device must always be disconnected from the mains power when it is left unattended and before it is assembled, disassembled or cleaned.
■ Never exceed the maximum fill level. If the heating bowl is overfilled, hot water could splash out or overflow during boiling.
- Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable are damaged, they must be replaced or repaired by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
It is essential to follow the instructions in the "Cleaning and Storage" chapter.
■ The device is not designed to be operated with an external timer or a separate remote control system.
DANGER – Danger of Electric Shock
■ Use and store the device only in closed rooms.
■ Do not operate or store the device in rooms with high humidity.
■ Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.
If the device does fall into water, pull the mains plug out of the plug socket immediately. Only after this should you retrieve the device from the water. Never attempt to pull it out of the water while it is connected to the mains power!
■ Do not use the device if it has malfunctioned, fallen or been dropped into water. Have it checked in a specialist workshop before using it again.
■ Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
WARNING – Danger of Fire
■ Do not operate the device in the vicinity of combustible material. Do not place any combustible materials in or on the device.
■ Do not cover the device during operation.
WARNING – Danger of Injury
- Keep children and animals away from the packaging material. There is a danger of suffocation.
■ Make sure that the connecting cable is always kept out of the reach of young
children and animals. There is a danger of strangulation.
■ Avoid coming into contact with the rising steam. Do not open the lid of the device during operation. There is a danger of scalding.
■ Do not move the device during operation. There is a danger of scalding.
■ Make sure that the connecting cable does not present a trip hazard. It may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
■ Be careful when handling the egg pricker.
NOTICE – Risk of Damage to Material and Property
■ Make sure that the steam which emerges does not come into contact with electrical devices and equipment containing electrical components.
■ Pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
■ Always pull the mains plug and never the mains cable to disconnect the device from the mains power.
- Do not carry or pull the device by the connecting cable.
- Do not use additional accessories and use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
■ Use and store the device at room temperature, do not expose it to extreme temperatures or temperature fluctuations.
■ Protect the device from: impacts, heat sources, fire and persistent sunlight or moisture.
■ Do not place heavy objects on the device or the connecting cable.
USE
Please Note!
- Clean the device before you first use it as it may have possible production residues on it. To do this, follow the instructions in the "Cleaning and Storage" chapter.
- Inspect the device for damage each time before you use it. The device should only be used if it has been fully assembled, is undamaged and in working order!
-
Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
■ Only connect the device to a plug socket that is properly installed. The plug socket must be readily accessible so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.
■ Lay the connecting cable so that it is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
■ Do not operate without water. -
Place the egg cooker (3) on the kitchen unit or another work surface that is dry, flat and water-resistant.
EN
- Depending on the hardness level you want and the number of eggs, fill the measuring cup (4) up to the appropriate mark with water:
hard boiled egg
medium boiled egg
soft boiled egg
One egg symbol represents one egg; two egg symbols next to each other represent two eggs.
The marks on the measuring cup merely give guidelines. The amount of water required for the hardness level you want may vary slightly depending on the size of the eggs and the temperature they are stored at. If the eggs have become too soft, more water is required. If the eggs are too hard, the amount of water should be reduced.
-
Pour the water from the measuring cup into the heating bowl (5).
-
Place the insert (2) on the heating bowl.
-
Prick the egg(s) at the blunt end with the egg pricker (on the bottom of the measuring cup) (Picture C) so that they do not burst open when they are boiled.
-
Place the egg(s) in the insert and put on the lid (1) (Picture D).
-
Fully unwind the connecting cable and plug the mains plug into the plug socket.
-
To switch on the egg cooker, press the On/Off button (6) (Picture E). The operating lamp indicates that the heating bowl is heating, which brings the water to the boil.
The boiling process can be stopped at any time by pressing the On / Off button again.
- When the boiling process has ended, a beep is heard.
Press the On / Off button to switch off the egg cooker. The operating lamp goes out.
-
Pull the mains plug out of the plug socket.
-
Carefully take off the lid.
-
Remove the insert along with the egg(s) by holding the handle.
CLEANING AND STORAGE
Please Note!
■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surfaces.
- Wipe any dirt off the egg cooker (3) and the connecting cable with a damp cloth. Use a little detergent if necessary.
- Clean the remaining parts with warm water and detergent or in the dish-washer.
- Allow all parts to dry completely or dry them before they are assembled or stored away.
- Place on the lid (1) to protect against dust.
- Store the device in a cool and dry place protected from direct sunlight out of the reach of children and animals.
- Keep the device ready to operate and check it regularly for any damage.
Descaling
Limescale deposits in the heating bowl (5) may have an adverse effect on the efficiency of the device. It could also switch off prematurely if the layer of limescale is too thick. Limescale deposits should therefore be removed with a standard descaling agent depending on how often the device is used.
For descaling follow the instructions on the packaging or the package leaflet of the descaling agent.
After descaling, wipe down the heating bowl thoroughly and perform one boiling process with the device using just water and no eggs.
TROUBLESHOOTING
If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.
Do not attempt to repair an electrical device yourself!
The device cannot be switched on.
The mains plug is not inserted in the plug socket correctly.
▶ Correct the fit of the mains plug.
The plug socket is defective.
▶ Try another plug socket.
There is no mains voltage.
▶ Check the fuse of the mains connection.
The device switches off prematurely after a short time.
The device has been switched on without water or with too little water. The dry-running protection has been activated.
▶ Allow the device to cool down for approx. 5 – 10 minutes before water is poured in and the device is used again.
The device is furred up.
▶ Descale the device.
DISPOSAL
Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.
This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.
TECHNICAL DATA
Article number: 02088
Model number: DS81R
Voltage supply: 220 – 240 V \~ 50 – 60 Hz
Power: 250W
Protection class: I
ID of operating instructions: Z 02088 M DS V1 0421 md
All rights reserved.
