USER MANUAL KSC270 KICKER

IMPORTANT SAFETY WARNING

PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING VOLUME.

The KICKER KS speakers offer an excellent upgrade to your vehicle's factory sound system, delivering great full-range sound at an amazing value! Whether dropping the KS speakers in a factory location or customizing your install, their high-efficiency design means less power is needed to play your music, while our use of advanced materials and construction techniques ensures optimal performance for years to come. Designed for versatile applications without sacrificing sound quality or aesthetics, we hope you have the chance to combine these new, upgraded audiophile components with our all-new KEY Smart Amplifiers and a KICKER sub for an audio experience you won't forget!

Model: KSC270 KSC350 KSC40 KSC460 KSC4100 KSC50

Speser Design 1-Way 2-Way 2-Way 2-Way 2-Way 2-Way

Wooler [in, m] 2-3/4 70-1/2, 594, 1004x 100x1004x100x2506-1/4, 130

Mid r. rm

Tector [n, mm]	-	1/2, 13	1/2, 13	1/2, 13	1/2, 13	3/4, 2C
Rated impedance [Ω]	4	4	4	4	4	4
Peak Power Handling [Watts]	100	100	150	150	150	150
Recommended Amplifier Power (Watts NMS)	15-50	15-50	15-75	15-75	15-75	15-75
Sensitivity [1W. \( ^{-1} \)m]	35	38	38	38	38	30
Frequency Response [Hz]	300-20k	30-20k	60-20k	50-20k	45-20k	45-21k
Mounting Lode Diaconor [n, mm]	2-3/6, 61	3-1/16, 78	3-11/16, 94	4x5-5/16, 101x151	3-7/8x9-3/6, 98x238	4-1/2, 115
Top Mount Depth [n, mm]	1-1/4, 32	1-5/8, 42	1-13/18, 46	1-11/18, 44	2-3/8, 81	1-3/4, 48
Bottom Mount Depth [n, mm]	-	1-7/8, 48	2-1/18, 57	2, 87	2-13/18, 71	2, 62
Tector Propulsion [n, mm]	0	1/16, 2	0	1/16, 2	0	0
Grillsa	No	No	No	No	No	Yes (solo especially)
Tector Magnet Material	-	Noodymum	Noodymum	Noodymum	Noodymum	Noodymum
Tweeler Dune Material	-	S k	S k	S k	S k	S k
Tweeler Design	-	Balanced dome	Balanced dome	Balanced dome	Balanced dome	Dome
Wooler Cone Material	Composite Paper	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Wooler Surround Material	Rubor	Rubor	Rubor	Rubor	Rubor	Rubor

Model:
KSC650
KSC670
KSC680
KSC690
KSC6930

Spocker Design	2 Way	2 Way	2 Way	2 Way	3 Way
Woolter [n, mm]	6-12/100	8-34/165	8x8, 160x200	6x8, 160x230	6x8, 160x230
Mid [n, mm]	-	-	-	-	1,25
Tweeler [n, mm]	3/4, 20	3/4, 20	3/4, 20	1,25	3/4, 20
Rated Impedance [Ω]	4	4	4	4	4
Peak Power Handling [VAux]	200	200	150	800	300
Recommender Amplifier Power (Motta RMS)	15-100	15-100	15.75	15-150	15-150
Sensitivity [T/W, m]	90	90	90	92	92
Frequency Response [Hz]	43-21k	40-21k	45-21k	90-21k	30-21k
Mounting Hole Diameter [m, mm]	4-13/16, 123	5-8/18, 241	5x7-3/18, 127x182	5-17/16x8-7/16, 141x215	5-17/16x8-7/16, 17x215
Top Mount Depth [m, mm]	1-6/6, 46	1-13/16, 76	2-1/1, 58	3-6/6, 31	3-7/8, 60
Bottom Mount Depth [m, mm]	2-3/16, 51	2-50	2-5/6, 37	5-11/16, 93	3-5/8, 92
Traction Provision [n, mm]	0	0	1/16, 2	0	0
Grillie	Yes	Yes	No	Yes	Yes
Weeler Magnet Material	Necodymium	Necodymium	Necodymium	Necodymium	Necodymium
Weeler Cone Material	Silk	Silk	5 k	Silk	Silk
Traction Design	Domo	Domo	Domo	Domo	Domo
Woolter Cone Material	Polyspyrono	Polyspyrono	Polyspyrono	Polyspyrono	Polyspyrono
Woolter Summe Vascular	Rubber	Rubber	Rubber	Rubber	Rubber

Wiring

We recommend using 16 gauge (or larger) wire. The KS Speakers are rated at 4 ohms and work with any source unit or amplifier designed to operate at a 4 ohm load. Make sure your source unit or amplifier is rated for 4 ohm operation.

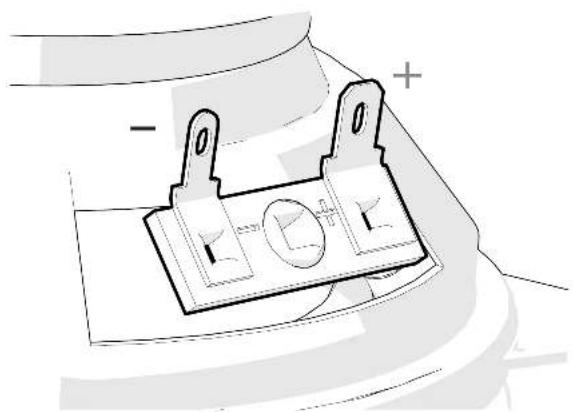

Connect wiring to terminals

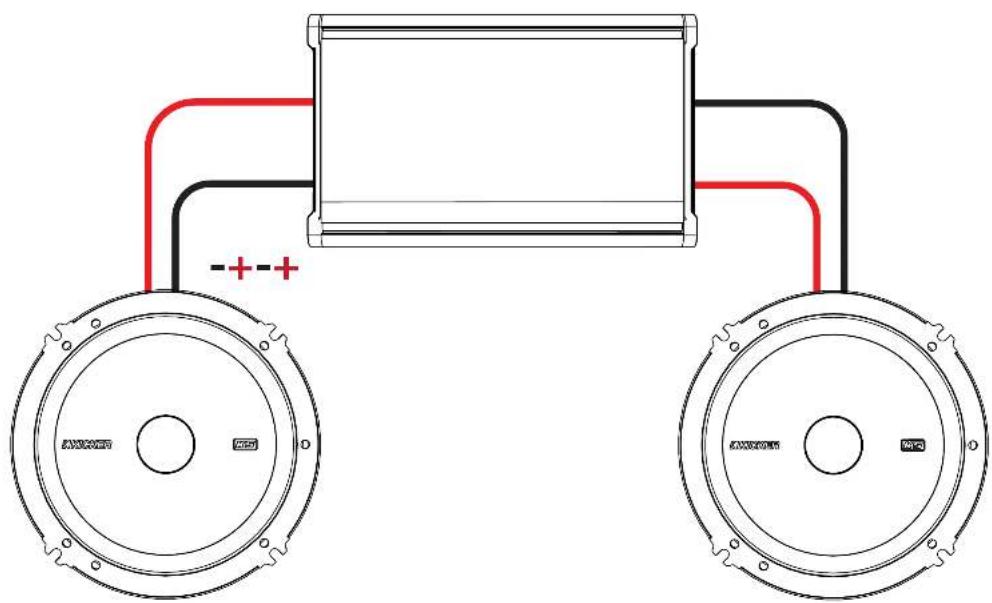

STANDARD STEREO WIRING

minimum impedance of 4 ohms per channel

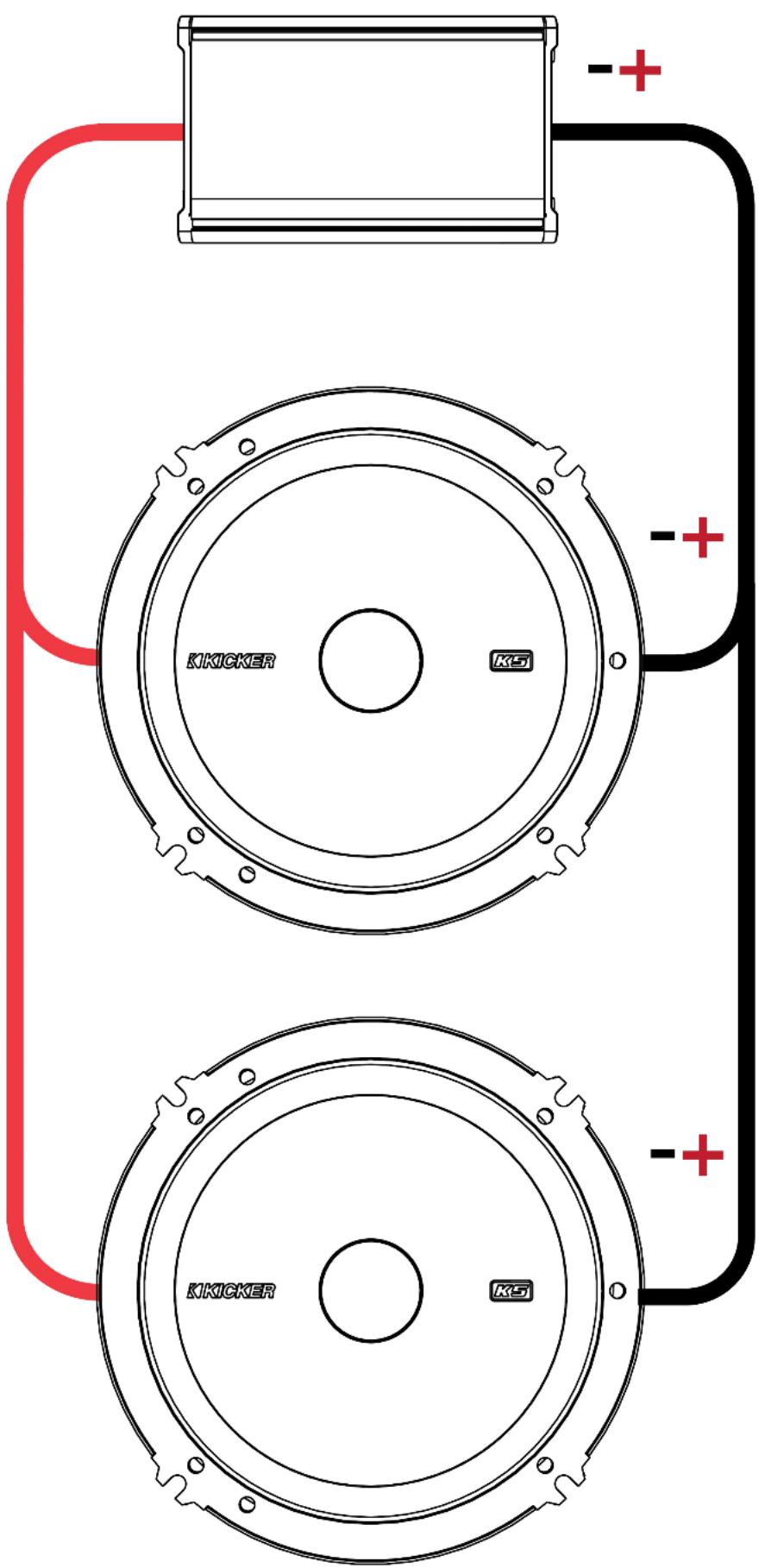

PARALLEL WIRING

Two KS Speakers wired in parallel to a single channel

Total Impedance: 2 ohms

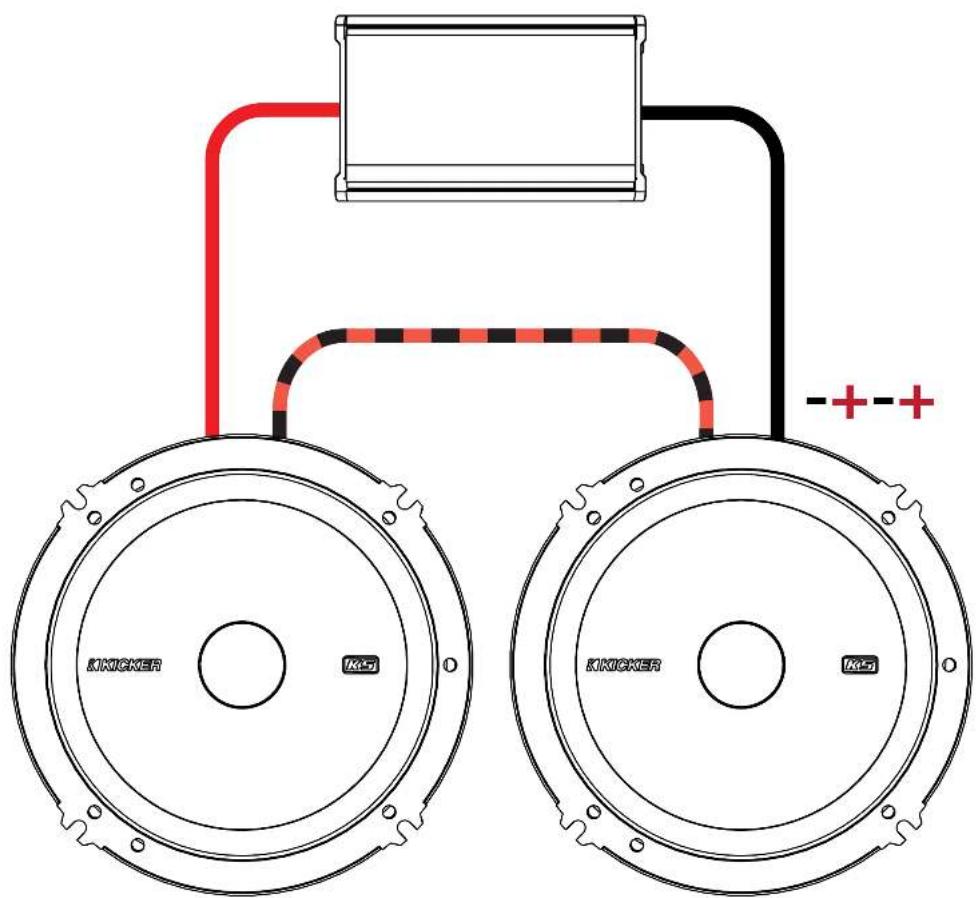

SERIES WIRING

Two KS Speakers wired in series to a single channel

Total Impedance: 8 ohms

Mounting

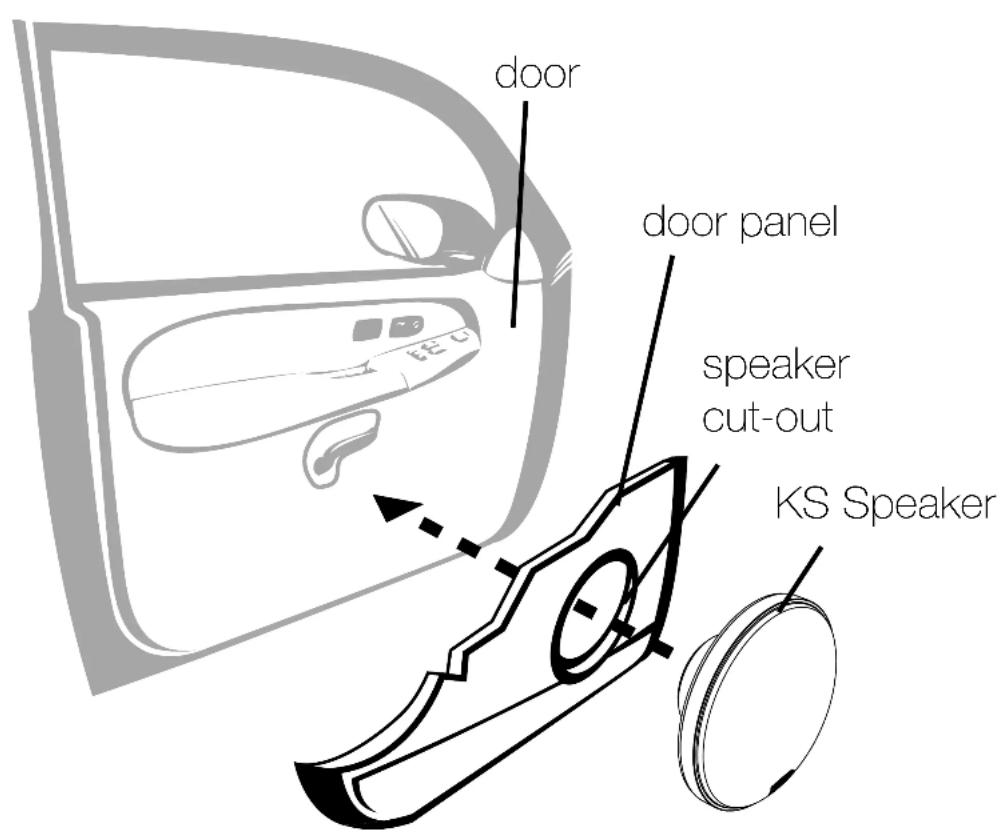

The KICKER KSC speakers are designed for free-air applications and do not require a sealed enclosure for optimum performance. It is important to isolate the sound coming from the front of the speaker from the sound radiating from the back of the speaker. This is most easily accomplished by mounting the speakers in a vehicle's factory locations or in a location with a semi-isolated rear chamber (like the rear deck of a car behind the rear seats).

If you are replacing factory speakers in their original locations with the KSC65, KSC67 or KSC69, you may need to use the included multi-purpose adapter, or modify it as such that it will fit your required screw patterns. You may also need to enlarge the speaker cut-outs and pre-drill new screw holes using a 7/64" (2.5mm) bit. Custom mounting locations will require more preparation and work. Make sure that the speaker will not interfere with trunk and door opening and closing mechanisms and that the enclosed screws will not puncture the fuel tank, puncture wiring, or interfere with any other mechanical parts on the underside of the mounting surface. Cycle the windows all the way down and up.

These multi-bracket adapters will help accommodate the KS speakers in factory or custom locations. You may need to cut off parts or otherwise modify these adapters to fit your vehicle or application.

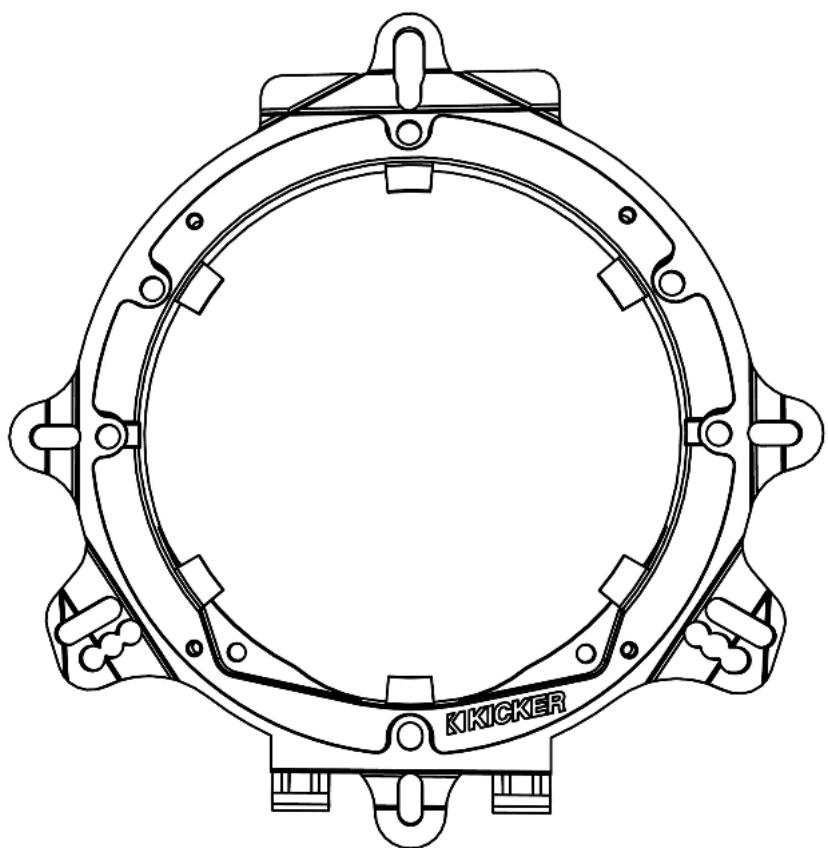

KS65/KS67 ADAPTER

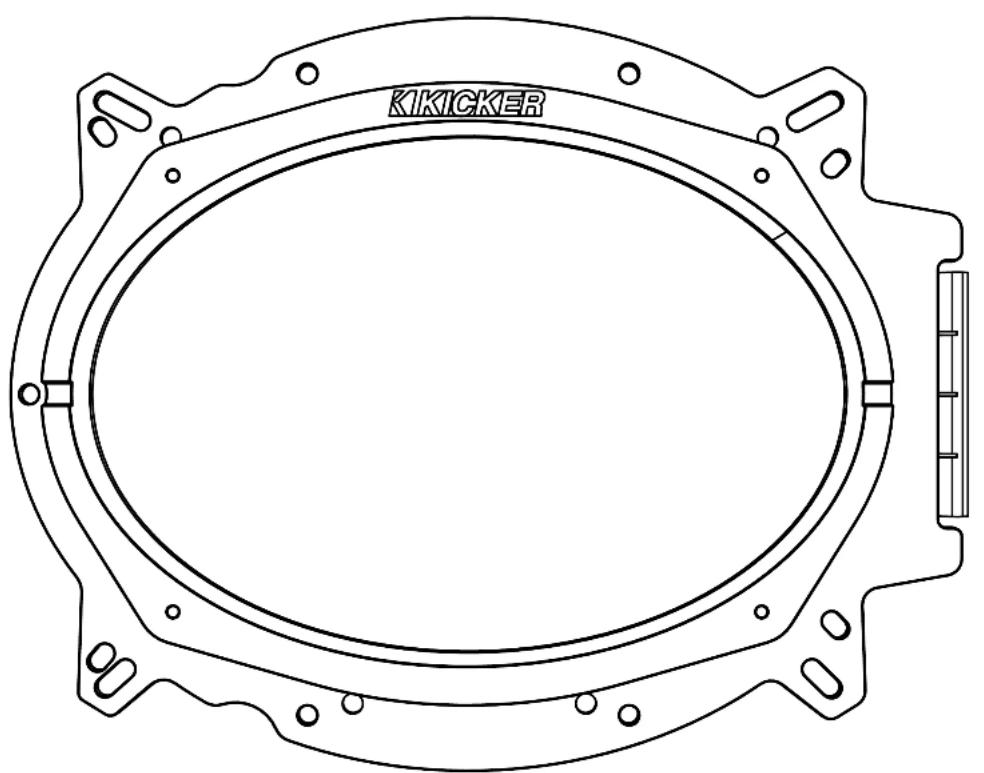

KS69 ADAPTER

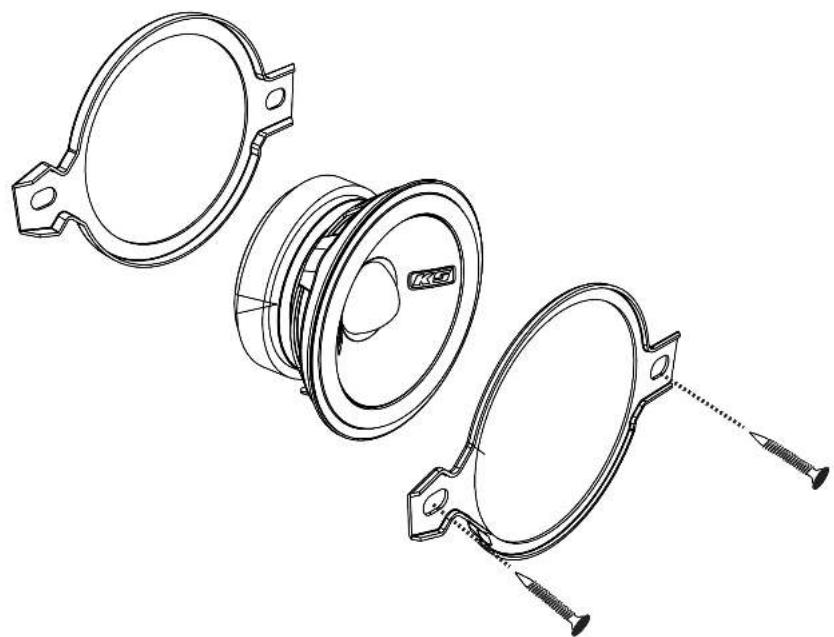

KS270 ADAPTER - GM/MOPAR

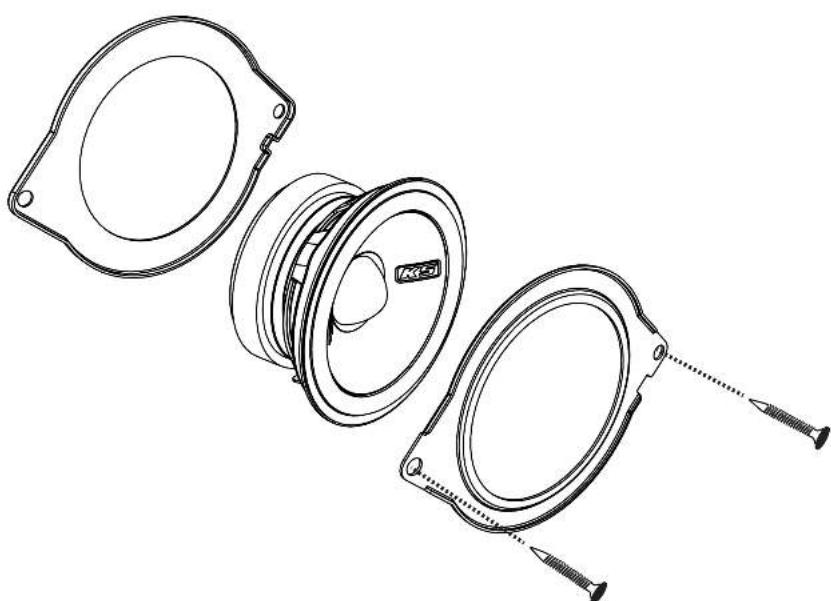

KS270 ADAPTER - CHRYSLER/JEEP

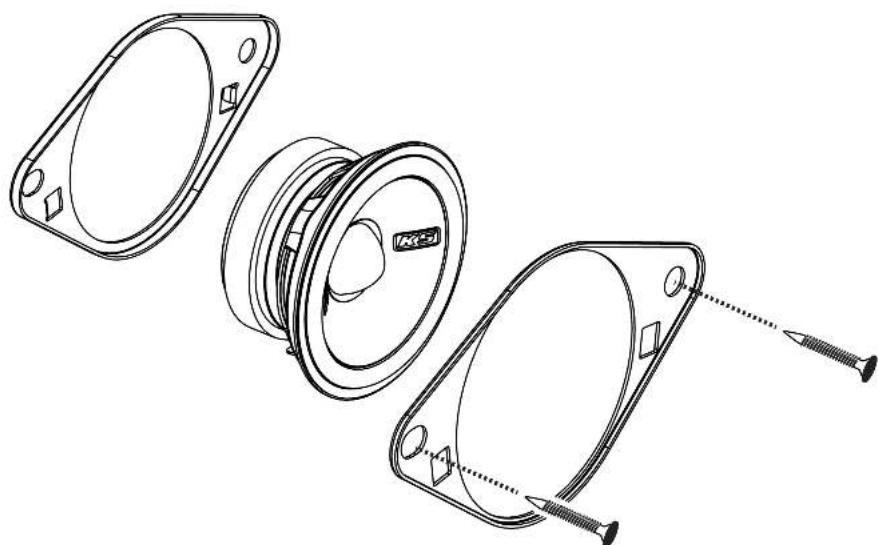

KS270 ADAPTER - TOYOTA/SUBARU

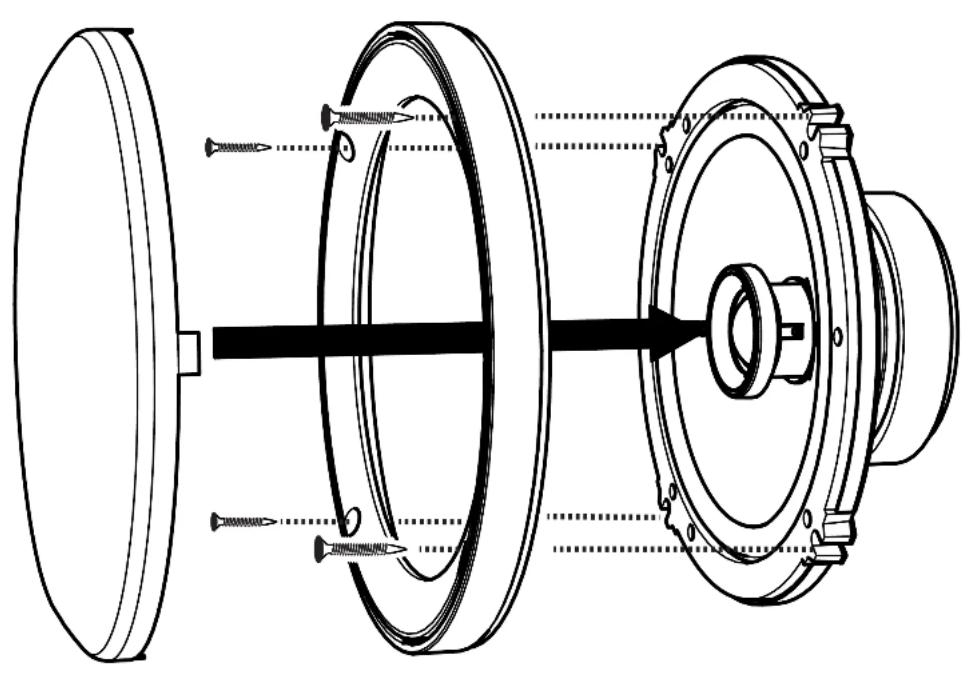

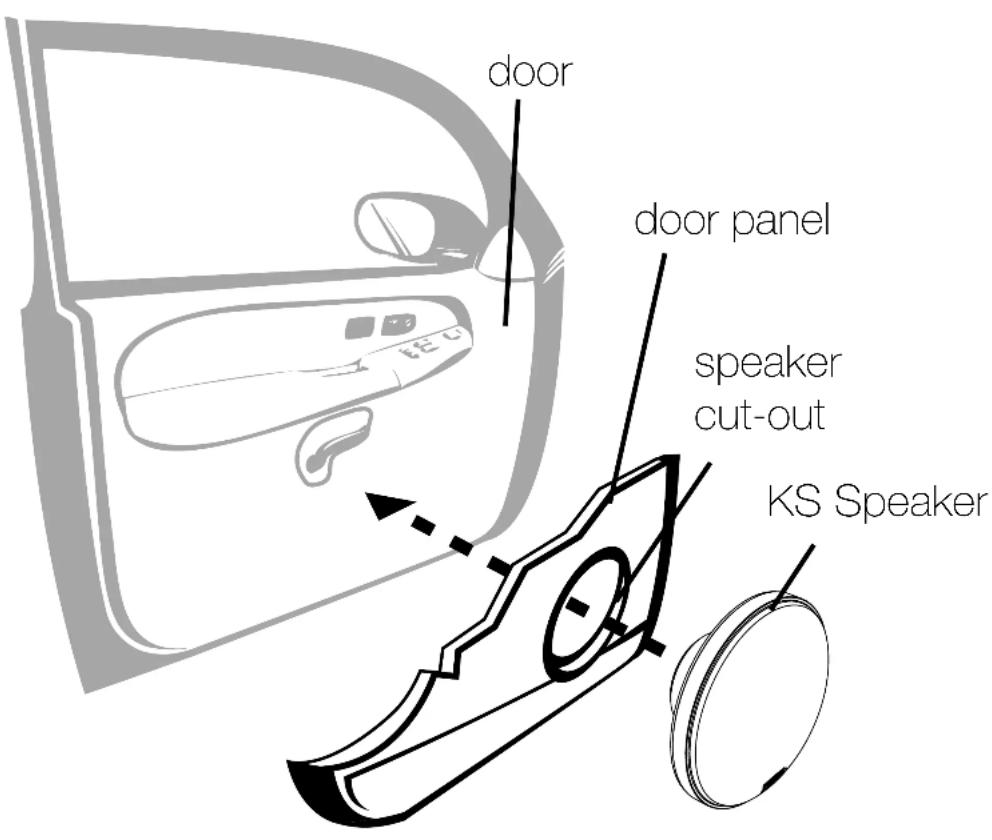

Secure speaker to desired location

When purchased from an Authorized KICKER Dealer, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase with receipt. If this product is identified as "Refurbished" or "B Goods", the warranty is limited to a period of THREE (3) MONTHS from the date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:

Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.KICKER.com or by contacting Stillwater Designs directly. You can confirm that a dealer is authorized by asking to see a current authorized dealer window decal.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package only the defective items in a package that will prevent shipping damage, and return to:

Stillwater Designs, 3100 North Husband St, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please return only defective components. The return of functioning items increases your return freight charges. Non-defective items will be returned freight collect to you. For example, if a subwoofer is defective, only return the defective subwoofer, not the entire enclosure. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing the Customer's name, Dealer's name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:

o Damage due to improper installation
o Subsequent damage to other components
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse
o Any cost or expense related to the removal or reinstallation of product
o Speakers damaged due to amplifier clipping or distortion
o Items previously repaired or modified by any unauthorized repair facility
o Return shipping on non-defective items
o Products with tampered or missing barcode labels
o Products with tampered or missing serial numbers
o Products returned without a Return Merchandise Authorization (RMA) number
o Products purchased from an UNAUTHORIZED dealer
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER

HOW LONG WILL IT TAKE?

KICKER strives to maintain a goal of one-week service for all.
acoustics (subwoofoers, midrange drivers, tweeters, crossovers, etc)
returns. Delays may be incurred if lack of replacement inventory or
parts is encountered. Failure to follow these steps may void your
warranty. Any questions can be directed to the KICKER Customer
Service Department at [phone]. Contact your International
KICKER dealer or distributor concerning specific procedures for your
country's warranty policies.

Resumen 15

Especificaiones 16

Instalacion. 17

Cableado 17

Montaje. 20

ADVERTENCIA IMPORTANTE DE SEGURIDAD: LA OPERACION PROLONGADA Y CONTINUJA DE UN AMPLIFICADOR DE MANERA DISTORSIONADA O CORTADA PUEDE PROVOCAR QUE SU SISTEMA DE AUDIO SE SOBRECALIENTE CON LA POSIBILIDAD DE INCENDIARSE Y PROVOCAR DANOS GRAVES A SUS COMPONENTES O VEHICULO. JLOS PRODUCTOS KICKER PUEDEN PRODUCIR NIVELES DE SONIDO QUE PUEDED DAÑAR PERMANENTEMENTE SU OÍDO! SUBIR EL VOLUMEN DE UN SISTEMA A UN NIVEL EN EL CUAL SE ESCUCHA UNA DISTORSION ES MÁS DANINO PARA SUS OÍDS QUE ESCUCHAR UN SISTEMA SIN DISTORSION AL MISMO NIVEL DE VOLUMEN. EL UMBRAL DEL DOLOR ES SIempre UN INDICADOR DE QUE EL NIVEL DEL SONIDO ES MUY ALTO Y PUEDE DANAR PERMANENTEMENTE SU AUDICION. USE EL SENTIDO COMUN AL CONTROLAR EL VOLUMEN. LOS EXCITadores KICKER SON CAPACES DE PRODUCEIR NIVELES DE SONIDO QUE PUEDED DAÑAR PERMANENTEMENTE EL OÍDO. SUBIR EL VOLUMEN DEL SISTEMA HASTA UN NIVEL QUE PRODUZCA DISTORSION ES MÁS DANINO PARA EL OÍDO QUE ESCUCHAR UN SISTEMA SIN DISTORSION AL MISMO VOLUMEN. EL DOLOR ES SIempre UNA INDICACION DE QUE EL SONIDO ES MUY FUERTE Y QUE PUEDE DAÑAR PERMANENTEMENTE EL OÍDO. SEA PRECAVIDO CUANDO CONTROLE EL VOLUMEN.

Total Impedance: 2 ohms

CÂBLAGE EN SÉRIE

Total Impedance: 8 ohms

Montage

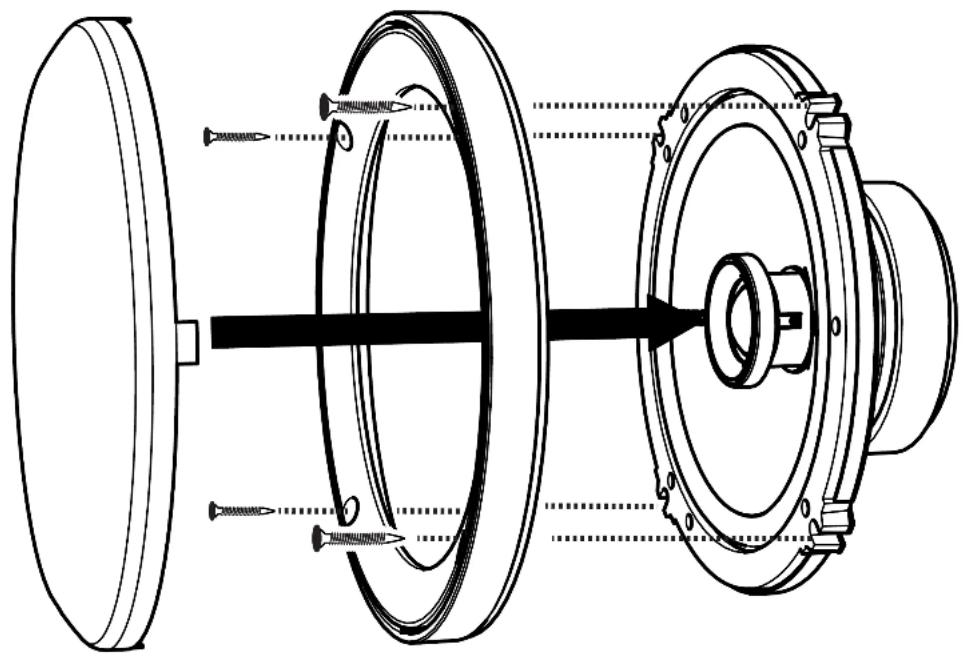

Secure speaker to desired location

Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

GARANTÍA INTERNACIONAL Version Española

Silkwater, Oklahoma 74076

USA

[phone]

5D stillwaterdesigns
