Brand	Frigidaire
Model	PMTK3080AF
Product type	Built-in microwave oven
Color	Easy-care stainless steel
Trim kit included	Yes, dimensions 30" x 18" (762 x 457 mm)
Cutout dimensions (H x W x D)	16 3/4" - 17" x 24 3/4" - 25" x max 20" (42.5-43.2 x 62.9-63.5 x max 50.8 cm)
Approximate weight	Approximately 45 kg (100 lb)
Power supply	120 V / 60 Hz, standard outlet
Microwave power	Not specified in the manual (estimated 1000 W)
Capacity	Not specified in the manual (estimated 1.7 cu ft / 48 L)
Main functions	Microwave cooking, defrosting, reheating
Installation	Built into a cabinet or above a wall oven
Skill level required for installation	Basic mechanical and electrical skills
Safety	Disconnect before installation; lock service panel
Care and cleaning	Clean with a damp cloth; do not use abrasive cleaners
Included parts	Front frame, exhaust duct, mounting rails, screws
Repairability	Parts available through after-sales service
Customer service (United States)	1-800-944-9044
Customer service (Canada)	1-800-265-8352 (English) / 1-800-668-4606 ext. 8199 (French)

Frequently Asked Questions - PMTK3080AF FRIGIDAIRE

What are the exact dimensions of the trim kit?

The trim kit measures 30 inches (762 mm) in width, 18 inches (457 mm) in height, and 1 3/5 inches (40.9 mm) in depth.

Can this microwave be installed above a wall oven?

Yes, provided there is at least a 3-inch (7.6 cm) clearance between the wall oven and the microwave. Follow the installation instructions for the wall oven and the built-in kit.

What type of power supply is needed?

The microwave requires a standard 120 V / 60 Hz electrical outlet. Ensure the circuit is dedicated and complies with local codes.

Can I install this microwave myself?

Installation requires basic mechanical and electrical skills. If you are not comfortable, call a qualified professional. Always disconnect the appliance before any handling.

What should I do if the front frame is not level after installation?

Before installation, check that the opening floor is level. Use a bubble level and adjust if necessary. Uneven cabinets may prevent the trim kit from being flush.

How to clean the microwave and trim kit?

Use a soft damp cloth with a mild detergent. Avoid abrasive cleaners or metal sponges that could scratch the stainless steel surface.

Where can I find replacement parts for this model?

Spare parts are available through Frigidaire customer service. Call 1-800-944-9044 (United States) or 1-800-265-8352 (Canada) to order.

Is this microwave compatible with all types of cabinets?

It is designed for integration into a cabinet or wall with specific cutout dimensions (height 42.5-43.2 cm, width 62.9-63.5 cm, depth max 50.8 cm). Check measurements before purchase.

Is there a detailed user manual for cooking functions?

The manual provided with the appliance contains operating instructions. You can also download the full manual in PDF format from the Frigidaire website.

How can I get a translation of the manual into another language?

On the website notice-facile.com, you can request a translation by indicating your desired language and email address. A translated file will be sent to you.

USER MANUAL PMTK3080AF FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Model # PMTK3080AF

BEFORE YOU BEGIN

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinaces.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

Read these instructions completely and carefully.

• Please make sure the cabinet is level or vertical to front panel of cabinet before installation. Uneven cabinets may cause the trim kits to be noncoplanar with the door panels of microwave oven.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
• A statement shall be included in the instructions warning the user that the appliance must be disconnected from the source of supply before attempting the installation of the accessory, and that the accessory is intended for use only with an appliance that is marked to indicate such use.

FOR YOUR SAFETY:

WARNING – Before beginning the installation, switch power off at service panel and lock out to prevent being switched on accidentally.

When the service cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH ELECTROLUX MICROWAVE OVENS SPECIFYING BUILT-IN KIT

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-800-944-9044

For customers in Canada call: 1-800-265-8352 (English)

1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN: A06823831

September 2021

Installation Instructions

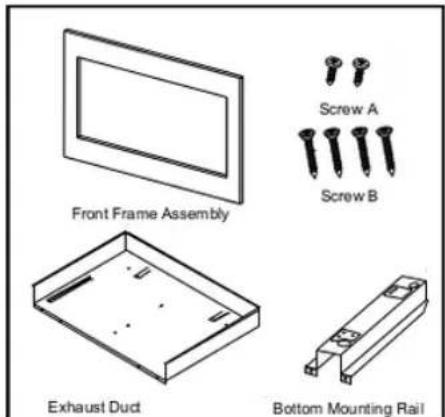

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly- QTY 1
2. Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11+3 extra
2. Screw B - QTY 4 + 2 extra

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color	Description
PMBS3080AF	Easy Care SS	Microwave
PMTK3080AF	Easy Care SS	30" Trim Kit

See Illustration 1 for proper location and when building in above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the dearance between the wall oven and the microwave oven is a minimum of 3 inches. See illustration 2.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non self-clean single cavity wall oven.

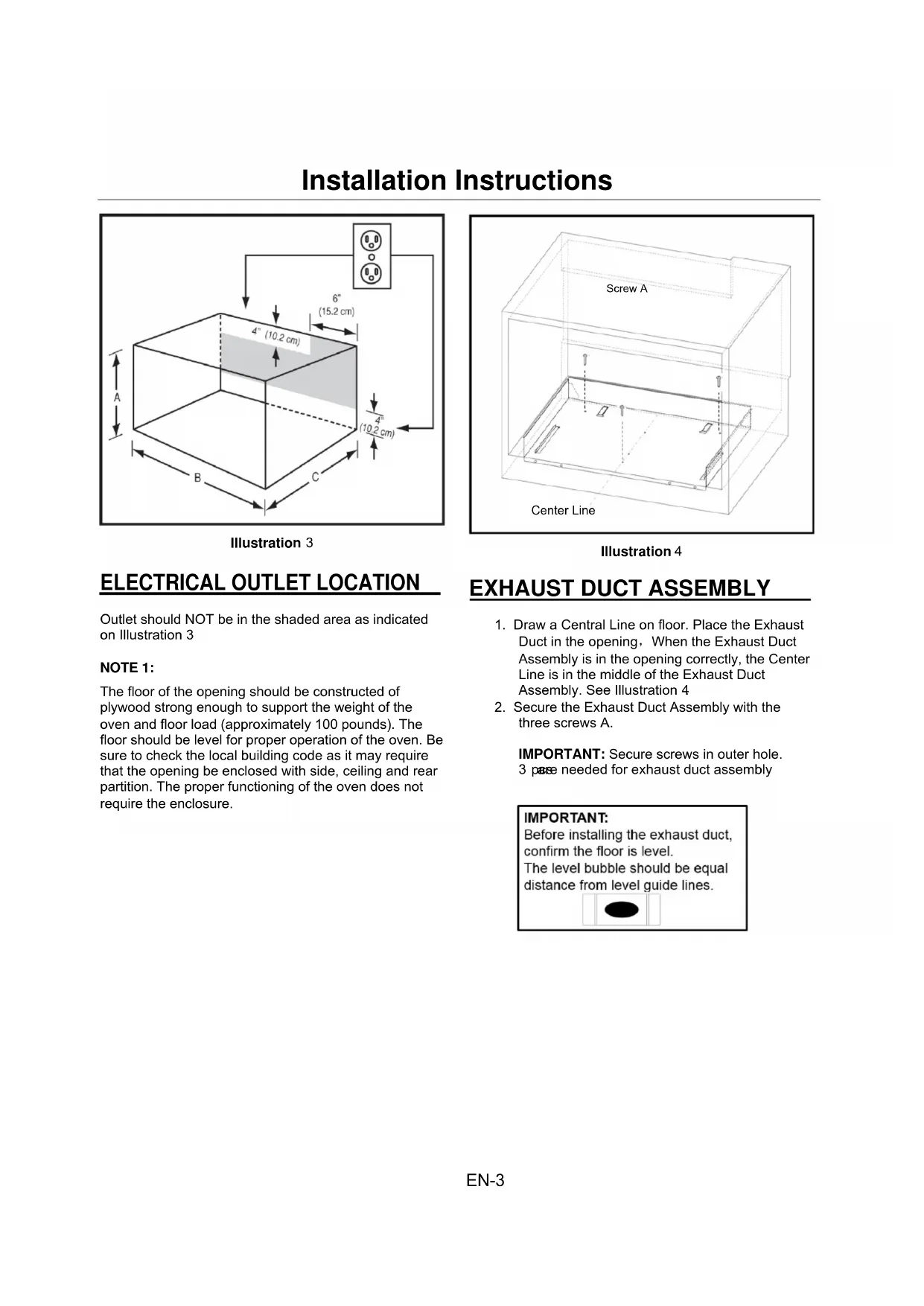

CARINET OR WALL CUTOUT

Front Frame Assembly Screw A Screw B Exhaust Duct Bottom Mounting Rail

Illustration 1

37Min

Installation Instructions

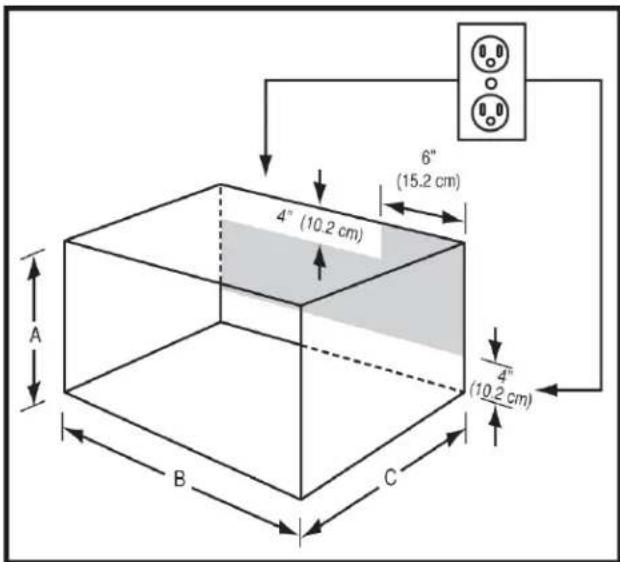

6" (15.2 cm) 4" (10.2 cm) A B C 4" (10.2 cm)

Illustration 3

Screw A Center Line

Illustration 4

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

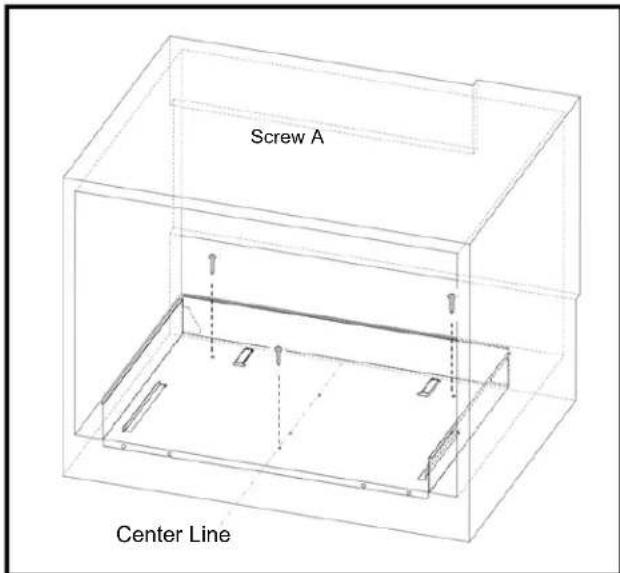

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 pere needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

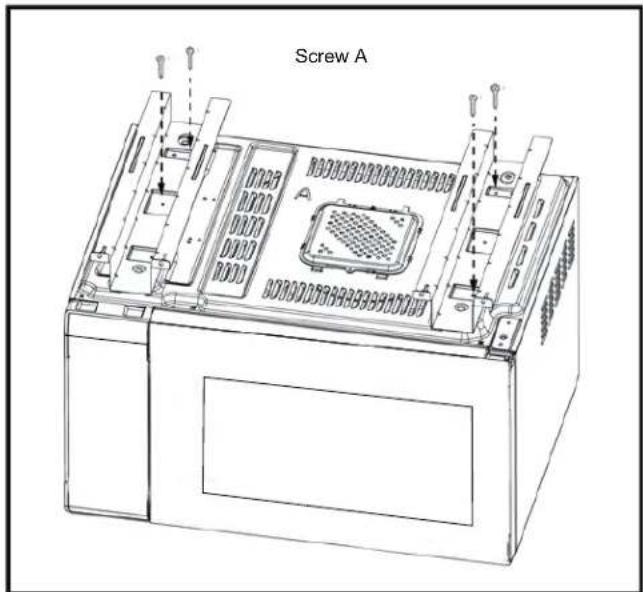

Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four SCREWS A. See Illustration 5.

NOTE: Please make sure to align the holes(marked with "36") of bottom mounting rail and the holes(marked with "36") of microwave oven's bottom plate.

Screw A

Illustration 5

OVEN INSTALLATION

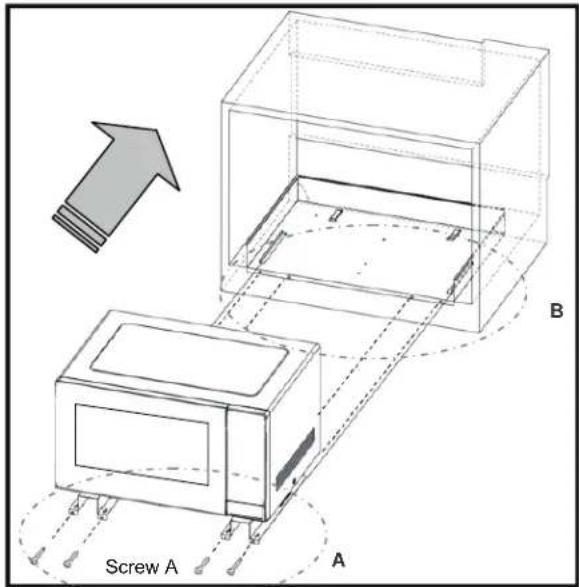

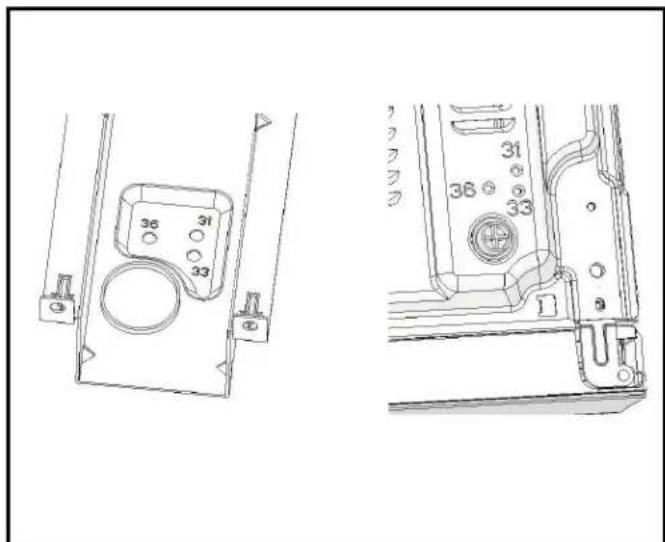

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6
3. Secure the Exhaust Duct Assembly with the four screws A.

Screw A A B

Illustration 6

Technical line drawings of mechanical components with numbered parts (no text or symbols)

FRAME INSTALLATION

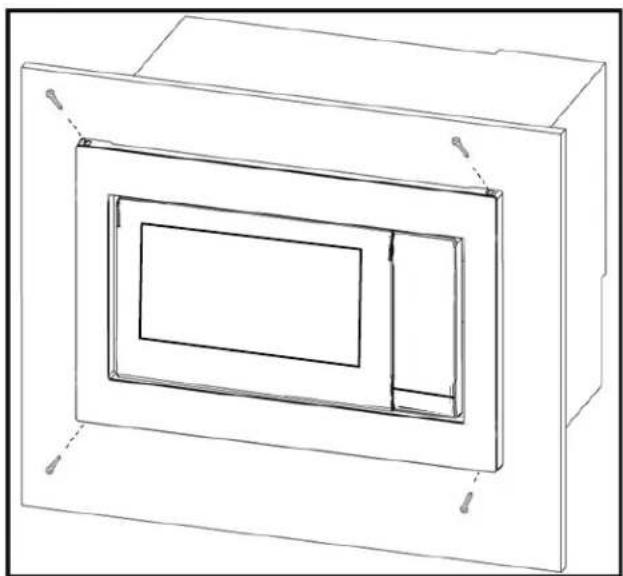

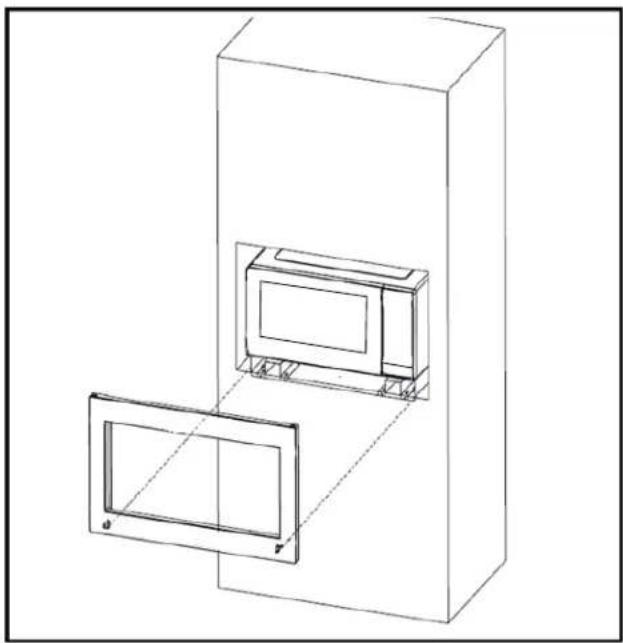

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

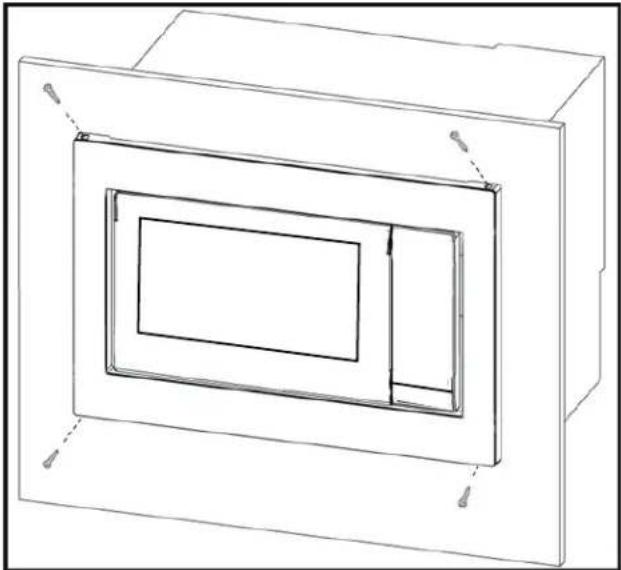

2. Check that it is level and then secure with two SCREWS B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining SCREWS B. See Illustration 8.

Technical line drawing of a mechanical assembly with two rectangular components and a central housing (no text or symbols)

Illustration 7

Technical line drawing of a rectangular enclosure with internal compartments and mounting points (no text or symbols)

Illustration 8

Simple line drawing of a rectangular frame with no text or symbols

Tornillo A

Tornillo B

Isometric line drawing of a rectangular tray or enclosure with internal slots and mounting holes (no text or symbols)

6" (15.2 cm) 4" (10.2 cm) A B C 4" (10.2 cm)

Ilustración 3

Technical line drawings of a mechanical component with mounting holes and internal features (no text or symbols)

Technical line drawing of a 3D mechanical assembly with two rectangular components and a central housing (no text or symbols)

Ilustración 7

Technical line drawing of a rectangular enclosure with internal compartments and mounting points (no text or symbols)

Ilustración 8

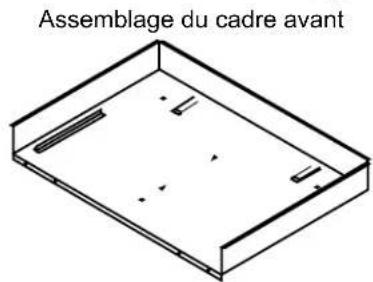

PIÈCES INCLUDES DANS LE KIT

Simple line drawing of a rectangular frame with no text or symbols

Vis A

Vis B

6" (15.2 cm) 4" (10.2 cm) A B C 4" (10.2 cm)

Illustration 3

SORTIE ÉLECTRIQUE

INSTALLATION DU FOUR

Technical line drawings of a mechanical component with numbered parts (no text or symbols)

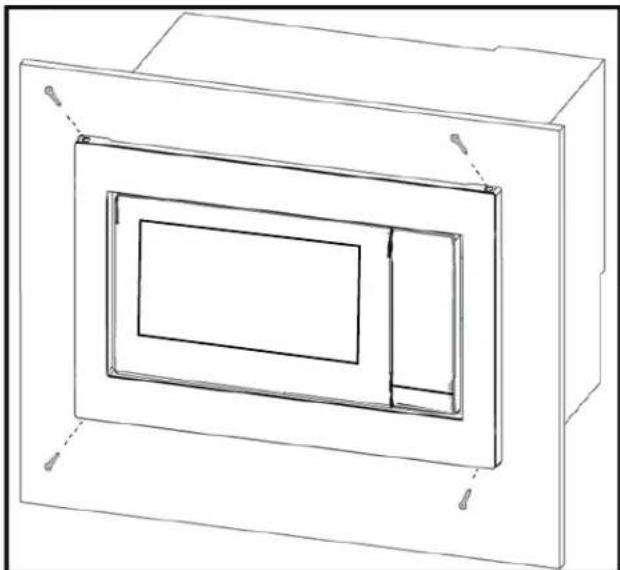

INSTALLATION DE CADRE

Technical line drawing of a mechanical assembly with two rectangular components and a central housing (no text or symbols)

Illustration 7

Technical line drawing of a rectangular enclosure with internal compartments and mounting holes (no text or symbols)

Illustration 8
