USER MANUAL GL456 POLAR

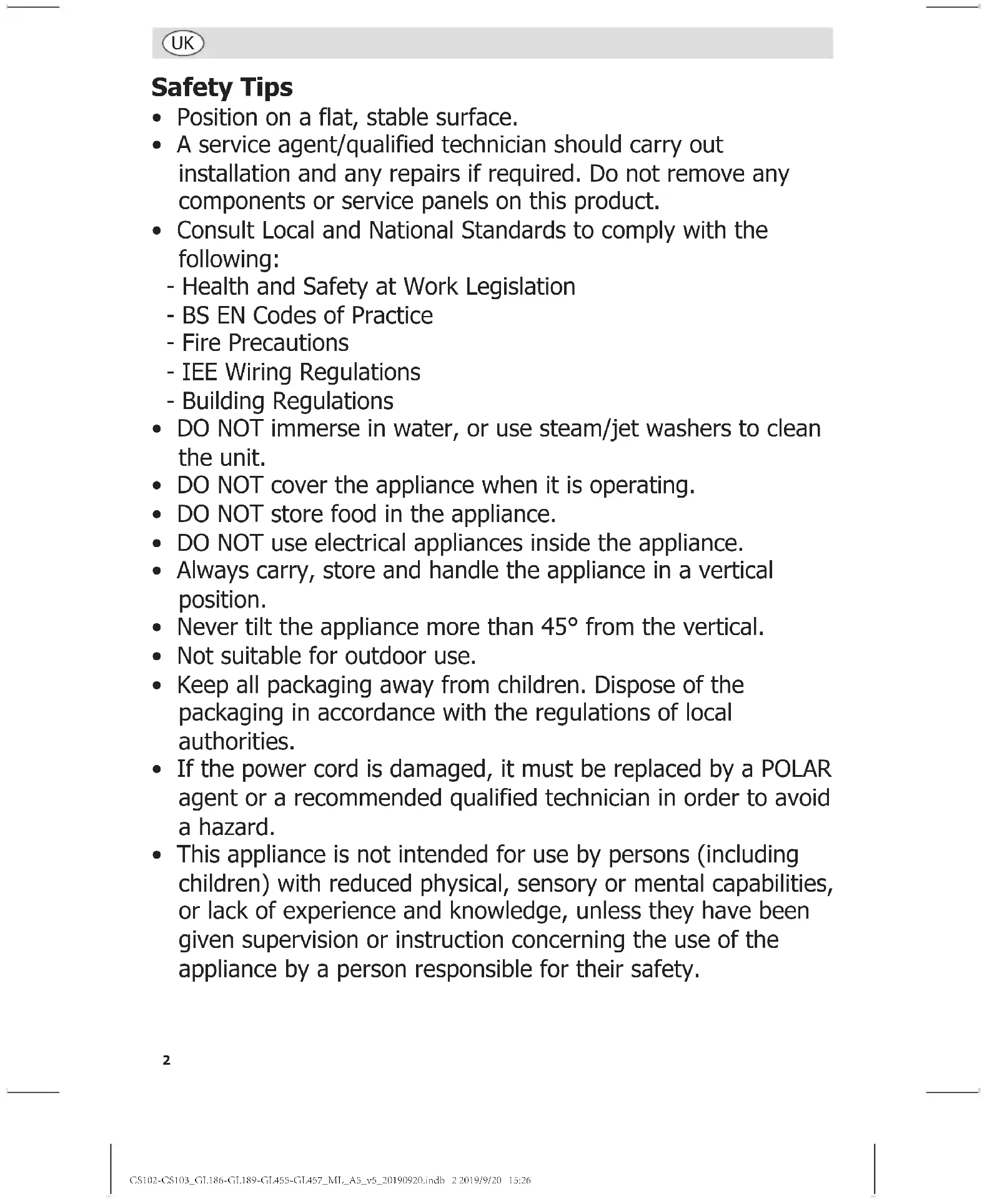

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.
  DO NOT cover the appliance when it is operating.
  DO NOT store food in the appliance.

• DO NOT use electrical appliances inside the appliance.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45^ from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• GL455 - Bar Chiller - 4 drawers
• GL456 - Bar Chiller 2 doors plus 4 drawers
• GL457 - Bar Chiller 4 drawers plus 8 wine bottle cooler
• GL186 - Bar Chiller 1 door plus 2 drawers

• GL187 - Bar Chiller 6 drawers

• GL188 - Bar Chiller 3 doors plus 2 drawers

• GL189 - Bar chiller 2 doors plus 8 Wine Bottle Cooler
  CS102-Back bar display chiller 2 doors
  CS103-Back bar display chiller 4 doors

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

ALL MODELS

POLAR Back Bar Chiller
Key
- Instruction manual

1 DOOR MODEL: 2 adjustable shelves
2 DOOR MODEL: 4 adjustable shelves
3 DOOR MODEL: 6 adjustable shelves
4 DOOR MODEL: 8 adjustable shelves

UK

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

1. Remove the appliance from the packaging and the protective film from all surfaces.
2. Avoid positioning the appliance in direct sunlight or damp areas.
3. When positioning the appliance, maintain a distance of 20cm (7 inches) between the appliance and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
4. Insert the slide-out shelf/shelves at the desired levels and place the smaller shelf/shelves on the floor of the appliance.
5. If necessary, adjust the screw feet of the appliance to make it level.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Operation

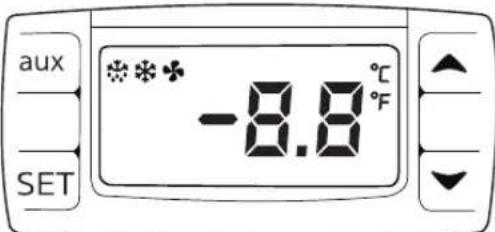

Control Panel

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.
3. Turn the light switches On [I] or Off [O] as desired.

Note: The Cooling Light is illuminated when the appliance is chilling the interior cabinet.

Set the Operating Temperature

1. Press the SET button. The display will flash.
2. Press the button to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost

• POLAR Back Bar Chillers feature an automatic defrost. However, should the appliance require an additional defrost period press and hold the "aux" button for 6 seconds.
  Automatic defrost cycles are every 6 hours and last 20 minutes (factory defaults).
• To stop the Defrost press and hold the"aux" button for 6 seconds.

Note: If a manual defrost is started this resets the automatic defrost timer. During defrost periods the Defrost light is illuminated.

Cleaning, Care & Maintenance

Switch off and disconnect from the power supply before cleaning

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
  Always wipe dry after cleaning.
• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.

Note: Use a soft brush or vacuum cleaner to clean the fins of the condenser, taking care not to damage the fins.

Troubleshooting

If your appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on, but the temperature is too high/low	Condenser blocked with dust Clean Condenser
	Doors/ drawers are not shut properly Check doors / drawers are shut and seals are not damaged
	Appliance is located near a heat source or air flow to the condenser is being interrupted Move the appliance to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Insufficient airflow to the fans Remove any blockages to the fans
	Appliance is overloaded Reduce the amount stored in the appliance
	Factory default parameters adjusted Call POLAR agent or qualified Technician
The appliance is unusually loud	The appliance is touching a neighboring object Check installation position and change if necessary
	The appliance has not been installed in a level or stable position Check installation position and change if necessary

Technical Specifications

Model	Voltage Power	Current	Temperature Range	Capacity (Litres)	Refrige- rant	Dimensions H x W x D mm	Weight (kg)
GL186	230V 50Hz 320W	1.6A 0 - 10°C 213	R600a 95g 870 X	1462 X		513	99
GL187	230V 50Hz 320W	1.6A 0 - 10°C 319	R600a		105g	870 X 2002 X 513	123
GL188	230V 50Hz 320W	1.6A 0 - 10°C 495	R600a		115g	870 X 2542 X 513	136
GL189	230V 50Hz 272W	1.6A 0 - 10°C 380	R290 105g 870 X	1688 X		570	95
GL455	230V 50Hz 320W	1.6A 0 - 10°C 213	R600a 95g 870 X	1462 X		513	99
GL456	230V 50Hz 320W	1.6A 0 - 10°C 698	.3 R600a		115g	870 X 2542 X 513	123
GL457	230V 50Hz 272W	1.6A 0 - 10°C 380	R290 105g 870 X	1668 X		570	95
CS102	230V 50Hz 320W	1.6A 0 - 10°C 250	R290 95g 870 X	1462 X		513	100
CS103	230V 50Hz 320W	1.6A 0 - 10°C 518	R290 95g 870 X	2542 X		513	150

Electrical Wiring

POLAR appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

Specifications techniques

Modèle	Tension Pu	Issance Courant	Plage de température	Capacité (litres)	Réfrigérant	Dimensions h x l x p mm	Poids (kg)
GL186 230V50Hz	320W 1,6A 0 - 10°C	213 R600a 95g 870 X 1462 X				513	99
GL187 230V50Hz	320W 1,6A 0 - 10°C	319 R600a 105g 870 X 2002 X				513	123
GL188 230V50Hz	320W 1,6A 0 - 10°C	495 R600a 115g 870 X 2542 X				513	136
GL189 230V50Hz	272W 1,6A 0 - 10°C	380 R290 105g 870 X 1688 X				570	95
GL455 230V50Hz	320W 1,6A 0 - 10°C	213 R600a 95g 870 X 1462 X				513	99
GL456 230V50Hz	320W 1,6A 0 - 10°C	698.3 R600a 115g 870 X 2542 X				513	123
GL457 230V50Hz	272W 1,6A 0 - 10°C	380 R290 105g 870 X 1668 X				570	95
CS102 230V50Hz	320W 1,6A 0 - 10°C	250 R290 95g 870 X 1462 X				513	100
CS103 230V50Hz	320W 1,6A 0 - 10°C	518 R290 95g 870 X 2542 X				513	150

Raccordement electrique

DECLARATION OF CONFORMITY

• Conformiteitsverklaring - Déclaration de conformité - Konformitätserklärung - Dichiarazione di conformità - Declaración de conformidad - DeclARATION de conformidade

Equipment Type • Ultrustingstyle • Type d'équipement • Geräte typ - Tipo di apparecchiaatura • Tipo de equipo • Tipo de equipamento

Model · Modèle · Modell · Modello · Modelo · Malli

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) · Application de la/des directive(s) du Conseil · Anwendbare EU-Richtlinie(n) · Applicazione delle Direttive · Aplicacion de la(s) directiva(s) del consejo · Aplicacion de directiva(s) do Conselho

1. Back bar display chiller 2 doors

2. Back bar display chiller 4 doors

3. Bar Chiller 1 door plus 2 dra

4. Bar Chiller 6 drawers

5. Bar Chiller 3 doors plus 2 drawers

6. Bar chiller 2 doors plus 8 wine bottle cooler

7. Bar Chiller 4 drawers

8. Bar Chiller 2 doors plus 4 drawers

9. Bar Chiller 4 drawers plus 8 wine bottle cooler

10. CS1024.GL1877.GL455

2.CS103 5.GL188 8.GL456

3.GL186 6.GL189 9.GL457

Machinery Directive (MD) 2006/42/EC

EN 60335-1:2012+ A11:2014

EN 60335-2-89:2010

EN 62233:2008

Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU

EN 55014-1:2006 +A1:2209 +A2:2011

EN 55014-2:2015

EN 61000-3-3:2013

EN 61000-3-2:2014

Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU

Fourth Way,

Avonmouth,

Bristol,

BS11 8TB

United Kingdom

42 North Point

Business Park

New Mallow Road

Cork

Ireland

20^th August 2019

Ashley Hooper

Technical & Quality Manager

POLAR

REFRIGERATION

http://www.polar-refrigerator.com/

CS102-CS103_GL186-GL189-GL455-GL457_ML_A5_v5_20190920
