GJ448 - Fridge POLAR - Free user manual and instructions

Product type	Double door bar refrigerator (sliding)
Brand	Polar
Model	GJ448
Dimensions (H x W x D)	1872 x 922 x 520 mm
Weight	128 kg
Power supply	230 V ~ 50 Hz, 250 W, 1.5 A
Temperature range	2 °C to 8 °C
Gross capacity	490 litres
Refrigerant	R600a (120 g)
Number of doors	2 (sliding)
Shelves	Adjustable, supplied
Control panel	Under the doors, with SET button and temperature adjustment
Defrost	Automatic every 6 h (20 min), manual possible
Condenser filter	Removable, monthly cleaning recommended
Usage	Indoor use only
Safety	Do not immerse, do not use steam cleaner, do not cover while in operation
Grounding	Mandatory
Compliance	CE, WEEE
Included accessories	Key, instruction manual, shelves
Maintenance	Regular interior cleaning, monthly condenser filter, automatic defrost

Frequently Asked Questions - GJ448 POLAR

How to adjust the operating temperature?

Press and hold the SET button for two seconds until the °C symbol flashes. Use the arrow buttons to adjust the temperature, then press SET to confirm.

What to do if the appliance does not cool?

Check that the appliance is plugged in and switched on. If the problem persists, check the condenser filter: if it is dirty, clean it. Also ensure that the doors close properly and that air circulates freely around the appliance.

How to clean the condenser filter?

First unplug the appliance. Remove the removable filter and clean it with a vacuum cleaner. It is recommended to do this at least once a month to maintain performance and lifespan.

What is the capacity of this appliance?

The gross capacity is 490 litres, suitable for storing beverages and refrigerated goods.

How to defrost manually?

Press the defrost button (identified by a snowflake symbol) for 2 seconds. The manual defrost cycle resets the automatic timer. The defrost indicator lights up during operation.

What to do if the appliance is very noisy?

Check that the appliance is level and not in contact with neighboring objects. If the noise persists, ensure the surface is stable and the feet are adjusted correctly.

Can hot food be stored in the refrigerator?

No, it is not recommended to store hot food as this can increase internal temperature and overload the cooling system. Let food cool to room temperature before placing it in the appliance.

Where to place the appliance for optimal operation?

Place the appliance on a flat, stable surface, away from direct sunlight and heat sources. Leave at least 20 cm of space around the appliance for proper air circulation.

How to install the shelves?

Insert the shelves at the desired levels into the guides provided inside the cabinet. Make sure they are securely in place before loading products.

What to do in case of a power failure?

The appliance will keep cold for a while if the door remains closed. Avoid opening the door unnecessarily. Once power is restored, check the temperature and condition of the food. If the contents have exceeded 8 °C for more than 2 hours, discard perishable items.

USER MANUAL GJ448 POLAR

Black and white photo of a modern beverage refrigerator with glass doors and multiple side bottles (no visible text or labels)

NL Barkoeler 7

Handleiding

Black and white photo of a modern beverage refrigerator with multiple beer bottles on glass doors (no visible text or labels)

IT Vetrina refrigerata bar 22

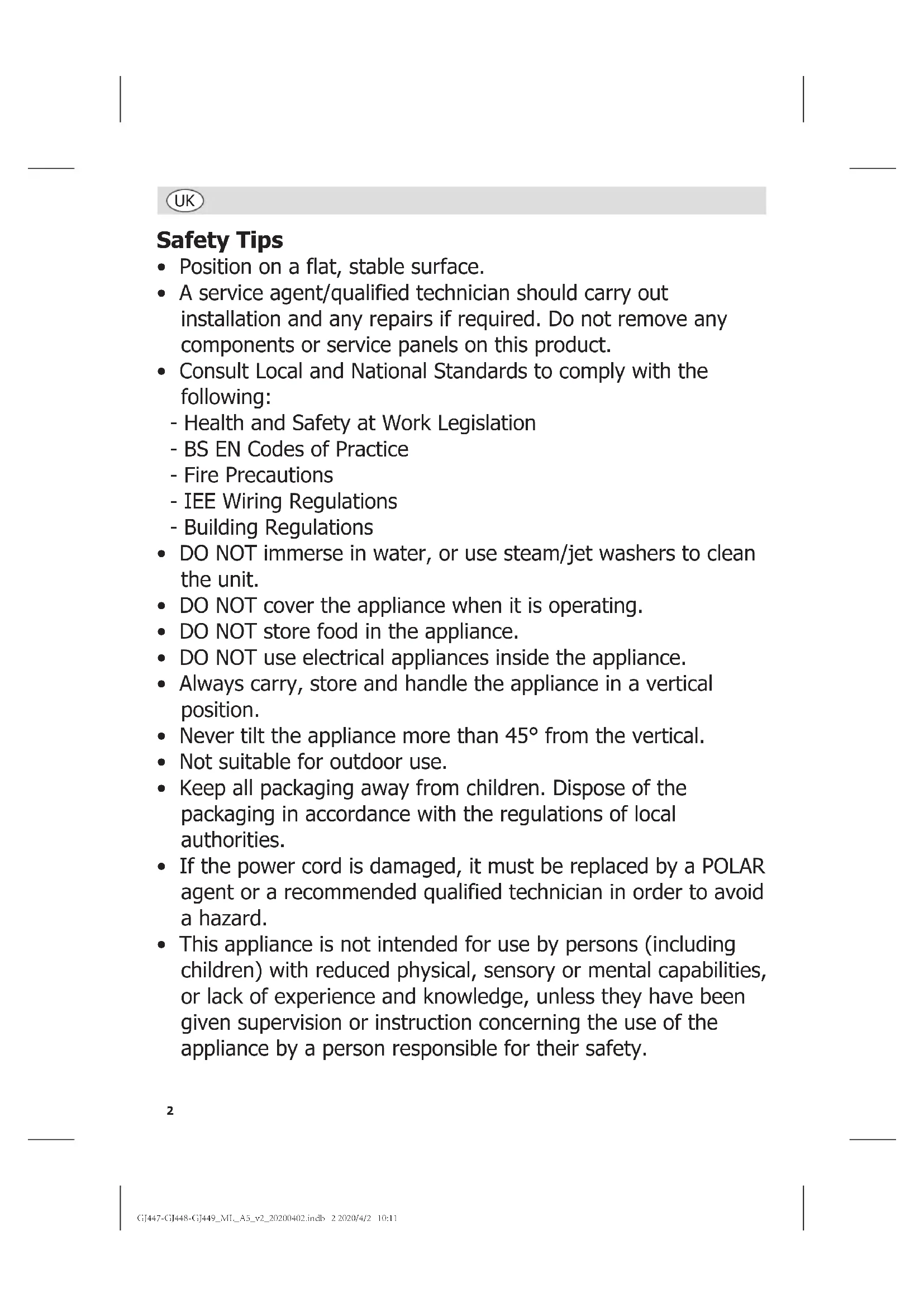

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.

• DO NOT cover the appliance when it is operating.
  • DO NOT store food in the appliance.
• DO NOT use electrical appliances inside the appliance.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45^ from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

UK

• Children should be supervised to ensure that they do not play with the appliance.
• Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• GJ447 - Single Door Upright Back Bar Chiller

• GJ449 - Double Door (Hinged) Upright Back Bar Chiller

• GJ448 - Double Door (Sliding) Upright Back Bar Chiller

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• POLAR Back Bar Chiller

- Adjustable shelves

• Key

• Instruction manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

UK

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging and the protective film from all surfaces.
2. Avoid positioning the appliance in direct sunlight or damp areas.
3. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
4. Insert the slide-out shelf/shelves at the desired levels.
5. If necessary, adjust the screw feet of the appliance to make it level.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Operation

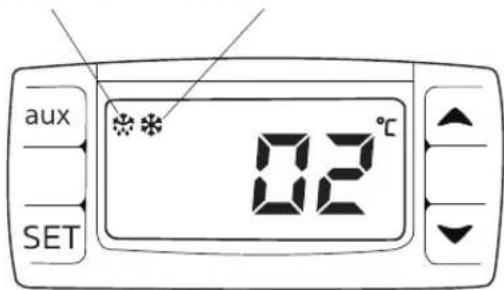

Control Panel

The control panel is located below the doors on the front of the appliance.

Defrost Light Cooling Light

aux SET 02°C

Turn On

1. Close the door(s) of the appliance.
2. Connect the appliance to a mains power supply.

Note: The Cooling Light is illuminated when the appliance is chilling the interior cabinet.

To Change the Operating

Temperature

The default operating temperature is 2 °C. To display the operating temperature (set point), press and immediately release the button.

To change the operating temperature:

1. Press and Hold the SET button for 2 seconds. "°C" will start to flash.
2. Press the 🔊 buttons to change the temperature.
3. Press the SET button to store the temperature.

Manual Defrost

• POLAR Back Bar Chillers feature an automatic defrost. However, should the appliance require an additional defrost period press and hold the button for 2 seconds.
  • Automatic defrost cycles are every 6 hours and last 20 minutes (factory defaults).

Note: If a manual defrost is started this resets the automatic defrost timer. During defrost periods the Defrost light is illuminated.

Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
  • Always wipe dry after cleaning.
• A POLAR agent or qualified technician must carry out repairs if required.

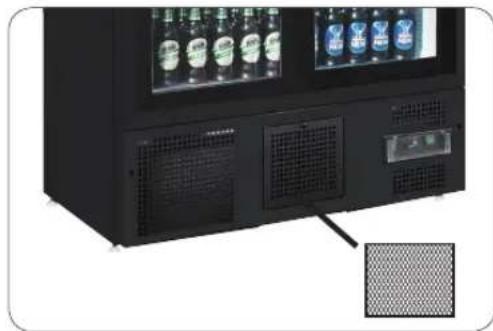

Cleaning the Condenser Filter

• The condenser is part of the refrigeration system. The condenser filter requires monthly cleaning.
  • Always disconnect power supply before carrying out Routine Maintenance.
• Failure to clean the condenser filter will reduce the performance and life of your Polar unit and may invalidate your warranty.
  • These models have a removable filter which can be cleaned with a vacuum cleaner.

Note for GJ447: The filter can be easily taken out for cleaning after opening the door.

Front view of a black beverage refrigerator with side panels and ventilation grilles (no visible text or labels)

Troubleshooting

If your appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable	Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on, but the temperature is too high/low	Condenser blocked with dust Clean Condenser
	Doors are not shut properly Check doors are shut and seals are not damaged
	Appliance is located near a heat source or air flow to the condenser is being interrupted	Move the appliance to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Insufficient airflow to the fans Remove any blockages to the fans
	Appliance is overloaded Reduce the amount stored in the appliance
	Factory default parameters adjusted	Call POLAR agent or qualified Technician
The appliance is unusually loud	The appliance is touching a neighbouring object	Check installation position and change if necessary
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary

UK

Technical Specifications

Model	Voltage Power	Current		Temperature Range	Capacity (Litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
GJ447	230V 50Hz 170	W 1A 2°C	- 8°C 310 R	R600a 85g 1872 x	602 x 555 98
GJ448	230V 50Hz 250	W 1.5A 2°C	- 8°C 490	R600a 120g 1872	x 922 x 520	128
GJ449	230V 50Hz 250	W 1.5A 2°C	- 8°C 490	R600a 120g 1872	x 922 x 555	125

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

CE

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

Veiligheidstips

aux SET 02 °C

Inschakelen

Front view of a black beverage refrigerator with multiple bottles and ventilation grilles, showing internal compartments and a control panel (no visible text or labels)

aux SET 02 °C

Mise en marche

Black beverage refrigerator with multiple bays and ventilation grilles, no visible text or symbols

Front view of a black beverage refrigerator with multiple bottles and ventilation grilles, showing internal seating and control panel (no visible text or labels)

Störungssuche

aux SET 02 °C

Accensione

Front view of a black beverage refrigerator with multiple side bays and ventilation grilles, showing no visible text or symbols.

aux SET 02 °C

Encendido

Black beverage refrigerator with multiple bottles and ventilation grilles, no visible text or labels

aux SET 02 °C

Ligar

Front view of a black beverage control cabinet with multiple bottles and ventilation grilles, showing internal compartments and a mesh pattern on the side (no visible text or symbols)

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

15 ^th August 2019

Ashley Hooper

Technical & Quality Manager

UK	[phone]
Eire
NL 040 –	2628080
FR 01 60	34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 –	1860806
IT N/A
ES 901-100 133
PT [e-mail]

POLAR

QR code image with a central logo containing text 'PPO' and 'SUN'

http://www.polar-refrigerator.com/

GJ447-GJ448-GJ449_ML_A5_v2_20200402
