USER MANUAL ActiFry Genius XL AH9608 TEFAL

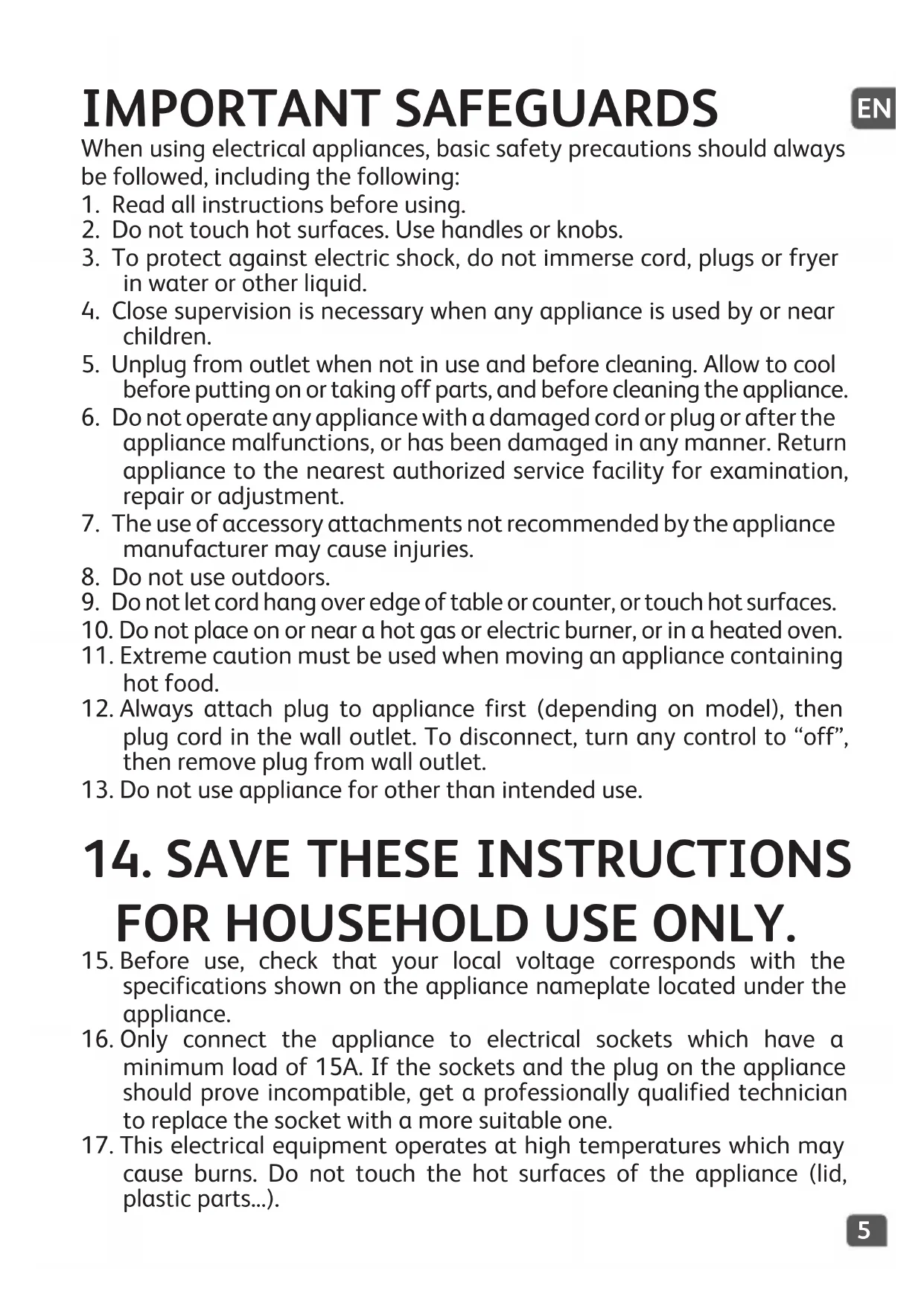

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electric shock, do not immerse cord, plugs or fryer

in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing

12. Always attach plug to appliance first (depending on model), then

plug cord in the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

15. Before use, check that your local voltage corresponds with the

specifications shown on the appliance nameplate located under the appliance.

16. Only connect the appliance to electrical sockets which have a

minimum load of 15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualified technician to replace the socket with a more suitable one.

17. This electrical equipment operates at high temperatures which may

cause burns. Do not touch the hot surfaces of the appliance (lid, plastic parts...).6

18. To ensure safe operation, oversized foods must not be inserted into

19. Do not overload the pan. For safety reasons never exceed the

20. The cooking times are given as guidelines only.

21. Do not leave the cord hanging.

22. Do not unplug the appliance by pulling on the cord.

23. Always unplug the appliance immediately after use, when moving it

and prior to any cleaning or maintenance.

24. In the event of fire, never try to extinguish the flames with water.

Unplug the appliance. Close the lid, if it is not dangerous to do so. Smother the flames with a damp cloth.

25. Do not move the appliance when it is full of hot food.

26. Never immerse the appliance in water!

27. This appliance is not suitable for recipes with a high-liquid content

(eg. soups, cook-in sauces...).

28. Never turn on the appliance if the cooking pan is empty.

29. Do not overfill the cooking pan, never exceed the indicated quantities

or maximum food level mark (for French fries only).

30. This appliance is not intended for deep frying food.

31. This appliance is not intended to be operated using an external timer

or separate remote control system.

32. This appliance is not designed to be used by people (including

children) with a physical, sensory or mental impairment, or people without knowledge or experience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

33. If you have any problems, contact the authorized after-sales service

Do not use with an extension cord. A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.7

1 Base 2 Lid opening button 3 Lid 4 Viewing window 5 Digital control panel 6 Measuring spoon 7 Paddle release button 8 Removable mixing paddle 9 Removable turn-over ring 10 Cooking pan handle release button 11 Cooking pan handle 12 Removable cooking pan 13 Removable filter 14 Cooking time 15 Temperature 16 Delayed start 17 Keep warm 18 Function mode to select a pre-programmed cooking mode 19 Manual mode 20 Launch/pause the cooking 21 Cooking modes Before using for the first time

• Remove all the stickers and any packaging.

• Open the lid by pressing on the lid opening button - fig.1 and press the catches to remove the lid - fig.2.

• Remove the measuring spoon.

• Lift the pan handle to a horizontal position until you hear a “CLICK” as it locks - fig.3.

• Remove the paddle by pushing the release button - fig.4.

• Take out the cooking pan.

• To remove the turn-over ring, pull the clips outwards, then lift it off.

• Remove the detachable filter - fig.6.

• All the removable parts are dishwasher safe - fig.7 or can be cleaned using a non abrasive sponge and some washing up liquid.

• Clean the body of the appliance with a damp sponge and washing up liquid - fig.8.

• Dry carefully before putting everything back in place.

• Reposition the paddle until you hear the «CLICK» - fig.9.

• To replace the turn-over ring, place it at the edge of the pan, centre it on the pan and press down until you hear a “CLICK”.

• When using for the first time, the appliance may give off a harmless odour. This has no impact on the use of the appliance and will soon disappear. NOTE:

• Never immerse the base in water or any other liquid.

• On first use, to obtain the best results from your new product, we advise you to prepare a recipe that cooks for 30 minutes or more. DESCRIPTION

INSTRUCTIONS FOR USE8

• Never operate your appliance when empty.

• Never overload the cooking pan. Comply with the recommended quantities.

• This appliance is not suitable for recipes with a high-liquid content (eg. soups, cook-in sauces...).

• Never turn on the appliance if the cooking pan is empty. Start cooking

• Open the lid - fig.1.

• Place the food in the cooking pan and do not exceed the maximum quantity (see Table of cooking times) and the Maxi level mark on the paddle for liquid recipes - fig.10.

• Prepare your ingredients as indicated in the recipe book. Place your ingredients into the cooking pan as per the instructions in your recipe.

• Release the handle and lower it fully into its housing - fig.12.

• Close the lid - fig.13.

• Plug the appliance into an electrical socket outlet. The appliance will emit 2 beeps and the screen will display 00 - fig.14. 2 ways of setting the cooking time: Automatic cooking mode: The 9 cooking modes automatically adjust the cooking temperature and whether the paddle rotates according to the type of food selected.

• Adjust cooking time by pressing +/- button. Note: Adjust the cooking time after starting the appliance.

• When using the automatic cooking mode follow the instructions in the recipe book on where to position food in the pan. Note: The paddle does not turn at the beginning of cooking for modes 2, 3, 4, 5, 7, 8 and 9.

• To stop or cancel the cooking mode , continually hold down the key for 2 seconds and the screen will display 00 (fig. 14) Preparing the food To avoid damaging your appliance, please follow the quantities of ingredients and liquids given in the manual and the recipe book. For all recipes, never exceed the maximum level indicated on the removable paddle - fig.10. Do not leave the measuring spoon inside the pan while cooking food.

• Place the food in the cooking pan, distributing it evenly, making sure that you respect the maximum quantity (see cooking tables p. 11 to p. 13) - fig.10.

• Add the oil to the food with the spoon (1 Actifry Genius spoonful = 14 ml) - fig.11, spreading it evenly (see cooking tables p. 11 to p. 13).

• Unlock the handle and push it right back into its housing - fig.12.

chips, vegetable chips, potato wedges, ...

6. Chicken e.g drumsticks and

nuggets, breaded king prawns, ...

7. Wok* e.g. fried rice with

prawns, sauted beef, stir fry vegetables, ...

9. Desserts e.g apples and

pear compote, caramelised nuts, ...

5. Meatballs and vegetable balls

*’1 meal in 1 go’ programs Manual mode:

• Set the cooking in minutes by using the +/- button (see cooking table p. 11 to p. 13).

• Then set the cooking temperature by pressing the temperature/timer button - fig.18, and set the temperature required using the +/- button (see cooking table p. 11 to p. 13).

• The selected time will be displayed and a minute by minute countdown will begin. Time is selected and displayed in minutes. Only time remaining under 1 minute will be displayed in seconds.

• The appliance can be paused. Simply press the key. Pressing the key will restart cooking.

• The time can be changed at any time during cooking by using the +/- buttons - fig.17.

• In the event of an error or to delete the selected time, hold down the key for 2 seconds and re-select the time. Delayed start Delayed start can be set using one of the 9 automatic cooking modes or the manual mode:

• Plug in the appliance.

• Press the Temperature/Timer button for 3 seconds. The pictogram will appear, and the timer will flash 0:00.

• Set the delayed start time using the +/- buttons (Intervals: 10 minutes) (up to a maximum of 9 hours).

• Press start, and the delayed start timer will begin to count down. Cooking will commence once the delayed start timer reaches 0:00.10 Keep warm function

• When cooking is finished, if no action is done after 3 minutes, the keep warm mode automatically starts (except for mode 1 – Chips).

• After 30 minutes keeping warm, the appliance stops.

• To deactivate «Keep warm» function, press simultaneously + and – buttons for a long time (3 seconds).

• To re-activate «Keep warm» function, press simultaneously + and – buttons for a long time (3 seconds). Remove the food When you open the lid, the appliance stops working. To restart cooking, close the lid and press the button. When the lid is left open for over 2 minutes, the appliance will reset.

• Once cooking is completed, the timer beeps.

• Open the lid - fig.1.

• Lift the handle until you hear a “click” that it locks and take out the cooking pan - fig.19 & 20.

• To avoid any risk of burns, do not touch the lid or any part other than the cool touch areas: pan handle and lid opening button.

ACTIFRY GENIUS COOKING TIPS

• Do not add salt to chips while the chips are in the cooking pan. Only add salt once the chips are removed from the cooking pan.

• When adding dried herbs and spices to ActiFry, mix them with some oil or liquid. If you try sprinkling them directly into the pan they will just get blown around by the hot air system.

• Strong coloured spices may slightly stain the paddle and parts of the appliance. This is normal.

• Prepare all food in evenly sized pieces to ensure that they all cook at the same time.

• Prepare vegetables, especially root vegetables, in small pieces or stir fry size to ensure they cook through.

• If using onions in ActiFry recipes they are best thinly sliced rather than chopped as they cook better. Separate the onion rings before adding them to the cooking pan and give them a quick stir so that they are evenly distributed. For the automatic cooking mode only:

• For selected cooking modes, ingredients should be placed in the cooking pan as stated in the ActiFry Genius recipe book. This ensures the right level of cooking for each ingredient. Those which require a longer cooking time are put in the top half of the pan. Those requiring a shorter cooking time are put next to the handle.11 ENCOOKING TIMES The cooking times are given as a rough guide and may vary depending on the seasonality of the food, its size, the quantities used and individual tastes, as well as the voltage. The amount of oil indicated may be increased depending on your taste and needs. If you want crisper chips, you can add a few extra minutes to the cooking time. Potatoes Type Quantity Actifry spoons of oil Cooking mode Genius 1.2kg cooking time* (mins) Genius 1.7kg cooking time* (mins) Fresh chips 10 mm x 10 mm Fresh (chips) 750 g 1/2 1 26-28 25-27 1000 g 3/4 1 30-34 28-30 1500 g 1 1 X 36-38 1700 g 1 1 X 42-44 Frozen chips 13 mm x 13 mm Frozen (chips)** 750 g None 1 26-28 23-25 1200 g None 1 – 36-38

• Freshly harvested potatoes may require a longer cooking time to obtain a crisper more golden brown result. ** For best results we recommend using frozen chips without any wheat flour batter coating as they tend to give less crisp results and the batter may fall off during cooking (check the ingredient list on the packet for details). Meat- poultry To add a little flavour to your meat, don’t hesitate to mix spices in with the oil (paprika, curry, mixed herbs, thyme, bay leaf, etc). Type Quantity Actifry spoons of oil Cooking mode Genius 1.2kg cooking time (mins) Genius 1.7kg cooking time (mins) Chicken nuggets Fresh or Frozen 750 g None 2 13 - 15 10 - 12 Fresh 1200 g None 2 – 13 - 15 Frozen 1200 g None 2 – 15 - 17 Chicken drumsticks Fresh 4 to 6 None 6 20 - 25 20- 22 Chicken breast (boneless) Fresh 6 None 6 20 - 25 18 - 20 Fresh 9 None 6 – 22 - 24 Meatballs Frozen 750 g 1 5 16 - 18 14 - 15 Frozen 1200 g 1 1/2 5 – 18 - 2012 Quantity Actifry spoons of oil Cooking mode Genius 1.2kg cooking time (mins) Genius 1.7kg cooking time (mins) Courgettes 750 g 1 + 150 ml. water 7 25-30 20 - 25 1200 g 1 + 150 ml. water 7 – 25-30 Peppers 650 g 1 + 150 ml. water 7 18-22 15 - 18 1200 g 1 + 150 ml. water 7 – 20-25 Mushrooms 650 g 1 7 10-15 10 - 15 1000 g 1 7 – 16-18 Tomatoes 650 g 1 + 150 ml. water 7 13-16 12 - 14 1000 g 1 + 150 ml. water 7 – 15-17 Onions (sliced) 500 g 1 12-16 12 - 14 750 g 1 – 18-20 Vegetables Fish – shellfish Type Quantity Actifry spoons of oil Cooking mode Genius 1.2kg cooking time (mins) Genius 1.7kg cooking time (mins) Battered calamari Frozen 300 g None 3 11-13 10-12 500 g 3 – 11-13 King prawns (raw) Fresh 300 g None 3 11-13 8-10 450 g 3 – 8-10 Rice and Vegetable Dishes Type Quantity Actifry spoons of oil Cooking mode Genius 1.2kg cooking time (mins) Genius 1.7kg cooking time (mins) Ratatouille* Frozen 750 g None 7 16-18 14 - 16 Frozen 1000 g None 7 – 23-25 Farmer’s stir fry* Frozen None 6 – 22-24 Paëlla* Frozen 650 g None – 16-19 12 - 14 Frozen 1000 g None – – 15-17

• Frozen preparations not available in all countries.13

Fruit Type Quantity Actifry spoons of oil and sugar Cooking mode Genius 1.2kg cooking time (mins) Genius 1.7kg cooking time (mins) Bananas Slices 5 1 + 1 of sugar 9 5-6 5-6 7 1 + 1 of sugar 9 - 5-6 Strawberries Quarters 1000 g 2 of sugar 9 10-12 8-10 1500 g 2 of sugar 9 - 10-12 Apples Halves 3 1 + 1 of sugar 9 10-12 8-10 5 1 + 2 of sugar 9 - 10-12 Pineapples Fresh (peeled & cut into pieces) 1 2 of sugar 9 10-15 10-12 2 2 of sugar 9 - 15-17 Cleaning the appliance Never immerse the appliance in water or any other liquid. Do not use any corrosive or abrasive cleaning products. The removable filter must be cleaned regularly. To ensure your removable cooking pan lasts longer, never use any metal ustensils. We do not recommend the use of any detergent other than washing up liquid to clean any part of the appliance.

• Leave the appliance to cool completely before cleaning.

• Open the lid by pressing the button - fig.1 and press the latches to remove the lid - fig.2.

• Lift the removeable pan handle until you hear a «CLICK», in order to remove the pan - fig.3.

• Take out the cooking pan.

• Remove the paddle by pushing the release button - fig.4.

• Remove the detachable filter - fig.6.

• To remove the turn-over ring, pull the clips outwards, then lift it off.

• All the removable parts are dishwasher safe - fig.7 or can be cleaned using a non abrasive sponge and some washing up liquid.

• Clean the body of the appliance with a damp sponge and a little washing up liquid - fig.8. Dry carefully before putting everything back in place.

• We guarantee that the detachable cooking pan COMPLIES WITH REGULATIONS with regards to materials in contact with food.

• If food gets stuck or burnt onto the pan or paddle, leave them to soak in warm water before cleaning.

Problems Causes Solutions The appliance does not work. The appliance is not plugged in properly. Make sure the appliance is properly plugged in to a main power socket. You have not yet pressed button . Press button . You have pressed button but the appliance does not operate. Close the lid. The appliance is not heating. Call the customer Helpline below. 1-800-418-3325 The paddle does not turn. The paddle does not turn at the beginning of cooking in cooking modes 2, 3, 4, 5, 7, 8 and 9. Restart using the manual mode to check the paddle turns. If it does not turn, check that it is inserted in the correct position. Otherwise, call the customer Helpline below: 1-800-418-3325 The paddle does not stay in place The paddle is not locked. Reposition the paddle until you hear it «CLICK» - fig.12. The food has not been cooked uniformly. You have not used the paddle. Put it in position. The food / chips have not been cut uniformly. Cut the food / chips all to the same size. The chips are not crunchy enough. You are not using a potato variety that is recommended for chips. Choose a potato variety that is recommended for chips such as Maris Piper or King Edward potatoes. The potatoes are insuffciently washed and/or not completely dried. Wash potatoes for a long time to remove the starch, drain and dry very thoroughly before cooking. They must be completely dry. The chips are too thick. Cut them more thinly. The maximum chip dimensions are 13 mm x 13 mm. There is not enough oil. Increase the amount of oil (see cooking table p. 11 to p. 13). The filter is clogged. Clean the filter. The chips break during cooking. The quantity is too large. Reduce the amount of potatoes and adjust the cooking time. A FEW TIPS IN CASE OF PROBLEMS…15

Problems Causes Solutions The food stays on the edge of the pan. The pan has too much food. Comply with the maximum quantities shown on the cooking table. Put the turn-over ring in place. Reduce the amount of food. Max level exceeded. Reduce the quantities. Cooking liquids have leaked into the base of the appliance. Faulty pan or paddle. Check that the paddle is correctly positioned, otherwise call the customer Helpline below. The max level has been exceeded. Observe the max level. Do not use ActiFry for making recipes with a high liquid content. The LCD screen does not work. The appliance is not plugged in. Plug the appliance in. The lid is open. Close the lid. The LCD displays shows «Er» (error). The appliance is not functioning correctly. Unplug the appliance, wait for 10 seconds, plug the appliance in again and press button. If the LCD screen still shows Er, see the table of error codes p. 16. The appliance is abnormally noisy. You suspect there is a problem in the way the appliance motor is working. Call the customer Helpline below. If you have any product problems or queries call our Customer Relations Team first for expert help and advice: Helpline: 1-800-418-3325 or contact us via our web site: www.t-fal.ca16 E. 1 or 2 The fan is not working. Check that all removable parts are fitted and correctly positioned (bowl ventilation output grid and removable filter, pan, lid). Check that there are no foreign items in the removable parts. After checking that there are no foreign items in the ventilation outlets, if the fault persists, call the customer Helpline. p. 15 E. 3 This error may appear if the appliance has been stored for a long time at too low a temperature. Leave the appliance at an ambient temperature of more than 15°C for one hour before starting it up again. If the fault persists, call the customer Helpline. p. 15 E. 4 Your appliance has a fault in the temperature sensor. Call the customer Helpline below. p. 15 E. 5 The voltage of your domestic network is too low. Cooking performance may be altered. Contact your electricity supplier. E. 6 The voltage of your domestic network is too high; for safety reasons your appliance should be protected against the risks of overheating. Contact your electricity supplier. Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. TABLE OF ERROR CODES: E.
