Product Type	Cordless Work Light
Brand	WORX
Model	WX025L.9
Rated Voltage	20V Max (18V nominal)
Maximum Brightness	350 lumens
Minimum Brightness	160 lumens
High Brightness Runtime	7.5 hours (with 2.0Ah battery)
Low Brightness Runtime	16.5 hours (with 2.0Ah battery)
Rotation Angle	-6° to +90°
Weight (tool only)	0.26 kg
Recommended Battery	WA3575 (2.0Ah)
Recommended Charger	WA3881 (2.0A)
Battery Type	Lithium-ion (Li-ion)
Features	On/Off switch, LED indicator, hanging hook, lanyard
Material	Plastic and metal
Safety	Do not look at lit lamp, hot surface, do not use in rain
Maintenance	Clean with a dry cloth, do not use water or solvents
Replacement Parts	No user-serviceable parts
Battery Recycling	Call 1-800-822-8837 or recycle via RBRC
Certifications	FCC Part 15, IC NMB-001

Frequently Asked Questions - WX025L.9 WORX

How to charge the battery of the Worx WX025L.9 lamp?

Use only the recommended charger (WA3881) to charge the battery (WA3575). Insert the battery into the charger and plug it in. Refer to diagram A in the manual for details. Do not leave the battery on prolonged charge when not in use.

How to turn the lamp on and off?

Press the ON/OFF switch to turn the light on or off. Caution: do not direct the light beam into eyes.

Can I use the lamp in the rain?

No, do not use the lamp in the rain. It is not designed to be exposed to water. To reduce the risk of electric shock, do not immerse the terminal in water or any other liquid.

What is the runtime of the lamp?

With a 2.0Ah battery, the runtime is 7.5 hours in high brightness (350 lumens) and 16.5 hours in low brightness (160 lumens).

How to clean the lamp?

Use a dry, clean cloth to clean the lamp. Never use water, solvents, or harsh chemicals. Do not allow any liquid to enter the lamp.

What to do if the battery does not charge?

Check that the charger is properly plugged in and the contacts are clean. If the battery is new or after long storage, it may need to be charged and discharged several times. Use only the charger specified by Worx.

Is it possible to replace the battery?

Yes, the battery is removable. Use only the recommended battery (WA3575) or other compatible Worx 20V batteries. To remove the battery, press the tabs and pull. Refer to diagrams B and C in the manual.

How to hang the lamp?

Use the built-in hook to hang the lamp. Do not hang the lamp on a power cord. The hook is intended only to lift the lamp and does not support additional weight.

Can the lamp be used with other batteries?

No, use only the batteries recommended by Worx (20V series). Any other battery could damage the lamp, cause explosion, fire, or injury.

What are the important safety precautions?

Do not look at the lit lamp to avoid eye injury. Do not touch the hot lens. Do not use the lamp near combustible materials. Keep out of reach of children. Remove the battery before any maintenance.

USER MANUAL WX025L.9 WORX

Completely dark image with no visible content, text, or symbols.

WORX NITRO POWER SHAR 1 2 3 4 5 6

A No Hazard No Hazard

Technical line drawing of a handheld device with a base and switch, showing no text or symbols

C 1 2 3000

D1 ! VOLK VANG

Line drawing of a handheld device with a hook and warning symbol (no text or labels)

-6°~+90°

TABLE OF CONTENTS

1. PRODUCT SAFETY
2. COMPONENT LIST
3. TECHNICAL DATA
4. OPERATING INSTRUCTIONS
5. MAINTENANCE
6. CLEANING

1. PRODUCT SAFETY

WARNING: This product can expose you to chemicals including lead and Di(2- ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

CAUTION: Read, understand and follow all Safety Rules and Operating Instructions in this Manual before using this product.

SAVE THESE INSTRUCTIONS! READ ALL INSTRUCTIONS!

SAFETY INSTRUCTIONS

WARNING: BE SURE to read and understand all instructions in this manual before using light. Failure to follow all instructions may It in electric shock, fire and/or serious onal injury.

1. To reduce the risk of injury, close supervision is necessary when a product is used near children.
2. Do not contact hot parts.
3. Only use attachments recommended or sold by the manufacturer.
4. Do not use in the rain.
5. WARNING: Do not use magnet for horizontal overhead mounting.
6. WARNING: The lens gets very hot during use. To reduce the risk of burns, do not touch hot lens.
7. To reduce the risk of electrical shock, do not put + in water or other liquid. Do not place or store product where it can fall or be pulled into a tub or sink.
8. WARNING: To reduce the risk of injury, do not stare at operating lamp. Serious eye injury could occur.
9. To reduce the risk of fire, keep away from combustible materials while in operation.
10. Use only recommended battery pack and charging stand / transformer. Any attempt to use another

battery pack will cause damage to the portable hand-held light and could possible explode, cause a fire, or personal injury.

1. Remove battery pack from the product before performing any routine maintenance or cleaning.
2. Do not disassemble the product.
3. Do not place the product or battery pack near fire or heat. They may explode. Also, do not dispose of a worn out battery pack by incineration, even if it is severely damaged or completely worn out. The battery may explode in fire.
4. Keep light dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluid, gasoline, petroleum-base products or any strong solvent to clean the portable hand-held light.

INFORMATION FOR RADIATED EMISSION

This device complies with Canadian ICES-001.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

- NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or manufacturer for help.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Do not use any battery pack which is not designed for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended by the device manufacturer for the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
k) Battery pack needs to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
I) Do not leave battery pack on prolonged charge when not in use.
m) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
n) Recharge only with the charger specified by WorxNITRO. Do not use any charger other than that specifically provided for use with the equipment.
o) Retain the original product literature for future reference.
p) Use only the battery pack in the application for which it was intended.
q) Remove the battery pack from the equipment when not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture, capacity, size or type within a device.
t) Keep the battery away from microwaves and high pressure.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-Ion battery, battery must be recycled
	WARNING – Hot Surface: Risk of Burns – Do Not Touch

call②recycle

POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries' life cycle is ended, please call 1-800-822-8837 for a free service that will properly dispose of the battery

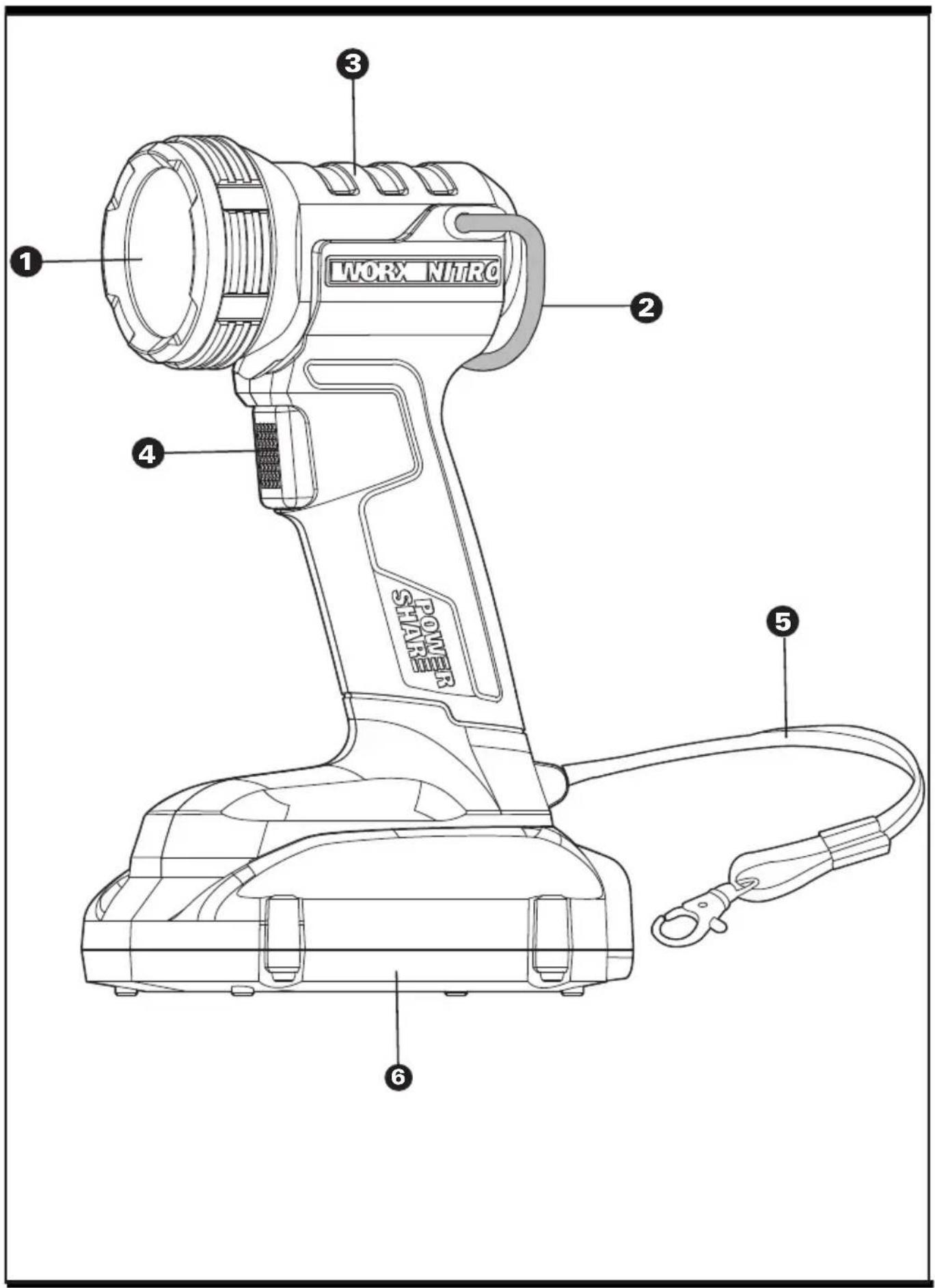

2. COMPONENT LIST

1. LED LIGHT
2. HOOK
3. PIVOTING HEAD
4. ON/OFF SWITCH
5. LANYARD
6. 20V BATTERY PACK*

3. TECHNICAL DATA

		WX025LWX025L.X**
Rated voltage 20V Max***		---
Brightness 160/350 LM
Burntime(2.0Ah)	High Brightness	7.5 hrs
	Low Brightness	16.5hrs
Pivoting head		-6°~+90°
Machine weight(bare tool)		0.57 lbs (0.26kg)

** X may be followed by one or two characters. All models are the same except model number and trademark. The suffix in models may be number from "1" to "999" or English letter "A" to "Z" or "M1" to "M9" which means different package or the various of accessories packed in the package.
*** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

SUGGESTED BATTERIES AND CHARGERS

Category Type Capacity
20V Battery WA3575 2.0Ah
20V Charger WA3881 2.0A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

4. OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ACTION FIGURE
BEFORE OPERATION

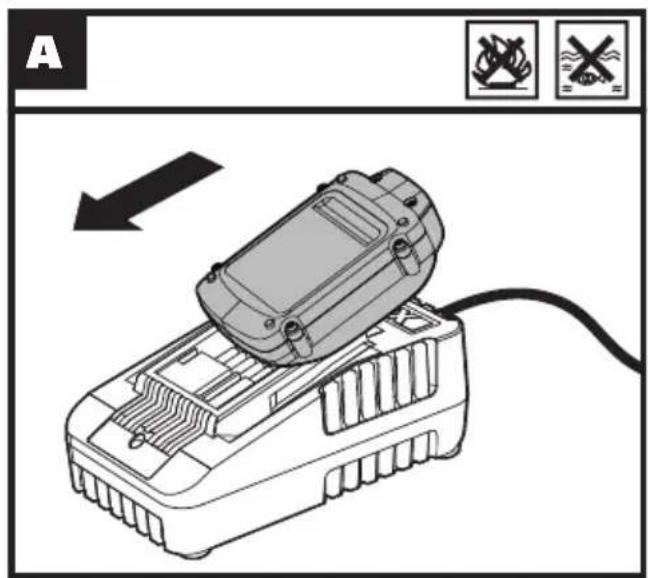

Charging the battery pack See Fig.A

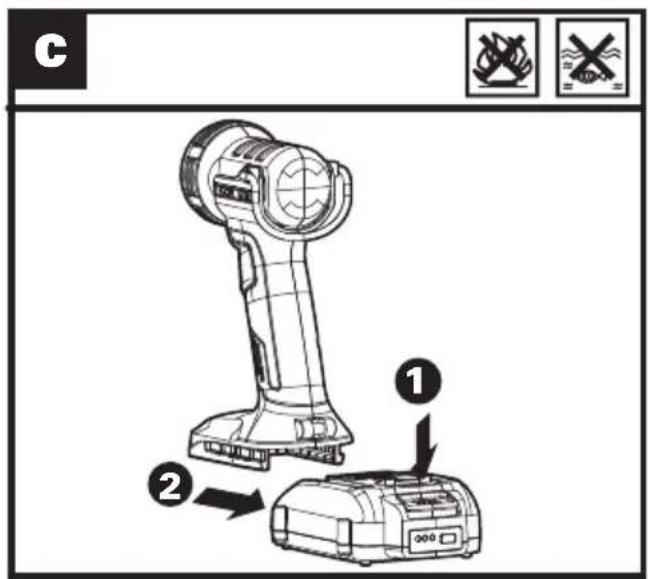

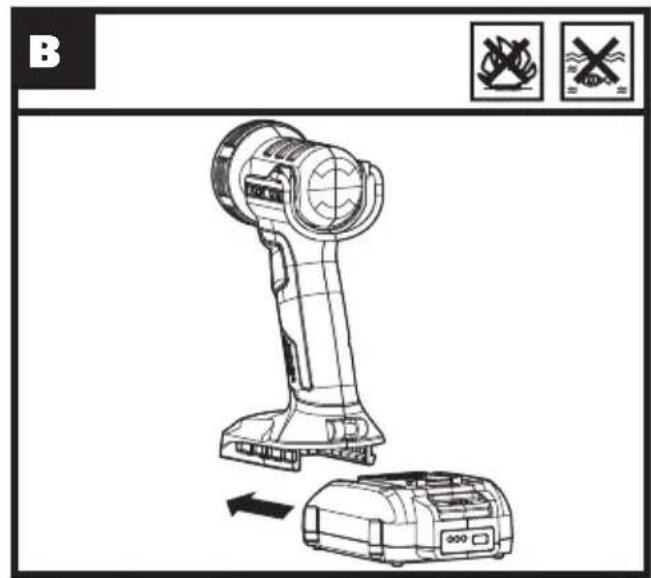

Installing/Removing the battery pack SeeFig.B,C
OPERATION

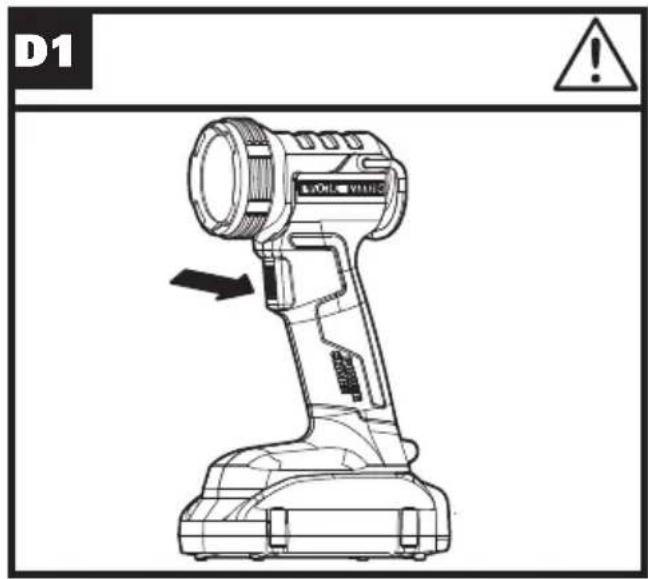

Press the ON/OFF switch to turn the light on and off. ⚠ WARNING: Do not direct the light beam into eyes.	See Fig.D1

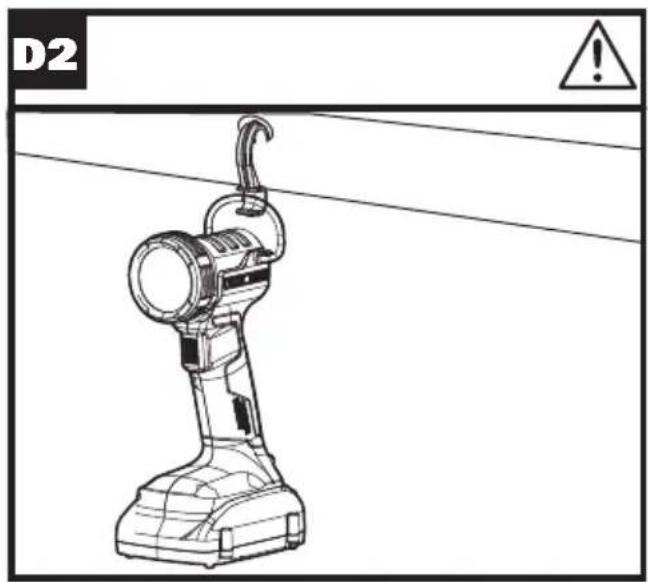

Carrying or Hanging the Portable Light
Utilize the hook to hang the light for illumination. ⚠ Warning! Do not hang the Work light on any electrical power cord! ⚠ WARNING! The hook is only used to lift the light and is not intended to bear any additional weight or support your weight in any situation	See Fig.D2

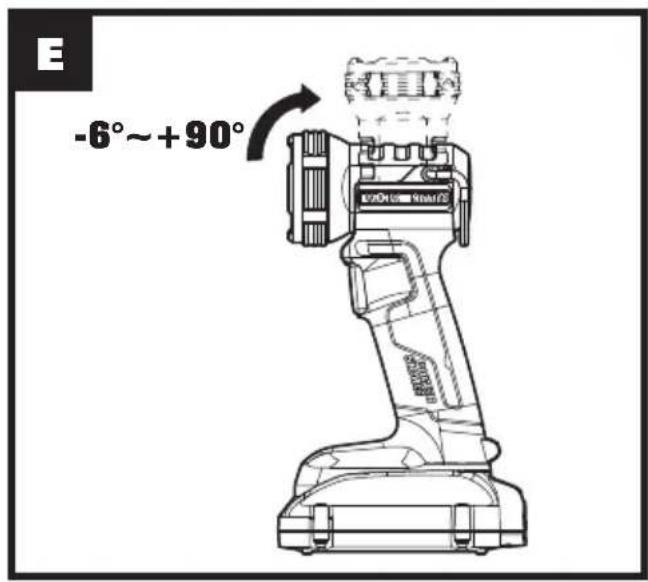

Pivoting head adjusts light beam towards working area at a range of -6° to 90°.	See Fig.E

5. MAINTENANCE

Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your tool. Never use water or chemical cleaners to clean your tool. Wipe clean with a dry cloth. Always store your tool in a dry place.

6. CLEANING

Use a dry clean cloth wipe the light and make sure not to use water or immerse the light into water for cleaning.

WARNING: Never use solvents or other harsh chemicals to clean the light. Never let any liquid slide into the light.

20V Cordless Jobsite Light EN
