USER MANUAL Spider Qtus

Congratulations on the purchase of your Qtus product.

We wish you and your child a lot of fun discovering the world. If you would like to share something with us or if you have any questions, please contact us at: [e-mail]

KEEP THE MANUAL FOR FUTURE REFERENCE.

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

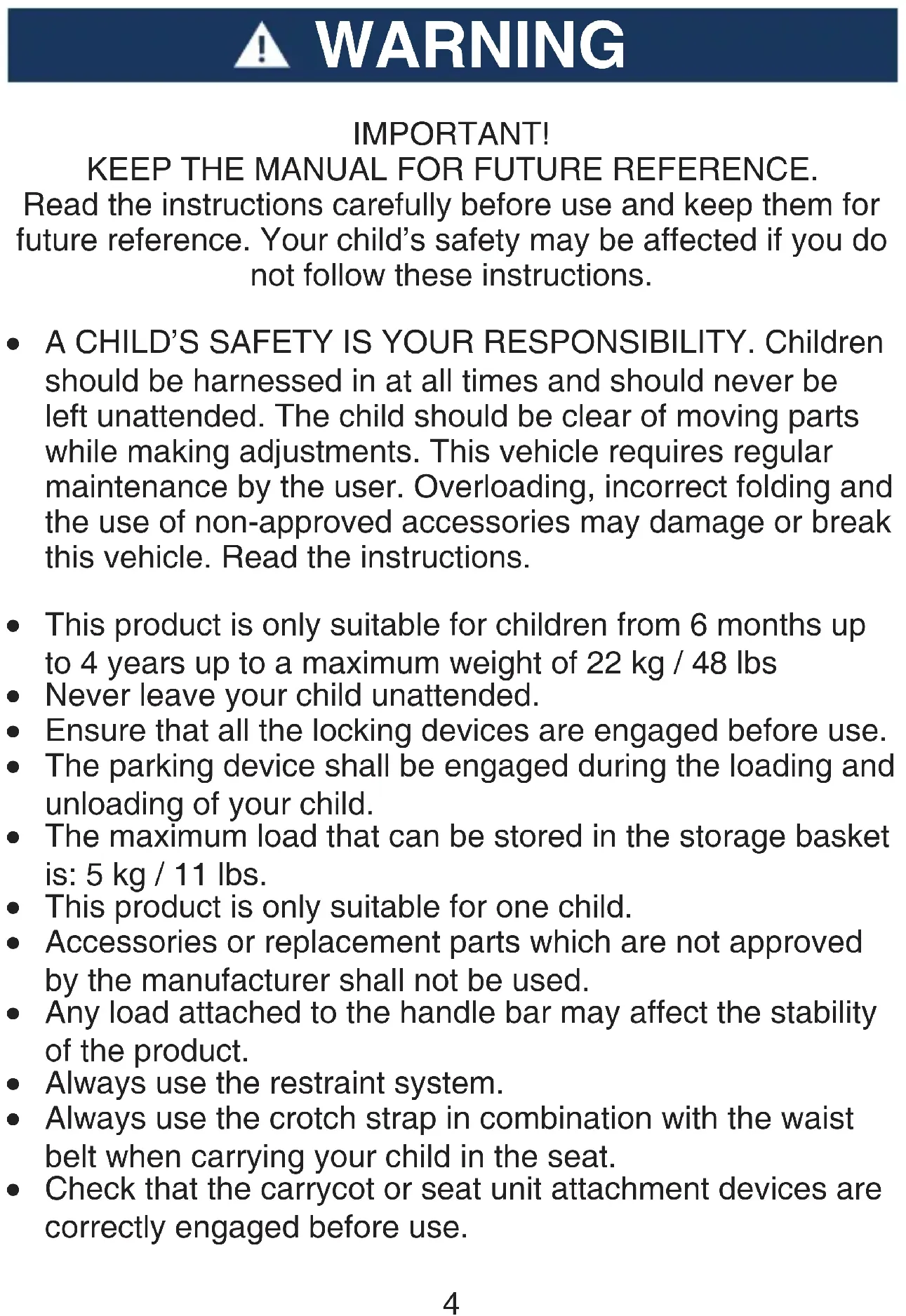

• A CHILD'S SAFETY IS YOUR RESPONSIBILITY. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.
• This product is only suitable for children from 6 months up to 4 years up to a maximum weight of 22 kg / 48 lbs
• Never leave your child unattended.
• Ensure that all the locking devices are engaged before use.
• The parking device shall be engaged during the loading and unloading of your child.
• The maximum load that can be stored in the storage basket is: 5 kg / 11 lbs.
• This product is only suitable for one child.
• Accessories or replacement parts which are not approved by the manufacturer shall not be used.
• Any load attached to the handle bar may affect the stability of the product.
• Always use the restraint system.
• Always use the crotch strap in combination with the waist belt when carrying your child in the seat.
• Check that the carrycot or seat unit attachment devices are correctly engaged before use.

WARNING

• This product is not suitable for running or skating.
• Carelessness causes fire.
• Incorrect folding/overloading and the use of non approved accessories may break or damage this product.
• Keep this plastic cover away from children to avoid suffocation.
• Do not let your child play with the Qtus Spider.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Never place more than 13kg in any car seat when attached to the stroller.
• The car seat does not replace a cot or bed. Should your child need to sleep, then it should be placed in a suitable bassinet/carrycot, cot or bed.

- TIP: If the instructions say left or right, this is always meant when looking from behind the Qtus Spider handles.

• When assembling the Spider there should not be a child in the seat or carrycot.
• Avoid dangerous situations. Take your child out of the Qtus Spider if you go up or down stairs, escalators or steep hills.
• The Qtus Spider should only be used with the accompanying seat and accessories. Only use the parts and accessories approved for use by Qtus.
• Do not use the Qtus Spider if any part is broken, torn, incomplete or does not seem to be functioning correctly.
• Never carry more than one child per place in this stroller.
• Never allow a child to step on the footrest to get in or out of the stroller.
• Always make sure the bumper bar is correctly installed before using the seat unit.

WARNING

• Avoid serious injury from falling or sliding out.
• Always install carrycot facing the stroller handle bar.

Parts list

Frame

Line drawing of a vehicle front view showing internal components (no text or symbols)

Seat

Line drawing of a curved mechanical component with two protruding ends (no text or symbols)

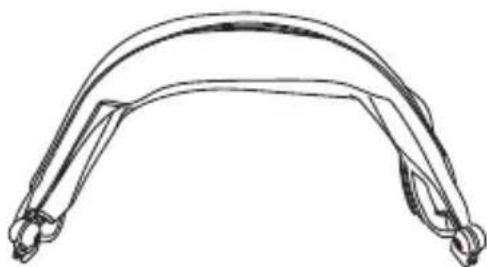

Canopy

Simple line drawing of a curved mechanical component or bracket (no text or symbols)

Front Bar

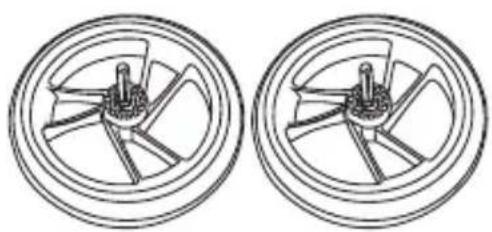

Rear Wheel x2

Introducing your new stroller

To ensure safe operation of your stroller, please follow these instructions carefully.

Labeled diagram of a children's stroller with numbered parts for identification

Introducing your new stroller

1. Seat adjustment handle
2. Handle bar
3. Handle bar adjustment button
4. Second lock
5. Folding button
6. Seat release button
7. Seat holder
8. Frame lock
9. Seat
10. Frame
11. Basket
12. Sun canopy
13. Canopy hinge
14. Front bar
15. Front bar release button
16. Seat connector
17. 5-Point safety harness
18. Footrest adjustment button
19. Footrest
20. Front wheel
21. Rear wheel

Assembling your stroller

- Unfolding the frame

Technical line drawing of a mechanical assembly with a hand adjusting a component (no text or symbols visible)

Simple red upward arrow symbol on white background (no text or labels)

1- Unlock the frame lock in the direction of the arrow.
2- Lift the frame until it unfolds completely.

• Install / remove the front wheels

Mechanical assembly diagram showing a hand holding a linkage with a red arrow indicating motion direction (no text or symbols present)

Diagram of a bicycle steering wheel with three close-up insets showing internal components (no text or labels)

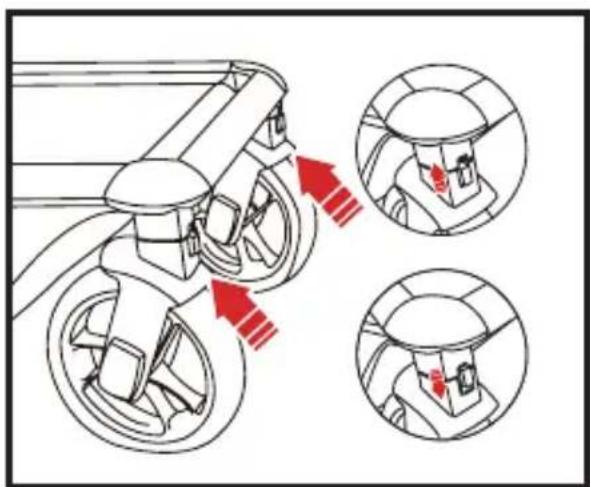

1- Insert the front wheel into the tube of the frame.
2-To fix the swivel wheels push the swivel wheel locks downwards.

Assembling your stroller

Technical illustration of a car wheel and steering wheel assembly, showing red arrows indicating motion or movement (no text or symbols present)

3- Press the release button and pull the front wheel out.

Install / remove the rear wheels

1- Insert the rear wheel into the tube of the frame until it is fully engaged.

2- Press the release button and pull the rear wheels out.

Assembling your stroller

- Adjusting the handlebar

Line drawing of a hand holding a tool with red arrows indicating movement or force direction (no text or symbols)

1- Press the handle bar adjustment buttons on both sides and move the handle to the desired position.

- Adjusting the seat

Line drawing of a hand holding a car wheel, with a red arrow indicating the handle (no text or symbols present)

1- Pull the seat adjustment handle to change the position of the seat.

Assembling your stroller

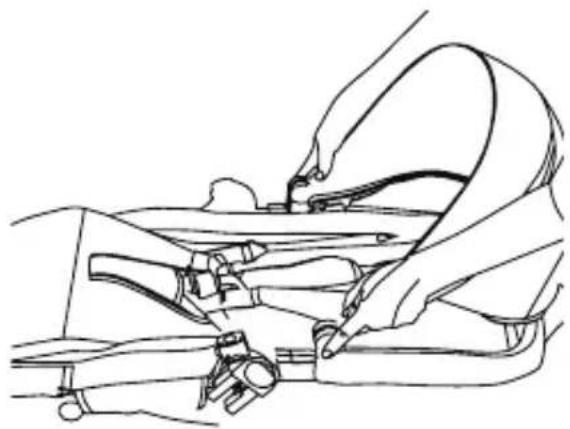

• Install / remove the sun canopy

Line drawing of a person seated in a vehicle seatbelt, no text or symbols present

1- Slide the canopy onto the seat frame in the direction of the arrow until it is fixed.
2- Zip up the canopy.

1- To remove the canopy, pull the canopy lock up and,

2- Slide the canopy off the seat frame.

Using your stroller

• Install the seat

Technical line drawing of a mechanical device with no visible text or symbols

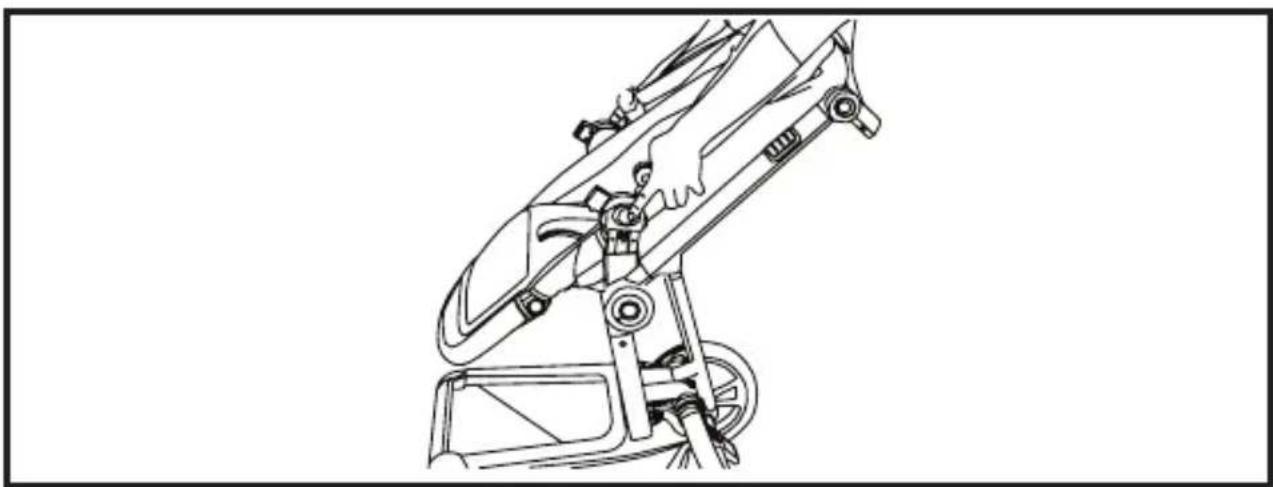

1- Align the two seat connectors with the seat holders, then press the seat downwards until you hear "click".

- Remove the seat

2- Press the seat release buttons on both sides and pull the seat upwards.

Using your stroller

- Changing the seat direction

Line drawing of a two-wheeled stroller with side and front views, showing internal mechanical components (no text or symbols)

1- Press the seat release buttons on both sides, pull the seat upwards, turn around and install the seat.

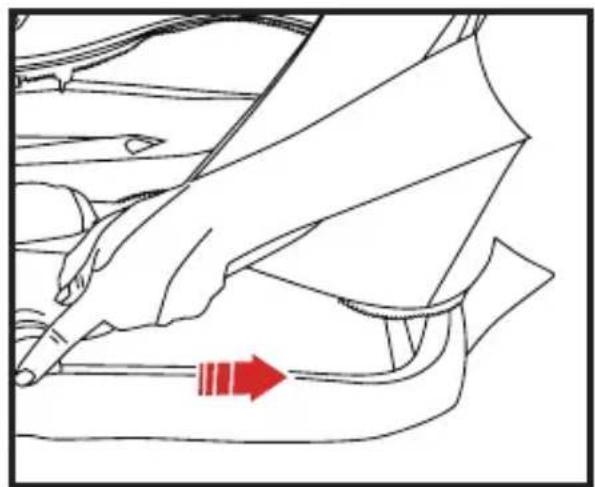

- Adjusting the footrest

Mechanical assembly diagram showing hands adjusting components with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with red directional arrow indicating motion (no text or symbols)

1- Press the footrest adjustment buttons on both sides.
2- Adjust the footrest to the desired position.

Using your stroller

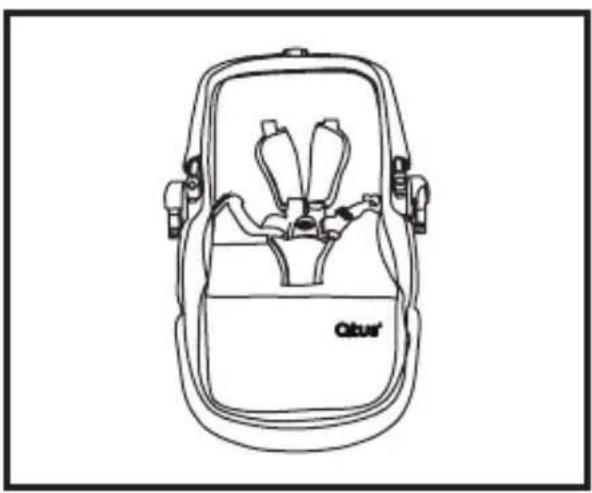

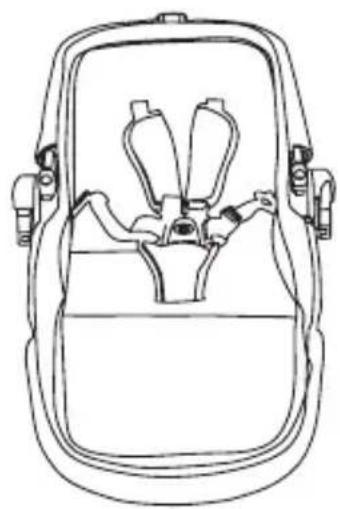

- 5-Point safety harness

Line drawing of a car back panel with no text or symbols

Line drawing of a baby stroller with three wheels and seat cover (no text or symbols)

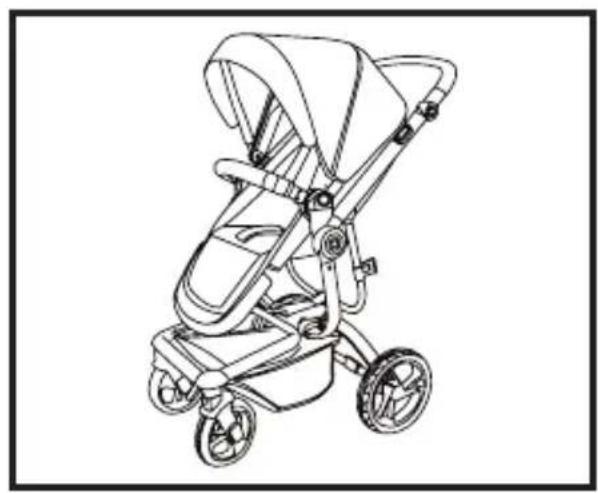

1- Always use the restraint system.

2- Always use the crotch strap in combination with the waist belt when carrying your child in the seat.

- Open / close the restraint system

Diagram of four hands holding a circular device with red directional arrows indicating rotation or movement (no text or symbols)

1- To open the 5-point harness, press the 5-point harness release button.

Simple diagram of a device with two curved components and a central rectangular component, no text or symbols present.

2- To close the harness, fit clips together. Slide the clips into the buckle until you hear "click".

Solid dark blue rectangular shape with no visible text, symbols, or features.

- Adjust the restraint system

Simple line drawing of two abstract geometric shapes with vertical lines and rectangular brackets (no text or symbols)

1- Unbuckle the straps, remove the shoulder pads and adjust the height. Put the shoulder pads back on and attach the clips.
2- Adjust the strap length with the D-rings.

• Install / remove the front bar

1- To attach the front bar, insert the front bar into the openings on the seat until you hear "click"

2- To remove the front bar, press the release button on both sides and remove the front bar.

- Applying the brake

Technical line drawing of a mechanical linkage or cable assembly (no text or symbols)

2- To unlock the rear wheel, push the brake pedal up.

Using your stroller

- Folding the stroller

Line drawing of a mechanical device with a red arrow indicating direction (no text or symbols)

1- Open the canopy

- Folding the stroller

Technical line drawing of a mechanical device with labeled parts and a close-up view of the component (no text or symbols present)

2- Press the second lock with right thumb (1). Pull the folding buttons on both sides upwards (2). Push the stroller downwards (3) until it is fully folded (4).

Using your stroller

- Various car seats fit the Qtus car seat adapter set

Diagram illustrating a sewing machine tool with three circular insets showing different mechanical components and a red arrow indicating the direction.

Diagram comparing two stroller models with checkmark and cross symbols indicating selection or rejection.

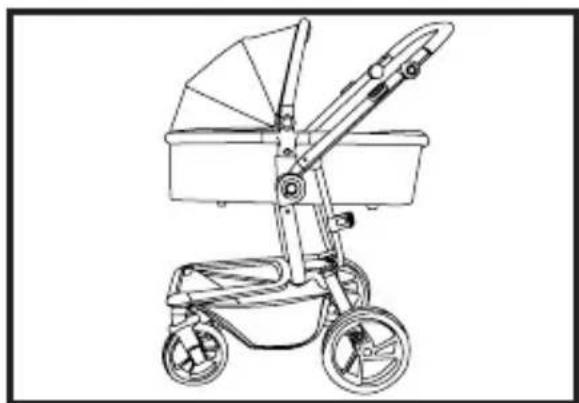

• The Qtus Spider carrycot fits also the Spider

Diagram of a manual pump tool with a red arrow indicating force or direction (no text or symbols)

Diagram of a mechanical device with a fan blade and lever mechanism, showing motion direction (no text or symbols)

Diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Line drawing of a two-wheeled baby stroller with canopy and wheels (no text or symbols)

Care And Maintenance

Check your Qtus Spider regularly.

Regularly clean the Qtus Spider. Use a damp cloth and a mild cleaning solution if necessary.

The swivel wheel holders and the front wheel axles get dirty.

Take the wheels off on a regular basis and clean them with lukewarm water. Ensure that all parts are dried thoroughly and oil the axles lightly with oil or silicone spray before replacing the wheels.

Avoid exposing the Qtus Spider to extreme temperatures. The Qtus Spider is not resistant to salt water. Never bleach, dry-clean.

Fabrics used on the Qtus Spider are removable and washable. Before washing always remove the fastenings, foam, plastic or metal parts. Always refer to the washing label on each part.

During wet weather always use the rain cover. If the Qtus Spider is wet due to cleaning or rain do not fold but leave to dry, opened out, in a well ventilated room.

Parts of the Qtus Spider can slightly discolour or become worn as a result of weather conditions and usage. This can also occur with normal usage.

The utmost care was exercised in designing and compiling these instructions. The content however, is subject to change without notice. Qtus shall not be liable for technical errors or omissions contained in this manual.

The purchased product may differ from the product as described in this manual. Check for the most recent manuals on the Qtus website.

www.Qtus.eu

Warranty

In its capacity as brand owner, Qtus provides a warranty for the Qtus products, under the following conditions:

The warranty commences on the date stated on the proof of purchase and is valid for two years. This is in accordance with the manufacturer's (importer's) specification concerning correct use of the product or what may be expected as normal when using it.

The guarantee for rims, outer tires, inner tubes, foam, spokes, covers and accessories only relates to construction and/or material faults. If you have any doubts about the state of one or more of the components, contact the shop where you purchased the product. The retailer will assess the product and carry out simple repairs. The retailer will always contact Qtus should there be serious problems. You cannot demand an exchange or refund.

Repairs do not allow the warranty period to be extended. Qtus is never liable for damage other than to the product marketed by Qtus.

IMPORTANT!: Keep your proof of purchase and the instructions safely.

IMPORTANT!: The serial number of the Qtus stroller can be found on the frame sticker.

Read more on www.Qtus.eu

Do not forget to complete the warranty form on the website www.Qtus.eu

Solid dark blue rectangular shape with no visible text, symbols, or features.

WARNING

WICHTIG!

Technical line drawing of a mechanical component with no visible text or symbols

Rahmen

Line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Sitz

Line drawing of a curved mechanical component with two protruding joints (no text or symbols)

Sonnendach

Simple line drawing of a curved mechanical or structural component with no text or symbols

Front Bar

Two identical line drawings of a mechanical wheel or fan assembly, showing stator and rotor blades (no text or symbols)

Hinterrad x2 Vorderrad x2

Two identical diagrams of a wheel with a central hub and a side panel, no text or symbols present.

Labeled diagram of a stroller with numbered parts for identification

Technical line drawing of a mechanical assembly with a hand adjusting a component (no text or symbols)

Mechanical device diagram showing a lever mechanism with a red upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a hand holding a linkage with a red arrow indicating direction (no text or symbols present)

Diagram of a bicycle steering wheel with three circular insets showing internal components (no text or labels)

Diagram showing a mechanical component with red arrows indicating motion or force direction (no text or symbols present)

Line drawing of a hand holding a tool with red arrows indicating movement or force (no text or symbols)

Line drawing of a hand pressing down on a car wheel, with a red arrow indicating the motion direction (no text or symbols)

Line drawing of a person adjusting a vehicle seatbelt, with a red arrow indicating the wheel (no text or symbols present)

Line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket and gear mechanism with a red arrow indicating direction (no text or symbols present)

Line drawing of a car wheel assembly with a hand adjusting the wheel (no text or symbols)

Technical line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of a mechanical device with red arrows indicating motion or force directions (no text or symbols)

Technical diagram showing two stroller designs with close-up views and directional arrows indicating assembly or repair steps.

Mechanical assembly diagram showing hands adjusting components with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with red directional arrow indicating motion (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Simple line drawing of a curved object resembling a tool or bracket (no text or symbols)

Top-down diagram of a circular mechanical or architectural component with four arms, no text or symbols present.

Empty white square with black border (no text or symbols)

Solid dark blue rectangular shape with no visible text, symbols, or features.

Simple line drawing of a curved object with two rectangular blocks attached (no text or symbols)

Line drawing of a bicycle steering wheel assembly with a hand operating the wheel (no text or symbols)

Line drawing of a hand operating a bicycle steering wheel, showing mechanical components and a red arrow indicating the motion direction (no text or symbols present)

Line drawing of a mechanical device with a red arrow pointing to a component (no text or symbols)

Technical line drawing of a mechanical device with labeled parts and a close-up view of the component (no text or symbols present)

Line drawing of a sewing machine needle stitching a pair of shoes (no text or symbols)

Pflege

Solid dark blue rectangular shape with no visible text, symbols, or features.

AVERTISSEMENT

IMPORTANT!

Line drawing of a vehicle front compartment with no text or symbols

Siège

Cadre

Line drawing of a curved mechanical component with two protruding ends (no text or symbols)

Capote

Pure diagram of a curved mechanical or structural component with no text, numbers, or symbols

Barre avant

Two identical line drawings of a mechanical wheel or fan assembly, showing stator and rotor blades (no text or symbols)

Two identical line drawings of a wheel with segmented arms and central hub (no text or symbols)

Labeled diagram of a stroller with numbered parts for identification

Technical line drawing of a mechanical assembly with a hand adjusting components (no text or symbols)

Diagram showing a mechanical component with red arrows indicating motion or force direction (no text or symbols present)

Diagram of a car steering wheel assembly with a red arrow indicating the wheel's direction (no text or symbols present)

Diagram of a car steering wheel assembly with a red arrow indicating the shaft direction (no text or symbols present)

Line drawing of a hand holding a tool with red arrows indicating movement or force direction (no text or symbols)

Line drawing of a hand pressing down on a car wheel, with a red arrow indicating the motion direction (no text or symbols)

Line drawing of a person adjusting a vehicle seatbelt, with a red arrow indicating the wheel (no text or symbols present)

Mechanical assembly diagram showing a bracket and mounting bracket with a red arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of a mechanical device with red arrows indicating motion or force directions (no text or symbols)

Line drawings of two baby strollers with side views showing internal components (no text or symbols)

Line drawing of a car back panel with no text or symbols

Line drawing of a baby stroller with three wheels and a canopy (no text or symbols)

Diagram of four mechanical arms with red directional arrows indicating rotation or force directions around a central circular component (no text or symbols)

Diagram showing four circular mechanical components with red directional arrows indicating movement or force (no text or symbols)

Simple line drawing of two mechanical components with no text or symbols

Line drawing of a hand operating a bicycle steering wheel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a red arrow pointing to a component (no text or symbols)

1- Ouvrez la capote

• Plier la poussette

Technical line drawing of a mechanical device with labeled parts and a close-up view of the component (no text or symbols present)

Line drawing of a sewing machine needle stitching a pair of shoes (no text or symbols)

Solid dark blue rectangular shape with no visible text, symbols, or features.

⚠ Waarschuwing

WAARSCHUWING! BELANGRIJK! BEWAAR DE GEBRUIKSAANWIJZING VOOR LATERE NASLAG.

Line drawing of a vehicle front compartment with no text or symbols

Zit

Line drawing of a curved mechanical component with two protruding ends (no text or symbols)

Zonnekap

Simple line drawing of a curved mechanical or structural component (no text or symbols)

Bumper bar

Technical line drawing of a mechanical component with no visible text or symbols

Achterwiel x2

Introductie

Labeled diagram of a children's stroller with numbered parts for identification

Introductie

Technical line drawing of a mechanical assembly with a hand adjusting a component (no text or symbols visible)

Empty white square with black border (no text or symbols)

Mechanical assembly diagram showing a hand holding a bracket with a red arrow indicating direction (no text or symbols present)

Diagram showing a mechanical component with red arrows indicating motion or force direction (no text or symbols present)

Diagram of a car steering wheel assembly with a red arrow indicating the wheel's direction (no text or symbols present)

Diagram of a car steering wheel assembly with a red arrow indicating the shaft direction (no text or symbols present)

Line drawing of a hand holding a tool with red arrows indicating movement or force (no text or symbols)

Line drawing of a hand holding a tool near a car wheel, with a red arrow indicating the action (no text or symbols present)

Line drawing of a person adjusting a vehicle seatbelt, with a red arrow indicating the wheel (no text or symbols present)

Line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket and mounting bracket with a red arrow indicating direction (no text or symbols present)

Line drawing of a car wheel assembly with a hand adjusting the wheel (no text or symbols)

Technical line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of a mechanical device with red arrows indicating motion or force directions (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Simple line drawing of a curved object resembling a tool or bracket (no text or symbols)

Top-down diagram of a circular mechanical or architectural component with four arms, no text or symbols present.

Empty white square with black border (no text or symbols)

Diagram showing two mechanical components with red arrows indicating force or movement, no text or symbols present

Top-down diagram of a circular mechanical or architectural component with four arms, no text or symbols present.

Line drawing of a bicycle steering wheel assembly with a hand operating the wheel (no text or symbols)

Line drawing of a hand operating a bicycle steering wheel, showing mechanical components and a red arrow indicating the motion direction (no text or symbols present)

Line drawing of a mechanical device with a red arrow pointing to a component (no text or symbols)

1- Open de zonnekap

- Folding the stroller

Technical line drawing of a mechanical device with labeled parts and a close-up view of the component (no text or symbols present)

Line drawing of a mechanical component with curved and oval features (no text or symbols)

Line drawings of two stroller models, one front and one side, showing different frame designs (no text or symbols)

Solid dark blue rectangular shape with no visible text, symbols, or features.

Contact

Qtus Headquarters

Suevenpoort 16

3991 EJ Houten

The Netherlands

T: [phone]

E: [e-mail]

W: www.qtus.eu

Solid dark blue rectangular shape with no visible text, symbols, or features.

Solid dark blue rectangular shape with no visible text, symbols, or features.

Solid dark blue rectangular shape with no visible text, symbols, or features.

DISCOVER TOGETHER

qtusworld @qtusworld qtus strollers

Qtus

Suevenpoort 16, 3991 EJ, Houten

The Netherlands.

www.Qtus.eu
