USER MANUAL Tody Qtus

Congratulations on the purchase of your Qtus product.

We wish you and your child a lot of fun discovering the world. If you would like to share something with us or if you have any questions, please contact us at: [e-mail]

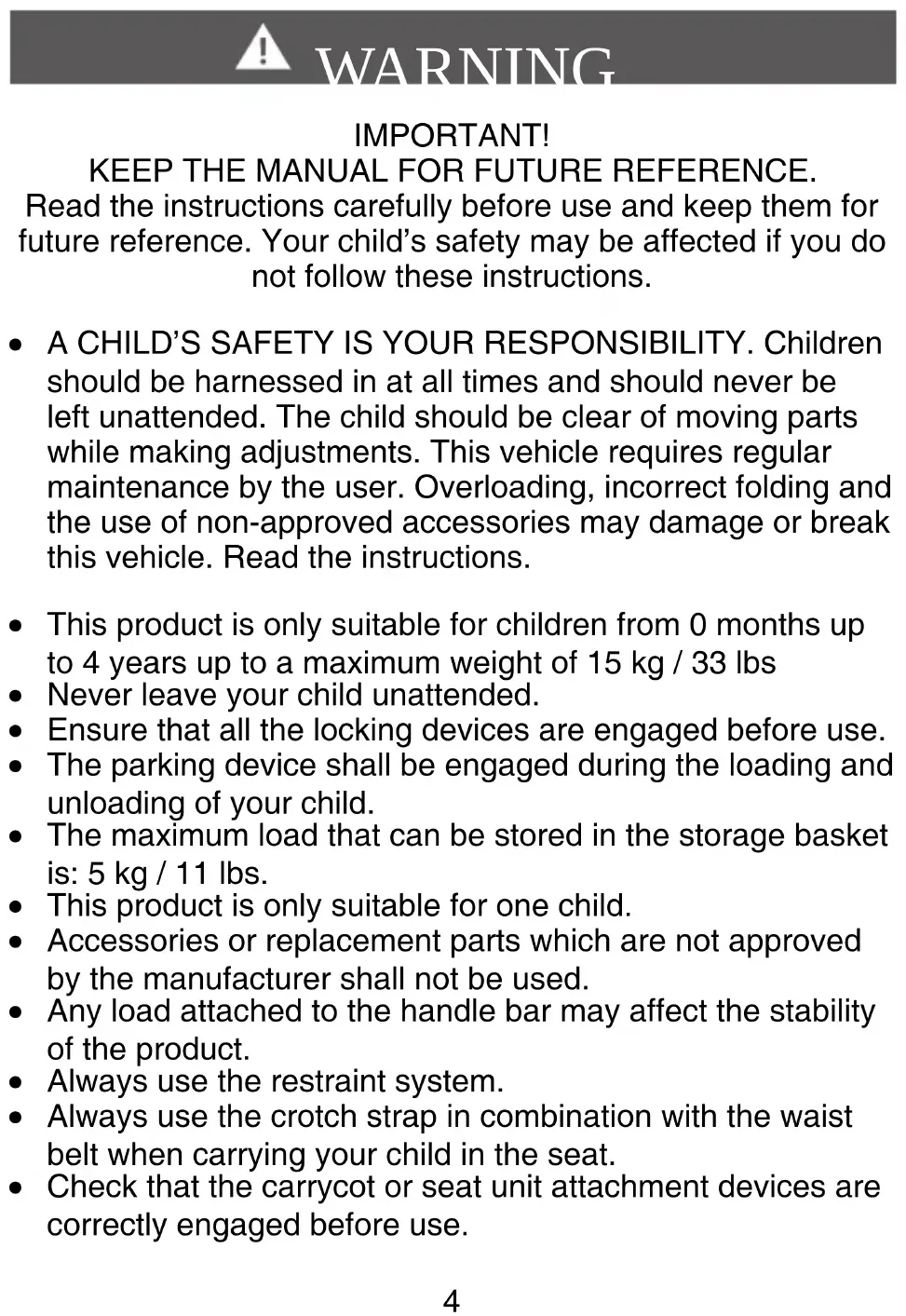

KEEP THE MANUAL FOR FUTURE REFERENCE.

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

- A CHILD'S SAFETY IS YOUR RESPONSIBILITY. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

• This product is only suitable for children from 0 months up to 4 years up to a maximum weight of 15 kg / 33 lbs
• Never leave your child unattended.
• Ensure that all the locking devices are engaged before use.
• The parking device shall be engaged during the loading and unloading of your child.
• The maximum load that can be stored in the storage basket is: 5 kg / 11 lbs.
• This product is only suitable for one child.
• Accessories or replacement parts which are not approved by the manufacturer shall not be used.
• Any load attached to the handle bar may affect the stability of the product.
  • Always use the restraint system.
• Always use the crotch strap in combination with the waist belt when carrying your child in the seat.
• Check that the carrycot or seat unit attachment devices are correctly engaged before use.

WARNING

• This product is not suitable for running or skating.
• Carelessness causes fire.
• Incorrect folding/overloading and the use of non approved accessories may break or damage this product.
• Keep this plastic cover away from children to avoid suffocation.
• Do not let your child play with the Qtus Tody.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Never place more than 13kg in any car seat when attached to the stroller.
• The car seat does not replace a cot or bed. Should your child need to sleep, then it should be placed in a suitable bassinet/carrycot, cot or bed.
• TIP: If the instructions say left or right, this is always meant when looking from behind the Qtus Tody handles.
• When assembling the Tody there should not be a child in the seat or carrycot.
• Avoid dangerous situations. Take your child out of the Qtus Tody if you go up or down stairs, escalators or steep hills.
• The Qtus Tody should only be used with the accompanying seat and accessories. Only use the parts and accessories approved for use by Qtus.
• Do not use the Qtus Tody if any part is broken, torn, incomplete or does not seem to be functioning correctly.
• Never carry more than one child per place in this stroller.
• Never allow a child to step on the footrest to get in or out of the stroller.

WARNING

• Always make sure the bumper bar is correctly installed before using the seat unit.
• Avoid serious injury from falling or sliding out.
• Always install carrycot facing the stroller handle bar.

Parts list

Simple line drawing of a T-shaped tool or marker (no text or symbols)

T-bar

Technical line drawing of a mechanical device with hoses and wheels (no text or symbols)

Frame

Introducing your new stroller

To ensure safe operation of your stroller, please follow these instruction carefully.

Labeled diagram of a baby stroller with numbered parts for identification

Introducing your new stroller

1. Canopy
2. T-bar
3. 5-point safety harness
4. Cushion
5. Footrest
6. Front wheel
7. Handle bar
8. Handle bar button
9. Seat adjustment handle
10. Arm rest
11. Basket
12. Folding lock
13. Brake
14. Rear wheel

Assembling your stroller

• Unfolding the stroller

Line drawing of a baby stroller with visible gears and wheels (no text or symbols)

Mechanical assembly diagram showing a red arrow indicating motion or force direction (no text or symbols present)

Mechanical assembly diagram showing hoses and brackets with a red arrow indicating a specific component (no text or symbols present)

Illustration of a robotic device with a hand holding a handle, showing motion direction (no text or symbols)

Illustration of a person in a seatbelt with a red upward arrow indicating motion or force (no text or symbols)

Line drawing of a baby stroller with wheels and seat (no text or symbols)

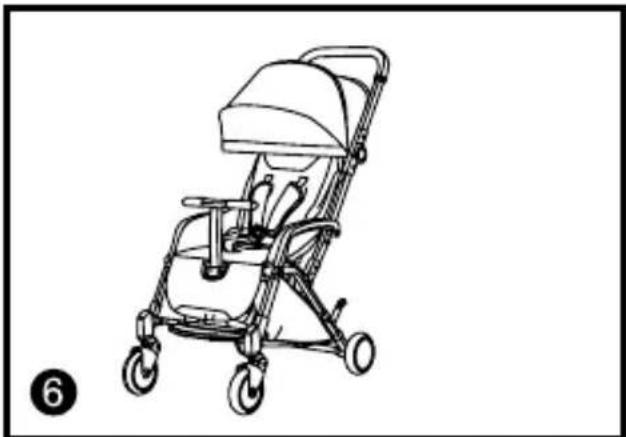

A. To unlock the frame push the folding lock outwards. (1, 2, 3) B. Pull the handle bar up until the stroller is fully unfolded (4, 5)

Using your stroller

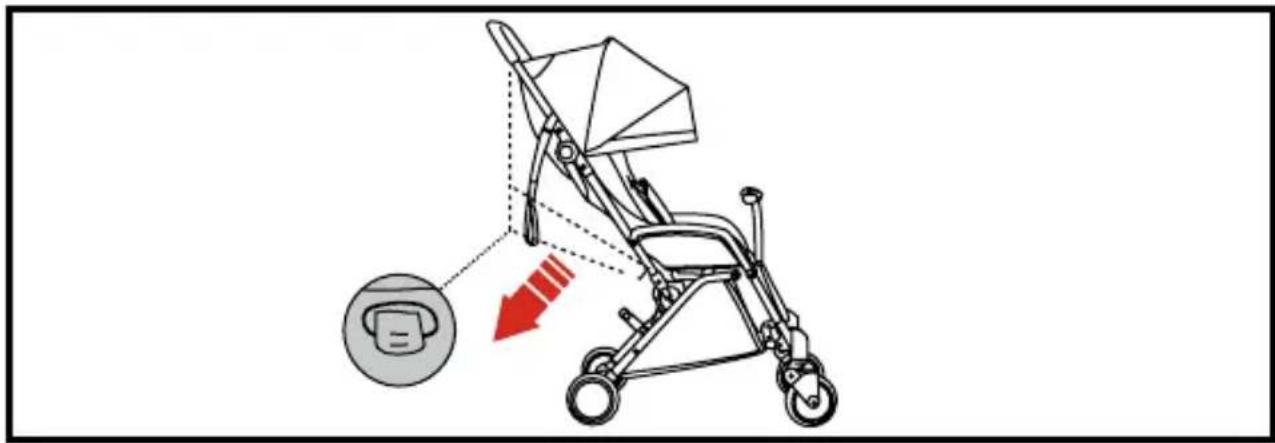

- Change seat position

Illustration of a baby stroller with a red arrow indicating motion or force, no text or symbols present

A. Pull the seat adjustment handle. Change the seat to the desired position.

• Install / remove the T-bar

Diagram of a car interior showing seatbelt and dashboard with red directional arrows indicating movement (no text or symbols)

A. Push the T-bar in its holder until it is fixed. B. Press the button under the T-bar, Pull the T-bar out and remove it.

Using your stroller

- Brake

Technical line drawing of a mechanical device with wheels and brackets (no text or symbols)

- Legrest adjustment

Simple line drawing of a vertical blade with a curved cutout and dashed outline, no text or symbols present

Using your stroller

• Open / close the restraint system

Diagram of a person wearing a seatbelt with red arrows indicating force or pressure points (no text or symbols)

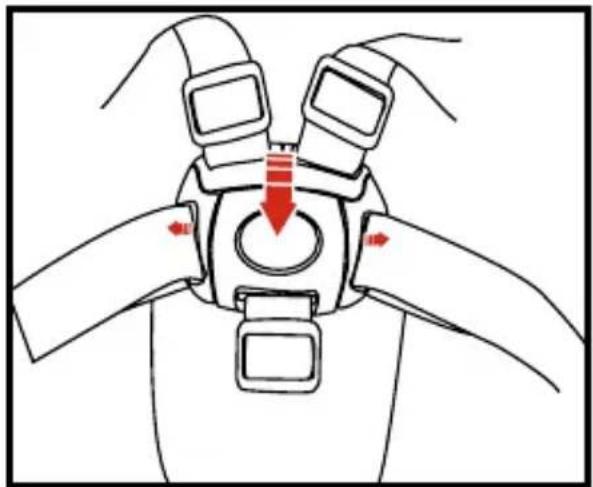

1- To open the 5-point harness, press the 5-point harness release button.

Diagram of a car seatbelt switch mechanism with red directional arrows indicating movement (no text or labels)

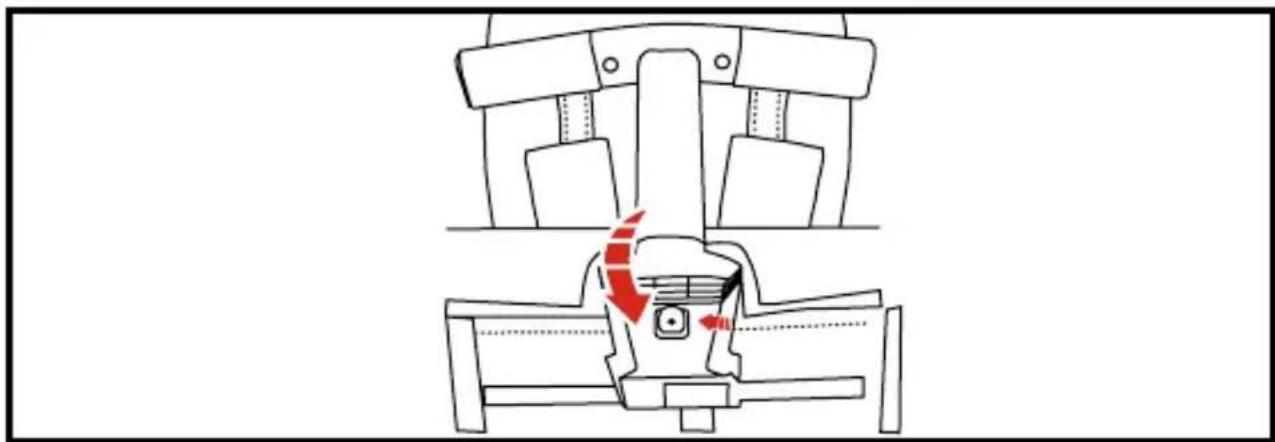

2- To close the harness, fit clips together. Slide the clips into the buckle until you hear "click".

- Adjust the restraint system

Diagram showing two mechanical components with red arrows indicating downward motion (no text or symbols)

Diagram showing car seatbelt adjustment mechanism with red directional arrows indicating movement or change

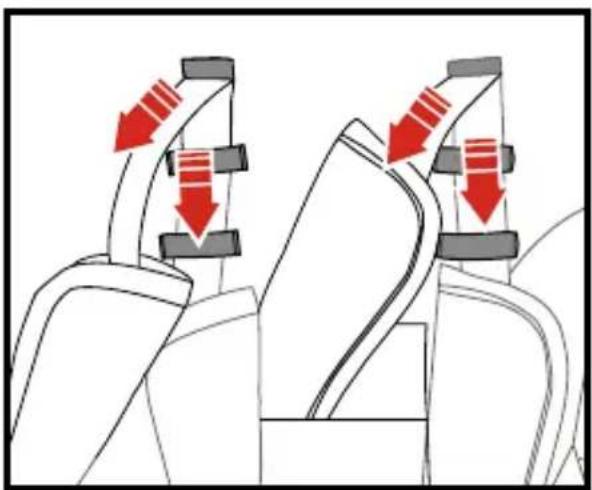

1- Unbuckle the straps, remove the shoulder pads and adjust the height. Put the shoulder pads back on and attach the clips. 2- Adjust the strap length with the D-rings.

Using your stroller

Line drawing of a hand using a tool to clean or adjust a small object, no text or symbols present

Line drawing of a hand operating a small wheeled vehicle (no text or symbols)

Line drawing of a child's stroller with wheels and seat (no text or symbols)

Line drawing of a stroller with a cloth cover and wheels (no text or symbols)

Technical line drawing of a mechanical device with wheels and a dome-shaped top (no text or symbols)

Care And Maintenance

Check your Qtus Tody regularly.

Regularly clean the Qtus Tody. Use a damp cloth and a mild cleaning solution if necessary.

The swivel wheel holders and the front wheel axles get dirty. Take the wheels off on a regular basis and clean them with lukewarm water. Ensure that all parts are dried thoroughly and oil the axles lightly with oil or silicone spray before replacing the wheels.

Avoid exposing the Qtus Tody to extreme temperatures. The Qtus Tody is not resistant to salt water. Never bleach, dry-clean.

Fabrics used on the Qtus Tody are removable and washable. Before washing always remove the fastenings, foam, plastic or metal parts. Always refer to the washing label on each part. During wet weather always use the rain cover. If the Qtus Tody is wet due to cleaning or rain do not fold but leave to dry, opened out, in a well ventilated room.

Parts of the Qtus Tody can slightly discolour or become worn as a result of weather conditions and usage. This can also occur with normal usage.

The utmost care was exercised in designing and compiling these instructions. The content however, is subject to change without notice. Qtus shall not be liable for technical errors or omissions contained in this manual.

The purchased product may differ from the product as described in this manual. Check for the most recent manuals on the Qtus website.

www.Qtus.eu

Warranty

In its capacity as brand owner, Qtus provides a warranty for the Qtus products, under the following conditions:

The warranty commences on the date stated on the proof of purchase and is valid for two years. This is in accordance with the manufacturer's (importer's) specification concerning correct use of the product or what may be expected as normal when using it.

The guarantee for rims, outer tires, inner tubes, foam, spokes, covers and accessories only relates to construction and/or material faults. If you have any doubts about the state of one or more of the components, contact the shop where you purchased the product. The retailer will assess the product and carry out simple repairs. The retailer will always contact Qtus should there be serious problems. You cannot demand an exchange or refund.

Repairs do not allow the warranty period to be extended. Qtus is never liable for damage other than to the product marketed by Qtus.

IMPORTANT!: Keep your proof of purchase and the instructions safely.

IMPORTANT!: The serial number of the Qtus stroller can be found on the frame sticker.

Read more on www.Qtus.eu

Do not forget to complete the warranty form on the website www.Qtus.eu

WARNUNG

WICHTIG!

Simple line drawing of a T-shaped tool or marker (no text or symbols)

T-bar

Technical line drawing of a baby stroller with wheels and a dome cover (no text or symbols)

Frame

Labeled diagram of a baby stroller with numbered parts for identification

Line drawing of a baby stroller with wheels and a seat (no text or symbols)

Mechanical assembly diagram showing a red arrow indicating a specific component or motion direction (no text or symbols present)

Mechanical assembly diagram showing pipe connections and a red arrow indicating a specific component (no text or symbols present)

Illustration of a robotic arm with a red upward arrow indicating motion or force (no text or symbols present)

Illustration of a person in a chair with a red upward arrow indicating motion or pressure (no text or symbols)

Line drawing of a baby stroller with wheels and seat (no text or symbols)

Diagram of a baby stroller with a magnified inset showing the seatbelt and red directional arrow indicating motion or movement.

Diagram of a car seatbelt mechanism with red directional arrows indicating motion (no text or symbols)

Mechanical assembly diagrams showing two configurations of a stroller with red directional arrows indicating motion (no text or symbols present)

Diagram of a bicycle seat with red directional arrows indicating motion or movement (no text or symbols)

Line drawing of a person wearing a seatbelt with red arrows indicating force or pressure points (no text or symbols)

Line drawing of a car interior with two seats and a central circular component, no text or symbols present

Diagram showing two mechanical components with red arrows indicating motion or force direction (no text or symbols)

Diagram showing car seatbelt buckle adjustment with red directional arrows indicating movement or change

Illustration of a hand using a tool to clean or adjust a component, with a red arrow indicating the process (no text or symbols present)

Line drawing of a robotic device with a red arrow indicating rotation or movement (no text or symbols)

Line drawing of a child's stroller with a red curved arrow indicating motion (no text or symbols)

Diagram of a stroller with red directional arrows indicating motion or movement (no text or symbols)

Line drawing of a stroller with red arrows indicating downward motion (no text or symbols)

Illustration of a backpack with a red upward arrow and number 6, no text or symbols present

Simple line drawing of a T-shaped tool or marker (no text or symbols)

T-bar

Technical line drawing of a baby stroller with wheels and a dome cover (no text or symbols)

Frame

Labeled diagram of a baby stroller with numbered parts for identification

Assembling your stroller

• Unfolding the stroller


Technical line drawings of a mechanical device and its wiring (no text or symbols)

Using your stroller

- Change seat position

Line drawing of a stroller with a red arrow indicating motion or movement, no text or symbols present

A. Pull the seat adjustment handle. Change the seat to the desired position.

• Install / remove the T-bar

Diagram of a car seatbelt mechanism with red directional arrows indicating motion (no text or symbols)

A. Push the T-bar in its holder until it is fixed. B. Press the button under the T-bar, Pull the T-bar out and remove it.

Using your stroller

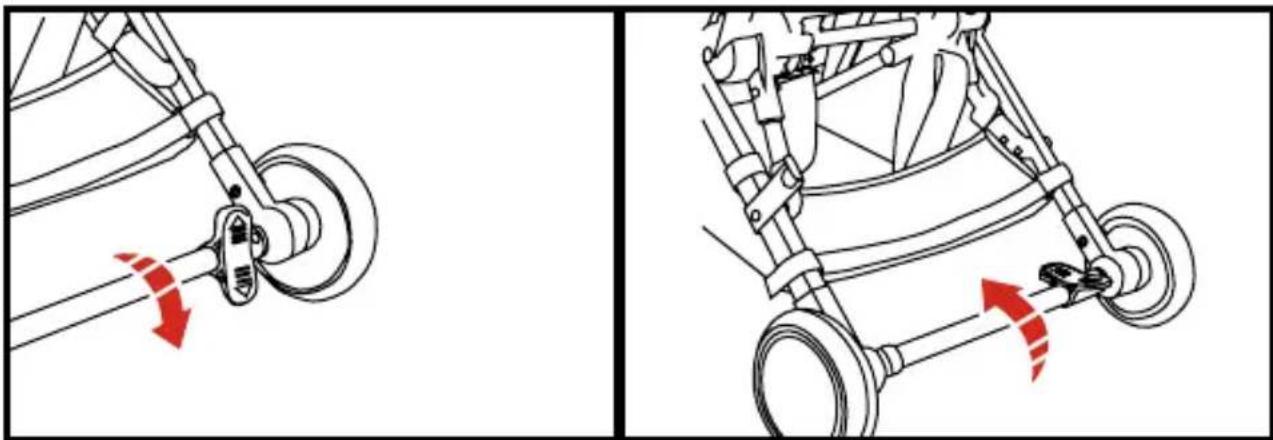

- Brake

Mechanical assembly diagrams showing two configurations of a vehicle's wheel and suspension system with red directional arrows indicating motion (no text or symbols present)

1. To Lock the rear wheel, push the brake pedal down, push the stroller until the real wheel is locked.

2. To unlock the rear wheel, push the brake pedal up.

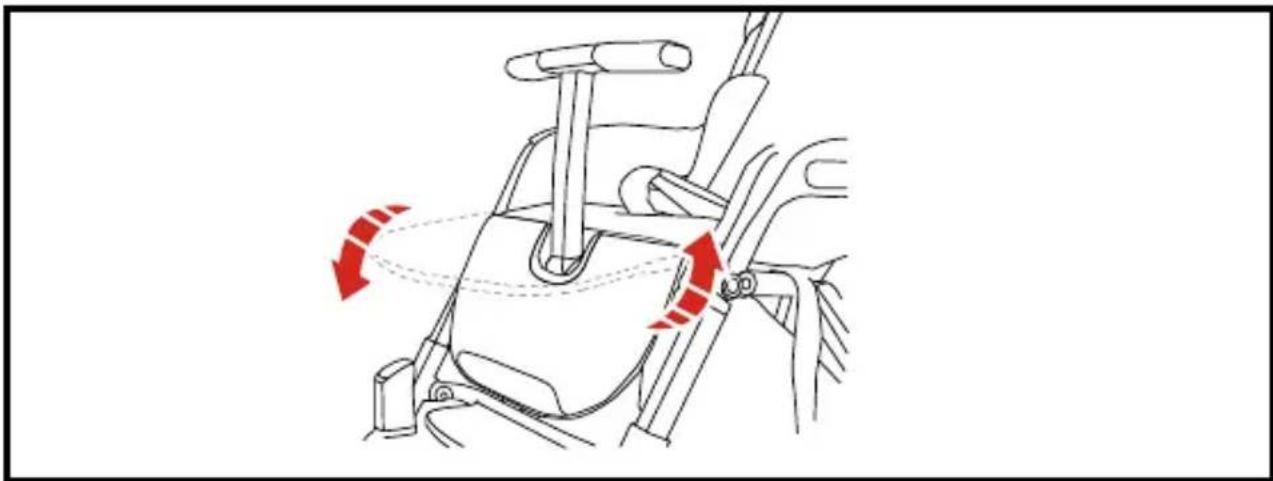

• Legrest adjustment

Diagram of a bicycle seat with red directional arrows indicating motion or movement (no text or symbols)

1. To adjust the legrest up, pull legrest up.
2. To adjust the legrest down, pull the triggers on both sides under the legrest and push down.

Using your stroller

- Open / close the restraint system

Line drawing of a person wearing a seatbelt with red arrows indicating force or pressure points (no text or symbols)

1- To open the 5-point harness, press the 5-point harness release button.

Line drawing of a car interior with two seats and a central circular component, no text or symbols present

2- To close the harness, fit clips together. Slide the clips into the buckle until you hear "click".

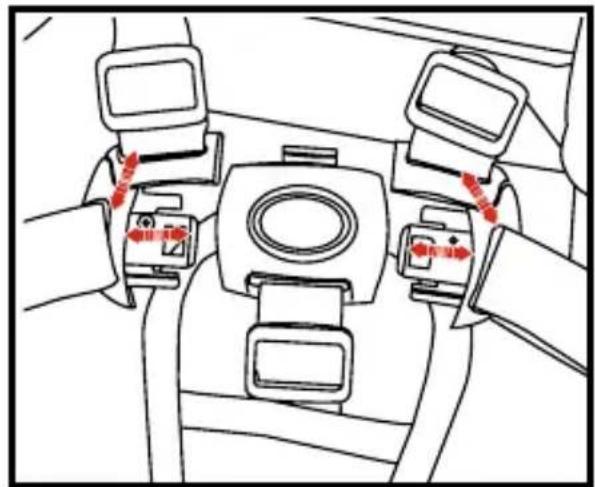

- Adjust the restraint system

Diagram showing two mechanical components with red arrows indicating motion or force direction (no text or symbols)

Diagram showing car seatbelt buckle adjustment with red directional arrows indicating movement or change

1- Unbuckle the straps, remove the shoulder pads and adjust the height. Put the shoulder pads back on and attach the clips. 2- Adjust the strap length with the D-rings.

Using your stroller

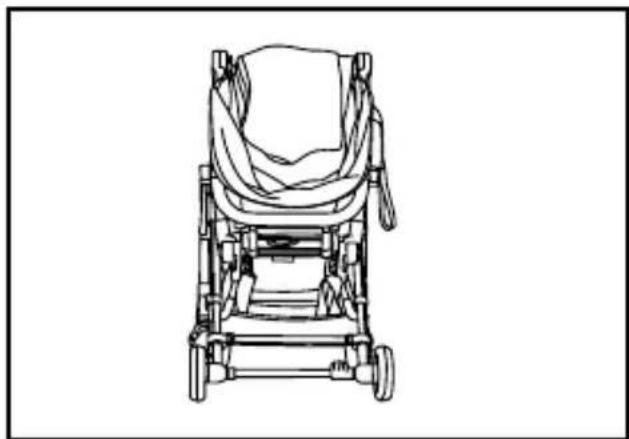

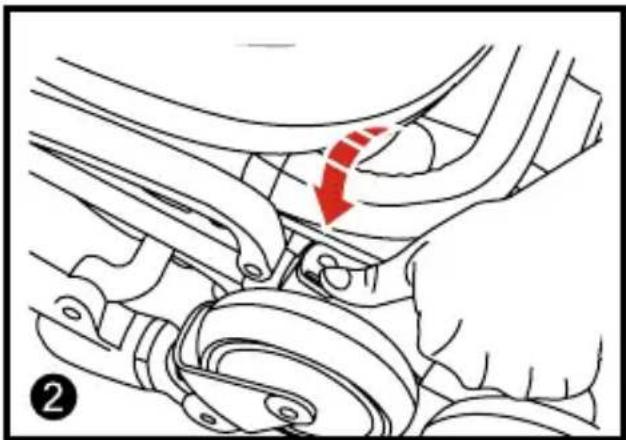

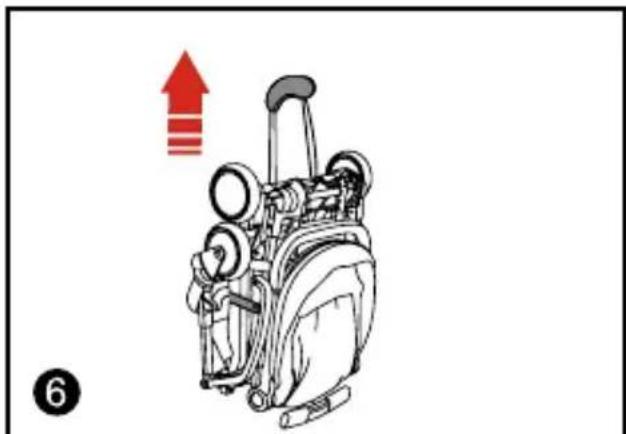

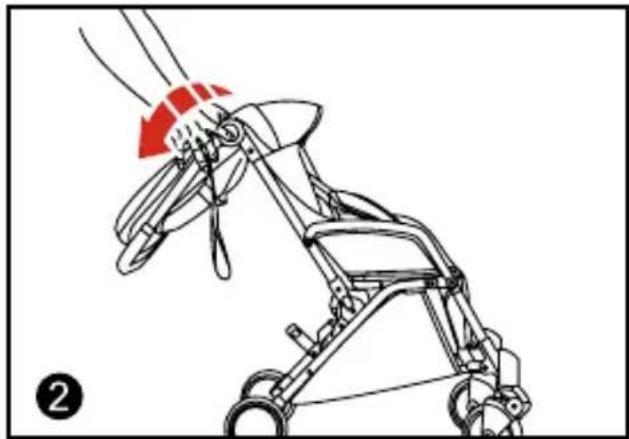

• Folding the stroller


Illustration of a hand using a tool to clean or adjust a component, with a red arrow indicating the process (no text or symbols present)

Diagram of a robotic device with a red arrow indicating rotation or movement, no text or symbols present

Line drawing of a child's stroller with a red curved arrow indicating motion (no text or symbols)

Diagram of a wheelchair seat with red arrows indicating motion or movement, no text or symbols present

Diagram of a stroller with red arrows indicating motion or force, no text or symbols present

Illustration of a suitcase with a red upward arrow and number 6, no text or symbols present

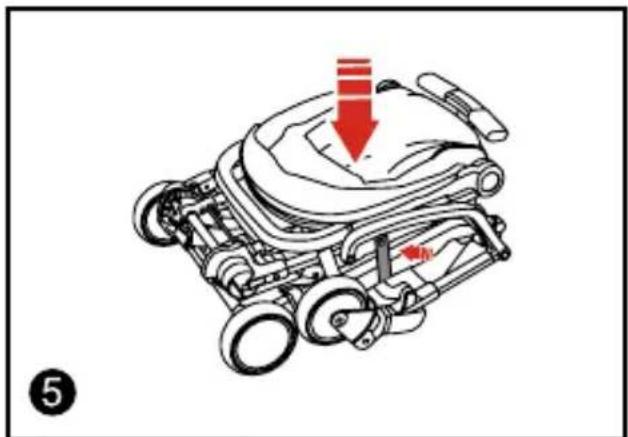

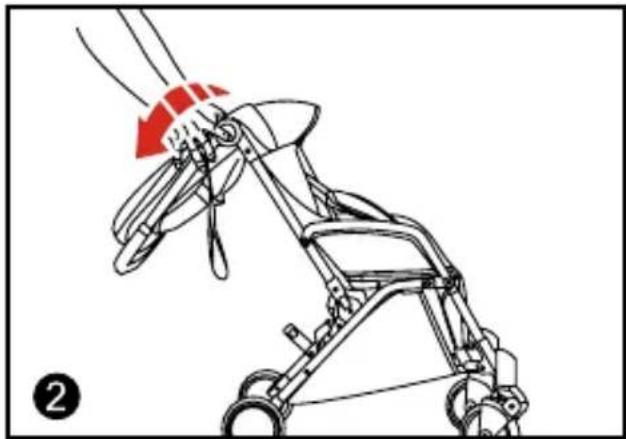

A- Fold the canopy, press the two handlebar buttons (1), then fold the handlebar completely downwards (2). B- Pull the folding axis, the stroller will fold automatically (4). Push the handle bar downwards until hearing a “Click” from the folding lock (5). Use the transportation strap to carry the stroller (6).

Simple line drawing of a T-shaped tool or marker (no text or symbols)

T-bar

Technical line drawing of a baby stroller with wheels and a dome cover (no text or symbols)

Frame

Introductie

Labeled diagram of a baby stroller with numbered parts for identification

Introductie

1. Zonnekap 8. Duwstangverstelknop
2. T-bar 9. Stoelverstelknop
3. 5-punts veiligheidsharnas 10. Armleuning
4. Zitkussen 11. Boodschappenmand
5. Voetensteun 12. Opvouwvergrendeling
6. Voorwiel 13. Rem
7. Duwstang 14. Achterwiel

Montage van de kinderwagen

Line drawing of a baby stroller with wheels and a tray (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of mechanical components including hoses, brackets, and levers (no text or symbols)

Line drawing of a robotic arm with articulated joints and wheels (no text or symbols)

Line drawing of a person wearing a seatbelt and holding a device (no text or symbols)

Line drawing of a baby stroller with wheels and a canopy cover (no text or symbols)

Line drawing of a baby stroller with a magnified inset showing the seat and red motion arrows (no text or symbols)

Technical line drawing of a mechanical component with a red arrow indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical device with wheels and brackets (no text or symbols)

• Verstelling van de beensteun

Line drawings of insect wing anatomy including wings, legs, and appendages (no text or labels)

Line drawing of a person wearing a seatbelt with red arrows indicating force or pressure points (no text or symbols)

Line drawing of a car interior with two seats and a central circular component, no text or symbols present

Diagram showing two mechanical components with red arrows indicating motion or force direction (no text or symbols)

Diagram showing car seatbelt buckle adjustment with red directional arrows indicating movement or change

Line drawing of a hand using a tool to clean or adjust a small object, no text or symbols present

Qtus Belgium & Luxembourg

Babimex NV

Dennenlaan 9

2340 Beerse

België

[e-mail]

www.babimex.be

Blank gray image with no visible content, text, or symbols

Solid gray rectangular shape with no text, symbols, or discernible features.

Qtus

Qtus

Overijsselhaven 135, 3433 PH

Nieuwegein The Netherlands.

www.Qtus.eu
