Lark - Stroller Qtus - Free user manual and instructions

Product type	Stroller
Brand	Qtus
Model	Lark
Recommended age	From birth to 4 years (0-48 months)
Maximum child weight	15 kg
Maximum basket load	5 kg
Restraint system	5-point safety harness
Brake	Brake pedal on rear wheels
Wheel type	Swivel front wheels, fixed rear wheels
Folding	Compact fold with frame lock
Backrest adjustment	Multiple reclining positions via handle and cord
Footrest adjustment	Adjustable to multiple positions
Removable front bar	Yes, with side release
Canopy	Sun protection (canopy) included
Fabric material	Machine washable fabric at 30°C max
Care and cleaning	Clean with damp cloth and mild detergent; oil axles regularly
Warranty	2 years from date of purchase
Not recommended for	Running, roller skating, rollerblading
Compatible accessories	Car seat (max 13 kg), accessories recommended by Qtus
Serial number	On the frame sticker

Frequently Asked Questions - Lark Qtus

How to assemble the Qtus Lark stroller?

Start by unfolding the frame by unlocking the frame lock and lifting the frame until it fully unfolds. Insert the front wheels into the frame tubes. Attach the front bar by clicking it into place until you hear a click. Make sure all locks are engaged before use. No child should be in the stroller during assembly.

How to fold the Qtus Lark stroller?

First, fold the seat backrest upward. Fasten the velcro so that the stroller stays folded flat. Make sure all parts are locked before storing the stroller.

What is the maximum weight supported by the stroller?

The maximum child weight is 15 kg. The basket can hold up to 5 kg. If you attach a car seat, do not exceed 13 kg in the car seat.

Is the Qtus Lark stroller suitable from birth?

Yes, it is designed for children from 0 months to 4 years. For newborns, use the reclined backrest position and ensure the harness is properly adjusted. You can also use a compatible carrycot or car seat.

How to clean the stroller fabrics?

The fabrics are removable and machine washable at 30°C maximum. Use a mild detergent. Do not tumble dry. Before washing, remove all metal or plastic parts. For the frame, use a damp cloth and mild detergent.

Is the stroller safe?

Yes, the Qtus Lark is equipped with a 5-point safety harness, a brake on the rear wheels, and frame locks. Always use the harness and brake. Never leave the child unattended and ensure all locks are engaged before use.

Can I use the stroller for jogging?

No, the Qtus Lark is not designed for running, roller skating, or rollerblading. Improper use may damage the stroller and compromise the child's safety.

What is the warranty of the Qtus Lark stroller?

The warranty is 2 years from the date of purchase, according to the manufacturer's specifications. The warranty covers construction and material defects. Keep your proof of purchase. Repairs do not extend the warranty. Register your product at www.Qtus.eu.

Can I attach a car seat to the stroller?

Yes, the stroller is compatible with some car seats, but the child's weight in the car seat must not exceed 13 kg. Ensure the car seat is properly attached and the fixing devices are engaged before use.

How to maintain the stroller wheels?

Regularly remove the wheels and clean them with warm water. Thoroughly dry all parts and lightly oil the axles with oil or silicone spray before reassembling the wheels. This ensures smooth operation.

USER MANUAL Lark Qtus

Congratulations on the purchase of your Qtus product.

We wish you and your child a lot of fun discovering the world. If you would like to share something with us or if you have any questions, please contact us at: [e-mail]

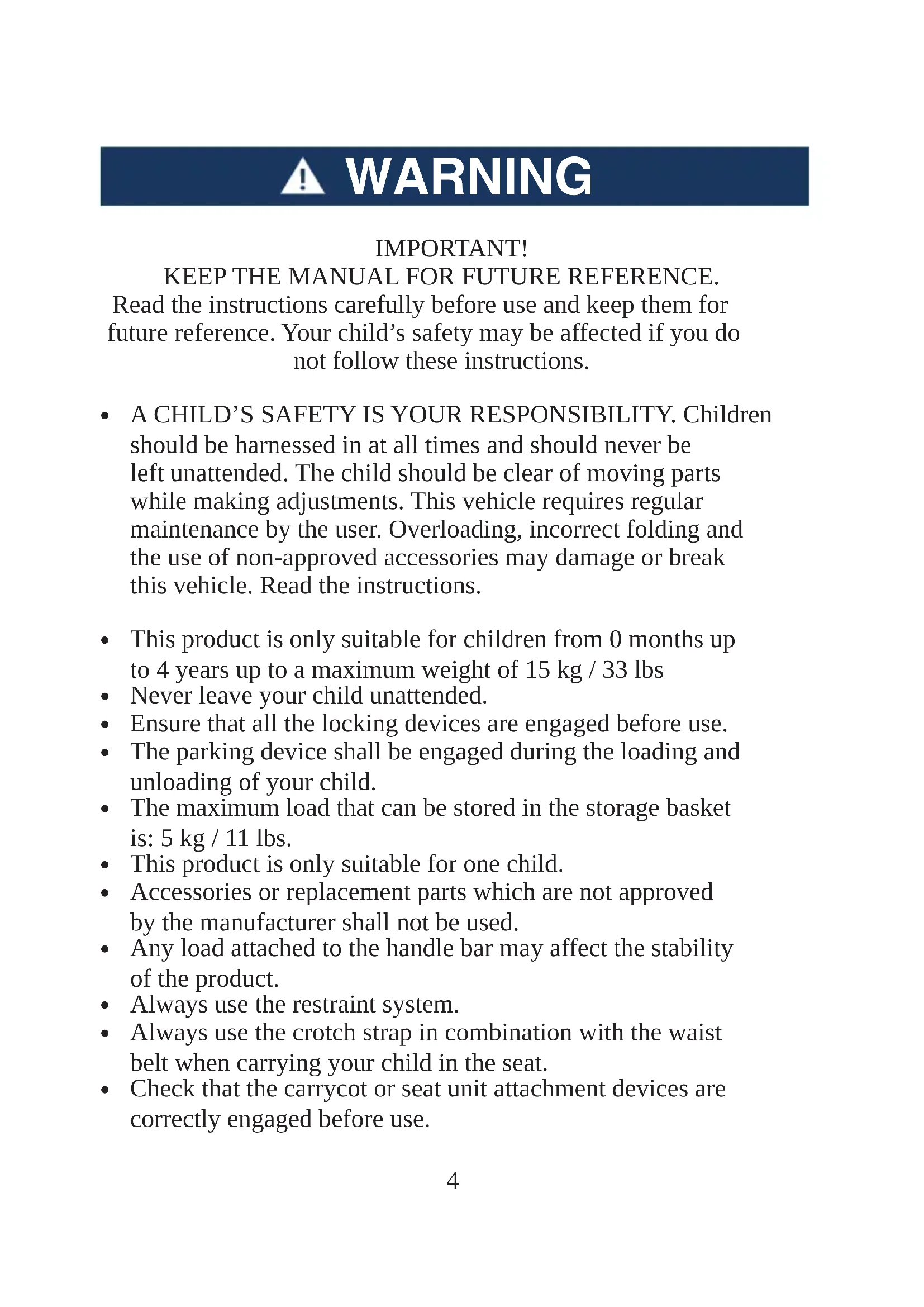

KEEP THE MANUAL FOR FUTURE REFERENCE. Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• A CHILD'S SAFETY IS YOUR RESPONSIBILITY. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.
• This product is only suitable for children from 0 months up to 4 years up to a maximum weight of 15kg / 33 lbs
• Never leave your child unattended.
• Ensure that all the locking devices are engaged before use.
• The parking device shall be engaged during the loading and unloading of your child.
• The maximum load that can be stored in the storage basket is: 5kg / 11 lbs.
  This product is only suitable for one child.
• Accessories or replacement parts which are not approved by the manufacturer shall not be used.
• Any load attached to the handle bar may affect the stability of the product.
  Always use the restraint system.
• Always use the crotch strap in combination with the waist belt when carrying your child in the seat.
• Check that the carrycot or seat unit attachment devices are correctly engaged before use.

WARNING

This product is not suitable for running or skating.
- Carelessness causes fire.
Incorrect folding/overloading and the use of non approved accessories may break or damage this product.
- Keep this plastic cover away from children to avoid suffocation.
- Do not let your child play with the Qtus Lark.
- To avoid injury ensure that your child is kept away when unfolding and folding this product.
- Never place more than 13kg in any car seat when attached to the stroller.
- The car seat does not replace a cot or bed. Should your child need to sleep, then it should be placed in a suitable bassinet/carrycot, cot or bed.
- TIP: If the instructions say left or right, this is always meant when looking from behind the Qtus Lark handles.
- When assembling the Lark there should not be a child in the seat or carrycot.
- Avoid dangerous situations. Take your child out of the Qtus Lark if you go up or down stairs, escalators or steep hills.
- The Qtus Lark should only be used with the accompanying seat and accessories. Only use the parts and accessories approved for use by Qtus.
- Do not use the Qtus Lark if any part is broken, torn, incomplete or does not seem to be functioning correctly.
- Never carry more than one child per place in this stroller.
- Never allow a child to step on the footrest to get in or out of the stroller.
- Always make sure the bumper bar is correctly installed before using the seat unit.

WARNING

• Avoid serious injury from falling or sliding out.
• Always install carrycot facing the stroller handle bar.

Parts list

Frame

Front Bar

Rear Wheel x2

Introducing your new stroller

To ensure safe operation of your stroller, please follow these instructions carefully.

Introducing your new stroller

1. Handle bar
2. Sun canopy
3. Bag hook
4. 5-Point safety harness
5. Canopy hinge
6. Front bar
7. Leg support
8. Frame lock
9. Footrest

10. Rear wheel

11. Front wheel

12. Basket
13. Folding button
14. Second lock
15. Frame
16. Seat adjustment handle
17. Seat adjustment cord
18. Footrest adjustment button
19. Brake

Assembling your stroller

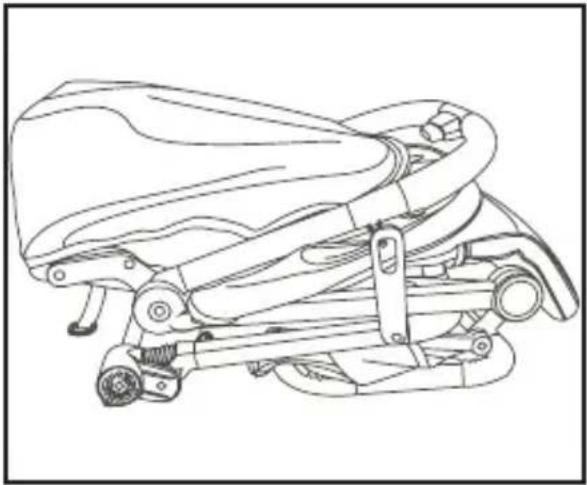

- Unfolding the frame

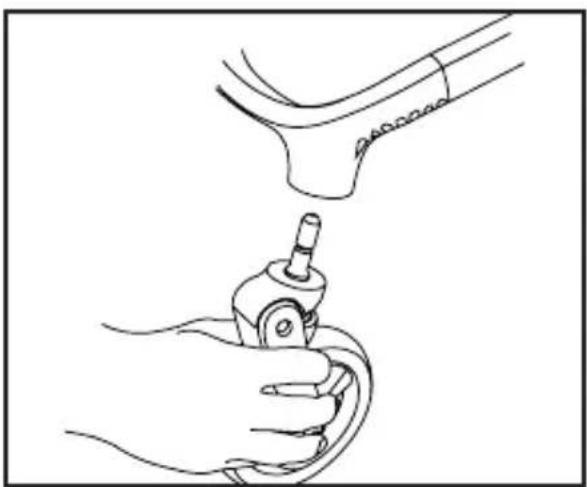

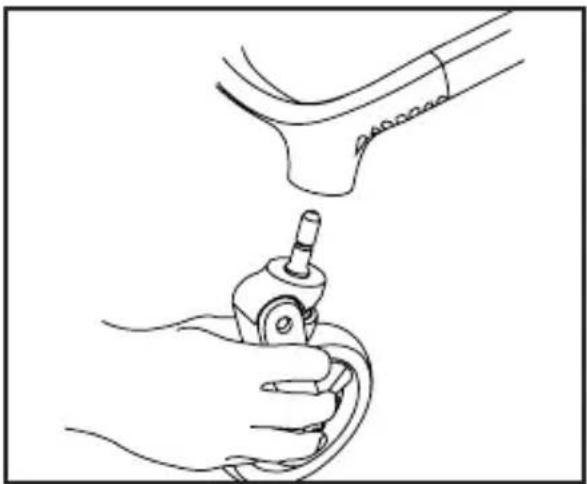

Install the front wheels

Assembling your stroller

- Remove the front wheels

1- Press the release button and pull the front wheel out.

Install / remove the rear wheels

1- Insert the rear wheel into the tube of the frame until it is fully engaged.

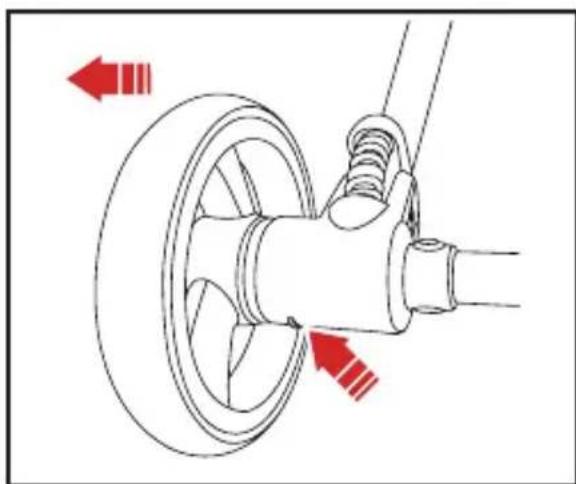

2- Press the release button and pull the rear wheels out.

Using your stroller

- Adjusting the seat

1- Pull the seat adjustment handle to change the position of the seat.

Adjusting the seat

2- Pull the seat adjustment cord to change the position of the seat.

Using your stroller

• Open / close the canopy

Adjusting the footrest

1- Press the footrest adjustment buttons on both sides.
2- Adjust the footrest to the desired position.

Using your stroller

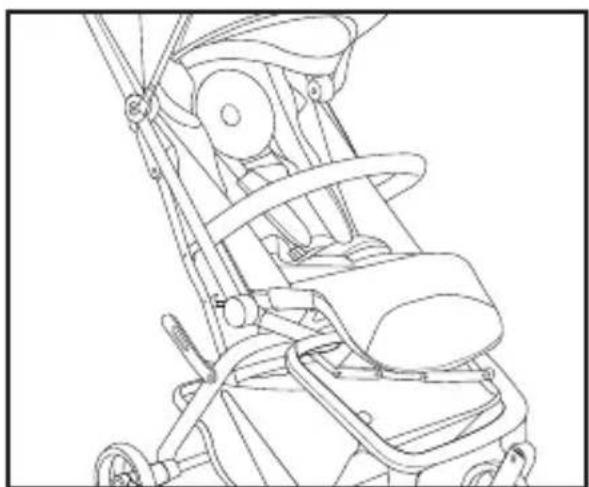

- 5-Point safety harness

1- Always use the restraint system.
2- Always use the crotch strap in combination with the waist belt when carrying your child in the seat.

- Open / close the restraint system

1- To open the 5-point harness, press the 5-point harness release button.

2- To close the harness, fit clips together. Slide the clips into the buckle until you hear "click".

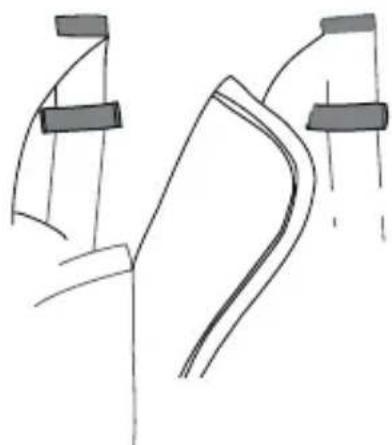

- Adjust the restraint system

1- Unbuckle the straps, remove the shoulder pads and adjust the height. Put the shoulder pads back on and attach the clips.
2- Adjust the strap length with the D-rings.

Install / remove the front bar

1- To attach the front bar, insert the front bar into the openings on the seat until you hear "click"

2- To remove the front bar, press the release button on both sides and remove the front bar.

Using your stroller

- Applying the brake

1- To lock the rear wheel, push the brake pedal down, push the stroller until the rear wheel is locked.

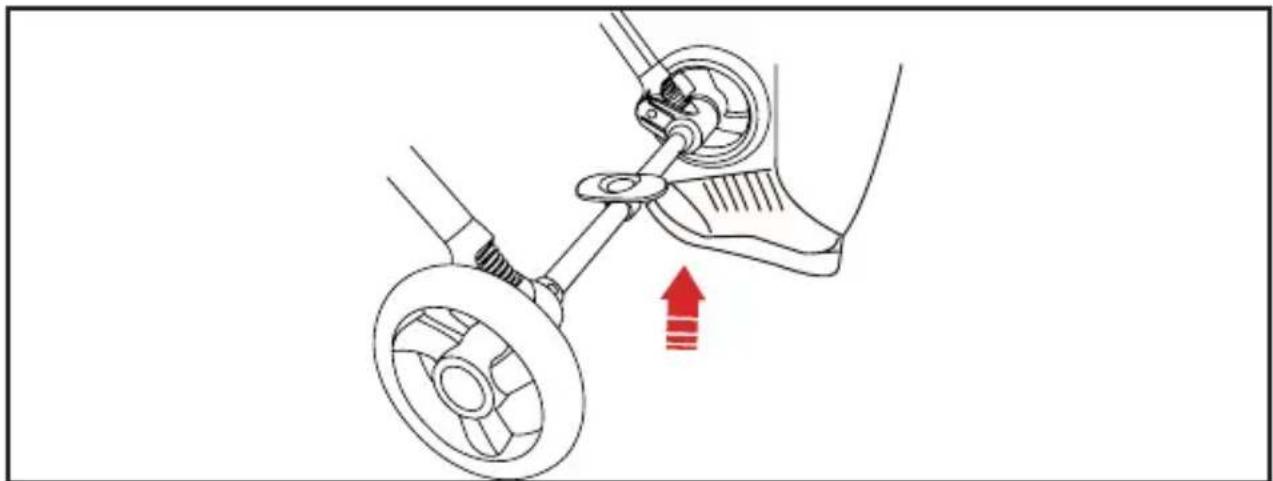

2- To unlock the rear wheel, push the brake pedal up.

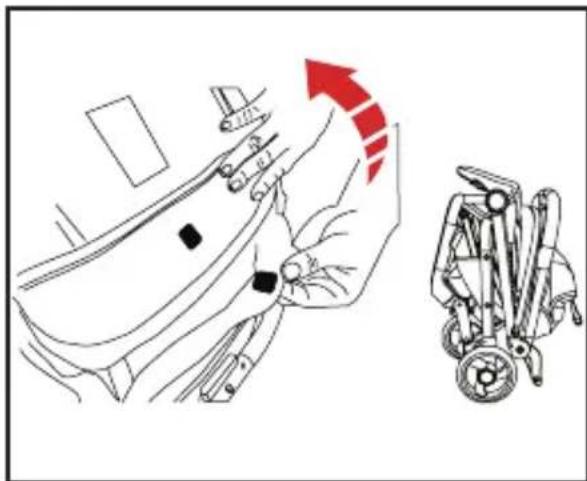

- Folding the stroller

1- Fold the back of the seat upwards.
2- Attach the Velcro to make the folded stroller flat

Care And Maintenance

Check your Qtus Lark regularly.

Regularly clean the Qtus Lark. Use a damp cloth and a mild cleaning solution if necessary.

The swivel wheel holders and the front wheel axles get dirty.

Take the wheels off on a regular basis and clean them with lukewarm water. Ensure that all parts are dried thoroughly and oil the axles lightly with oil or silicone spray before replacing the wheels.

Avoid exposing the Qtus Lark to extreme temperatures. The Qtus Lark is not resistant to salt water. Never bleach, dry-clean.

Fabrics used on the Qtus Lark are removable and washable.

Before washing always remove the fastenings, foam, plastic or metal parts. Always refer to the washing label on each part.

During wet weather always use the rain cover. If the Qtus

Lark is wet due to cleaning or rain do not fold but leave to dry, opened out, in a well ventilated room.

Parts of the Qtus Lark can slightly discolour or become worn as a result of weather conditions and usage. This can also occur with normal usage.

The utmost care was exercised in designing and compiling these instructions. The content however, is subject to change without notice. Qtus shall not be liable for technical errors or omissions contained in this manual.

The purchased product may differ from the product as described in this manual. Check for the most recent manuals on the Qtus website.

www.Qtus.eu

Warranty

In its capacity as brand owner, Qtus provides a warranty for the Qtus products, under the following conditions:

The warranty commences on the date stated on the proof of purchase and is valid for two years. This is in accordance with the manufacturer's (importer's) specification concerning correct use of the product or what may be expected as normal when using it.

The guarantee for rims, outer tires, inner tubes, foam, spokes, covers and accessories only relates to construction and/ or material faults. If you have any doubts about the state of one or more of the components, contact the shop where you purchased the product. The retailer will assess the product and carry out simple repairs. The retailer will always contact Qtus should there be serious problems. You cannot demand an exchange or refund.

Repairs do not allow the warranty period to be extended. Qtus is never liable for damage other than to the product marketed by Qtus.

IMPORTANT!: Keep your proof of purchase and the instructions safely.

IMPORTANT!: The serial number of the Qtus stroller can be found on the frame sticker.

Read more on www.Qtus.eu

Do not forget to complete the warranty form on the website www.Qtus.eu

WARNING

WICTIG!

Install the front wheels

• Remove the front wheels

Install / remove the rear wheels

- Folding the stroller

Qtus Suevenpoort 16,3991 EJ,Houten The Netherlands.
