Royal Line III ( 32 )

User manual

1. Safety instructions 03
   2.Delivery 03
2. Stand assembly (optional) 04

4. Designations

4.1 Front and side view 06
4.2 Connections 07
4.3 Remote control 08

5. First installation 09

6. Basic functions

6.1 Select input source 10
6.2 Navigation in the main menu 10

7. The Main Menu

7.1 Channel 11

7.1.1 Auto search (Satellite) 11
7.1.2 Manual Search (Satellite) 11

7.1.3 ATV manual search (analogue channel search) 12

7.1.4 Edit channels 13
7.1.5 Edit Satellite 14
7.1.6 Signal informations 15
7.1.7 CI Informations 16
7.1.8 5V antenna power 16
7.1.9 Software-Update (USB) 16
7.1.10 Automatic Search (Terrestrial) 17
7.1.11 Manual Search (Terrestrial) 17
7.1.12 Automatic Serach (Cable) 18
7.1.13 Manual Search (Cable) 18

7.2 Picture 19
7.3Sound 20
7.4Clock 21
7.5 Protection 22
7.6 Configuration 23

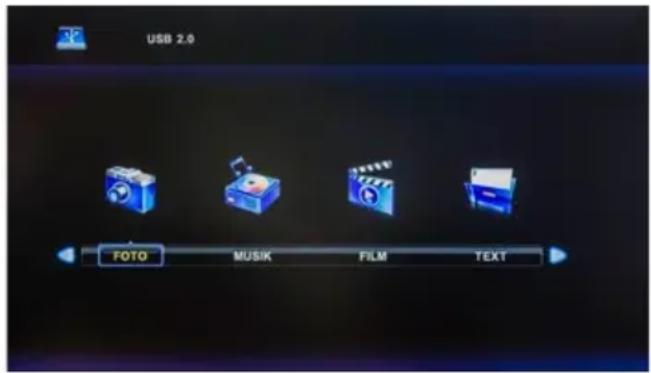

8. Multimedia operation (USB / DVD)

8.1 Photos 24
8.2 Music 25
8.3 Movies 26
8.4 DVD operation menu 27

9.EPG Menu (Programm Guide) 29

10. Cl+ slot for pay TV expansion 30

11.Troubleshooting 31
12. Specifications 32

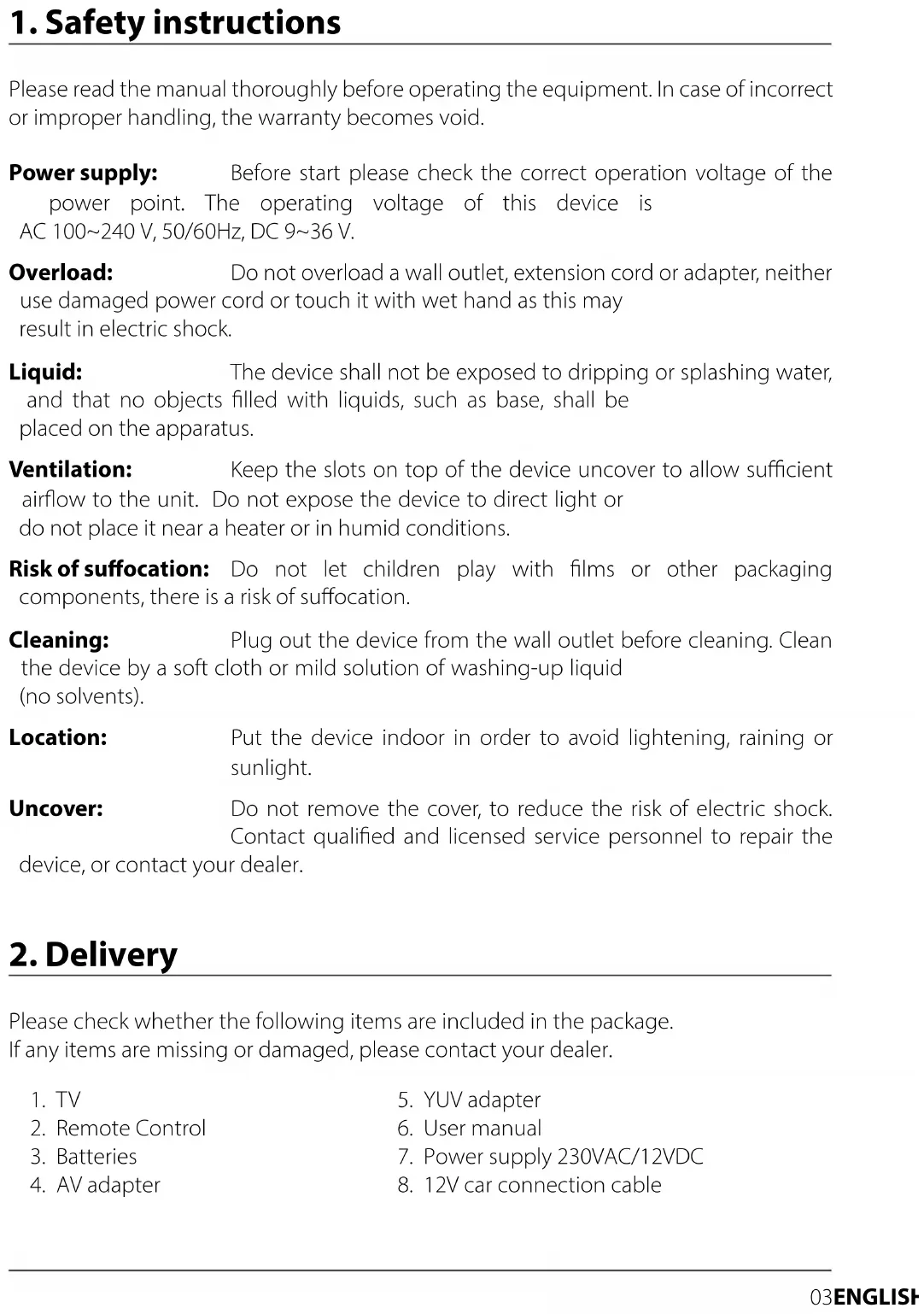

1. Safety instructions

Please read the manual thoroughly before operating the equipment. In case of incorrect or improper handling, the warranty becomes void.

Power supply: Before start please check the correct operation voltage of the power point. The operating voltage of this device is AC 100~240 V, 50/60Hz, DC 9~36 V.

Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.

Liquid: The device shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.

Ventilation: Keep the slots on top of the device uncover to allow sufficient airflow to the unit. Do not expose the device to direct light or do not place it near a heater or in humid conditions.

Risk of suffocation: Do not let children play with films or other packaging components, there is a risk of suffocation.

Cleaning: Plug out the device from the wall outlet before cleaning. Clean the device by a soft cloth or mild solution of washing-up liquid (no solvents).

Location: Put the device indoor in order to avoid lightening, raining or sunlight.

Uncover: Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the device, or contact your dealer.

2. Delivery

Please check whether the following items are included in the package. If any items are missing or damaged, please contact your dealer.

1. TV

2. YUV adapter

3. Remote Control

4. User manual

5. Batteries

6. Power supply 230VAC/12VDC

7. AVadapter

8. 12V car connection cable

3. Stand assembly (optional)

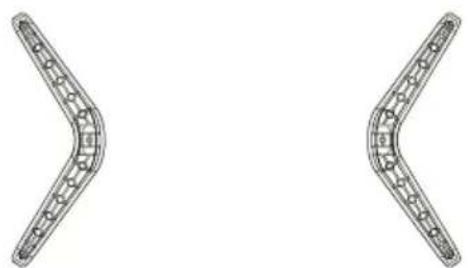

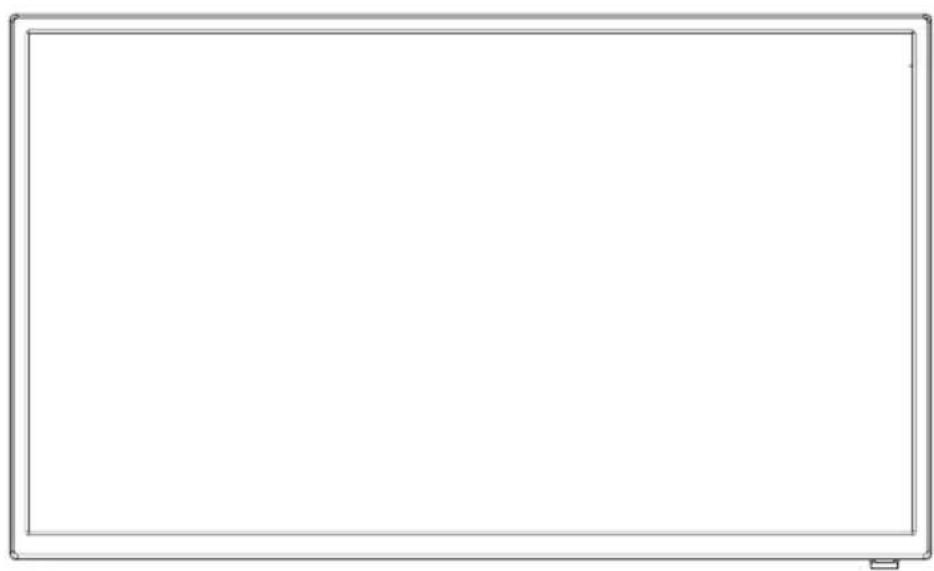

How to mount the stand

Note: Before assembling the feet, please check that all parts are complete and that there is no visible damage. If a part is missing or damaged, please contact your dealer.

Television

Stand

3. Stand assembly (optional)

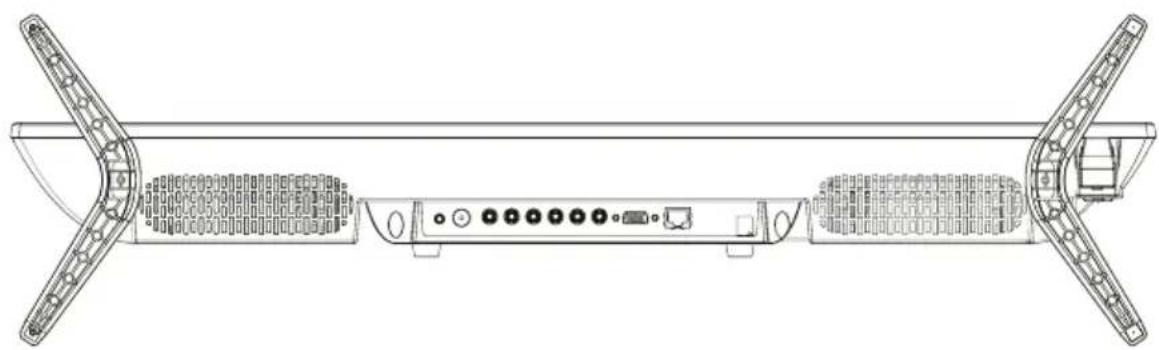

1. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.

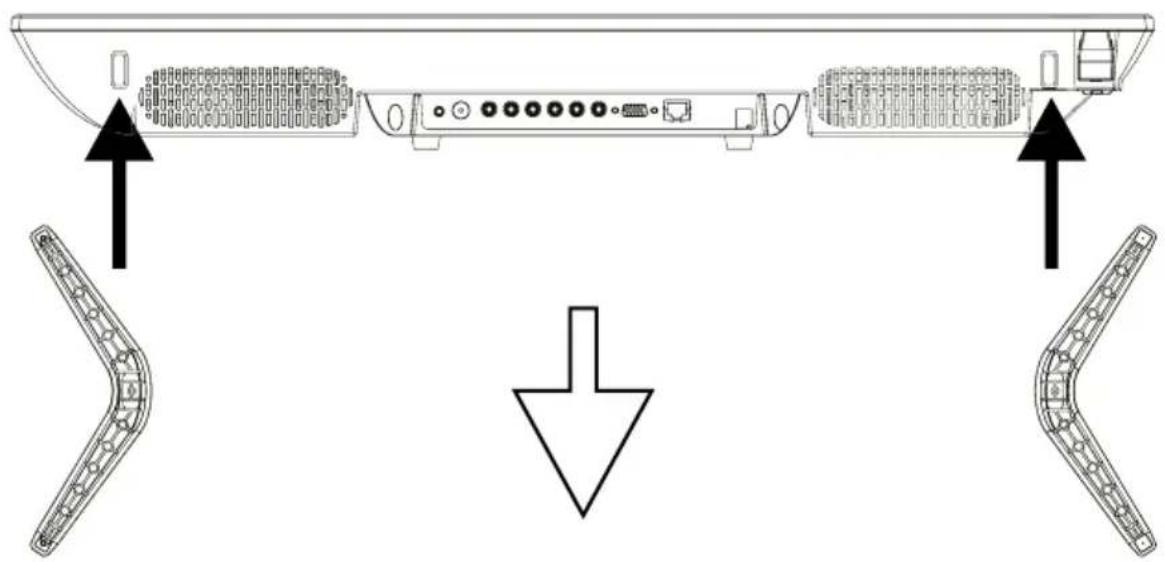

1. Insert the stand as shown on the TV.

1. Please make sure that the locking mechanism is engaged.

4. Designations

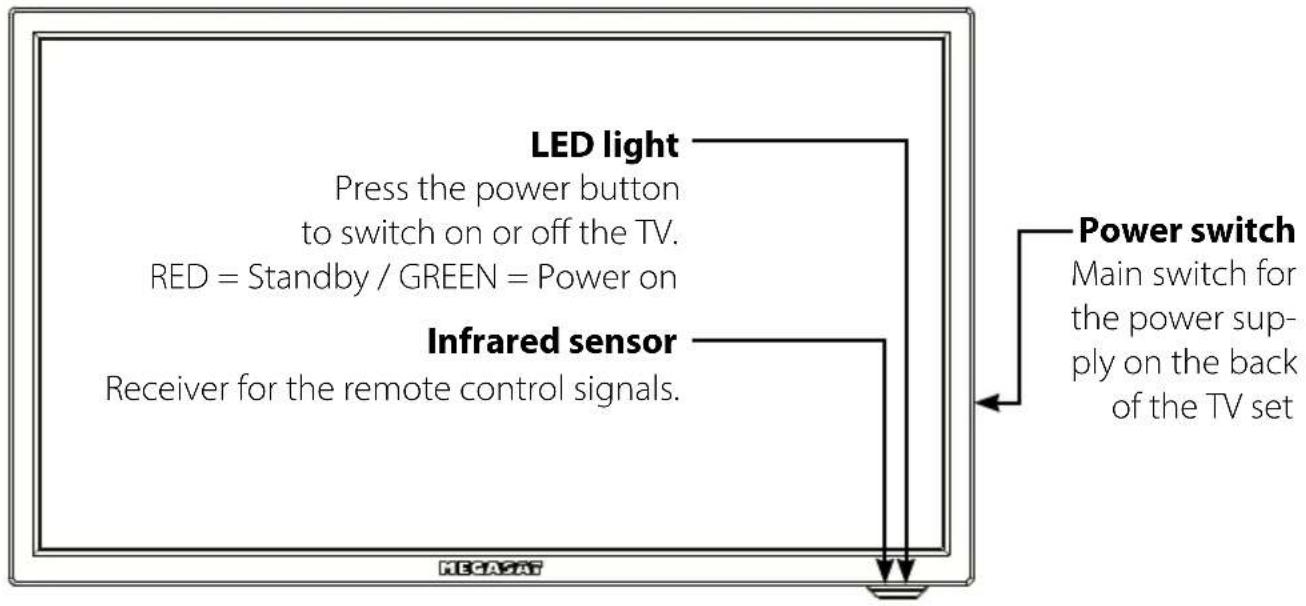

4.1 Front and side view

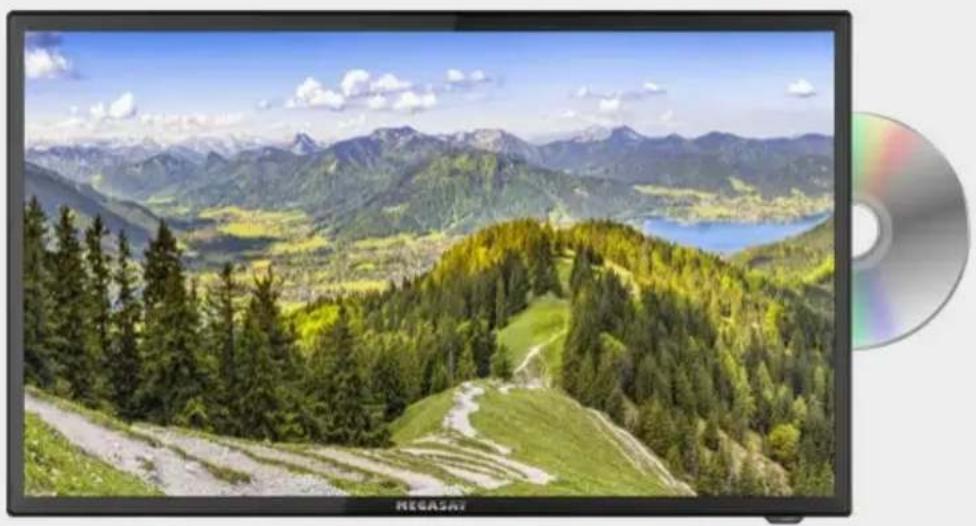

Front view

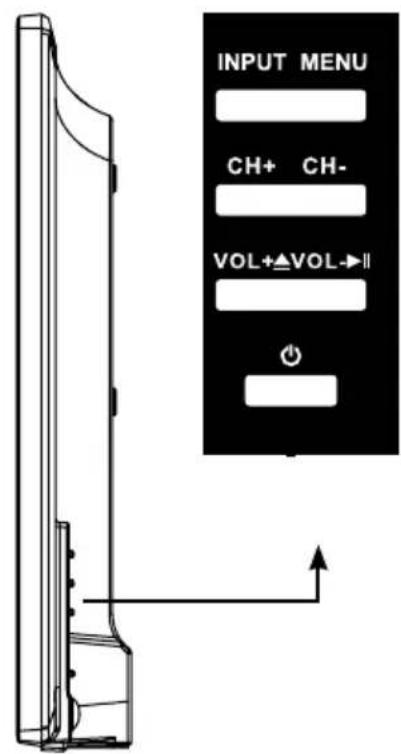

Side view

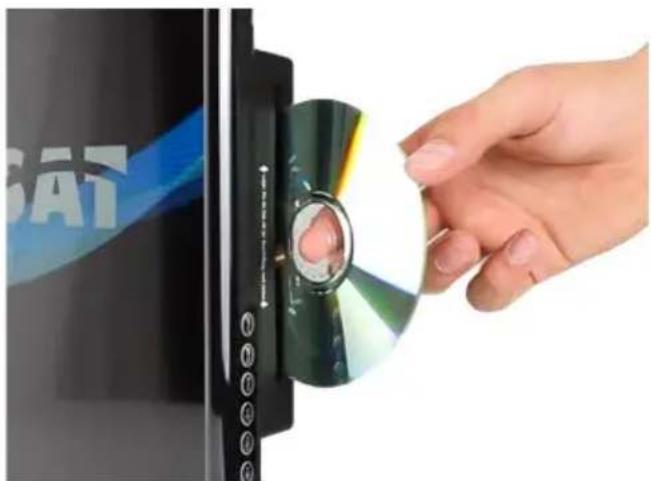

▲	Ejects the CD/DVD.
►II	Play/pause in CD/DVD mode.
INPUT	Press the button to select the signal source (e.g. DTV, DVD, HDMI, ...).
MENU	Press the button to enter the menu.
CH +/-	Switches the programmes up / down.
VOL +/-	Adjusts the volume louder/softer.
◎	Switches the television on or off (standby).

4. Designations

4.2 Connections

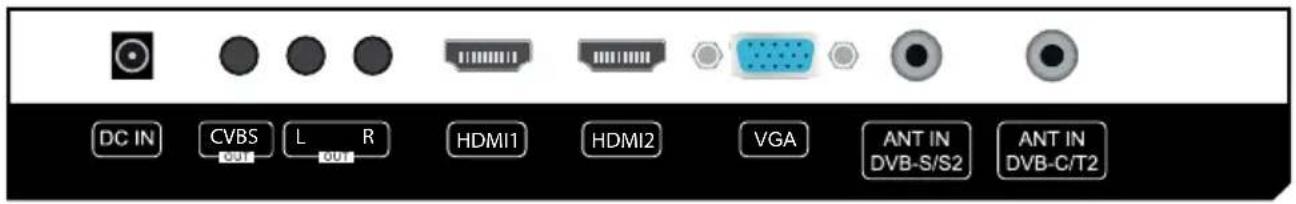

Bottom view

DCIN Mains connection for 12/230 volt mains adapter or 12/24 volt on-board voltage.

CVBS OUT Video output chinch

L/ROUT Audio output L/R Chinch

HDMI 1 HDMI input

HDMI2 HDMI input

VGA Port for PC input

ANT IN / DVB-S/S2 Input for satellite antenna (13/18V max. 500 mA)

ANT IN / DVB-C/T2 Connection for DVB-T/T2 antenna or cable TV

Side view

COAXIAL Digital Audio-output (coaxial)

Headphone Output for headphones with 3.5mm jack

Y/Pb/Pr IN Component input with adapter cable

AVIN AV input (FBAS/Audio) with adapter cable

CI + IN Slot for CI / CI+ module

PC Audio Input for Audio-Signal from PC

USB 1+2 USB 2.0 port for media playback or to

record / timeshift function (optional)

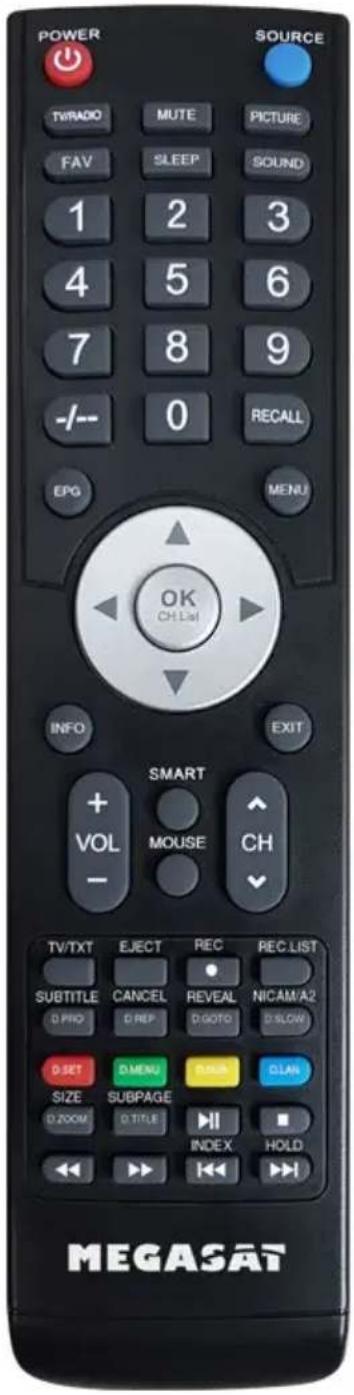

4.3 Remote control

POWER Turn the TV on / off (Standby)

SOURCE Select source

TV/RADIO Switch between TV and radio stations

MUTE Muting the sound

PICTURE Switch to picture presets

FAV Show favorites

SLEEP Setting Automatic-shutdown

SOUND Switch to Sound preferences

NUMMERIC BUTTONS Enter numbers

-- Switches between one and two digits when entering numbers

RECALL Returns to the last channel position

EPG Electronic Program Guide

MENU Opens the main menu

PFEILTASTEN for navigation in the main menu and DVD menu, for program changes and volume control

OK (CH.List) To confirm a selection / program list

INFO Show informations

EXIT Exit the respective menu

VOL +/- Volume control

CH + / - Change channels

SMART no function

MOUSE no Funktion

TV/TXT Show and close Teletext

EJECT Ejects the DVD (only in DVD mode only)

REC Starts recording (optional)

REC.LIST Displays the recording list (optional)

SUBTITLE / D.PRO Show / hide subtitles (if available)

D.PRO edit the play list in DVD mode

CANCEL/D.REP Switch between Teletext/TV

D.REP repeat mode in DVD mode

REVAL/D.GOTO Displays hidden information in Teletext

D.GOTO playing your favorite titel / chapters

NICAM/A2/D.SLOW Switch to Nicam/A2

D.SLOW plays DVDs in slow motion

D. SET: DVD System settings

D.MENU: Show DVD menu

D.SUB: Show DVD-subtitles

D.LAN: Switch languages/ audio tracks in DVD mode

SIZE/D.ZOOM Zoom in on the top and bottom of the teletext

D.ZOOM selects an image in the DVD mode

SUBPAGE/D.TITLE Subpages in teletext Call up/Cancel

D.TITLE shows the DVD title in DVD menu

Start/Pause

Stop

Forward / Rewind backward

Previous Chapter/Next Chapter

INDEX Gets the index page in the DVD menu

HOLD Holds the bottom change in teletext

5. First installation

1. Connect the TV to the power supply and turn on the power switch at the bottom of the housing. The TV is now in standby mode (LED is RED).
2. Then press the Power button on the remote control (LED is BLUE).

3. After the TV is started, the First Installation menu appears. You can now make the following settings:

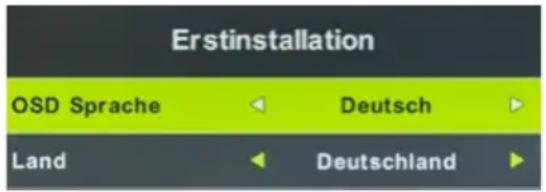

4. OSD language: Choose your language. To change, use the buttons.

5. Country: Choose the country. To change, use the buttons.

Press OK to confirm the entries or MENU to cancel.

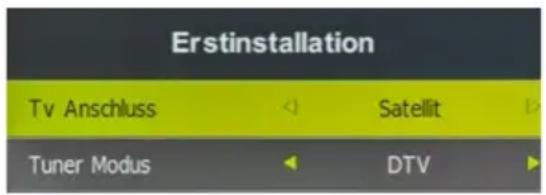

• TV connection: Use the buttons to choose the type of reception (satellite, antenna or cable)

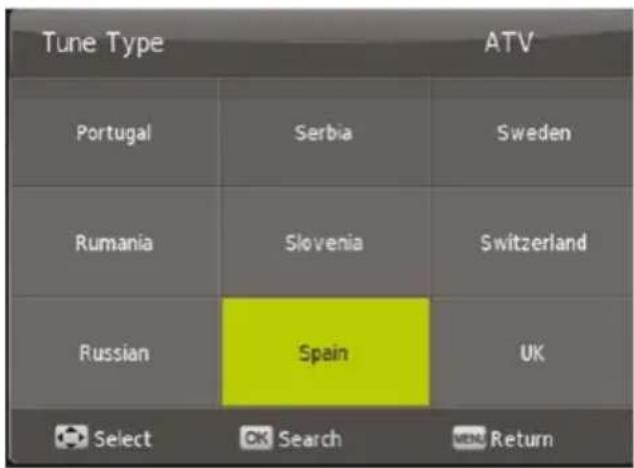

• Tuner mode: Choose between DTV (Digital) or ATV (Analog)

Press OK to confirm the entries or MENU to cancel.

Example in satellite mode

Note: If you are using the TV in satellite mode, you can confirm all setting points with OK during the initial installation!

• Load program list: The preinstalled channel list is loaded.

Scan Mode - Auto (detail search): Detailed search: Select this option if you want to perform a self-defined search.

• Fast Scan Mode: Searches the satellite for predefined programs (selectable by provider).
• Normal Scan: Select your desired options and start the scan. (Unicable, other satellites, free channels only....).

Confirm your chosen search function with OK. Now press the button (Yes) to start the search. Use the button (No) to cancel the search.

6. Basic Functions

6.1 Select input source

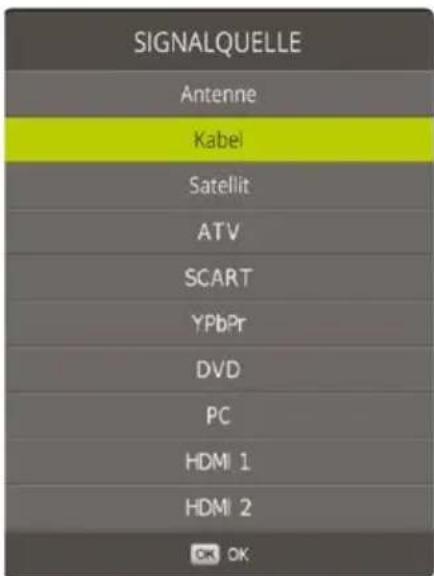

Press the INPUT button on the remote control to select the input source. Use the / buttons or the buttons on the TV to select a source. Press OK to confirm, or wait a few seconds.

Note:

Before you select the source, make sure that the source is ready, otherwise no signal is transmitted.

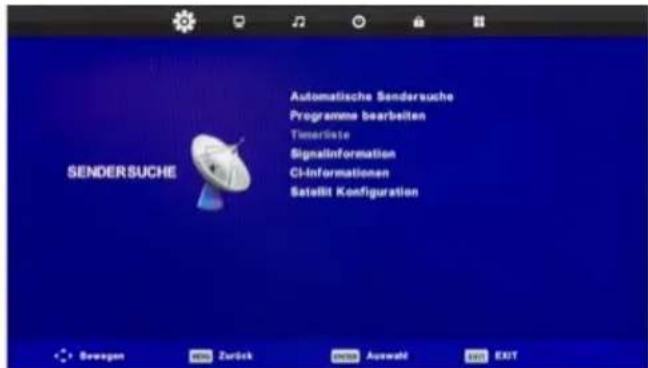

6.2 Navigation in Main Menu

Press the MENU button to enter the main menu. It consists of further submenus:

• Channel
• Image
  Sound
  Clock
• Options

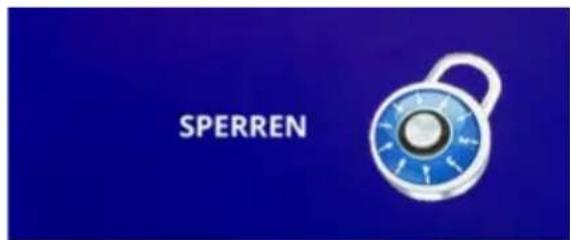

• Lock

Navigate through the individual submenus using the keys. Press the OK key to enter the respective submenu. Press MENU to go back one step, or press EXIT to exit the menu completely.

7.1 Channel

In the menu Channel you can search for new channels, edit channels or set configurations at your reception mode.

Note:

The submenu of Channel Search differ depending on what kind of a reception mode you have set during the first installation (satellite, cable or terrestrial).

7.1.1 Auto search (Satellite)

Before you start a channel search make sure you are on the correct input source. Press the INPUT button on the remote control and select "Satellite".

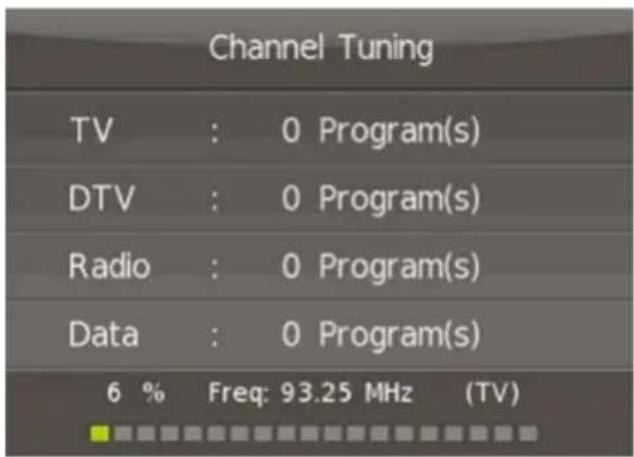

Note: The automatic station search contains the same search functions as with the first installation (see page 9).

Satellite

Select the desired Satellites for receiving

Channel Type

Choose between all channels or FTA (free to air only, that are not encrypted)

Service Type

Choose between All, DTV (TV programs) or Radio (only radio)

Search mode

Choose between standard, Blind search or network search

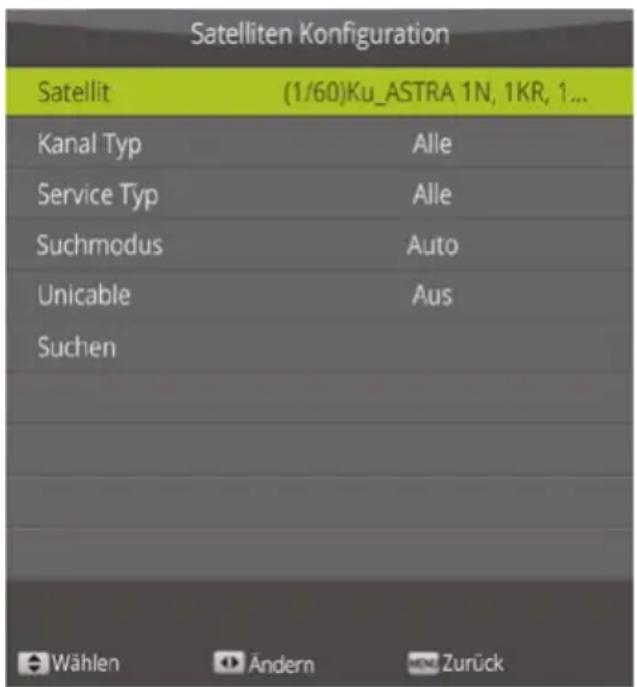

Unicable

If you operate your satellite system with Unicable, you can configure the settings

for the reception here. Check these according to the specifications of the Unicable system or Unicable LNB.

Search

Press OK to start the auto search.

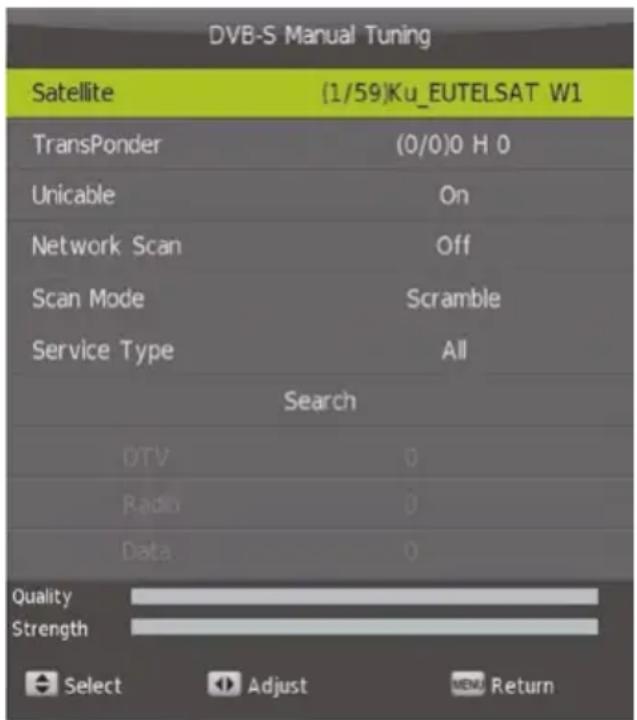

7.1.2 Manual Search (Satellite)

Satellite

Select the desired Satellites for receiving.

Transponder

Select the transponder you want to search.

Unicable

If you operate your satellite system with Unicable, you can configure the settings for the reception here. Check these according to the specifications of the Unicable system or Unicable LNB.

Network Scan

Choose between On (full search on the satellite) or Off (Search on the programmed transponder list)

Channel Type

Choose between free, encrypted or all channels.

Service Type

Choose between All, DTV (TV programs) or Radio (only radio)

Search

Press OK to start the manual search.

7.1.3 ATV manual search (analogue channel search)

In this menu item you switch to the manual search of the analogue channels for DVB-T and DVB-C.

7. The Main Menu

7.1.4 Edit channels

Delete (RED button)

Use the arrow keys to choose a channel, then press to RED button to delete it.

Move (YELLOW button)

Use the arrow buttons to select a program and press the YELLOW button to highlight it. Use the arrow keys to move the program to the desired program location. Press Enter or YELLOW key to confirm.

If you have selected a program and press a number on the remote control, the respective programs will be exchanged.

Skip (BLUE button)

Use the arrow keys to choose a channel, then press the BLUE button to highlight it. When you "scroll" the channel list, this program will be skipped in the future.

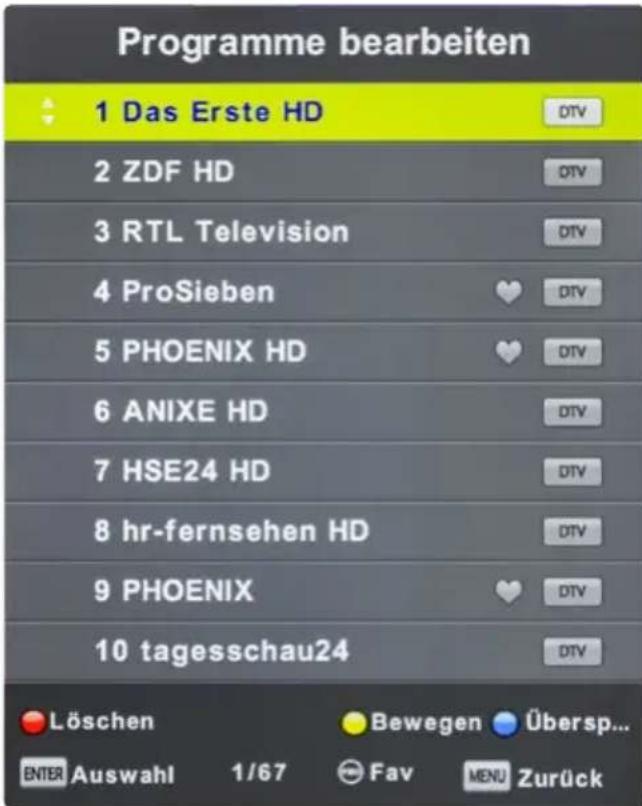

Favorites (FAV button)

Use the arrow keys to choose a channel, then press the FAV button to highlight it as a favorite (identified by a heart symbol). If you press from now on in normal TV mode the FAV button on the remote control, only the programs you see that you have marked as favorite.

7. The Main Menu

7.1.5 Edit Satellite

In this menu, you can make fundamental changes to your satellite system, edit or add transponders and satellites.

Add/DeleteSatellite

Delete (RED button)

Deletes the selected satellite. This process is irrevocable.

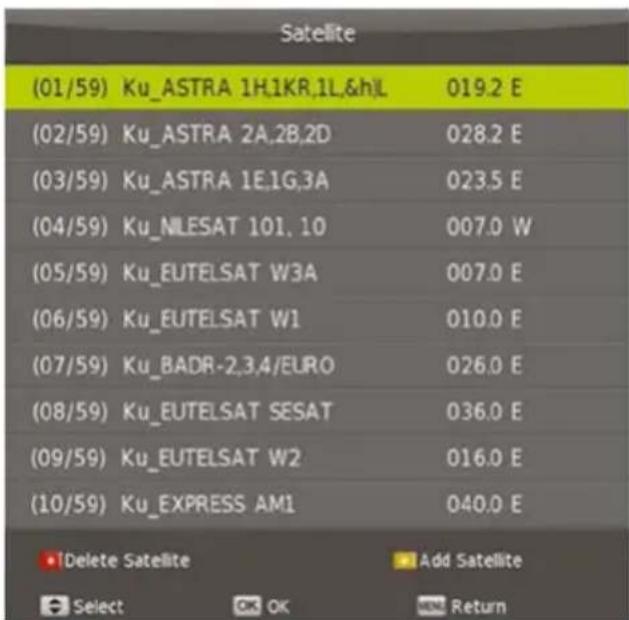

Add (YELLOW button)

Add a new satellite. Enter the name and orbit position of the new satellite.

Edit Satellite

Select a satellite and press the OK button to make further settings.

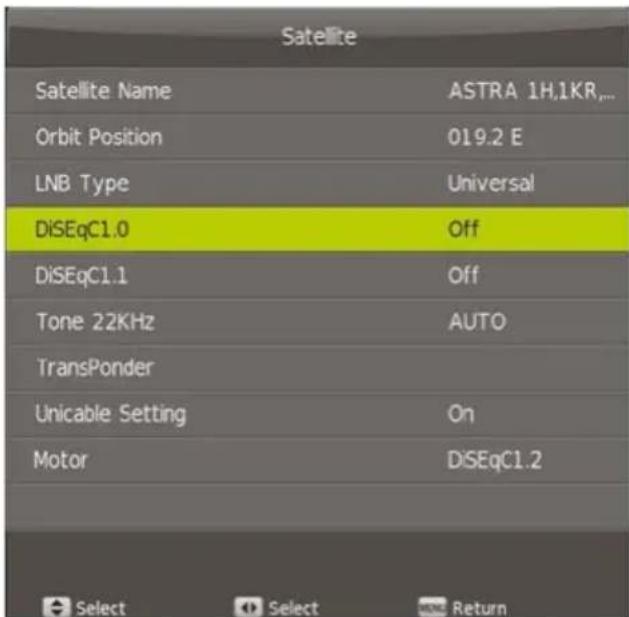

You can make the following settings here:

LNB Type

Change the LNB type here

DiSEqC 1.0

Choose between None, LNB 1 to LNB 4

DiSEqC 1.1

Choose between None, LNB 1 to LNB 16

22 KHz

Set the 22 KHz setting to On or Off.

Transponder

Opens the transponder list. Use the RED button to delete the selected transponder. Use the YELLOW button to add a transponder.

7. The Main Menu

Note:

As new Channels are available, but these are not located in your TV list, proceed as follows:

1. Find out the frequency of the new channel (e.g. on „www.satindex.de").
2. Go to the main menu Channel -> Edit Satellite.
3. Select the satellite (e.g. Astra 19.2E) and confirm with OK.
4. Now open the transponder list.
5. Press the YELLOW button to add a transponder.
6. Enter the appropriate data (eg: 12.188 H 27.500)
7. Press the MENU button to save the new transponder.
8. Search manually for new channels.
9. See point 7.1.2 Manual search (satellite)

Unicable settings

If you are using the TV with a Unicable system, you can enter the corresponding data here.

Motor

Choose between Off, DiSEqC 1.2 or 1.3 (USALS)

Band

Choose between KU and C band.

Note: Usually you have to make no changes in the antenna settings. It is recommended that only experienced users change settings.

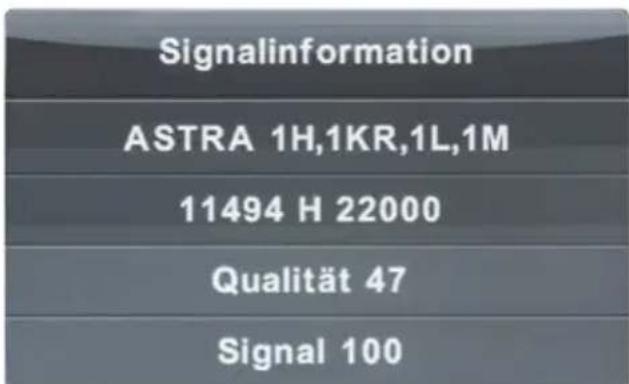

7.1.6 Signal informations

In this menu you can see various information about the respective transponder or channel. Signal quality and level can be read here.

7. The Main Menu

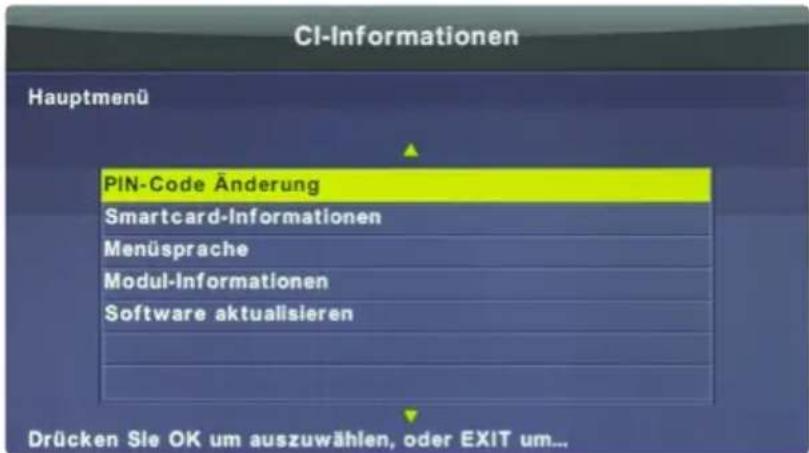

7.1.7 CI Informations

This menu provides information about the inserted CI module, or about the smart card (if available).

Note:

The CI information is only active when a CI module is plugged in.

7.1.8 5V antenna power

If you use a DVB-T antenna, you can switch the 5V voltage on or off here.

ON = If you are using an active DVB-T antenna without a separate power supply. OFF = If you have an active DVB-T antenna with its own power supply or use a passive DVB-T antenna.

7.1.9 Software-Update (USB)

If there is a new firmware for the TV, you can this update here. You can find the latest firmware always on our homepage www.megasat.tv

1. Copy the firmware to the root directory to a formatted USB drive (without sub folders).
2. Plug the USB drive into the USB slot of the TV.
3. Now press the OK button on Software Update (USB). You will be asked whether you really want to update. Select "Yes" or "No" to cancel.
4. Once the firmware has been updated, the TV restarts and starts the initial installation.

Note: If the TV does not restart automatically, please turn it off and on at the power switch.

7. The Main Menu

7.1.10 Automatic Search (Terrestrial)

Before starting a station search, make sure you are on the correct input source. To do this, press the INPUT button on the remote control and select the item "Antenna".

Note:

Make sure that a suitable DVB-T antenna is connected.

1. Select the country you are in (eg Germany) and press the OK button.
2. Subsequently, the automatic transmitter starts.

7.1.11 Manual Search (Terrestrial)

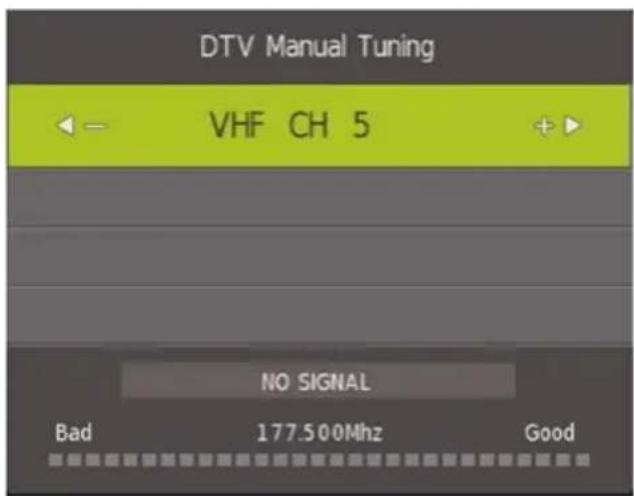

With the manual DVB-T search, you can search each frequency (channel) individually. Use the buttons to select the desired channel and press the OK button to start the search.

7. The Main Menu

7.1.12 Automatic Serach (Cable)

Before starting a station search, make sure you are on the correct input source. To do this, press the INPUT button on the remote control and select the item "Cable".

DVB-C Scan Menu
Scan Mode	Network Scan
Frequency	770000
Network ID	65535
Symbol(ks/s)	6900
Select	OK Enter Return

In the search mode, choose between "Full" or "Network Scan". When "Full" the default search is used, with "Network Scan" you can u.a. set the frequency or network ID.

Then press OK and select the country you are in (eg Germany).

Subsequently, the automatic transmitter starts.

Tune Type	ATV
Portugal	Serbia	Sweden
Rumania	Slovenia	Switzerland
Russian	Spain	UK
Select	Search	Return

7.1.13 Manual Search (Cable)

With the manual DVB-C search you can search each frequency (channel) individually. Select the desired frequency with the buttons. Press the OK button to search to start the search.

CADTV Manual Tuning
Frequency	770000
Symbol(ks/s)	6900
QAM Type	QAM 16
Search

7. The Main Menu

7.2 Picture

In this menu you can set up basic settings for the TV picture. Use default settings or set your own values.

Image Mode Select a preset image setting

Contrast Adjust the contrast value

Brightness Adjust the Brightness value

Color Adjust the Color value

Color tone Adjust the Color tone value

Sharpness Adjust the Sharpness value

Color temp. Adjust the Color temperature value

Image format Set the appropriate picture format.

Noise reduction Adjust the Noise reduction valuen

Dynamic CR Set the dynamic contrast ratio on or off.

Note:

The settings such as contrast, brightness, etc. can be edited only if you are in the picture mode „Personal".

7. The Main Menu

7.3 Sound

In this menu you can set up basic settings for the TV sound. Use default settings or set your own values.

Sound mode Select a preset sound profile

120 Hz - 10 KHz Adjust the treble and bass.

Balance Adjust the balance between right and left channel

Auto. volume Set to ON to automatically adjust the volume during a quiet channels

Surround Sound Enable surround sound if you have connected the TV to an external surround system.

SPDIF Mode Activate the digital audio output.

AD switch This option is for visually impaired persons. When activated, scenes without sound are described by a speaker. (Depending on the transmitter or transmission)

Hearing imp. This option is only enabled if the AD selection has been turned on and controls the speaker's volume.

Note:

The settings such as Treble, Bass, etc. can be edited only if you are in the sound mode „Personal".

7. The Main Menu

7.4Clock

In this menu you can set the time of the TV as well as various other automatic functions.

Clock Set the current time and date.

Switch-off time Set the time when the TV should turn off automatically.

Switch-on time Set the time when the TV should turn on automatically. Use the arrow keys to select when it should be: once, daily, Mon-Fri, Mon-Sat, Sat-Sun, Sunday

Sleep timer Set the minutes when the TV should turn off automatically. Choose between Off, 10, 20, 30, 60, 90, 120, 180 or 240 minutes. You can also access this function via the SLEEP button on the remote control (press the SLEEP button repeatedly to switch between times).

Auto standby Adjust the hours after the TV should switch off automatic table when no operation on the unit or on the remote control is carried out. Select between OFF, 3, 4 or 5 hours.

Time zone Select the time zone you are in.

OSD timer Adjust in seconds how long you want to displayed the on-screen menu. Select between OFF or 10-60 seconds.

7. The Main Menu

7.5 Options

In the menu configuration, you can set up basic settings of the TV.

OSD language Select the language of the screen menus

Audio language Select the preferred audio language of TV channels

Subtitle lang. Select the preferred subtitle language of the TV channels

Hearing imp. This option is only enabled if the AD selection has been turned on and controls the speaker's volume.

Reset Sets the TV back in the factory setting. All data you have made will be lost.

First installation Start the first installation of the TV (see page 9)

ECO Mode Choose between Home Mode (low energy mode) or Shop Mode (higher power consumption)

Blue Screen Displays a blue screen background color

Software-Update If there is a new firmware for the TV, you can this update here. You can find the latest firmware always on our homepage

www.megasat.tv

1. Copy the firmware to the root directory to a formatted USB drive (without sub folders).
2. Plug the USB drive into the USB slot of the TV.
3. Now press the OK button on Software Update (USB). You will be asked whether you really want to update. Select "Yes" or "No" to cancel.
4. Once the firmware has been updated, the TV restarts and starts the initial installation.

7. The Main Menu

7.6 Lock

In this menu passwords can be assigned to Channel Lock, add a youth protection or configure a hotel mode.

System lock Select ON to enable the password lock.

The default password is: 0000

Set password Change the default password. First enter the current password, then a new one. This must be repeated again.

Lock channels Select the channels you want to lock. Navigate with the arrow keys on the current channel and press the GREEN button to select a channel to lock.

Youth protection Select the age level from 4 to 18 years. If a program exceeding the age group, the password is needed to unlock the channel.

Note: This feature is dependent on the broadcaster.

Keylock Enable or disable the key lock.

Hotel settings In the hotel setting you can configure the TV so that unauthorized persons do not have access to certain functions.

Source lock: Locks any input sources.

Start source: Select the source, with which the TV is to start.

Start channel: Select the channel, with which the TV is to start.

Volume: Select the volume level at which the TV is to start.

Max volume: Select the maximum adjustable volume.

Database import: Import a preset database.

Database export: Export the current database.

Reset lock: Deletes all Hotel settings.

8. Multimedia operation (USB)

With your TV you can play back multimedia 1les such as. photos, music, movies and eBooks. Insert a suitable USB drive or external hard drive into the USB port. Press INPUT on the remote control and switch to using the arrow keys on MEDIA.

8.1 Photos

Change to the menu „Photos“, then the picture menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the photos from the USB drive. Navigate with the arrow keys to a desired photo. A small preview, and various data of the photos will be displayed directly in the center of the screen. To start a

slideshow, highlight with the OK button all images that you want to view. Do not mark any photos, all photos are played. Start the slide show with the▶ button.

Description of symbols in the playback mode

II	Pauses the current playback.
I	Previous photo in the playlist.
→	Next photo in the playlist.
■	Stop the slideshow.
∑	Repeats the slideshow.
∫	Plays music to the slide show (provided that music on the USB stick is located).
[ ]	Displays the current playlist.
1	Displays the play list.
90°	Rotates the image clockwise by 90°.
∞	Rotates the image anti clockwise by 90°.
[ ]	Enlarges the image.
[ ]	Reduces the image.
[ ]	Moves the image. Use the arrow keys on the remote control.

8. Multimedia operation (USB)

8.2 Music

Change to the menu "Music", then the music menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the music from the USB drive.

Navigate with the arrow keys to a desired music file. A small preview as title or artist are displayed on the screen.

To start the playlist, highlight with the OK button all music files you want to hear. Do not mark any music files, all music files are played. Start the playlist with▶I button.

Description of symbols in the playback mode

II	Pauses the current playback.
↔	Rewinds the current track.
→	Fast forwards the current track.
«	Previous track in the playlist.
→	Next track to the playlist.
■	Stops playback.
○	Repeats the playlist.
×	Turns the volume on mute.
■	Displays the current playlist.
i	Displays information about the current song.
L	Switch to a specific time of the current title.

8. Multimedia operation (USB)

8.3 Movies

Change to the menu „Movies“, then the Movie menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the movies from the USB drive.

Navigate with the arrow keys to a desired movie le. A small preview as well as information to be displayed on the screen.

To start the playlist, highlight with the OK button all movie 📁les you want to hear. Do not mark any movie 📁les, all movie 📁les are played. Start the playlist with 👠button.

Description of symbols in the playback mode

II	Pauses the current playback.
«	Rewinds the current movie.
»	Fast forwards the current movie.
«	Play previous movie in the playlist.
»	Play next movie in the playlist.
■	Stops playback.
Aa	Change the font.
♀	Repeats the playlist.
♂	Set the A-B repeat.
■	Displays the current playlist.
➀	Displays information about the current video.
▲	Plays the video in slow motion.
▼	Play the movie frame by frame (a keystroke = forward one frame).
◎	Switch to a specific time of the current video.
☑	Enlarges the video.
⓪	Shrinks the video.
◎	Changes the video format.
◇	Moves the video. Use the arrow keys on the remote control.

8. DVD operation

In DVD menu allows you to play DVDs or Video CDs. First, press the INPUT button on the remote control and select the DVD source. Now insert a disc with text side towards the screen. The DVD is automatically pulled in. If the DVD is inserted wrong direction, it will be ejected. After successful identification, the DVD menu appears.

The following video formats can be read:

DVD/DVD+R/+RW/DVD-R/-RW/VCD/CD/CD-R/-RW

Note:

All discs must be located in one of the above video formats. We do not guarantee that self-created Video CDs or DVDs can be read.

8.4 Key functions in DVD mode

▲▼▲	Use the arrow keys to navigate the DVD menu.
1-9 To	select a chapter or enter the number.
D. SET Press this button to enter DVD System Settings.
D.MENU Press this button to enter the DVD main menu.
D.DISPI Displays information about the inserted DVD
GOTO Switches to desired chapters in DVD mode
▲	Ejects the DVD (only in DVD mode)
REPEAT Repeat button in playback mode
A-B Various repetitions
ANGLE Perspective setting in DVD mode (if available)
←/→	Moves to the previous or next chapter.
←/→	Rewind the video back and forth.
II Start or pauses the video.
■ Stops the video.

8. DVD operation

8.4 DVD Settings menu

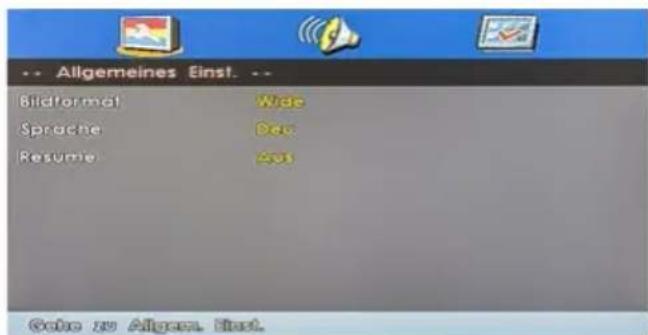

To make basic settings in the DVD menu, press the DVD SETUP button. Then open the DVD settings menu.

General Settings

TV display

Define the appropriate image format.

Choose between 4:3 PS, 4:3 LB and 16:9.

Display language

Select the DVD menu language.

Last playback

If you enable this function (ON), the DVD player remembers the point of the movie, in which you have turned off. You can then resume at a later time playback. This function is only guaranteed if the DVD is not removed from the drive.

LT/RT

A disc with a multichannel audio track will be distributed as an output signal in the left and right channels.

Stereo

A disc with a multi-channel audio track is converted as output in stereo.

TV type

Choose between PAL, Multi or NTSC. In Europe, PAL is the default setting.

Audio

Select the preferred audio language of the DVD (if available on the disc).

Subtitle

Select the preferred subtitle language of the DVD (if available on the disc).

Discmenu

Select the preferred language of the DVD menu (if present on the disc).

age levels

Assign a desired age level. If you select age level 3 and insert a DVD with age level 8, you will be prompted to enter a password.

Password

The password for the age level you can change at any time. First enter the old password (default: 123456). You can then assign a new password.

Default setting

By confirm this point, all the settings of this menu will be reset.

9. EPG menu (program guide)

In Electronic Programme Guide, you can see a 7-day preview of all channels (where the respective stations so provides). Use the arrow keys on the remote control to navigate between programs and broadcasts.

Press the INFO button on the remote control to get more information on the broadcast.

Declaration of color buttons

• Programs a recording (optional)
  Shows more information about the currently selected program
  Shows the current schedule
  Reminds of a program

Reminds a TV show

If you do not want to miss a broadcast, this feature is very helpful. Use the arrow keys to select the desired station and the program you want to be reminded of. Pressing the BLUE button opens another window with preset data. You can adjust these as you like. In addition, select whether you would like to be reminded once a day, daily or weekly.

Note:

It may happen that the program guide provides no or only partial information. It may take several minutes until the data has been updated.

10. CI+ slot for pay-TV expansion

You can receive not only free to air (Free to Air) channels on the TV, but also encrypted channels unless you are in possession of a smart card and a CI module of the respective provider.

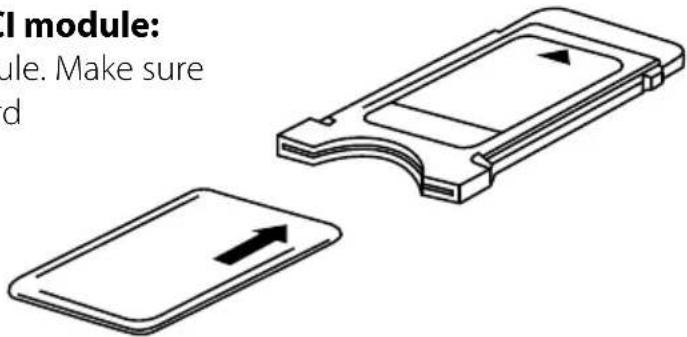

1. Inserting the smart card into the CI module:

Insert the smart card into the CI module. Make sure that the golden chip of the Smart Card is facing upward.

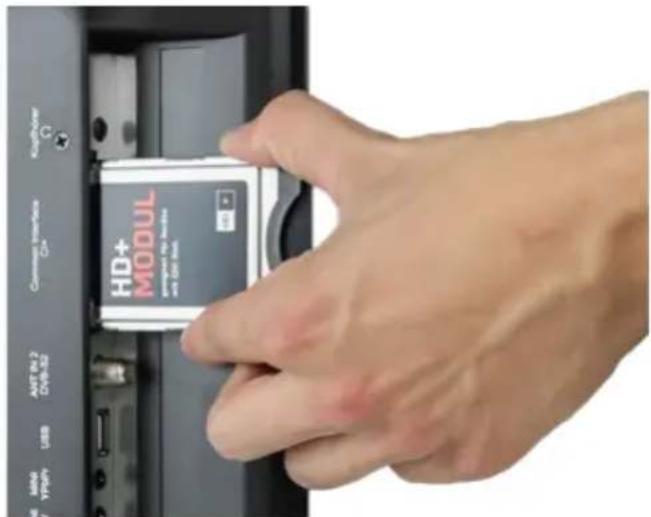

2. Inserting the CI module:

The module must insert only 2 - 3cm in the Cl + slot. In order to the CAM module is properly seated, you need to press it a little harder at the end. You feel a slight resistance.

Note:

• The broadcaster can forbid or limit recording/Time Shift with a Cl+ module.
• Recordings of programs using Cl+ are saved encrypted on the USB devices. The recordings could not be viewed with another device.
• The limitation are designated by the broadcasters. The manufacturer does not have influence on this matter.
• A CI/CI+ module can generate screen messages. Please refer to the manual of your module.

11.Troubleshooting

Please read the following information to find out the possible cause of a problem before contacting customer service.

No power • Check if the power cord is fully plugged into the electrical outlet and the power adapter. ·Check if the cable of the power adapter is properly connected to the TV unit. ·The electronic circuit was possibly reset. Disconnect the power supply from the power source, wait 1 minute, and then connect the electrical connector.
No picture • Check if the antenna cable is properly connected. ·Verify that the correct input is selected; Use the INPUT button. ·Check the brightness and contrast settings in the Picture settings.
No sound • Check if the sound is turned off or Mute is activated. ·Carefully increase the volume. ·Check if the audio cables are connected to the correct inputs.
Bad picture quality • Check whether the correct input is selected; Use the INPUT button. ·Check the connection to the TV. ·Check the video settings.
Image too large/small or distorted	·Use the ASPECT button to change the appearance of the image.
Remote control does not respond	·Change the batteries. ·Use the remote control in the specified range (max. 5 meters and 30°) ·Avoid direct exposure to light in the infrared sensor.

12. Specifications

Display LED Display (Pixel class 1)
Screen size 32 inch (81 cm)
Resolution 1920 x 1080 Pixel (Full HD)
Contrast ratio 3000:1
Brightness value 250 cd/m2
Viewing angle 178° (horizontal) / 178° (vertical)
Tuner DVB-S / -S2 / -C / -T / -T2 (H.265/HEVC)
Channel memory satellite: 5000	terrestrial: / cable: 700
Antenna impedance 75Ω
CI+ slot (HD + ready) yes
USB port 2x
Picture playback formats JPEG, BMP, PNG
Audio playback formats	MP3, WMA, M4A, AAC
Video playback formats	AVI, MPG, DAT, VOB, MP4, TS, MOV, MKV
DVD player	yes
Playback formats DVD	DVD, CD, VCD, CD-R/-RW, DVD-R/+R, DVD-RW
PC port (D-Sub) yes
Audio output (S/PDIF)	yes
Headphone output (3.5 mm jack)	yes
PC audio input (3.5 mm jack) yes
HDMI port	2x
Video / Audio (3.5 mm jack)	yes
YUV (3.5mm jack)	yes
Antenna input (DVB-S)	yes
Antenna input (DVB-T / -C)	yes
Power switch	yes
Speaker	Stereo 2x 10 Watt
VESA standard 200 x 100 mm
Power supply	AC 100-240 Volt, 50/60 Hz / DC 9-30 Volt
Power in use	max. 78 Watt
Power in standby	<0,5 Watt
Energy efficiency class F
Dimensions with stand (W/H/D)	731 x 491 x 211 mm
Dimensions without stand (W/H/D)	731 x 432 x 85,7 mm
Weight (net/gross)	4,2kg / 5,5kg

Note:

Weight and dimensions are not absolutely exact values . Technical details can be changed at any time without prior notice.

Conformity information

Hereby declare the company Megasat Werke GmbH that the following devices is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU and 2014/35/EU and Radio Equipment Directive 2014/53/EU:

Megasat Royal Line III 32 (Art.-No. 240123)

The Declaration of Conformity for this product is located at the company: Megasat Werke GmbH, Industriestraße 4a, D-97618 Niederlauer

The declaration of conformity can be downloaded from our homepage: www.megasat.tv/downloads

PRODUCT REGISTRATION

Registering your Megasat product gives you access to our automatic e-mail notifications. If your product requires new firmware, you will be notified by e-mail.

For registration please visit our homepage www.megasat.tv

You can find the form in Support Product registration

MEGASAT

Royal Line III ( 32 )

Mode d'emploi

Tune Type	ATV
Portugal	Serbia	Sweden
Rumania	Slovenia	Switzerland
Russian	Spain	UK
Select	Search	Return

7.1.13 Recherche manuelle (cable)
