V60 - Vacuum Cleaner Sauber - Free user manual and instructions

Product type	Cyclone vacuum cleaner
Brand	Sauber
Model	V60
Power supply	220-240 V ~ 50-60 Hz
Power	600 W
Filtration type	Multi-cyclone
Motor filter	Washable
Plastic dust filter	Washable
Air outlet filter	Washable
Dust bin	Removable
Automatic cord rewind	Yes
Power adjustment	Yes, by slider
On/off button	Yes
Warranty	3 years
Customer service	Emerio Holland B.V., [e-mail]
Spare parts	www.buyspareparts.eu
Compliance	EN 60312-1, regulation (EU) 666/2013
Recycling	Directive 2012/19/EU
Filter maintenance	Every 6 months or if suction drops
Safety	Use by children aged 8 years and above under supervision
Warning	Do not vacuum hot, sharp, or flammable objects

Frequently Asked Questions - V60 Sauber

How to assemble the vacuum cleaner?

Unplug the appliance before assembly. Attach the curved tube by pushing until you hear a click, then adjust the tube to the desired length. Finally, unwind the cord to the yellow mark and plug in.

How to clean the dust bin?

Press the button on the bin handle, lift it, then press the lower button to open the lid. Empty the contents and rinse the bin if necessary. Make sure it is dry before putting it back.

How to clean the filters?

The filters (motor, plastic dust, air outlet) are washable. Remove them, clean them under running water with a soft brush, then dry them completely for 24 hours before reinstalling. Never use the vacuum cleaner without a filter.

What to do if suction power drops?

First check that the hose is not blocked. Open the hose by pressing on the square part of the handle, remove obstructions. Also clean the filters if they are dirty. If the problem persists, contact customer service.

Can I use the vacuum cleaner without a filter?

No, never use the vacuum cleaner without the filters assembled. This could damage the motor and reduce performance.

How to rewind the power cord?

Press the rewind button with one hand and guide the cord with the other hand to prevent it from whipping. Do not exceed the red mark when unwinding.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep your receipt for any claims. Defects due to improper use or repairs by third parties are not covered.

Where to buy spare parts?

Spare parts are available on the website www.buyspareparts.eu. You can also contact customer service at [e-mail].

Can the vacuum cleaner vacuum hot ashes?

No, never vacuum hot ashes, cigarette butts, matches, or hot objects. This could damage the appliance or cause a fire.

How to adjust the suction power?

Use the speed adjustment slider. For furniture, set to minimum; for carpets or hard floors, to medium; for intensive cleaning, to maximum. This makes it easier to move the brush.

USER MANUAL V60 Sauber

Multi cyclone stofzuiger (NL)

Multi cyclone vacuum cleaner (EN)

Instruc on manual - English. 10

Before use make sure to read all of the below instruc ons in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instruc ons in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc on concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the speci ca ons on the ra ng label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open ames.
8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn o the appliance and send it to an authorized service center for repair.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never a empt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance una ended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory a achment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce air ow.
19. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
20. Do not pick up hot coals, cigar e, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without lters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up ammable or combus ble materials (lighteruid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
25. Do not operate the appliance in an enclosed space lled with vapors given o by oil based paints, paint thinner, moth proo ng, ammable dust, or other explosive or toxic vapors.
26. Keep your work area well dry.
27. Do not use the cleaner to clean your pets or any animal.
28. When using and you hear a squeaking sound from the

vacuum cleaner, or suc on power appears to be reduced, stop the machine immediately and clean all liters.

1. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.
2. Tip: By reducing the suc on power you can move the oor brush easier on the oor. Set the suc on power to minimal for furniture, to medium for carpet and hard oors. Only use the maximum se ng on hard oors in combina on with a brush for hard oors.

The general purpose vacuum cleaner (model V60), has been tested according to EN 60312-1 and complies with the essen al requirements of regula on (EU) 666/2013 for vacuum cleaners.

USE AND FUNCTION

Assembling vacuum cleaner

Note:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. A aching the Flexible Hose into the vacuum. Connect the exible hose into the air intake duct; push in un I you hear a "click" sound, indicating it is in its locked position.
2. Fi ng the tube to the curved wand/hose extension. Push the tube into the curved wand/hose extension.
3. Fin the oor brush to the tube. Push the tube into the oor brush. Adjust the tube to the desired length. Tip: By reducing the suc on power you can move the oor brush easier on the oor. Set the suc on power to minimal for furniture, to medium for carpet and hard oors. Only use the maximum se ng on hard oors in combina on with a brush for hard oors.

BUTTON FUNCTION INTRODUCTION

Note:

Once all a achments are in place, unwind a su cient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark.

1. Insert the power plug into the wall outlet.
2. Press the on/off button located on the unit to turn the vacuum cleaner "on". To adjust the suc on, move the speed control bu on to control the suc on power of the vacuum cleaner.
3. To rewind the power cord, press the cord rewind bu on with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

Dust barrel release bu on

On/o bu on

Cord rewind bu on

Speed control bu on

Power cord & plug

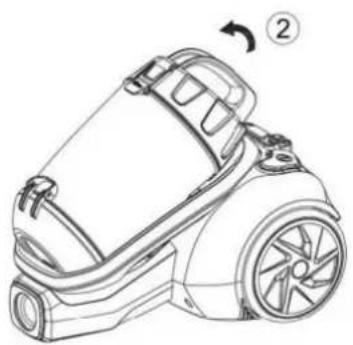

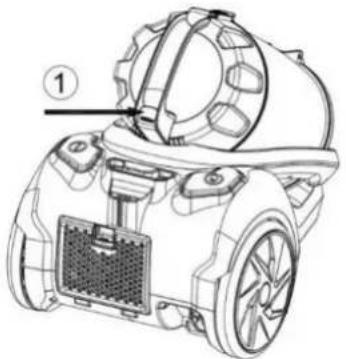

CLEAN THE DUST BARREL

1. Press the bu on on the dust barrel arm.
2. Li dust barrel up.
3. Press the bu on on low end of dust barrel to open the dust barrel cover.

Removing & cleaning motor Iter, plas c dust Iter and air outlet Iter.

Warning: Always unplug the unit from electrical outlet before ge ng out the dust barrel.

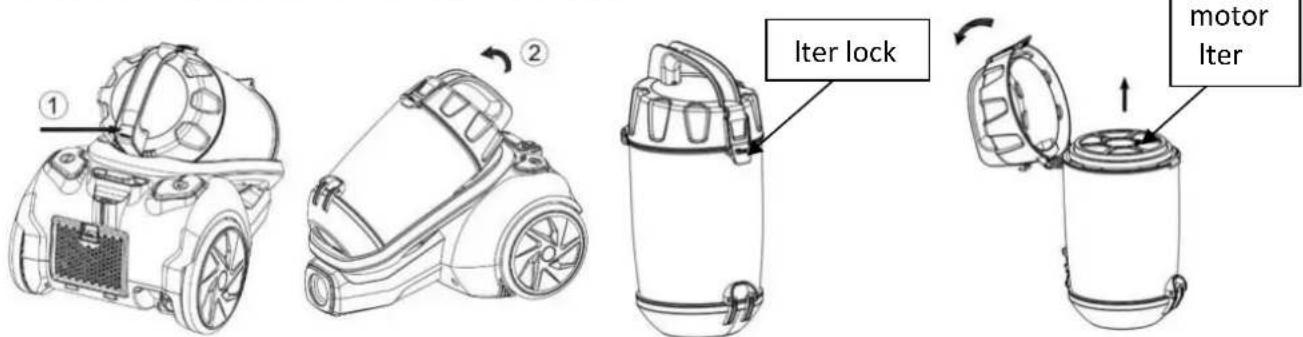

a. Motor Iter

1. Press the bu on on the dust barrel arm.
2. Li dust barrel up.
3. Pull up the buckle to release the Iter lock.
4. Take out the motor iter for cleaning and changing.

Notes:

1. Make sure to dry the motor iter thoroughly before placing it back.
2. Never use the vacuum cleaner without a motor.

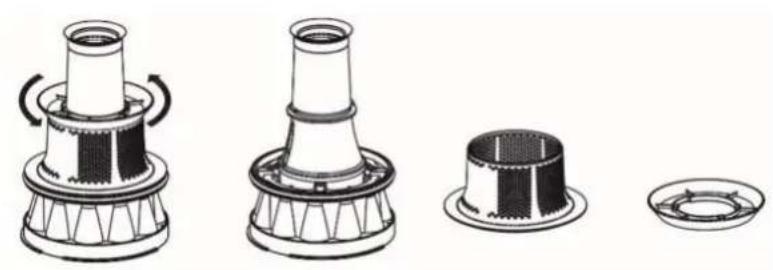

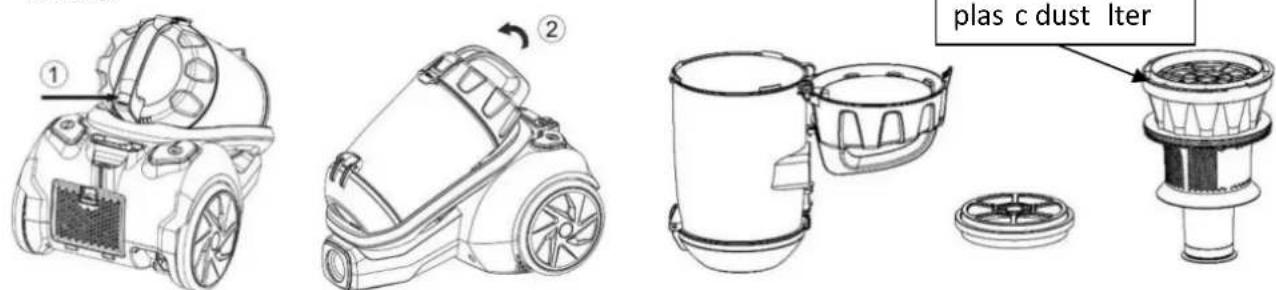

b. PlascdustIter

1. Press the bu on on the dust barrel arm.
2. Li dust barrel up.
3. Release the Iter lock and take out the motor Iter
4. Take out the plas c dust iter.
5. Use a so brush to clean the plas c dust iter then rinse it with clean water, dry it thoroughly before placing it back.

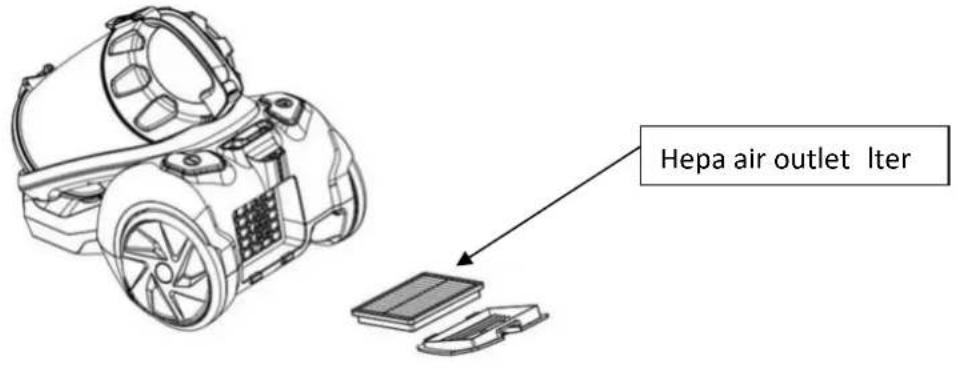

c. Air outlet Iter

1. Open the air outlet iter cover.
2. Take out the air outlet iter for cleaning and changing.

Please note:

• The liters in the cleaner will become dusty over me. This is normal and will not act the performance of the liter. If the liters are so dusty that suc on does not return to 100% , we suggest that the liters be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the re or some high temperature objects before re ng into the vacuum. This should be done once six months or when suc on appears to be reduced obviously.
  The suc on hole must be open, free of any obstrc ons at all mes. Otherwise, the motor will overheat and could become damaged.
• All liters should be checked regularly for signs of damage, preferably a er each cleaning task. The liters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the liters.

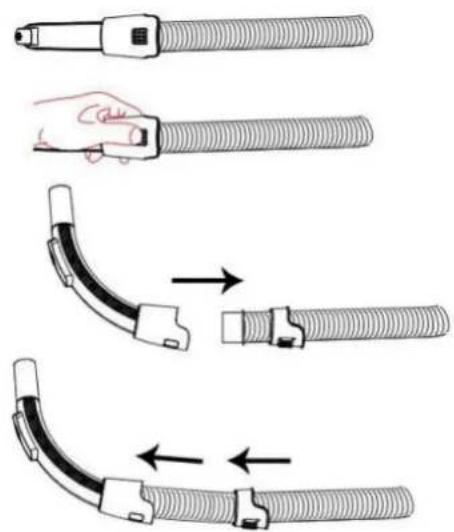

  If the suc on power of the vacuum cleaner gets low please check the hose for obstacles.

You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles.

To assemble the hose again rst press the exible hose into the handle and then click in the connec on part.

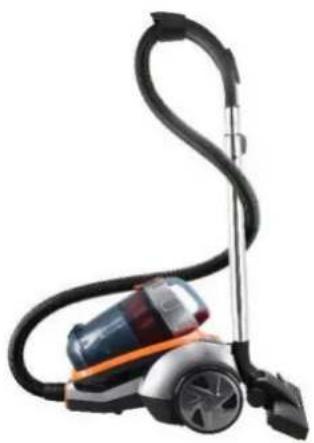

Parking:

This vacuum cleaner can be parked as below style to save your room space.

TECHNICAL DATA

Voltage: 220-240V ~ 50-60Hz

Power: 600W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during produc on or transporte on, please return the device to your dealer. In addi on to statutory legal rights, the purchaser has an op on to claim under the terms of the following guarantee:

For the purchased device we provide 3 years guarantee, commencing from the day of sale. If you have a defec ve product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunction ons due to interven ons and repairs by third par es or the ng of non-origina parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequen al damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instrc on manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plas c parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Direc ve 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collect on systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

www.saubereurope.com

Spare parts:

www.buyspareparts.eu
