TM501XX - Wall mount Vonroc - Free user manual and instructions

Product Type	TV Wall Mount
Brand	Vonroc
Model	TM501XX
Dimensions	660 x 435 mm
Mount Weight	1.6 kg
Wall Clearance	34 mm
Maximum Screen Weight	60 kg
Compatible Screen Diagonal	37" to 85"
Compatible VESA Standards	600 x 400, 400 x 400, 400 x 300, 400 x 200, 300 x 300, 300 x 200, 200 x 200
Mounting Type	Fixed (support arm)
Material	Steel
Included Accessories	Wall plate, mounting arms, Allen key, spirit level, mounting hardware
Supported Wall Types	Drywall with wood studs, masonry (concrete/brick)
Installation	On two studs (drywall) or screws and anchors (masonry)
Warranty	Legal warranty against defects in parts and workmanship
Repairability	Spare parts available, repair by authorized center
Maintenance	Clean with a soft dry cloth, avoid abrasive products
Safety Precautions	Check wall capacity, use on studs, do not exceed max load

Frequently Asked Questions - TM501XX Vonroc

What is the maximum weight this wall mount can support?

The Vonroc TM501XX wall mount can support a TV up to 60 kg.

What are the compatible VESA dimensions?

The compatible VESA standards are: 600x400, 400x400, 400x300, 400x200, 300x300, 300x200, 200x200.

Can I install this mount on a plaster wall?

Yes, but only if the wall has wooden studs. The wall plate must be attached to two studs with the provided lag bolts.

How to fix the mount on a concrete wall?

Use concrete anchors (provided) and drill to a depth of at least 60 mm with a 10 mm drill bit. Make sure the wall is solid.

What is the wall clearance after installation?

The clearance is 34 mm between the TV and the wall.

Does the mount allow tilting or swiveling the TV?

This model is a fixed mount (support arm). It does not allow tilting or rotation after installation.

What tools are provided with the mount?

The kit contains an Allen key, a spirit level, the wall plate, the mounting arms, and all necessary hardware (screws, anchors, washers).

How to remove the TV from the mount?

Pull the release cords on the mounting arms to free the latches, then carefully lift the TV.

What if the provided bolts do not match my TV?

Contact your dealer or a hardware store. Never use unsuitable bolts, as this could damage the TV.

Is the mount under warranty?

Yes, the product benefits from the legal warranty against defects in materials and workmanship. Unauthorized repairs void the warranty.

USER MANUAL TM501XX Vonroc

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Not intended for use by children.

SAFETYWARNINGS

Please read these instructions carefully and thoroughly before using this product and keep them for future reference. It is important that you understand how to use this product correctly, so please take the time to familiarize yourself with the requirements as outlined in these instructions.

If you are in any doubt about using this product, it is strongly recommended to employ the services of a suitably qualified expert.
- Please consult the manual for your TV and ensure that the weight and size of the TV is within the limits specified for this product
Note that not all of the supplied mounting accessories provided may be required for the installation of your specific TV.
- The mounting accessories provided are exclusively intended for installation onto strong supporting structures such as solid brick, solid concrete or solid wood columns.

2.PRODUCT INFORMATION

Model no. TM501XX
Dimensions 660 x 435mm
Wall clearance 34mm
Weight 1,6kg

Max. supported screen weight 60kg
Supported screen diagonal 37” to 85”
Supported VESA patterns 600 x 400	400 x 400
	400 x 300
	400 x 200
	300 x 300
	300 x 200
	200 x 200

DESCRIPTION

1.Wallplate
2. TV support arm
3.Unlockingcord
4.Spriritlevel
5.Hardwarekit

3.INSTALLATION

Before installation

Ensure that your TV is compatible with this wall mount before proceeding the installation.
Ensure that the supporting wall is capable of sustaining the combined weight of this wall mount and the TV.

Attach Wall Plate to Wall

Choose option A or B depending on your wall construction.

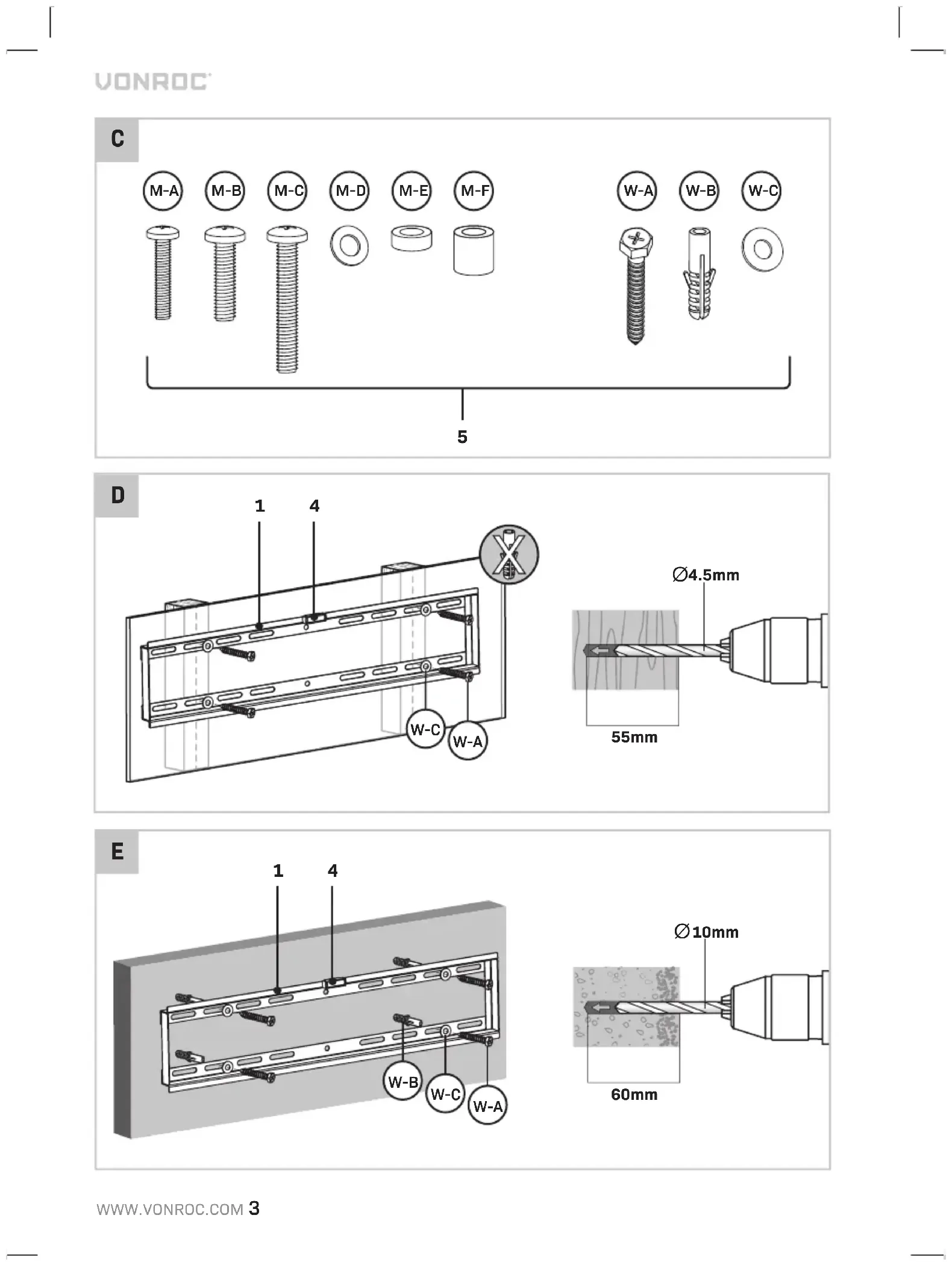

Option A: Installing in drywall with timber supports (Figure D)

If you are installing this TV wall mount using this method, you must spread the wall plate across 2 wall studs. Do not attach the wall plate to a single wall stud in the center of the wall plate.

1. Locate the center of two adjacent timber studs using a stud finder.

You must use the center of the stud to avoid cracking or splitting the timber during installation.
2. Mark a minimum of four mounting holes over the stud centers using the wall plate as a guide. Position two holes at either end of the wall plate

(1). Use the provided spirit level (4) to ensure the wall plate (1) is level.

1. Pre-drill the holes to a minimum depth of 55mm using a 4.5mm drill bit. If installing in hardwood, a slightly larger diameter and deeper hole may be required.
2. Place the washers (W-C) onto the lag bolts (W-A). Attach the wall plate (1) to the wall using the lag bolts (W-A).

Option B: Installing in masonry (Figure E)

Ensure there is a minimum of 35mm of actual concrete/brick thickness in the location of each hole.

Drill into solid concrete/bricks only. Do not drill into mortar joints.

1. Mark a minimum of four mounting holes using the wall plate (1) as a guide. Position two holes at either end of the wall plate (1). Use the provided spirit level (4) to ensure the wall plate (1) is level.
2. Drill the holes to a minimum depth of 60mm using a 10mm masonry drill bit. Clean out the holes after drilling.
3. Fully insert a concrete anchor (W-B) into each hole. Tap the anchor in using a hammer if required.
4. Place the washers (W-C) onto the lag bolts (W-A). Attach the wall plate (1) to the wall using the lag bolts (W-A).

Attach Mounting Arms to TV (Figure F)

1. Using a second person for assistance, lay your TV face down on something soft so as not to scratch the TV screen. Check the back of your TV to find the appropriate mounting pattern.

Do not place the TV face down onto a table smaller than the TV itself, as doing so may crack or damage the TV screen.

1. Sort through the provided bolts (M-A, M-B, M-C) until you find the correct size that fits into the mounting holes on the back of your TV. Test if

the bolts can be tightened by hand for at least three full turns. Do not yet fully tighten the bolts.

If you feel resistance while turning the bolt you must stop immediately and select a shorter bolt. Forcing in an oversized bolt may cause damage to your TV (see figure G)

1. Remove the bolts from the TV once you have selected the correct bolt size.

Refer to your local hardware supplier for the correct bolts and washers if none of the supplied bolts will fit your TV.

1. Gently place the mounting arms (2) on the back of the TV. If the back of your TV is curved or recessed you may need to use one or more of the supplied spacers (M-E or M-F). When using a spacer you may also need to use a longer bolt. Keep in mind that the bolt must always be able to turn at least three full turns (see figure G).
2. Place the washers (M-D) onto the previously selected bolts. Attach the mounting arms (2) to the TV using the bolts. Do not over tighten the bolts, as doing so may cause damage to your TV.

Attach TV to wall (Figure H)

1. Using a second person for assistance, carefully lift the TV and hook the arms (2) over the top of the wall plate (1). Note that there are three height options on the mounting arms (2 to choose from.
2. Gently pull down on the unlocking cords (3) on the mounting arms (2) to open the locks into the ready position.
3. Slowly lower the bottom of the TV until the bottom of the mounting arm (2) locks into the bottom of the wall plate (1). Release the unlocking cords (3) to secure the TV onto the wall plate (1).
4. To remove the TV from the wall plate, gently pull the unlocking cords (3) to release the mounting arms (2). Using a second person for assistance, pull the bottom of the TV slightly forwards and then lift the TV up from the wall plate (1).

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
  Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
  Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face thereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
