Moonstars - Bed BabyGO - Free user manual and instructions

Product Type	Baby travel bed (foldable playpen)
Brand	BabyGO
Model	Moonstars
Maximum supported weight	13 kg or up to 85 cm in height
Recommended age/stage	From birth until the child sits, kneels, or pulls up (approximately 6 months or 6.8 kg for the bassinet)
Materials	Aluminum frame, synthetic fabric
Included mattress dimensions	1035 mm long x 590 mm wide x 40 mm thick max
Included accessories	Mattress, bassinet (cradle), carrying bag
Assembly	Manual unfolding, automatic locking of feet and frame
Folding	Folds in half, storage in carrying bag
Safety	Locking of top rails and base, lockable feet, compliant with standards
Cleaning	Damp cloth and mild soap; fabric can be removed and washed
Maintenance	Regular check of parts, use only manufacturer spare parts
Spare parts	Available from BabyGO manufacturer
Usage	Baby travel bed, do not use as a crib once the child sits up

Frequently Asked Questions - Moonstars BabyGO

How to assemble the Moonstars BabyGO bed?

Unfold the frame until it clicks into locked position. Unfold each foot until it clicks. Check that the feet are properly locked by pushing on them. Insert the mattress and fasten the Velcro straps to the bottom of the bed.

How to fold the Moonstars BabyGO bed?

Detach the Velcro from the mattress and remove it. Fold each foot by pulling the release button at the top of the foot. Press the side buttons at the middle of the rail and fold the structure in half. Store the bed in the carrying bag.

What is the maximum weight and size to use this bed?

The maximum supported weight is 13 kg or a height of 85 cm. As soon as the child sits, kneels, or pulls up, the bed should no longer be used.

What are the dimensions of the provided mattress?

The mattress measures 1035 mm long x 590 mm wide and must not exceed 40 mm thickness. Only the mattress provided by the manufacturer should be used.

Can I use a different mattress than the one provided?

No, using a mattress not provided by the manufacturer may pose a risk of suffocation or fall. Use only the original mattress or accessories recommended by BabyGO.

How to clean the Moonstars bed?

For metal or plastic parts, use a mild detergent and warm water. Avoid abrasive cleaners, ammonia, bleach, or alcohol. The fabric can be cleaned with a damp cloth and mild soap, or washed after disassembly.

Does the bed have a bassinet/cradle?

Yes, a removable bassinet is provided. It attaches using zippers to the top rails. Use it only as long as the child does not roll over or exceed 6.8 kg.

Where can I find spare parts?

Contact the manufacturer BabyGO at the address indicated in the manual (BabyGO Baby Products GmbH, Am Bahndamm 1-3, D-33378 Rheda-Wiedenbrück, Germany). Use only original or recommended parts.

What are the essential safety precautions?

Check that the top rails and base are properly locked before each use. Never use the bed if any part is broken or missing. Place the bed on a horizontal floor, away from heat sources and cords. Never leave the child unattended.

How to store the Moonstars BabyGO bed?

Fold the bed as indicated in the manual, then place it in the provided carrying bag. Make sure the product is completely dry before storing to prevent mold.

USER MANUAL Moonstars BabyGO

Line drawing of a simple metal frame structure with four legs and a central horizontal panel (no text or symbols)

BEDIENUNGSANLEITUNG

Liebe Eltern:

Simple line drawing of a wrapped object resembling a cube or container (no text or symbols)

Simple line drawing of a closed bag with handle and skirt (no text or symbols)

Simple line drawing of a rectangular frame with two vertical panels and corner brackets (no text or symbols)

GROSSE MATRATZENAUFLAGE FÜR DEN LAUFSTALL

Pure diagram of a rectangular frame with internal horizontal lines, no text or symbols present

KINDERBETTCHEN

STÜTZROHR FÜR DAS KINDERBETTCHEN

KLEINE MATRATZENAUFLAGE FÜR DAS KINDERBETTCHEN

Two-step diagram showing fabric folding or rolling process with arrows indicating movement (no text or symbols)

Simple line drawing of a triangular container filled with mesh material, no text or symbols present

WARNUNG!

Line drawing of a baby crib with a top handle and seat, no text or symbols present

Diagram of a container with four circular components above it, no text or symbols present

Simple line drawing of a rectangular object with four arms and a central band, no text or symbols present.

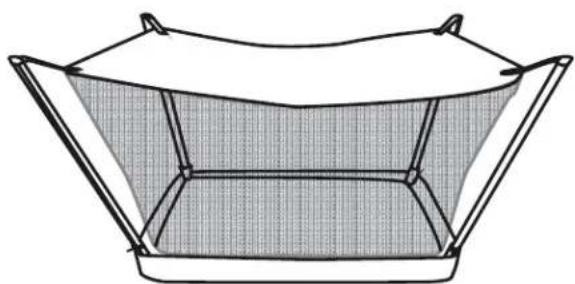

WARNUNG!

Diagram illustrating a mechanical or structural assembly with labeled parts E and D, showing hand positioning and detail view.

Diagram of a garment pattern piece with two side panels showing fabric and stitching (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a baby table with a top shelf and a hanging arrow, no text or symbols present

Line drawing of a triangular container filled with mesh material, no text or symbols present

Diagram showing a mechanical or anatomical structure with labeled components and an arrow indicating direction, possibly representing a joint or force.

Diagram of a folded paper or plastic sheet with a black arrow indicating rotation (no text or symbols)

KINDERBETTCHEN ZUSAMMENKLAPPEN

PRESS

Line drawing of a folded or layered object resembling a book or document (no text or symbols)

Diagram of a folded fabric or material with an arrow indicating direction (no text or symbols)

Line drawing of a folded garment or cushion with a black arrow indicating a seam or seam (no text or symbols)

PFLEGE

Instandhaltung

Carry Cot Instruction manual

Line drawing of a simple metal frame structure with four legs and a central horizontal panel (no text or symbols)

INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the Travel Cot.

Please read and follow all instructions before using the Travel Cot.

• Lightweight
• Aluminum frame
• Suitable for new born baby
• Easy to handle
  • Maximum Load: 13 kgs or height of 85cm tall.

WARNING!

Read the Instruction carefully before use and keep them for future reference.

IMPORTANT

BEFORE ASSEMBLING THIS COT READ AND UNDERSTAND THE INSTRUCTIONS.

Do not use mattress other than the one supplied by the manufacturer.

Incorrect mattress can cause death.

Use only accessories as recommended by the manufacturer.

Ensure the top rails and base are fully locked.

Stop using this cot of any part of the cot is broken, torn or missing.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.

INSTRUCTIONS FOR ASSEMBLY AND USE

SAFETY PRECAUTIONS

READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTUR REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

WARNING

BEFORE ASSEMBLING THIS COT, READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS

• IMPORTANT: Mattresses are included and are designed specifically for this cot.
• Do not use any mattresses other than the ones supplied by the manufacturer.
• Only use accessories recommended by the manufacturer. Never use substitute parts. Ensure the top rails and the base are fully locked before use.
• Stop using this cot if any of the parts of the cot are broken, torn or missing.
• Failure to follow the warnings and instructions could result in serious injury or death. Contact the manufacturer for replacement parts or instructions if they are required. Keep children away while assembling/disassembling the cot.
• Do not leave anything on the folding cot (such as toys) that provide a foothold.
• Do not use the cot near naked heat sources, bar heaters, open fires or exposed flames.
• Keep the folding cot clear of trailing cables and hanging cords.
• Keep medications and small items that a child could choke on, away from the cot.
• Do not use the folding cot if fabric or padding on the side rails or end rails has been bitten through.

FALL HAZARD:

• To prevent falls, DO NOT use the folding cot once the infant has reached the manufacturer's maximum weight of 13kgs or a height of 85cm tall.
• The crib/cradle should be placed on a horizontal floor.

WARNING:

• the crib/cradle should be locked in the fixed position when a child is unsupervised in it
• When a child is able to sit, kneel or to pull itself up, the crib/cradle shall not be used anymore for this child.
• Do not to use the body of a cradle without its frame.

SUFFOCATION HAZARD - Infants can suffocate:

• In gaps between an extra pad or mattress.
• In soft bedding.
• Never leave your child unattended.
• Use this product with only one child at a time.
• To reduce the risk of Sudden Infant Death Syndrome (SIDS), Paediatricians recommend infants to be placed on their backs to sleep, unless otherwise advised by your physician.

WARNING:

TO PREVENT SUFFOCATION AND FALLS, THE RECOMMENDED MATTRESS SIZE SHOULD BE 1035mm LONG X 590mm WIDE AND NO MORE THAN 40mm THICK.

PARTS

IMPORTANT!

Please remove all parts from the package and identify them before assembly.

Simple line drawing of a wrapped object resembling a cube or container (no text or symbols)

Simple line drawing of a closed bag with handle and skirt (no text or symbols)

PLAYARD TRAVEL AND STORAGE BAG

Simple line drawing of a rectangular frame with two vertical panels and corner brackets (no text or symbols)

BIG MATTRESS PAD FOR PLAYARD

Pure diagram of a rectangular frame with internal horizontal lines, no text or symbols present

BASSINET

SUPPORT TUBE FOR BASSINET

SMALL MATTRESS PAD FOR BASSINET

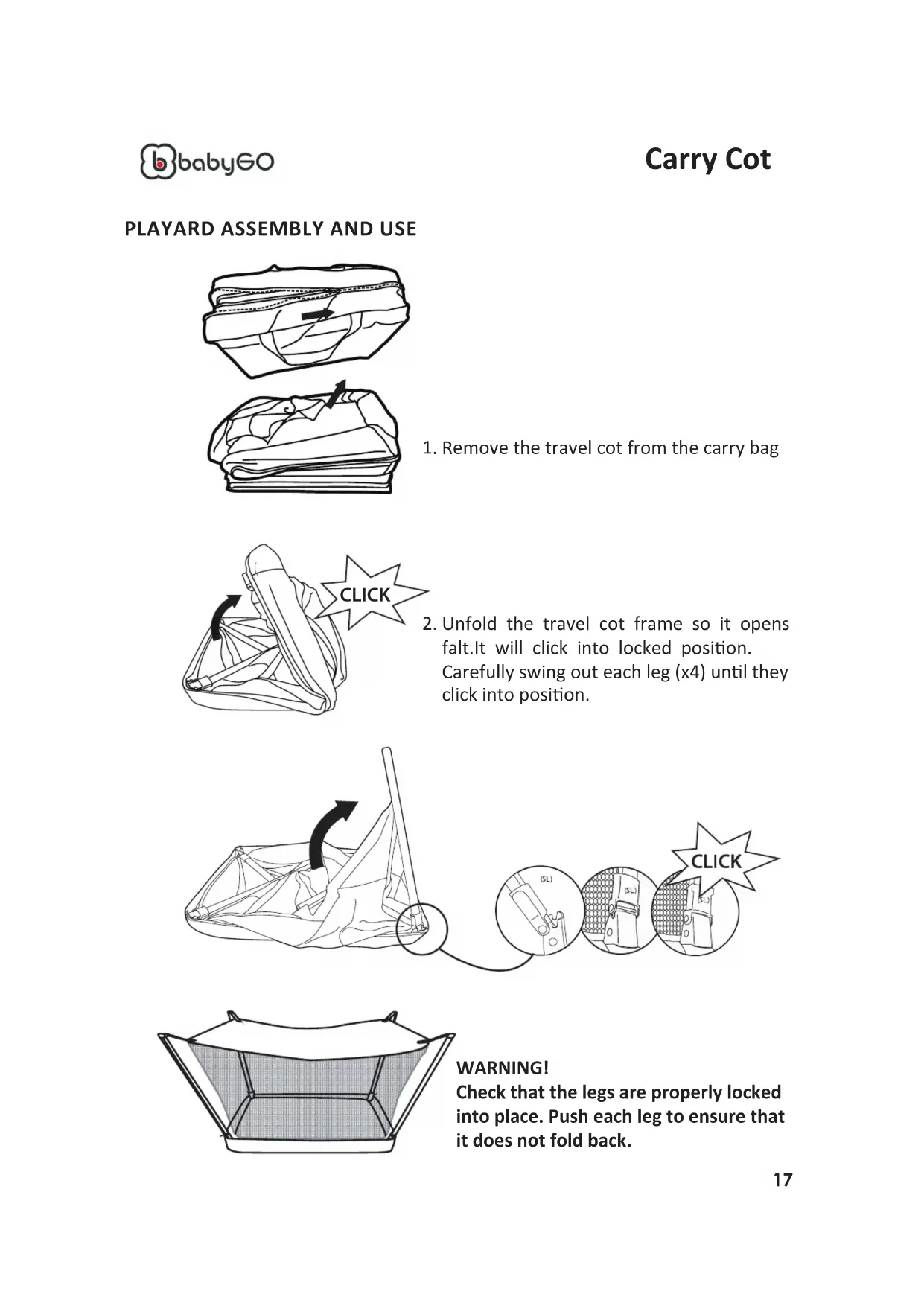

PLAYARD ASSEMBLY AND USE

Two-step diagram showing fabric folding or rolling process with arrows indicating movement (no text or symbols)

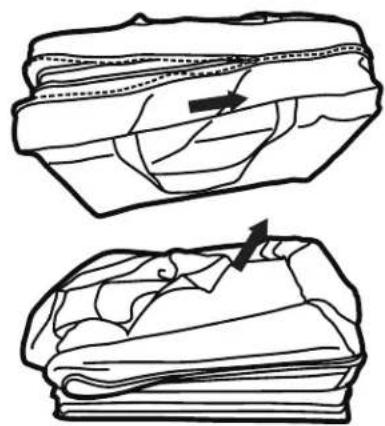

1. Remove the travel cot from the carry bag

CLICK 2

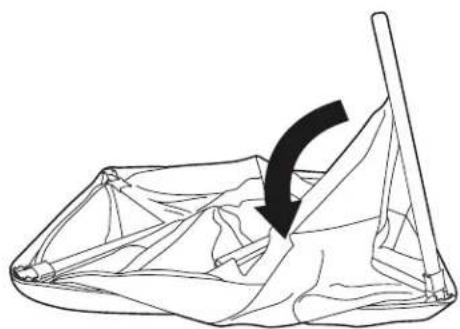

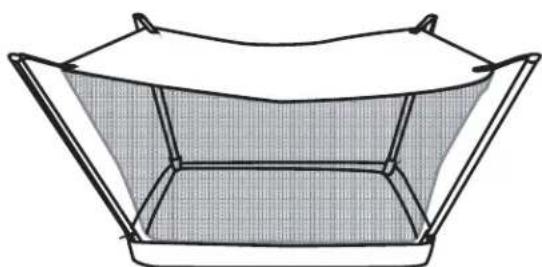

1. Unfold the travel cot frame so it opens falt. It will click into locked position. Carefully swing out each leg (x4) until they click into position.

CLICK (SL) (SL) (SL)

Line drawing of a triangular net with mesh pattern, no text or symbols present

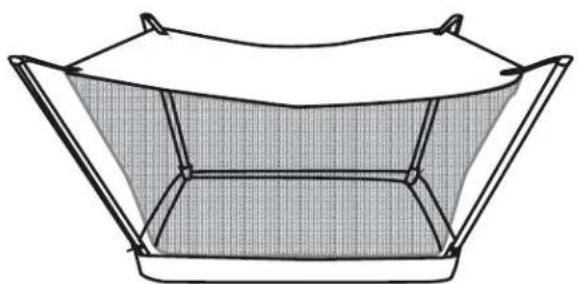

WARNING!

Check that the legs are properly locked into place. Push each leg to ensure that it does not fold back.

ASSEMBLY AND USE

Line drawing of a baby crib with a top handle and seat, no text or symbols present

1. Turn the cot upright and insert the mattress in place at the bottom of the cot.

Diagram of a container with four circular components above it, no text or symbols present

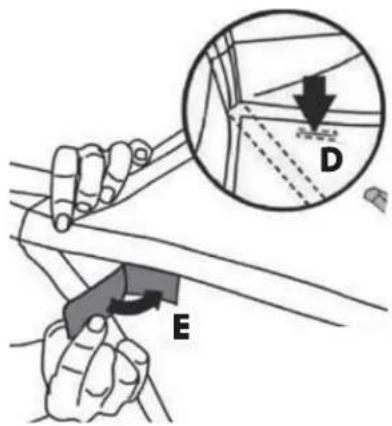

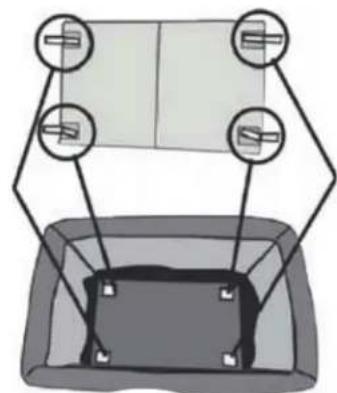

1. Slide the Velcro straps through the openings D on the bottom of the cot and attach them firmly to the Velcro patches E under the bottom of the cot.

WARNING!

Always ensure the locking mechanisms are fully engaged before using this cot.

Simple line drawing of a rectangular object with four legs and a central horizontal bar, no text or symbols present.

Diagram illustrating a mechanical or structural assembly with labeled parts E and D, showing a hand holding a tool.

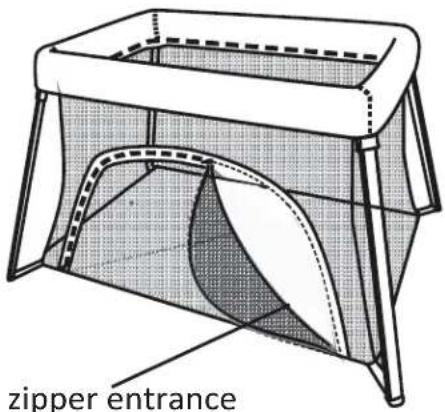

zipper entrance

1. Zipper entrance for playing. Make sure to unzip or zip the entrance completely with the child inside.

BASSINET ASSEMBLY AND USE

WARNING:

(A) TO PREVENT FALLS, DO NOT USE THE BASSINET WHEN THE CHILD BEGINS TO PUSH UP ON HANDS AND KNEES OR REACH MAXIMUM WEIGHT 6.8KG OR CAN ROLL OVER.
(B) NEVER PLACE A CHILD IN THE COT WHEN THE BASSINET IS IN PLACE.

1. Inser the tubes Fit the tubes to 2. The inner side of top rail and the provided with z Fasten the bassi

1. Inser the tubes into casing cloth. Fit the tubes together

2. The inner side of the bottom of the top rail and the top of the bassinet are provided with zip. Fasten the bassinet to the cot with zips.

Diagram of a mechanical component with two hands operating, showing internal structure and alignment (no text or symbols)

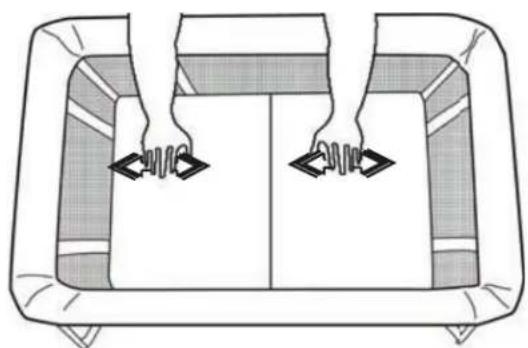

1. Insert the mattress pad. Place hands inside and push down on mattress to ensure it is firm.

FOLDING THE COT

Illustration of a hand holding a tool over a cable, with a magnified inset showing a mechanical component (no text or symbols)

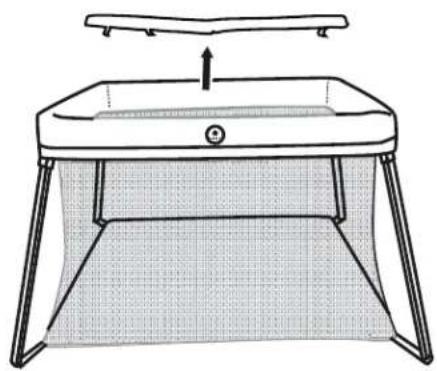

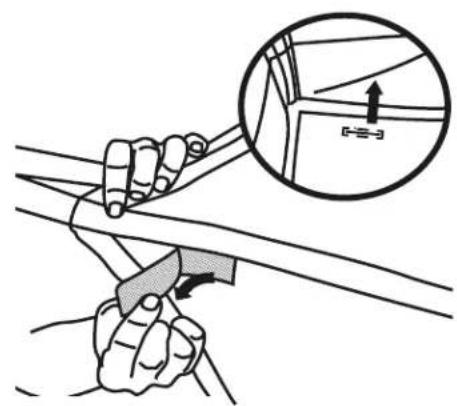

1. To take the mattress out of the cot, detach the Velcro tabs at the bottom of the cot and remove the mattress.

Line drawing of a baby table with a top shelf and a hanging arrow, no text or symbols present

Simple line drawing of a triangular container filled with mesh material (no text or symbols)

1. Turn the cot over and fold the four feet one after another: pull the closing button on the upper part of the foot (near the corner of the cot) and fold the foot towards the inside of the cot.

Diagram showing a mechanical or anatomical structure with labeled components and an arrow indicating direction, possibly representing a joint or force.

Diagram of a folded paper or plastic sheet with a black arrow indicating rotation (no text or symbols)

FOLDING THE COT

PRESS

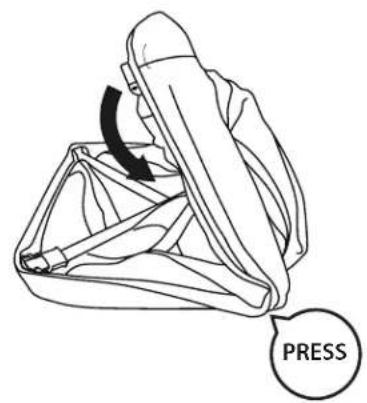

1. Press the side buttons located on the middle of the rail and fold the cot structure in half.

Line drawing of a folded or layered object resembling a box or document (no text or symbols)

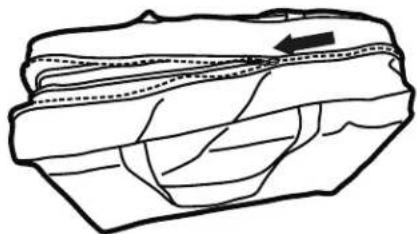

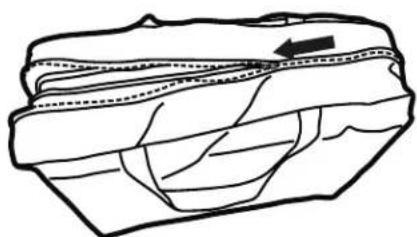

1. Once the travel cot structure is folded, insert it into the carry bag. Zip the carry bag shut for transportation and storing.

Line drawing of a folded fabric or material with an arrow indicating direction (no text or symbols)

Line drawing of a folded garment with a black arrow indicating a seam or seam (no text or symbols)

CARE

Maintenance

This product requires regular maintenance to keep it in good working order.

Regularly check all parts of the product to ensure that they are operating correctly and for signs of wear or damage. Only replacement parts supplied or recommended by the manufacturer should be used. The fabric of cot can be wiped clean with a damp cloth and mild soap or can be removed and washed if necessary.

Cleaning

Clean metal or plastic components with mild detergent and warm water. Never use abrasive, ammonia based, bleach based or spirit type cleaners. Ensure the product is fully dry before use or storage.

LIT DE VOYAGE

Line drawing of a simple metal frame structure with supports and legs (no text or symbols)

INSTALLATION ET MODE D'EMPLOI

Chers parents:

Simple line drawing of a wrapped object resembling a cube or container (no text or symbols)

Simple line drawing of a closed bag with handle and skirt (no text or symbols)

PARC POUR BÉBÉ SAC DE VOYAGE ET DE RANGEMENT

Simple line drawing of a rectangular frame with two vertical panels and corner brackets (no text or symbols)

GRAND MATELAS DU PARC POUR BÉBÉ

Pure diagram of a rectangular object with internal lines and grid pattern, no text or symbols present

COUFFIN

TUBE DE SUPPORT POUR LE COUFFIN

PETIT SUR-MATELAS POUR COUFFIN

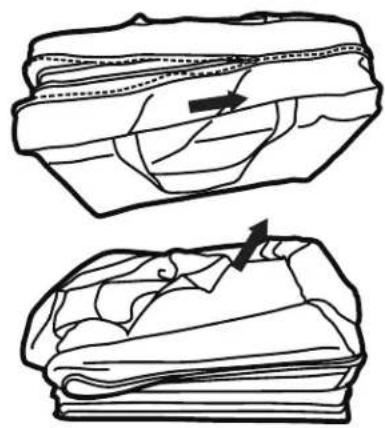

ASSEMBLAGE ET UTILISATION DU PARC POUR BÉBÉ

Two-step diagram showing fabric folding or stitching process, with arrows indicating direction of movement (no text or symbols)

Line drawing of a triangular net with mesh fill (no text or symbols)

ATTENTION!

Line drawing of a baby crib with a top handle and seat, no text or symbols present

Diagram of a container with four circular components above it, no text or symbols present

Simple line drawing of a rectangular object with four legs and a central oval shape, no text or symbols present.

ATTENTION!

Diagram illustrating a mechanical or structural assembly with labeled parts E and D, showing a hand holding a tool and a magnified inset highlighting a detail.

Diagram of a mechanical component with two hands operating, showing internal structure and alignment arrows (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a baby table with a top shelf and a hanging arrow, no text or symbols present

Line drawing of a triangular container filled with mesh material, no text or symbols present

Diagram showing a mechanical or anatomical structure with labeled components and an arrow indicating direction, possibly representing a joint or force.

Diagram of a folded paper or plastic sheet with a black arrow indicating rotation (no text or symbols)

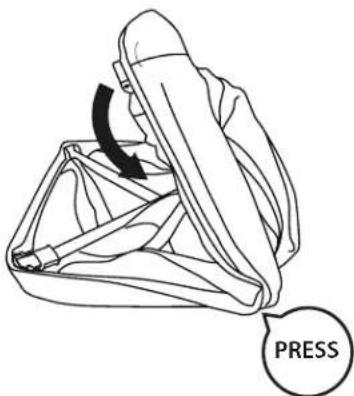

PLIER LE LIT

PRESS

Line drawing of a folded paper or document with visible folds and edges (no text or symbols)

Line drawing of a folded fabric or material with an arrow indicating direction (no text or symbols)

Line drawing of a folded garment with a black arrow indicating a seam or seam (no text or symbols)

SOIN

Entretien
