Product type	Compressor cooler
Brand	Mestic
Model	MCCHD60
Capacity	60 liters (estimated based on model)
Power supply	12 V / 24 V DC (connection cable included); 220-240 V AC with mains adapter (not included)
Adjustable temperature range	Adjustment via ▲ and ▼ buttons
Cooling modes	MAX (fast cooling) and ECO (energy saving)
Display	Digital with error codes
Battery protection	3 levels (Low, Medium, High) for 12 V and 24 V
USB port	Yes, for charging devices
Unit converter	Switch from °C to °F in standby mode
Defrosting	Manual, with drain plug
Cleaning	Damp cloth, mild detergent
Safety distance	At least 10 cm on each side
Maximum tilt	30° (wait 30 min before starting)
Usage	Domestic, on a flat, dry surface
Accessories not included	Mains adapter 220-240 V (ref. 1502950)
Alternative model number	MCCHD33, MCCHD45
Weight	Approximately 22 kg (estimated)
Dimensions (L x W x H)	Approximately 70 x 40 x 45 cm (estimated)
Repairability	Do not repair yourself; contact the manufacturer or a qualified technician

Frequently Asked Questions - MCCHD60 Mestic

How to adjust the temperature of the Mestic MCCHD60 cooler?

Press the ▲ or ▼ button to increase or decrease the temperature. The set temperature is displayed on the screen.

How to activate fast cooling (MAX) or energy saving (ECO) mode?

Press the setup button to switch between modes. The green indicator is for ECO mode and the blue one for MAX mode.

What do error codes E1 to E7 on the display mean?

E1: low battery voltage; E2: fan failure; E3: compressor start problem; E4: abnormal compressor speed; E5: overheating; E6: module defect; E7: thermal sensor defect. Consult the manual for actions to take.

How to set the battery protection to avoid excessive discharge?

In standby mode, hold down the 'l' and '' buttons for 3 seconds to access the menu. Use ▲ or ▼ to select the level: H (high) for vehicle, M (medium) for external battery, L (low) for prolonged use.

Can I use the cooler with an external battery or a fast charger?

Yes, but disconnect the cooler before connecting a fast charger. For an external battery, set the protection to M (medium) for longer operation.

How to clean the inside and outside of the refrigerator?

Unplug the device and remove food. Use a slightly damp cloth and a mild detergent. Never use sharp or abrasive objects, and do not immerse in water.

How to defrost the cooler?

Remove food, turn off the device and open the lid. Let the ice melt, then wipe up the water or use the drain plug at the bottom.

What to do if the cooler does not start after tilted transport?

If the cooler has been tilted more than 30°, let it stand upright for at least 30 minutes before plugging it in. This allows the coolant to return to the compressor.

What accessories are needed for 230 V mains operation?

A 220-240 V mains adapter (ref. 1502950) is required. It is not included with the device and must be purchased separately.

How to switch the display from Celsius to Fahrenheit?

In standby mode (device off), hold down the ▲ and ▼ buttons for 3 seconds. The display switches from °C to °F. Release the buttons to save.

USER MANUAL MCCHD60 Mestic

MCCHD 33-45-60

Cool box

NEDERLANDS

Kenmerken

Bediening

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO equiv.	0.057t
Foam Vasicant	C-Pentane
Order number	INK-024395
Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
CO2equiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name	Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V ===
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO·equiv.	0.086t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

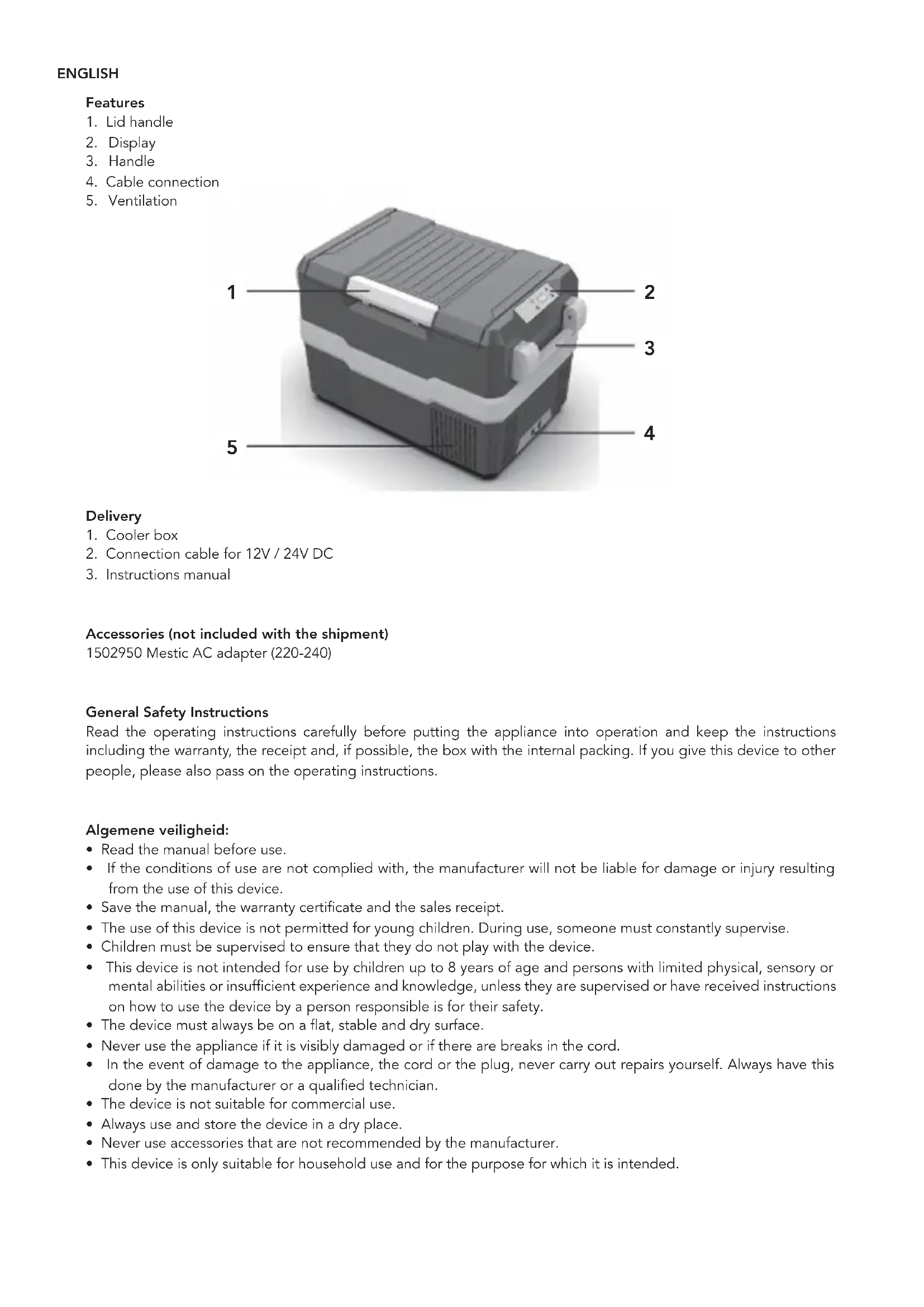

ENGLISH

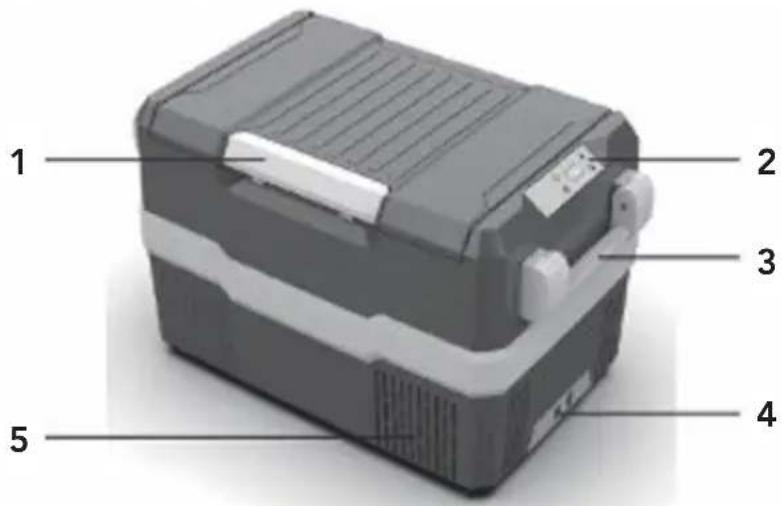

Features

1. Lid handle
2. Display
3. Handle
4. Cable connection
5. Ventilation

Delivery

1. Cooler box
2. Connection cable for 12V / 24V DC
3. Instructions manual

Accessories (not included with the shipment)

1502950 Mestic AC adapter (220-240)

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• Read the manual before use.
• If the conditions of use are not complied with, the manufacturer will not be liable for damage or injury resulting from the use of this device.
• Save the manual, the warranty certificate and the sales receipt.
• The use of this device is not permitted for young children. During use, someone must constantly supervise.
  • Children must be supervised to ensure that they do not play with the device.
• This device is not intended for use by children up to 8 years of age and persons with limited physical, sensory or mental abilities or insufficient experience and knowledge, unless they are supervised or have received instructions on how to use the device by a person responsible is for their safety.
• The device must always be on a flat, stable and dry surface.
• Never use the appliance if it is visibly damaged or if there are breaks in the cord.
• In the event of damage to the appliance, the cord or the plug, never carry out repairs yourself. Always have this done by the manufacturer or a qualified technician.
• The device is not suitable for commercial use.
  • Always use and store the device in a dry place.
• Never use accessories that are not recommended by the manufacturer.
• This device is only suitable for household use and for the purpose for which it is intended.

Safety in use;

• Always remove the plug from the device when it needs to be maintained or cleaned.
- Never use the device in the vicinity of hot or hot objects.
- Prevent the device from coming into contact with rain.
- Do not place other electrical devices in the device.
- Do not place chemical or explosive agents in the device.

- Only use the DC 12V or 230V connection cable (not included). NOTE: never use both energy sources at the same time.

- Defrost the device regularly to ensure that the device functions optimally.

- Do not pull on the connecting cord, but pull on the plug to remove the cord from the socket.

- If the cool box is connected to the DC socket, disconnect your cool box and other consumers from the battery before you connect a fast charger

- If the cool box is connected to the DC socket; switch off the cool box or break the connection when you switch off the engine. The battery can be discharged otherwise.

- Pay attention! That the heat that arises during the operation of the cool box can be properly dissipated.

- Enough distance between product and objects and walls.

• Never immerse the device in water

- Ventilation slots are not covered at all times.

Use

• Remove all packaging materials from the device.
• Place the device on a flat and stable surface with at least 10 cm of free space on each side.
• Do not switch the appliance on immediately after you transport it, where the cool box has been tilted more than -30°. This could cause damage to the cooling system. The device must first stand upright for 30 minutes so that the coolant can be collected again in the compressor. This prevents the compressor from running dry.
• Look at the above user conditions before use.
• For hygienic reasons, you must clean the inside and outside of the appliance with a damp cloth before using your cool box. (see paragraph
• Connect the cooler box.

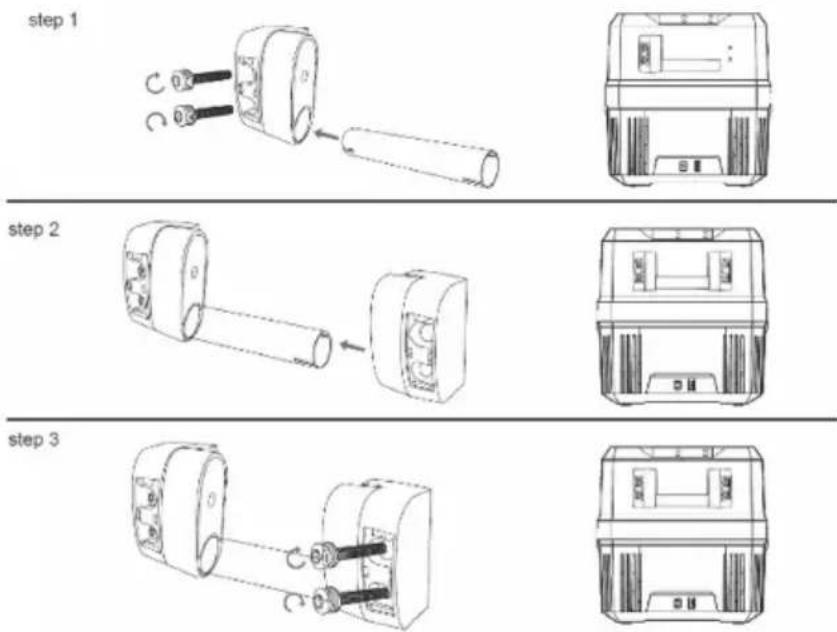

Handle installation

ENGLISH

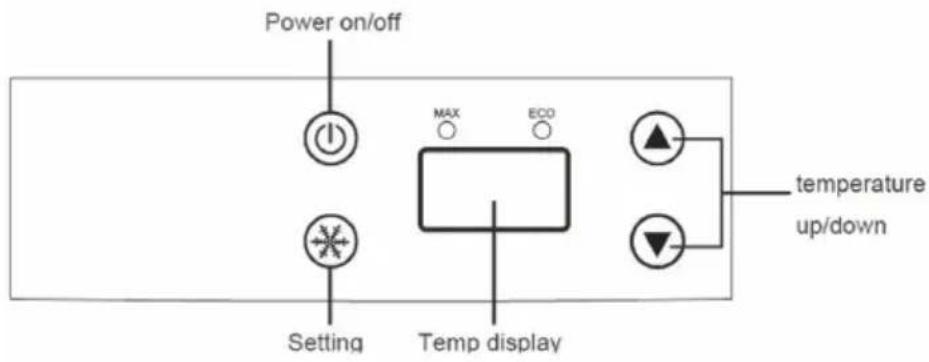

Control

1. Switching on and off: press and hold the on / off button, the refrigerator will now start or switches off
2. Temperature adjustment: press the ⚠ or ⏱ button to adjust the temperature, The temperature is now set.
3. Fast cooling / energy saving mode: press the set button ☀ to quickly switch between cooling mode MAX and energy saving mode ECO. Green is Eco and blue is MAX
4. Switch C to F: In standby mode, hold down the " and " key for 3 seconds to switch Fahrenheit and Celsius temperature, (F is Fahrenheit temperature, C is Celsius temperature), after releasing the Key 3 seconds automatically save the setting and exit.
5. USB charging port: In standby state, press "1" and "④for 3 seconds at the same time to enter the battery protection gear setting menu, and then press "④or " "to set the corresponding battery protection

Battery power detection

The device features a multi-level battery guard that protects your vehicle battery from excessive discharge when the device is connected to the built-in DC power supply. If the cooler is operated with the vehicle ignition off, the cooler will shut off automatically when the power supply voltage drops below a set level. The cooler will turn back on once the battery is charged to the restart voltage level. The compressor will restart automatically in a few minutes when the voltage returns to normal values.

Note: these values are measured at the input of the control unit and / or at the DC connection.

1. Battery protection function for the cooler with three-class battery protection function, can automatically check the battery voltage of the vehicle, before the electricity consumption will affect the normal functions of the car. The cool box will stop automatically to ensure that the car's battery does not run out.

2. Method for adjusting the battery protection:

Protection\Voltage	12V 24V
	Cut off (V) Cut in (V) Cut off (V) Cut in (V)
Low 9.6V 10.9V	21.3V 22.7V
Middle 10.4V 11.7V	22.8V 24.2V
High 11.1V 12.4V	24.3V 25.7V

Tip:

It is recommended to set the H-class when the cool box is connected to a vehicle, otherwise the car's battery may be too empty and affect the normal ignition of the car; When connecting the cool box to an external or backup battery, it is recommended to set the M-mid range so that the cool box can work longer.

The meaning of the error code on the screen and how to deal with it:

E1 Battery voltage is low

E2 Fan failure

E3 Compressor start up problems

E4 Compressor's running speed fails to reach the requirements

E5 The model is overheating

E6 Module fault

E7 Thermal head fault (open circuit or short circuit)

Cleaning

• Before cleaning, remove the products from the device and remove the plug from the power supply. Only clean with a slightly damp cloth, if necessary a non-aggressive cleaning agent can be used. After cleaning, always dry all wet surfaces with a dry cloth.
• Never use sharp or abrasive products to clean the device.
• Defrost the cool box: frost can settle on the evaporator or inside of the cool box due to humidity, this can reduce the cooling capacity. The cool box must be defrosted in time. As follows
  • Take the products out of the cool box
• Switch off the device
• Open the lid
• Sweep up the melt water or drain the melt water through the plug.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment. This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Declaration of conformity

Hereby Gimeg Nederland B.V. declares that the device MCCHD 33, MCCHD 45 & MCCHD 60 applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the adress listed on the backside of this manual

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO2equiv.	0.057t
Foam Vasicant	C-Pentane
Order number	INK-024395
Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
COequiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vosicant	C-Pentane
Order number	INK-024395
Made in China

FRANÇAIS

Caractéristiques

Un service

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO2equiv.	0.057t
Foam Vasicant	C-Pentane
Order number	INK-024395
Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
COequiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vosicant	C-Pentane
Order number	INK-024395
Made in China

DEUTSCH

Bestandteile

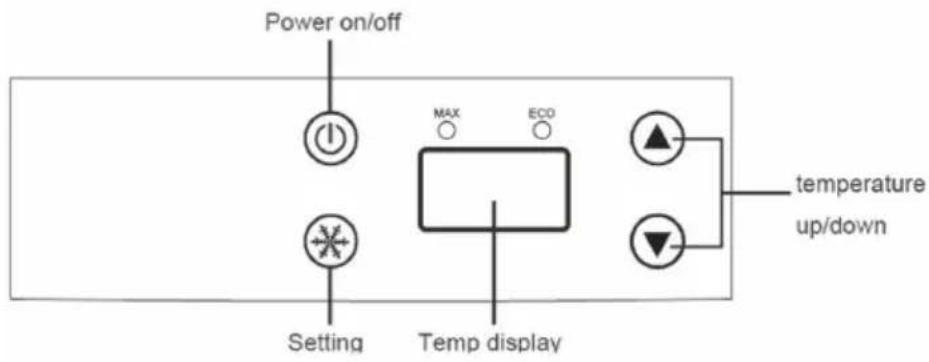

Bedienfeld

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO equiv.	0.057t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class	III
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
CO2equiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T. ST. SN. N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	80W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

DANSK

Funktioner

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO equiv.	0.057t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class	III
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
CO2equiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO equiv.	0.086t
Foam Vosicant	C-Pentane
Order number	INK-024395

Caratteristiche

ITALIANO

Controllo

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V ≈
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO2equiv.	0.057t
Foam Vesicant	C-Pentane
Order number	INK-024395

Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V ===
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
COequiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

Made in China

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vesicant	C-Pentane
Order number	INK-024395

Made in China

NORSK

Funksjoner

1. Lokkhändtak
2. Skjerm
3. Håndtak
4. Ledningstilkobling
5. Ventilasjon

Levering

Kontroll

Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO2equiv.	0.057t
Foam Vesciant	C-Pentane
Order number	INK-024395

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
CO2equiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V=
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

ESPAÑOL

Características

Control

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO equiv.	0.057t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
CO2equiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T. ST. SN. N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	80W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

SVENSKA

Funktioner

1. Lockhandtag
2. Skärm
3. Handtag
4. Kabelanslutning
5. Ventilation

Leverans

SVENSKA

Kontrollera

mestic
Product name	Coolerbox
Item number	MCCHD-33
Volume	31 L
Climate classification	T、ST、SN、N
Insulation class
Net weight	15.7 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (40g)
CO2equiv.	0.057t
Foam Vesicant	C-Pentane
Order number	INK-024395
Made in China

mestic
Product name	Coolerbox
Item number	MCCHD-45
Volume	43 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	17.2 kg
Rated Voltage DC	12V/24V
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (50g)
CO equiv.	0.072t
Foam Vesicant	C-Pentane
Order number	INK-024395

mestic
Product name Coolerbox
Item number	MCCHD-60
Volume 56 L
Climate classification	T, ST, SN, N
Insulation class
Net weight	19 kg
Rated Voltage DC	12V/24V---
Rated Current for DC	7.0A/3.5A
Total Input Power	60W
Refrigerant	R134a (60g)
CO2equiv.	0.086t
Foam Vosicant	C-Pentane
Order number	INK-024395
Made in China

mestic®

Importer:
