USER MANUAL ME80 Mestic

1 cup Cups 1000 W 220-240 V KG 2.3 kg Relax... it's mestic®

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO

ESPRESSO MACHINE ME-80

ONLY COMPATIBLE WITH ALUMINUM CUPS

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Two technical line drawings of a device with internal components, shown from different angles (no text or symbols)

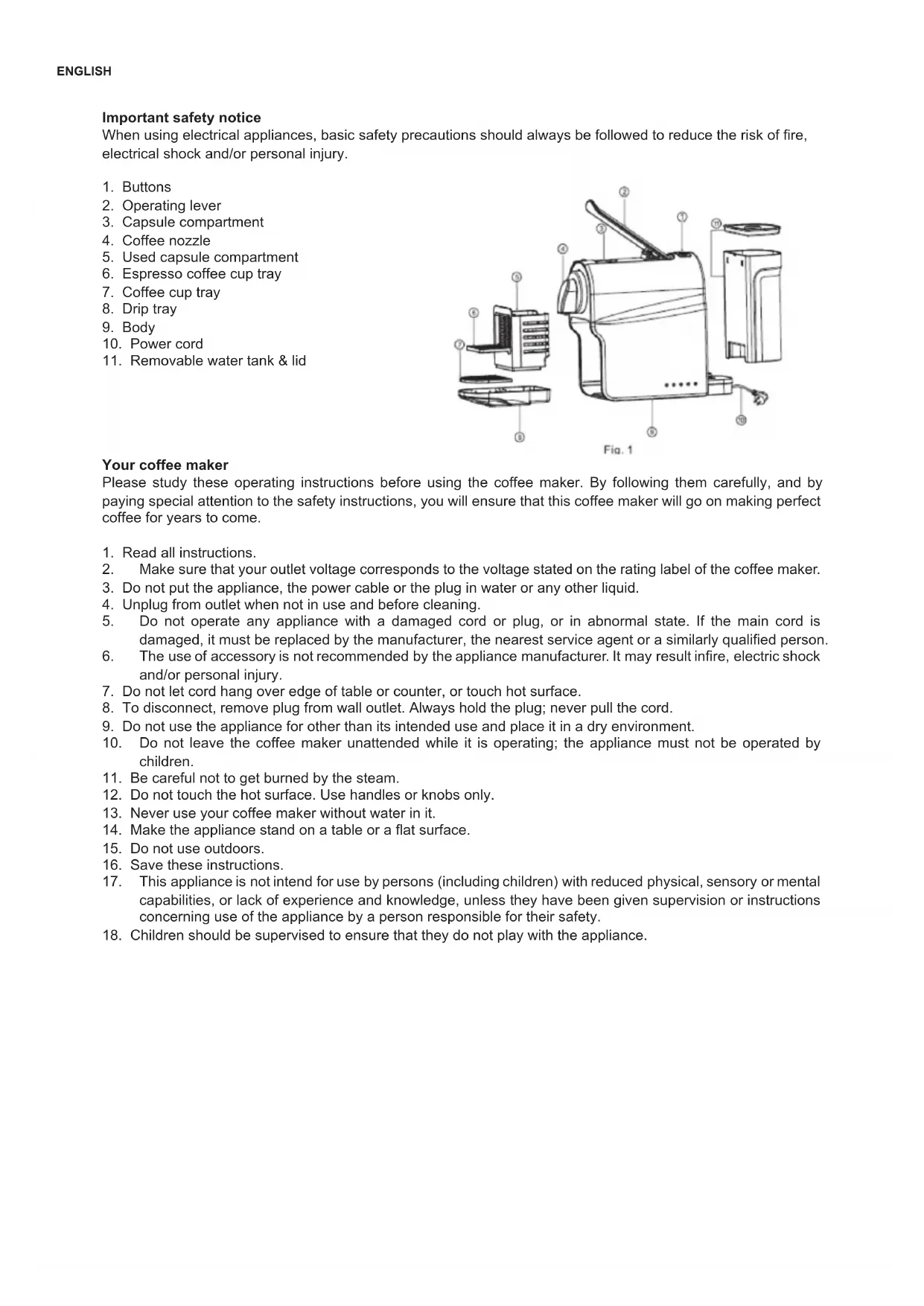

Important safety notice

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and/or personal injury.

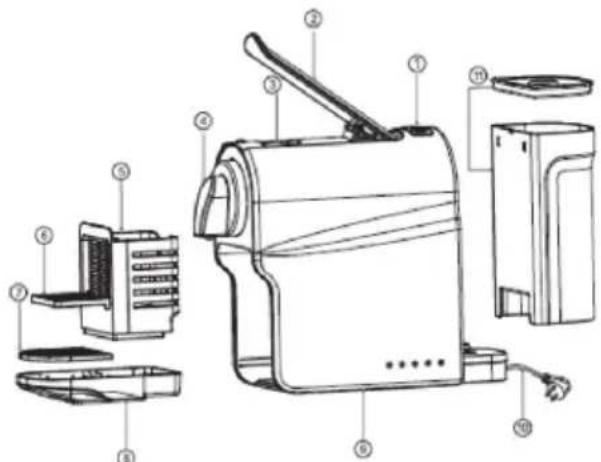

1. Buttons
2. Operating lever
3. Capsule compartment
4. Coffee nozzle
5. Used capsule compartment
6. Espresso coffee cup tray
7. Coffee cup tray
8. Drip tray
9. Body
10. Power cord
11. Removable water tank & lid

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Your coffee maker

Please study these operating instructions before using the coffee maker. By following them carefully, and by paying special attention to the safety instructions, you will ensure that this coffee maker will go on making perfect coffee for years to come.

1. Read all instructions.
2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.
3. Do not put the appliance, the power cable or the plug in water or any other liquid.
4. Unplug from outlet when not in use and before cleaning.
5. Do not operate any appliance with a damaged cord or plug, or in abnormal state. If the main cord is damaged, it must be replaced by the manufacturer, the nearest service agent or a similarly qualified person.
6. The use of accessory is not recommended by the appliance manufacturer. It may result infire, electric shock and/or personal injury.
7. Do not let cord hang over edge of table or counter, or touch hot surface.
8. To disconnect, remove plug from wall outlet. Always hold the plug; never pull the cord.
9. Do not use the appliance for other than its intended use and place it in a dry environment.
10. Do not leave the coffee maker unattended while it is operating; the appliance must not be operated by children.
11. Be careful not to get burned by the steam.
12. Do not touch the hot surface. Use handles or knobs only.
13. Never use your coffee maker without water in it.
14. Make the appliance stand on a table or a flat surface.
15. Do not use outdoors.
16. Save these instructions.
17. This appliance is not intend for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
18. Children should be supervised to ensure that they do not play with the appliance.

Using your coffee machine for the first time.

Confirm whether any accessories are missing and the appliance is not damaged. Then clean the inner parts, then install and operate the machine as per following steps.

1. Rinse the water tank then filling with water.

1. Install the water tank, drip tray and capsule container in proper position on the machine.

1. Turn the machine ON by connecting the plug into mains, both coffee buttons blink for three times.

1. Press any coffee button to start heating up.

1. When buttons stop blinking and shows steady light, The machine is ready for use.

1. Press and hold the two coffee buttons simultaneously to turn OFF the machine.

Using Coffee machine:

Before making any coffee, make sure to rinse your machine by

• Placing a container under coffee extraction nozzle.
• Closing the operating lever and pressing the Lungo button to rinse the machine.
• Repeat this three times.

Making coffee

Open the water reservoir lid and fill the water tank with the desired amount of water. You repeat the previous steps from step 3 to 5.

1. Turn the machine ON by connecting the plug into mains, both coffee buttons blink for three times.
2. Press any coffee button to start heating up.
3. When buttons stop blinking and shows steady light, The machine is ready for use.
4. Place a cup.

Technical line drawing of two mechanical components (no text or symbols)

1. Open the operating lever, insert a capsule and then closed.

only compatible with: aluminum cups

1. Press one of the two coffee buttons (desired amount) while the light is blinking. The machine will start making your cup of coffee

1. Open the operating lever after extraction stopped. The capsule will be automatically ejected and drop into the used capsule container.

• The pre-defined factory volume for Espresso coffee (20-25ml) / Lungo coffee (40-50ml)
- Extraction will stop automatically or press the selected coffee button to stop ahead

Energy saving mode

• Automatic Stand-by mode: the machine will turn into stand-by mode automatically after 5 minutes of non use. The boiler turned off and the external surface of the machine cools down. All button indicator lights on the control panel go out.
- When user press any coffee button again, the appliance leaves from standby mode, restart heating up process until "Ready to use".

Warning

If both coffee buttons flash alternately (see illustration). Turn the device off, wait 2 minutes, and then turn it on again to check if the problem is resolved. Otherwise, contact the authorized representative for examination, repair or adjustment.

Personal settings

The control panel can also be used to personalize the different extracted coffee capacity. The predefined factory volume for the small cup is (20-25 ml) / and for the large cup is (40-50 ml).

• Check whether there is drinking water in the water tank, check that the machine is ON. Wait until the buttons on the control panel are "Ready for use".
• Then press and hold any coffee button for 3 seconds until the coffee comes out, then release the button (see figure). Once the coffee has reached the desired capacity, press the selected coffee button again and the operation is complete.
• The machine remembers the current personal setting and saves the same coffee quantity for the next time unless new programming is defined.

Reset to factory settings

• Make sure the machine is switched off without mains power.
• Press both coffee buttons together for at least 3 seconds and connect the machine to the mains at the same time.

Cleaning and maintenance

• Remove the plug from the socket
• Never immerse the appliance in water.
• Only clean the device with a dry cloth.
• Empty the drip tray and used capsule container after each use.
• Clean the coffee nozzle and the inside of the machine regularly with a damp cloth.
  • Do not use a strong or abrasive solvent, sponge or cream cleaner. Do not put in the dishwasher.
• For your coffee machine to work efficiently, you must regularly clean the scale deposits produced by the water. We recommend that you use the appliance every three months or after approx. 200 capsules.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment. This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Declaration of conformity

Hereby Gimeg Nederland B.V. declares that the device ME-80, applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the adress listed on the backside of this manual

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Ihre Kaffeemaschine

Two technical line drawings of a mechanical device, one showing internal components and the other a close-up view (no text or symbols)

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Votre cafetière

Two technical line drawings of a device with no visible text or symbols

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Su cafetera

Two technical line drawings of a mechanical device, one showing internal components and the other with a handle (no text or symbols)

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Two line drawings of a mechanical device, one open and one closed, with no visible text or symbols.

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Din kaffemaskine

Two technical line drawings of a mechanical device, one showing internal components and the other with a handle (no text or symbols)

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Din kaffebryggare

Technical line drawing of two mechanical components (no text or symbols)

Exploded diagram of a portable air fryer with numbered parts for identification

Fig. 1

Kaffetrakteren din

Two technical line drawings of a device with internal components, shown from different angles (no text or symbols)
