USER MANUAL ODL 4385 UCTIB OK

Front view of a modern black flat-screen TV with no visible text or symbols on the screen.

IM_ODL 43850UC-TIB_210222_VO

Cartoon illustration of a smiling computer monitor holding an open book (no text or symbols on the monitor or background)

Cartoon illustration of a computer monitor with a smiling face and a sad face, surrounded by flying items (no text or symbols)

Illustration of a smiling man standing beside a computer monitor with a power plug (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and raised fists, surrounded by clouds (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and Chinese characters, accompanied by a distressed air conditioner (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and electrical plug, showing stress or shock (no text or symbols)

Cartoon illustration of a smiling computer monitor with hands and lightning bolts, surrounded by clouds and a battery (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker holding a toolbox (no text or symbols)

HINWEIS:

Line drawing of a flat-screen TV or display stand with no text or symbols

Radio Sub L/R

Startmenü

Before operating, please read all these safety and operating instructions completely and then retain this manual for future reference.

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

REGULATORY INFORMATION

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

a. Relocate the receiving antenna.
b. Increase the separation between the equipment and receiver.
c. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
d. Consult the dealer or experienced radio/TV technician for help.

CAUTION

※ Do not attempt to modify this product in any way without written authorization from supplier. Unauthorized modification could void the user's authority to operate this product.
※ Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Warning

IMPORTANT WARNINGS AND CAUTIONS!

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.

1. Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.
2. Water--- To reduce the risk of fire or electric shock, do not expose this TV to rain or moisture. Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g. on shelves above the unit).
3. Fire or explosion--- Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV. Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
   Warning: To prevent the spread of fire, keep candles or other open flames away from this product at all times.
4. Ventilation--- For ventilation purposes, leave at least 5cm free space around the TV. The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
5. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Overloading---Do not overload wall outlets, extension cables, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
8. Voltage---Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the appliance rating label.
9. Power plug --- Do not defeat the safety purpose of the polarized or grounding-type plug. Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.
10. The MAINS plug of the apparatus is used as the disconnect device, the disconnect device shall remain readily operable.
11. Wall mounting---When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer. The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV. Do not install the TV on a ceiling or on an inclined wall. Use the specified wall mounting screws and other accessories. Tighten the wall mounting screws firmly to prevent the TV from fall. Do not overtighten the screws.
12. Stand--- Do not place the TV on an unstable or slanted surfaces. Otherwise the TV may tip over and cause potentially fatal, serious injury. Many injuries, especially involving children, can be avoided if the following simple safety precautions are taken:
13. Only use TV furniture or stands recommended by the device manufacturer
14. Only use furniture that can carry the weight of the TV
15. Make sure that the TV does not extend beyond the edges of the furniture

Warning

• Do not place the TV on high pieces of furniture (e.g. shelves or bookshelves) without securely supporting the furniture itself and the TV.
• Do not place the TV devices on fabrics or other materials that are located between the TV and the furniture.

• Inform your children about the dangers of climbing on high pieces of furniture to reach the TV or the remote control. If you change the location of your TV, follow the same safety precautions.

• Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

• Damage requiring service--- This unit should only be serviced by an authorized and properly trained technician. Opening the cover or other attempts by the user to service this unit may result in serious injury or death from electrical shock, and may increase the risk of fire.
• Children ---Do not allow young children to play with the plastic bag that came with the television when you unpacked it. Failure to do so can result in suffocation, causing injury.
• Batteries---The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not dispose of any batteries in with the domestic waste. Return them to a collection point for old batteries.

1. Antenna ---Install the antenna away from high-voltage power lines and communication cables and make sure it is installed securely. If the antenna touches a power line, contact with the antenna could result in fire, electric shock or serious injury.
2. Panel protection--- The panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the panel breaks.
3. Operating Temperature: 5°C to 35°C Operating Humidity: ≤80% Storage Temperature: -15°C to 45°C Storage Humidity: ≤90%
4. Indicates an alternating current.

: Indicates direct current.

If you would like to connect an external device with this product, a good quality shielded cable must be used, which ensures the electromagnetic compatibility of the product and the used cable as a whole.

WARNING

Never place a television set in an unstable location, A television set may a fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that maybe located between the television set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated. The same considerations as above should be applied.

Warning

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.

Cartoon illustration of a smiling computer monitor holding a book titled 'POSTA BANK' (no text on screen or background)

1. Do not block any ventilation openings. Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains etc.

Cartoon illustration of a computer monitor with a sad face and raised fists, surrounded by a brain (no text or symbols)

1. Do not use this apparatus near water.

Cartoon illustration of a computer monitor with a smiling face and a sad face, surrounded by floating icons (no text or symbols)

1. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Cartoon illustration of a distressed computer monitor with a fist and alarm, accompanied by a refrigerator (no text or symbols)

1. Clean only with a dry cloth. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Illustration of a smiling computer monitor with a smiley face and a person standing beside it (no text or symbols present)

1. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Warning

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Cartoon illustration of a computer monitor with an angry face and lightning bolts, connected to an electrical outlet (no text or symbols)

1. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

Cartoon illustration of a smiling computer monitor character with arms and legs, surrounded by clouds and a small battery (no text or symbols)

1. Only use the attachments/ accessories specified by the manufacturer.
2. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the Trolley.

Symbolic icon of a person climbing a ladder inside a circle with no text or symbols

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Cartoon illustration of a smiling computer monitor and a delivery worker holding a box (no text or symbols)

NOTE:

♦ Disposal of this product must be carried out in accordance to the regulations of your local authority. Do not dispose of this product with general household waste disposal.
Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However there have no adverse effects on the monitor's performance.
Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effect on the screen.
It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen, reduce the 'brightness' and 'contrast' when displaying still images.

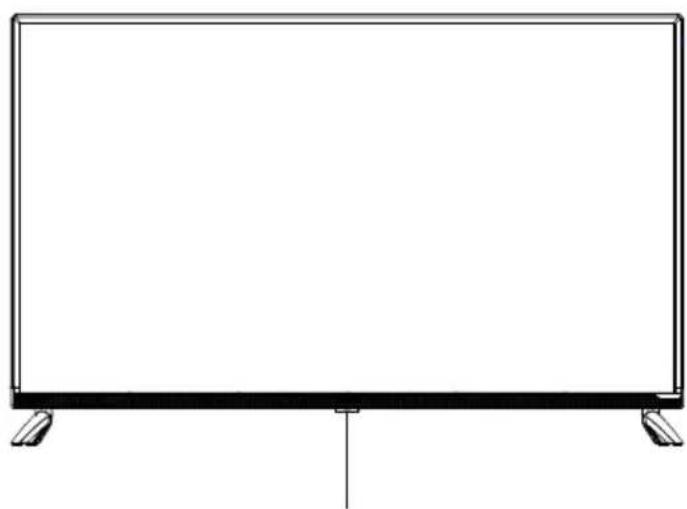

Main Unit Controls

Front Panel

Front view of a flat-screen monitor with two side legs and a central vertical line (no text or symbols)

Remote sensor Power Indicator

POWER/MENU Button:

• Long Press for power off.
• Short Press for power on / quick menu.
• Short press to select options, or switch the items.
• Long press to confirm and enter into the items.

Press the button to open the quick operation menu:

Press & Hold Power P+ P- + -

:Turn off the TV.

P+/P- : Changes the channels.

: Adjust the volume level.

: Switch the input source items.

NOTE:

♦ Keypad may change model to model.

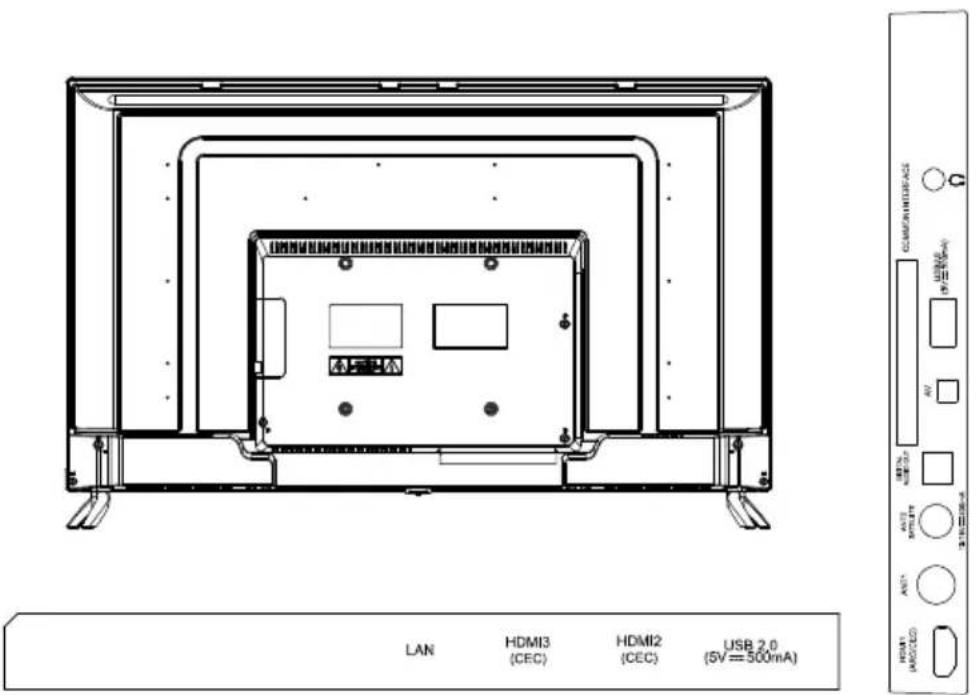

Back view controls and sockets

LAN HDMI3 (CEC) HDMI2 (CEC) USB 2.0 (5V=500mA) HDMI1 (AMCCED) COMPAN/INTERFACE AV INT OPTAL AV INT OPTAL USB 2.0 (5V=500mA)

No. Name	Description

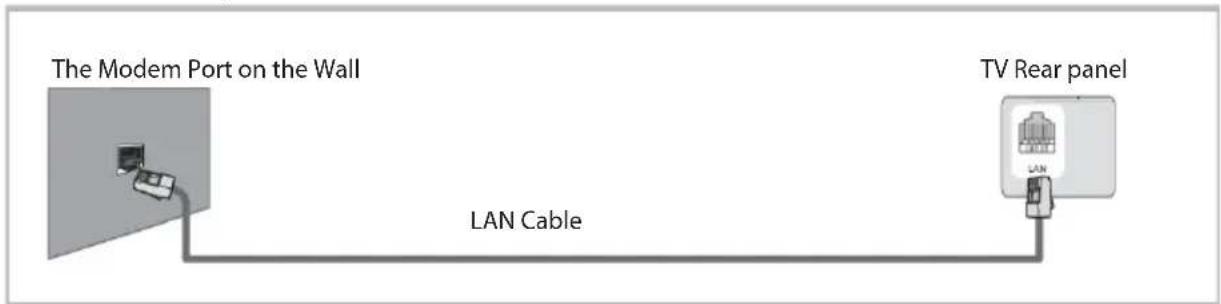

1 LAN Local	area network (LAN) port. Connect a LAN cable to this port to connect to the Network.
2 HDMI Connect a HDMI input signal source, such as a DVD player, via the HDMI interfaces.
3 ANT Connect a coaxial cable to receive a signal from the antenna, cable or satellite.
4 USB2.0 USB port. Connect a USB Storage device for multimedia file playback.
5 COMMON INTERFACE COMMON INTERFACE slot.
6 AV Connect audio and video signal sources via AV IN.It is recommended to buy an AV cable with magnetic ring to avoid signal interference
7 DIGITAL AUDIO OUT Use an optical cable to output your TV audio signal to a compatible audio receiver.
8	Ω	Earphones/headphones jack.

NOTE: Input / Output connectivity options may change from model to model.

Note: If you would like to connect an external device with this product, a good quality shielded cable must be used, which ensures the electromagnetic compatibility of the product and the used cable as a whole.

Getting Started

Cable Installation

Before the installation and use, please read carefully the relevant content in "Warning and Safety instructions".

Take out the TV from the wrapping package and put it in a drafty and flat place.

NOTE:

The range of power input for the TV is 100-240V\~50/60Hz; do not connect the TV power input port with the power cable out of the above range.
◆ Please hold the insulated part of the plug when you are unplugging the power cable, do not touch directly the metallic part of the cable.
Before connecting to an external device, please firstly make sure that the TV set and the external device have been turned off. When connecting, please make reference to the interface name and the interface color to connect the signal cable.

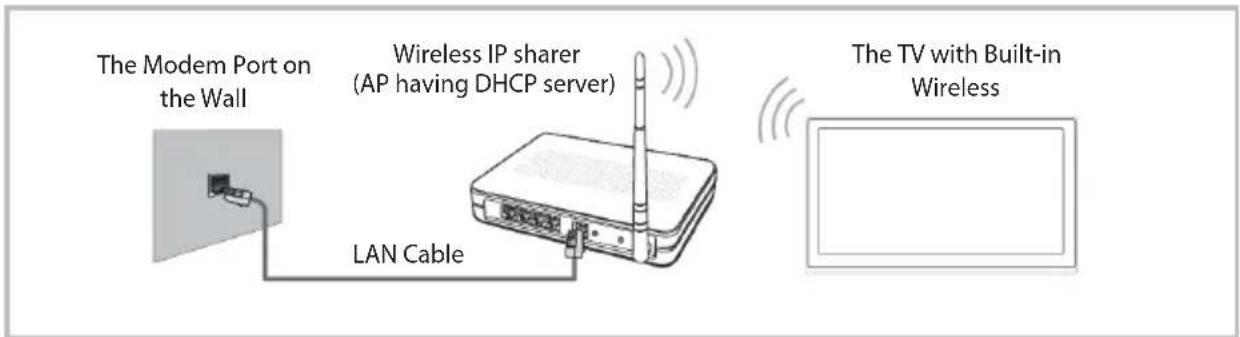

The unit has a built-in wireless network card, and can directly receive network signals from wireless router through WIFI antenna.

Using the Remote Control

When using the remote control, aim it at remote sensor on the television. If there is an object between the remote control and the remote sensor on the unit, the unit may not operate.

• Do not shake the remote control violently. Also, do not splash liquid on the remote control, also do not put the remote control in high humidity place.
• Do not place remote control under direct sunlight which might cause deformation of the unit by heat.
• When the remote sensor is under direct sunlight or strong lightning, the remote control might not function properly. If so please change the lightning or TV's position, or operate the remote control closer to the remote sensor.
• The recommended effective distance for using the remote control is about 7 metres.

Installing Batteries in the Remote Control

1. Open the cover at the back of the remote control.

1. Install two AAA size batteries. Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Battery Replacement

You will need to install the batteries into the remote control to make it operate following the instruction below.

When the batteries become weak, the operating distance of the remote control will be greatly reduced and you will need to replace the batteries.

Notes on Using Batteries:

The use of the wrong type of batteries may cause chemical leakage and/or explosion. Please note the following:

• Please note the batteries polarity to avoid short circuit.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and/or cause chemical leakage.
• Replace batteries as soon as they do not work.
• Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps out of the batteries, wipe it up immediately with a dry cloth.
• The batteries may have a shorter life expectancy due to storage conditions. Remove the batteries whenever you anticipate that the remote control will not be used for an extended period.
• The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION:

• It may result in an explosion if batteries are replaced incorrectly.
• Only replace batteries with the same or equivalent type.

CAUTION!

• Non-rechargeable batteries must not be recharged.
- Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.
- If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.
- Do not store them haphazardly in a place where they may short-circuit each other or be short-circuited by other metal objects.

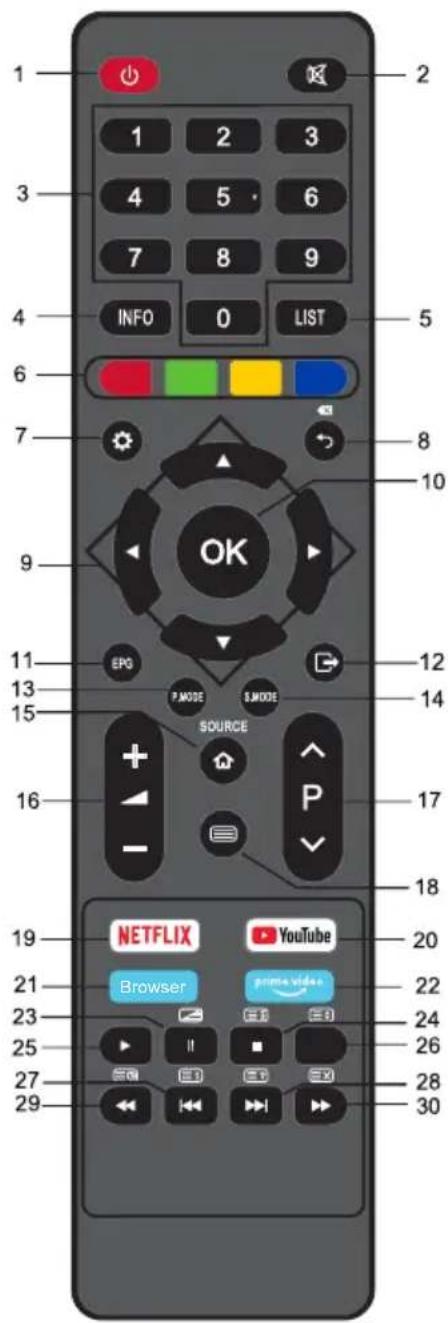

Remote Control

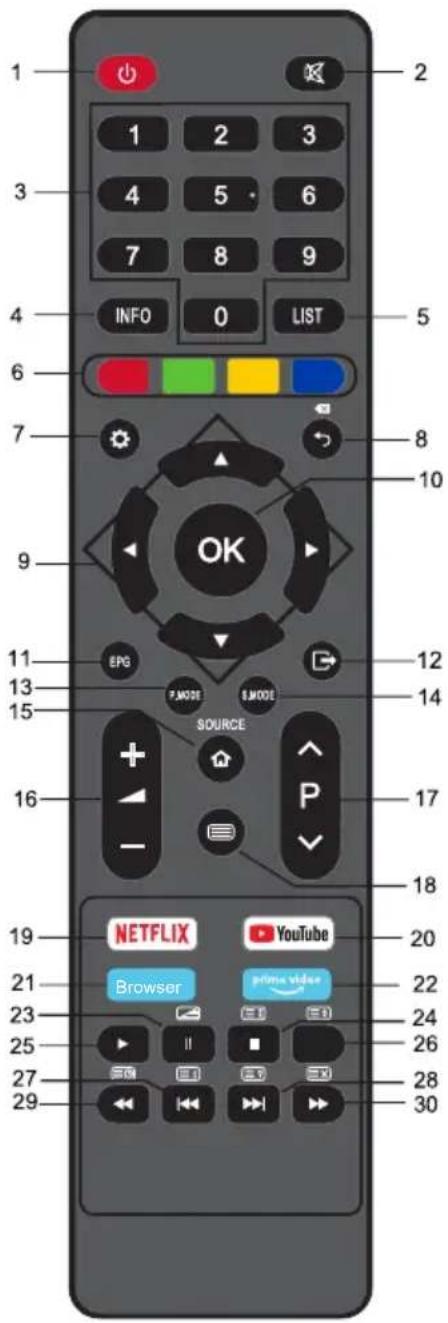

The buttons of the original remote control are as following:

1 2 3 4 5 6 7 8 9 INFO 0 LIST 5 6 7 8 10 9 OK 11 EPG SOURCE 12 13 P.MODE S.MODE 14 15 16 + - P 17 18 19 NETFLIX YouTube 20 21 Browser prime video 22 23 24 25 26 27 28 29 30

1. : Power, Press to enter or exit the standby mode.
2. : Press to mute or restore sound.
3. NUMBER BUTTONS: Choose channels or password importation.
4. INFO: Display the current program information on the screen.

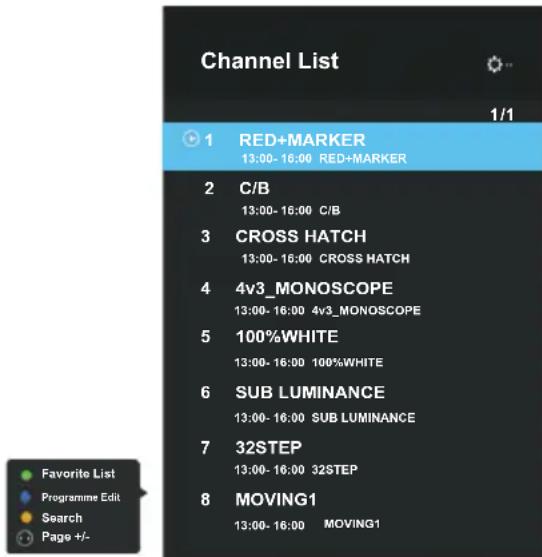

5. LIST: Press to call up the channel list. Press again to exit it.
6. COLOR BUTTONS: Red/ green/ yellow/ blue key navigation link. Use in accordance with the operation interface instructions.
7. MENU (): Press to enter the menu screen for various optional adjustable settings.
8. : Return to the previous menu.
   : Delete button.
9. ▲/▼/◄/►: Press the direction buttons to select menu options or settings.
10. OK: Select the current item or enter into the function of the menu of the next level.

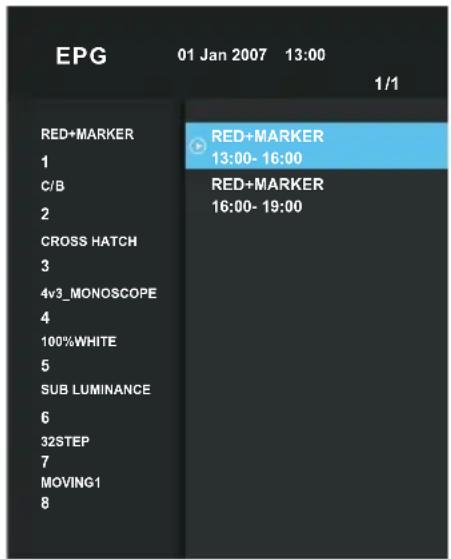

11. EPG: Electronic Program Guide, use in the DTV mode.
12. EXIT ( ): Quit the current interface.
13. P.MODE: Press to change the picture mode.
14. S.MODE: Press to change the sound mode.
15. SOURCE () Select signal source, and accesses the main scene interface.
16. :Press to adjust the volume level up or down.
17. :Press to select channels in ascending or descending order.
18. :Enter the Teletext, and press this button again to exit.
19. : Goes to NETFLIX homepage.

Remote Control

1 2 3 4 5 6 7 8 9 INFO LIST 5 6 7 8 10 9 OK 11 EPG P.MODE S.MODE 12 13 SOURCE 14 15 16 17 18 19 NETFLIX YouTube 20 Browser prime video 21 22 23 24 25 26 27 28 29 30

1. : YouTube homepage.
2. Browser: Goes to Browser homepage.
3. Prime video: Goes to prime video homepage.
4. II: Pause (in Media mode).

: Press to enter the MIX mode in the teletext.

1. :■top the playback (in Media mode).

☐ : Hold the teletext page on display, press again to release.

1. :Start playback (in media mode).
2. :Change size of teletext screen in display mode.
3. : [a]p to the beginning of the previous. (in media mode).

: Go to the index page.

1. : Hip to the beginning of the next. (in media mode).
   : Reveal the hidden information of some teletext pages.
2. : Reverse playback rapidly. (in media mode).
   : Enter subtitle mode or subpage.
3. : Advance playback rapidly. (in media mode).
   : CaIOcl the teletext but not to exit teletext, press again to show teletext.

NOTE:

◆ The colour and shape may vary depending on the model.
◆ The buttons not mentioned here are not used.

Basic Operation

Turning on and off the TV

■ Turn on the TV

Plug the power cord into a suitable power point, then press the POWER (button, under the TV panel or on the remote control, (making sure to aim it at the sensor at the front of the TV);

■ Turn off the TV

Press the Button on the remote control to enter standby mode. To power down the TV completely, unplug the power cord from the mains socket.

Do not leave your set in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from the mains and aerial.

First Time Setup

If this is the first time you run the TV, the Initial Setup Menu will appear in the picture, and the items of this menu also exist in other menus, so you are able to change the values after you set them up.

Tips: Make sure that the antenna or cable TV system connection is made.

■ Set your desired language

Press the ▲/▼ buttons to select the Menu Language, and then press the OK button. Press the ▶ button to go to the next step.

■ End-User License Agreement

Select Accept and then press the ▶ button to accept the EULA and go to the next step. Select View additional details and then press the OK button to read a detailed EULA. Press the ◀ button to go to previous step.

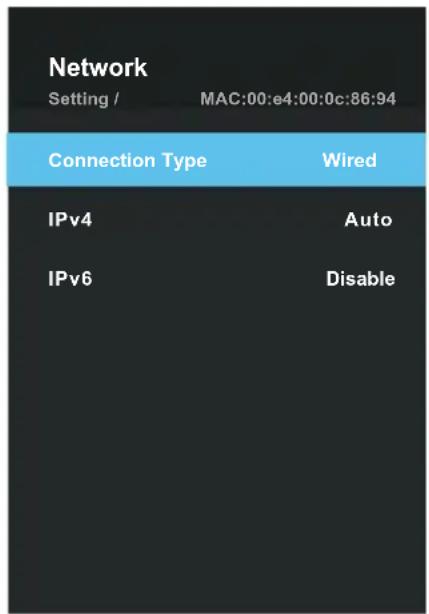

■ Network connection (Wired or WiFi)

Press the ▲/▼ buttons to select "Wired" or "Wifi", and wired or wireless network is enabled respectively. (For more details on connection, please refer to the "Network settings".) Select "Skip" and press OK to cancel the network setup and move to next step.

■ Select your country

Press the ▲/▼ buttons to select the country you are living in, and then press the OK button. Press the ▶ button to go to the next step. Press the ◀ button to go to previous step.

■ Select your time zone.

Press the ▲/▼ buttons to select a time zone, and then press the OK button. Press the ▶ button to go to the next step. Press the ◀ button to go to previous step.

■ Select your TV environment.

Press the ▲/▼ buttons to select the Home Mode or Store Mode and then press the OK button. • Home is the recommended setting to produce the best energy efficiency. If you want to set Store Mode, a message appears asking you to confirm your choice. Press the ▶ button to go to the next step. Press the ◀ button to go to previous step.

■ Select the input source

Press the ▲/▼ buttons to select the input source, and press the ok button to confirm your choice.

NOTE:

If the TV doesn't receive any channels, please check your aerial connection or the country you selected, and then try an auto search again.
If the TV just receives some of the channels, it means the aerial's reception isn't good enough and an antenna service is recommended.

Programme Selection

■ Using the P on the remote control.

Press P/to increase channel number.

Press P/ to decrease channel number.

■ Using 0-9 Digital Buttons.

You can select the channel number by pressing 0 to 9. Example:

To select - channel (e.g. Channel 5): Press 5.

To select - channel (e.g. Channel 20): Press 2 and 0 in a short time.

Volume Adjustment

■ Press the on-the-remote control to adjust the volume.
■ If you want to switch the sound OFF, press the
■ You can release mute by pressing the or increase the volume.

Changing the Input Source

1. You can select the input source by pressing the SOURCE ( ) button on the remote control.
2. Press the arrow button to cycle through the input source, and press the OK button to confirm your choice.

Menu Operation

How to Navigate Menus

Before using the TV follow the steps below to learn how to navigate the menu in order to select and adjust different functions. The access step may differ depending on the selected menu.

1. Press the MENU ( ) button twice to display the main menu.
2. Press the ▲/▼ button to select the desired sub item.
3. Press the OK or ▶ button to access the menu of the next level.
4. Press the BACK ( ) button to return to the previous menu.
5. Press the EXIT ( ) button to exit from the menu.

NOTE:

When an item in MENU is displayed gray, it means that the item is not available or cannot be adjusted.
- Buttons on the TV have the same function as corresponding buttons on the remote control. If your remote control is lost or couldn't work, you may use the buttons on the TV to select menus. This manual focuses on operation of the remote control.
- Some items in the menu may be hidden depending on modes or signal sources used.
TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Setting

Channel


Sound

Network

System

Lock

Timer

Support

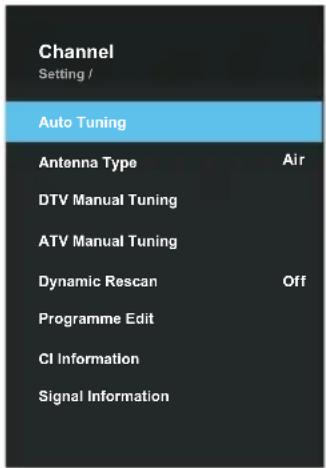

Configuring the Channel Menu

Antenna Type: Selecting an antenna source.

※ When TV signals is Aerial.

■ Auto tuning: Press the OK button to enter sub-menu. Press the right button to select scan mode, press the ▲/▼ keys to select the menu on the left side of the TV screen, and press the ▶ button to enter the menu option on the right side of the TV screen.

• Tune Type: Press the ▲/▼ button to select tune type: DTV+ATV, DTV, ATV.
  – Country: Press the ▲/▼ button to select country.
• Scan Mode: Press the ▲/▼ button to select the scan mode.
  – Service Type: Select the service type to search.
• LCN: Select the LCN functions On or Off.
• Start: Press the ▶ button to enter start, press the ok button to start the auto searching.
  Once the progress bar is full, the found channels will be stored and the unit will proceed to the search for DTV, ATV, Radio and Data.

Channel Setting / Auto Tuning Antenna Type Air DTV Manual Tuning ATV Manual Tuning Dynamic Rescan Off Programme Edit CI Information Signal Information

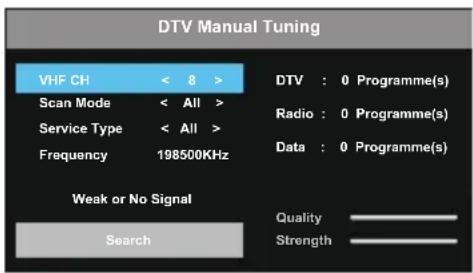

■ DTV Manual Tuning: Manual store for digital channels.

1. Press the ◀/▶ button to select channel, Scan Mode and Service Type.

2. Press the Search to start channel tuning. When a channel is found, the searching process will stop; the channel will be saved with current channel number. Press the EXIT

(●) button to exit.

DTV Manual Tuning VHF CH < 8 > Scan Mode < All > Service Type < All > Frequency 198500KHz DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) Weak or No Signal Search Quality ———— Strength ————

※ When TV signal is Cable.

■ Auto tuning: Press the OK button to enter sub-menu. Press the right button to select Operator, Country, Scan Mode. Press the ▲/▼ keys to select the menu on the left side of the TV screen, and press the ▶ button to enter the menu option on the right side of the TV screen.

• Operator: Press the ▲/▼ button to select Operator.
• Country: Press the ▲/▼ button to select country.
• Scan Mode: Press the ▲/▼ button to select the scan mode.
• Tune Type: Press the ▲/▼ button to select tune type: DTV+ATV, DTV, ATV.
• Scan Mode: Press the ▲/▼ button to select the scan mode.
  – Service Type: Select the service type to search.
• LCN: Select the LCN functions On or Off.
• Scan Type: Press the ▲/▼ button to select Full SCAN or Quick SCAN.

- If you select Full, the Auto Tuning will search through all frequencies to find available channels.

- If you select quick, the Auto Tuning will search through appointed frequencies to find available channels.

• Frequency: Press the ◀/▶ button to select Frequency: Auto or enter digital numbers.
• Network ID: Press the ◀/▶ button to select Network ID: Auto or enter digital numbers.
• Symbol: Press the ◀/▶ button to select Symbol Rate: Auto or enter digital numbers.
• Modulation: Press the ◀/▶ button to select Modulation: Auto, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.
• Start: Completion of the above settings and press the OK button to start the auto searching.

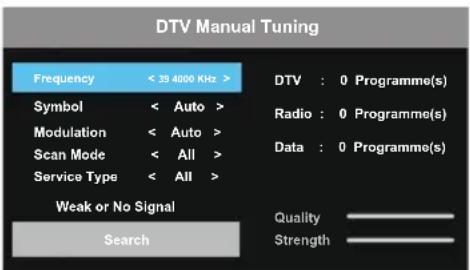

■ DTV Manual Tuning: Manual store for digital channels.

Frequency, Symbol, Modulation, Scan Mode and Service Type values are needed in order to add a programme correctly in DVB cable mode. Please inquire of the cable service provider about the correct values. When setting is completed, select Search and press the OK button to start channel tuning.

DTV Manual Tuning Frequency < 39 4000 KHz > Symbol < Auto > Modulation < Auto > Scan Mode < All > Service Type < All > Weak or No Signal Search DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) Quality ———— Strength ————

※ When TV signal is Satellite.

■ Auto tuning: Press the OK button to enter sub-menu. Press the right button to select Satellite Mode, Scan Mode. Press the ▲/▼ keys to select the menu on the left side of the TV screen, and press the ▶ button to enter the menu option on the right side of the TV screen.

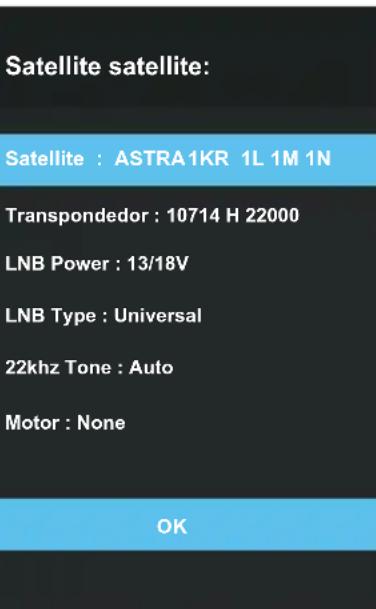

■ Satellite Mode

- Single Satellite

• Satellite/Transponder: Press the ▲/▼ button to select the Satellite/Transponder and press the OK/▶ button. Press the ▲/▼ button to select the satellite / transponder from the list.
• LNB Power: Select the power supply type for the LNB.
• LNB Type: Select the LNB type.

Press the OK button to access the submenu. Items can be adjusted when the LNB Type is set to Universal Mode.

• 22kHz Tone: 22KHz SWITCH. Select Auto, on or off.
- Motor: Sets the positioned type between DiSEqC1.2 and USALS.

• Toneburst: You can choose one of two satellites.
• DiSEqC1.0: You can choose one of four satellites. Used to choose proper device.
• Unicable: Select the unicable settings.

■ Scan Mode

– Country: Press the ▲/▼ button to select country.
- Scan Mode: Press the ▲/▼ button to select the scan mode.
– Service Type: Select the service type to search.
- Operator: Press the ▲/▼ button to select Operator.
- Scan Type: Press the ▲/▼ button to select Blind SCAN or Default.

■ DTV Manual Tuning: Manual store for DVBS2 channels.

1. Press the ▲/▼ button to select the desired sub item.
2. Press the arrow buttons to select the desired value.
3. When setting is completed, select Search and press the OK button to start channel tuning.
4. Press the EXIT (Button to exit.

NOTE:

The satellite TV Company may adjust the transponder during the operation period; therefore, the program parameter may be partially changed. The users who use this machine to receive the satellite programs should regularly refer to the related detailed information in this website: http://www.lyngsat.com/, and please add the new transponder parameter in the machine in time, otherwise, your program receiving may be influenced.

■ ATV Manual Tuning: Manual store for ATV channels.

1. Press the ▲/▼ button to select items.
2. Press the ◀/▶ button to adjust it.
3. When setting is completed, Press the ▼ button to select "SAVE" to save it.

■ Dynamic Rescan: Switch the Dynamic Rescan function On or Off.

Auto update the channel list or not.

Satellite satellite: Satellite : ASTRA1KR 1L 1M 1N Transpondedor : 10714 H 22000 LNB Power : 13/18V LNB Type : Universal 22khz Tone : Auto Motor : None OK

ATV Manual Tuning Storage To < 1 > Current CH < 1 > System < BG > Search < 867875 Khz > Save Exit

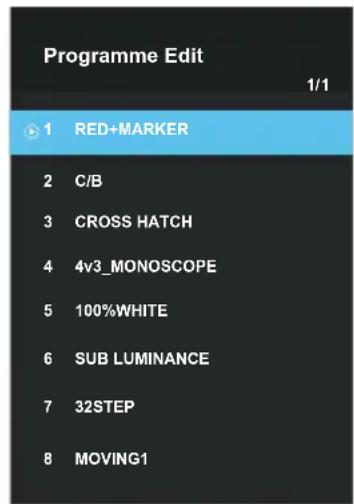

■ Programme Edit

Press the ▲/▼ buttons select the Programme Edit, then press the OK button to enter sub-menu.

1. Press the ▲/▼ button to select a channel.
2. Press the ◀/▶ button to select the following or preceding page.
3. Delete: Press the RED button to delete the channel.

Favorite: Press the Green button to set the favorite channel.

Move: Press the YELLOW button to set the channel to moving state, and then press the ▲/▼ buttons to move it to the position you want to put.

Skip: Press the BLUE button to skip the channel. (Your TV set will skip the channel automatically when using ◀/▶ to view the channels.)

Programme Edit 1/1 1 RED+MARKER 2 C/B 3 CROSS HATCH 4 4v3_MONOSCOPE 5 100%WHITE 6 SUB LUMINANCE 7 32STEP 8 MOVING1

■ BISS Channel List (In Satellite mode)

Press the ▲/▼ buttons select the BISS Channel List, then press the OK button to enter sub-menu. Press the RED button to delete the BISS programme.

Press the GREEN button to edit the BISS programme.

- CI Information (In DTV mode): This function enables you to watch some encrypted services (pay services). Please insert CI card into the CI slot according to the arrow on the CI card.

NOTE:

◆ The function can only be gotten when CI slot is available.
This OSD is only for illustration and the menu options and screen format will vary according to the Digital pay services provider.
It is possible for you to change CI (Common Interface) menu screen and service by consulting your dealer.
◆ Please do not insert or pull out the CI card when power on.
Do not insert or pull out the CI card frequently so as to avoid any damages of the TV and the CI card.
During initialization of the CI card, please don't operate the TV.

■ Signal Information (In DTV mode): Display the current Signal Information.

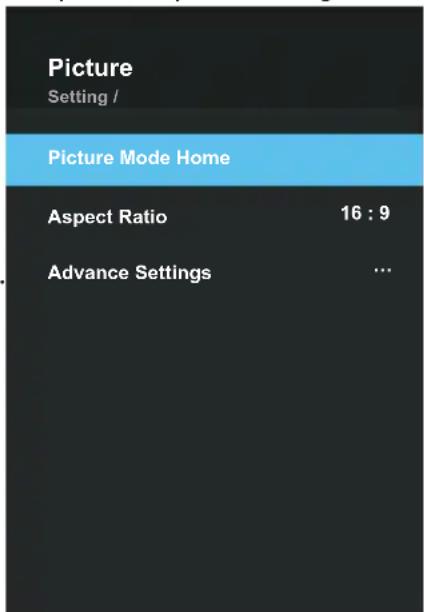

Configuring the Picture Menu

■ Picture Mode: You can select the type of picture which best corresponds to your viewing

requirements. Contrast, Brightness, Color, Sharpness, Tint (NTSC) and Backlight can be adjusted when the picture mode is set to User.

• Contrast: Adjust the white level of the picture.
• Brightness: Adjust darkness of black sections in the picture.
  – Color: Adjust the color intensity of the picture.
  – Sharpness: Object edges are enhanced for picture detail.
• Tint: Adjust the hue of the picture. (Valid only for NTSC signals).
• Backlight: To control the brightness of the screen, adjust the brightness of panel.

■ Aspect Ratio: You can select the picture size which best corresponds to your viewing requirements.
■ Advance Settings: Use the ▲/▼ button to select Expert Settings, and then press OK button to access the submenu page.

Picture Setting / Picture Mode Home Aspect Ratio 16 : 9 Advance Settings ...

• Color Temperature: Select the color temperature of the picture.
• SDR to HDR: Conversion between SDR to HDR.
• HDR (High Dynamic Range): Generally used in video format, HDMI and USB; provides a greater dynamic range and greater image detail, also allows better recovery actual scene and visual effects.
• NR (Noise Reduction): Reduces screen noise without compromising video quality.
• MPEG NR: Reduces MPEG noise to provide improved picture quality.
• Dynamic Contrast: Adjusts the contrast to the optimal level according to the image's brightness.
• Film Mode: Sets the TV so that it senses and then processes film signals from all sources automatically and adjusts the picture for optimum quality.
• PC Mode (In HDMI mode): When it is set to "On", the TV set is more suitable to be used as a monitor (valid only in the VESA mode of the HDMI channel).
• Overscan (In DTV,HDMI mode): The picture reproduction rate is adjusted.
• Picture Reset: Reset all picture settings to the factory defaults.

Configuring the Sound Menu

■ Sound Mode: You can select a sound mode to suit your personal preferences. When the sound mode is set to User:

- Equalizer (Seven-stage equalization setting): Press the ▲/▼ buttons to select: 120 Hz, 300 Hz, 500 Hz, 1 KHz, 3 KHz, 6 KHz or 12 KHz, and then press the ◀/▶ buttons to adjust the frequency equalization of the sound.

• Surround: Press ▲/▼ buttons to select Surround Sound, you can select Off, Low, Middle, and High.
• Dialog Enhancer: Press ▲/▼ buttons to select Dialog Enhancer, you can select Off, Low, Middle, and High. The dialogue enhancer feature allows you to clearly hear the dialogue voice of the TV broadcast, thus avoiding the background sound effects being too loud and the dialogue voice being too small.
• AVC (Auto Volume Control): Press ▲/▼ buttons to select Auto Volume Control, you can select Off, Low, Middle, and High.

■ Balance: You can adjust the sound balance of the speakers to preferred levels.

■ SPDIF Mode: Press ◀/▶ buttons to select SPDIF Type. You can select "PCM", "Auto", etc. SPDIF (Sony Philips Digital Interface) provides digital audio output to speakers and various digital devices such as A/V Receivers and Home Theaters which reduces interference and distortion.

■ AD Switch (In DTV mode) *this is only available in some countries, mainly in North America and Europe. This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

■ AD Volume: When the AD Switch is set On, the AD Volume can be adjusted.
■ Audio Delay: Press the ▲/▼ buttons select the Audio Delay, then press the OK button to enter submenu. You can select "SPDIF Delay" or "Speaker Delay".

Correct audio-video sync problems, when watching DTV and when listening to digital audio output using an external device such as an audio receiver (0ms\~250ms).

■ Sound Reset: Reset all sound settings to the factory defaults.

Sound Setting /
Sound Mode	Standard
Balance	0
SPDIF Mode	PCM
AD Switch	On
AD Volume	100
Audio Delay
Sound Reset

NOTE:

DOLBY AUDIO™

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

Network Function Operation Instruction

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

□ Connecting to a Wired Network

- You can attach your TV to your LAN using cable in three ways:

You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 cable. See the diagram below.

The Modem Port on the Wall External Modem (ADSL/VDSL/Cable TV) TV Rear panel Modem Cable LAN Cable

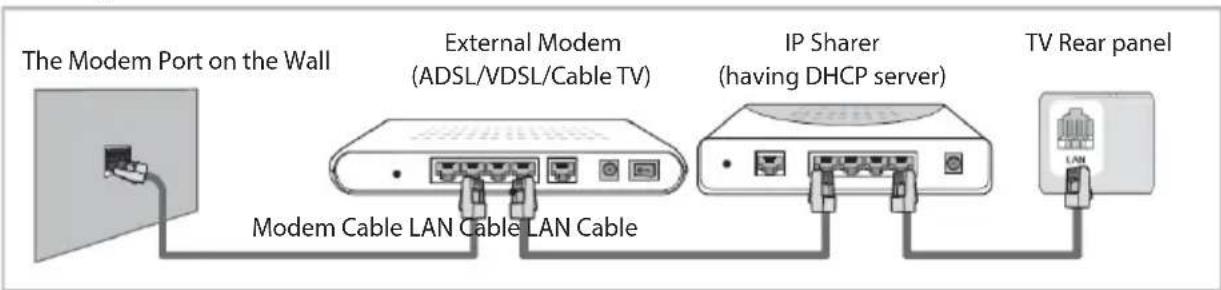

- You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an IP Sharer which is connected to an external modem. Use Cat 5 cable for the connection. See the diagram below.

The Modem Port on the Wall External Modem (ADSL/VDSL/Cable TV) IP Sharer (having DHCP server) TV Rear panel Modem Cable LAN Cable LAN Cable

- Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN by port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The Modem Port on the Wall LAN Cable TV Rear panel

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don't have to enter them manually. Most home networks are Dynamic Networks. Some networks

require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV's Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

Wired Network Setup

- How to set up automatically (Wired)

Use the Automatic Network Setup when connecting your TV to a network that supports DHCP.

1. Connect your TV to your LAN as described in the previous section.
2. Turn on your TV, press the MENU (☐) button on your remote, use the ▲/▼ buttons to select Network.
3. Press the OK or ▶ button to enter. Then press the ▲/▼ button to select Wired.
4. Select IPv4 or IPv6. Then press the OK button to enter the menu of the next level.
5. Auto acquires and enters the needed Internet values automatically.
6. Select Connect and press OK to connect the internet.
7. If the Network Function has not acquired the network connection values, please manually input configuration information.

Network Setting / MAC:00:e4:00:0c:86:94 Connection Type Wired IPv4 Auto IPv6 Disable

- How to set up manually (Wired)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

1. Follow Steps 1 through 4 in the "How to set up automatically" procedure.
2. Set Network Config. to Manual.
3. Press the ▲/▼ button to highlight the field you want to change, and then use the number buttons to input the network parameters, such as IP Address, Subnet Mask, Gateway and DNS. Press BACK ( ) key to return.
4. When done, select the Connect and press OK to connect the internet.

NOTE:

If you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.

Tips for Network Connection:

• Use a standard LAN cable with this TV. Cat5 or better with a RJ45 connector.
• Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

□ Connecting to a Wireless Network

You can connect your TV to your LAN through a standard wireless router or modem.

The Modem Port on the Wall Wireless IP sharer (AP having DHCP server) LAN Cable The TV with Built-in Wireless

Wireless Network Configuration

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

Wireless Network Setup

- How to set up Wifi

1. Turn on your TV, press the MENU (⚙️) button on your remote, use the ▲/▼ buttons to select Network, and then press the OK or ▶ button to enter Connection Type.

2. Press the ▲/▼ button to select Wifi. Then press the OK button to enter the menu of the next level.

3. The Network function searches for available wireless networks. When done, it displays a list of the available networks. In the list of networks, press the ▲/▼ button to select a network, and then press the OK button.

4. Enter your network's Password. To enter the Password, follow these general directions: Press the OK button to display the keyboard at the screen.

Use the direction buttons to select and press OK to cycles through lower case, upper case. Use the direction buttons to select a letter, special symbols or number, move to the letter, special symbols or number, and then press the OK button.

To delete the last letter or number you entered, use the direction buttons to select and press OK. Press EXIT (No close the keyboard.

1. Input the correct Password and select Connect and press the OK button to connect the network.

■ Add: You can also add a WiFi network manually by selecting Add others.

Press ▲/▼ buttons to select Add, then press OK button, follow the displayed messages below the menu to input the network name, encryption mode and network password, and then press ▲/▼ buttons to select "Connect", the system starts to search wireless routing and connect. When the network is connected, the current wireless network will be added into the list of wireless networks.

■ WOW: Switch WOW on or off.

■ IP Settings: The IP address, netmask, gateway and Dns values Static are allowed to be set manually when it is set to "Manual".

□ If your TV Fails to Connect to the Internet:

- Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

- To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet.

• If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet.
• The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider.

Configuring the System Menu

■ Language: Select your preferred On Screen Display language.
■ Subtitle: Switch the Subtitle function on or off.
■ Subtitle Hearing Impaired: When hearing Impaired is On, the TV screen will give some information to the people whose hearing are impaired When Hearing Impaired is Off, the information will be hidden.
■ Audio Languages: Select you preferred audio language. (Available for digital channels if multiple audio languages are broadcasted.)
■ Subtitle Languages: Select your preferred subtitle language. (Available for digital channels if multiple subtitle languages are broadcasted.)
■ HBBTV: Switch the HBBTV function On or Off.

NOTE:

• This service may be supported in other countries.
• Some broadcasting may not support the HBBTV.
  ◆ An application on HBBTV may malfunction temporarily depending on the circumstances of the broadcast station

An application is only available for use on HBBTV when the TV network is connected to an external network. The application may malfunction depending on the network conditions.

■ Country: Display the current country.
■ HDMI_CEC: Press the OK /▶ button to enter the submenu. The HDMI_CEC system can be used only with devices that have the HDMI_CEC feature. You must connect an HDMI_CEC device using an HDMI cable. Some HDMI cables may not support HDMI_CEC functions.

- HDMI_CEC: Switch the HDMI_CEC function On or Off.

• Auto Standby: When this is set to On, turning off the TV will turn off the connected device as well.
• ARC: Switch the ARC function On or Off.
• Auto Power On: When this is set to On, turning on the TV will turn on the connected device as well.

■ Environment: You can select Home or Store for the TV environment. It is recommended to set the TV to Home Mode.

■ Restore Factory Default: Restore the system settings to the factory default. When the restore is complete, the TV will enter into standby mode.

Configuring the Lock Menu

■ Lock System: The feature can prevent unauthorized operating the TV set, unless entering 4-digit password.

NOTE:

◆ If you forget your password, use the factory password

1-2-2-5, you can then gain access to change your password if necessary.

SystemSetting /
Language	English
Subtitle	Off
Subtitle Hearing Impaired	Off
Audio Languages
Subtitle Languages
HBBTV	Off
Country	Germany
HDMI_CEC	Off
Environment	Home

■ Set Password: Press the OK button to enter submenu. You can set your private password. Press the number buttons on the remote control to set the new password. When the new password has been input twice, the setting is finished successfully. The TV will go back to previous menu.
■ Block Programme (In ATV/DTV mode): Press ▲/▼ buttons to select which program will be blocked then press Yellow to set block. Press the Yellow button again to unblock it. (Only available when Lock System set to on)
■ Parental Guidance (In DTV mode): Press the ▲/▼ buttons to select age rating. This feature can prevent children watching adult's TV program, according to the rating limit set.

Lock

Setting /

Lock System On

Set Password

Block Programme

Parental Guidance

Off

Configuring the Timer Menu

■ Auto Sync.: If it is switched on, the TV will sync the local clock according to the DTV broadcasting time automatically.
■ Time Zone: Display your time zone.
■ Clock: Display either the DTV signal stream time or set the time manually.
■ Daylight Saving Time: Select whether to apply Daylight Saving Time to the TV.
■ Sleep Timer: Sleep Timer switches the TV to standby after a defined period of time. To cancel the Sleep Timer, set to "Off".
■ Auto Sleep: Select the Auto Sleep time you want. The TV will enter into standby mode automatically when there is no operation in set time.
- No Signal Power Off: When set to "On", if there's no TV signal nor press-button operation, TV will enter into standby status automatically about 5 minutes later.

NOTE:

When the "Auto Sync" is set to "On", Clock option become grey and can't be adjusted.

Timer

Setting /

Auto Sync. On

Time Zone	Berlin GMT+1
Daylight Saving Time	Manual
Clock	00:39
Sleep Timer	Off
Auto Sleep	4 Hours
No Signal Power Off	On

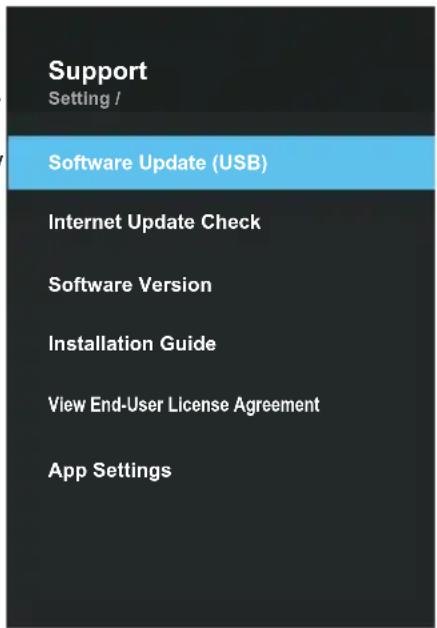

Configuring the Support Menu

■ Software Update (USB) : Update the software by using the USB memory device. Please be careful not to disconnect the power or remove the USB drive until updates are completed.
■ Internet Update Check: To use network upgrade, you must have configured your TV to connect to a network and the TV must be connected to the Internet.
■ Software Version: Display current software version information.
■ Installation Guide: This is an installation guide to help you to setup the TV.
■ View End-User License Agreement: Read and accept/decline the EULA.
■ App Settings: Display information about Netflix.

Support Setting / Software Update (USB) Internet Update Check Software Version Installation Guide View End-User License Agreement App Settings

PROGRAMME GUIDE (In DTV mode)

Press EPG button to display the Programme Guide menu. This function let you know the detailed information of the channel, indicating the time of the program playing. From the PROGRAMME GUIDE it is possible to check the program information for the next eight days (If the information is available from the broadcaster). Press EXIT (Button to exit.

Time: Press the green button to switch the display mode.

Schedule: Press the yellow button to display the Schedule list.

Remind: If you find the desired program which will be shown in the future. Press the blue button to book program.

Press ∧P ∨ button to page up or down the list.

EPG 01 Jan 2007 13:00 1/1 RED+MARKER 1 C/B 2 CROSS HATCH 3 4v3_MONOSCOPE 4 100%WHITE 5 SUB LUMINANCE 6 32STEP 7 MOVING1 8 RED+MARKER 13:00- 16:00 RED+MARKER 16:00- 19:00

Channel List

Press LIST button to display the Channel List.

Press the ▲/▼ buttons to select the channel and press OK to watch it.

Press the Green button to enter the favorite list.

Press the Blue button to enter Programme Edit.

Press the Yellow button to search channel.

Press ◀/▶ button to page up or down the list.

Press EXIT (→)/LIST button to exit.

Press the MENU (⚙️) key to enter setting menu.

Channel List 1/1 1 RED+MARKER 13:00- 16:00 RED+MARKER 2 C/B 13:00- 16:00 C/B 3 CROSS HATCH 13:00- 16:00 CROSS HATCH 4 4v3_MONOSCOPE 13:00- 16:00 4v3_MONOSCOPE 5 100%WHITE 13:00- 16:00 100%WHITE 6 SUB LUMINANCE 13:00- 16:00 SUB LUMINANCE 7 32STEP 13:00- 16:00 32STEP 8 MOVING1 13:00- 16:00 MOVING1 Favorite List Programme Edit Search Page +/-

Q.MENU

Press MENU (☑) button on the remote control to display the quick menu. Press ▲/▼ to select the items, and press the OK/▶ button; then press ▲/▼ buttons to adjust.

(Options: Picture Mode, Sound Mode, TV Radio, Aspect Ratio, Subtitle Languages, Football etc...)

Picture Mode Soccer Standard Movie Home User

Home Page

□ Smart Home Operation Introduction

Home is an entry interface for all the other functions, which could enter from this interface layer by layer.

Via using the home menu function, different needs of users could be met, making them fully enjoy video and audio effects brought by the machine.

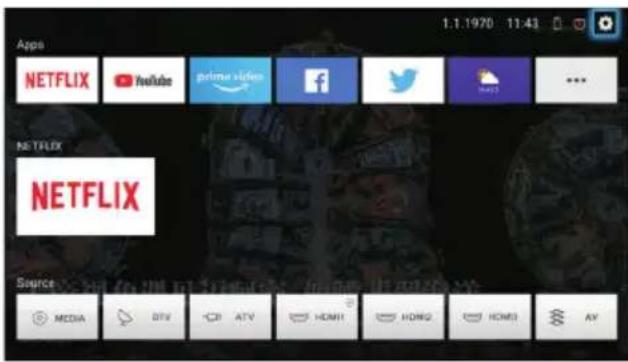

Press SOURCE (1) button to open the home interface, as shown in the following figure.

App NETFLIX YouTube prime video f Twitter Nets ... NETFLIX NETFLIX Source MEDIA DTV ATV HDMI HOMZ HOMX AV

Press the arrow buttons to cyclically select all options. Press OK button to enter a small window for selection. Press EXIT (E) button to exit home interface.

Media Playback

The media function of this unit enables you to read movable USB storage devices such as USB drive, USB mobile hard disk, and USB card reader, and you can also browse files, play pictures, play videos, and play music in the corresponding files in the above devices.

NOTE:

◆ Special USB device may be not or well supported.
USB max. Load: DC5V 500mA.

• The formats supported

The media function can support the USB device with USB memory.

It can play PHOTO, MUSIC and VIDEO files.

Photo Format Support: JPEG, BMP, PNG.

Music Format Support: MP3, AAC, M4A.

Video Format Support: AVI, VOB, DAT, MPEG-1 / MPEG-2 / MPEG-4, TS/TP.

Enter / exit the media

1. First, insert a USB memory device into the USB port.
2. Press the arrow buttons to select Media, and then press the OK button to access the Media mode.
3. Press the arrow buttons to cyclically select Files, Music, Photo and Video.
4. Press the EXIT (☐) button to exit.

Main Operating Interface

Media /USB 1/ Video Photo Music Up Folder System Volume 5327 5502 5505 6308 8369 Android externaltek MUSIC PHOTO Video Tek.png 86-016.png 86-017.png 86-018.png 86-019.png 86-020.png

■ Basic operation

1. Press ▲/▼ buttons to cyclically select Files, Music, Photo and Video in the USB main menu.
2. Use the arrow buttons to highlight the folder, and then press the OK button.

3. Use the arrow buttons to highlight Music /Photo/Video. Press OK button to play the selected Music /Photo/Video.

4. Press the BACK (1) button to return to previous menu screen.

5. Press the EXIT (☐) button to return to the USB main menu.

■ Play Files

1. When entering the main interface of the media, press the ▲/▼ key to select the file types, and press OK key to enter the content selection interface of such types of files.
2. When one file is selected, press the OK key to play.

■ Music Play

When entering "Media"→"Music", follow the above operation mode to start playing music files.

1. Press ▲/▼ buttons to select the music list, and press ▲ button to enter the music player console, press the ▼ button to close the console.
2. Press the OK button to pause or continue to play music.
3. Press the MENU (💡) button to recall "Music setting" menu. Press the BACK (⇨) button to return to the status before music play.

■ Music Play Setting Menu

When the MENU (💡) button is pressed to enter the "Music setting" menu, the remaining operations are similar to those of the video play setting menu.

1. Sound mode: Select different sound effects.
2. Balance: Adjust the sound balance of the speakers to preferred levels.
3. SPDIF Delay: Correct audio-video sync problems, when watching TV and when listening to audio output using an external device such as an audio receiver.
4. Speaker Delay: When the sound and picture are synchronized, the smaller the value is, the more the sound is ahead of the picture; the larger the value is, the more advanced the picture is.

■ Music Play Console

Press the ▲ button to enter the music player console, press the ▲/▼ buttons to select the control button repeatedly, and press the OK button to perform the functions of the selected key. To close the play console, please press the BACK ⬆button.

1. Stop: Stop play the music.
2. Setting: To enter the music play setting menu.
3. Info: Music information.
4. LRC: To switch between the lyrics synchronization and play list.
5. Play Mode: Select different play modes.
6. Audio only: Turn off the screen only play sound.

■ Photo Play

When entering "Media"→"Photo", follow the above operation mode to start playing picture files.

1. Press the ▲/▼ buttons to select the photo list, and press the ▲ button to enter the photo player console, press the ▼ button to close the console.
2. Press the MENU (💡) button to recall the "Photo setting" menu. Press BACK (⇨) to exit the current play and return to the status before play.

■ Photo Play Setting Menu

When the MENU (💡) button is pressed to enter the "Photo setting" menu, press the ▲/▼ buttons to select various options repeatedly, press the OK button to enter the menu of the next level. Press the BACK (⇨) button to return to the menu of the previous level, and press the EXIT (⇨) button to directly close the play setting menu.

1. Picture Mode: Select different picture modes.
2. Sound Mode: You can select sound mode to suit your personal preferences.
3. Balance: Adjust the sound balance of the speakers to preferred levels.
4. SPDIF Delay: Correct audio-video sync problems, when watching TV and when listening to audio output using an external device such as an audio receiver.

EN

1. Speaker Delay: When the sound and picture are synchronized, the smaller the value is, the more the sound is ahead of the picture; the larger the value is, the more advanced the picture is.

■ Photo Play Console

When playing any file and there is no menu display, and then press the ▲ button to enter the player console. Press the ▲/▼ buttons to select the control button repeatedly, and press the OK button to perform the functions of the selected key. To close the play console, please press the BACK (→) button.

1. Stop: Stop play the picture.
2. Setting: To enter the picture play setting menu.
3. Info: Picture information.
4. Right rotate: To rotate right for 90 degrees.
5. Back Music: Turn on or off the background music.
6. Play Mode: Select the different play mode.

■ Video Files

When entering "Media" → "Video", follow the above operation modes to start playing video files.

1. During the normal play process, press and hold the ◀/▶ buttons for rewind / fast forward play.
2. Press the ▲ button to recall the video play console.
3. Press the MENU (⚙️) button to recall the play setting menu. Press the BACK (◀️) button to return to the status before video play.

■ Video Play Setting Menu

Press the MENU (💡) button to enter the video play setting menu, press the ▲/▼ buttons to select various options repeatedly, and press the OK button to enter the menu of the next level. Press the BACK (⇨) button to return to to enter the menu of the next level. Press the BACK (⇨) button to enter the menu of the next level. Press the BACK (⇨) button to return to to return to the menu of the previous level, and press the EXIT (⇨) button to enter the menu of the next level. Press the BACK (⇨) button to return to to directly close the play setting menu.

1. Picture Mode: Select different picture modes.
2. Sound Mode: You can select sound mode to suit your personal preferences.
3. Balance: Adjust the sound balance of the speakers to preferred levels.
4. SPDIF Delay: Correct audio-video sync problems, when watching TV and when listening to audio output using an external device such as an audio receiver.
5. Speaker Delay: When the sound and picture are synchronized, the smaller the value is, the more the sound is ahead of the picture; the larger the value is, the more advanced the picture is.
6. Subtitle: Press the OK key to enter the menu of the next level to select subtitles and adjust subtitle properties;
7. Audio Track: If video files have multiple audio tracks, user could change tracks.
8. ScreenSize: Adjusts the Screen size.
9. HDR: (High Dynamic Range) Generally used in video format, HDMI and USB mode; provides a greater dynamic range and greater image details, also allows better recovery actual scene and visual effects.
10. SDR to HDR: Conversion between SDR to HDR.

■ Video Play Console

When playing any file and there is no menu display, press the OK button to display the play console, press the ▲ button to select the control button repeatedly, and press the OK button to perform the functions of the selected key. To close the play console, please press the BACK (→) button.

1. Stop: Stop playing the video.
2. Setting: To enter the video play setting menu.
3. Info: Video file information.

4. Go to: Go to the set time.

5. Prev: To play the previous file in the same directory.

6. Next: To play the next file in the same directory.
7. Play Mode: Select the different play mode.

Applications

Appa NETFLIX YouTube prime video f Twitter ... NETFLIX NETFLIX Source MEDIA DTV ATV HOM1 HOM2 HOM3 AV

Press SOURCE (1) button on the remote to display the home main interface. Then use the Arrow buttons to select the desired APP and press the OK button to view. Or press the hotkey on the remote control to enter the desired APP directly.

Netflix

Sign in to your Netflix® account to browse by genre, search for titles, manage your Instant Queue and review Netflix® recommendations all from your TV. If you do not have a Netflix® account, you will need to create a new account to use this feature.

Watch TV shows and movies online or by streaming them from Netflix.

For more information, visit www.Netflix.com.

NOTE:

The videos list searched from the TV may different with the list searched from a web browser on PC.
The playback videos may be paused, stopped or buffering occurring often depending on your broadband speed. We recommend a minimum connection speed of 1.5 Mbps. For the best playback condition, a connection speed of 4.0 Mbps is required.
These services are provided by separate Content Provider. Please visit the content providers web site for specific information on their services.
For service that requires log in, join the applicable service on the website using the PC and log in through the TV to enjoy various additional functionalities.

■ Screencast

• "screencast" it is a mirror technology. This feature provides the ability to use your TV as wireless display device.
• To start using the screencast feature, go to home page and press OK on "screencast".
• Turn on Wireless Display (a.k.a. Wi-Fi Display, Wi-Fi Direct or Cast Screen) function on your smart phone or tablet (Please refer to your device's user manual for information on how to turn on wireless display).
• Your mobile device will display a list of available devices. Choose 'TV name' click on it to connect.
• Your mobile device will connect to the TV and will display the device screen on the TV.

NOTE: Your TV and Smartphone must be connected to the same wireless network with this application. Some Android devices may not support this function, but you may try other available screencast Apps. (iOS devices are not supported).

Teletext

Using the teletext feature

■ Display teletext

1. Select a TV station with a teletext signal.
2. Press the button to enter teletext mode.
3. Press the Button to enter Mix mode, this function enables you to superimpose the teletext page over the TV program.
4. Press the button 2nd to return or exit to the normal ATV/DTV mode.

■ Page selection

1. Enter the page number (three digits) using the number buttons. If you press a wrong number during input, you must complete the three digit number and then reenter the correct page number.
2. The ▲/▼ button can be used to select the preceding or following page.

■ Hold

You can press the button to hold a page, and press it again to release the page.

Index

Press the Ⓥi button to enter the main index page directly.

■ Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press the button to enlarge the top half of the page.
2. Press the button again to enlarge the bottom half of the page.
3. Press the button once more to return to the normal display.

■ Reveal mode

You can display concealed teletext information (e.g. Answer to puzzles or riddles etc.) by pressing button. Press button again to remove the information from the display.

■ Subpage

Some teletext may contain several sub-pages which are automatically paged in a certain cycle by the TV station.

1. You can enter into a certain sub page by pressing the button directly and select the page number with number buttons. Enter the sub page number (e.g. 0003) for the third sub page.
2. Press the button again to exit the sub page mode.
3. Press the button to return to the normal TV mode.

■ Color buttons (Red, Green, Yellow and blue)

Press these buttons to access directly to the corresponding color pages displayed at the lower part of the teletext screen.

Troubleshooting Guide

Specification
Working voltage 100 – 240 V 50/60 Hz
Rated power consumption W	95
Dimensions (W x H x D) without stand	969 X 573 X 80 mm
Net weight without stand . Kg
RF aerial input 75 Ω unbalanced
Language of OSD Multiple options
System	DTV:	DVB-T/T2/C/S/S2
	ATV:	PAL/SECAM	BG/DK/I/NTSC-M
Channel coverage DTV: DVB-T: 177.5 MHz ~ 233.5 MHz			474 MHz ~ 858 I
DVB-C: 113 MHz ~ 858 MHz
DTV-S/S2: 950 MHz ~ 2150 MHz
ATV: 45,25 MHz ~ 863,25 MHz
Environment (only for Tropical climates zone)	Working temperature: 5°C ~ 45°C
	Working	humidity:	20% ~
Storage temperature: -15°C ~ 50°C
Storage humidity: 10% ~ 90%
Environmen (only for Moderate climates zone)	Working temperature: 5°C ~ 35°C
	Working	humidity:	20% ~
	Storage	temperature:	-15°C~45°C
	Storage	humidity:	10%~90%

Note: Some specifications may different regions or models, and please take your actual as the standard.

Specification

Country restrictions

This device is intended or household and/or office use in all EU countries (and other countries where the corresponding EU guideline is in place) without any restrictions excluding the countries listed below.

Country Restriction
Bulgaria General permit for outdoor use and use in public facilities
France Use in closed spaces only for 2454-2483.5 MHz.
Italy A general permit is required for use outside of private spaces.
Greece Use in closed spaces only for 5470-5725 MHz.
Luxembourg General permit for network and service offers (not for spectrum)
Norway Broadcasting radio waves is not permitted in a geographic radius of 20 km around the center of Ny-Ålesund.
Russian Federation Use in closed spaces only permitted

The regulations of individual countries are subject to change at any time. It is recommended that the user make an inquiry to the relevant agencies about the current stand of national regulations for 2.4 GHz and 5 GHz WiFi.

Troubleshooting

Before contact the service technician, perform the following simple checks. If any program still persists, unplug the TV and calling for serving.

PROBLEM POSSIBLE SOLUTION
No sound and picture	- Check whether the main plug has been connected to a wall outlet.- Check whether you have pressed the POWER button on TV set.- Check the picture contrast and brightness settings.
Normal picture but no sound	- Check the volume.- Sound muted? Press the MUTE button.- Try another channel, the problem may be with the broadcast.- Are the audio cables installed properly?
The remote control does not work	- Check to see if there is any object between the product and remote control causing obstruction.- Are batteries installed with correct polarity (+ to +, - to -)?- Correct remote operating mode set: TV, VCR etc.?- Install new batteries.
Power is suddenly turned off	- Is the sleep timer set?- Check the power control settings. Power interrupted.- No broadcast on station tuned with auto activated.
Picture appears slowly after switching on	- This is normal; the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.
No or poor color or poor picture	- Adjust the color in menu option.- Keep a sufficient distance between the product and the VCR.- Try another channel, the problem may be with the broadcast.- Are the VIDEO cables installed properly?- Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	- Check for local interference such as an electrical appliance or power tool.
The TV is not receiving all channels.	- Confirm that the coaxial cable is securely connected to the TV.- If you are using an antenna, verify it is positioned correctly and if all the connections are secured.
Poor reception on some channels	- Station or cable product experiencing problems. Tune to another station.- Station signal is weak, reorient antenna to receive weaker station.- Check for sources of possible interference.
No output from one of the speakers	- Adjust balance in menu option.
The TV audio is not being played through the receiver.	- Connect an optical cable to the TV and the receiver.- ARC enables digital sound to be outputted via the HDMI (ARC) port. However, ARC is only available when the TV is connected to an audio receiver that supports ARC.
The wireless network connection failed.	- Make sure the Network Connection is set to Wireless.- Make sure the TV is connected to a wireless IP router.
The software update over the Internet has failed.	- Check the network connection status.- If the TV is not connected to a network, connect to a network.- The upgrade stops if you already have the latest software version.
No picture when connecting HDMI	- If an HDMI cable doesn’t support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the screen

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

User information on the disposal of used devices and batteries

Devices that bear this symbol may not be disposed of with household waste. Please inform yourself about suitable recycling centers or systems to dispose of these products

DISPOSAL

The symbol with the crossed-out waste bin requires separate disposal of waste electrical and electronic devices (WEEE). Electrical and electronic devices may contain materials which represent a health and environmental hazard. Do not dispose of this device with unsorted household waste; dispose at a designated collection point for waste electrical and electronic devices. In this way, you will do your part to protect our natural resources and environment. For further information, please contact your retailer or your local authorities.

Please dispose of batteries in an environmentally friendly manner. Do not throw batteries away with household waste. Please use local recycling and collection points or contact the retailer where you purchased the product.

Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

The terms HDMI and High Definiton Multimedia Interface and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the USA and other countries. Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio and the double D symbol are trademarks of Dolby Laboratories.

This product contains free software that is subject to the GNU General Public License (GPL) and/or the GNU Lesser General Public License (LGPL). You may redistribute and/or publish it under the terms of the GNU General Public License or the GNU Lesser General Public License as published by the Free Software Foundation, either according to Version 2 or (at your option) any later version.

This program is published in the hope that it is of use to you but WITHOUT ANY GUARANTEE and especially without the implicit guarantee of BEING READY FOR THE MARKET or USE FOR A CERTAIN PURPOSE. You can find details in the GNU General Public License (GPL) and the GNU Lesser General Public License (LGPL). You can obtain the software from Imtron GmbH's customer service (per email at [e-mail] or via the postal address Imtron GmbH, Wankelstr. 5, 85046 Ingolstadt, Germany). You can download the GNU General Public License (GPL) and the GNU Lesser General Public License (LGPL) at www.gnu.org/licenses/.

This device is suited solely for use in closed spaces. This device may be used in all EU countries.

Imtron GmbH hereby declares that the radio equipment OdppliesUGithBthe EU directive 2014/53/EU. Click on the following link to read the full text of the EU Declaration of Conformity: I UUQ□□□EF□PL□PO□OF□DPN□OD□EF□TVDI F□I UN

6 Te Uhe KinL hUUQT://eQreM.ec.eVrPQa.eV/ UP accetT Uhe EVrPQean QrPEVcU EaUabaTe (E13E-) in which mPre infPrmaUiPn abPVU Uhe QrPEVcU iT TaveE. 5yQe in Uhe E13E- - regiTuraUiPn nVmber 350600, Pr TimQMy Tcan Uhe 2 3 -cPEe Pn Uhe energy MabeV UP accetT Uhe mPEeM infPrmaUiPn.

Avertissement

CHER CLIENT,

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

AVERTISSEMENT :

POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE COUVERCLE (OU LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR À L'INTÉRIEUR. CONFIER L'ENTRETIEN À UN PERSONNEL DE SERVICE QUALIFIÉ.

Cartoon illustration of a smiling computer monitor holding a book titled 'POSTA BANK' (no text on screen or background)

Cartoon illustration of a computer monitor with a sad face and raised fists, surrounded by a brain (no text or symbols)

Cartoon illustration of a computer monitor with a smiling face and a speech bubble, symbolizing online content or media (no text present)

Cartoon illustration of a distressed computer monitor with a fist and alarm, next to an electric fan (no text or symbols)

Illustration of a smiling man presenting to a computer monitor with a power cord (no text or symbols)

Cartoon illustration of a computer monitor with an angry face and lightning bolts, connected to an electrical outlet (no text or symbols)

Cartoon illustration of a smiling computer monitor character with arms and legs, surrounded by clouds and a small battery (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

Cartoon illustration of a smiling computer monitor and a delivery worker holding a box (no text or symbols)

REMARQUE :

Line drawing of a flat-screen TV or screen with no text, numbers, or symbols

Cartoon illustration of a smiling computer monitor holding a book and a document (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and raised arms, surrounded by abstract brain-like shapes (no text or symbols)

Cartoon illustration of a computer monitor with a smiling face and a falling object, no text or symbols present.

Cartoon illustration of a computer monitor with a sad face and two characters reacting to it, next to a refrigerator (no text or symbols present)

Cartoon illustration of a man standing beside a smiling computer monitor with a smiley face, holding an electrical plug (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and electrical plug, showing stress or shock (no text or symbols)

Cartoon illustration of a smiling computer monitor character with arms and legs, surrounded by clouds and industrial equipment (no text or symbols)

Symbolic icon of a person using a ladder to lift a vehicle, enclosed in a circle with diagonal lines (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker holding a toolbox (no text or symbols)

MEGJEGYZÉS

Line drawing of a flat-screen TV or screen with no text, numbers, or symbols

Cartoon illustration of a smiling computer monitor holding a book titled 'OPTIONAL BANK' (no text on screen or background)

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online content (no text or symbols present)

Illustration of a smiling man presenting to a computer monitor with a cable, no text or symbols present

Cartoon illustration of a computer monitor with a sad face and raised arms, surrounded by a brain (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and Chinese characters, accompanied by an electric fan (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and lightning bolts, connected to a power outlet (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by lightning, smoke, and a small battery (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker holding a toolbox (no text or symbols)

OPMERKING:

Line drawing of a flat-screen monitor with two side legs and a central stand (no text or symbols)

PROGRAMME GUIDE (PROGRAMMA GIDS) (In DTV mode)

Cartoon illustration of a smiling computer monitor holding a book titled 'POSTAL Books' (no text on monitor or background)

Cartoon illustration of a computer monitor celebrating with a bandaged face and a money bag (no text or symbols)

Cartoon illustration of a smiling man standing beside a computer monitor with an electrical plug (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and wings, surrounded by hands and a bird (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and a fist, accompanied by a printer (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and electrical plug, showing stress or shock (no text or symbols)

Cartoon illustration of a smiling computer monitor with hands and lightning bolts, surrounded by clouds and industrial equipment (no text or symbols)

Symbolic icon of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Cartoon illustration of a smiling computer monitor and a worker holding a box (no text or symbols)

UWAGA:

Front view of a flat-screen TV or screen with two legs and a central vertical line (no text or symbols)
